Samsung MG11H2020CT/AA-00 Parts List

1

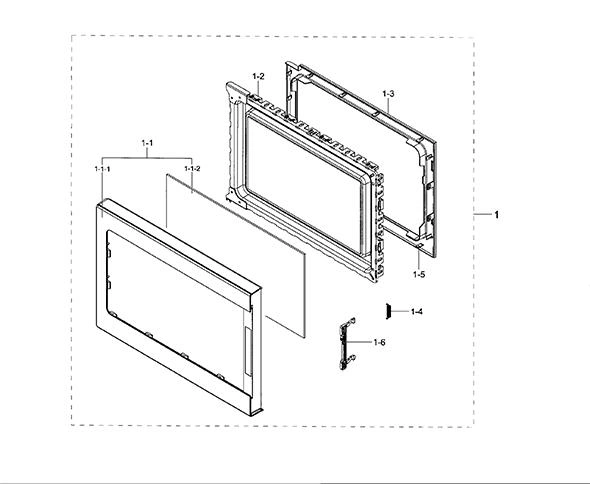

DE94-02808C Samsung Door Assembly for AGE1103 Backorder SMG DE94-02808C $147.77

View on Model

1

Control Board SMG DE94-02810P Contact Us For Availability

View on Model

1-1

DE94-02809B Samsung Door Assembly Backorder SMG DE94-02809B $128.63

View on Model

1-1

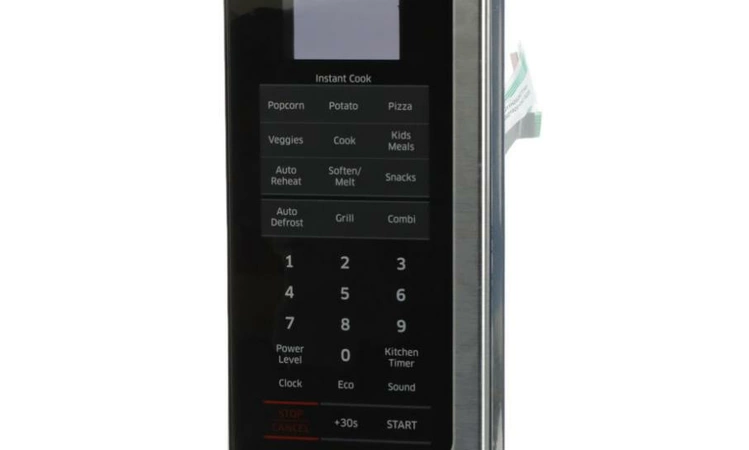

DE94-02811P Samsung Control Panel Assembly Backorder SMG DE94-02811P $128.35

View on Model

1-2

DE92-03688G Samsung Main Printed Circuit Boar Backorder SMG DE92-03688G $143.50

View on Model

1-2

DE94-00910P Samsung Assembly Door E-Coating Backorder SMG DE94-00910P $77.41

View on Model

1-3

DE01-00118C Samsung Door Film Backorder SMG DE01-00118C $26.54

View on Model

1-4

DE61-70128A Samsung Key Spring Backorder SMG DE61-70128A $1.00

View on Model

1-5

DE64-02428A Samsung Door C Assembly Backorder SMG DE64-02428A $19.92

View on Model

1-6

DE64-40006F Samsung Key Door MW7897G POM (F20 Backorder SMG DE64-40006F $15.38

View on Model

1-11

DE61-70076A Samsung Spring Button Backorder SMG DE61-70076A $13.12

View on Model

1-11

Inlay SMG DE64-02563A Contact Us For Availability

View on Model

1-12

Control SMG DE64-02558C Contact Us For Availability

View on Model

1-13

Push Button SMG DE94-02812A Contact Us For Availability

View on Model

1-14

DE64-02564A Samsung Inlay Panel Backorder SMG DE64-02564A $36.63

View on Model

1-15

DE64-01986A Samsung Window Display Backorder SMG DE64-01986A $10.87

View on Model

1-16

DE34-00397N Samsung Membrane Switch Backorder SMG DE34-00397N $81.39

View on Model

8

DE67-00181A Samsung Coupler Backorder SMG DE67-00181A $10.87

View on Model

10

DE96-00400A Samsung Microwave Oven Noise Filt Backorder SMG DE96-00400A $59.99

View on Model

13-1

DE72-00138B Samsung Latch Body NC2000 (0.6/0. Backorder SMG DE72-00138B $7.99

View on Model

13-2

3405-001033 Samsung Whirlpool Microwave Oven In Stock SMG 3405-001033 $10.87

View on Model

13-3

3405-001034 Samsung Microwave Oven Range Micr In Stock SMG 3405-001034 $8.59

View on Model

13-4

DE66-00088B Samsung Lever Switch Backorder SMG DE66-00088B $1.08

View on Model

14-2

DE74-20015G Samsung Glass Cooking Tray Backorder SMG DE74-20015G $53.44

View on Model

16

DE64-01161Y Samsung Outer Panel Backorder SMG DE64-01161Y $99.00

View on Model

17

Base Assembly SMG DE96-00294T Contact Us For Availability

View on Model

17-1

Samsung Assy Base Pl SMG DE96-00589A Contact Us For Availability

View on Model

17-2

DE61-50106A Samsung Bracket HVC Backorder SMG DE61-50106A $1.81

View on Model

17-3

2501-001011 Samsung Microwave High Voltage Ca In Stock SMG 2501-001011 $61.04

View on Model

17-4

DE59-00002A Samsung Microwave High Voltage Di In Stock SMG DE59-00002A $14.03

View on Model

18

Motor SMG DE96-00305J Contact Us For Availability

View on Model

18-1

DE31-00046B Samsung Microwave Oven Ventilatio Backorder SMG DE31-00046B $83.89

View on Model

18-2

DE31-00063A Samsung Fan Blade Assembly Backorder SMG DE31-00063A $12.66

View on Model

18-3

DE71-00061A Samsung Motor Cover Backorder SMG DE71-00061A $10.87

View on Model

19

Microwave Magnetron SMG OM75P31ESGN Contact Us For Availability

View on Model

20

DE96-00379K Samsung Power Cord SJT 3X14AWG 10 Backorder SMG DE96-00379K $65.44

View on Model

22

Samsung Harness SMG DE96-00422E Contact Us For Availability

View on Model

23

DE47-20032B Samsung Thermostat Assembly Backorder SMG DE47-20032B $13.12

View on Model

24

4713-001102 Samsung Microwave Incandescent La Backorder SMG 4713-001102 $12.66

View on Model

25

DE26-00129B Samsung HV Transformer Backorder SMG DE26-00129B $153.46

View on Model

26

DE31-10154D Samsung Turntable Drive Motor Backorder SMG DE31-10154D $41.05

View on Model

27

DE47-20009A Samsung Thermostat Backorder SMG DE47-20009A $13.57

View on Model

28

Samsung Cover SMG DE71-60453A Contact Us For Availability

View on Model

29

Samsung Bracket SMG DE94-02817D Contact Us For Availability

View on Model

29-1

Bracket SMG DE61-01509A Contact Us For Availability

View on Model

30

DE61-30006A Samsung Support Heater Backorder SMG DE61-30006A $6.79

View on Model

1131

DE64-02562A Samsung Inlay Button Backorder SMG DE64-02562A $15.38

View on Model

1431

DE92-90534B Samsung Broiler Tray Assembly Backorder SMG DE92-90534B $147.77

View on Model

1432

DE97-00136E Samsung Rack Wire Assembly Backorder SMG DE97-00136E $55.95

View on Model

1433

Cushion SMG DE69-00648A Contact Us For Availability

View on Model

1711

Base Plate SMG DE61-00898A Contact Us For Availability

View on Model

NI

Owner's Manual SMG DE68-04270A Contact Us For Availability

View on Model
