Bosch HGS7282UC/03 Range Oven Parts List

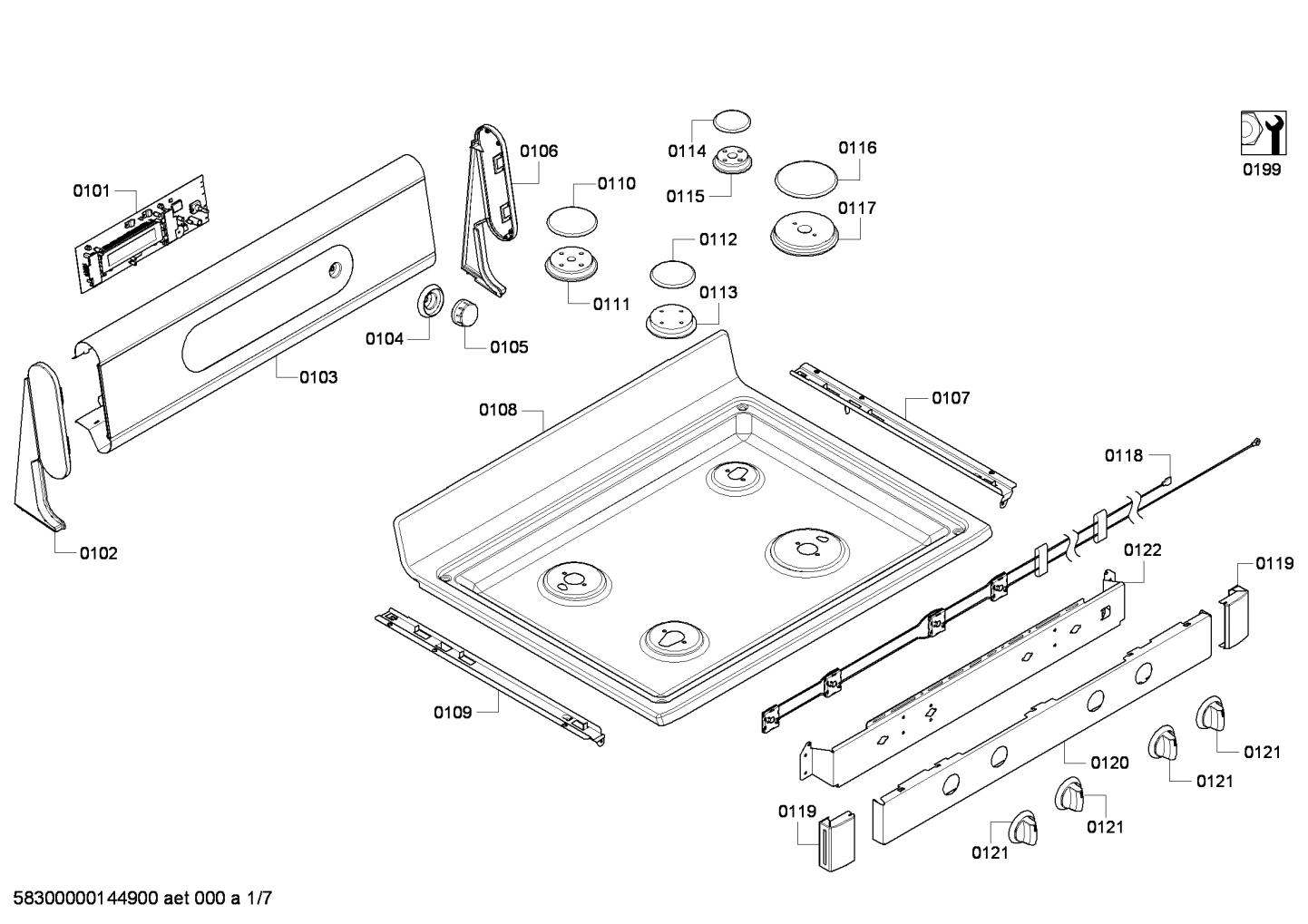

0104

00630686 Bosch Range Ring Backorder BOS 00630686 $53.07

View on Model

0105

00630685 Bosch Range Knob Backorder BOS 00630685 $47.58

View on Model

0108

Hob top BOS 00472272 Contact Us For Availability

View on Model

0110

Burner Cap BOS 00426054 No Longer Available

View on Model

0111

Burner housing BOS 00423444 No Longer Available

View on Model

0112

Burner cap BOS 00426055 Contact Us For Availability

View on Model

0113

00423446 Bosch Range Burner Housing In Stock BOS 00423446 $41.18

View on Model

0114

Cap BOS 00603882 Contact Us For Availability

View on Model

0115

00423442 Bosch Range Burner Housing In Stock BOS 00423442 $40.26

View on Model

0116

Burner Cap BOS 00426056 Contact Us For Availability

View on Model

0118

Cable harness BOS 00603883 No Longer Available

View on Model

0119

Frame-decor BOS 00436666 Contact Us For Availability

View on Model

0120

Panel BOS 00449958 Contact Us For Availability

View on Model

0152

Cable harness BOS 00499784 Contact Us For Availability

View on Model

0157

Wire BOS 00663803 Contact Us For Availability

View on Model

0159

Filter BOS 00622395 Contact Us For Availability

View on Model

0160

00423478 Bosch Range Screw In Stock BOS 00423478 $2.75

View on Model

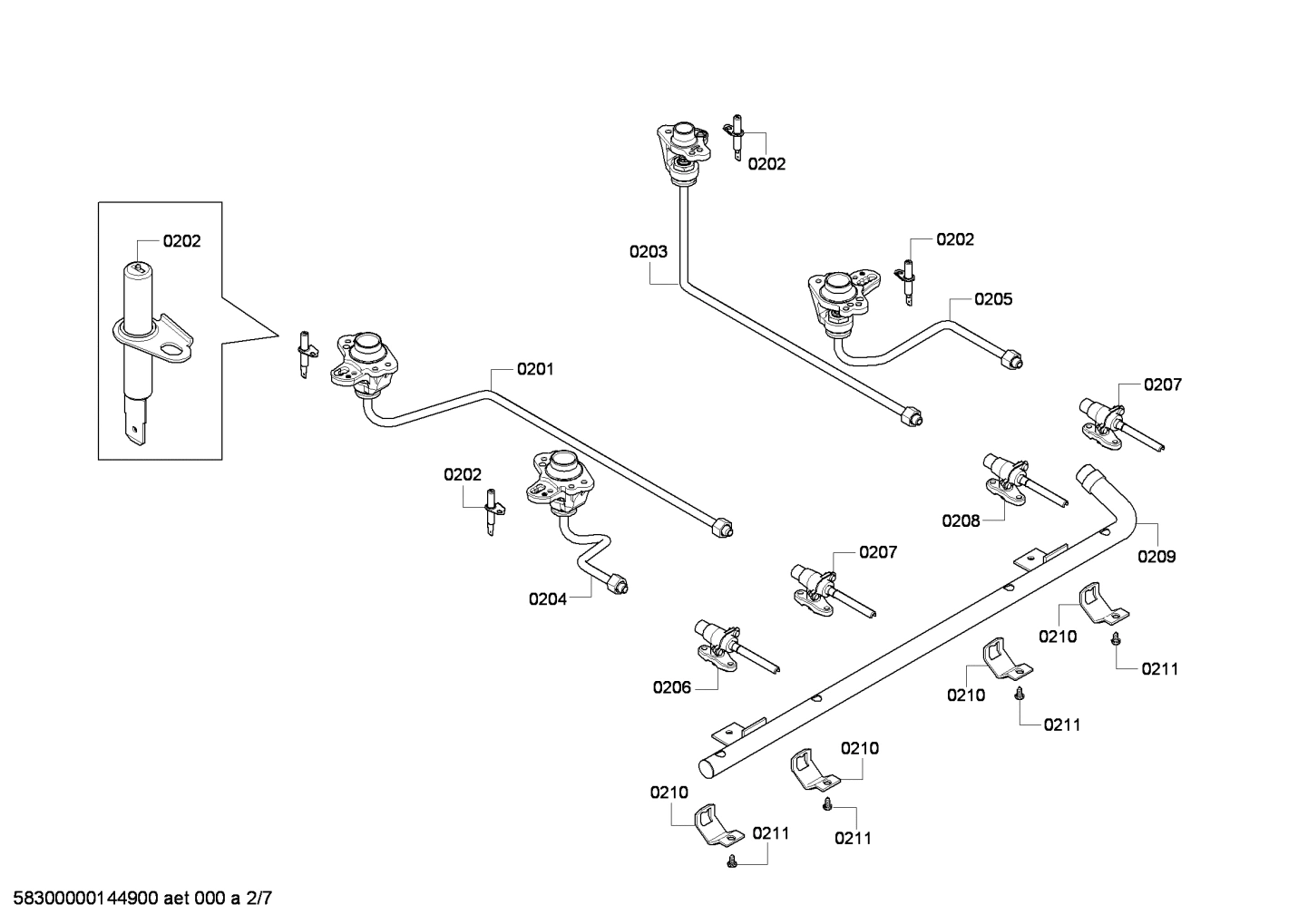

0201

00423486 Bosch Range Holder Backorder BOS 00423486 $48.50

View on Model

0202

00603506 Bosch Range Electrode In Stock BOS 00603506 $19.22

View on Model

0203

00423487 Bosch Range Holder Backorder BOS 00423487 $48.50

View on Model

0204

00423485 Bosch Range Holder Backorder BOS 00423485 $49.41

View on Model

0205

00499674 Bosch Range Holder In Stock BOS 00499674 $57.92

View on Model

0206

00492444 Bosch Range Valve Backorder BOS 00492444 $39.35

View on Model

0207

00603716 Bosch Range Valve In Stock BOS 00603716 $134.39

View on Model

0208

00492443 Bosch Range Valve In Stock BOS 00492443 $24.71

View on Model

0211

00619838 Bosch Oven Screw In Stock BOS 00619838 $10.07

View on Model

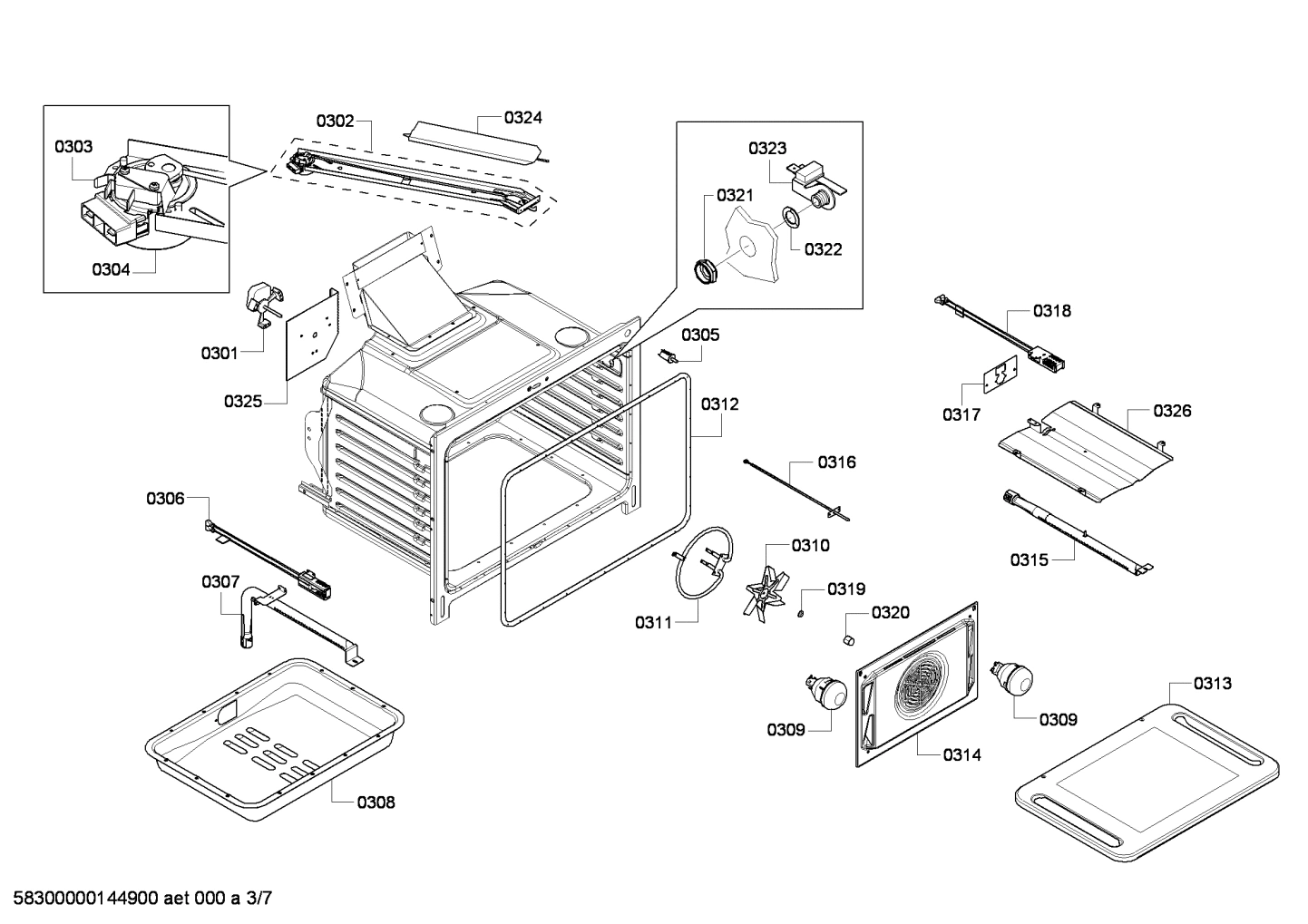

0301

Motor BOS 00491576 Contact Us For Availability

View on Model

0302

00746648 Bosch Range Latch Backorder BOS 00746648 $105.89

View on Model

0303

Switch BOS 00604808 No Longer Available

View on Model

0305

Switch BOS 00603747 No Longer Available

View on Model

0306

00492431 Bosch Oven Ignition Device In Stock BOS 00492431 $117.48

View on Model

0307

00437801 Bosch Range Burner Backorder BOS 00437801 $49.41

View on Model

0309

Oven Lamp Assembly BOS 00415045 No Longer Available

View on Model

0310

00491577 Bosch Oven Fan Blade Backorder BOS 00491577 $27.45

View on Model

0311

00448690 Bosch Range Heating Element Backorder BOS 00448690 $66.07

View on Model

0312

00491569 Bosch Oven Door Seal In Stock BOS 00491569 $76.02

View on Model

0315

00641011 Bosch Range Burner Backorder BOS 00641011 $143.29

View on Model

0316

00422089 Bosch Range Sensor Backorder BOS 00422089 $53.99

View on Model

0317

00492430 Bosch Range Bracket Backorder BOS 00492430 $11.90

View on Model

0318

00492429 Bosch Range Ignition Device In Stock BOS 00492429 $110.36

View on Model

0319

Washer BOS 00422090 Contact Us For Availability

View on Model

0320

00471532 Bosch Oven Nut Backorder BOS 00471532 $9.15

View on Model

0322

00605039 Bosch Oven Washer Backorder BOS 00605039 $10.98

View on Model

0323

Socket BOS 10007567 Contact Us For Availability

View on Model

0326

00666723 Bosch Range Distributor Backorder BOS 00666723 $53.99

View on Model

0350

Cable harness BOS 00650791 Contact Us For Availability

View on Model

0352

00623710 Bosch Oven Lamp In Stock BOS 00623710 $4.58

View on Model

0353

00414513 Bosch Oven Lens In Stock BOS 00414513 $18.30

View on Model

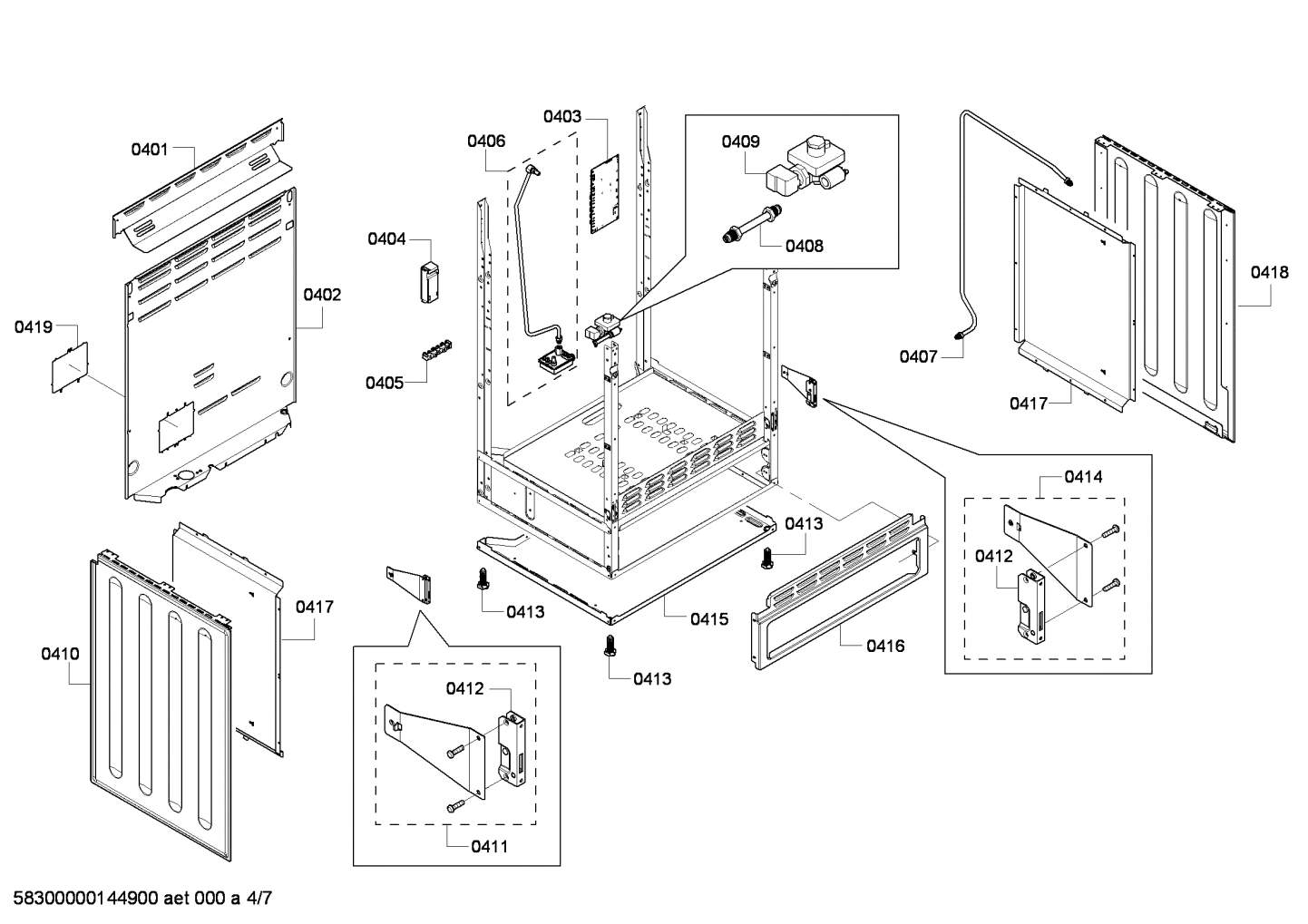

0405

00436364 Bosch Oven Terminal Box In Stock BOS 00436364 $27.45

View on Model

0407

Tube BOS 00499655 Contact Us For Availability

View on Model

0408

Tube BOS 00423447 Contact Us For Availability

View on Model

0411

Hinge-plate BOS 00491539 No Longer Available

View on Model

0412

Hinge-window BOS 00492295 No Longer Available

View on Model

0413

00429065 Bosch Range Foot In Stock BOS 00429065 $24.71

View on Model

0414

Hinge-plate BOS 00491538 No Longer Available

View on Model

0417

Panel BOS 00422024 Contact Us For Availability

View on Model

0452

00497510 Bosch Range Power Cord Backorder BOS 00497510 $54.30

View on Model

0454

Screw BOS 00421506 Contact Us For Availability

View on Model

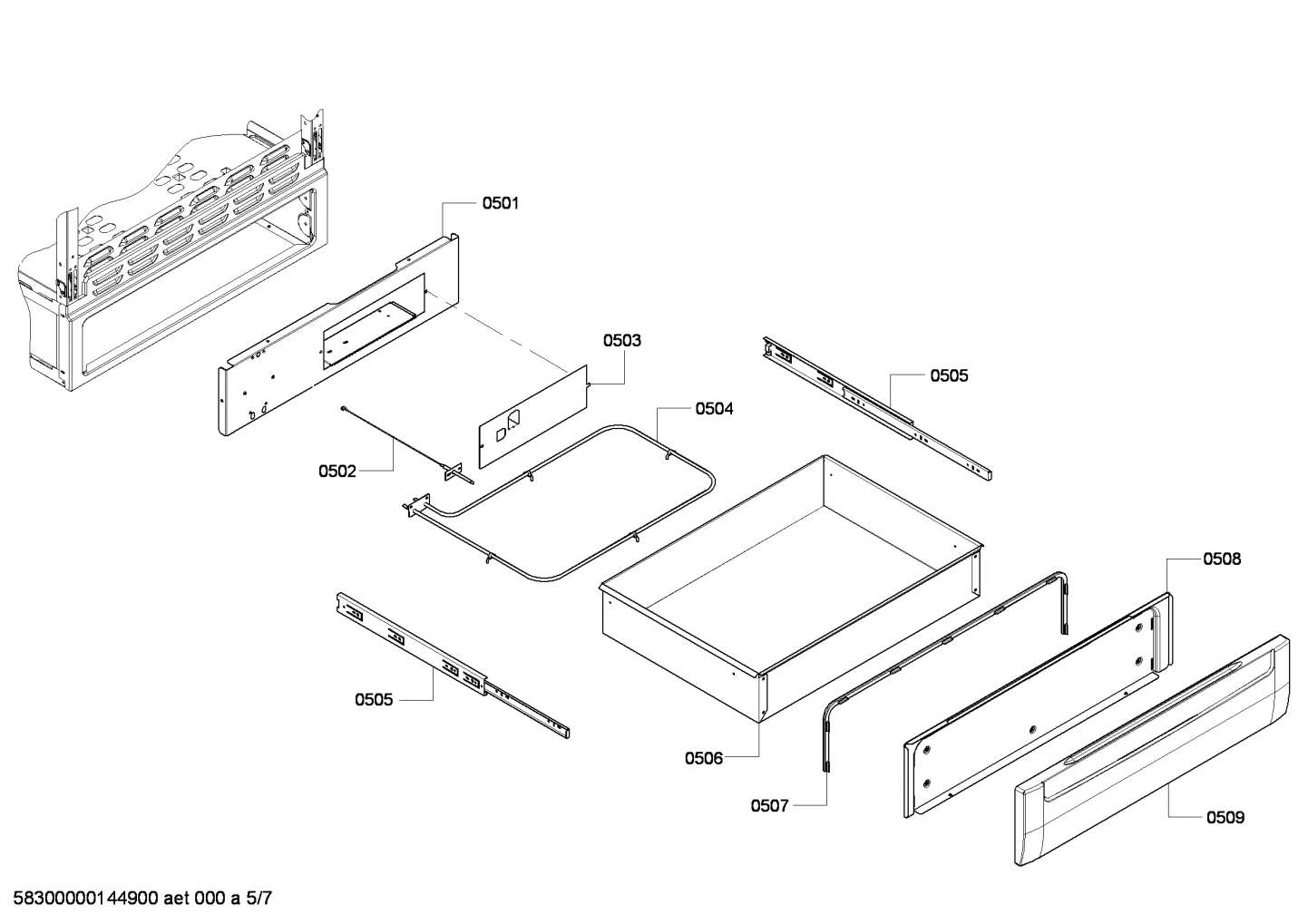

0502

Sensor BOS 00619630 Contact Us For Availability

View on Model

0504

Heating element BOS 00491787 Contact Us For Availability

View on Model

0505

Slide BOS 00440843 Contact Us For Availability

View on Model

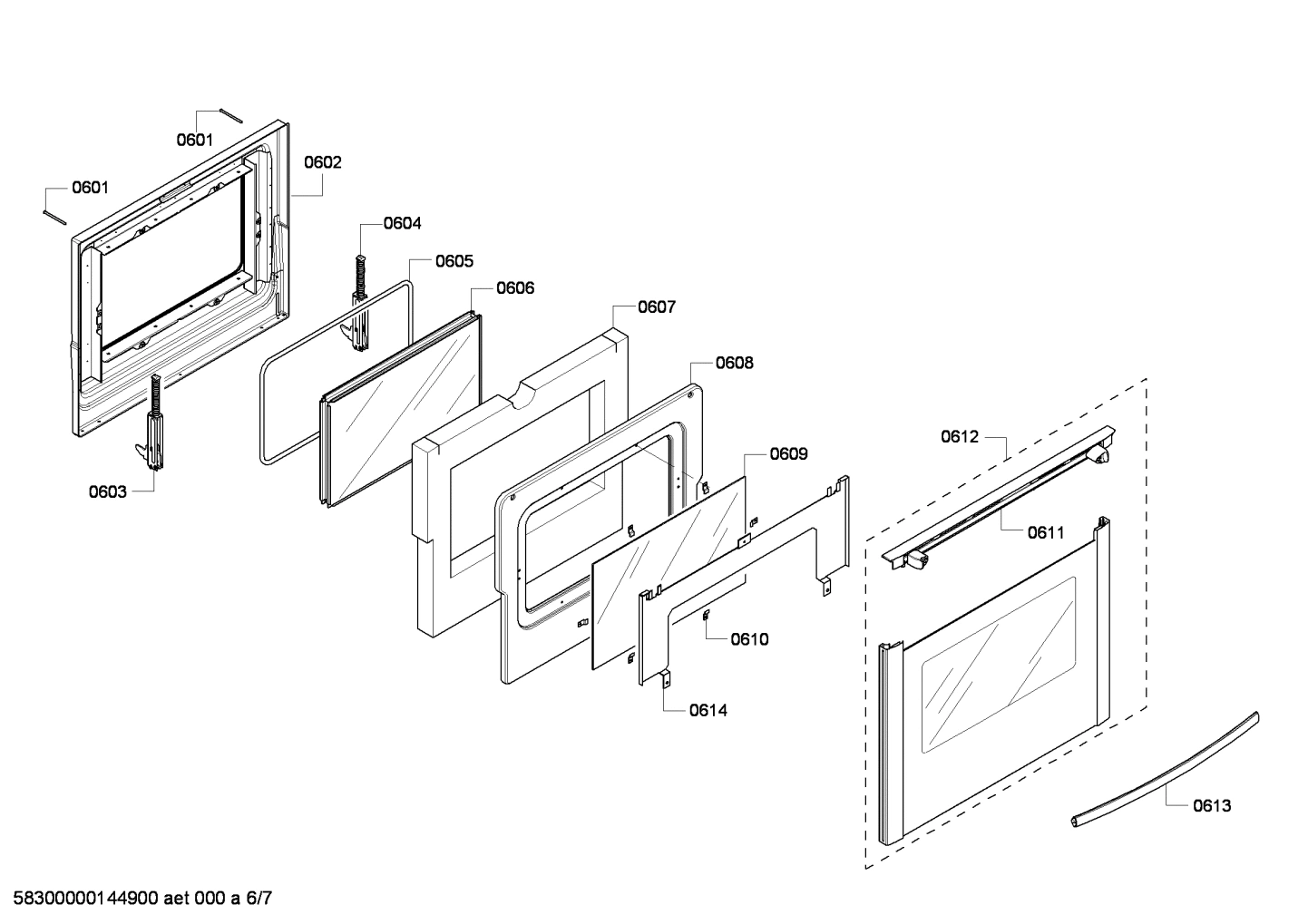

0601

Screw BOS 00606952 Contact Us For Availability

View on Model

0602

Door-inner BOS 00683705 Contact Us For Availability

View on Model

0605

Sealing BOS 00491899 Contact Us For Availability

View on Model

0606

00436379 Bosch Range Front Glass Panel Backorder BOS 00436379 $175.33

View on Model

0607

Insulating part BOS 00143678 Contact Us For Availability

View on Model

0608

Heat shield BOS 00676010 Contact Us For Availability

View on Model

0609

Glass panel BOS 00665308 Contact Us For Availability

View on Model

0611

Trimplate BOS 00449874 Contact Us For Availability

View on Model

0613

Handle-door BOS 00436646 Contact Us For Availability

View on Model

0651

Screw BOS 00422137 Contact Us For Availability

View on Model

0652

00620814 Bosch Oven Screw Backorder BOS 00620814 $21.96

View on Model

0653

00687665 Bosch Range Fixing Kit Backorder BOS 00687665 $431.59

View on Model

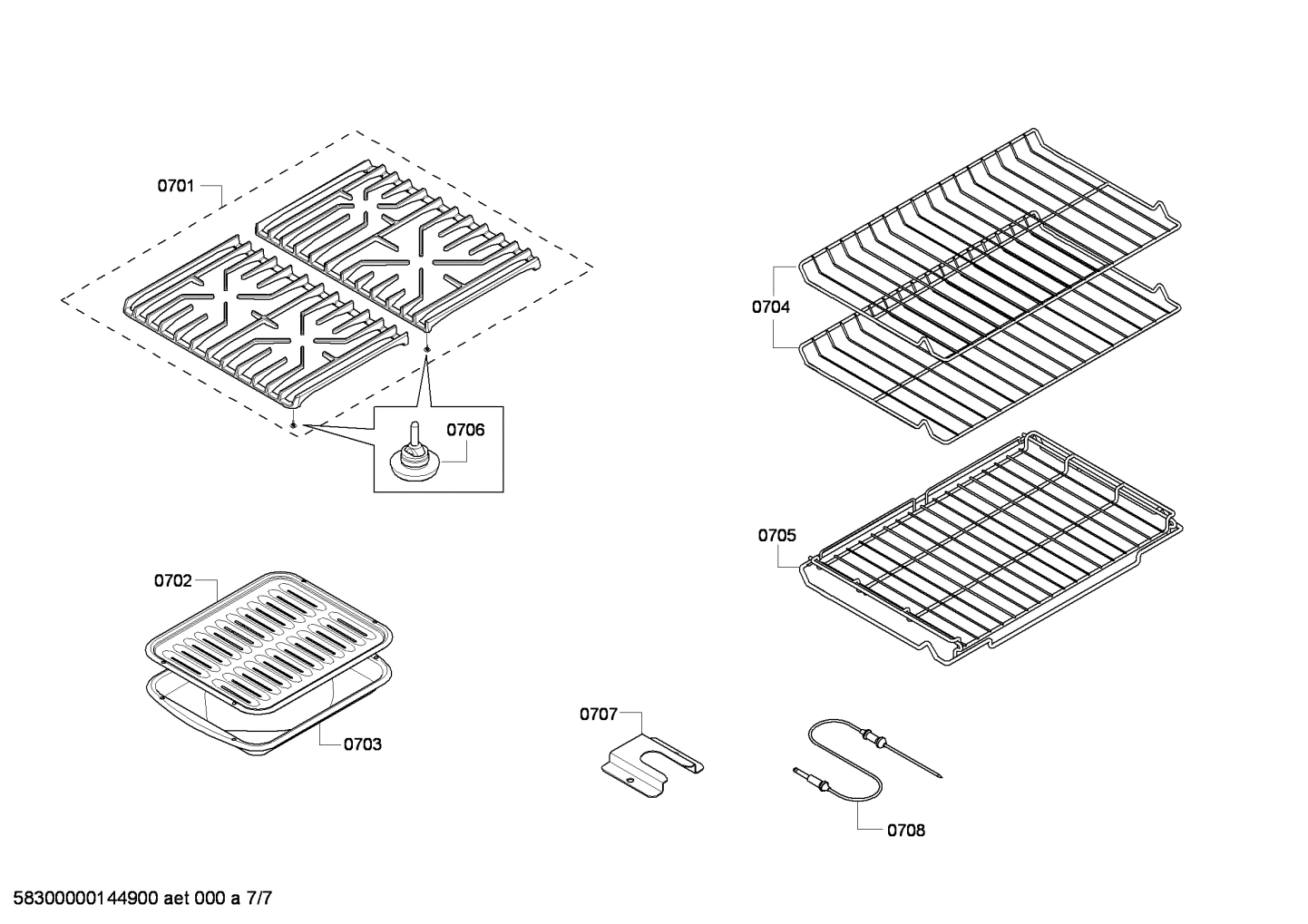

0701

Grill grid BOS 00701368 Contact Us For Availability

View on Model

0702

Broiler Pan BOS 00449756 Contact Us For Availability

View on Model

0704

Shelf BOS 00144416 Contact Us For Availability

View on Model

0705

Grille BOS 00438086 Contact Us For Availability

View on Model

0706

00416438 Bosch Oven Leg In Stock BOS 00416438 $5.49

View on Model

0707

Bracket BOS 00625466 Contact Us For Availability

View on Model

0708

00755060 Bosch Oven Sensor In Stock BOS 00755060 $85.07

View on Model
