Model Bosch HES7252U/03 Range Oven – Common Parts & Diagrams

0102
Cap
Cap BOS 00422365 Contact Us For Availability
View on Model
0106
Cap
Cap BOS 00422366 Contact Us For Availability
View on Model
0113
Spring
Spring BOS 00424321 Contact Us For Availability
View on Model
0115
Hilight hotplate
Hilight hotplate BOS 00416306 Contact Us For Availability
View on Model
0117
Hilight hotplate
Hilight hotplate BOS 00491270 Contact Us For Availability
View on Model
0118
Frame-decor
Frame-decor BOS 00436666 Contact Us For Availability
View on Model
0154
Cable harness
Cable harness BOS 00499773 Contact Us For Availability
View on Model
0203
Switch
Switch BOS 00604808 No Longer Available
View on Model
0206
Motor
Motor BOS 00491576 Contact Us For Availability
View on Model
0211
Switch
Switch BOS 00603747 No Longer Available
View on Model
0216
Washer
Washer BOS 00422090 Contact Us For Availability
View on Model
0218
Oven Lamp Assembly
Oven Lamp Assembly BOS 00415045 No Longer Available
View on Model
0222
Socket
Socket BOS 10007567 Contact Us For Availability
View on Model
0250
Cable harness
Cable harness BOS 00650791 Contact Us For Availability
View on Model

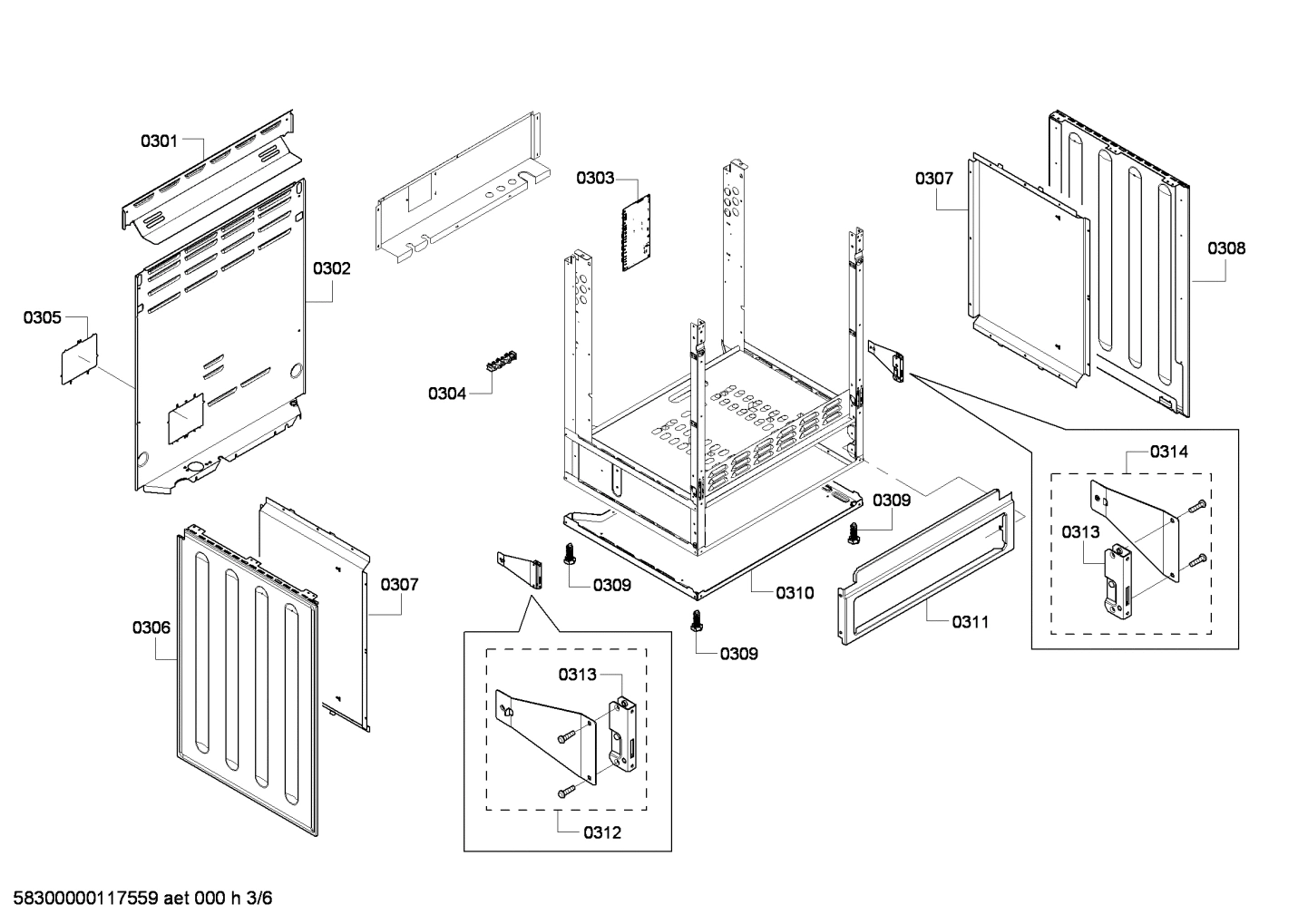

0307
Panel
Panel BOS 00422024 Contact Us For Availability
View on Model
0312
Hinge-plate
Hinge-plate BOS 00491539 No Longer Available
View on Model
0313
Hinge-window
Hinge-window BOS 00492295 No Longer Available
View on Model
0314
Hinge-plate
Hinge-plate BOS 00491538 No Longer Available
View on Model
0351
Terminal
Terminal BOS 00424823 Contact Us For Availability
View on Model
0352
Wire
Wire BOS 00663803 Contact Us For Availability
View on Model

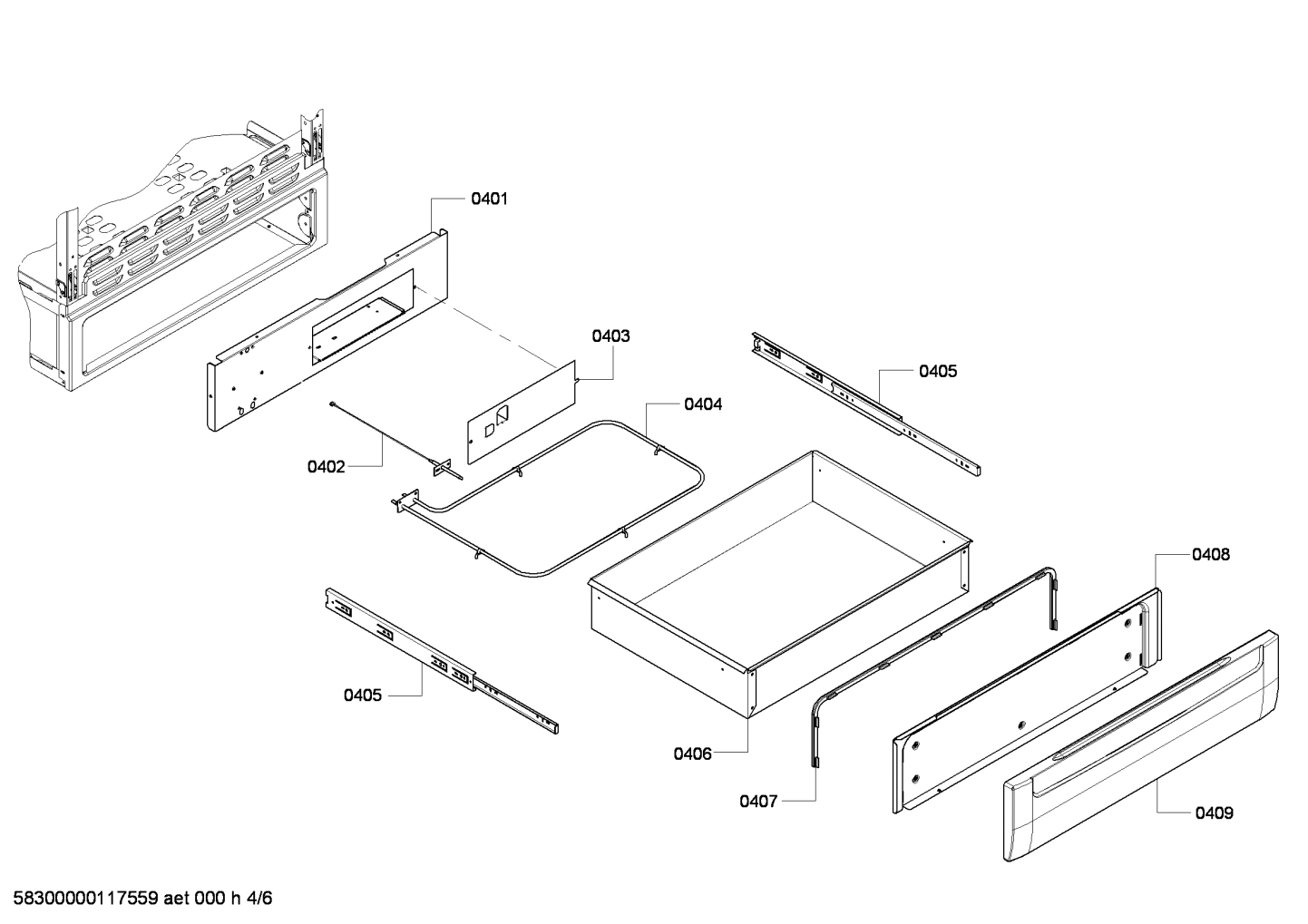

0402
Sensor
Sensor BOS 00619630 Contact Us For Availability
View on Model
0404
Heating element
Heating element BOS 00491787 Contact Us For Availability
View on Model
0405
Slide
Slide BOS 00440843 Contact Us For Availability
View on Model

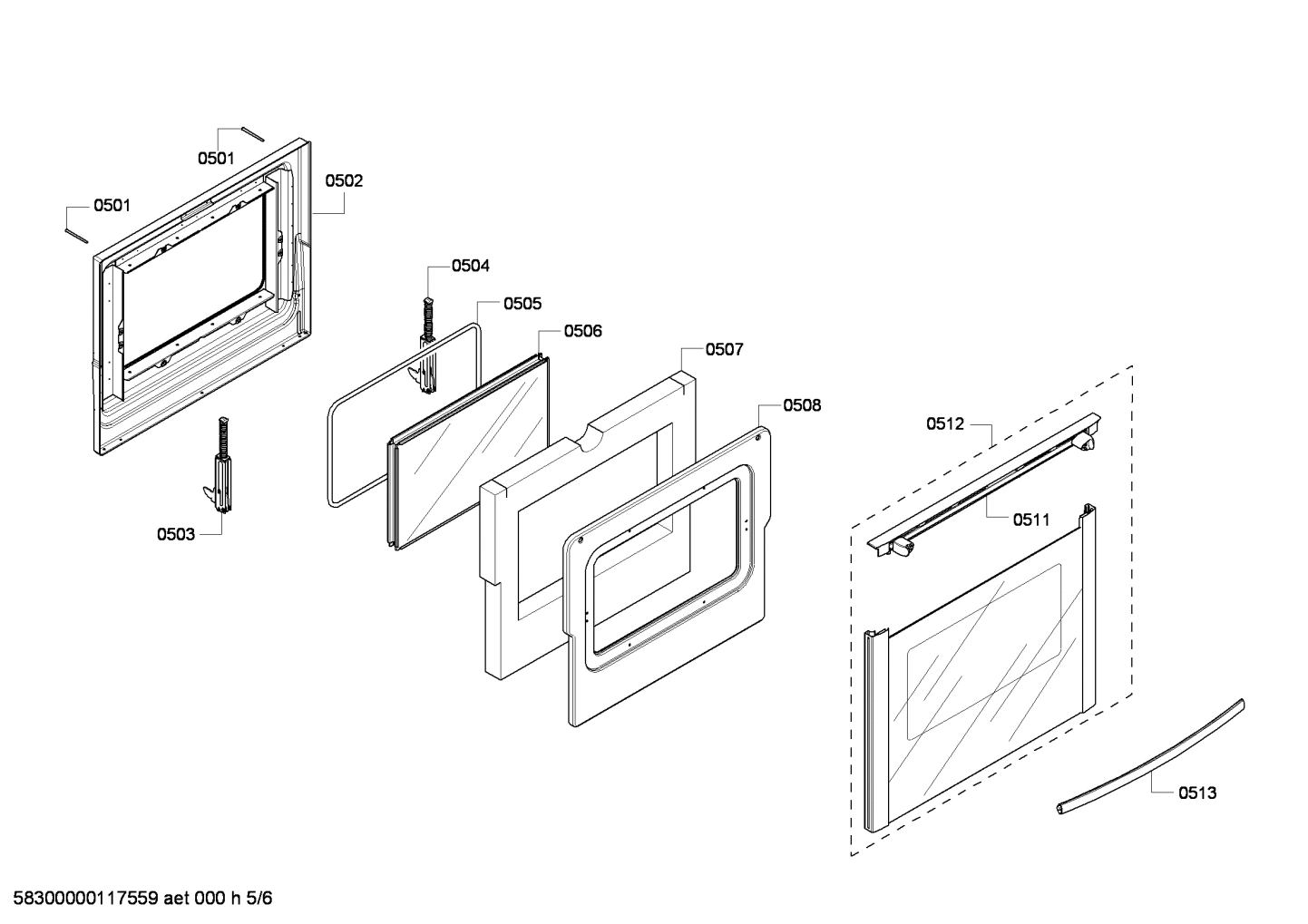

0501
Screw
Screw BOS 00606952 Contact Us For Availability
View on Model
0502
Door-inner
Door-inner BOS 00683705 Contact Us For Availability
View on Model
0505
Sealing
Sealing BOS 00491899 Contact Us For Availability
View on Model
0507
Insulating part
Insulating part BOS 00143678 Contact Us For Availability
View on Model
0508
Heat shield
Heat shield BOS 00676010 Contact Us For Availability
View on Model
0511
Trimplate
Trimplate BOS 00449874 Contact Us For Availability
View on Model
0513
Handle-door
Handle-door BOS 00436646 Contact Us For Availability
View on Model
0551
Screw
Screw BOS 00422137 Contact Us For Availability
View on Model

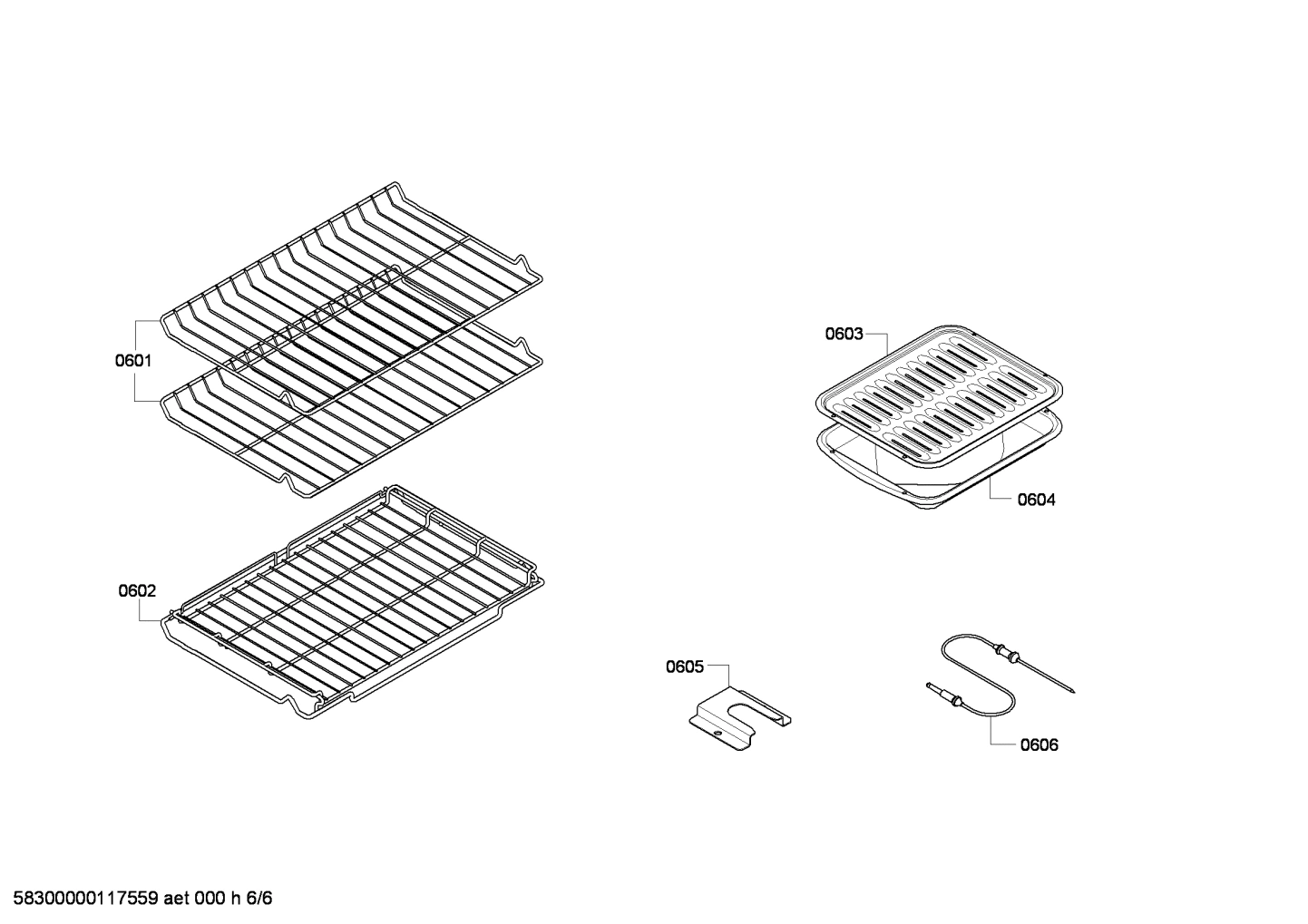

0601
Shelf
Shelf BOS 00144416 Contact Us For Availability
View on Model
0602
Grille
Grille BOS 00438086 Contact Us For Availability
View on Model
0603
Broiler Pan
Broiler Pan BOS 00449756 Contact Us For Availability
View on Model
0605
Bracket
Bracket BOS 00625466 Contact Us For Availability
View on Model
