Model Bosch HES7022U/01 Range Oven – Common Parts & Diagrams

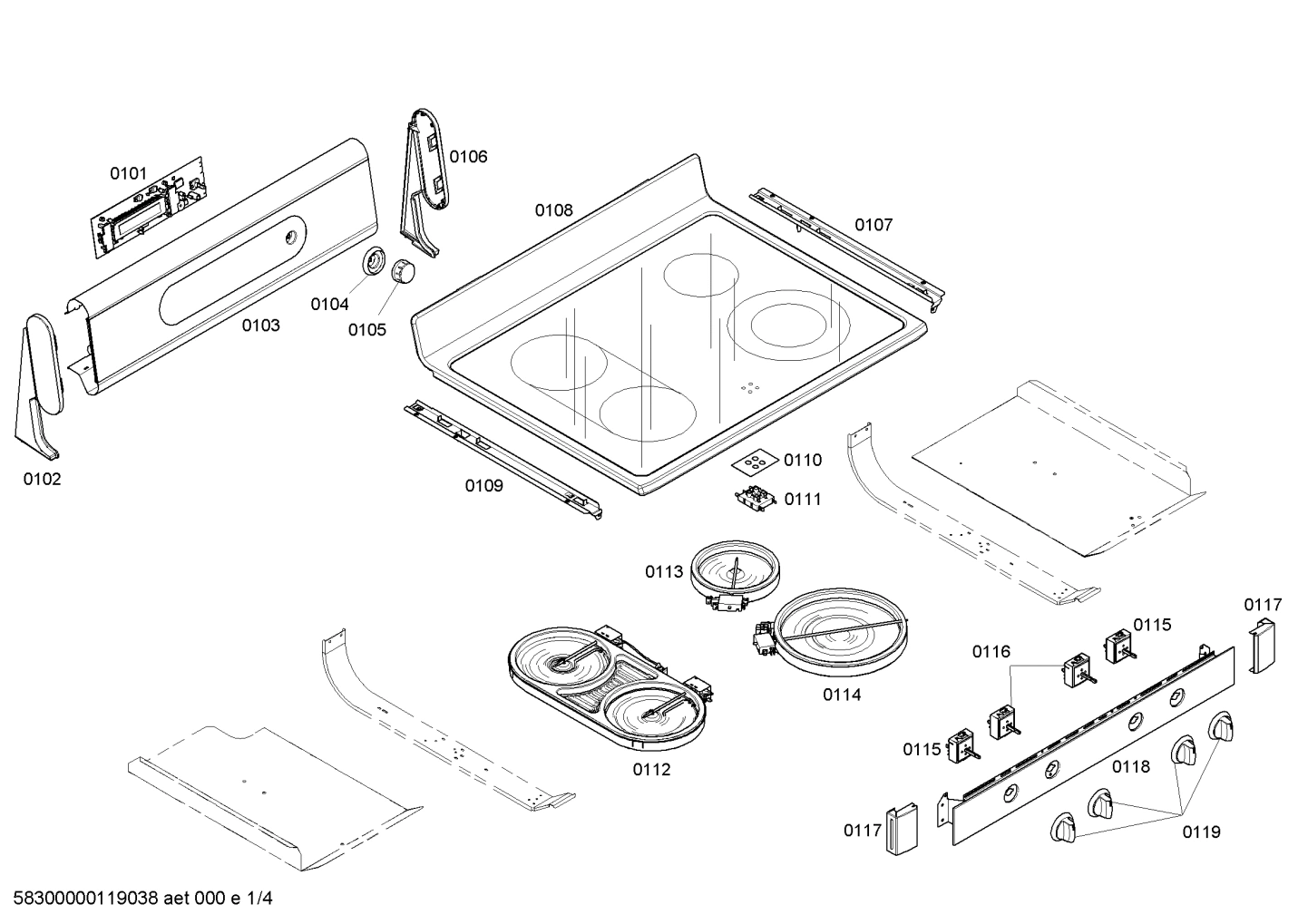

Diagram 1

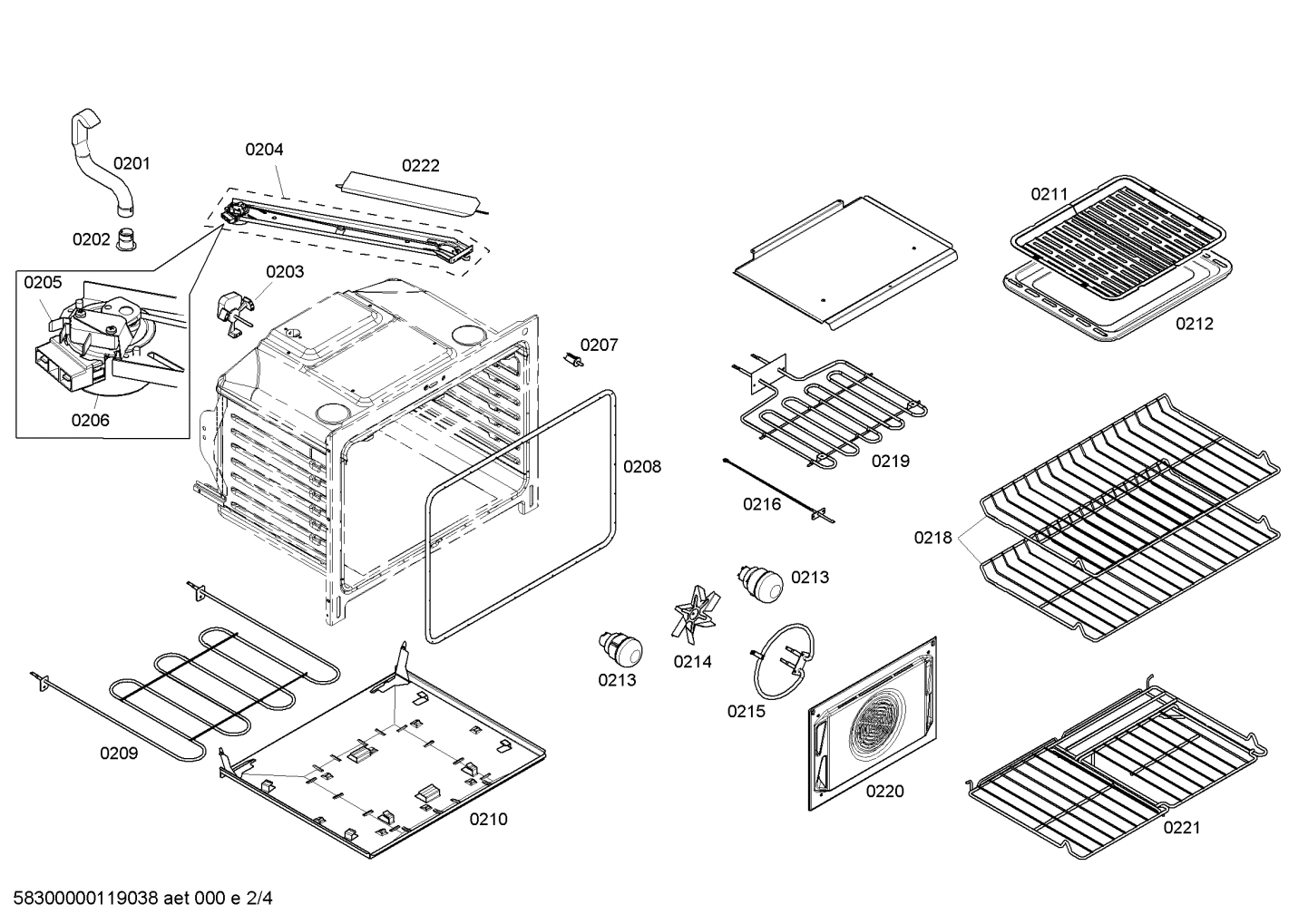

Diagram 2

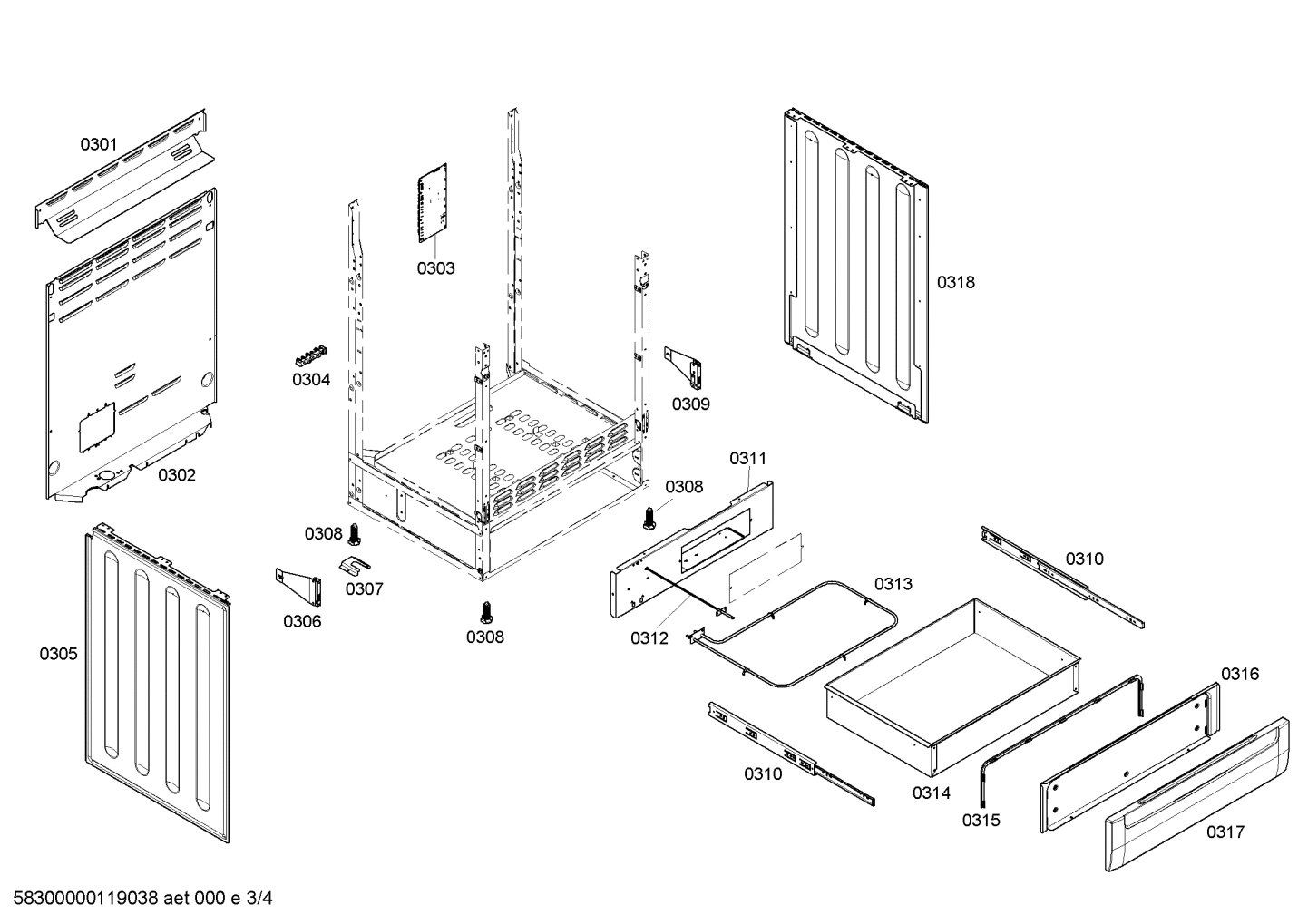

Diagram 3

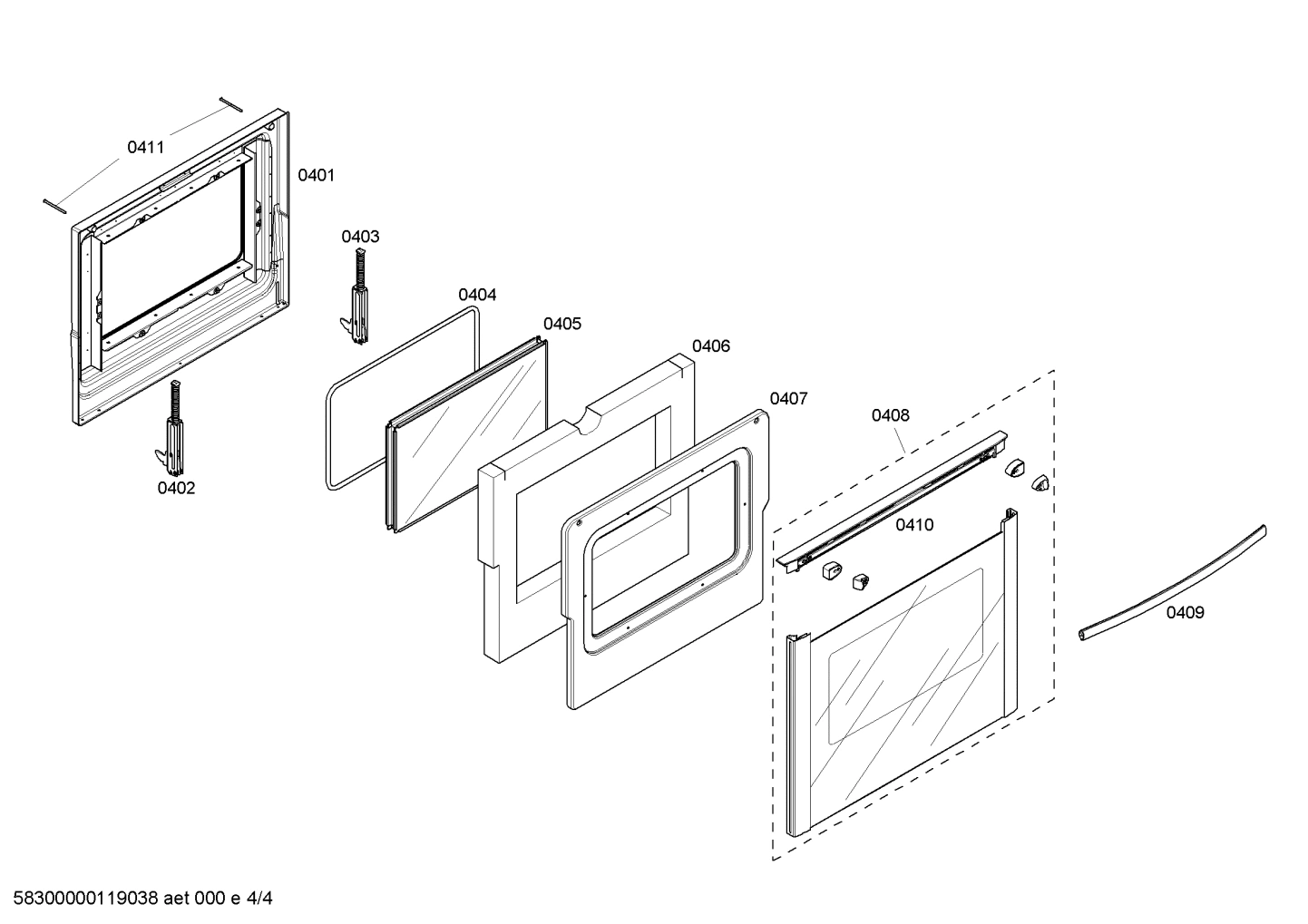

Diagram 4
Common parts from model Bosch HES7022U/01 Range Oven
0101
Display module BOS 00653424 Contact Us For Availability
0103
Panel BOS 00686202 Contact Us For Availability
0105
Knob-programme BOS 00422094 Contact Us For Availability
0106
Frame-decor BOS 00422093 Contact Us For Availability
0114
Hilight hotplate BOS 00445258 Contact Us For Availability
0117
Frame-decor BOS 00436375 Contact Us For Availability
0152
Cable harness BOS 00499749 Contact Us For Availability
0153
Cable harness BOS 00499773 Contact Us For Availability
0158
Filter BOS 00622395 Contact Us For Availability
0203
Motor BOS 00491576 Contact Us For Availability
0205
Switch BOS 00604808 Contact Us For Availability
0206
Motor BOS 00604807 Contact Us For Availability
0207
Switch BOS 00603747 No Longer Available
0209
Burner BOS 00491571 Contact Us For Availability
0211
Grill tray BOS 00449756 Contact Us For Availability
0212
Universal pan BOS 00449757 Contact Us For Availability
0213
Lamp BOS 00415045 No Longer Available
0218
Shelf BOS 00144416 Contact Us For Availability
0219
Heating element BOS 00144417 Contact Us For Availability
0303
Power module BOS 00657860 Contact Us For Availability
0306
Hinge-plate BOS 00491539 No Longer Available
0309
Hinge-plate BOS 00491538 No Longer Available
0310
Slide BOS 00440843 Contact Us For Availability
0313
Heating element BOS 00491787 Contact Us For Availability
0315
Sealing BOS 00436639 Contact Us For Availability
0401
Door-inner BOS 00683705 Contact Us For Availability
0404
Sealing BOS 00491899 Contact Us For Availability
0406
Insulating part BOS 00143678 Contact Us For Availability
0408
Door-outer BOS 00449969 Contact Us For Availability
0409
Handle-door BOS 00436378 Contact Us For Availability
0411
Screw BOS 00607316 No Longer Available
× ![]()
