Model Bosch HES3052U/01 Range Oven – Common Parts & Diagrams

Common parts from model Bosch HES3052U/01 Range Oven

Diagram 1

Print

• This Diagram
• All Diagrams

0102

00422365 Bosch Range Cap Backorder BOS 00422365 View Details $25.60

View on Model

0103

00686208 Bosch Range Panel Backorder BOS 00686208 View Details $457.58

View on Model

0104

00630686 Bosch Range Ring Backorder BOS 00630686 View Details $53.05

View on Model

0105

Knob-programme BOS 00422367 Contact Us For Availability

View on Model

0106

00422366 Bosch Range Cap Backorder BOS 00422366 View Details $40.24

View on Model

0110

00422109 Bosch Range Lamp Backorder BOS 00422109 View Details $61.52

View on Model

0112

00491295 Bosch Oven Hotplate Backorder BOS 00491295 View Details $112.12

View on Model

0116

Frame-decor BOS 00436666 Contact Us For Availability

View on Model

0117

00629049 Bosch Range Energy Regulator In Stock BOS 00629049 View Details $41.16

View on Model

0118

00422133 Bosch Range Energy Regulator In Stock BOS 00422133 View Details $64.84

View on Model

0202

00491572 Bosch Oven Catalyzer In Stock BOS 00491572 View Details $48.48

View on Model

0203

00746648 Bosch Range Latch Backorder BOS 00746648 View Details $105.87

View on Model

0204

Switch BOS 00604808 No Longer Available

View on Model

0206

Switch BOS 00603747 No Longer Available

View on Model

0207

00491569 Bosch Oven Door Seal In Stock BOS 00491569 View Details $76.00

View on Model

0210

Broiler Pan BOS 00449756 Contact Us For Availability

View on Model

0212

00415045 Bosch Oven Lamp In Stock BOS 00415045 View Details $72.38

View on Model

0213

00422089 Bosch Range Sensor In Stock BOS 00422089 View Details $53.97

View on Model

0215

Shelf BOS 00144416 Contact Us For Availability

View on Model

0250

00623710 Bosch Oven Lamp In Stock BOS 00623710 View Details $4.56

View on Model

0251

00414513 Bosch Oven Lens In Stock BOS 00414513 View Details $18.28

View on Model

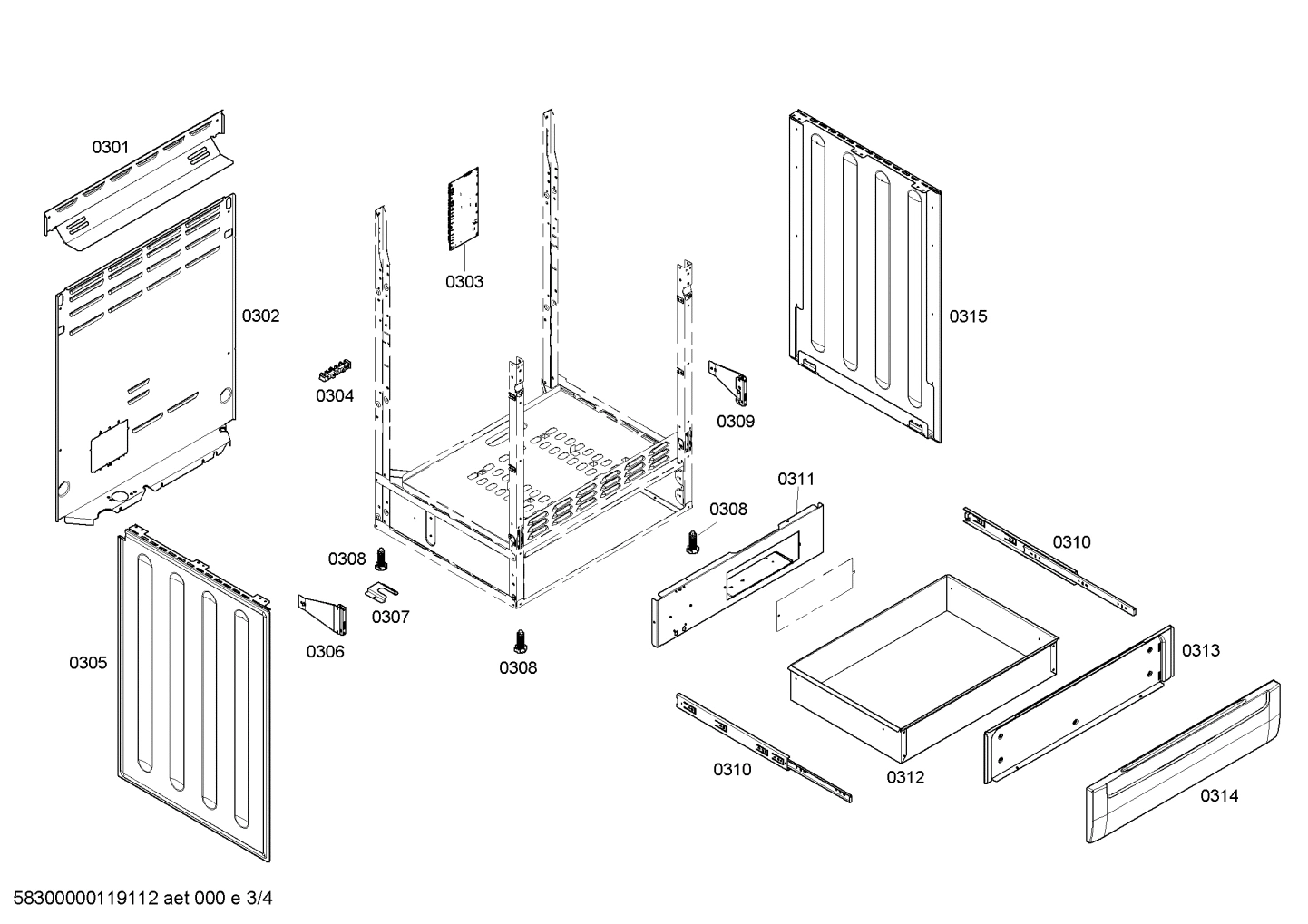

0304

00436364 Bosch Oven Terminal Box Backorder BOS 00436364 View Details $27.43

View on Model

0306

Hinge-plate BOS 00491539 No Longer Available

View on Model

0307

00625466 Bosch Range Bracket Backorder BOS 00625466 View Details $37.50

View on Model

0308

00429065 Bosch Range Foot In Stock BOS 00429065 View Details $24.69

View on Model

0309

Hinge-plate BOS 00491538 No Longer Available

View on Model

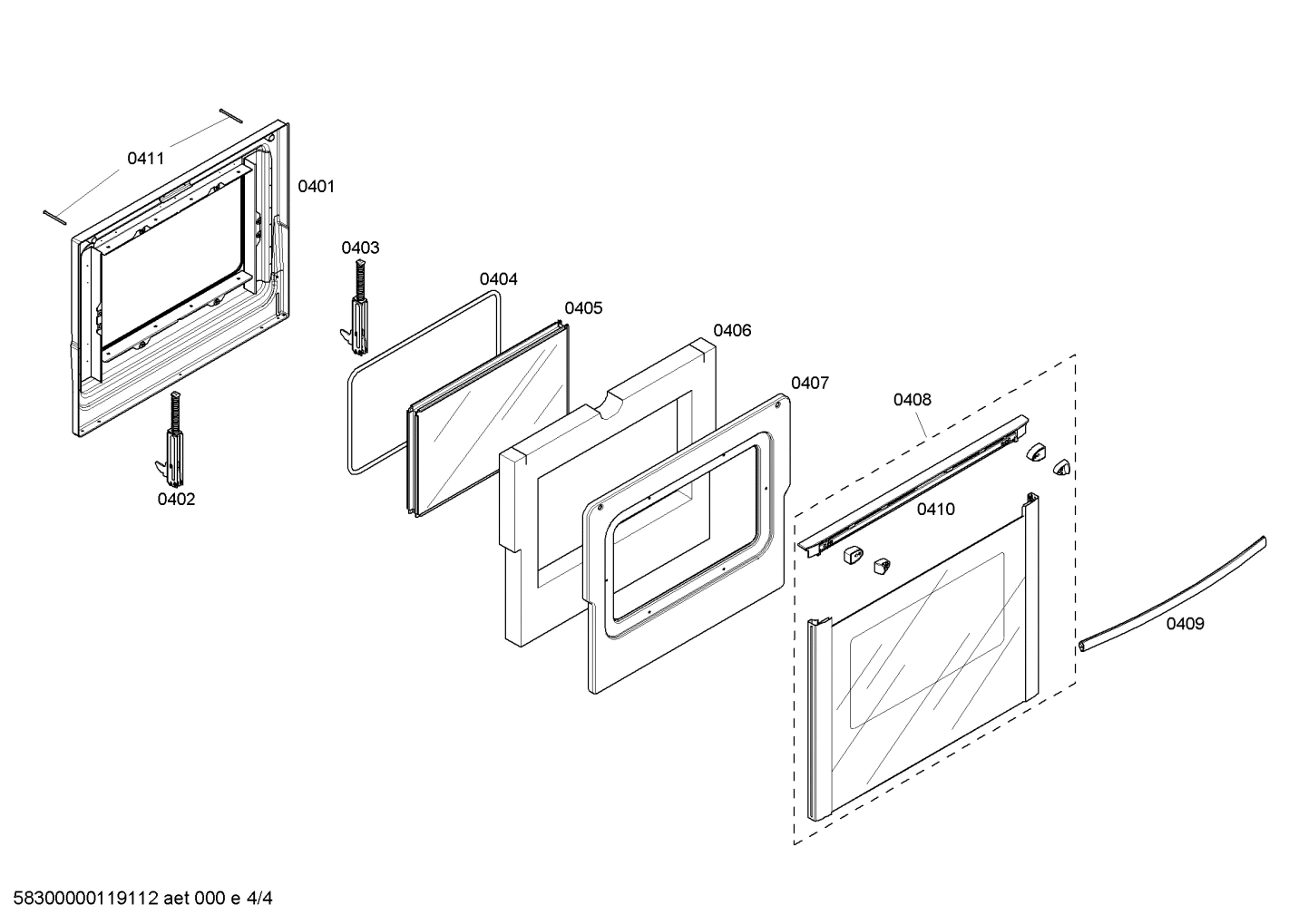

0401

Door-inner BOS 00683705 Contact Us For Availability

View on Model

0403

00683867 Bosch Range Fixing Kit In Stock BOS 00683867 View Details $301.82

View on Model

0404

Sealing BOS 00491899 Contact Us For Availability

View on Model

0405

00436379 Bosch Range Front Glass Panel Backorder BOS 00436379 View Details $175.31

View on Model

0406

Insulating part BOS 00143678 Contact Us For Availability

View on Model

0407

00676010 Bosch Range Heat Shield Backorder BOS 00676010 View Details $92.29

View on Model

0409

Handle-door BOS 00436646 Contact Us For Availability

View on Model

0410

Trimplate BOS 00449874 Contact Us For Availability

View on Model

0411

Screw BOS 00607316 No Longer Available

View on Model

×
