Model Bosch HES252U/01 Range Oven – Common Parts & Diagrams

Common parts from model Bosch HES252U/01 Range Oven

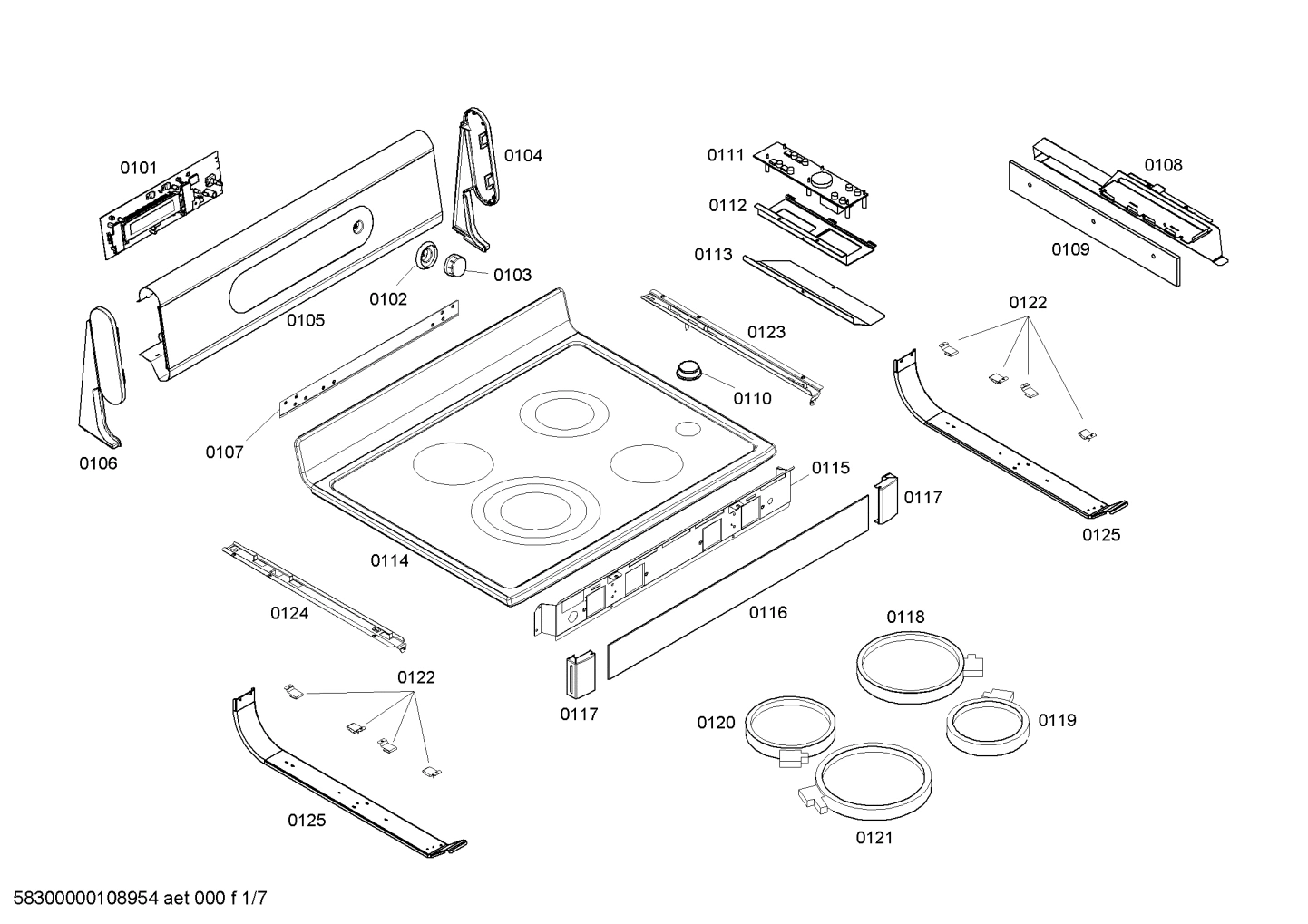

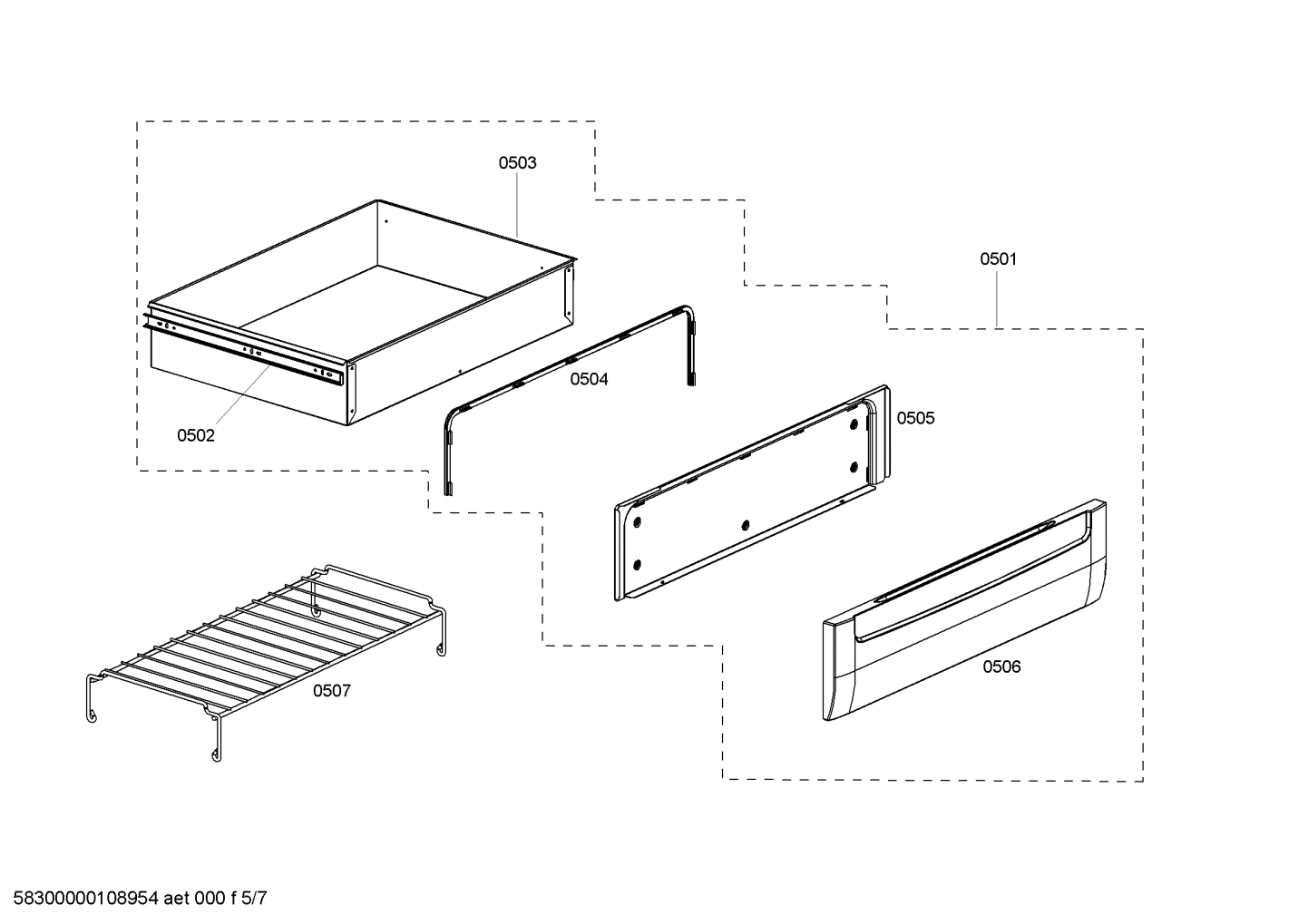

Diagram 1

Print

• This Diagram
• All Diagrams

0119

Hilight hotplate BOS 00416306 Contact Us For Availability

View on Model

0120

Hilight hotplate BOS 00491270 Contact Us For Availability

View on Model

0122

00424321 Bosch Range Spring Backorder BOS 00424321 View Details $20.59

View on Model

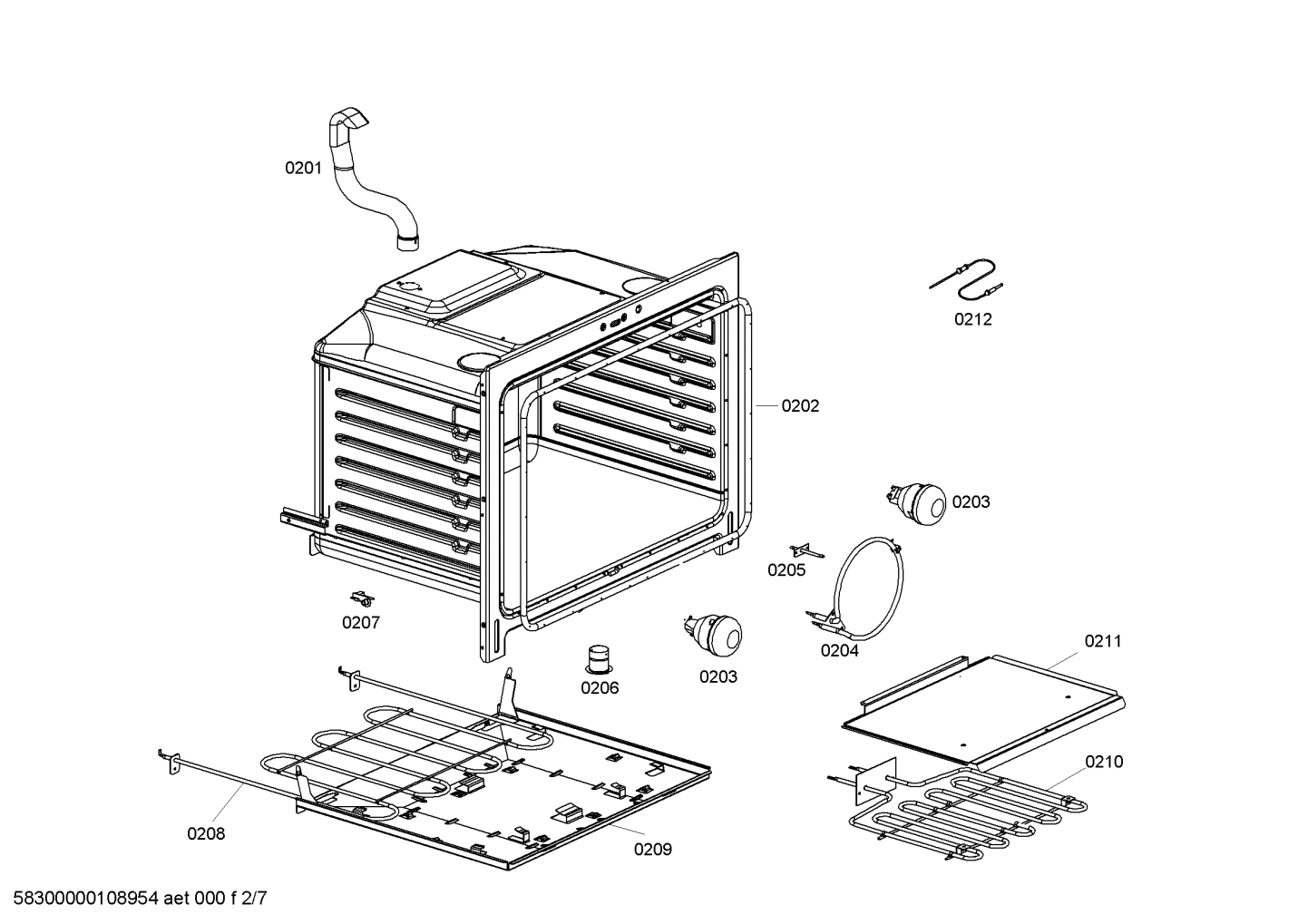

0202

00491569 Bosch Oven Door Seal In Stock BOS 00491569 View Details $70.14

View on Model

0203

00415045 Bosch Oven Lamp In Stock BOS 00415045 View Details $66.95

View on Model

0204

00436632 Bosch Range Heating Element In Stock BOS 00436632 View Details $140.18

View on Model

0205

00422089 Bosch Range Sensor In Stock BOS 00422089 View Details $49.39

View on Model

0206

00491572 Bosch Oven Catalyzer Backorder BOS 00491572 View Details $44.82

View on Model

0207

10007567 Bosch Oven Socket In Stock BOS 10007567 View Details $280.28

View on Model

0210

00436789 Bosch Range Heating Element Backorder BOS 00436789 View Details $191.40

View on Model

0212

00755060 Bosch Oven Sensor In Stock BOS 00755060 View Details $78.72

View on Model

0250

00623710 Bosch Oven Lamp In Stock BOS 00623710 View Details $4.12

View on Model

0251

00414513 Bosch Oven Lens In Stock BOS 00414513 View Details $16.93

View on Model

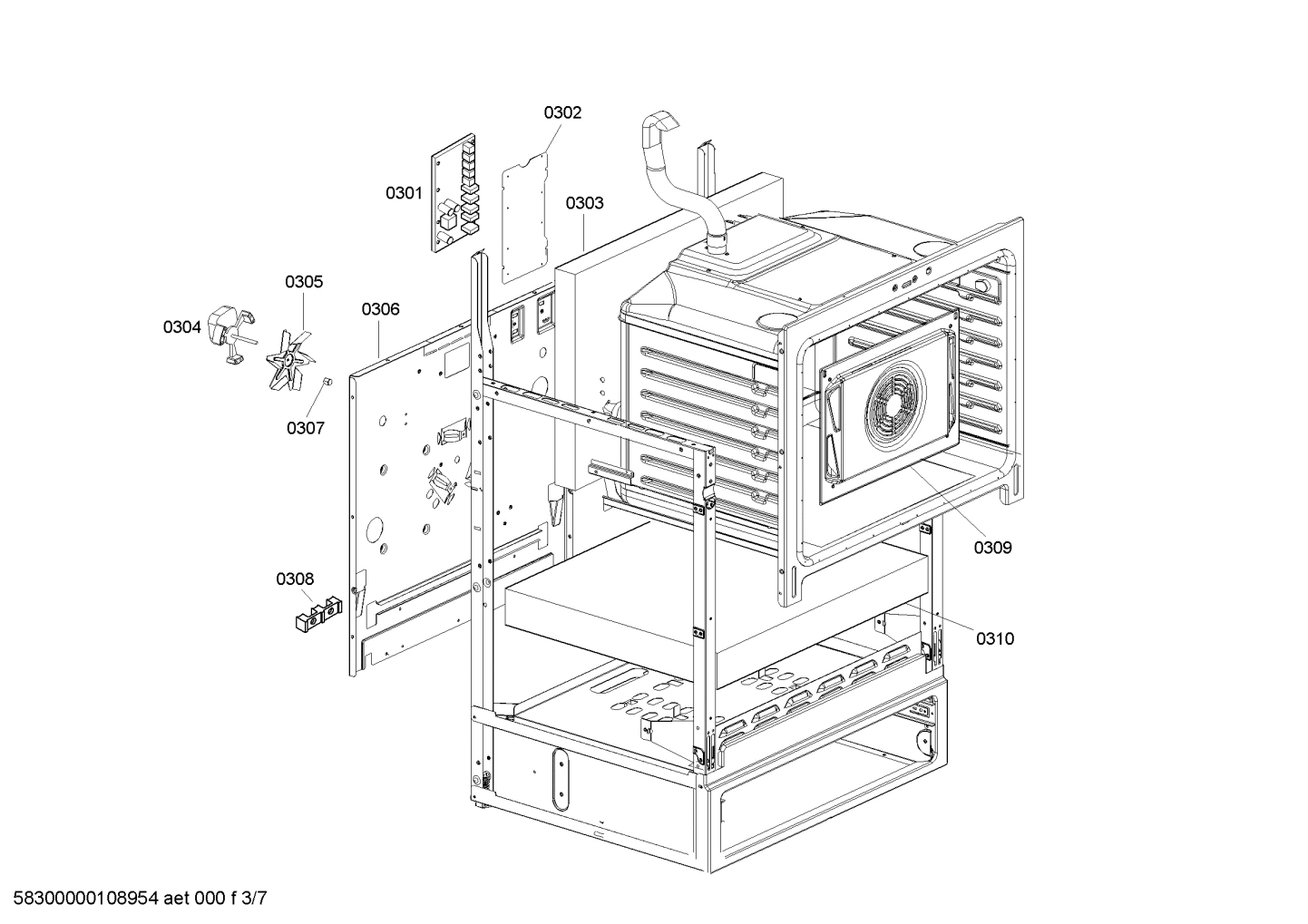

0304

00491576 Bosch Range Motor In Stock BOS 00491576 View Details $90.05

View on Model

0305

00491577 Bosch Oven Fan Blade In Stock BOS 00491577 View Details $25.16

View on Model

0307

00471532 Bosch Oven Nut Backorder BOS 00471532 View Details $8.22

View on Model

0308

00436364 Bosch Oven Terminal Box In Stock BOS 00436364 View Details $25.16

View on Model

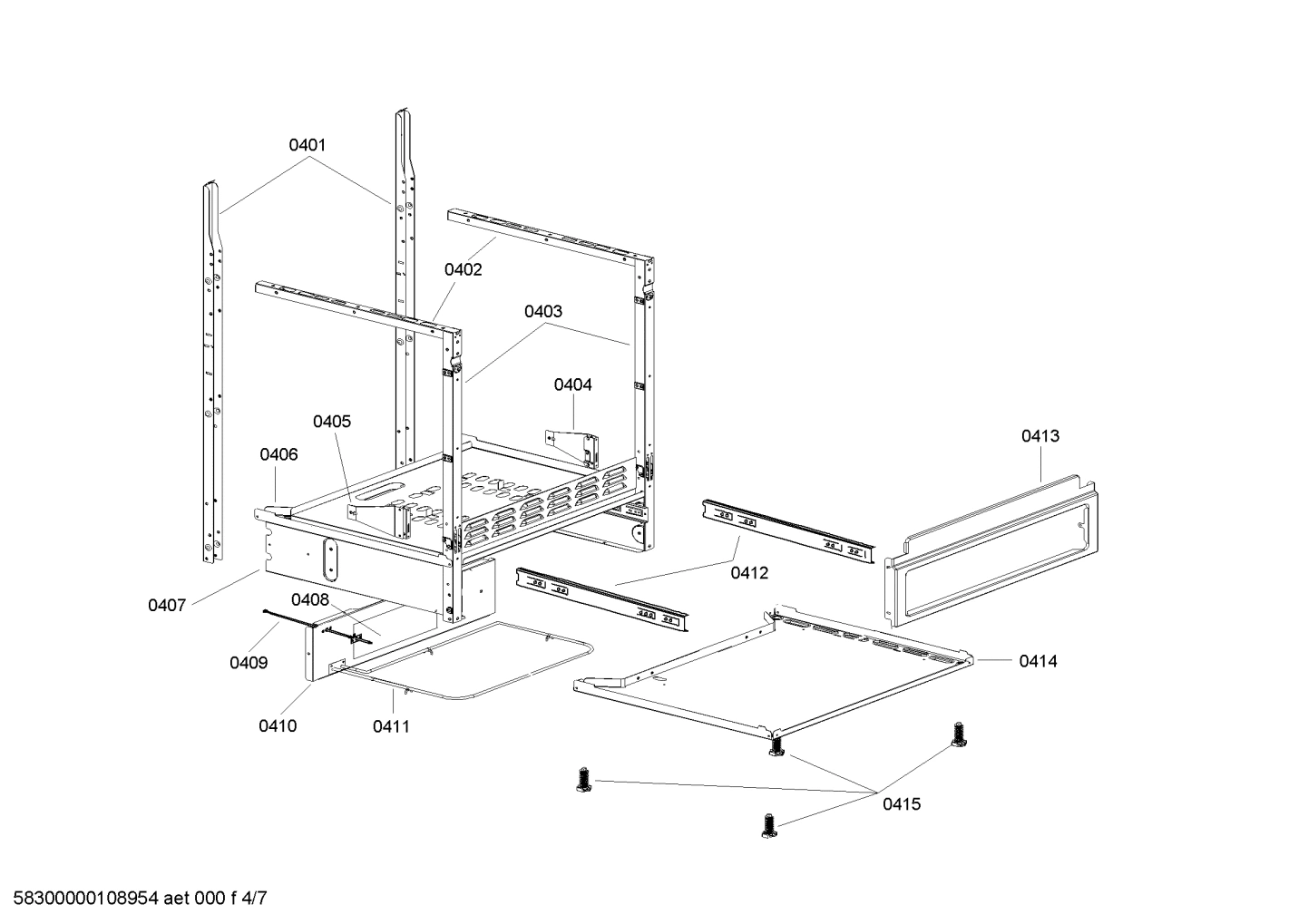

0404

00491538 Bosch Range Plate Hinge In Stock BOS 00491538 View Details $31.57

View on Model

0405

00491539 Bosch Range Hinge Plate In Stock BOS 00491539 View Details $31.57

View on Model

0409

00619630 Bosch Oven Sensor Backorder BOS 00619630 View Details $49.39

View on Model

0412

00440843 Bosch Oven Slide Backorder BOS 00440843 View Details $53.97

View on Model

0415

00429065 Bosch Range Foot In Stock BOS 00429065 View Details $22.86

View on Model

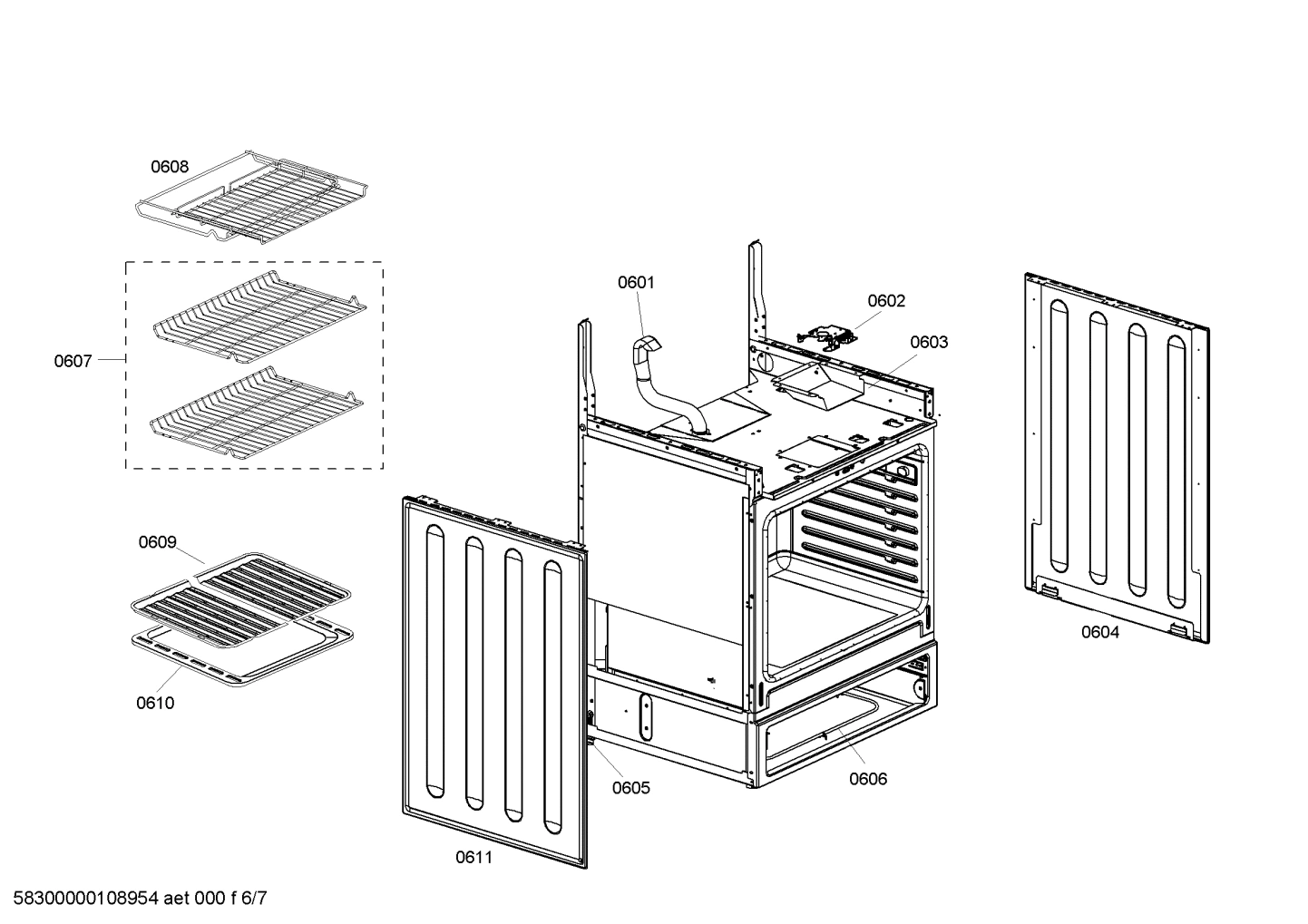

0605

00625466 Bosch Range Bracket Backorder BOS 00625466 View Details $34.31

View on Model

0606

Heating element BOS 00491787 Contact Us For Availability

View on Model

0608

Grille BOS 00438086 Contact Us For Availability

View on Model

0609

Broiler Pan BOS 00449756 Contact Us For Availability

View on Model

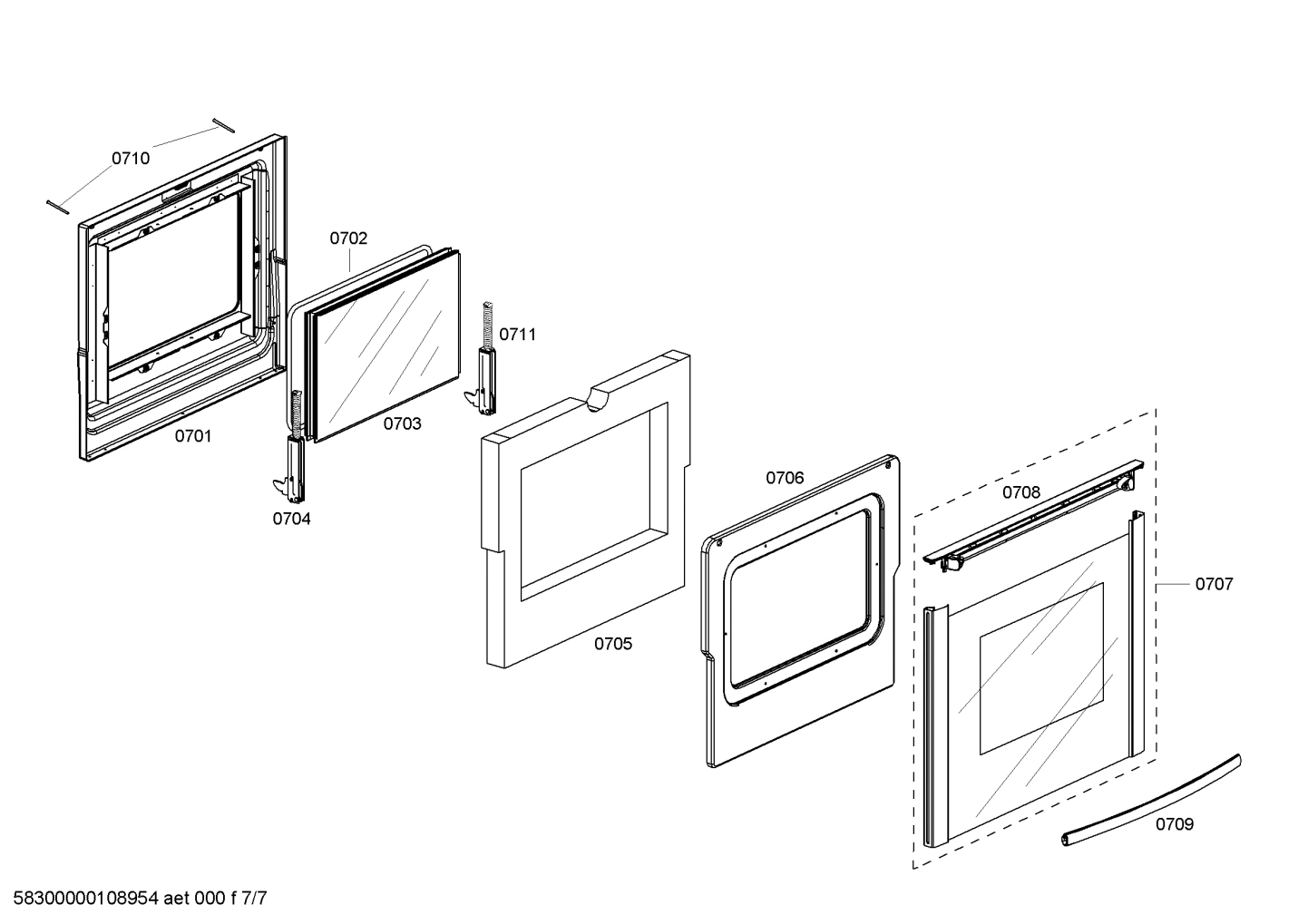

0701

00683705 Bosch Range Inner Door Backorder BOS 00683705 View Details $199.74

View on Model

0702

00491899 Bosch Oven Sealing Backorder BOS 00491899 View Details $26.08

View on Model

0703

00436379 Bosch Range Front Glass Panel Backorder BOS 00436379 View Details $162.43

View on Model

0705

Insulating part BOS 00143678 Contact Us For Availability

View on Model

0706

00676010 Bosch Range Heat Shield Backorder BOS 00676010 View Details $85.52

View on Model

0708

00449875 Bosch Range Trim Plate Backorder BOS 00449875 View Details $121.91

View on Model

0710

Screw BOS 00607316 Contact Us For Availability

View on Model

0711

00683867 Bosch Range Fixing Kit In Stock BOS 00683867 View Details $278.94

View on Model

×
