Model Bosch HEI7282U/03 Range Oven – Common Parts & Diagrams

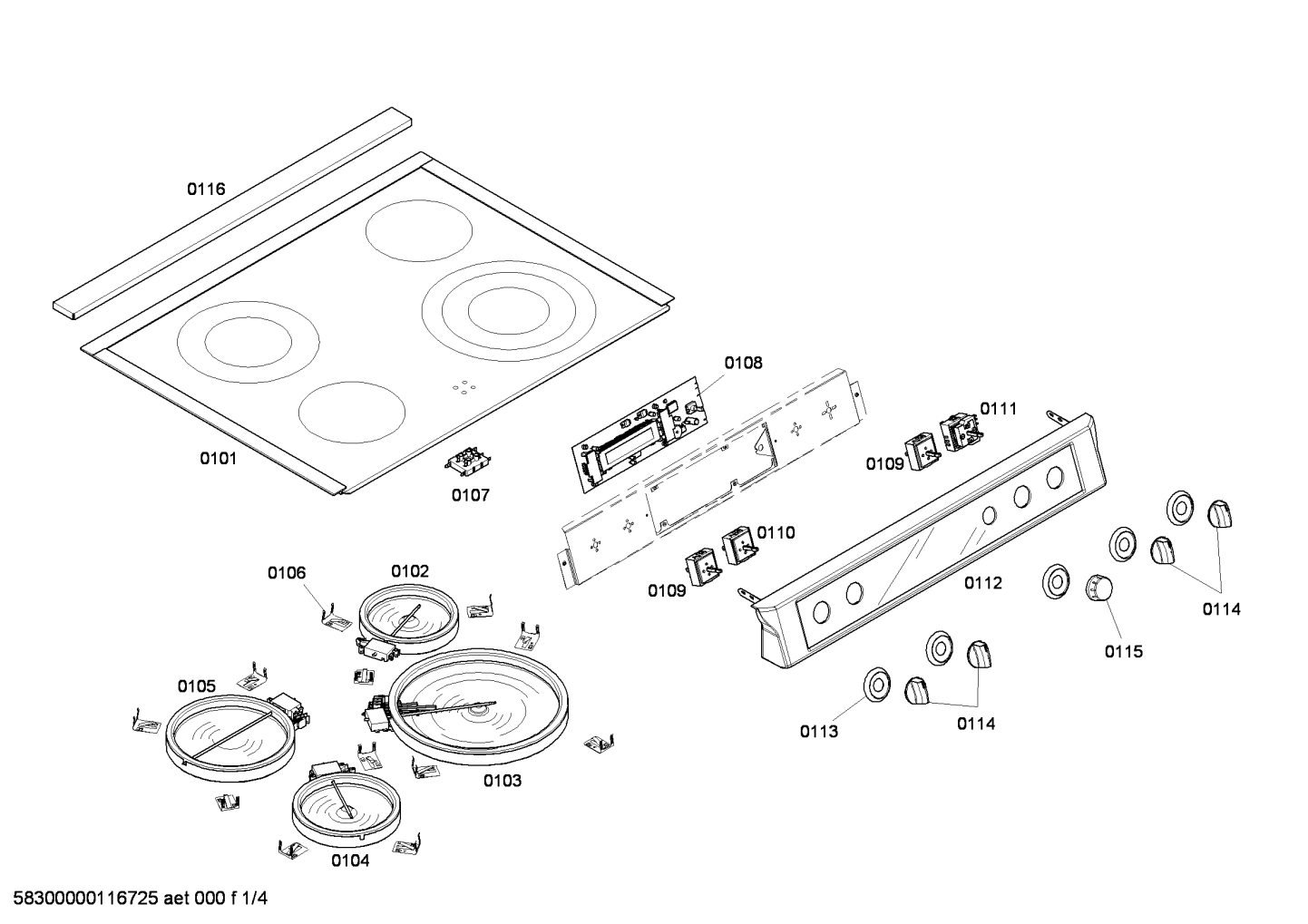

Diagram 1

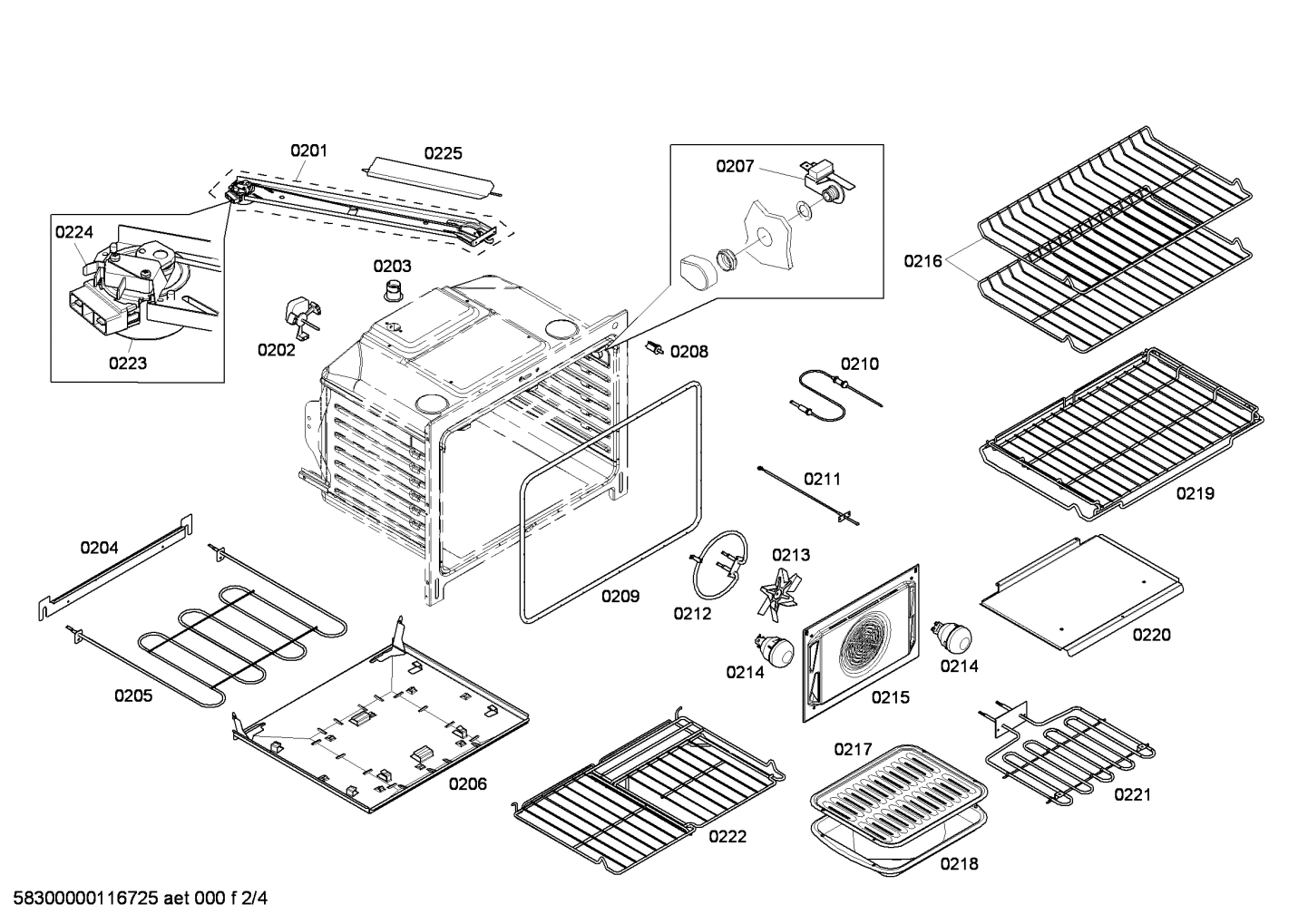

Diagram 2

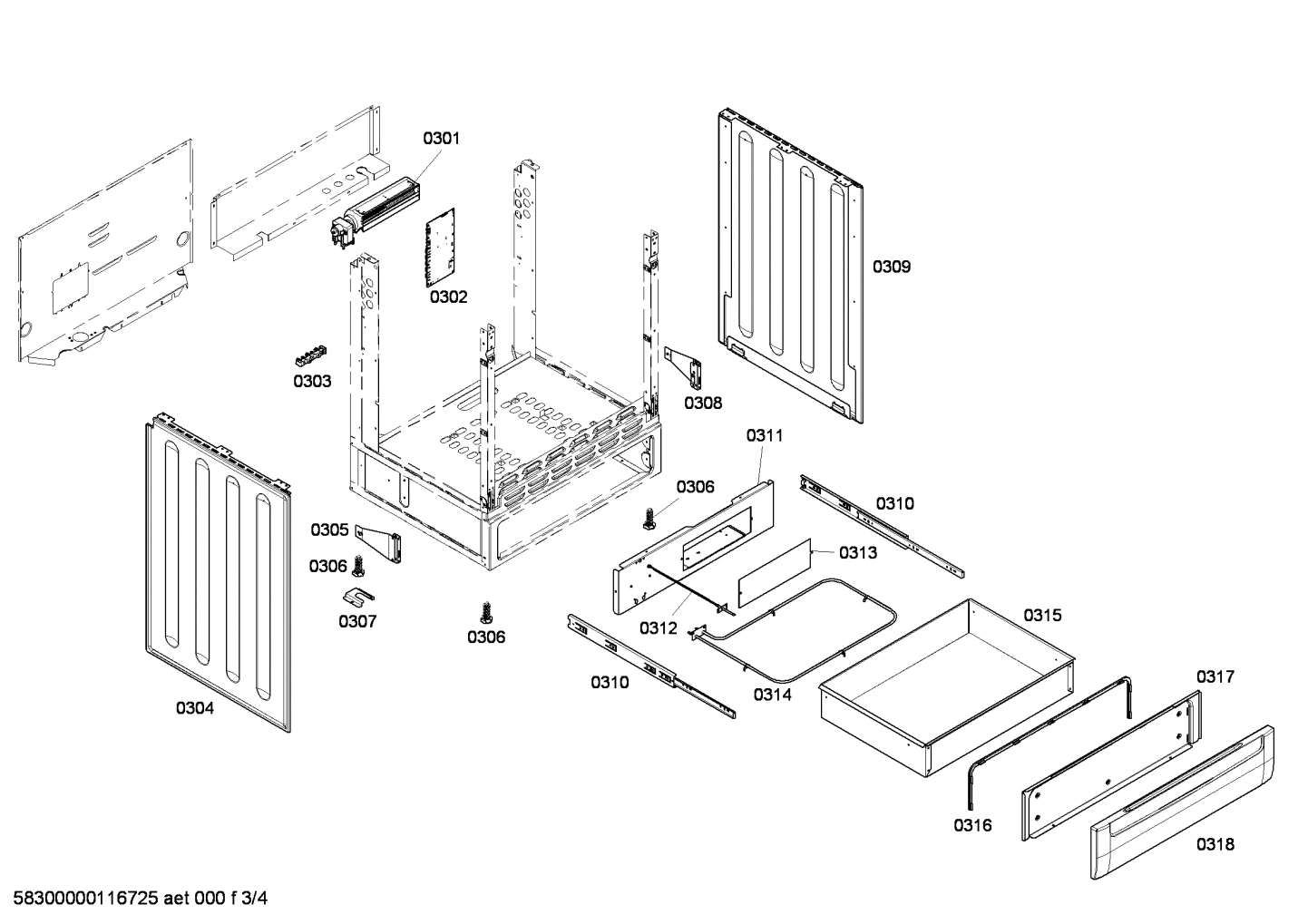

Diagram 3

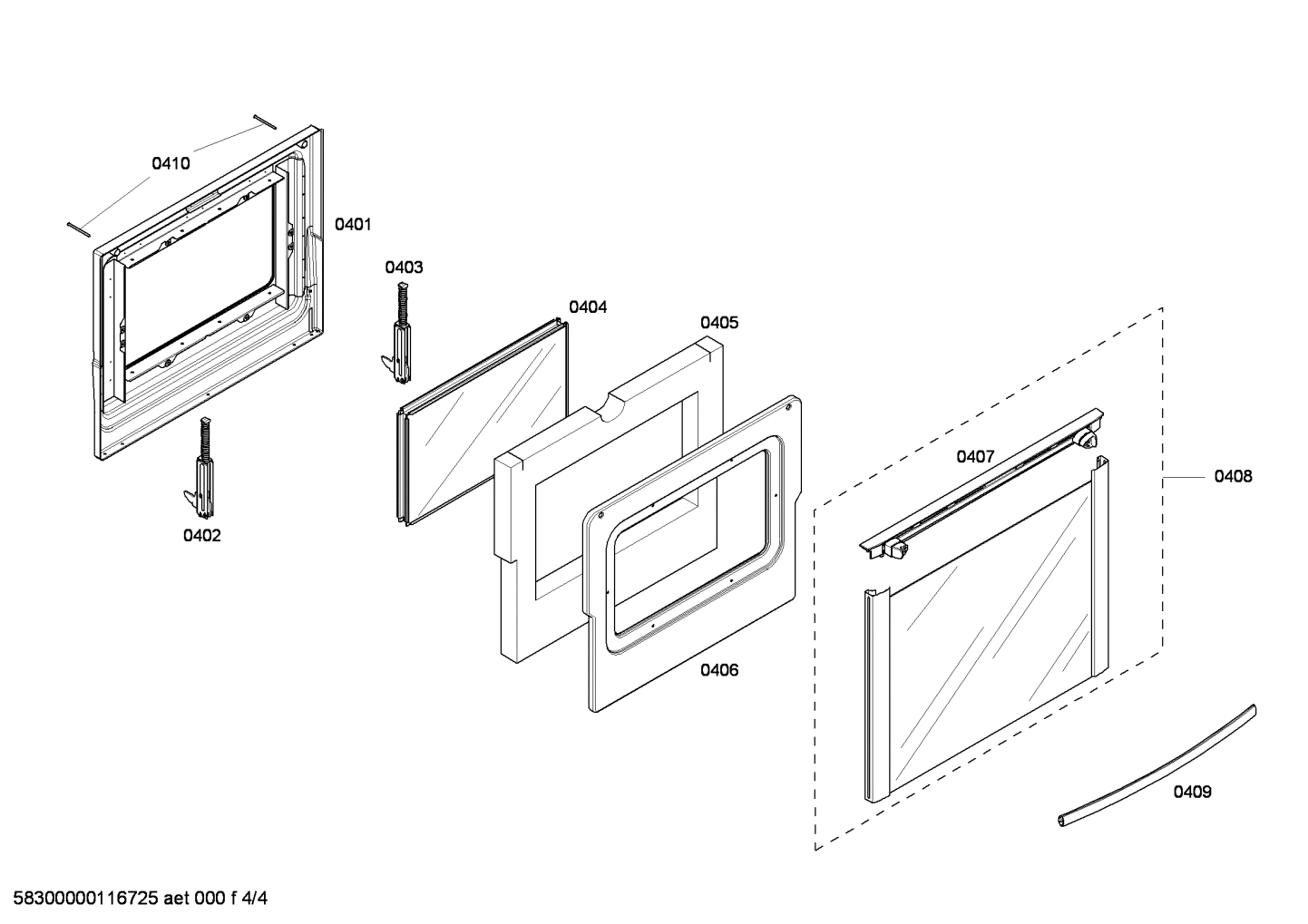

Diagram 4
Common parts from model Bosch HEI7282U/03 Range Oven
0101
Hob top BOS 00243962 Contact Us For Availability
0104
Heating element BOS 00499756 Contact Us For Availability
0105
Heating element BOS 00499757 Contact Us For Availability
0151
Cable harness BOS 00650791 Contact Us For Availability
0152
Cable harness BOS 00499748 Contact Us For Availability
0157
Cable harness set BOS 00651017 Contact Us For Availability
0161
Filter BOS 00622395 Contact Us For Availability
0202
Motor BOS 00491576 Contact Us For Availability
0207
Socket BOS 10007567 Contact Us For Availability
0208
Switch BOS 00603747 No Longer Available
0214
Oven Lamp Assembly BOS 00415045 No Longer Available
0216
Shelf BOS 00144416 Contact Us For Availability
0217
Broiler Pan BOS 00449756 Contact Us For Availability
0219
Grille BOS 00438086 Contact Us For Availability
0224
Switch BOS 00604808 No Longer Available
0305
Hinge-plate BOS 00491539 No Longer Available
0307
Bracket BOS 00625466 Contact Us For Availability
0308
Hinge-plate BOS 00491538 No Longer Available
0310
Slide BOS 00440843 Contact Us For Availability
0312
Sensor BOS 00619630 Contact Us For Availability
0314
Heating element BOS 00491787 Contact Us For Availability
0401
Door-inner BOS 00683705 Contact Us For Availability
0405
Insulating part BOS 00143678 Contact Us For Availability
0406
Heat shield BOS 00676010 Contact Us For Availability
0407
Handle-strip BOS 00499807 Contact Us For Availability
0409
Handle-door BOS 00436646 Contact Us For Availability
0410
Screw BOS 00607316 No Longer Available
0450
Sealing BOS 00491899 Contact Us For Availability
× ![]()
