Bosch HDI7282U/09 Range Oven Parts List

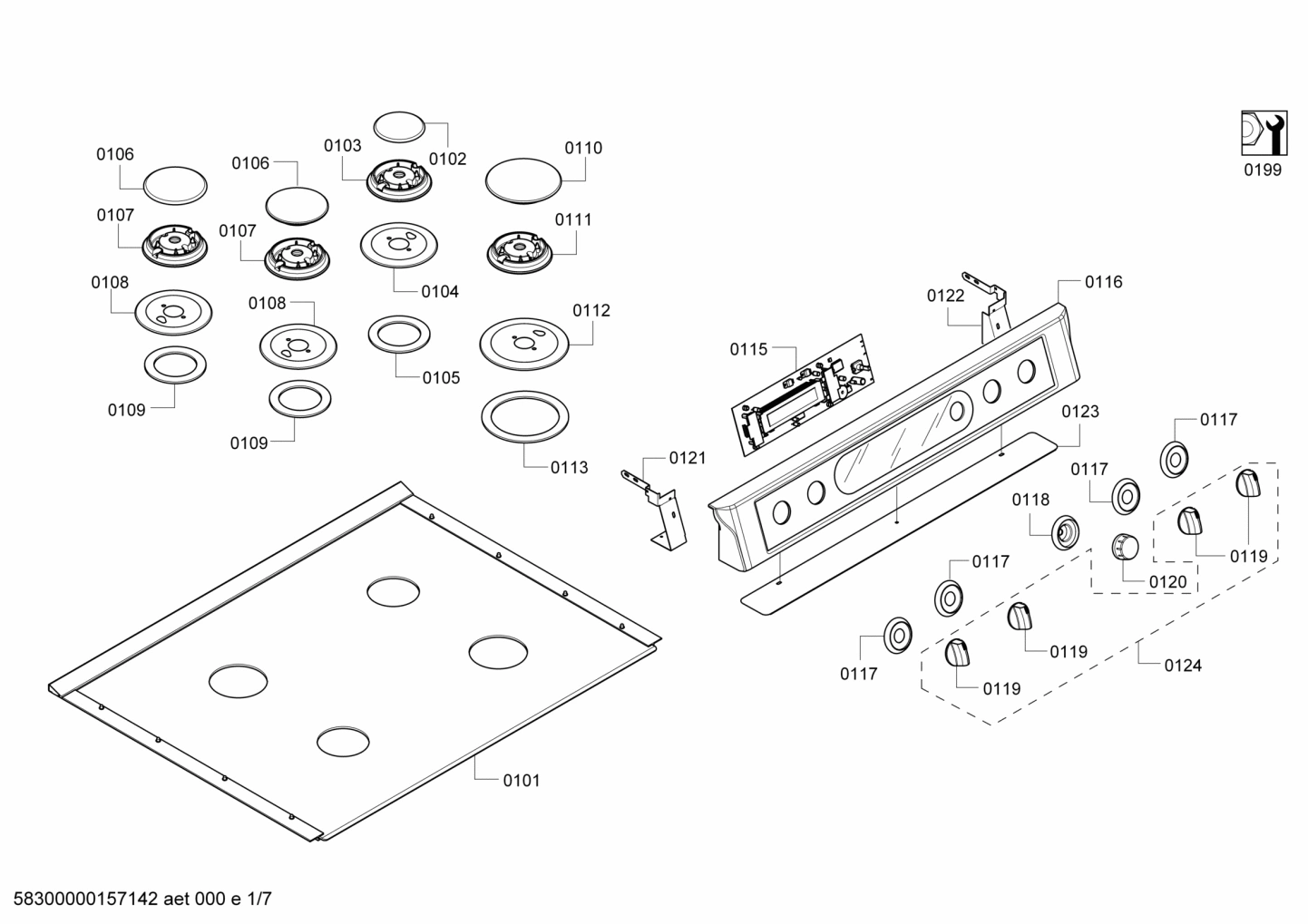

0101

Hob top BOS 00243959 Contact Us For Availability

View on Model

0102

Cap BOS 00603882 Contact Us For Availability

View on Model

0103

00423442 Bosch Range Burner Housing In Stock BOS 00423442 $40.26

View on Model

0105

00605675 Bosch Range Seal Backorder BOS 00605675 $33.86

View on Model

0106

Burner cap BOS 00494730 Contact Us For Availability

View on Model

0107

Burner housing BOS 00423444 No Longer Available

View on Model

0109

00605676 Bosch Range Seal Backorder BOS 00605676 $41.18

View on Model

0110

Burner Cap BOS 00426056 Contact Us For Availability

View on Model

0113

Seal BOS 00605677 Contact Us For Availability

View on Model

0116

00703426 Bosch Range Glass Front Panel Backorder BOS 00703426 $550.00

View on Model

0117

00605666 Bosch Range Grommet In Stock BOS 00605666 $8.24

View on Model

0118

00630686 Bosch Range Ring Backorder BOS 00630686 $53.07

View on Model

0119

00630688 Bosch Range Knob Assembly Backorder BOS 00630688 $35.69

View on Model

0119

Knob-cooking area BOS 00624434 Contact Us For Availability

View on Model

0120

00630685 Bosch Range Knob Backorder BOS 00630685 $47.58

View on Model

0124

00754387 Bosch Range Repair Set Backorder BOS 00754387 $107.70

View on Model

0150

Cable harness set BOS 00651017 Contact Us For Availability

View on Model

0151

Cable harness BOS 00641106 Contact Us For Availability

View on Model

0155

Filter BOS 00622395 Contact Us For Availability

View on Model

0156

00423478 Bosch Range Screw In Stock BOS 00423478 $2.75

View on Model

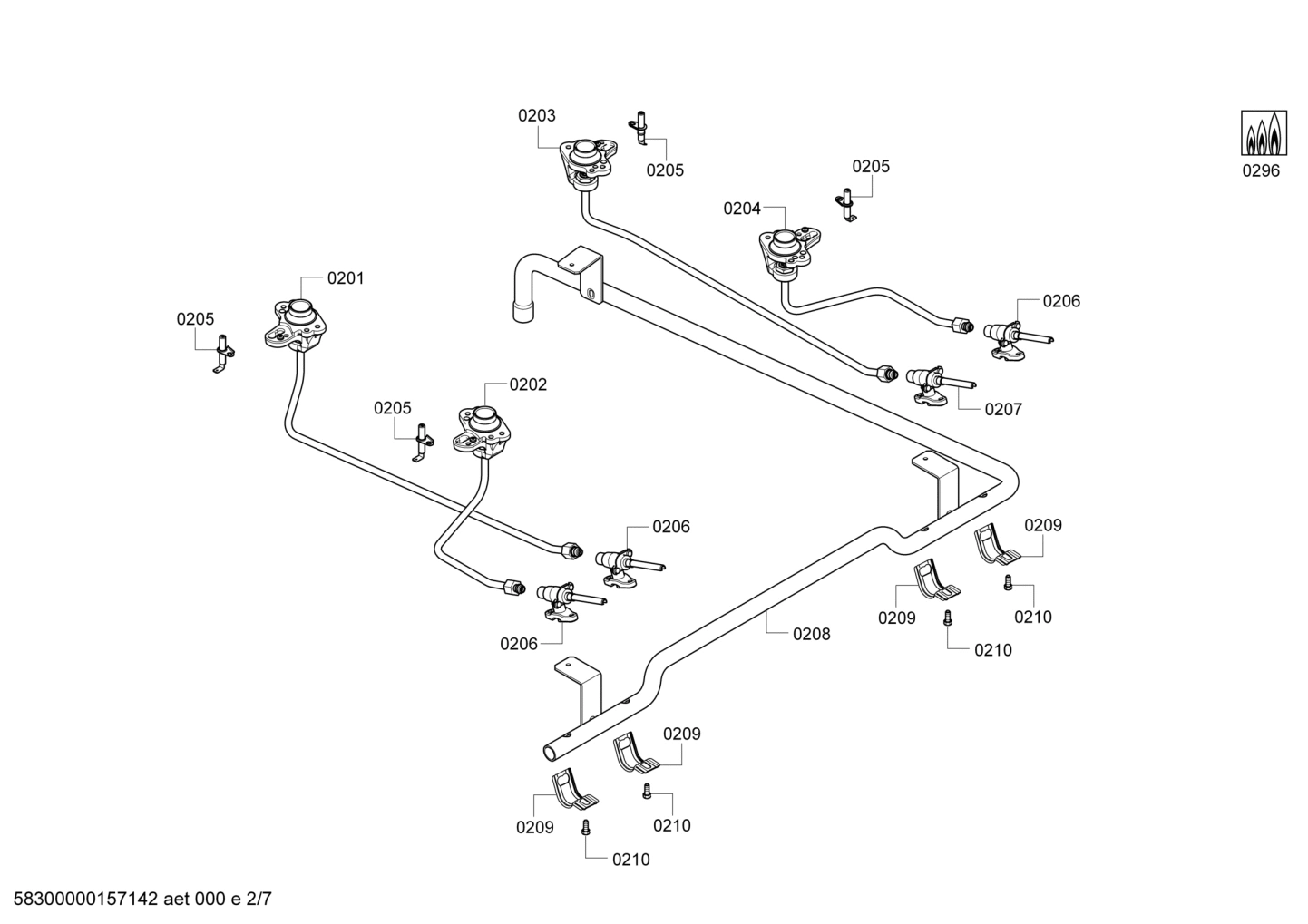

0201

Jet BOS 00448637 Contact Us For Availability

View on Model

0203

00448636 Bosch Range Jet Backorder BOS 00448636 $65.16

View on Model

0204

00499753 Bosch Range Jet Backorder BOS 00499753 $57.02

View on Model

0205

00603506 Bosch Range Electrode In Stock BOS 00603506 $19.22

View on Model

0206

00603716 Bosch Range Valve In Stock BOS 00603716 $134.39

View on Model

0207

Valve BOS 00605674 Contact Us For Availability

View on Model

0208

Manifold BOS 00661313 Contact Us For Availability

View on Model

0210

00619838 Bosch Oven Screw In Stock BOS 00619838 $10.07

View on Model

0296

00648338 Bosch Range Jet Set Backorder BOS 00648338 $80.55

View on Model

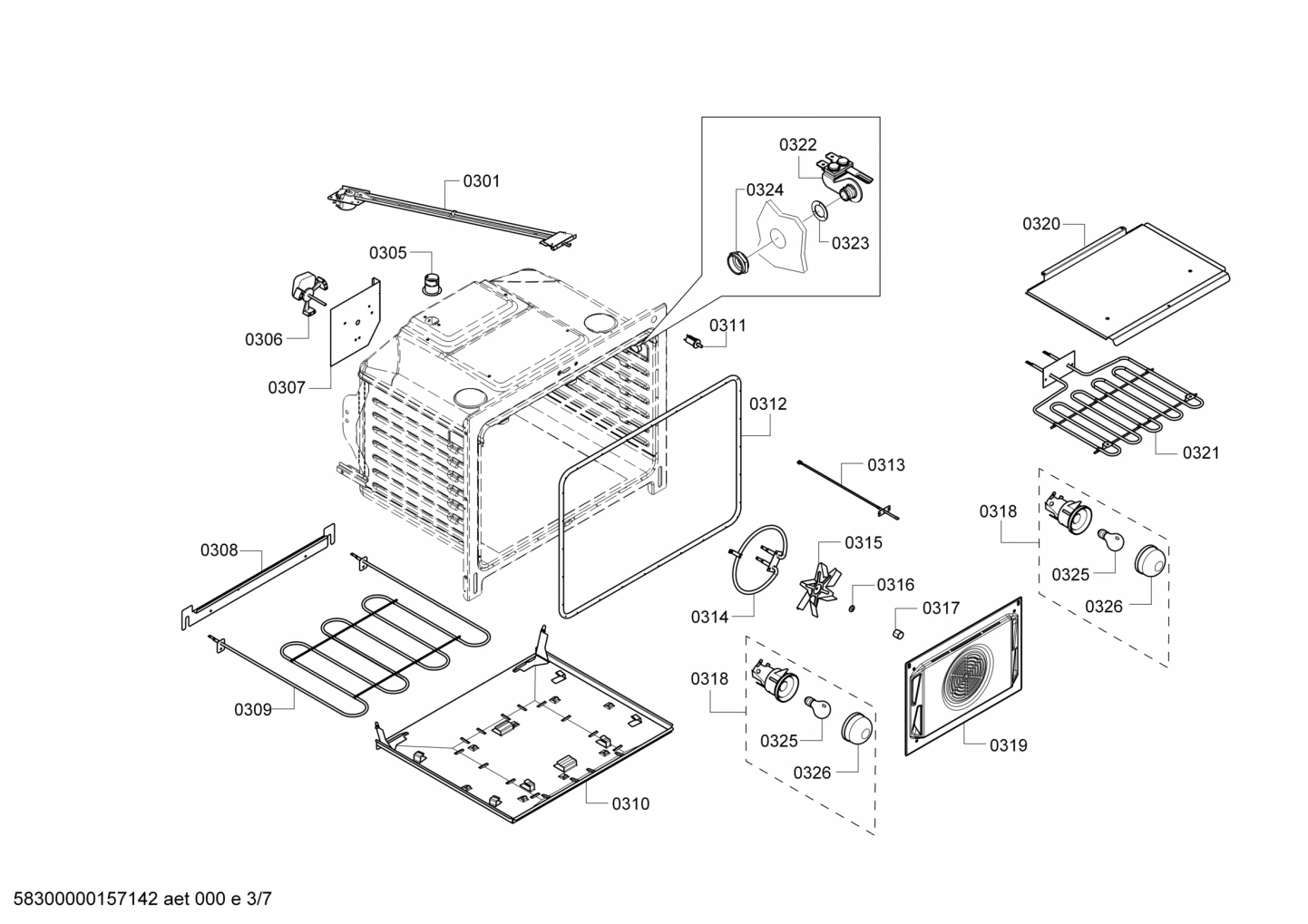

0301

00746648 Bosch Range Latch Backorder BOS 00746648 $105.89

View on Model

0303

Switch BOS 00604808 No Longer Available

View on Model

0305

00491572 Bosch Oven Catalyzer In Stock BOS 00491572 $48.50

View on Model

0306

Motor BOS 00491576 Contact Us For Availability

View on Model

0311

Switch BOS 00603747 No Longer Available

View on Model

0312

00491569 Bosch Oven Door Seal In Stock BOS 00491569 $76.02

View on Model

0313

00422089 Bosch Range Sensor Backorder BOS 00422089 $53.99

View on Model

0314

00436632 Bosch Range Heating Element Backorder BOS 00436632 $151.30

View on Model

0315

00491577 Bosch Oven Fan Blade Backorder BOS 00491577 $27.45

View on Model

0316

Washer BOS 00422090 Contact Us For Availability

View on Model

0317

00471532 Bosch Oven Nut Backorder BOS 00471532 $9.15

View on Model

0318

Oven Lamp Assembly BOS 00415045 No Longer Available

View on Model

0322

Socket BOS 10007567 Contact Us For Availability

View on Model

0323

00605039 Bosch Oven Washer Backorder BOS 00605039 $10.98

View on Model

0325

00623710 Bosch Oven Lamp In Stock BOS 00623710 $4.58

View on Model

0326

00414513 Bosch Oven Lens In Stock BOS 00414513 $18.30

View on Model

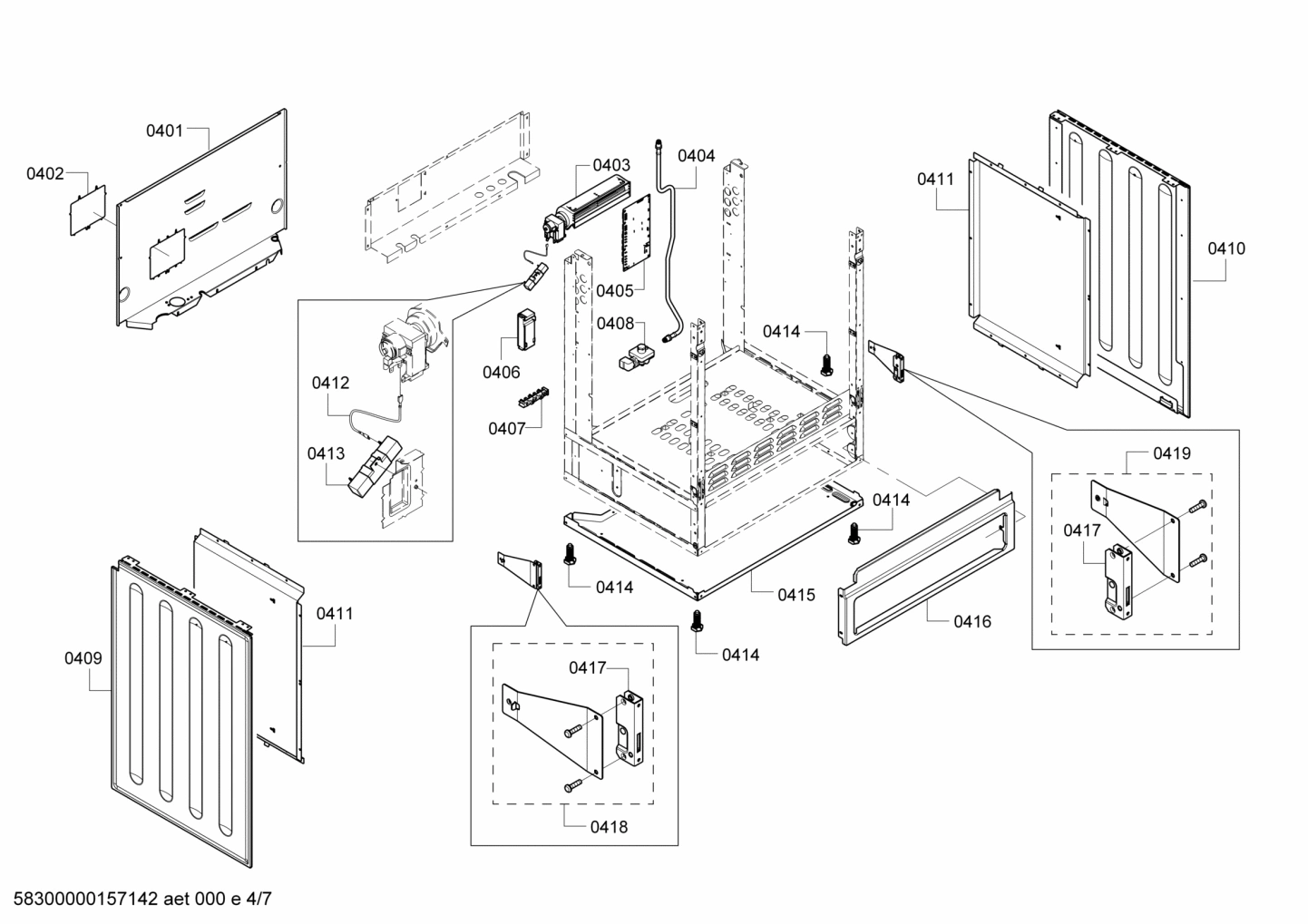

0403

00448635 Bosch Range Fan In Stock BOS 00448635 $137.60

View on Model

0404

Tube BOS 00661314 Contact Us For Availability

View on Model

0407

00436364 Bosch Oven Terminal Box In Stock BOS 00436364 $27.45

View on Model

0411

Panel BOS 00422024 Contact Us For Availability

View on Model

0412

Wire BOS 00648519 Contact Us For Availability

View on Model

0413

00616712 Bosch Range Resistor Backorder BOS 00616712 $30.20

View on Model

0414

00429065 Bosch Range Foot In Stock BOS 00429065 $24.71

View on Model

0417

Hinge-window BOS 00492295 No Longer Available

View on Model

0418

Hinge-plate BOS 00491539 No Longer Available

View on Model

0419

Hinge-plate BOS 00491538 No Longer Available

View on Model

0452

Cable harness BOS 00650791 Contact Us For Availability

View on Model

0455

Cable harness BOS 00499748 Contact Us For Availability

View on Model

0458

Screw BOS 00630845 Contact Us For Availability

View on Model

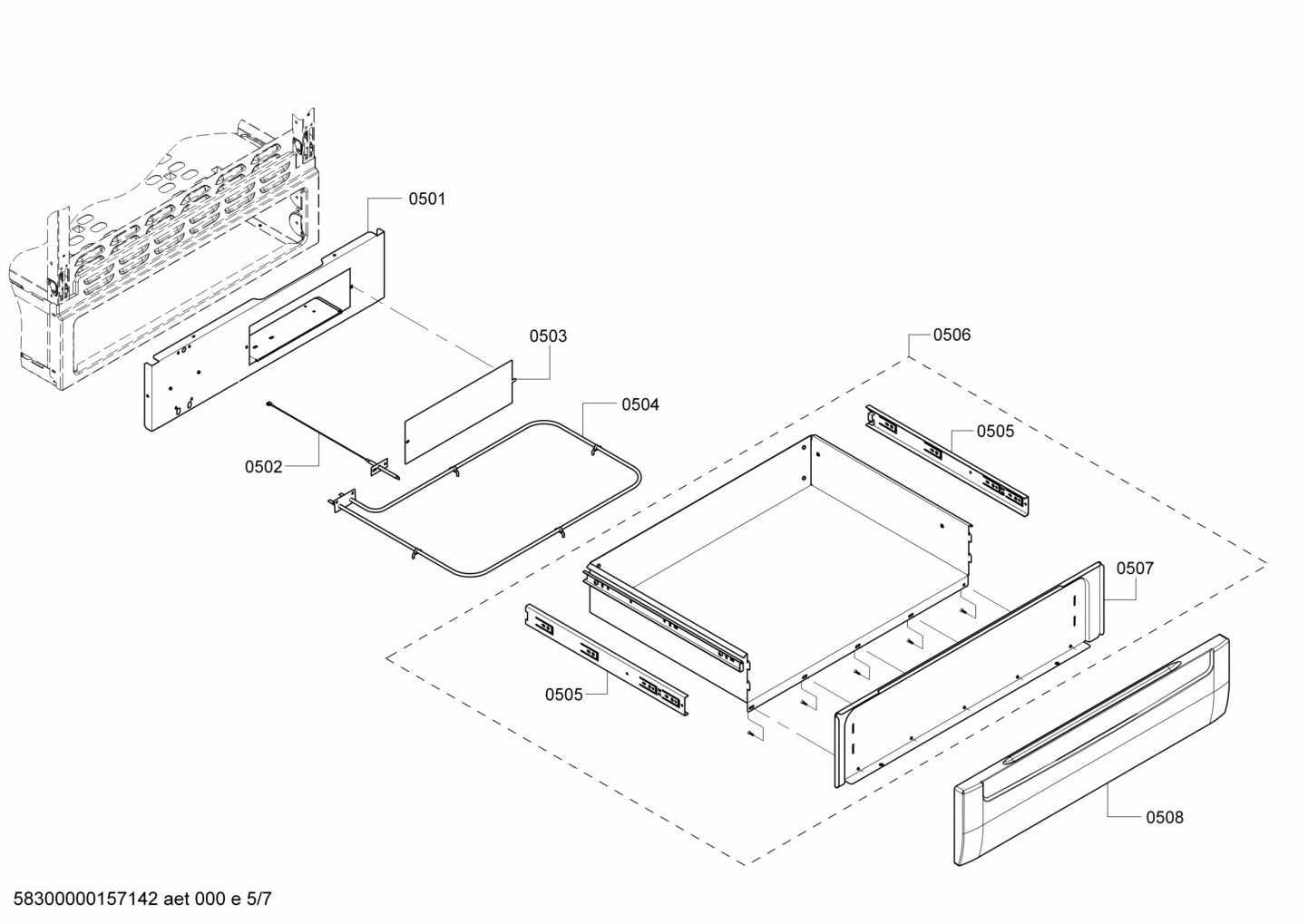

0502

Sensor BOS 00619630 Contact Us For Availability

View on Model

0504

Heating element BOS 00491787 Contact Us For Availability

View on Model

0505

Slide BOS 00440843 Contact Us For Availability

View on Model

0550

Screw BOS 00423245 Contact Us For Availability

View on Model

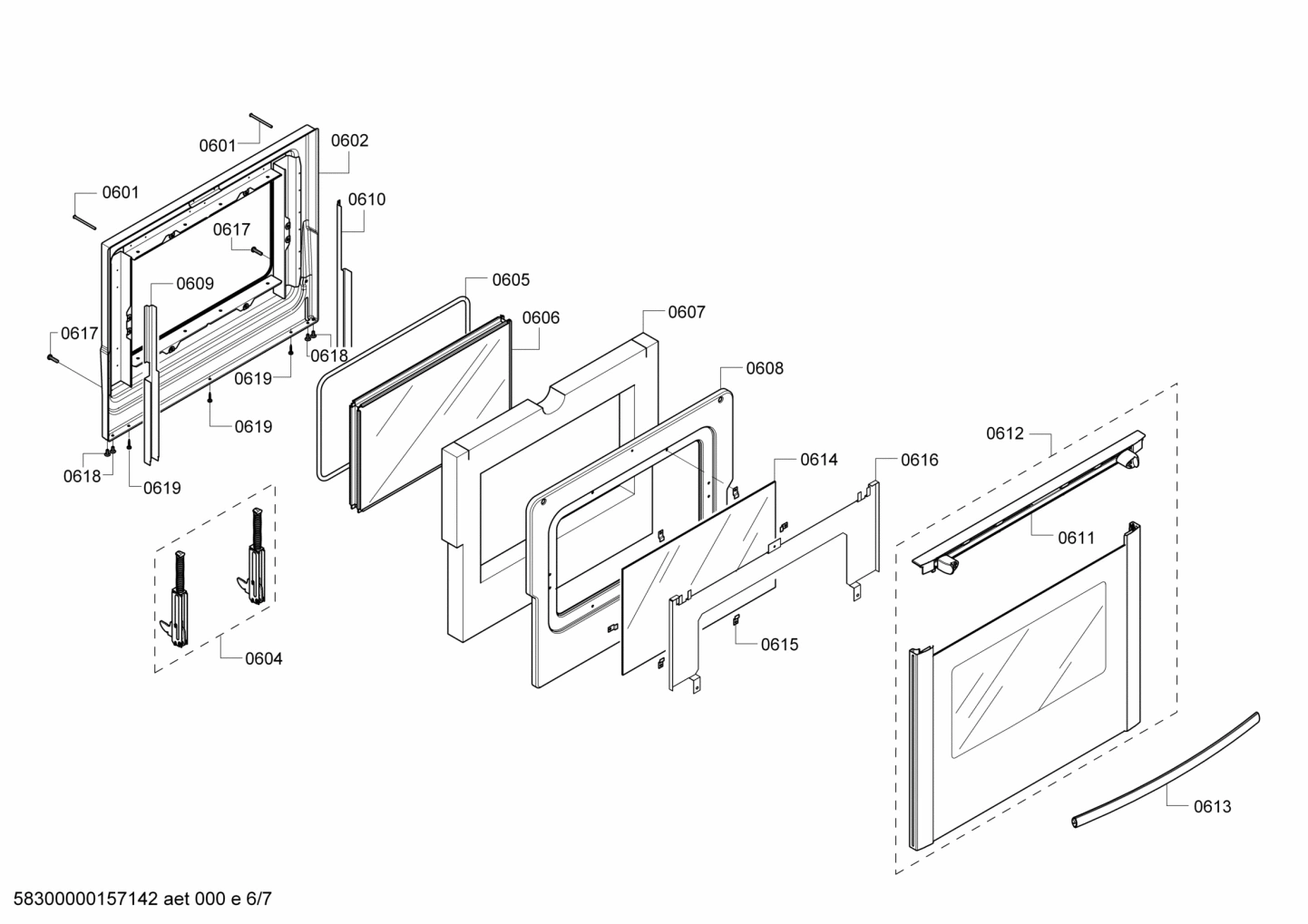

0601

Screw BOS 00607316 No Longer Available

View on Model

0602

Door-inner BOS 00683705 Contact Us For Availability

View on Model

0604

00657112 Bosch Range Repair Set Backorder BOS 00657112 $349.36

View on Model

0605

Sealing BOS 00491899 Contact Us For Availability

View on Model

0606

00436379 Bosch Range Front Glass Panel Backorder BOS 00436379 $175.33

View on Model

0607

Insulating part BOS 00143678 Contact Us For Availability

View on Model

0608

Heat shield BOS 00676010 Contact Us For Availability

View on Model

0609

Bracket BOS 00650182 Contact Us For Availability

View on Model

0610

Bracket BOS 00650183 Contact Us For Availability

View on Model

0611

Handle-strip BOS 00499807 Contact Us For Availability

View on Model

0613

Handle-door BOS 00436646 Contact Us For Availability

View on Model

0614

Glass panel BOS 00665308 Contact Us For Availability

View on Model

0617

Screw BOS 00422137 Contact Us For Availability

View on Model

0618

00620814 Bosch Oven Screw Backorder BOS 00620814 $21.96

View on Model

0619

00189345 Bosch Oven Screw In Stock BOS 00189345 $19.22

View on Model

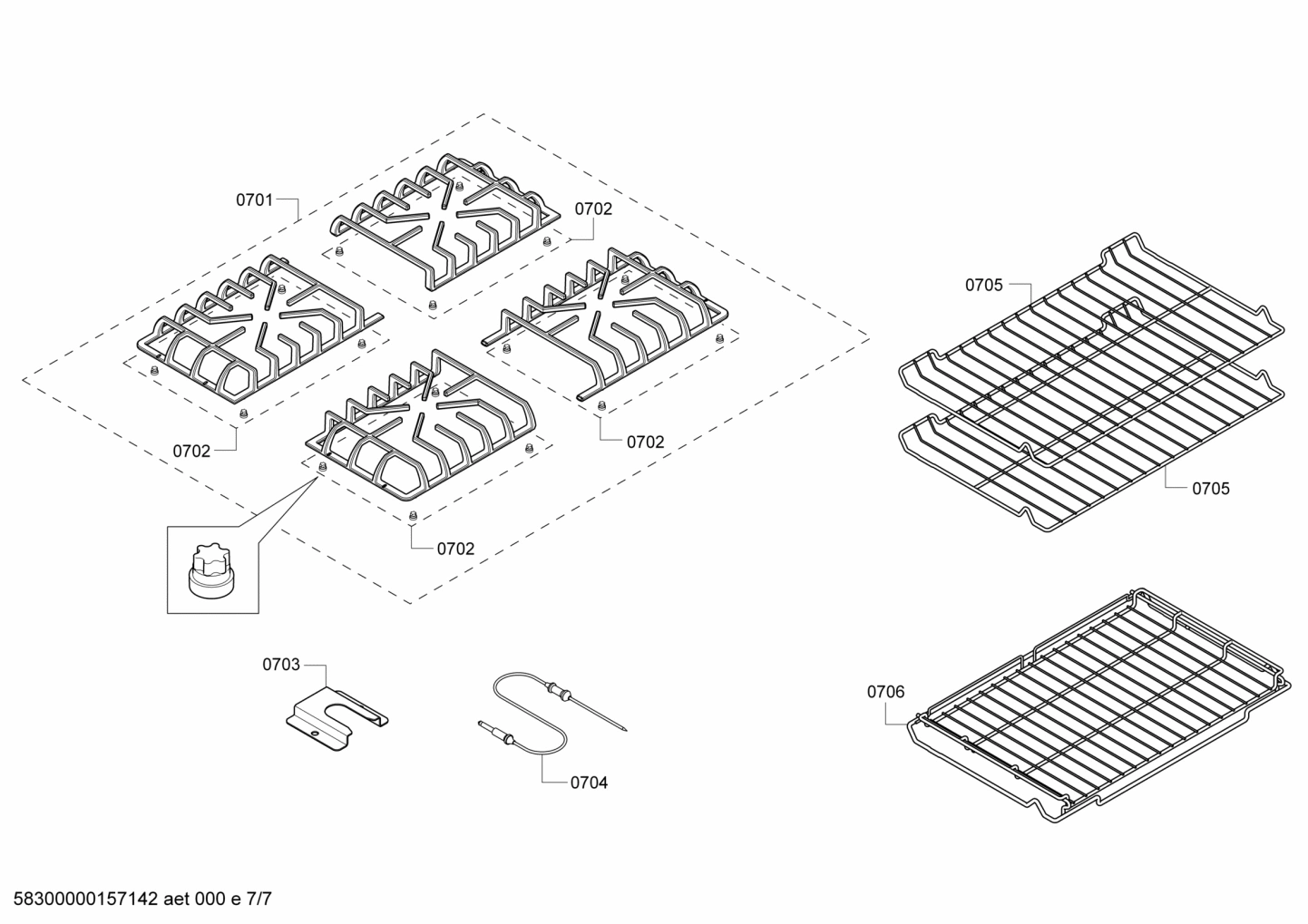

0701

Grill grid BOS 00701369 Contact Us For Availability

View on Model

0702

00637940 Bosch Oven Rubber Foot In Stock BOS 00637940 $45.75

View on Model

0703

Bracket BOS 00625466 Contact Us For Availability

View on Model

0704

00755060 Bosch Oven Sensor In Stock BOS 00755060 $85.07

View on Model

0705

Shelf BOS 00144416 Contact Us For Availability

View on Model

0706

Grille BOS 00438086 Contact Us For Availability

View on Model

Model Bosch HDI7282U/09 Range Oven – Common Parts & Diagrams

Common parts from model Bosch HDI7282U/09 Range Oven
