Bosch HDI7052U/01 Range Oven Parts List

0101

Grill grid BOS 00701369 Contact Us For Availability

View on Model

0102

Cap BOS 00603882 Contact Us For Availability

View on Model

0103

00423442 Bosch Range Burner Housing In Stock BOS 00423442 $40.26

View on Model

0105

00605675 Bosch Range Seal Backorder BOS 00605675 $33.86

View on Model

0106

Burner Cap BOS 00426054 No Longer Available

View on Model

0107

Burner housing BOS 00423444 No Longer Available

View on Model

0109

00605676 Bosch Range Seal Backorder BOS 00605676 $41.18

View on Model

0110

Burner Cap BOS 00426056 Contact Us For Availability

View on Model

0113

Seal BOS 00605677 Contact Us For Availability

View on Model

0114

Hob top BOS 00243959 Contact Us For Availability

View on Model

0115

Jet BOS 00448637 Contact Us For Availability

View on Model

0116

00603506 Bosch Range Electrode In Stock BOS 00603506 $19.22

View on Model

0118

00448636 Bosch Range Jet Backorder BOS 00448636 $65.16

View on Model

0119

00499753 Bosch Range Jet Backorder BOS 00499753 $57.02

View on Model

0120

Valve BOS 00605674 Contact Us For Availability

View on Model

0121

00603716 Bosch Range Valve In Stock BOS 00603716 $134.39

View on Model

0122

Manifold BOS 00661313 Contact Us For Availability

View on Model

0125

Glass panel BOS 00703423 Contact Us For Availability

View on Model

0126

00605666 Bosch Range Grommet In Stock BOS 00605666 $8.24

View on Model

0127

00630686 Bosch Range Ring Backorder BOS 00630686 $53.07

View on Model

0128

Knob BOS 00603757 Contact Us For Availability

View on Model

0129

Knob-programme BOS 00422367 Contact Us For Availability

View on Model

0151

Cable harness BOS 00499748 Contact Us For Availability

View on Model

0154

Cable harness set BOS 00651017 Contact Us For Availability

View on Model

0155

Cable harness BOS 00641106 Contact Us For Availability

View on Model

0159

Filter BOS 00622395 Contact Us For Availability

View on Model

0160

00423478 Bosch Range Screw In Stock BOS 00423478 $2.75

View on Model

0201

00746648 Bosch Range Latch Backorder BOS 00746648 $105.89

View on Model

0203

Switch BOS 00604808 No Longer Available

View on Model

0205

00491572 Bosch Oven Catalyzer In Stock BOS 00491572 $48.50

View on Model

0206

Motor BOS 00491576 Contact Us For Availability

View on Model

0209

Switch BOS 00603747 No Longer Available

View on Model

0210

00491569 Bosch Oven Door Seal In Stock BOS 00491569 $76.02

View on Model

0212

Shelf BOS 00144416 Contact Us For Availability

View on Model

0213

Broiler Pan BOS 00449756 Contact Us For Availability

View on Model

0216

00422089 Bosch Range Sensor Backorder BOS 00422089 $53.99

View on Model

0217

00436632 Bosch Range Heating Element Backorder BOS 00436632 $151.30

View on Model

0218

00491577 Bosch Oven Fan Blade Backorder BOS 00491577 $27.45

View on Model

0219

Oven Lamp Assembly BOS 00415045 No Longer Available

View on Model

0250

00683484 Bosch Range Fixing Kit Backorder BOS 00683484 $249.04

View on Model

0251

00623710 Bosch Oven Lamp In Stock BOS 00623710 $4.58

View on Model

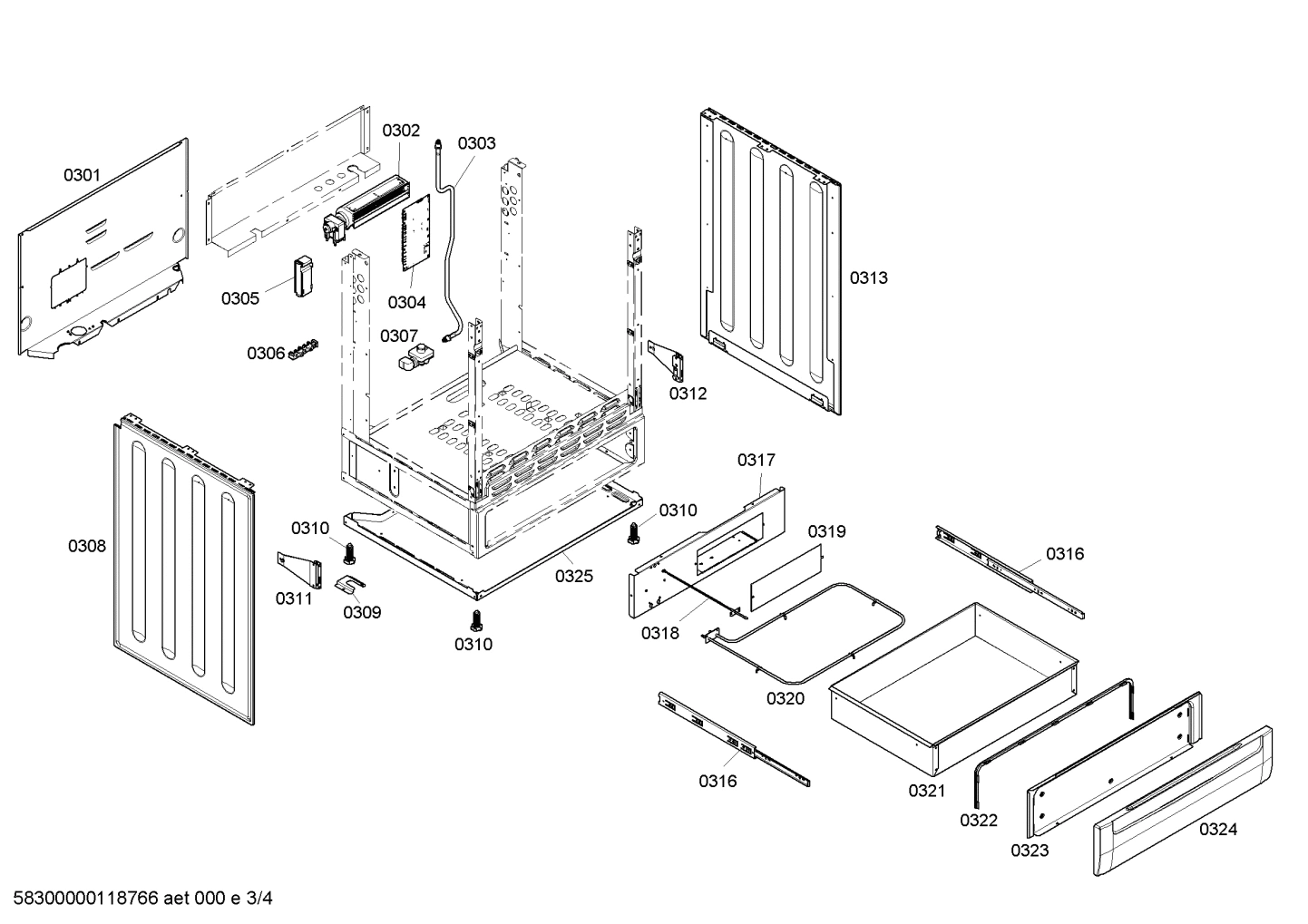

0302

00448635 Bosch Range Fan In Stock BOS 00448635 $137.60

View on Model

0303

Tube BOS 00661314 Contact Us For Availability

View on Model

0306

00436364 Bosch Oven Terminal Box In Stock BOS 00436364 $27.45

View on Model

0309

Bracket BOS 00625466 Contact Us For Availability

View on Model

0310

00429065 Bosch Range Foot In Stock BOS 00429065 $24.71

View on Model

0311

Hinge-plate BOS 00491539 No Longer Available

View on Model

0312

Hinge-plate BOS 00491538 No Longer Available

View on Model

0316

Slide BOS 00440843 Contact Us For Availability

View on Model

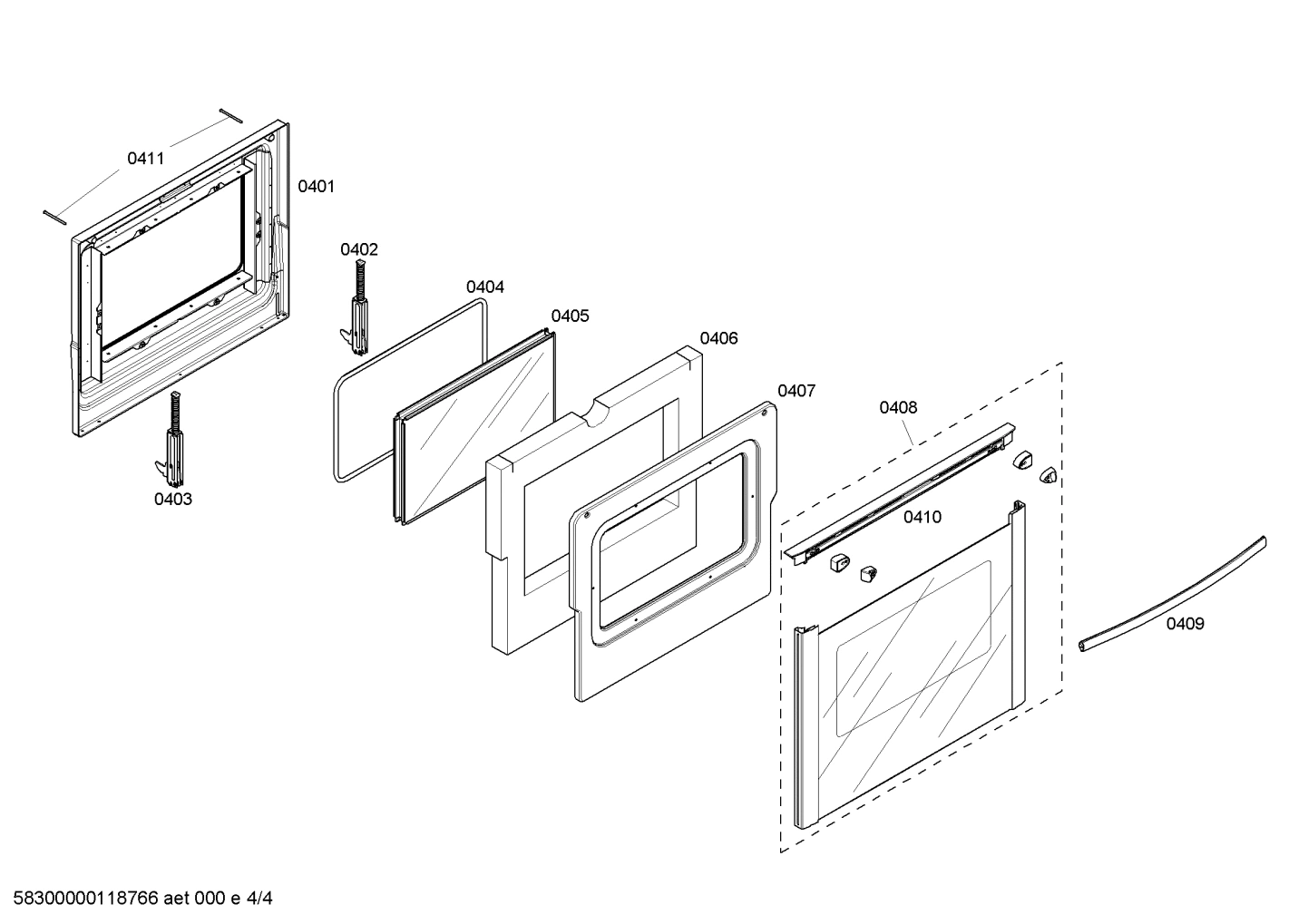

0401

Door-inner BOS 00683705 Contact Us For Availability

View on Model

0403

00683866 Bosch Range Fixing Kit Backorder BOS 00683866 $466.40

View on Model

0404

Sealing BOS 00491899 Contact Us For Availability

View on Model

0405

00436379 Bosch Range Front Glass Panel Backorder BOS 00436379 $175.33

View on Model

0406

Insulating part BOS 00143678 Contact Us For Availability

View on Model

0407

Heat shield BOS 00676010 Contact Us For Availability

View on Model

0409

Handle-door BOS 00436646 Contact Us For Availability

View on Model

0410

Handle-strip BOS 00499807 Contact Us For Availability

View on Model

0411

Screw BOS 00607316 No Longer Available

View on Model

Model Bosch HDI7052U/01 Range Oven – Common Parts & Diagrams

Common parts from model Bosch HDI7052U/01 Range Oven
