Model Bosch HDI7032C/04 Range Oven – Common Parts & Diagrams
Diagram 1
Diagram 2

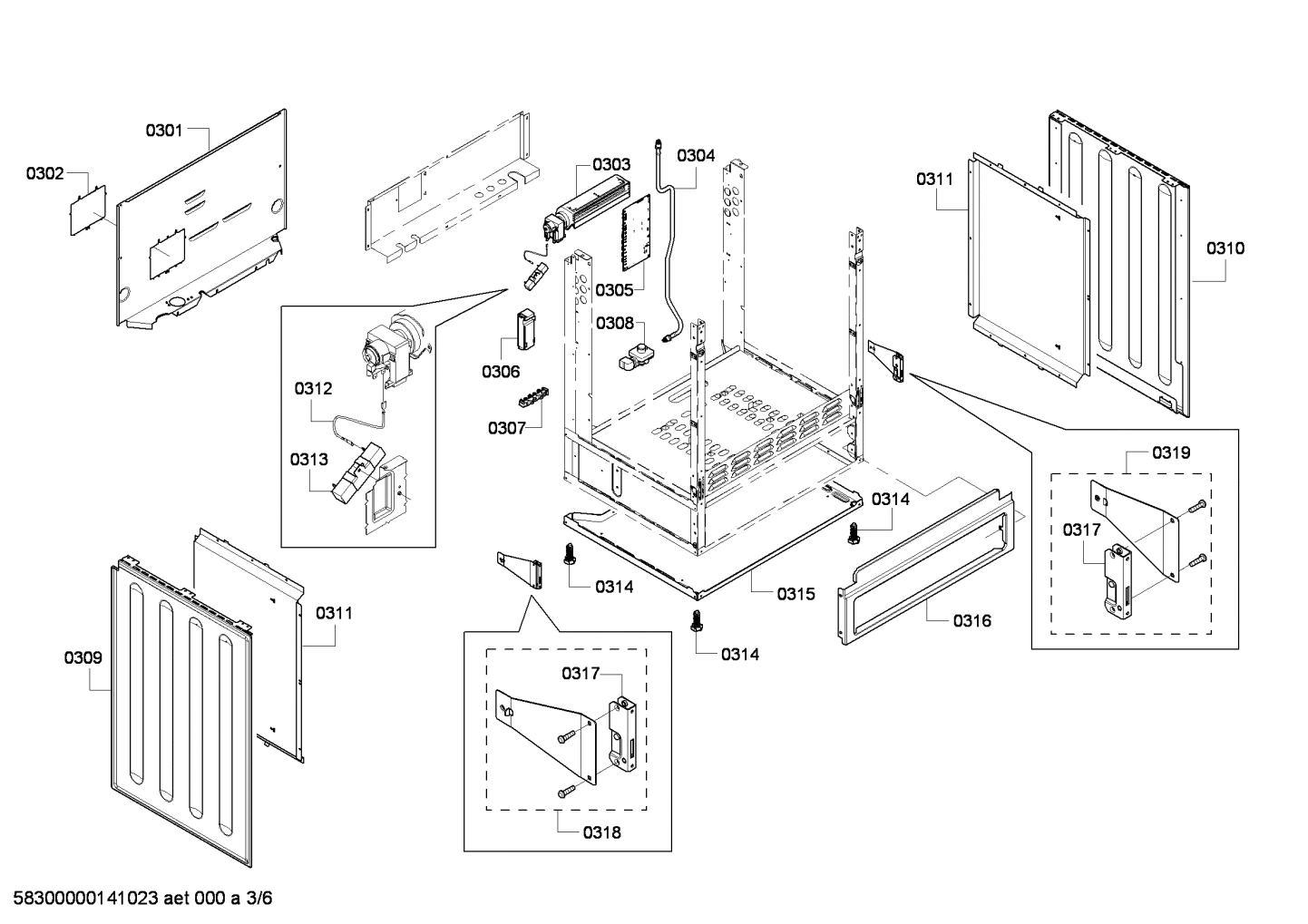

Diagram 3

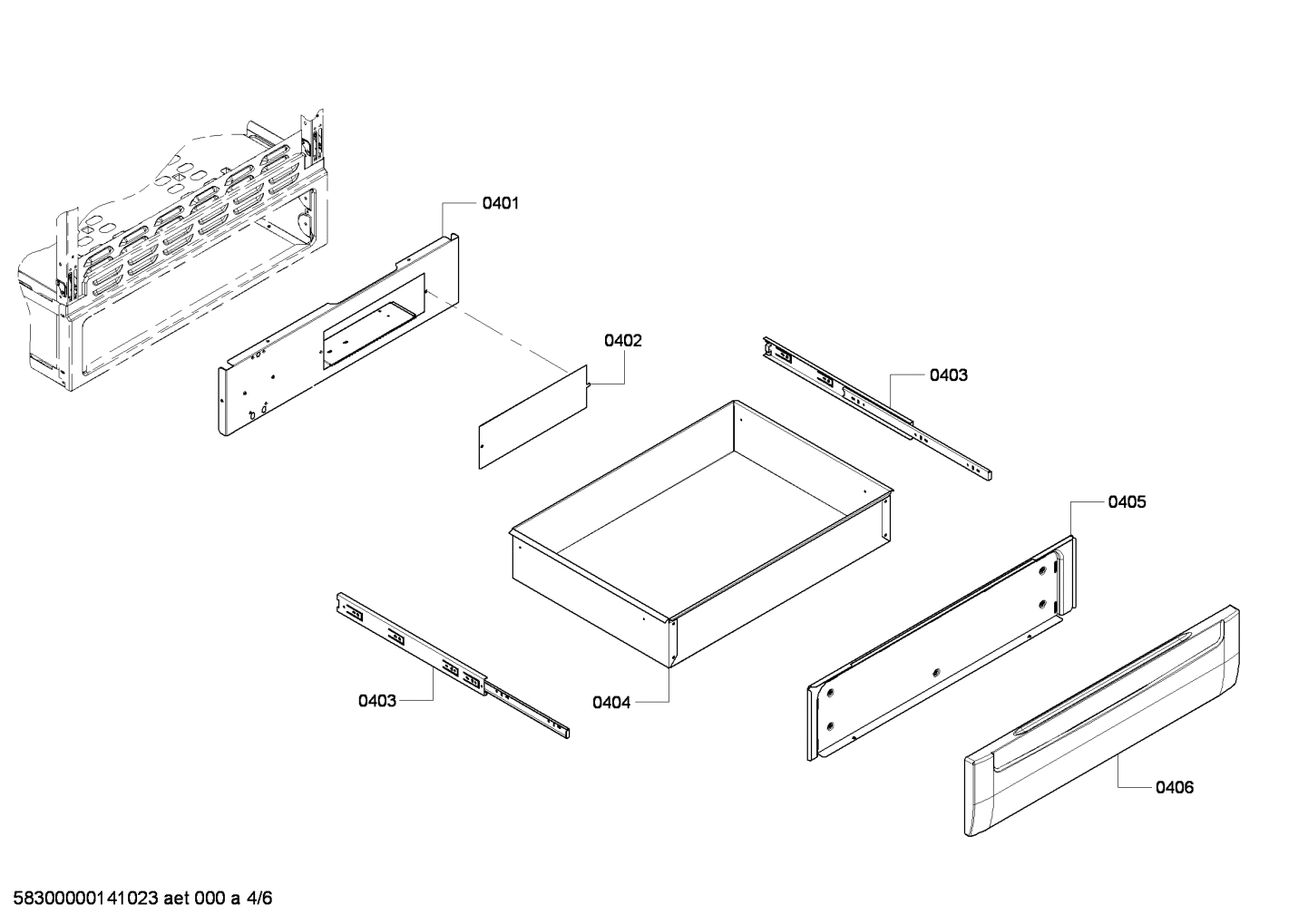

Diagram 4

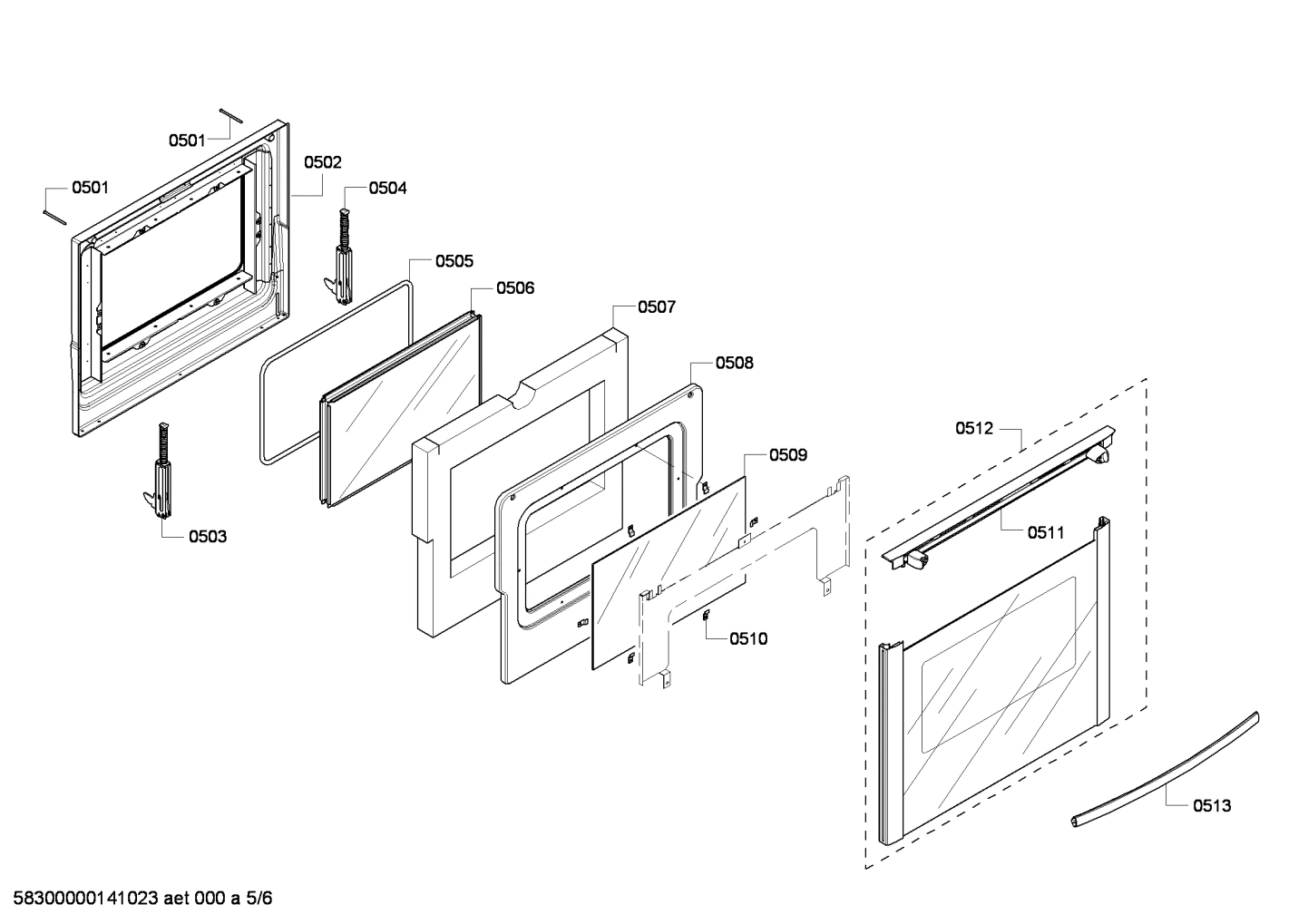

Diagram 5

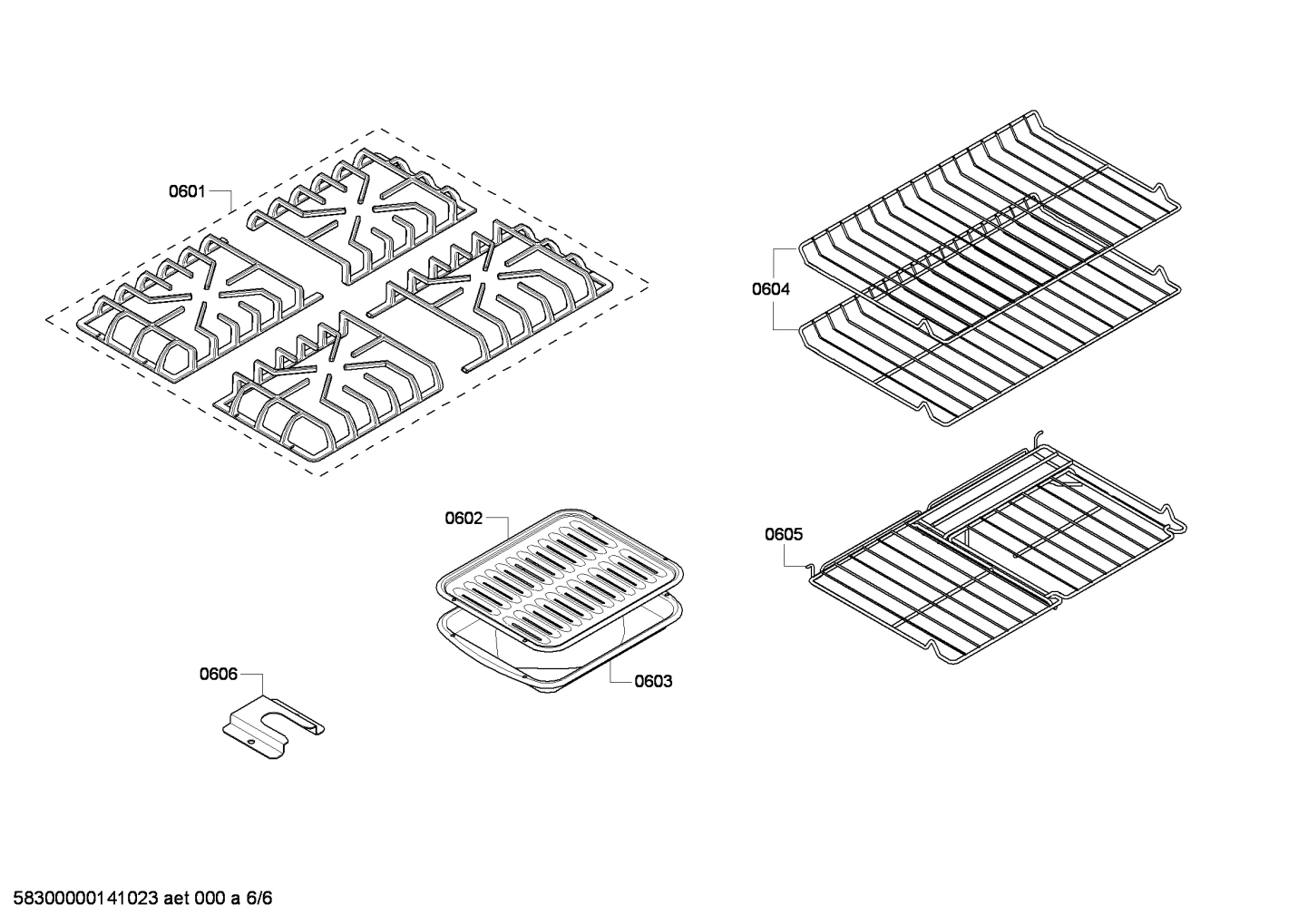

Diagram 6
Common parts from model Bosch HDI7032C/04 Range Oven
0102
Cap BOS 00603882 Contact Us For Availability
0106
Burner Cap BOS 00426054 No Longer Available
0107
Burner housing BOS 00423444 No Longer Available
0110
Burner Cap BOS 00426056 No Longer Available
0113
Seal BOS 00605677 Contact Us For Availability
0121
Jet BOS 00448637 Contact Us For Availability
0151
Cable harness BOS 00641106 Contact Us For Availability
0203
Switch BOS 00604808 No Longer Available
0206
Motor BOS 00491576 Contact Us For Availability
0211
Switch BOS 00603747 No Longer Available
0304
Tube BOS 00661314 Contact Us For Availability
0311
Panel BOS 00422024 Contact Us For Availability
0317
Hinge-window BOS 00492295 No Longer Available
0318
Hinge-plate BOS 00491539 No Longer Available
0319
Hinge-plate BOS 00491538 No Longer Available
0501
Screw BOS 00607316 No Longer Available
0502
Door-inner BOS 00683705 Contact Us For Availability
0505
Sealing BOS 00491899 Contact Us For Availability
0507
Insulating part BOS 00143678 Contact Us For Availability
0509
Glass panel BOS 00665308 Contact Us For Availability
0513
Handle-door BOS 00436646 Contact Us For Availability
0601
Grill grid BOS 00701369 Contact Us For Availability
0602
Broiler Pan BOS 00449756 Contact Us For Availability
0604
Shelf BOS 00144416 Contact Us For Availability
× ![]()
