Bosch HBL8752UCC/01 Range Oven Parts List

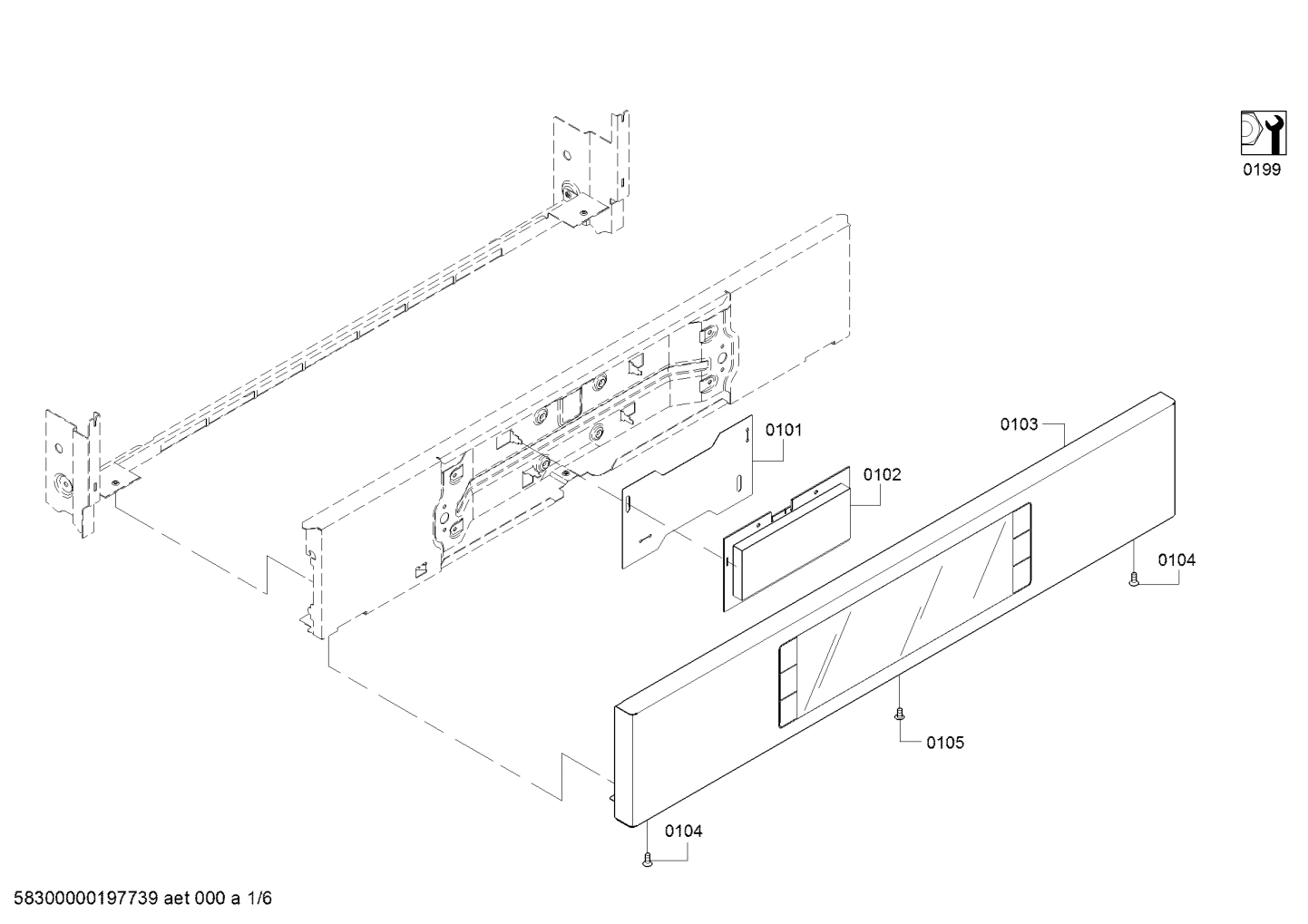

0102

12029207 Bosch Oven Display Module In Stock BOS 12029207 $182.16

View on Model

0103

11005325 Bosch Oven Facia Panel In Stock BOS 11005325 $275.44

View on Model

0105

00422098 Bosch Oven Screw In Stock BOS 00422098 $24.71

View on Model

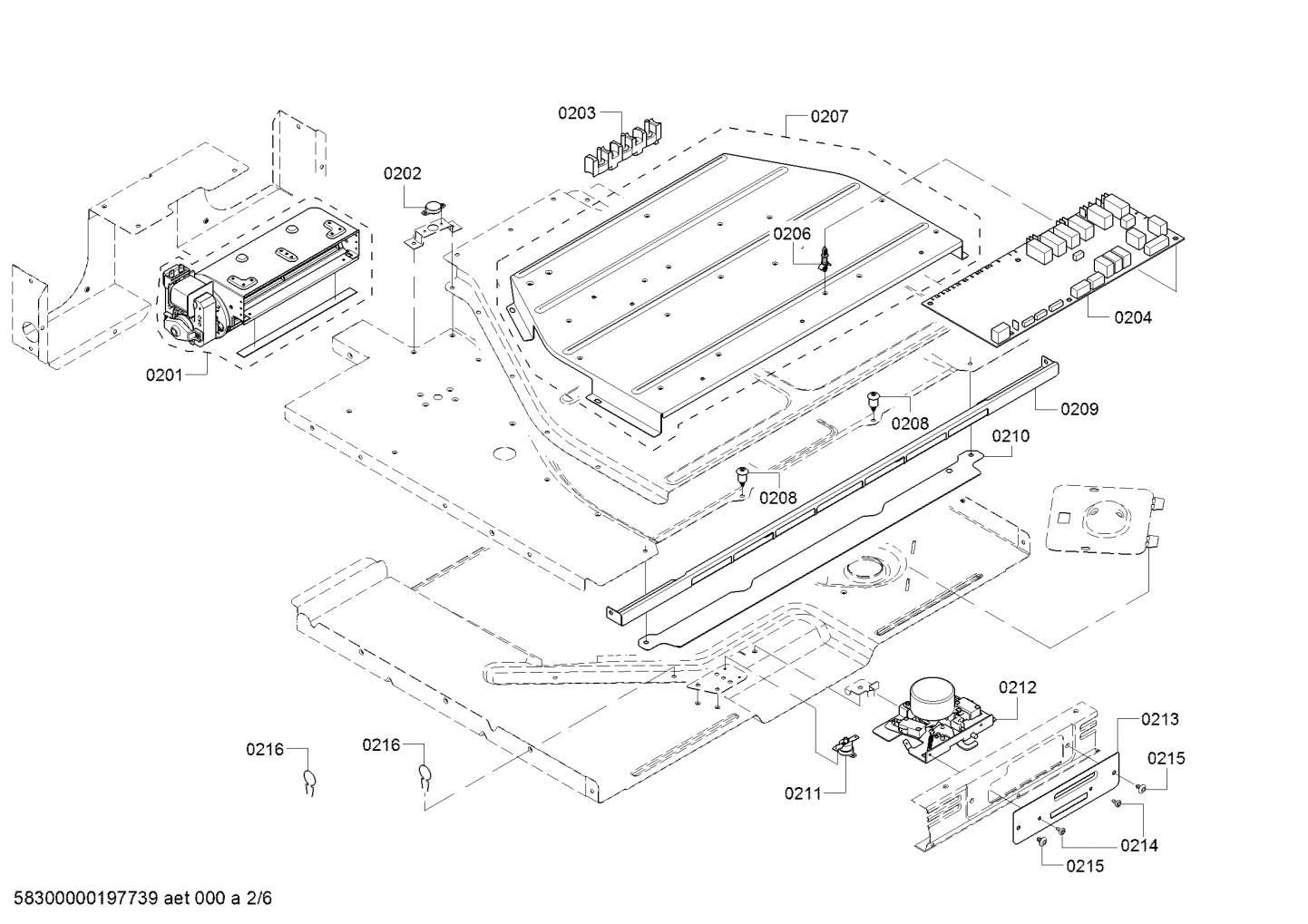

0201

00759374 Bosch Oven Fan In Stock BOS 00759374 $96.84

View on Model

0202

00631343 Bosch Oven Temperature Limiter In Stock BOS 00631343 $35.69

View on Model

0203

00436364 Bosch Oven Terminal Box In Stock BOS 00436364 $27.45

View on Model

0204

11020741 Bosch Oven Control Module Programmed In Stock BOS 11020741 $195.99

View on Model

0206

Spacer BOS 00422100 Contact Us For Availability

View on Model

0209

00798645 Bosch Oven Trim Plate Backorder BOS 00798645 $68.78

View on Model

0210

00798849 Bosch Oven Air Duct Assembly Backorder BOS 00798849 $64.26

View on Model

0211

10012286 Bosch Oven Temperature Limiter In Stock BOS 10012286 $36.60

View on Model

0212

12024390 Bosch Oven Latch In Stock BOS 12024390 $62.45

View on Model

0213

00758203 Bosch Oven Plate Backorder BOS 00758203 $53.07

View on Model

0214

00620814 Bosch Oven Screw Backorder BOS 00620814 $21.96

View on Model

0250

00755412 Bosch Oven Cable Harness Backorder BOS 00755412 $18.30

View on Model

0252

00755370 Bosch Oven Cable Harness In Stock BOS 00755370 $42.09

View on Model

0253

00755397 Bosch Oven Cable Harness Backorder BOS 00755397 $25.62

View on Model

0254

11033493 Bosch Oven Cable Harness Backorder BOS 11033493 $22.88

View on Model

0255

00755405 Bosch Oven Cable Harness Backorder BOS 00755405 $42.09

View on Model

0256

Cable harness BOS 00755377 Contact Us For Availability

View on Model

0257

12006323 Bosch Oven Cable Harness Backorder BOS 12006323 $22.88

View on Model

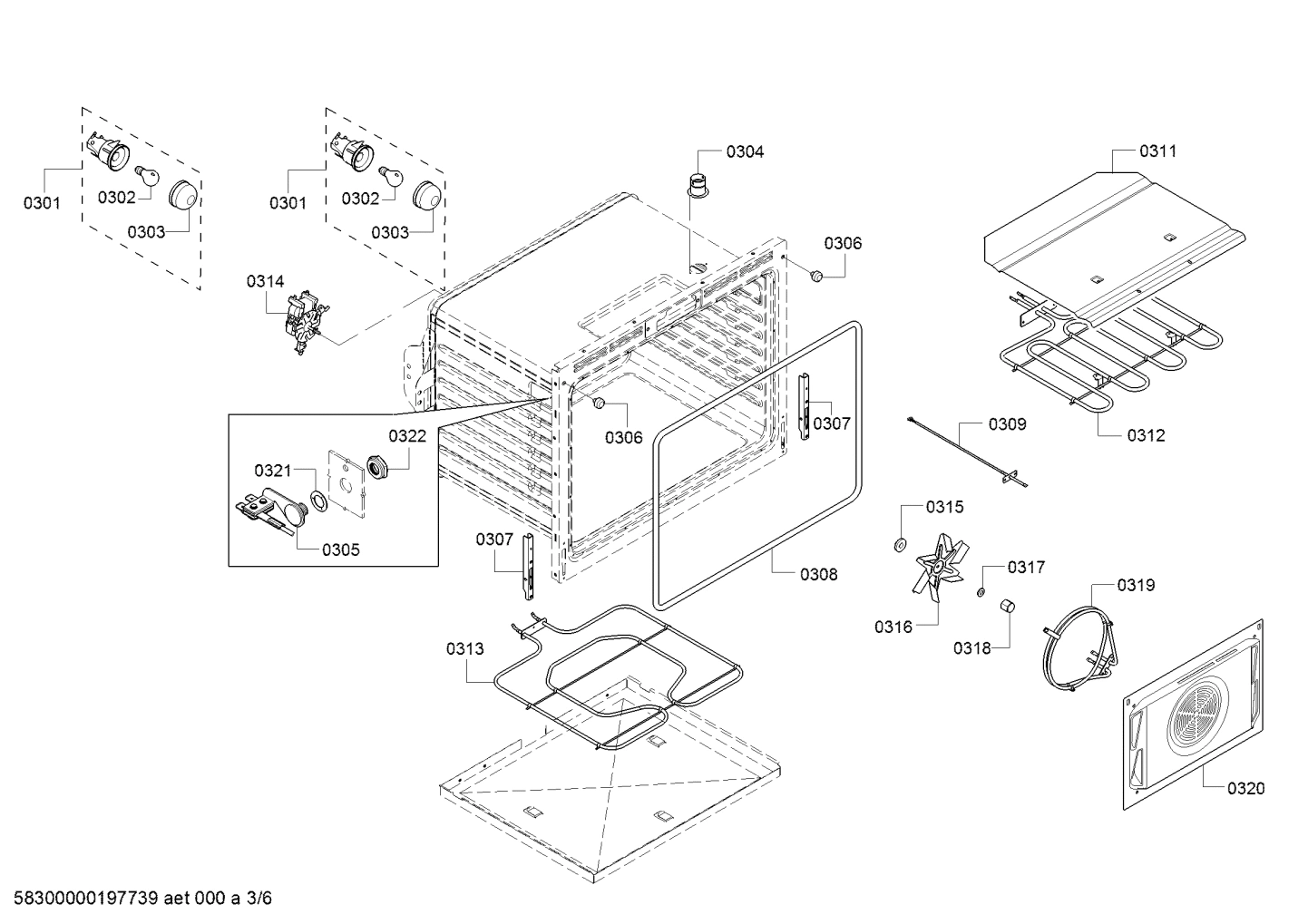

0301

Oven Lamp Assembly BOS 00415045 No Longer Available

View on Model

0302

00623710 Bosch Oven Lamp In Stock BOS 00623710 $4.58

View on Model

0303

00414513 Bosch Oven Lens In Stock BOS 00414513 $18.30

View on Model

0304

00491572 Bosch Oven Catalyzer In Stock BOS 00491572 $48.50

View on Model

0305

10007567 Bosch Oven Socket In Stock BOS 10007567 $302.72

View on Model

0306

00631116 Bosch Oven Spacer Backorder BOS 00631116 $22.88

View on Model

0307

00758209 Bosch Oven Hinge Holder Backorder BOS 00758209 $27.45

View on Model

0308

00755053 Bosch Oven Door Seal Assembly In Stock BOS 00755053 $48.50

View on Model

0309

00630873 Bosch Oven Sensor In Stock BOS 00630873 $39.35

View on Model

0311

00777053 Bosch Oven Reflector Backorder BOS 00777053 $53.07

View on Model

0313

00791650 Bosch Oven Heating Element In Stock BOS 00791650 $80.55

View on Model

0314

00642845 Bosch Oven Motor In Stock BOS 00642845 $121.23

View on Model

0315

00603860 Bosch Oven Spacer Backorder BOS 00603860 $30.20

View on Model

0316

00491577 Bosch Oven Fan Blade Backorder BOS 00491577 $27.45

View on Model

0317

00422090 Bosch Oven Washer Backorder BOS 00422090 $14.64

View on Model

0318

00471532 Bosch Oven Nut Backorder BOS 00471532 $9.15

View on Model

0319

00755059 Bosch Oven Heating Element Backorder BOS 00755059 $57.92

View on Model

0321

00605039 Bosch Oven Washer Backorder BOS 00605039 $10.98

View on Model

0322

00608199 Bosch Oven Nut Backorder BOS 00608199 $9.15

View on Model

0350

00755410 Bosch Oven Cable Harness Backorder BOS 00755410 $31.11

View on Model

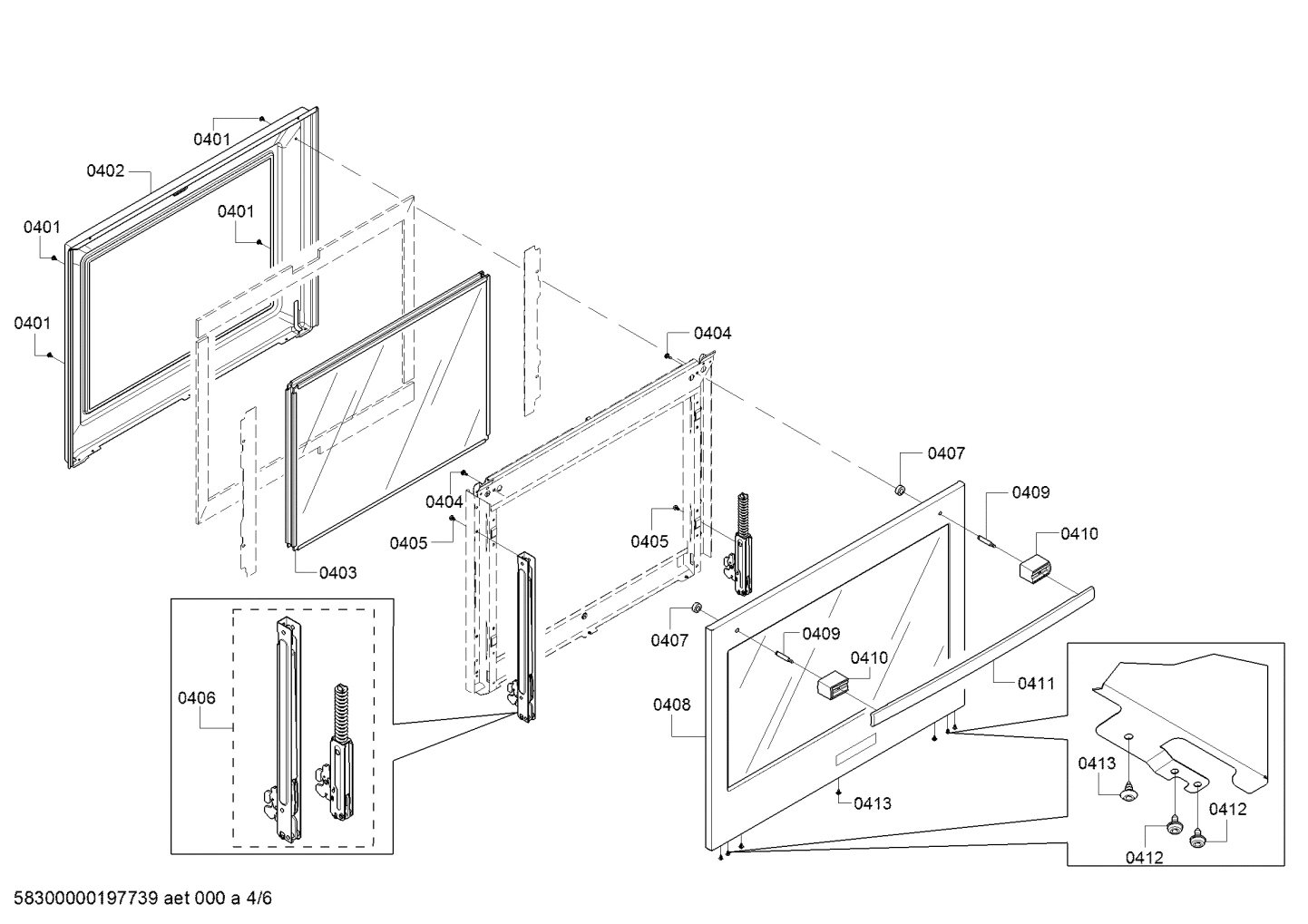

0402

00771360 Bosch Oven Inner Door In Stock BOS 00771360 $119.26

View on Model

0403

11036439 Bosch Oven Inner Glass In Stock BOS 11036439 $264.88

View on Model

0404

00632735 Bosch Oven Screw Backorder BOS 00632735 $21.96

View on Model

0405

00421507 Bosch Oven Screw In Stock BOS 00421507 $19.22

View on Model

0407

00631616 Bosch Oven Insert Backorder BOS 00631616 $22.88

View on Model

0408

00771361 Bosch Oven Outer Door Backorder BOS 00771361 $265.76

View on Model

0409

00631615 Bosch Oven Insert Backorder BOS 00631615 $22.88

View on Model

0410

00631899 Bosch Oven Spacer Backorder BOS 00631899 $40.26

View on Model

0411

00798648 Bosch Oven Door Handle In Stock BOS 00798648 $68.78

View on Model

0412

00626588 Bosch Oven Screw Backorder BOS 00626588 $10.07

View on Model

0413

00422102 Bosch Oven Screw In Stock BOS 00422102 $19.22

View on Model

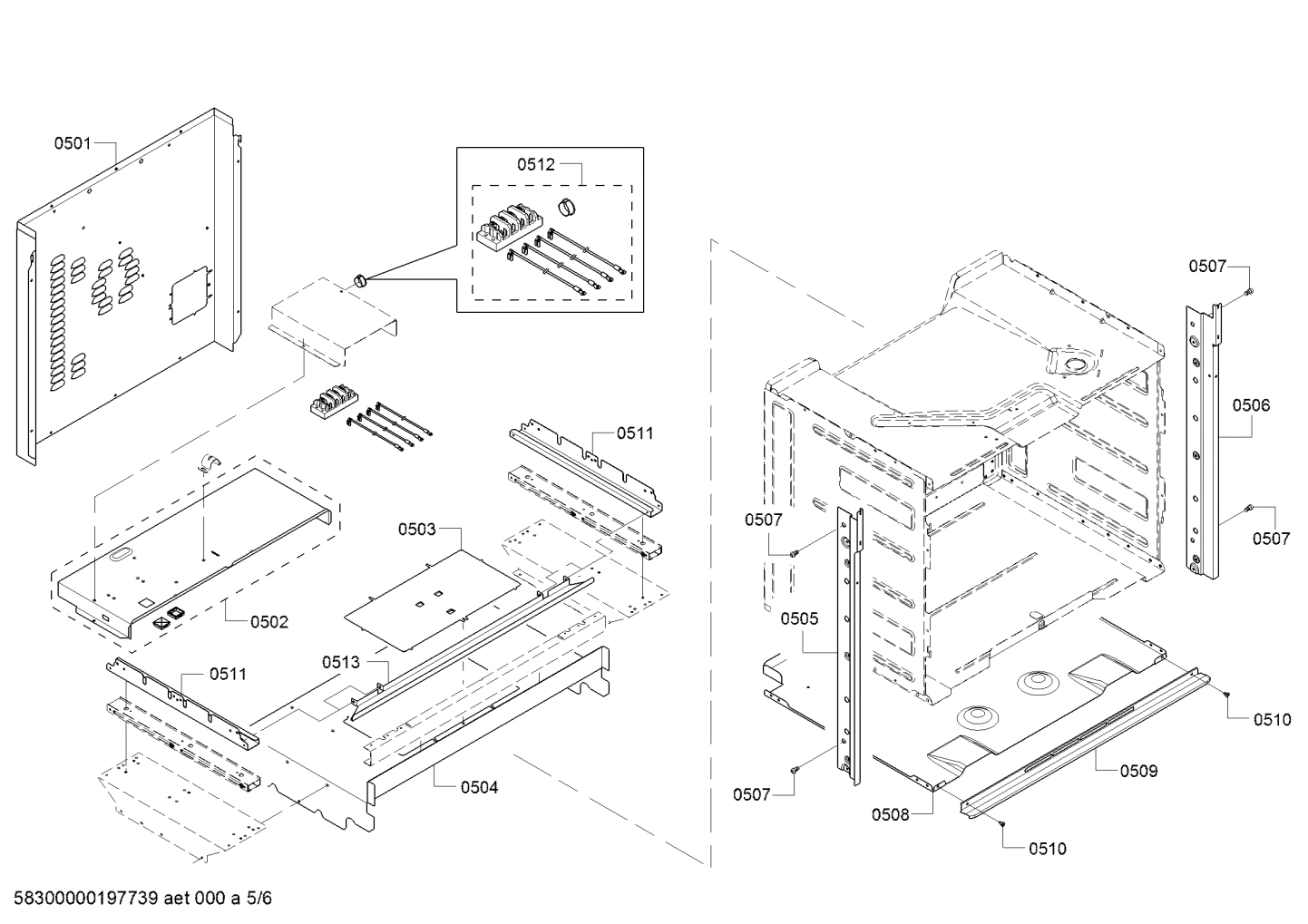

0501

00771362 Bosch Oven Housing Backorder BOS 00771362 $103.17

View on Model

0503

00758210 Bosch Oven Panel Backorder BOS 00758210 $72.40

View on Model

0505

00798652 Bosch Oven Trim Plate Backorder BOS 00798652 $83.26

View on Model

0506

00798653 Bosch Oven Trim Plate Backorder BOS 00798653 $87.79

View on Model

0509

00798654 Bosch Oven Trim Plate Backorder BOS 00798654 $113.92

View on Model

0510

00631347 Bosch Oven Screw Backorder BOS 00631347 $19.22

View on Model

0511

12001384 Bosch Oven Connection Piece Backorder BOS 12001384 $32.03

View on Model

0512

12002074 Bosch Oven Connection Cable Backorder BOS 12002074 $69.69

View on Model

0513

11001635 Bosch Oven Trimplate Backorder BOS 11001635 $75.12

View on Model

0550

00413453 Bosch Oven Screw Backorder BOS 00413453 $9.15

View on Model

0551

00797850 Bosch Oven Cable Harness Assembly Backorder BOS 00797850 $75.12

View on Model

0553

00630845 Bosch Oven Screw Backorder BOS 00630845 $21.96

View on Model

0554

00617527 Bosch Oven Screw In Stock BOS 00617527 $25.62

View on Model

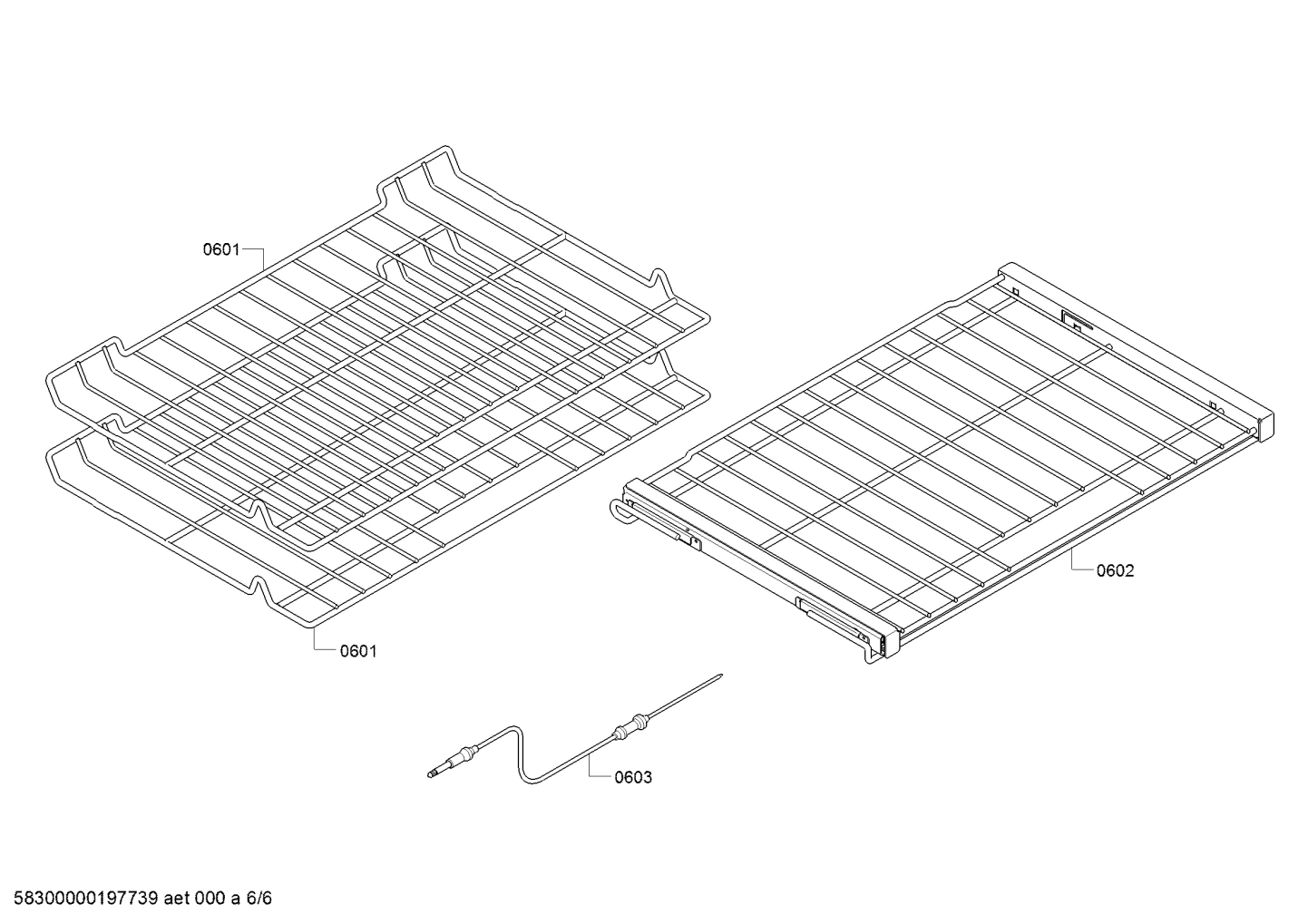

0601

00798845 Bosch Oven Shelf In Stock BOS 00798845 $57.02

View on Model

0602

00798846 Bosch Oven Shelf In Stock BOS 00798846 $271.92

View on Model

0603

00755060 Bosch Oven Sensor In Stock BOS 00755060 $85.07

View on Model

Model Bosch HBL8752UCC/01 Range Oven – Common Parts & Diagrams

Common parts from model Bosch HBL8752UCC/01 Range Oven
