Bosch HBL5651UC/01 Range Oven Parts List

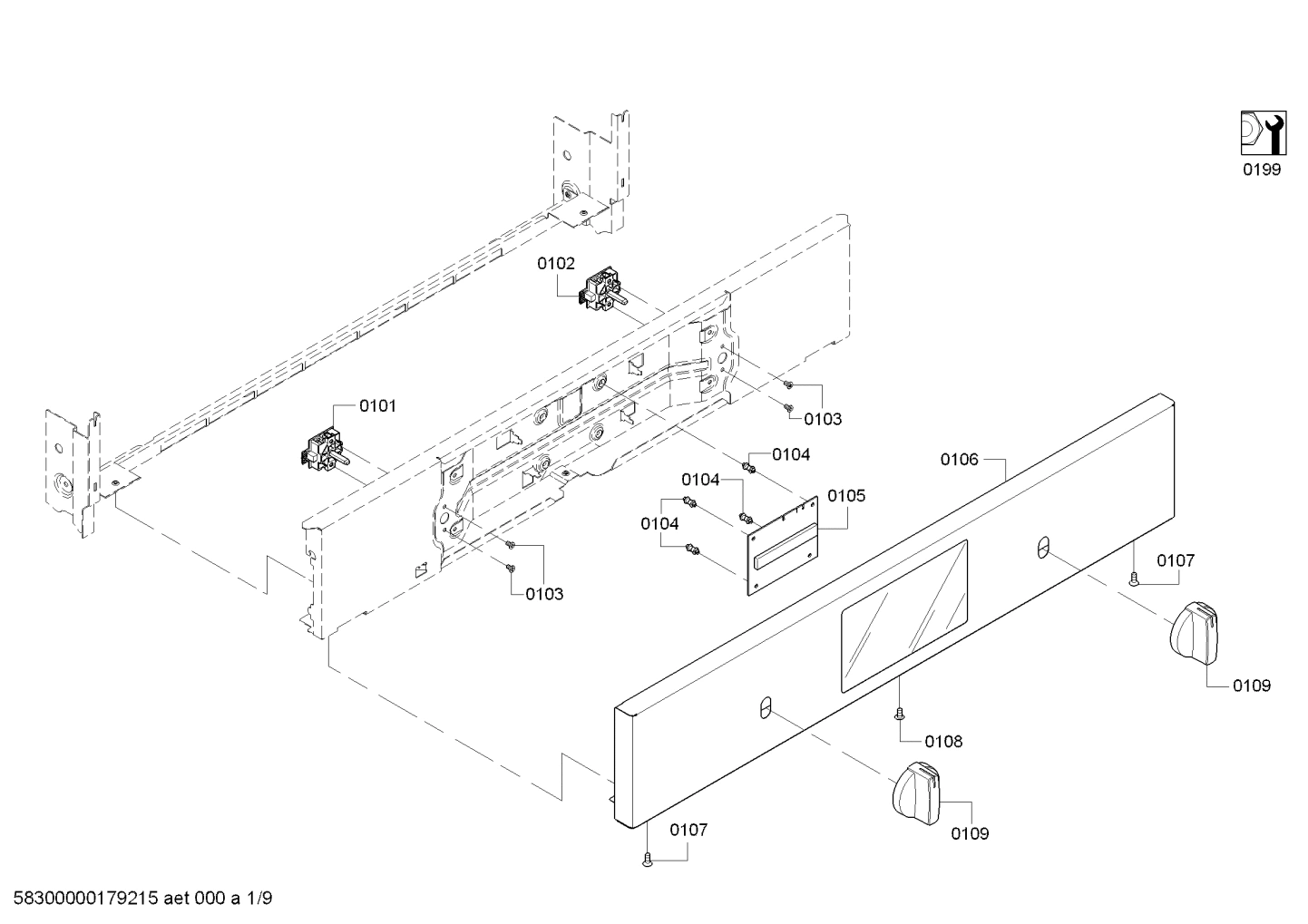

0101

00631339 Bosch Oven Switch Backorder BOS 00631339 $34.77

View on Model

0102

00631340 Bosch Oven Switch Backorder BOS 00631340 $37.06

View on Model

0105

00632190 Bosch Oven Display Module In Stock BOS 00632190 $151.75

View on Model

0106

00772648 Bosch Oven Facia Panel Backorder BOS 00772648 $247.28

View on Model

0107

00422102 Bosch Oven Screw In Stock BOS 00422102 $20.13

View on Model

0108

00422098 Bosch Oven Screw In Stock BOS 00422098 $25.16

View on Model

0109

00631885 Bosch Oven Knob Backorder BOS 00631885 $49.41

View on Model

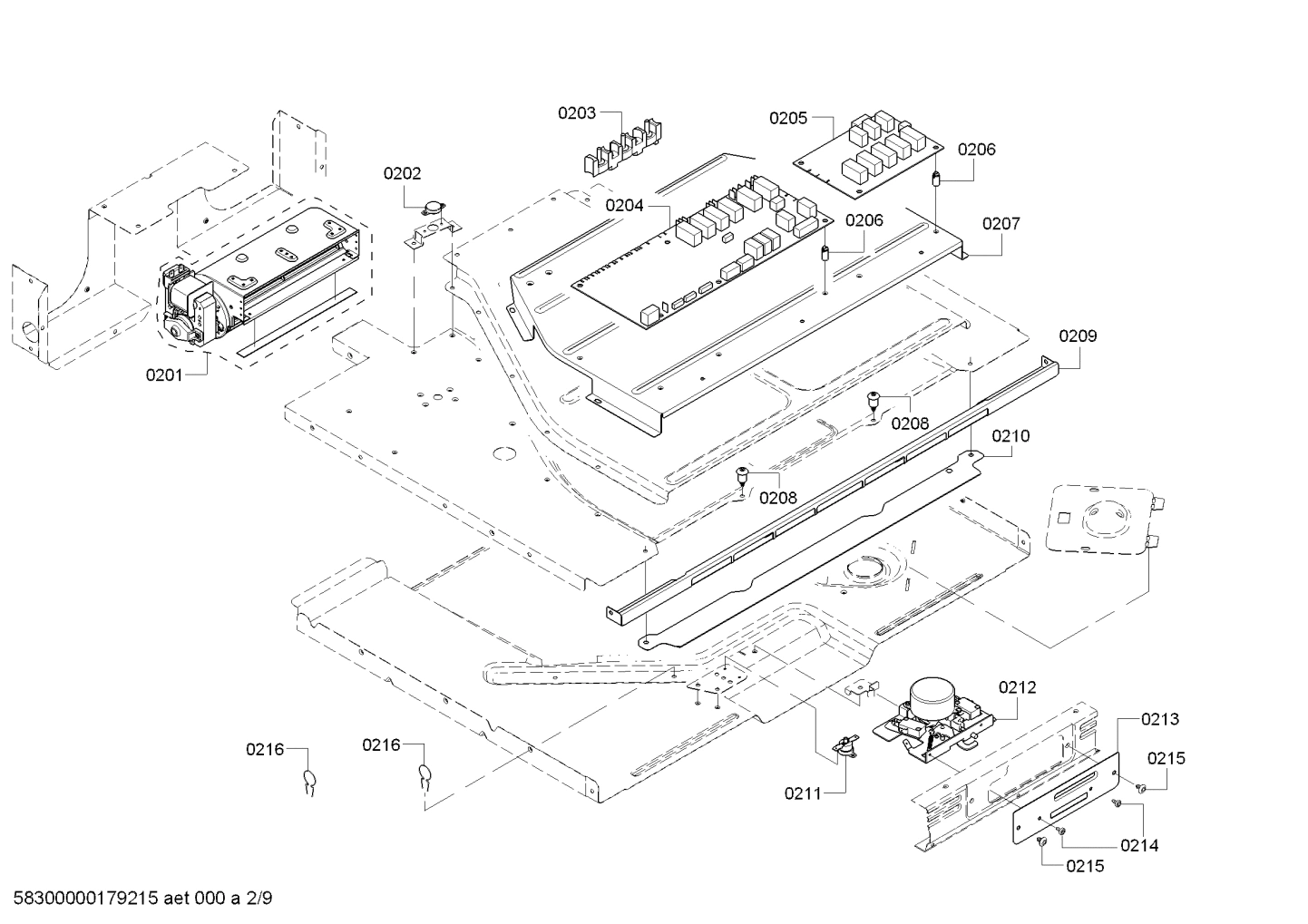

0203

00436364 Bosch Oven Terminal Box In Stock BOS 00436364 $27.91

View on Model

0204

11020740 Bosch Oven Programmed Control Module In Stock BOS 11020740 $269.72

View on Model

0205

12034880 Bosch Oven Control Module In Stock BOS 12034880 $124.25

View on Model

0206

Spacer BOS 00422100 Contact Us For Availability

View on Model

0209

00798645 Bosch Oven Trim Plate Backorder BOS 00798645 $71.04

View on Model

0250

00755412 Bosch Oven Cable Harness Backorder BOS 00755412 $18.30

View on Model

0251

12029005 Bosch Oven Harness Cable Backorder BOS 12029005 $61.54

View on Model

0252

00755370 Bosch Oven Cable Harness In Stock BOS 00755370 $43.01

View on Model

0253

00755396 Bosch Oven Cable Harness Backorder BOS 00755396 $23.33

View on Model

0254

11033493 Bosch Oven Cable Harness Backorder BOS 11033493 $23.33

View on Model

0255

Cable harness BOS 00755404 Contact Us For Availability

View on Model

0257

12006323 Bosch Oven Cable Harness Backorder BOS 12006323 $23.33

View on Model

0259

00755414 Bosch Oven Cable Harness Backorder BOS 00755414 $20.13

View on Model

0261

00755394 Bosch Oven Cable Harness Backorder BOS 00755394 $43.01

View on Model

0262

00755373 Bosch Oven Cable Harness Backorder BOS 00755373 $31.11

View on Model

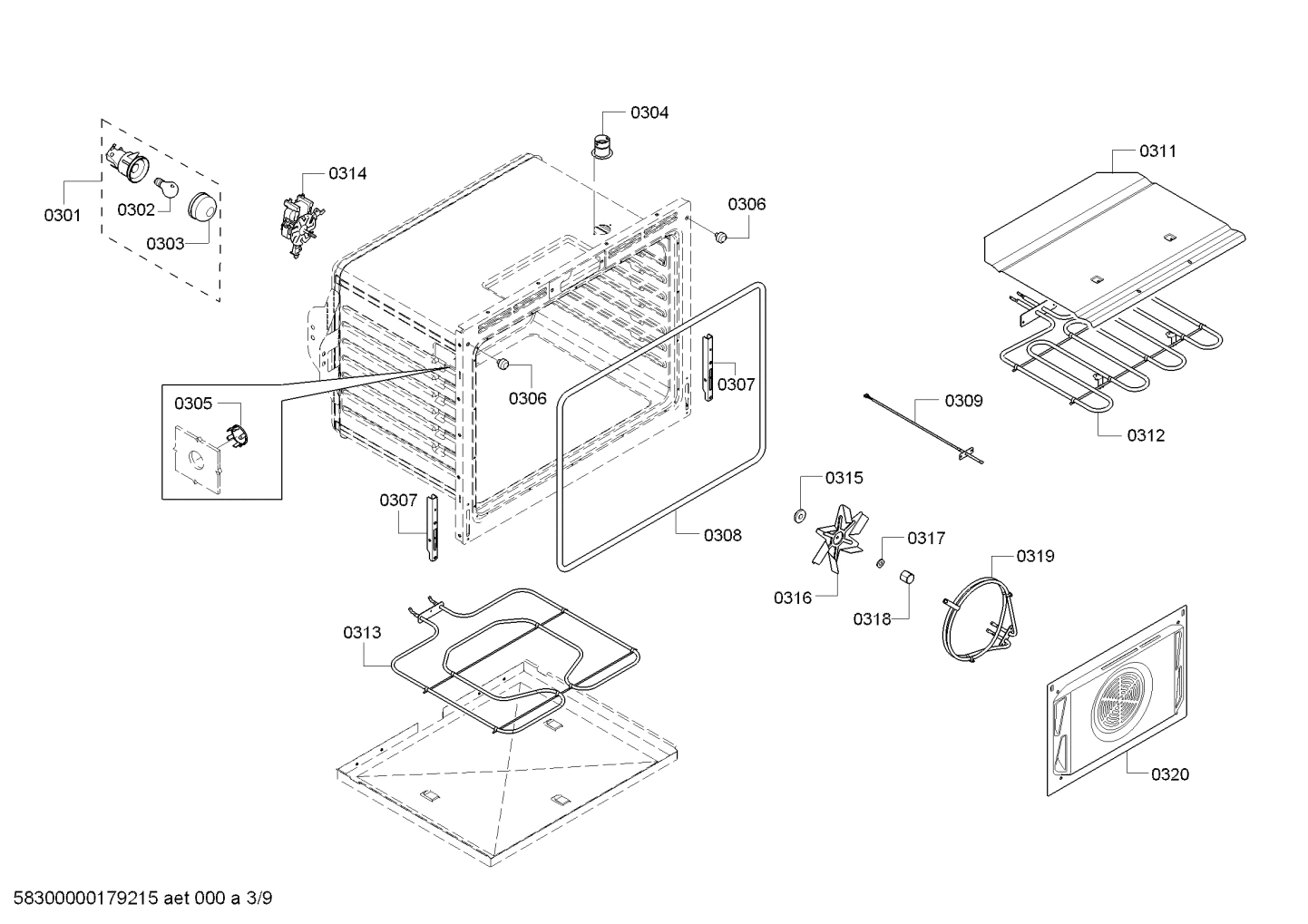

0309

00630873 Bosch Oven Sensor In Stock BOS 00630873 $39.80

View on Model

0314

00642845 Bosch Oven Motor In Stock BOS 00642845 $121.23

View on Model

0315

00603860 Bosch Oven Spacer Backorder BOS 00603860 $31.57

View on Model

0316

00491577 Bosch Oven Fan Blade Backorder BOS 00491577 $28.37

View on Model

0317

00422090 Bosch Oven Washer Backorder BOS 00422090 $14.64

View on Model

0318

00471532 Bosch Oven Nut Backorder BOS 00471532 $9.15

View on Model

0319

00755059 Bosch Oven Heating Element Backorder BOS 00755059 $60.18

View on Model

0408

00771361 Bosch Oven Outer Door Backorder BOS 00771361 $278.96

View on Model

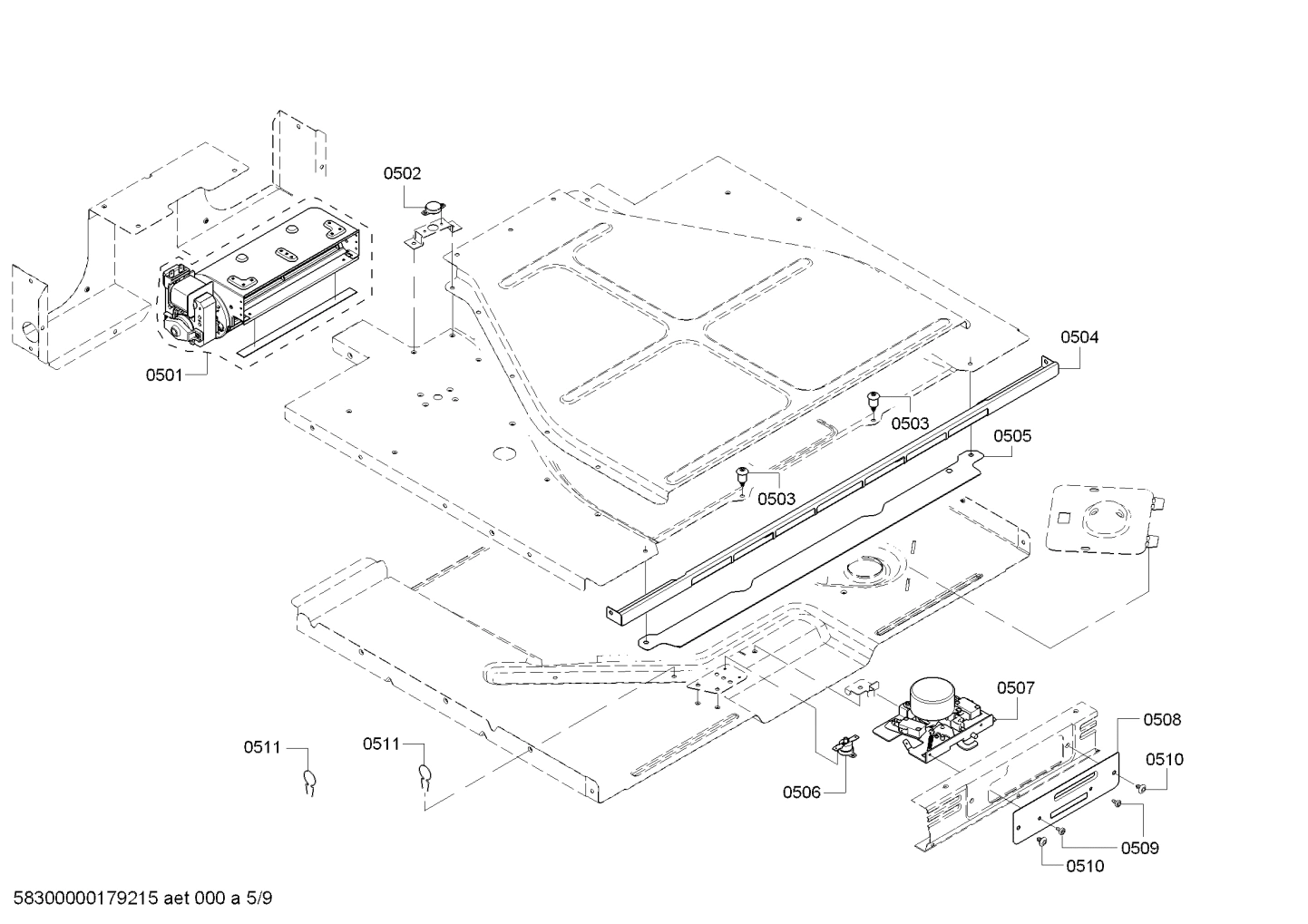

0501

00759374 Bosch Oven Fan In Stock BOS 00759374 $99.10

View on Model

0502

00631343 Bosch Oven Temperature Limiter In Stock BOS 00631343 $36.60

View on Model

0505

00798849 Bosch Oven Air Duct Assembly Backorder BOS 00798849 $66.07

View on Model

0506

10012286 Bosch Oven Temperature Limiter In Stock BOS 10012286 $37.52

View on Model

0507

12024390 Bosch Oven Latch In Stock BOS 12024390 $64.26

View on Model

0508

00758203 Bosch Oven Plate Backorder BOS 00758203 $53.99

View on Model

0509

00620814 Bosch Oven Screw Backorder BOS 00620814 $22.88

View on Model

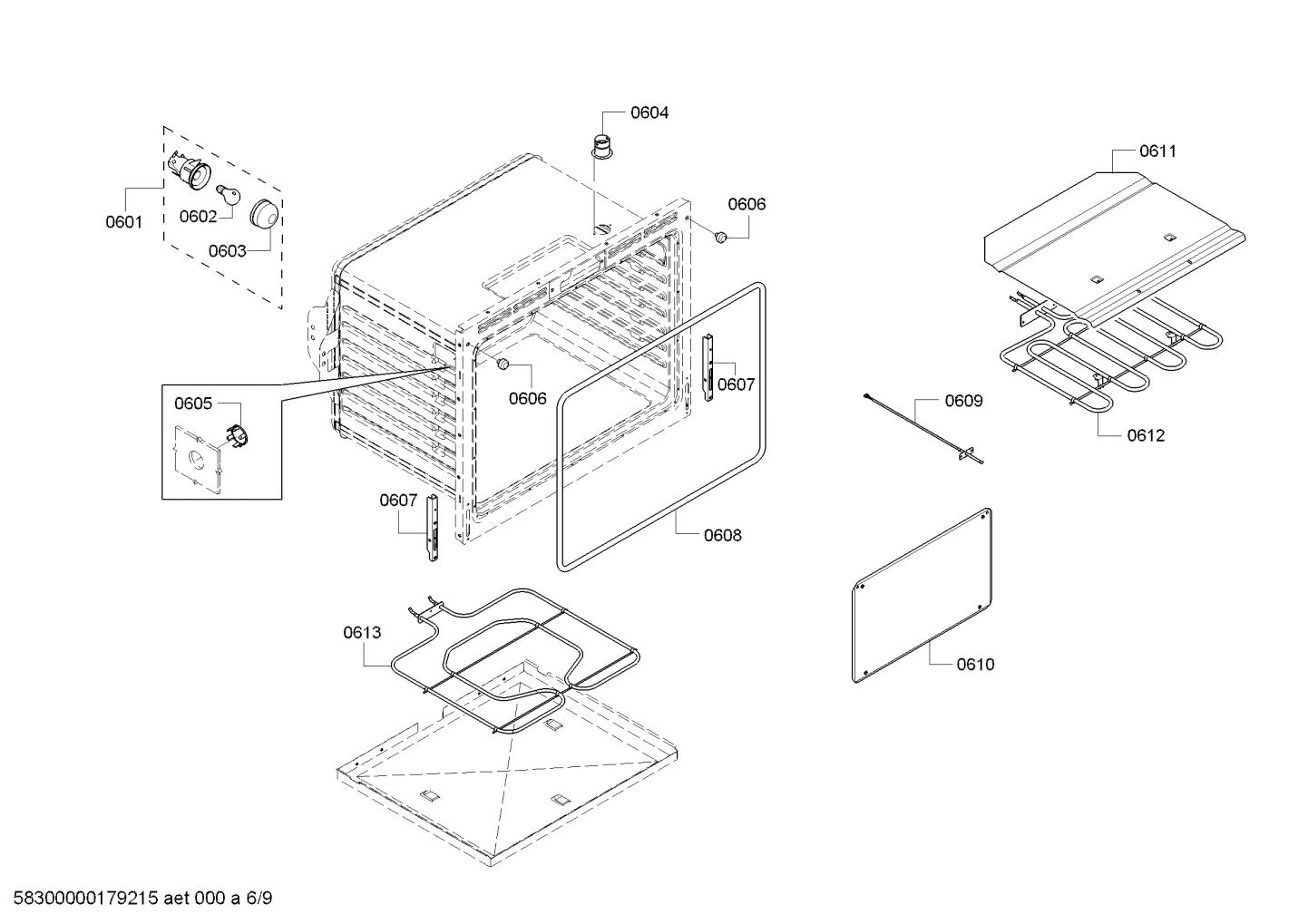

0601

Oven Lamp Assembly BOS 00415045 Contact Us For Availability

View on Model

0602

00623710 Bosch Oven Lamp In Stock BOS 00623710 $4.58

View on Model

0603

00414513 Bosch Oven Lens In Stock BOS 00414513 $19.22

View on Model

0604

00491572 Bosch Oven Catalyzer In Stock BOS 00491572 $49.87

View on Model

0605

00413573 Bosch Oven Plug Backorder BOS 00413573 $14.64

View on Model

0606

00631116 Bosch Oven Spacer Backorder BOS 00631116 $23.33

View on Model

0607

00758209 Bosch Oven Hinge Holder Backorder BOS 00758209 $27.91

View on Model

0608

00755053 Bosch Oven Door Seal Assembly In Stock BOS 00755053 $50.33

View on Model

0609

00642855 Bosch Oven Sensor In Stock BOS 00642855 $51.24

View on Model

0611

00777053 Bosch Oven Reflector Backorder BOS 00777053 $54.44

View on Model

0613

00791650 Bosch Oven Heating Element In Stock BOS 00791650 $83.26

View on Model

0650

00632191 Bosch Oven Screw In Stock BOS 00632191 $20.13

View on Model

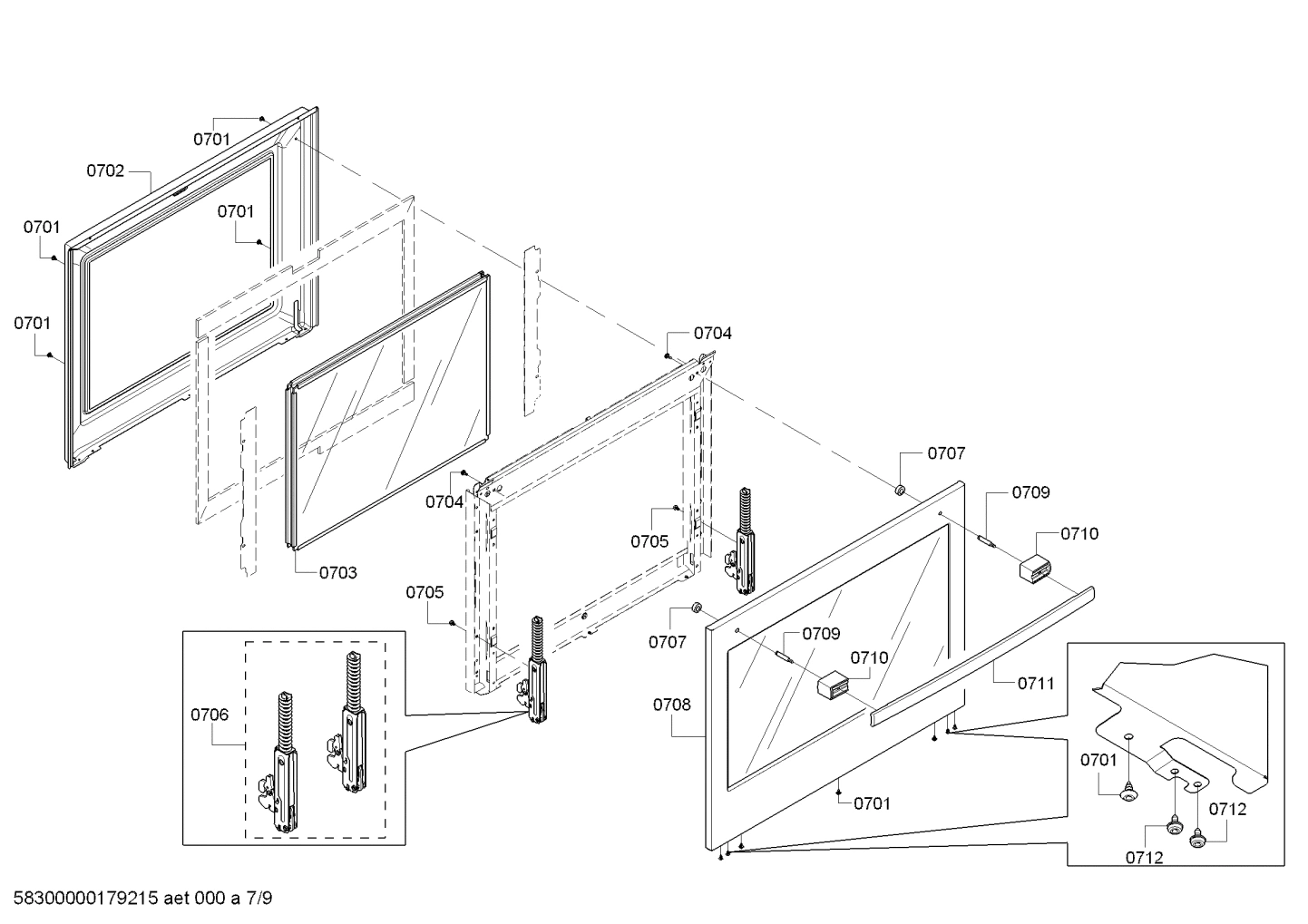

0702

00771360 Bosch Oven Inner Door In Stock BOS 00771360 $123.27

View on Model

0703

11036440 Bosch Oven Inner Glass Backorder BOS 11036440 $188.32

View on Model

0704

00632735 Bosch Oven Screw Backorder BOS 00632735 $22.88

View on Model

0705

00421507 Bosch Oven Screw In Stock BOS 00421507 $20.13

View on Model

0706

11005289 Bosch Oven Hinge Backorder BOS 11005289 $174.89

View on Model

0707

00631616 Bosch Oven Insert Backorder BOS 00631616 $23.33

View on Model

0708

00771526 Bosch Oven Outer Door Backorder BOS 00771526 $234.52

View on Model

0709

00631615 Bosch Oven Insert Backorder BOS 00631615 $23.33

View on Model

0710

00631899 Bosch Oven Spacer Backorder BOS 00631899 $41.18

View on Model

0711

00798648 Bosch Oven Door Handle In Stock BOS 00798648 $70.14

View on Model

0712

00626588 Bosch Oven Screw Backorder BOS 00626588 $10.07

View on Model

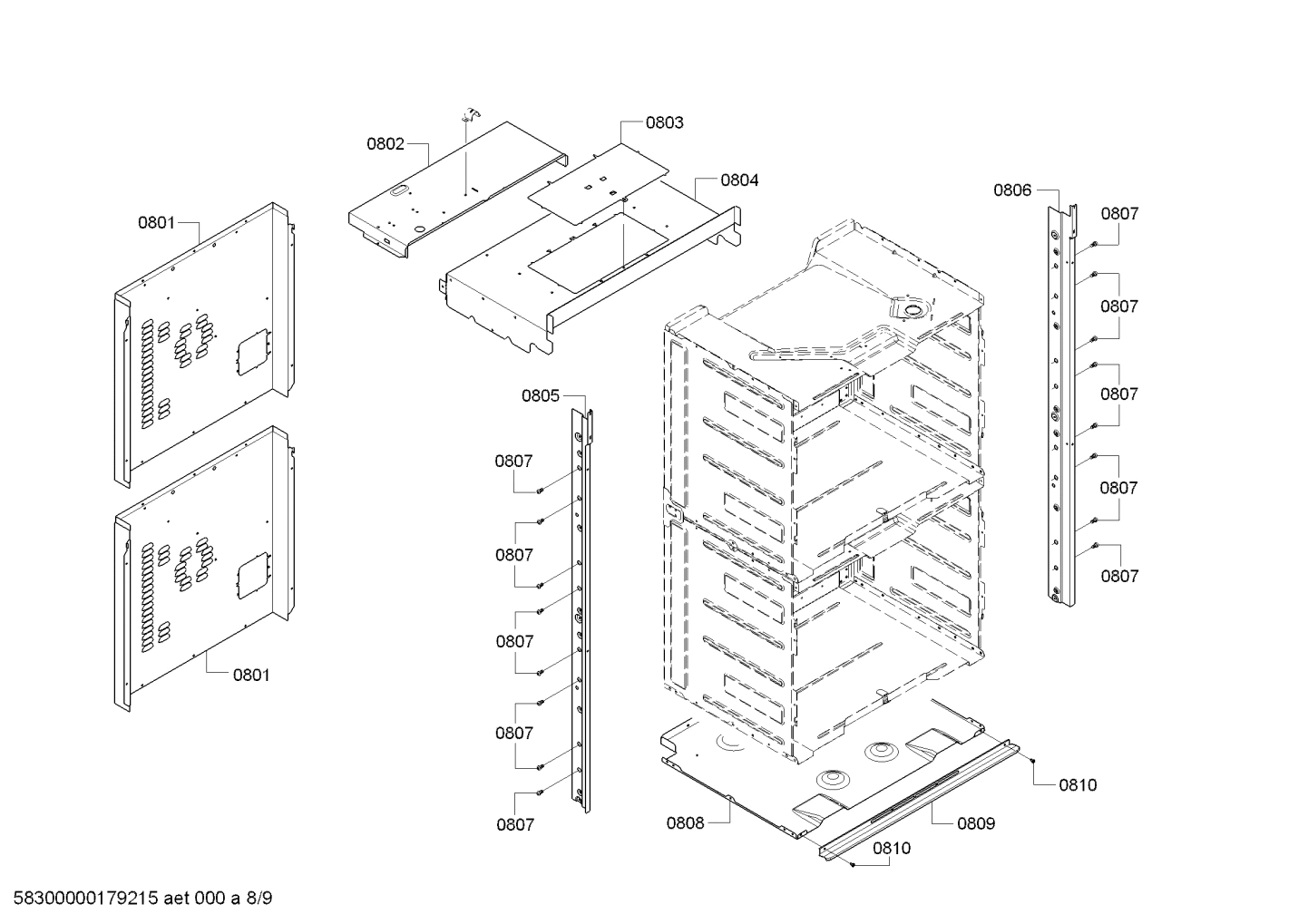

0801

00771362 Bosch Oven Housing Backorder BOS 00771362 $106.80

View on Model

0803

00758210 Bosch Oven Panel Backorder BOS 00758210 $76.02

View on Model

0805

00771372 Bosch Oven Trim Plate Backorder BOS 00771372 $117.48

View on Model

0806

00771373 Bosch Oven Trim Plate In Stock BOS 00771373 $118.37

View on Model

0809

00798654 Bosch Oven Trim Plate Backorder BOS 00798654 $117.48

View on Model

0810

00631347 Bosch Oven Screw Backorder BOS 00631347 $20.13

View on Model

0850

00413453 Bosch Oven Screw Backorder BOS 00413453 $9.15

View on Model

0851

00797850 Bosch Oven Cable Harness Assembly Backorder BOS 00797850 $76.93

View on Model

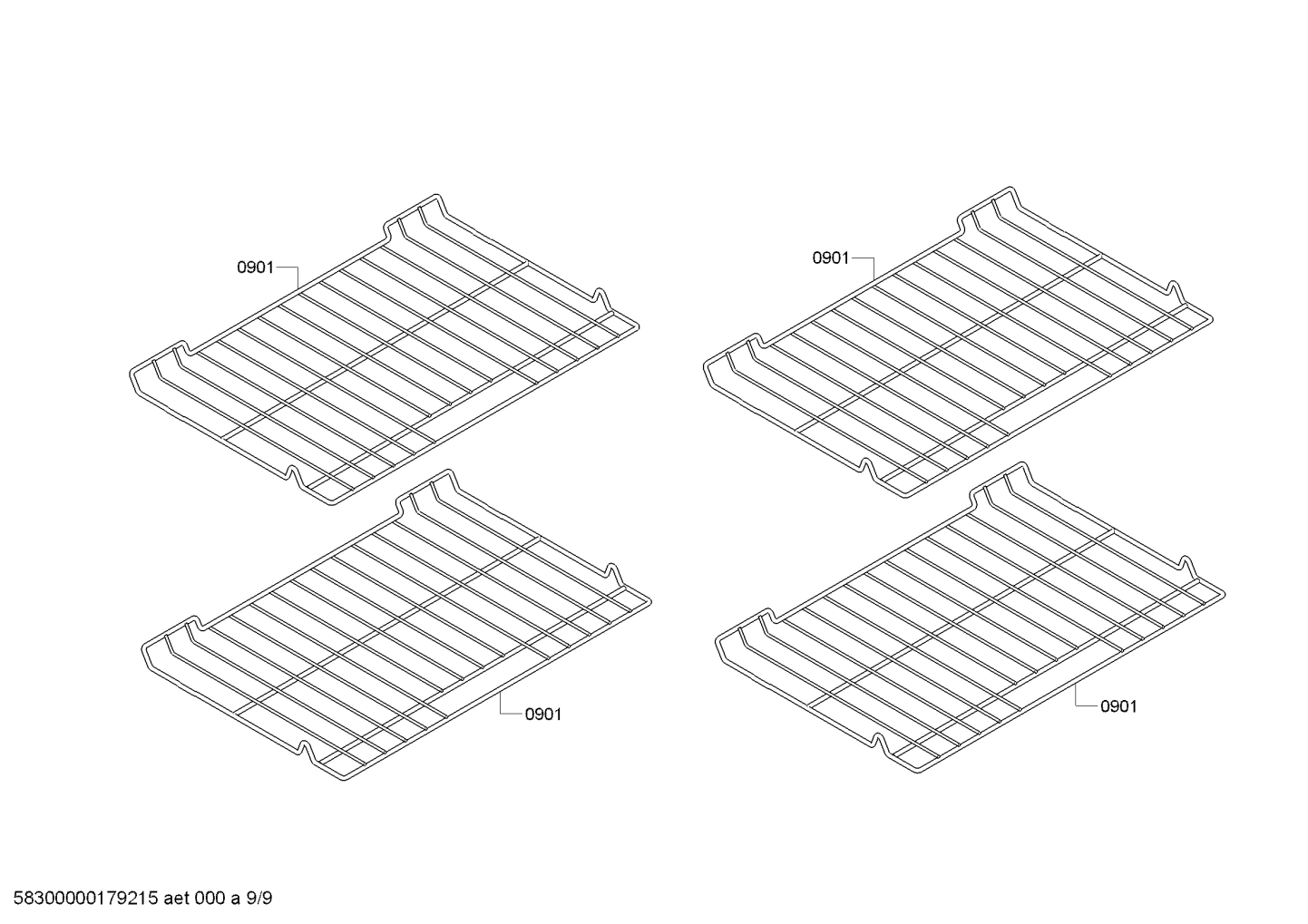

0901

00798845 Bosch Oven Shelf In Stock BOS 00798845 $57.02

View on Model

Model Bosch HBL5651UC/01 Range Oven – Common Parts & Diagrams

Common parts from model Bosch HBL5651UC/01 Range Oven
