Model Bosch HBL5650UC/05 Range Oven – Common Parts & Diagrams

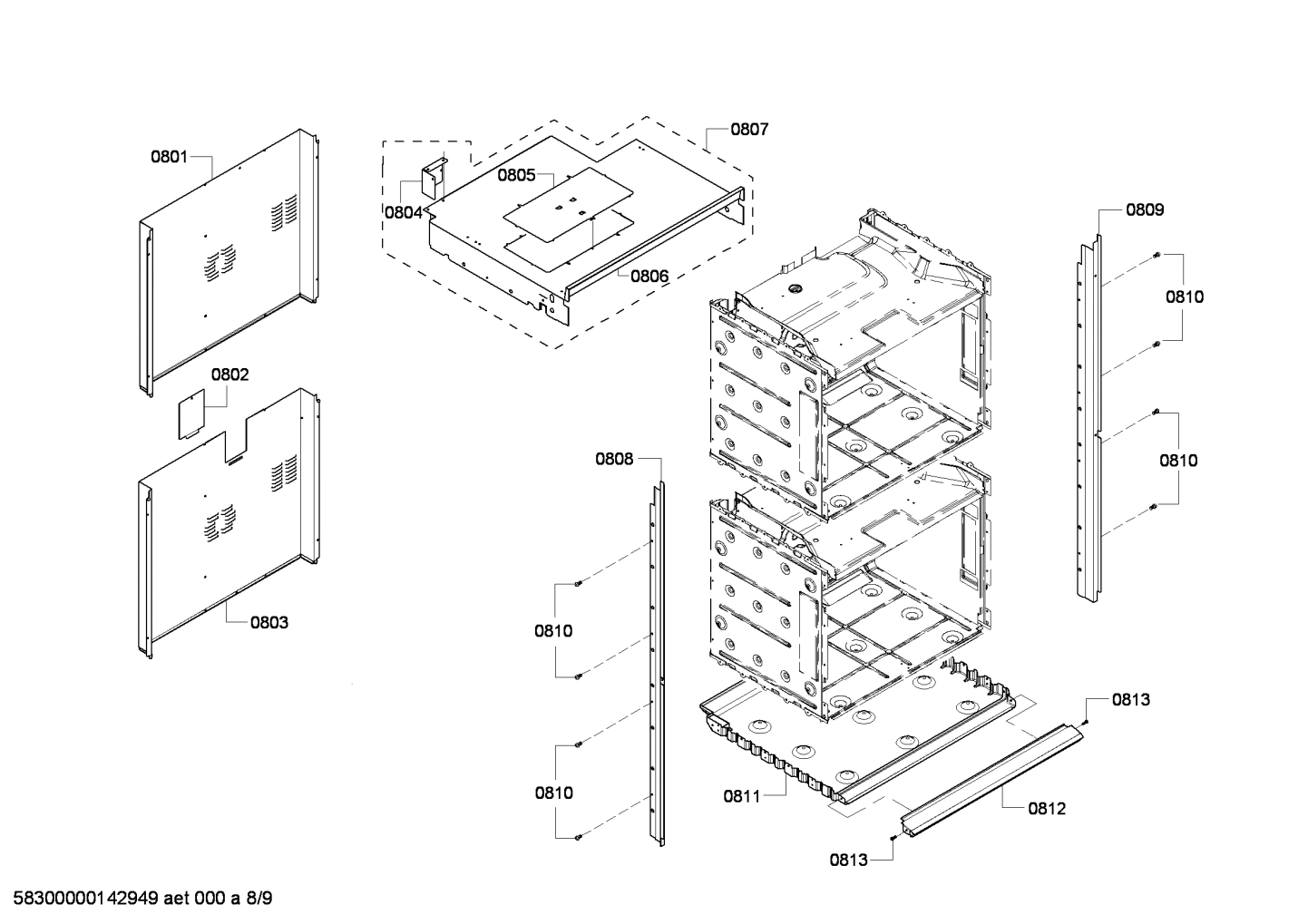

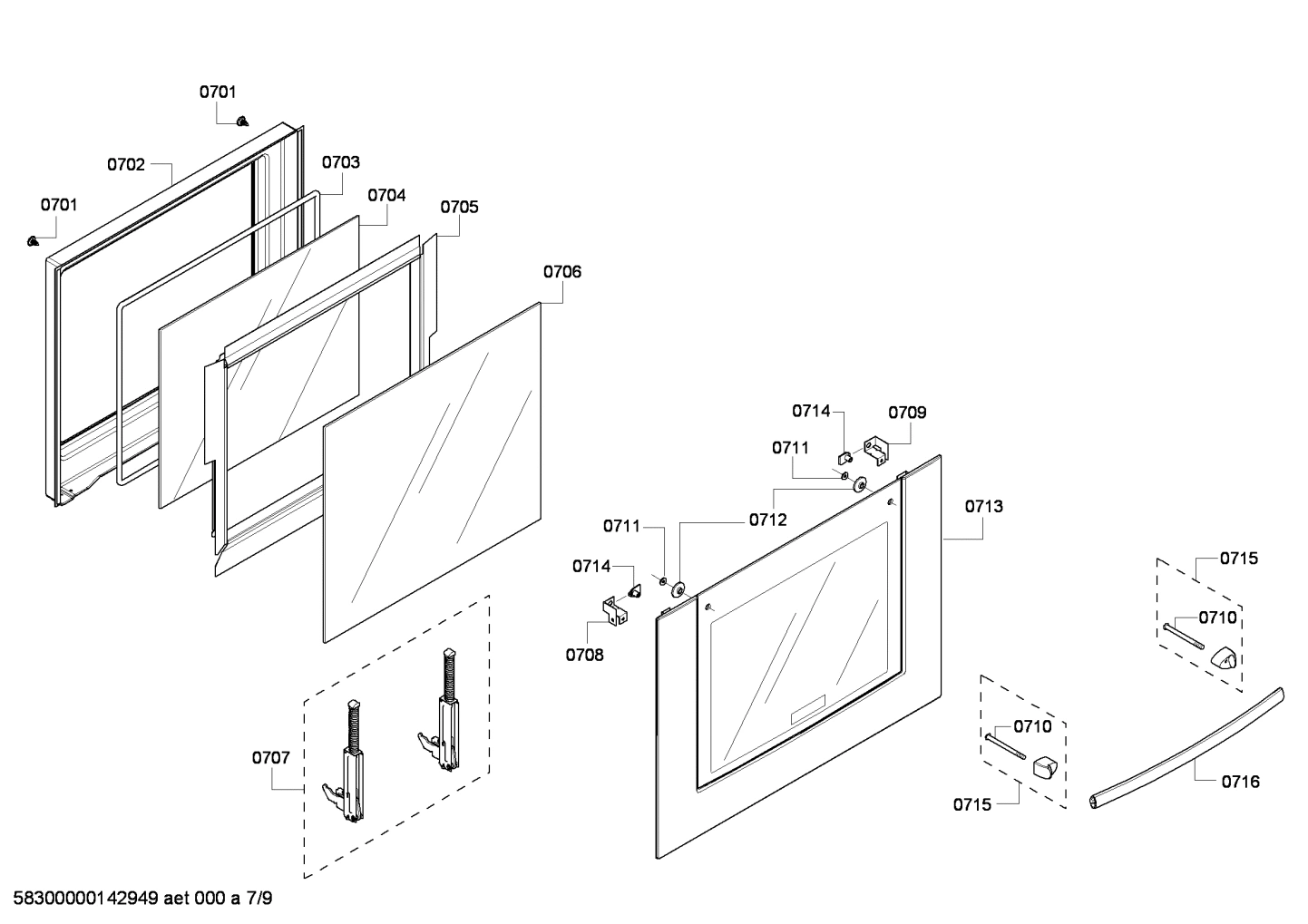

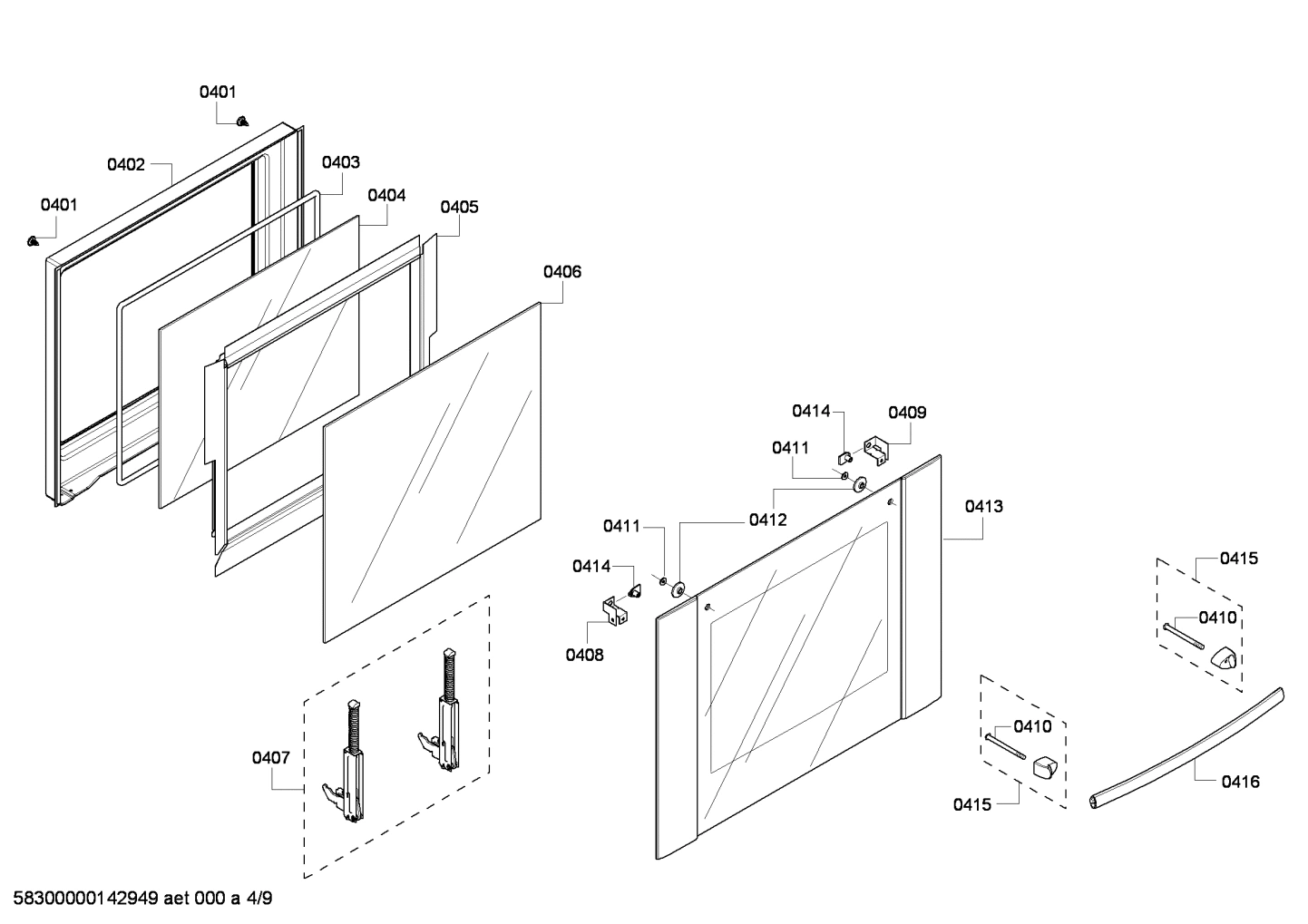

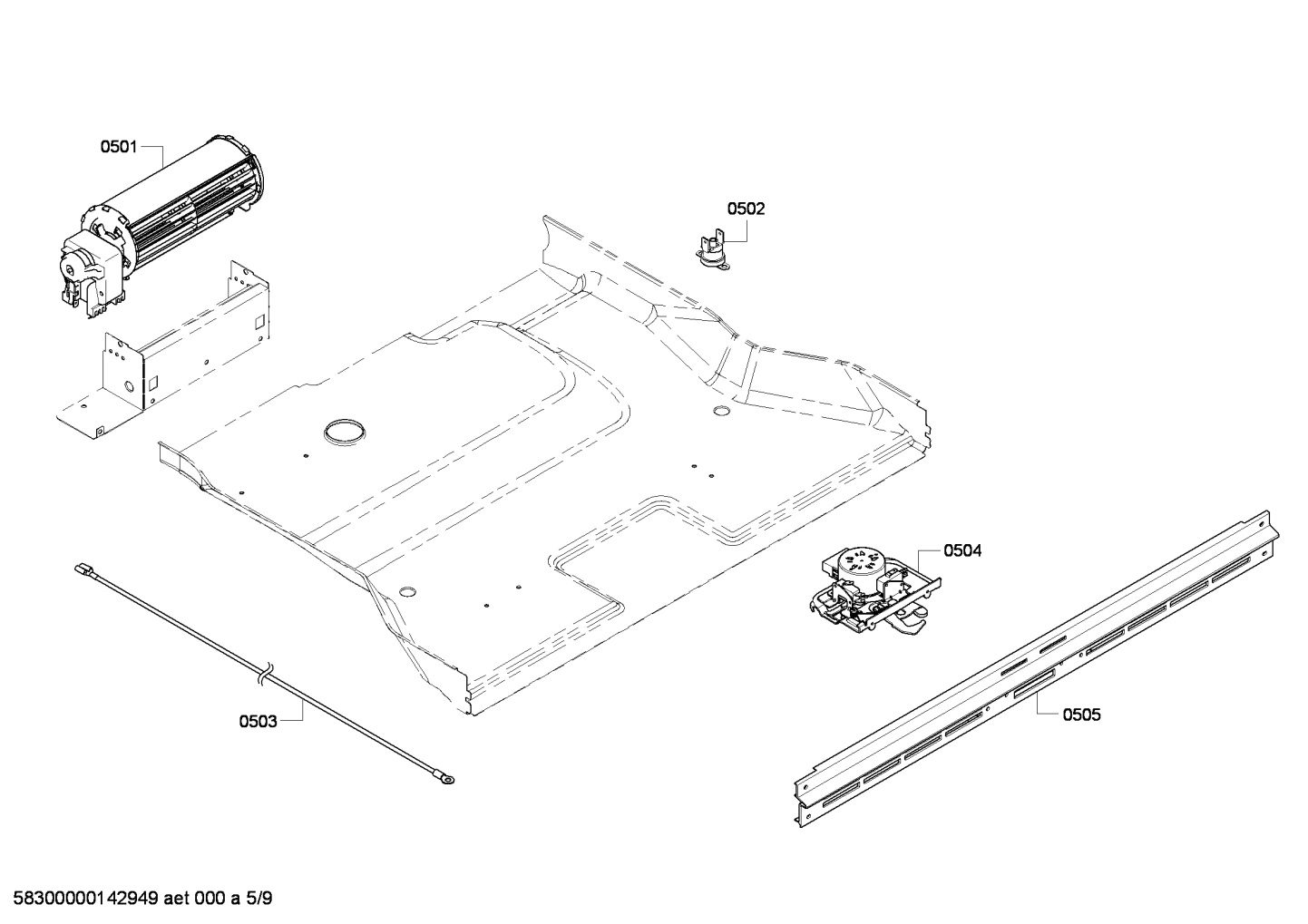

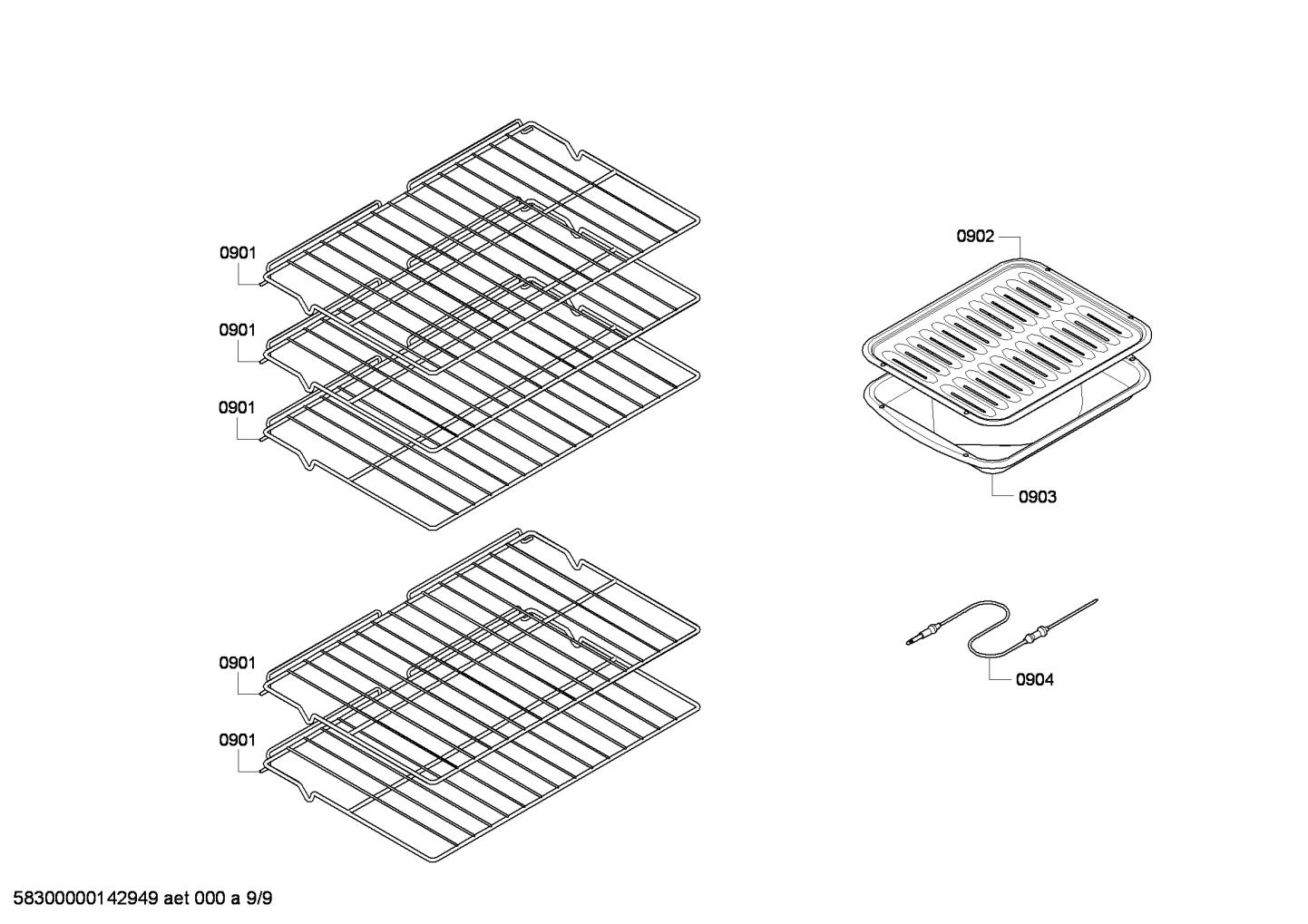

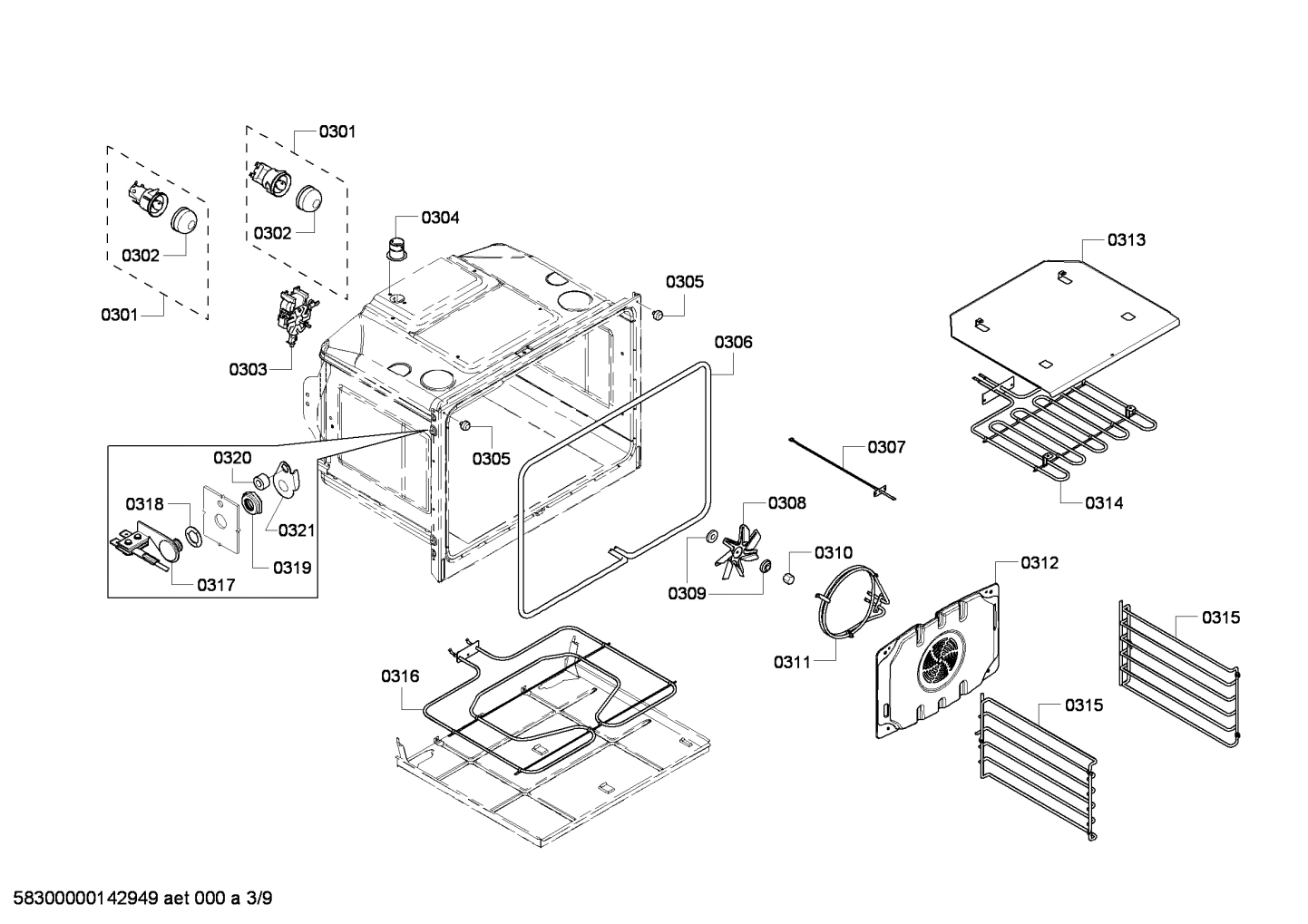

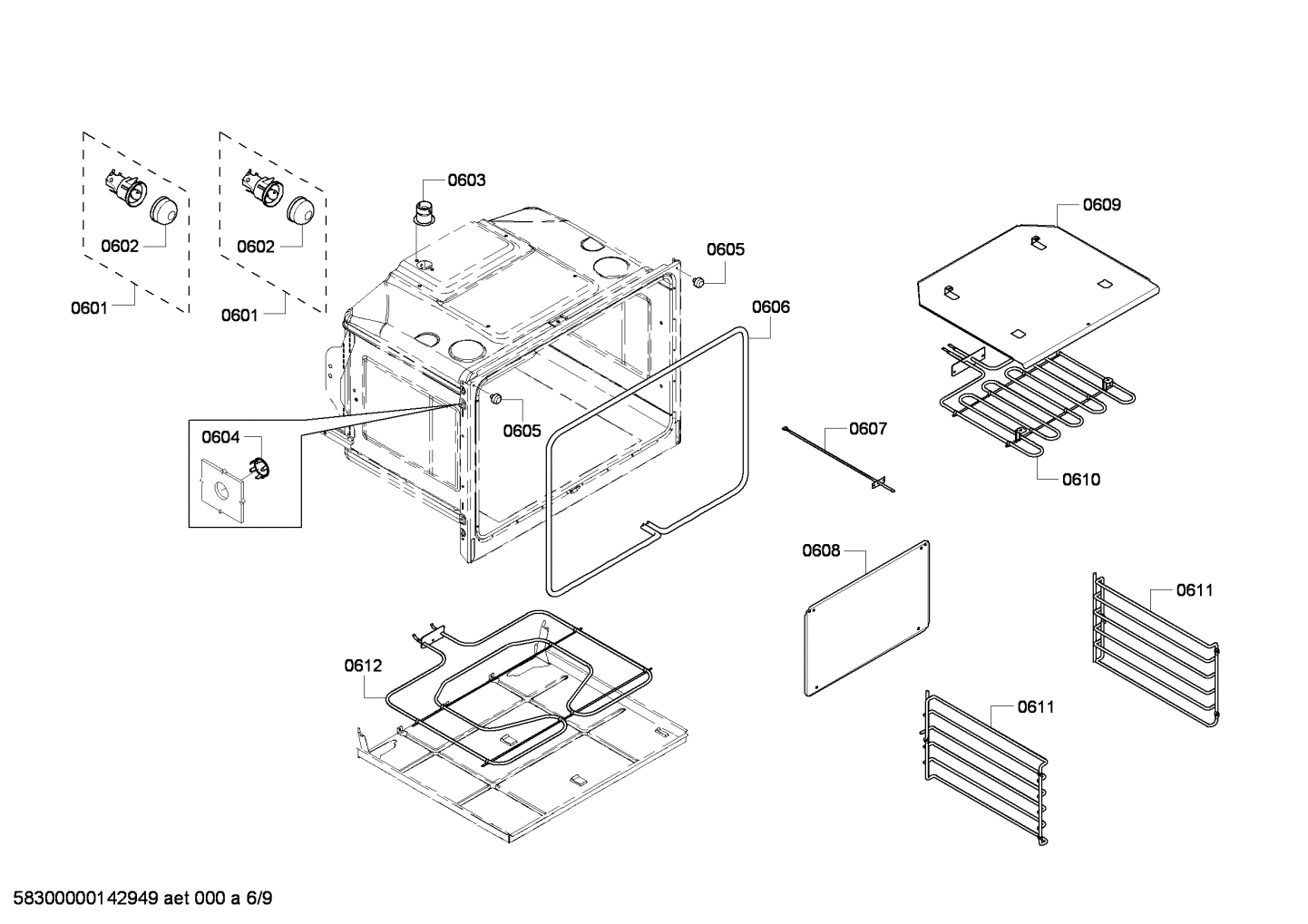

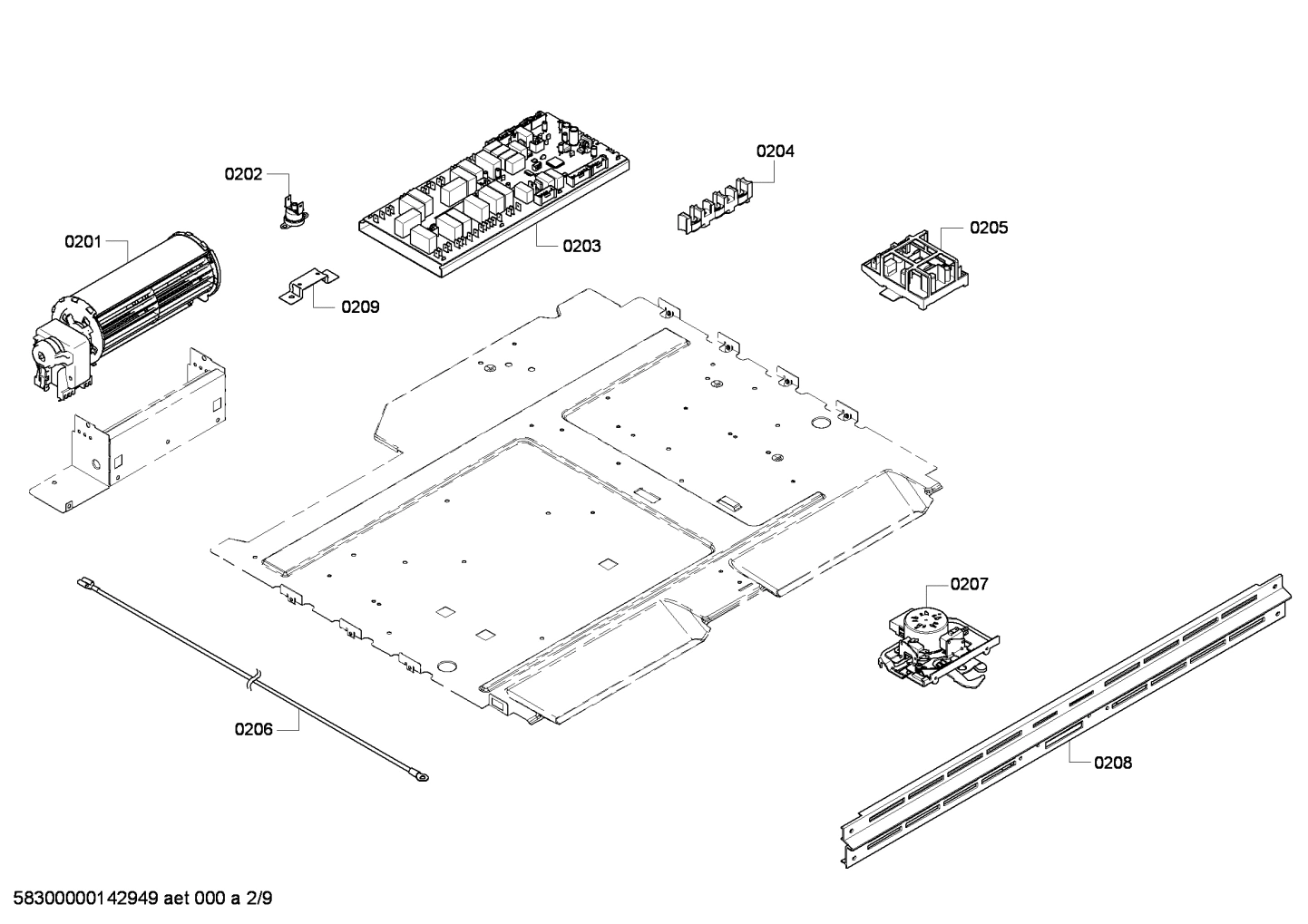

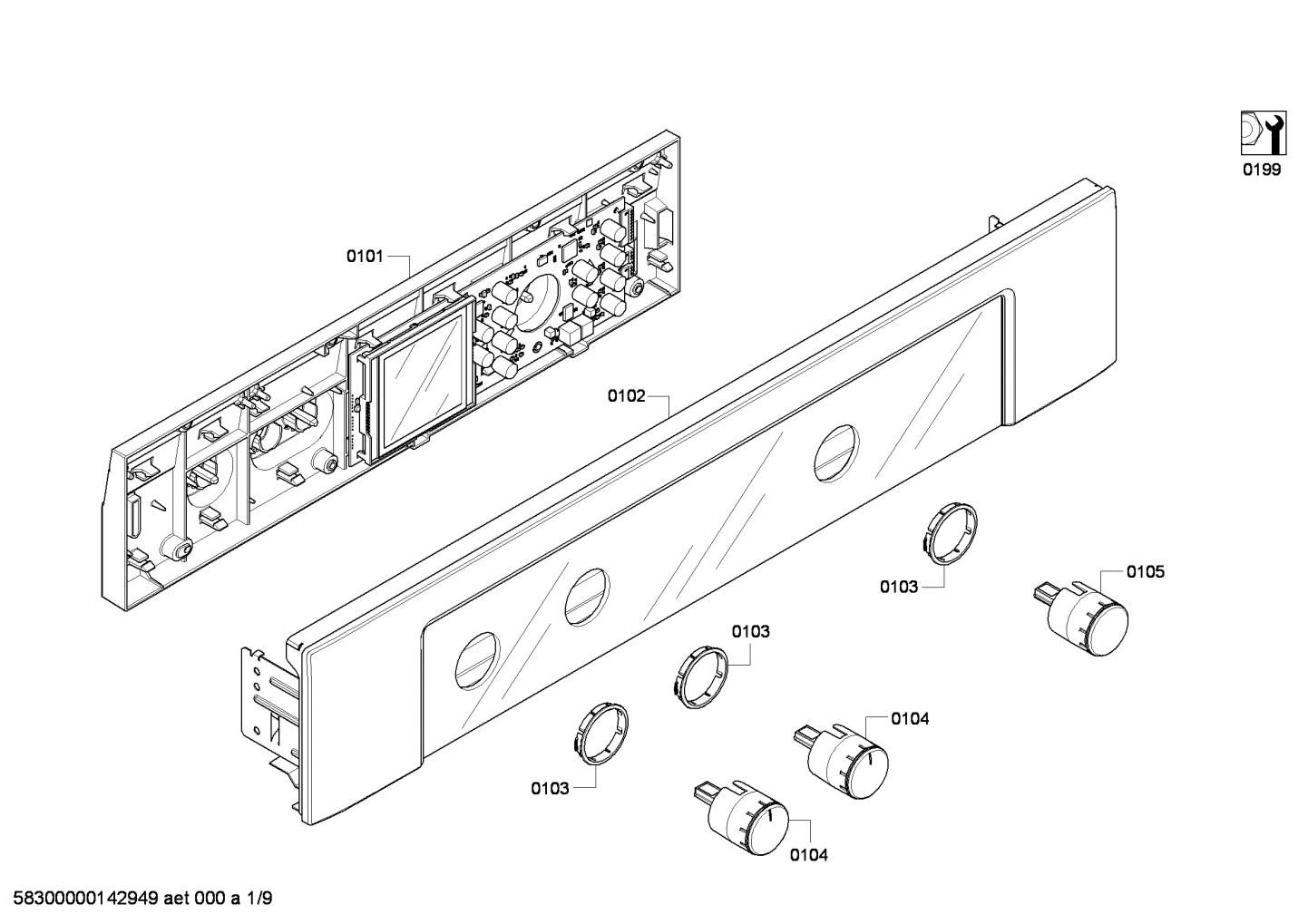

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Diagram 8
Diagram 9
Common parts from model Bosch HBL5650UC/05 Range Oven
0103
Ring BOS 00423808 Contact Us For Availability
0104
Knob BOS 00609122 Contact Us For Availability
0203
Control module BOS 12022213 Contact Us For Availability
0205
Power supply unit BOS 00663802 Contact Us For Availability
0206
Cable harness BOS 00663795 Contact Us For Availability
0250
Cable harness BOS 00646653 Contact Us For Availability
0251
Cable harness BOS 00652261 Contact Us For Availability
0253
Cable harness BOS 00663792 Contact Us For Availability
0254
Cable harness BOS 00663925 Contact Us For Availability
0256
Cable harness BOS 11033493 Contact Us For Availability
0301
Oven Lamp Assembly BOS 00415045 No Longer Available
0305
Spacer BOS 00427919 Contact Us For Availability
0308
Fan blade BOS 00646291 Contact Us For Availability
0315
Support BOS 00643000 Contact Us For Availability
0317
Socket BOS 10007567 Contact Us For Availability
0351
Cable harness BOS 00666001 Contact Us For Availability
0402
Door-inner BOS 00688561 Contact Us For Availability
0407
Repair-set BOS 00650874 Contact Us For Availability
0410
Screw BOS 00608361 Contact Us For Availability
0413
Door-outer BOS 00246546 Contact Us For Availability
0414
Clip BOS 00612252 Contact Us For Availability
0450
Adhesive tape BOS 00423241 Contact Us For Availability
0604
Plug BOS 00413573 Contact Us For Availability
0713
Door-outer BOS 00246549 Contact Us For Availability
0808
Trimplate BOS 00682463 Contact Us For Availability
0854
Screw BOS 00413453 Contact Us For Availability
0855
Screw BOS 00189425 Contact Us For Availability
0902
Broiler Pan BOS 00449756 Contact Us For Availability
× ![]()
