Model Bosch EB184630/01 Range Oven – Common Parts & Diagrams

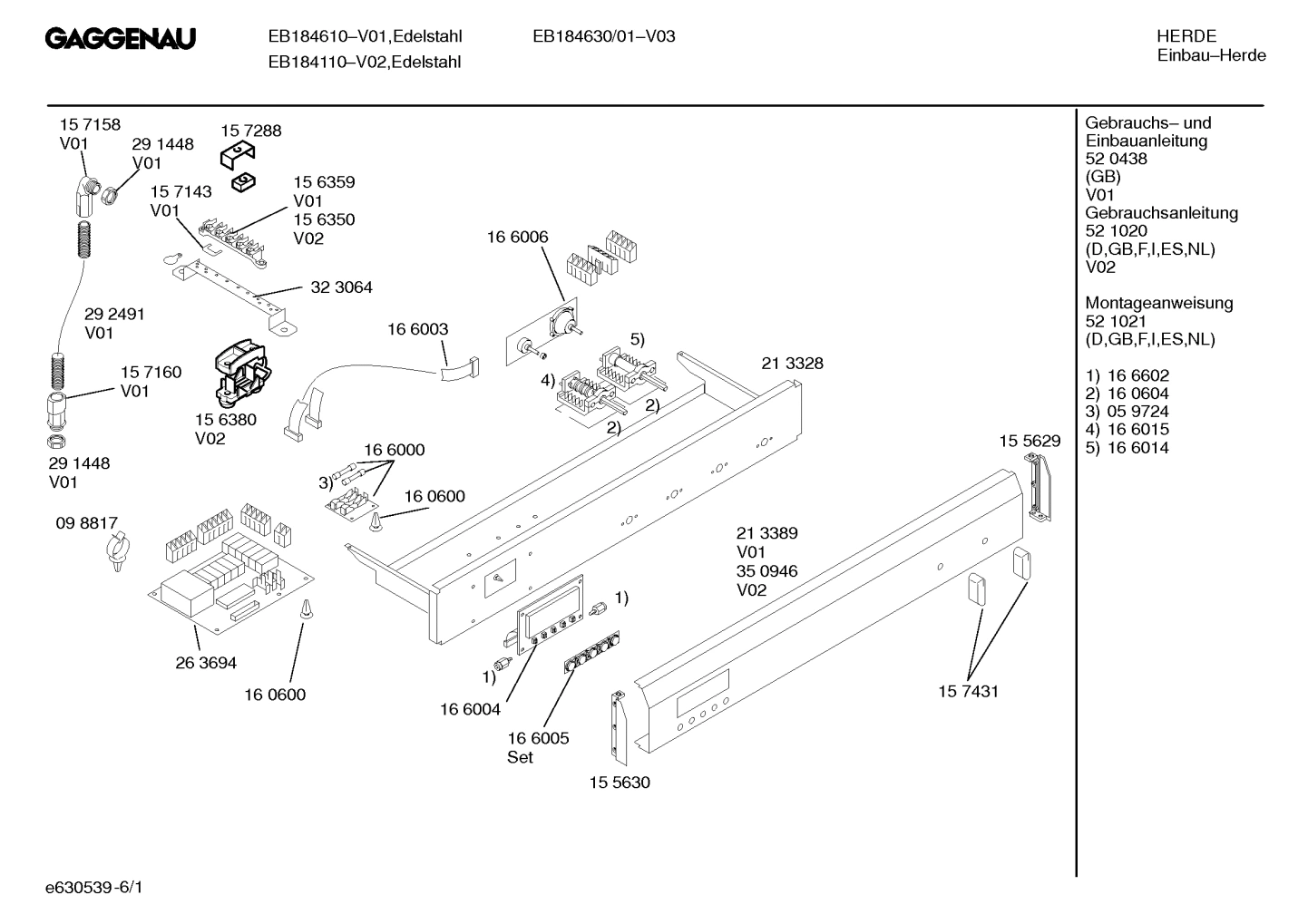

Diagram 1

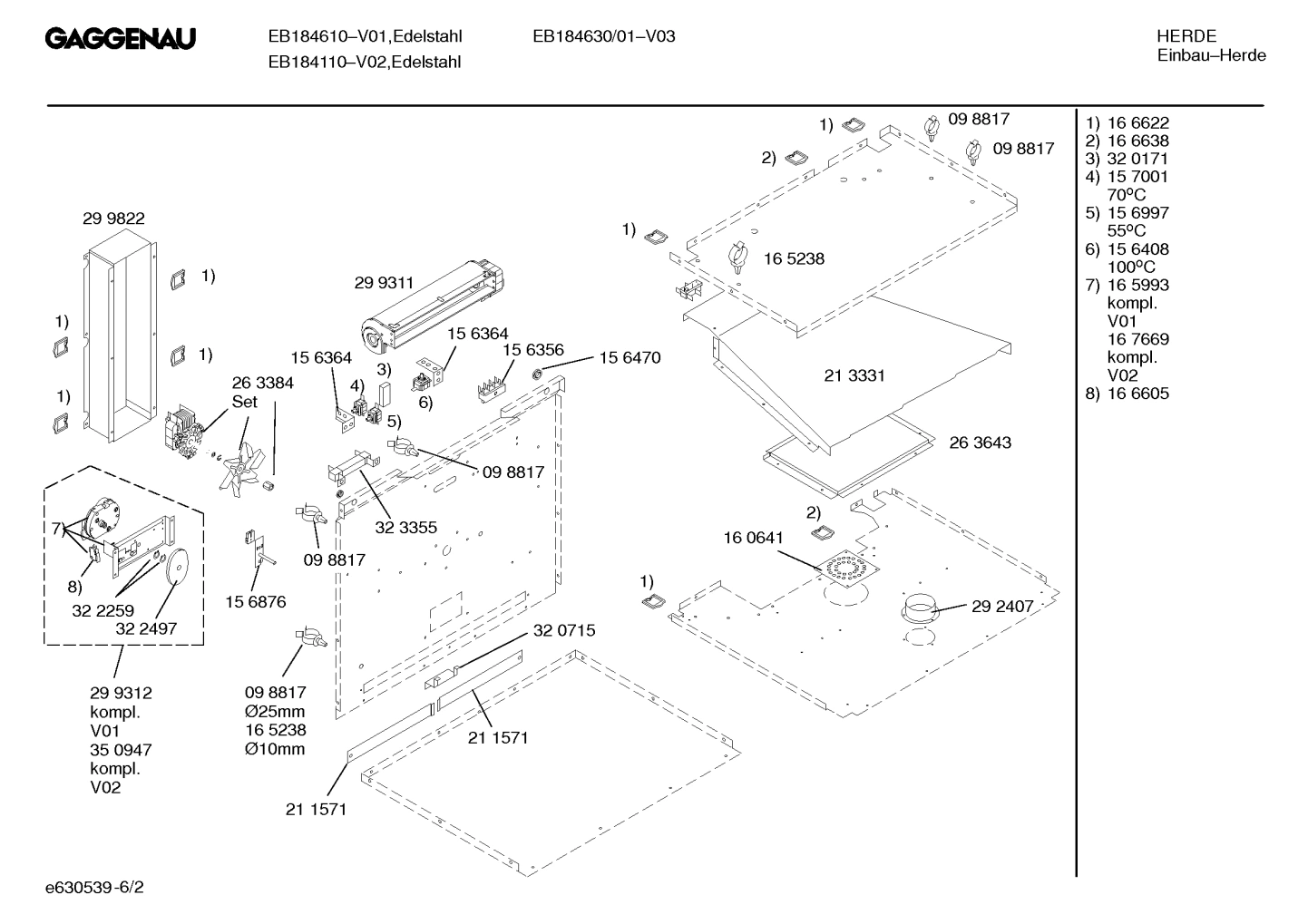

Diagram 2

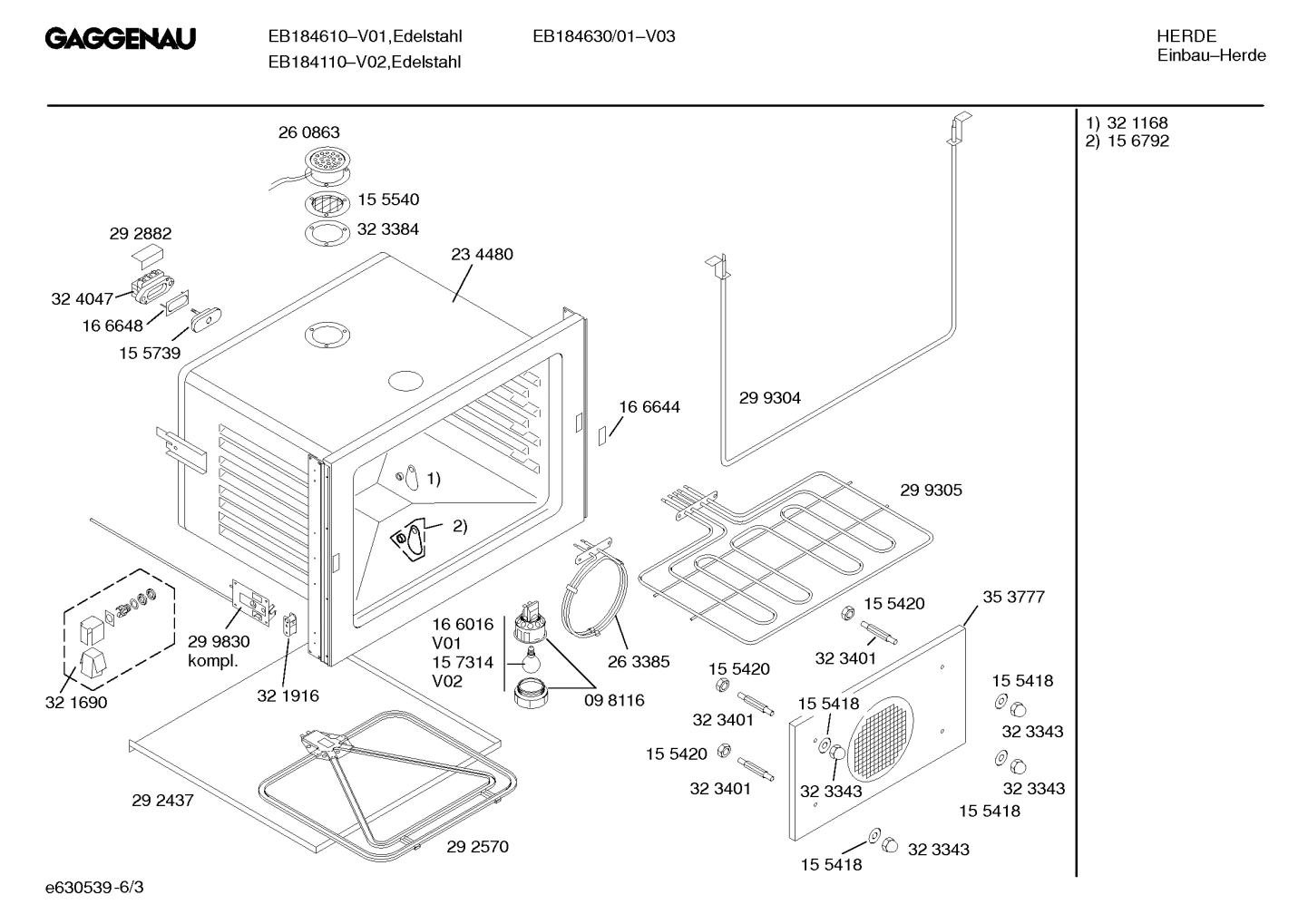

Diagram 3

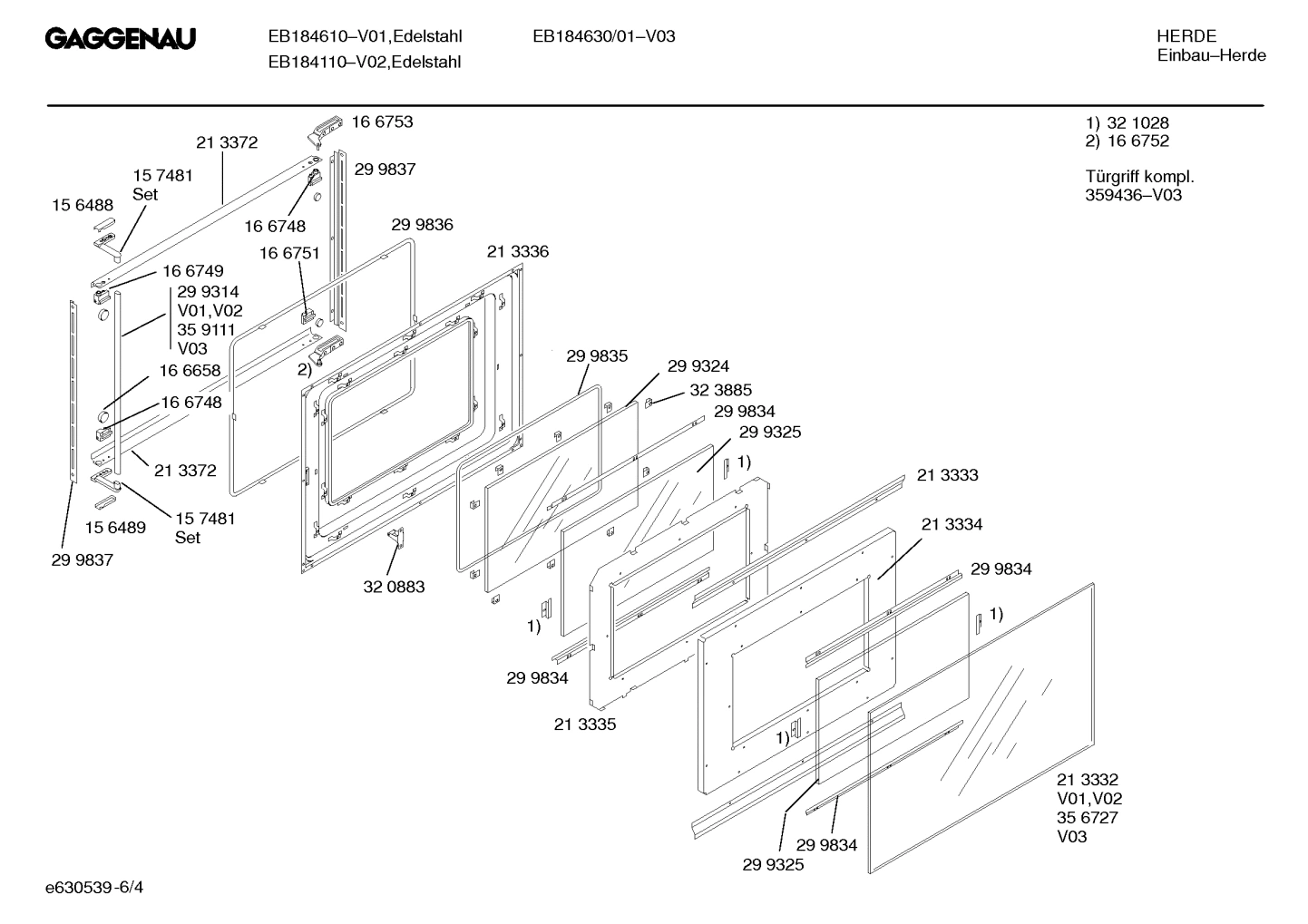

Diagram 4

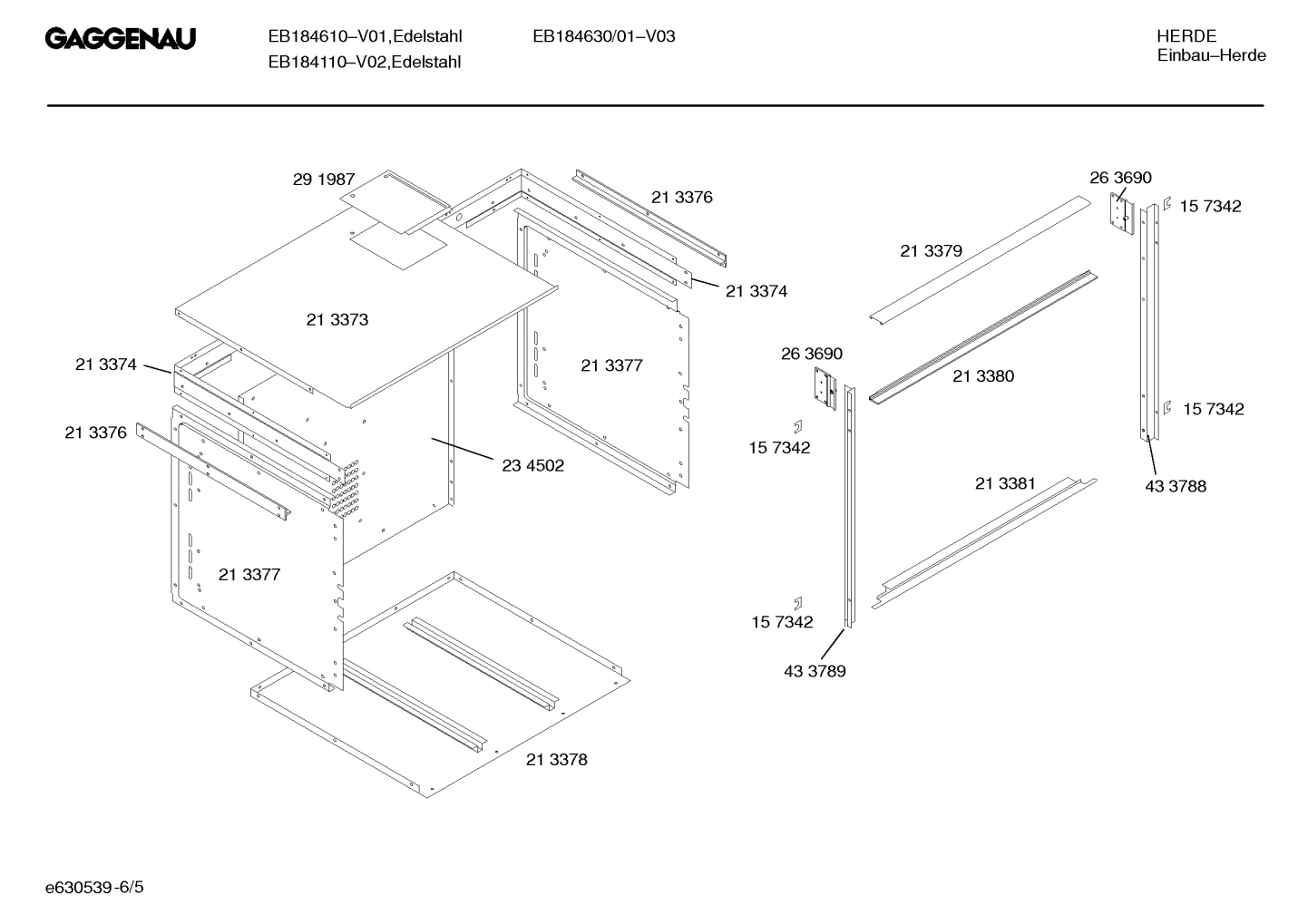

Diagram 5

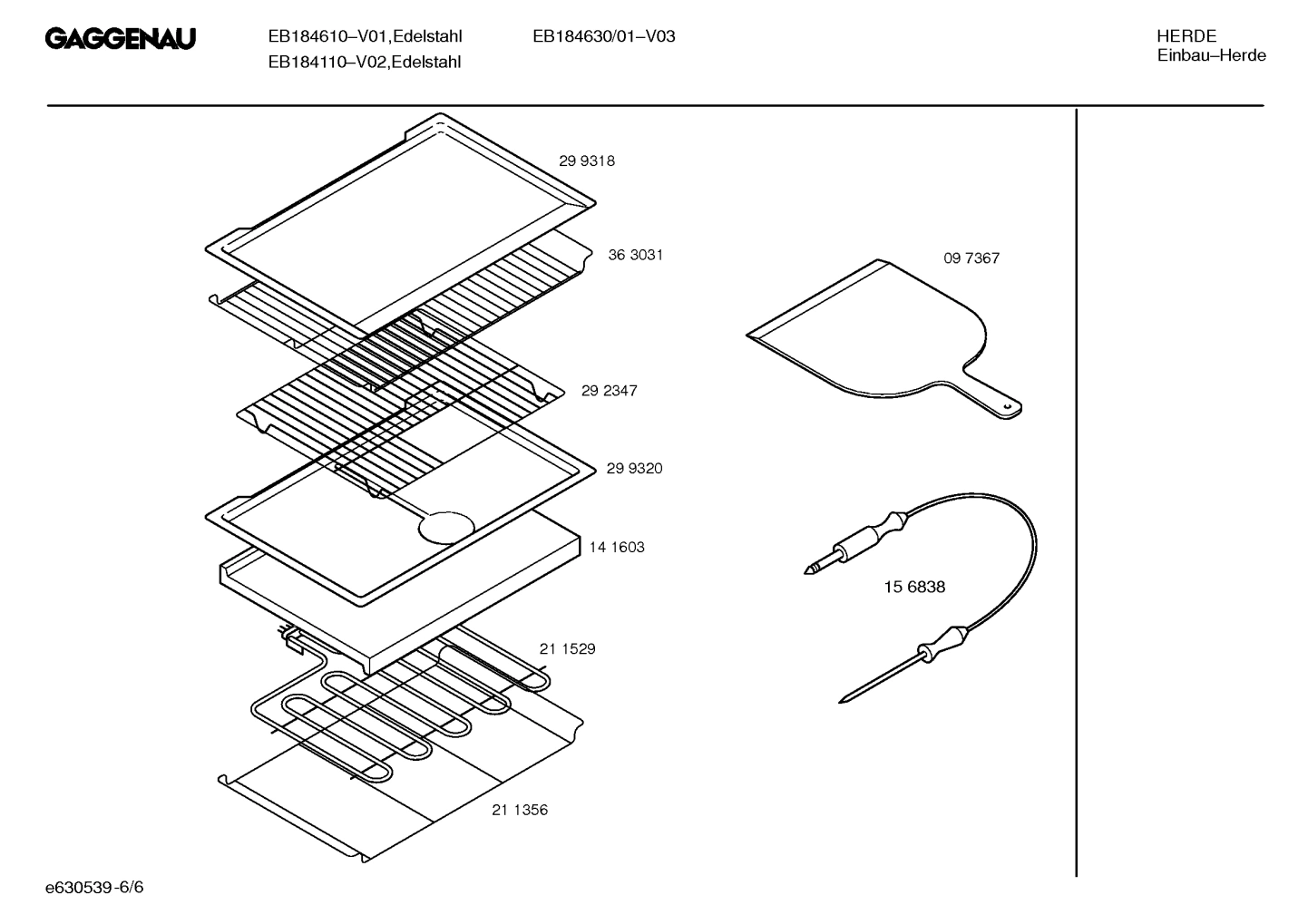

Diagram 6
Common parts from model Bosch EB184630/01 Range Oven
0110
Pin BOS 00160600 Contact Us For Availability
0127
Power cord BOS 00359612 Contact Us For Availability
0201
Blower motor BOS 00263384 Contact Us For Availability
0214
Terminal BOS 00156356 Contact Us For Availability
0224
Guide BOS 10032989 Contact Us For Availability
0303
Heating element BOS 00292570 Contact Us For Availability
0305
Lamp BOS 00098116 Contact Us For Availability
0313
Lock-mechanical BOS 00299830 Contact Us For Availability
0314
Reel BOS 00321916 Contact Us For Availability
0415
Holder BOS 00157481 Contact Us For Availability
0417
Worktop BOS 00156488 Contact Us For Availability
0418
Cover BOS 00156489 Contact Us For Availability
0420
Holder BOS 00166748 Contact Us For Availability
0421
Bearing block BOS 00166751 Contact Us For Availability
0422
Door bearing BOS 00166753 Contact Us For Availability
0423
Door bearing BOS 00166752 Contact Us For Availability
0425
Strip BOS 00213372 Contact Us For Availability
0426
Stop BOS 00166658 Contact Us For Availability
0500
Panel BOS 00291987 Contact Us For Availability
0501
Case-upper part BOS 00213373 Contact Us For Availability
0504
Strip BOS 00213376 Contact Us For Availability
0506
Case-bottom BOS 00213378 Contact Us For Availability
0507
Case-rear part BOS 00234502 Contact Us For Availability
0509
Strip BOS 00299837 Contact Us For Availability
0511
Strip BOS 00213380 Contact Us For Availability
0512
Strip BOS 00213381 Contact Us For Availability
0513
Spacer BOS 00157342 Contact Us For Availability
0514
Handle-door BOS 00359436 Contact Us For Availability
0601
Multi-use wire shelf BOS 00292346 Contact Us For Availability
0602
Grill tray BOS 00292347 Contact Us For Availability
0605
Grill tray BOS 00211356 Contact Us For Availability
0607
Pizza paddle BOS 11064395 Contact Us For Availability
× ![]()
