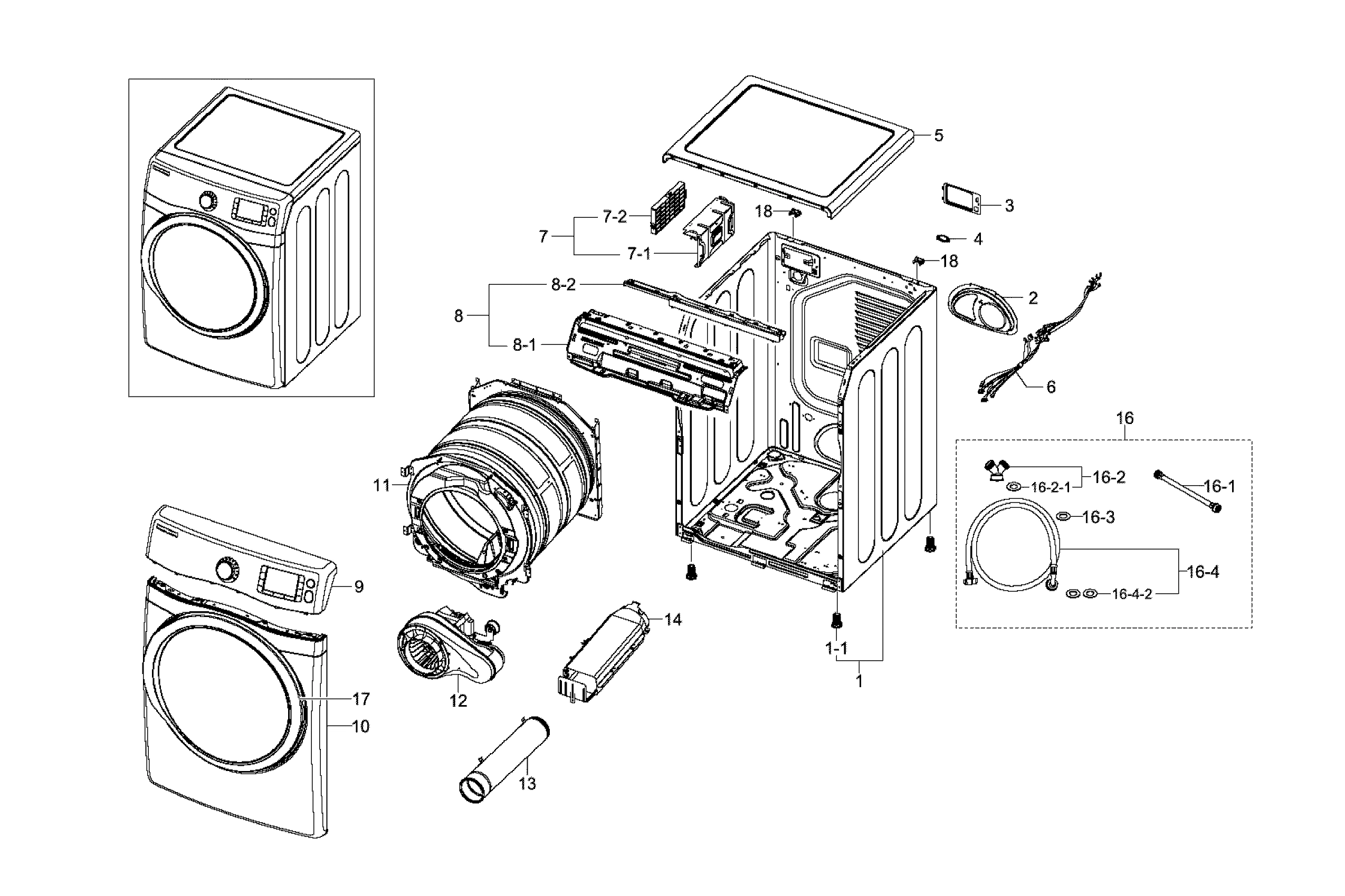

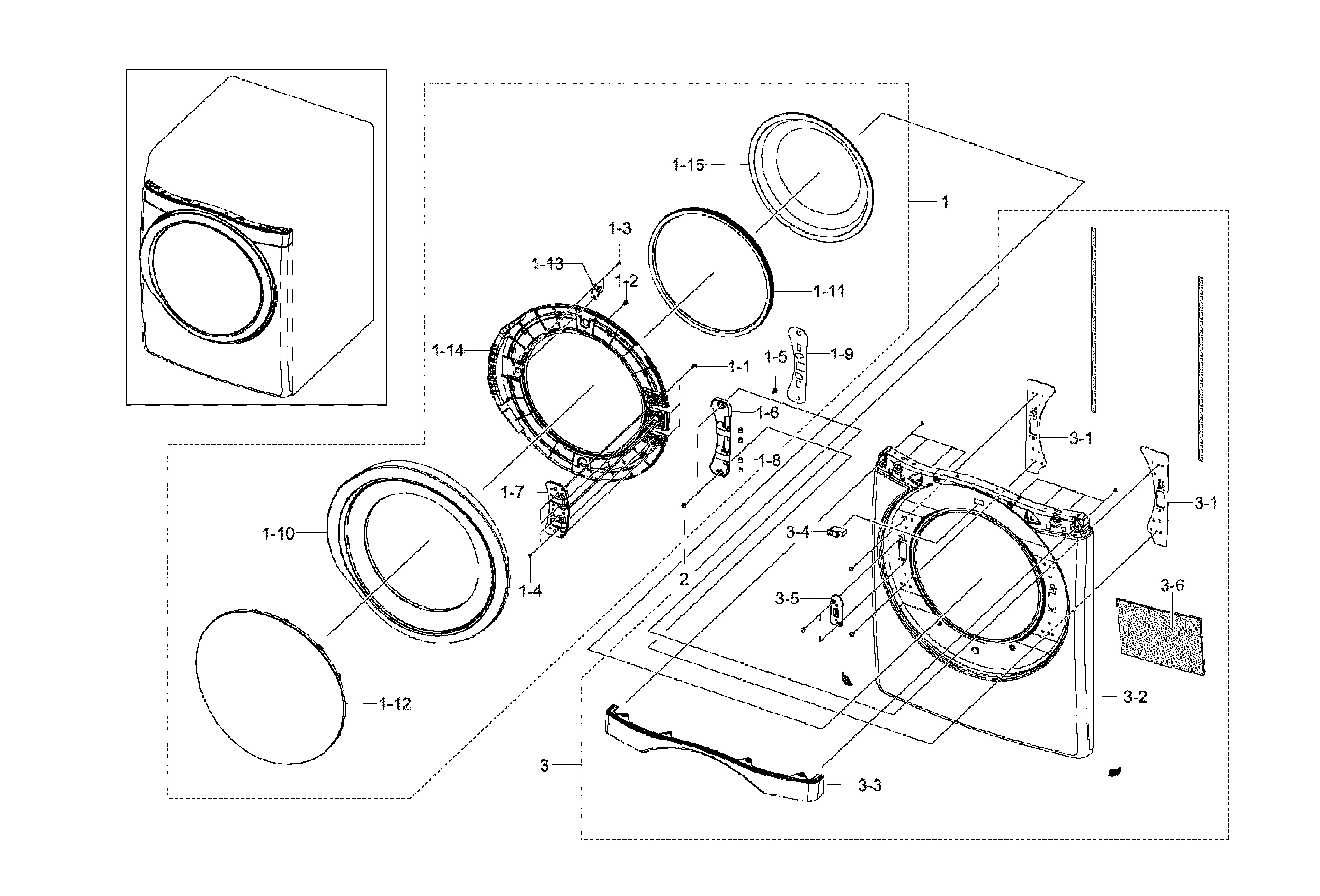

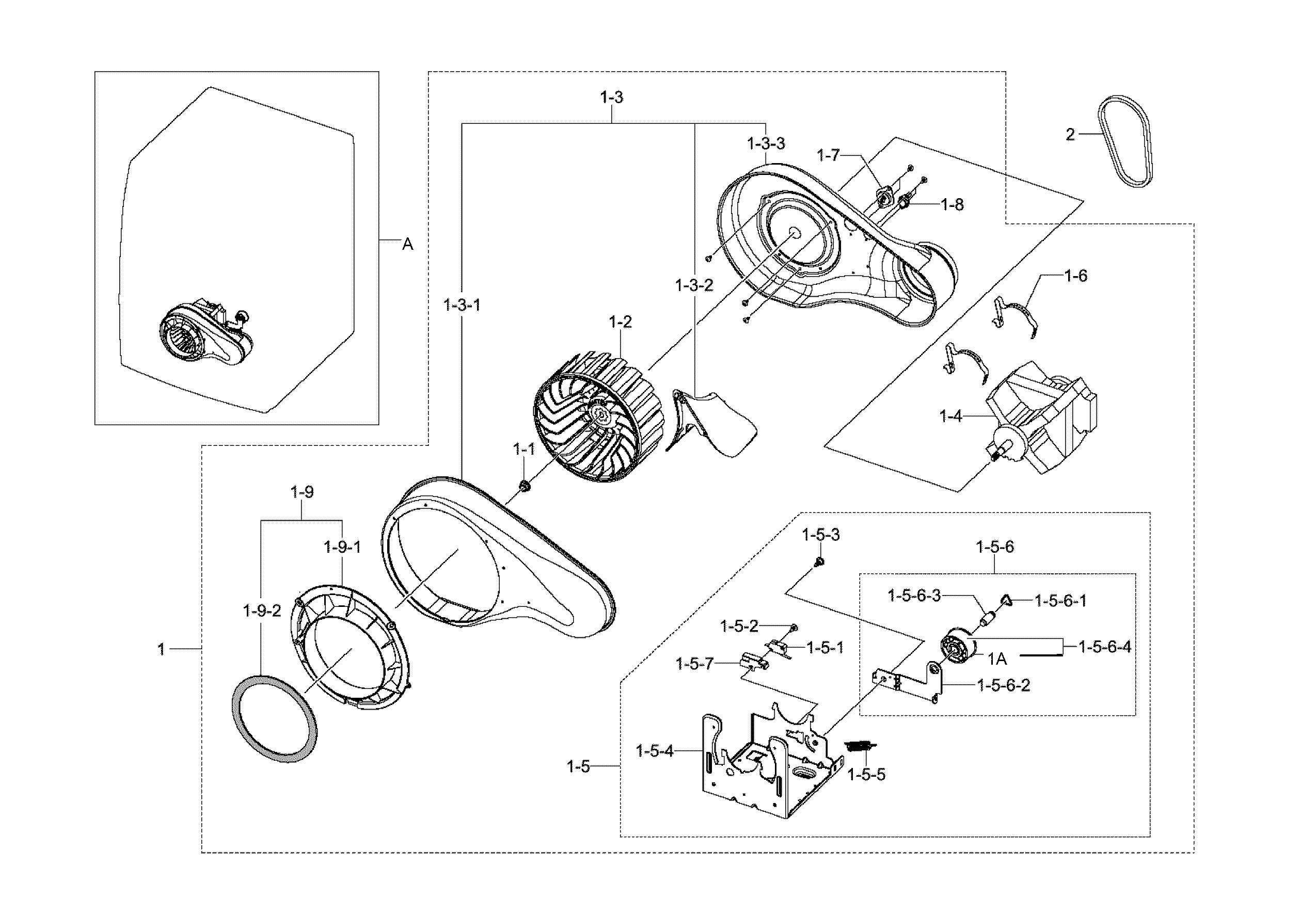

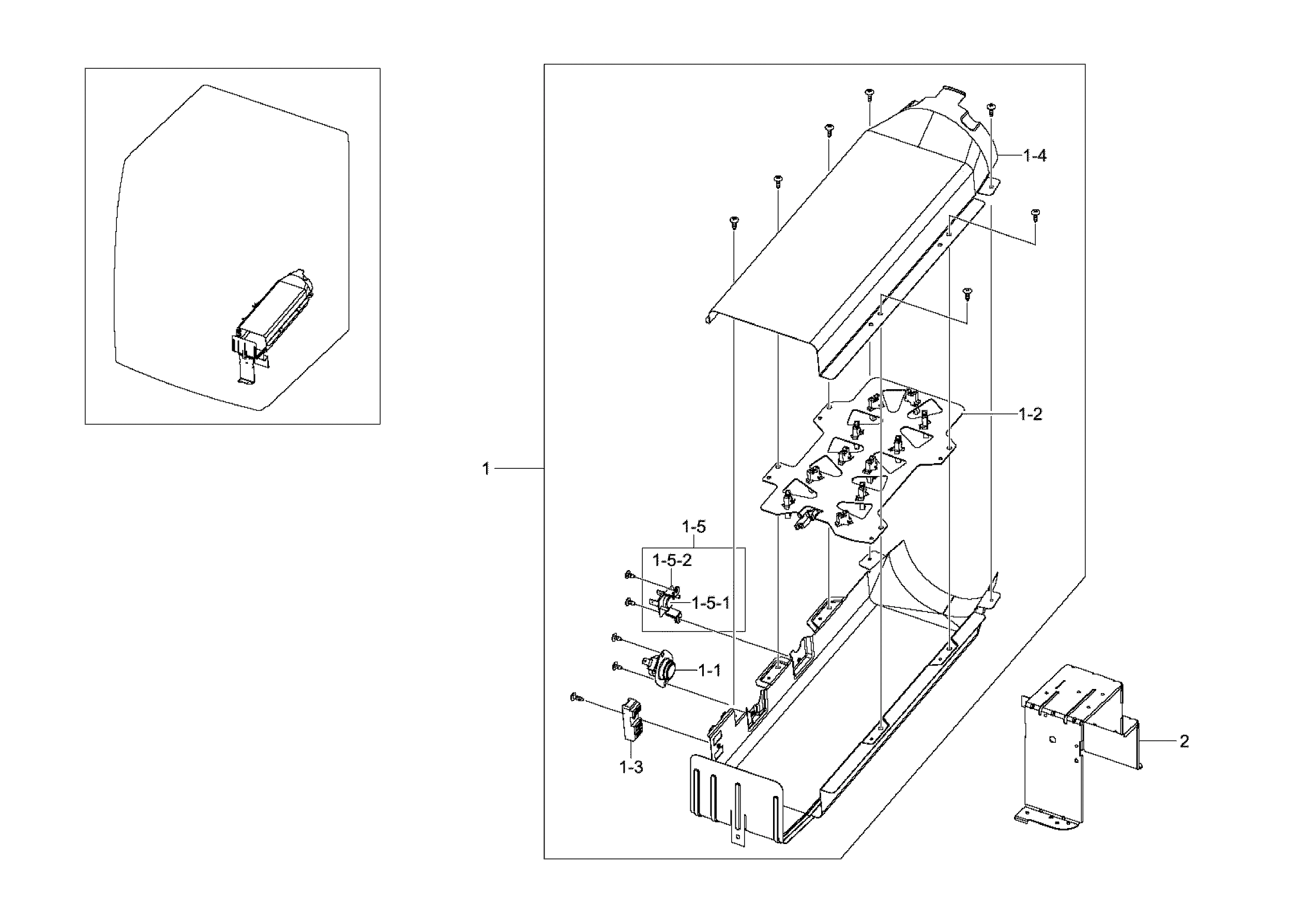

Model Samsung DV511AEW/XAA-02 Dryer – Common Parts &amp; Diagrams

1

DC93-00101N Samsung Dryer Blower Wheel Drive In Stock SMG DC93-00101N $324.53

1

DC93-00374D Samsung Dryer Drying Rack Assembl Backorder SMG DC93-00374D $96.42

6001-001668 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001668 $1.67

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $2.07

DC47-00018A Samsung Thermostat In Stock SMG DC47-00018A $21.75

DC61-03128A Samsung Dryer Adjustable Leveling In Stock SMG DC61-03128A $14.51

1-2

DC67-00180B Samsung Dryer Blower Wheel Assemb In Stock SMG DC67-00180B $114.17

1-3

6002-000445 Samsung Tapping Screw Backorder SMG 6002-000445 $0.92

1-3

DC65-00028A Samsung Block Terminal Backorder SMG DC65-00028A $12.02

1-3

DC93-00098D Samsung Assembly Cover Duct Backorder SMG DC93-00098D $174.44

1-4

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $0.92

1-4

DC31-00055G Samsung Dryer Induction Drive Mot In Stock SMG DC31-00055G $281.60

1-4

Dryer heater box, upper SMG DC67-00132A Contact Us For Availability

1-5

6002-000241 Samsung Self Tapping Screw Backorder SMG 6002-000241 $0.92

1-5

DC96-00887C Samsung Dryer Thermal Cut-Off Fus In Stock SMG DC96-00887C $45.28

1-6

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $3.50

1-7

DC32-00007A Samsung Dryer Thermistor Sensor In Stock SMG DC32-00007A $18.25

1-8

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $10.73

1-8

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $32.08

1-9

DC97-07895A Samsung Dryer Connector Duct Asse Backorder SMG DC97-07895A $43.70

1-10

Dryer door outer frame SMG DC63-01141A Contact Us For Availability

1-11

DC62-00262A Samsung Dryer Door Seal Assembly Backorder SMG DC62-00262A $51.59

1-12

DC64-02144A Samsung Washer and Dryer Safety D Backorder SMG DC64-02144A $108.14

1-14

Dryer door window frame SMG DC61-02596A Contact Us For Availability

1-15

Dryer door glass SMG DC64-02637A Contact Us For Availability

1-51

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $17.40

1-51

DC47-00015A Samsung Dryer 250V Thermostat In Stock SMG DC47-00015A $23.22

1-52

DC61-01204A Samsung Dryer Thermostat Bracket Backorder SMG DC61-01204A $2.07

1-53

6009-001342 Samsung Dryer Special Puller Scre In Stock SMG 6009-001342 $1.24

1-54

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $97.45

1-55

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $4.98

1-56

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $40.64

1-57

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $2.07

1A

Dryer idler pulley SMG DC66-00402A Contact Us For Availability

2

6001-001773 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001773 $1.67

2

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $35.36

2

DC61-02016A Samsung Die Heater Backorder SMG DC61-02016A $22.80

2

DC63-01499A Samsung Cover Back Dryer Hudson G Backorder SMG DC63-01499A $24.34

2

Dryer drum SMG DC97-14849A Contact Us For Availability

2-3

DC97-07618A Samsung Dryer Drum Gasket Seal As In Stock SMG DC97-07618A $106.80

3-1

4713-001199 Samsung Dryer Drum Incandescent L Backorder SMG 4713-001199 $8.71

3-2

DC47-00021A Samsung Socket Lamp Assembly Backorder SMG DC47-00021A $20.31

3-4

DC64-00828B Samsung Washer Dryer Door Switch In Stock SMG DC64-00828B $32.45

3-5

DC97-07510B Samsung Dryer Door Lever Holder C In Stock SMG DC97-07510B $14.09

3-6

DC61-05489A Samsung Case Filter Assembly In Stock SMG DC61-05489A $132.75

3-7

Dryer drum light lens SMG DC63-00531A Contact Us For Availability

3-8

DC93-00187A Samsung Assembly Duct Outlet Backorder SMG DC93-00187A $87.39

3-11

DC61-02627A Samsung Dryer Moisture Sensor Pla In Stock SMG DC61-02627A $6.22

3-12

DC61-02740A Samsung Dryer Lint Screen Filter In Stock SMG DC61-02740A $0.92

3-13

Dryer lint screen cover SMG DC63-01139A Contact Us For Availability

3-14

DC63-01140A Samsung Dryer Lint Filter Screen In Stock SMG DC63-01140A $16.16

3-15

DC63-01143A Samsung Cover Filter Assembly Backorder SMG DC63-01143A $87.01

3-16

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $9.96

4

DC61-01428A Samsung Power Holder Assembly Backorder SMG DC61-01428A $1.24

4-10

DC97-16919A Samsung Steam Kit Assembly Backorder SMG DC97-16919A $136.76

7-2

Dryer electronic control board SMG DC92-00322K Contact Us For Availability

8-1

DC61-02600A Samsung Frame Plate Assembly Up G Backorder SMG DC61-02600A $57.49

8-2

DC61-02008B Samsung Dryer Guide Panel Backorder SMG DC61-02008B $19.07

13

DC97-07519D Samsung Door Assembly Exhaust Duc Backorder SMG DC97-07519D $42.40

14

DC93-00154A Samsung Dryer Duct Heater Assembl In Stock SMG DC93-00154A $220.25

16-1

DC97-15249A Samsung Hose Connector Assembly Backorder SMG DC97-15249A $79.97

16-3

DC62-40178A Samsung Seal Water Backorder SMG DC62-40178A $1.17

1564

Dryer idler pulley SMG DC97-07509B Contact Us For Availability

4101

DC62-30042A Samsung Dryer Steam Water Valve A Backorder SMG DC62-30042A $114.54

DC60-00103A Samsung Fastener Plain Backorder SMG DC60-00103A $1.67

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $2.07

DC61-00133A Samsung Clamp Hose Backorder SMG DC61-00133A $1.67

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $1.67

DC97-16782A Samsung Dryer Plastic Roller Whee In Stock SMG DC97-16782A $33.38
