Model Samsung DV50K7500EW/A3-01 Dryer – Common Parts & Diagrams
Control Panel
Drum

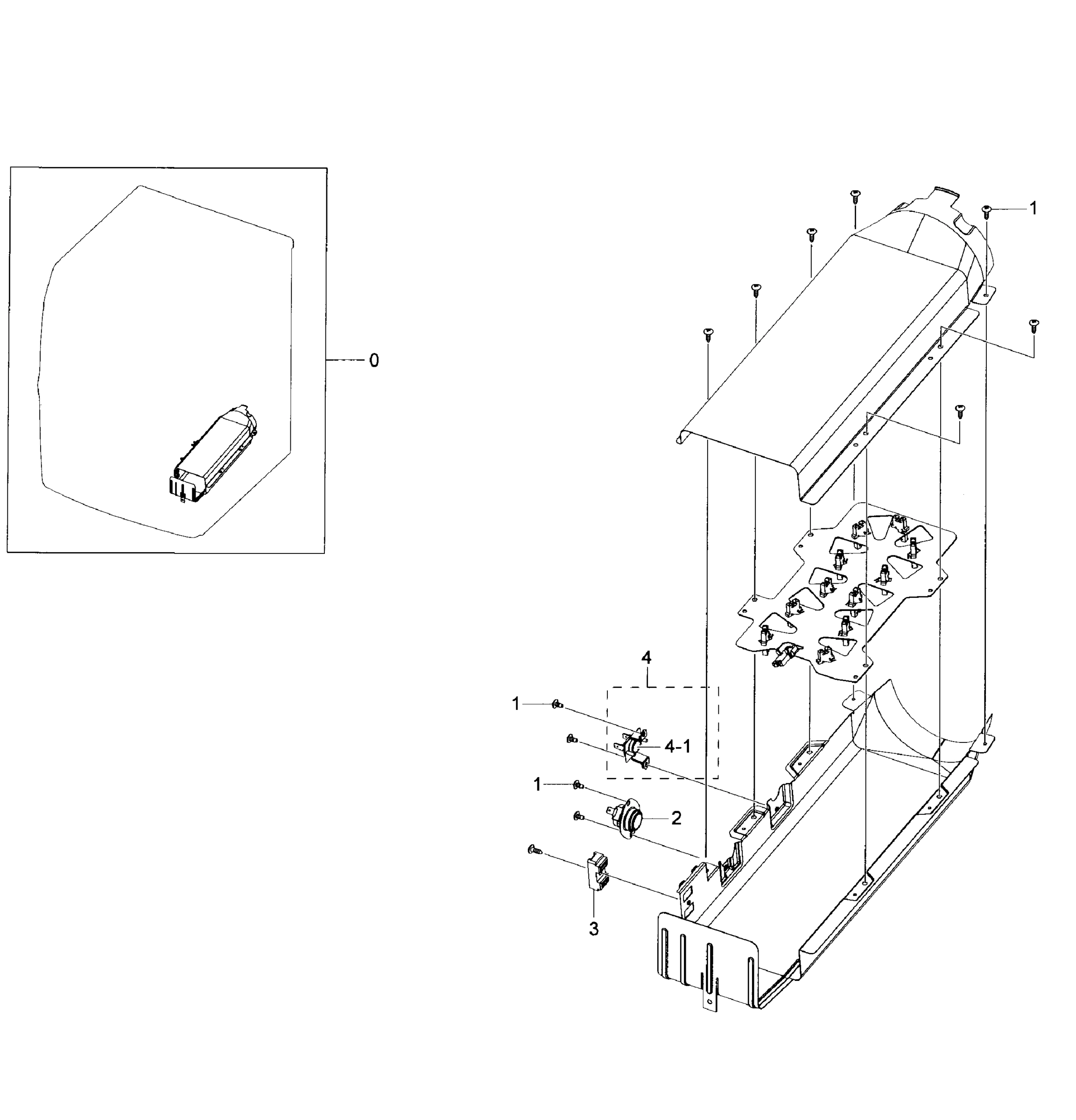

Duct Heater

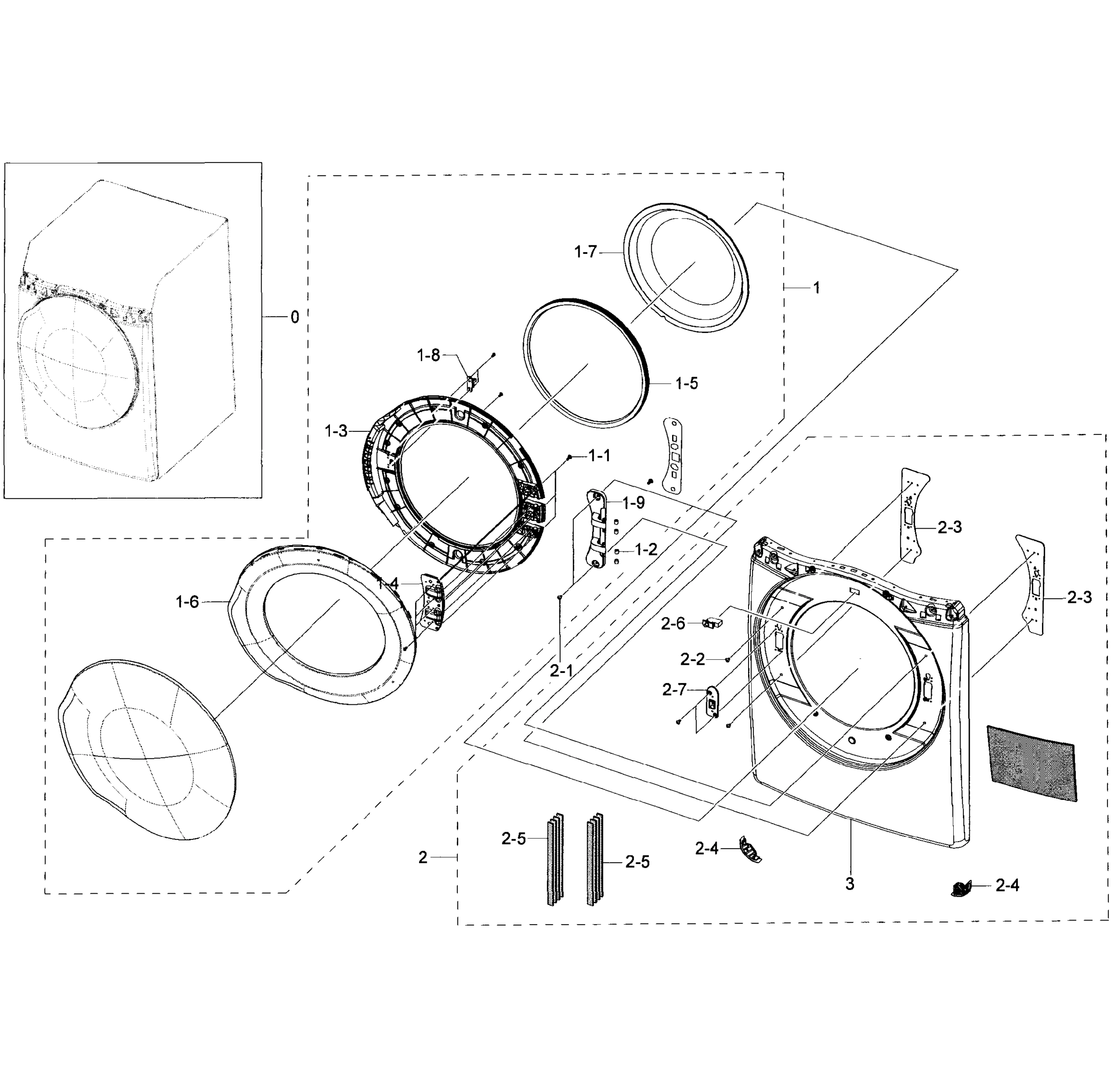

Frame Front & Door

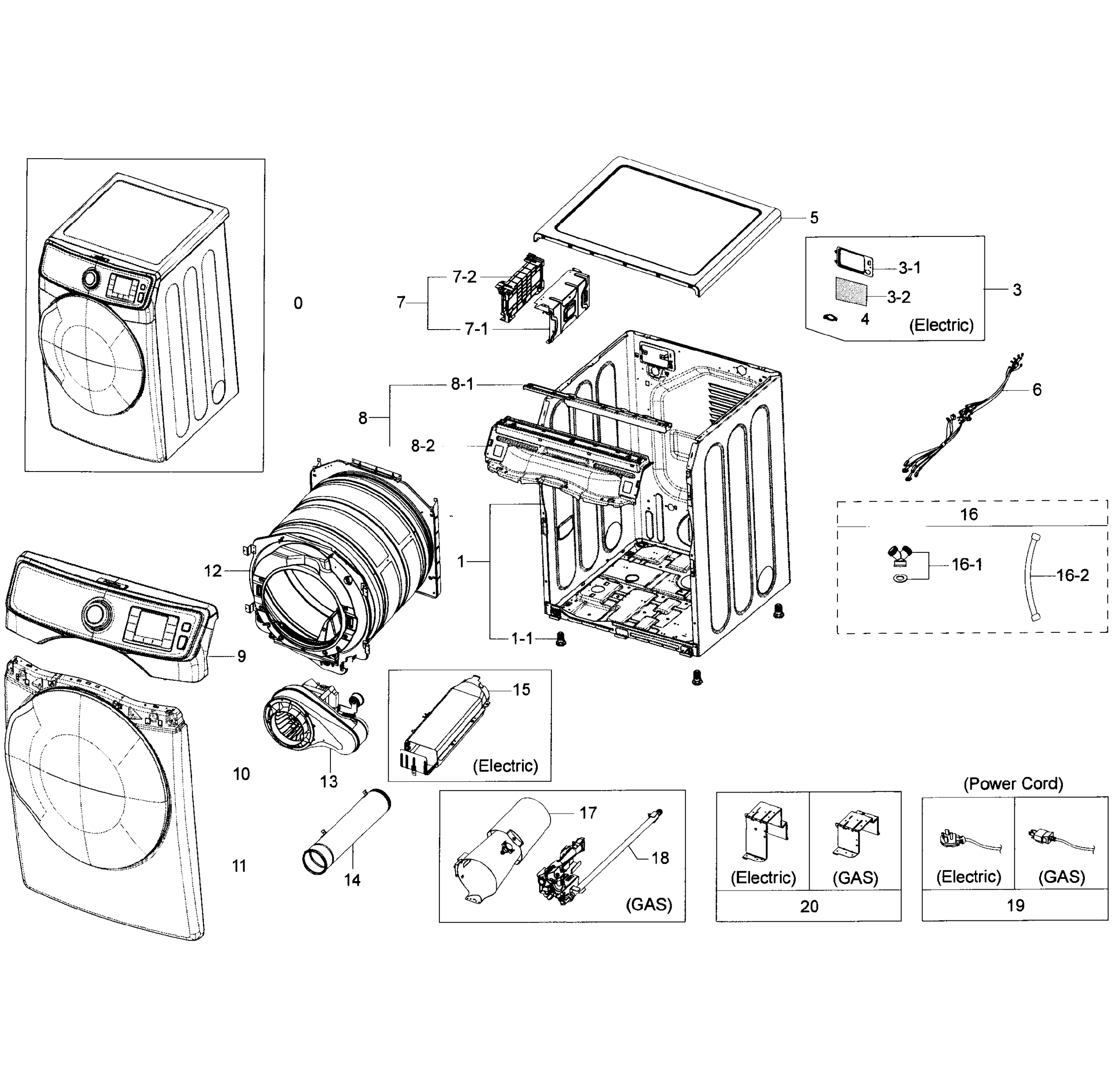

Main Assembly

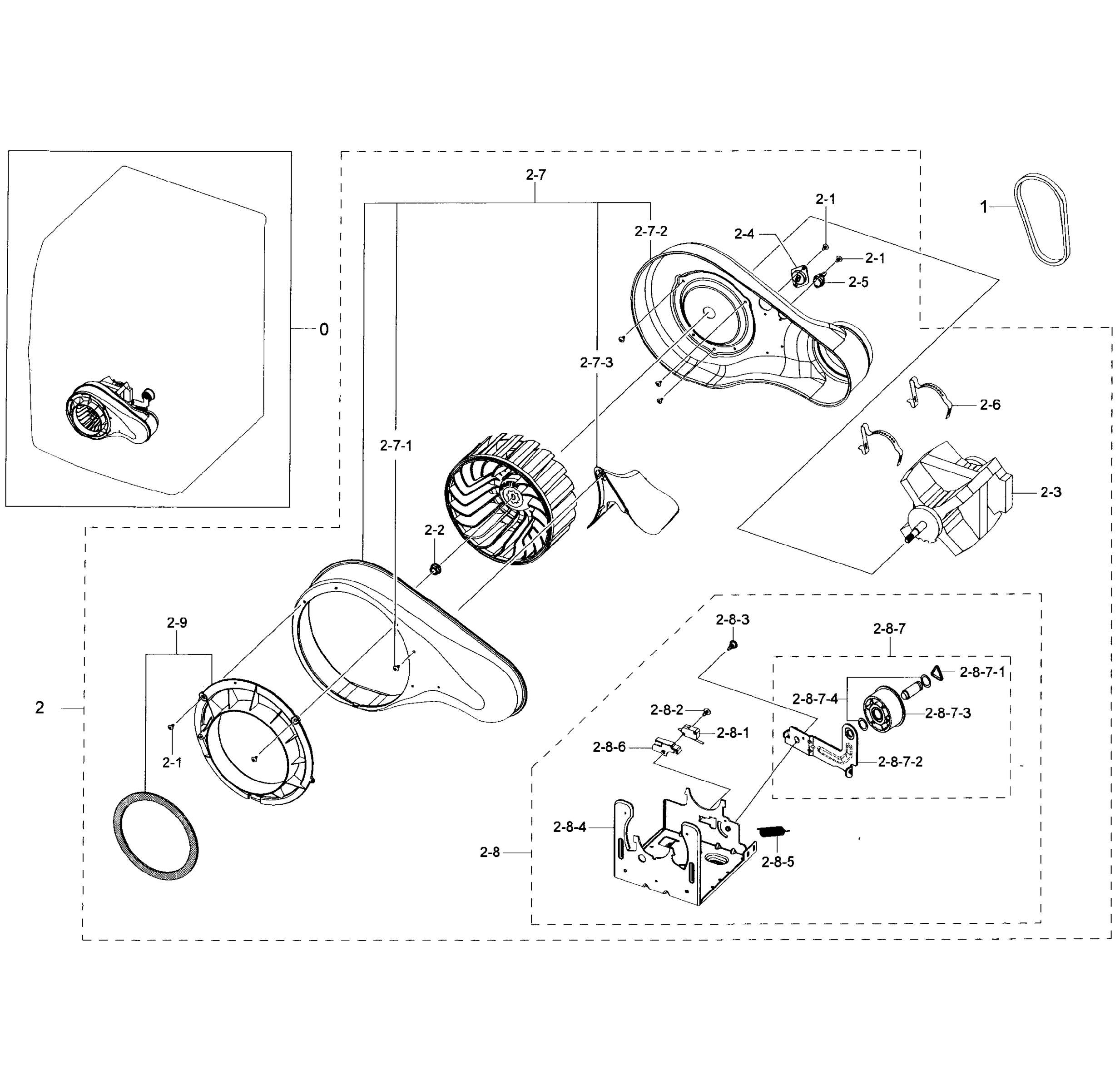

Motor Duct
Common parts from model Samsung DV50K7500EW/A3-01 Dryer
0
Samsung dryer heating element assembly SMG DC93-00154A Contact Us For Availability
1
Dryer drum belt SMG 6602-001655 Contact Us For Availability
1
Refrigerator screw, m4 x 0.8 SMG 6002-000239 Contact Us For Availability
1
Dryer door assembly SMG DC97-19329A Contact Us For Availability
1-1
Dryer screw SMG 6001-001668 Contact Us For Availability
1-2
Dryer door hinge guide SMG DC61-00891A Contact Us For Availability
1-5
Dryer door seal SMG DC62-00262A Contact Us For Availability
1-7
Dryer door glass SMG DC64-02637A Contact Us For Availability
1-8
Dryer door latch SMG DC66-00814A Contact Us For Availability
2
Dryer high-limit thermostat SMG DC47-00018A Contact Us For Availability
2
Dryer motor and blower assembly SMG DC93-00101N Contact Us For Availability
2
Dryer drum SMG DC97-14849A Contact Us For Availability
2
Dryer leveling leg SMG DC61-03128A Contact Us For Availability
2-1
Appliance machine screw SMG 6001-001773 Contact Us For Availability
2-2
Dryer blower wheel nut SMG 6021-001201 Contact Us For Availability
2-3
Dryer drive motor SMG DC31-00055G Contact Us For Availability
2-3
Dryer drum seal SMG DC97-07618A Contact Us For Availability
2-4
Dryer thermistor SMG DC32-00007A Contact Us For Availability
2-5
Dryer thermal cut-off thermostat SMG DC47-00016A Contact Us For Availability
2-6
Dryer door switch SMG DC64-00828B Contact Us For Availability
2-6
Dryer motor clamp SMG DC61-04225A Contact Us For Availability
2-7
Dryer door catch SMG DC97-18057C Contact Us For Availability
2-7
Dryer blower housing SMG DC93-00098D Contact Us For Availability
2-8
Dryer drive motor assembly SMG DC96-00790G Contact Us For Availability
2-9
Dryer exhaust duct connector SMG DC97-07895A Contact Us For Availability
2-83
Dryer idler arm spacer SMG 6009-001342 Contact Us For Availability
2-84
Dryer motor bracket SMG DC61-01213A Contact Us For Availability
2-85
Dryer idler spring SMG DC61-01215B Contact Us For Availability
2-86
Dryer belt switch housing SMG DC63-00919A Contact Us For Availability
3
dryer terminal block cover SMG DC97-08855A Contact Us For Availability
3
Dryer terminal block SMG DC65-00028A Contact Us For Availability
3
Dryer drum front cover SMG DC97-15984B Contact Us For Availability
3-1
Dryer drum light assembly SMG DC47-00027F Contact Us For Availability
3-4
Dryer drum light support bracket SMG DC61-02281A Contact Us For Availability
3-6
Dryer lint chute assembly SMG DC93-00187A Contact Us For Availability
3-81
Dryer moisture sensor SMG DC61-02627A Contact Us For Availability
3-82
Dryer lint screen cover spring SMG DC61-02740A Contact Us For Availability
3-83
Dryer lint screen cover SMG DC63-01139A Contact Us For Availability
3-84
Dryer filter cover SMG DC63-01140A Contact Us For Availability
3-85
Dryer filter cover SMG DC63-01143A Contact Us For Availability
3-86
Dryer wire harness SMG DC96-00766A Contact Us For Availability
4
Dryer power cord strain relief SMG DC61-01428A Contact Us For Availability
4-1
Dryer thermal cut-off fuse, 320-degree f SMG DC47-00015A Contact Us For Availability
4-1
Laundry appliance wi-fi module SMG DB92-03769A Contact Us For Availability
4-3
Drive bracket SMG DC61-02826A Contact Us For Availability
4-6
Dryer thermistor SMG DC93-00329A Contact Us For Availability
4-8
Dryer steam nozzle SMG DC97-16919B Contact Us For Availability
6
Dryer wire harness SMG DC93-00465A Contact Us For Availability
7
Dryer electronic control board assembly SMG DC92-01896A Contact Us For Availability
8-1
Frame plate SMG DC61-02600A Contact Us For Availability
8-2
Dryer guide panel SMG DC61-02008B Contact Us For Availability
16-2
Dryer inlet hose connector SMG DC97-15249A Contact Us For Availability
2871
Dryer retainer clip SMG DC61-01228A Contact Us For Availability
2873
Dryer idler pulley SMG DC97-07509B Contact Us For Availability
2874
Dryer washer SMG 6031-002671 Contact Us For Availability
NI
Samsung dryer drum support roller SMG DC97-16782A Contact Us For Availability
NI
Refrigerator screw SMG 6002-000213 Contact Us For Availability
NI
Dryer washer SMG DC60-00103A Contact Us For Availability
NI
Laundry appliance hex screw SMG 6009-001522 Contact Us For Availability
NI
Dryer front panel air seal SMG DC63-10001C Contact Us For Availability
NI
Dryer retainer clip SMG DC61-00133A Contact Us For Availability
NI
Dryer roller wheel nut SMG DC60-50145A Contact Us For Availability
NI
Refrigerator tapping screw SMG 6002-000470 Contact Us For Availability
× ![]()
