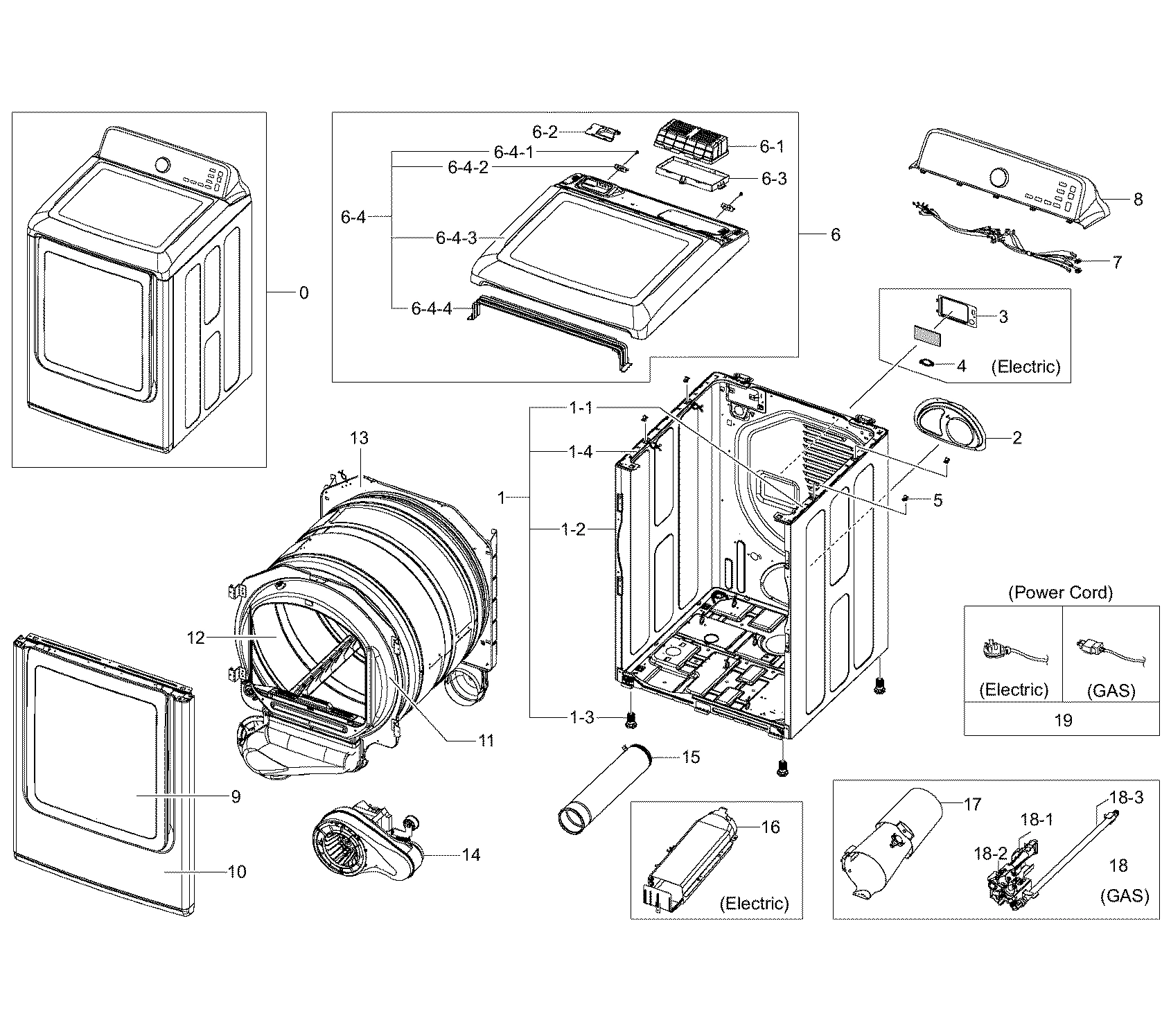

Model Samsung DV45H7000GW/A2-02 Dryer – Common Parts &amp; Diagrams

1

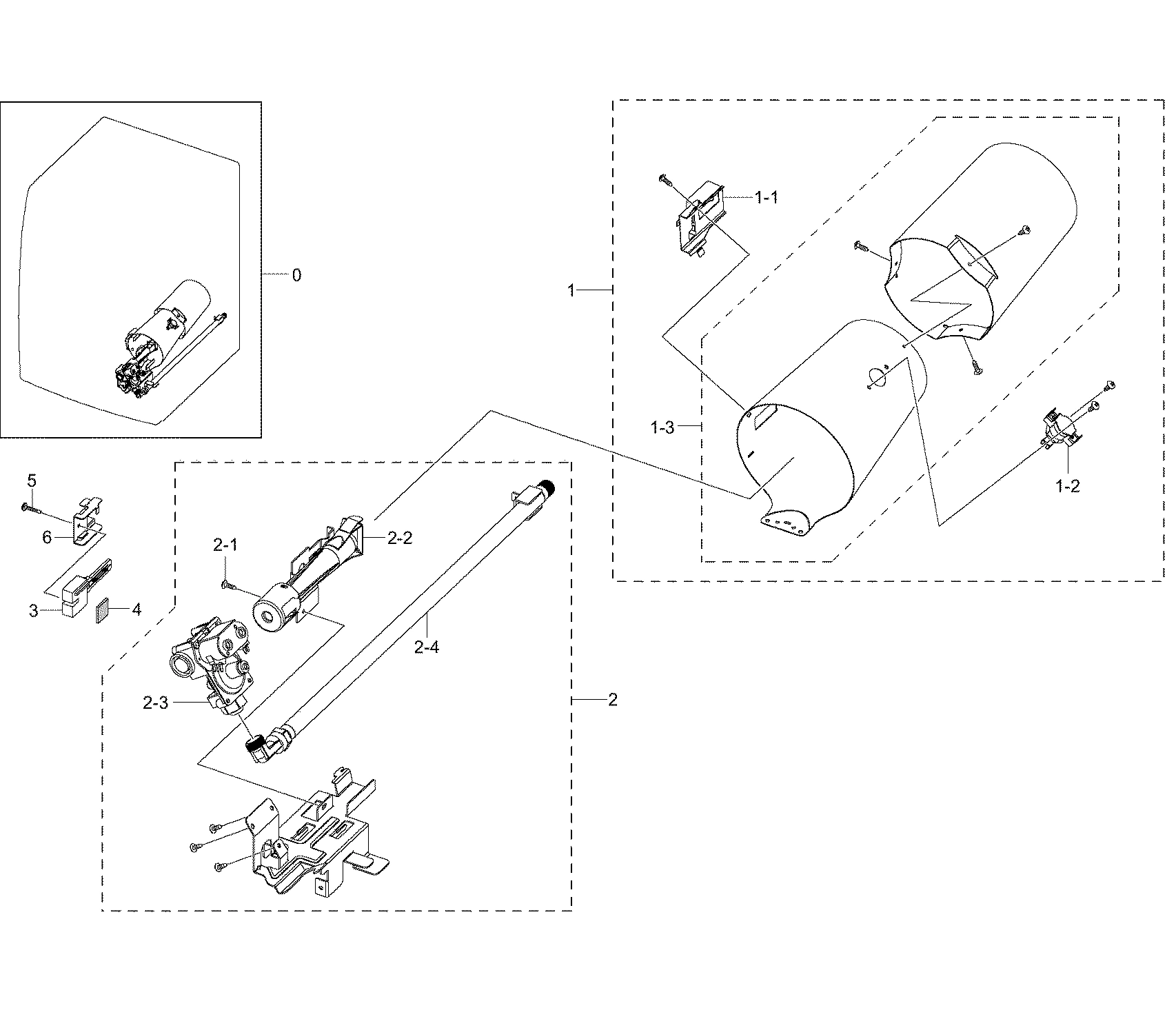

Dryer Burner Duct Assembly SMG DC97-10720A Contact Us For Availability

1-1

DC32-00008A Samsung Radiant Sensor Assembly Backorder SMG DC32-00008A $161.64

1-2

DC47-00017A Samsung Washer Dryer Thermostat A In Stock SMG DC47-00017A $83.89

1-3

DC61-03128A Samsung Dryer Adjustable Leveling In Stock SMG DC61-03128A $9.50

1-3

DC97-07602C Samsung Assembly Duct Cone Backorder SMG DC97-07602C $118.57

1-26

DC66-00395A Samsung Dryer Door Lever Strike L In Stock SMG DC66-00395A $6.33

1-41

DC60-00103A Samsung Fastener Plain Backorder SMG DC60-00103A $1.81

1-42

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $2.72

1-44

DC97-16741D Samsung Assembly Cover Filter In Stock SMG DC97-16741D $176.25

1-45

Dryer Lint Screen SMG DC97-16742A Contact Us For Availability

1-46

DC97-16782A Samsung Dryer Plastic Roller Whee In Stock SMG DC97-16782A $36.44

1-48

DC67-00652A Samsung Drum Front Cap Assembly Backorder SMG DC67-00652A $6.33

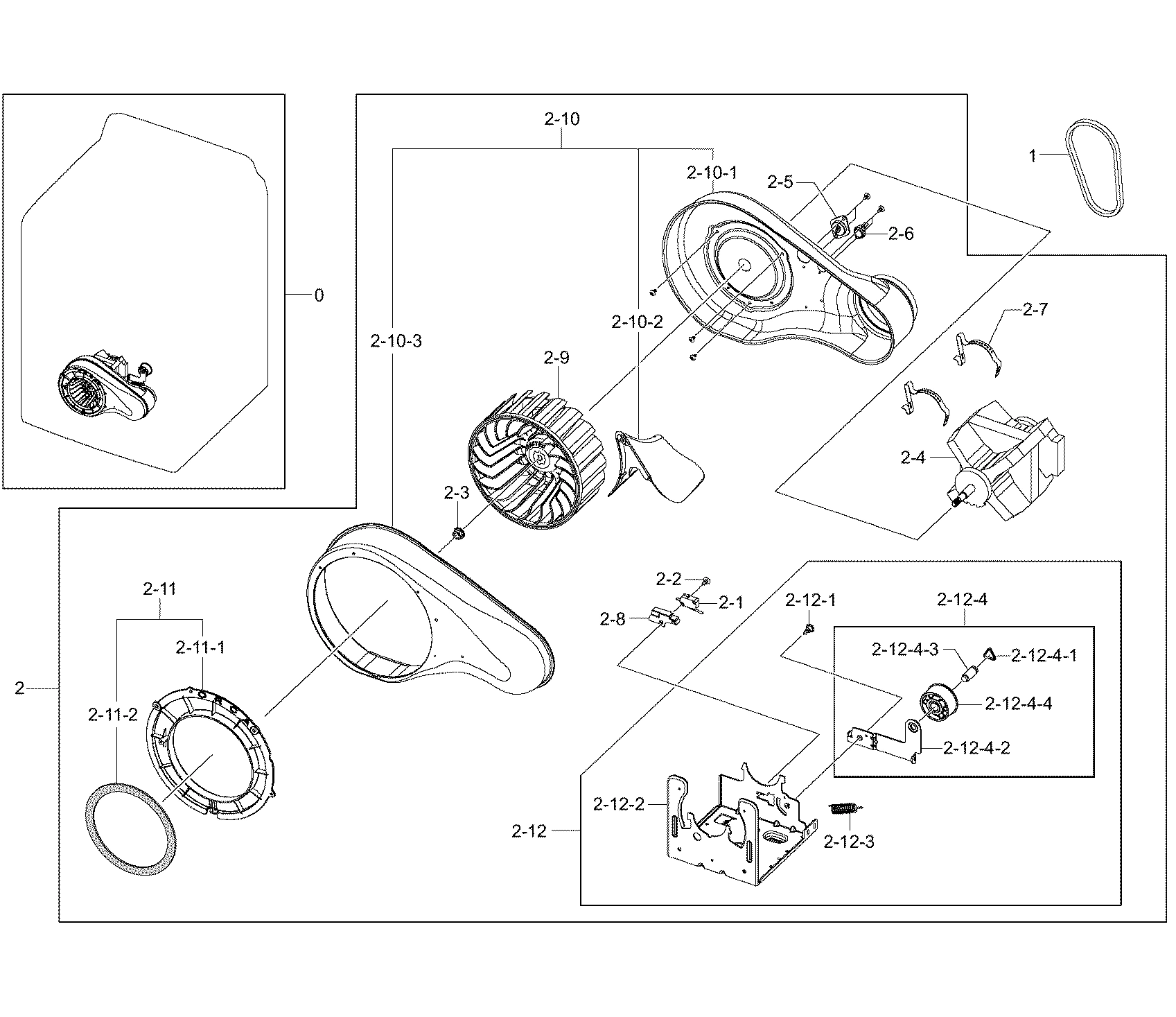

2

DC93-00101U Samsung Washer DV7000H Assembly M In Stock SMG DC93-00101U $288.62

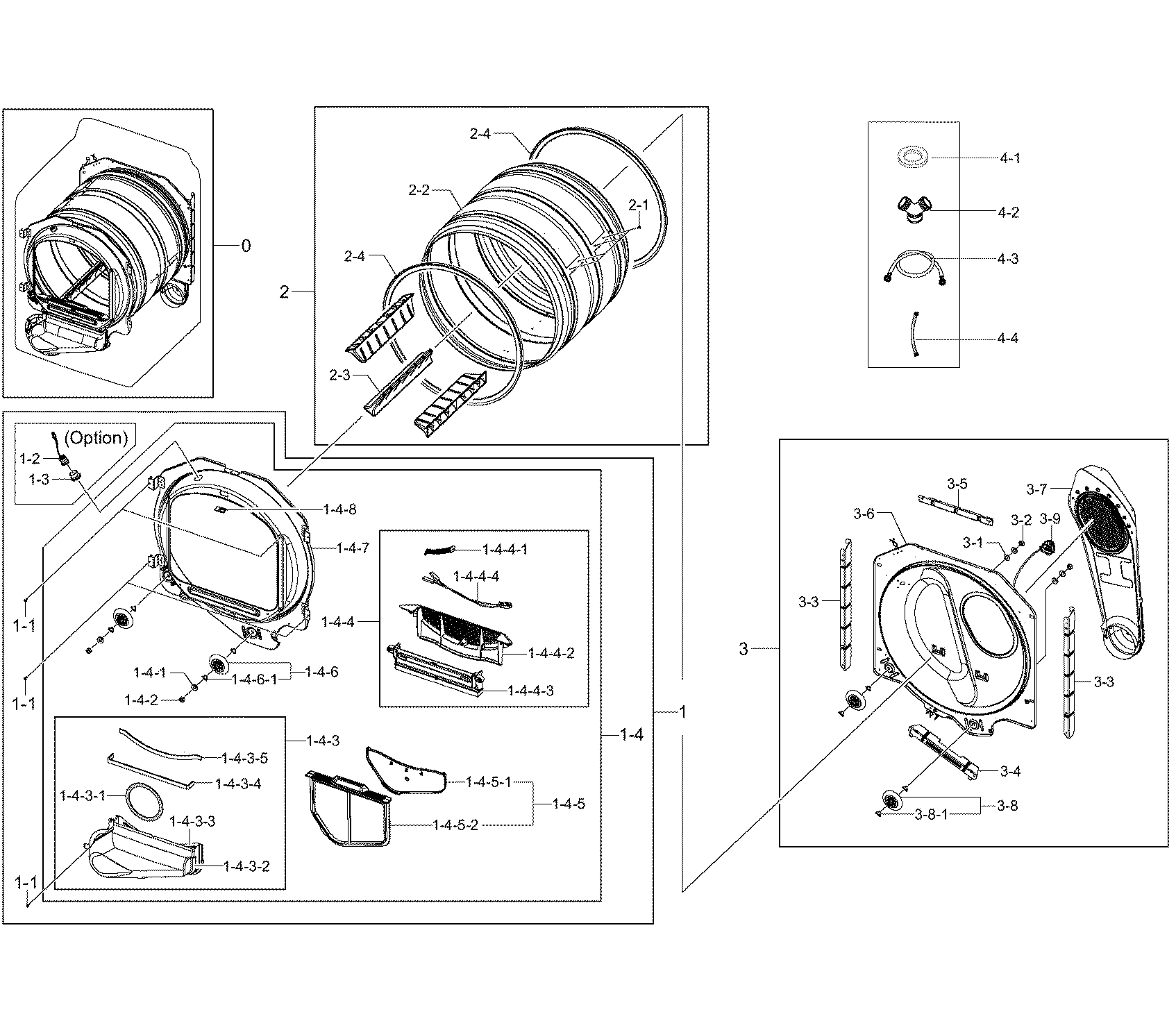

2

Dryer Drum SMG DC97-16812H Contact Us For Availability

2

Frame SMG DC97-16953A Contact Us For Availability

2-1

6009-001476 Samsung Washer Dryer Hex Screw M5 Backorder SMG 6009-001476 $0.97

2-2

Tapping Screw SMG 6002-001149 Contact Us For Availability

2-2

Dryer Burner SMG DC62-00200A Contact Us For Availability

6002-001436 Samsung Tapping Screw Backorder SMG 6002-001436 $14.94

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $2.72

DC62-00201A Samsung Dryer Gas Valve Assembly In Stock SMG DC62-00201A $252.35

DC66-00664A Samsung Dryer Drum Lifter Backorder SMG DC66-00664A $25.84

2-4

DC31-00055G Samsung Dryer Induction Drive Mot In Stock SMG DC31-00055G $253.44

2-4

DC97-07618A Samsung Dryer Drum Gasket Seal As In Stock SMG DC97-07618A $88.64

2-4

DC99-00507A Samsung Assembly Pipe Backorder SMG DC99-00507A $136.75

2-5

DC32-00007A Samsung Dryer Thermistor Sensor Backorder SMG DC32-00007A $17.64

2-6

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $13.07

2-7

DC61-04225A Samsung Dryer Spring Plate Assemb In Stock SMG DC61-04225A $3.26

2-8

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $2.72

2-9

DC67-00180B Samsung Dryer Blower Wheel Assemb In Stock SMG DC67-00180B $90.19

2-10

DC93-00098D Samsung Assembly Cover Duct Backorder SMG DC93-00098D $188.66

2-11

DC93-00282A Samsung Assembly Duct Connector Backorder SMG DC93-00282A $24.55

2-32

Base SMG DC61-03169C Contact Us For Availability

2-33

DC61-03174A Samsung Fixer Cover Top Backorder SMG DC61-03174A $5.75

2-34

DC61-03325A Samsung Hinge Bracket Assembly Backorder SMG DC61-03325A $27.37

2-35

DC61-03326A Samsung Bracket Hinge (Left) DV45 Backorder SMG DC61-03326A $9.07

2-36

Bracket SMG DC61-03328A Contact Us For Availability

2-37

DC63-01456D Samsung Cover Door Hinge Backorder SMG DC63-01456D $87.33

2-38

Dryer Cabinet Hole Plug SMG DC63-01457E Contact Us For Availability

3

DC47-00022A Samsung Dryer Heater Igniter In Stock SMG DC47-00022A $155.36

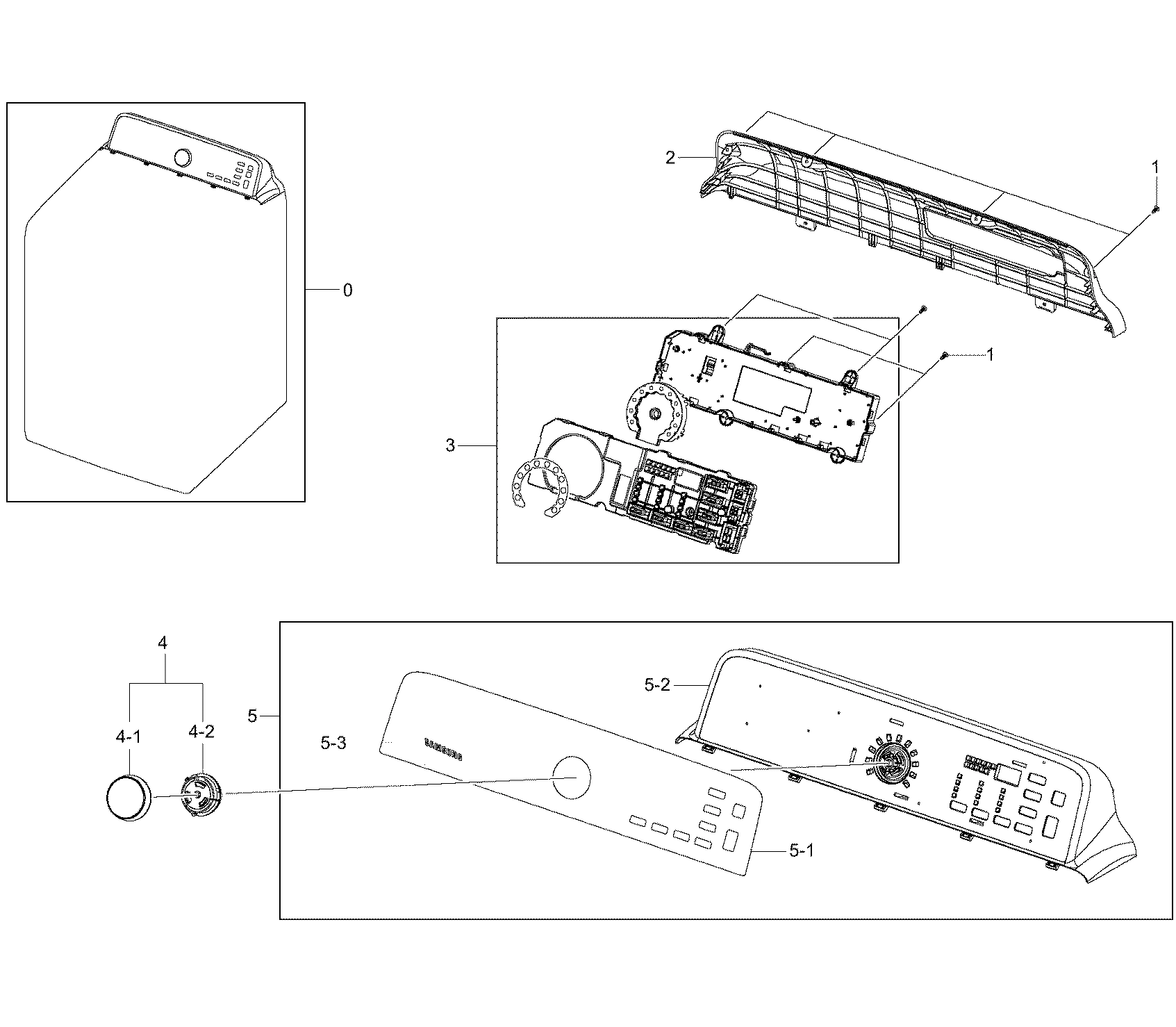

3

DC92-01624H Samsung Assembly Printed Circuit Backorder SMG DC92-01624H $227.25

3-4

DC61-02826A Samsung Drum Back Bracket Assembl Backorder SMG DC61-02826A $16.29

3-81

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $1.81

4

DC63-00623A Samsung Igniter Absorber MDE9700A Backorder SMG DC63-00623A $2.26

4

DC97-16931A Samsung Encoder Knob Assembly Backorder SMG DC97-16931A $42.52

5

DC61-03400A Samsung Clip Backorder SMG DC61-03400A $1.81

5

DC97-09193A Samsung Screw Backorder SMG DC97-09193A $0.97

5

DC97-18981A Samsung Assembly Semi Control Pan Backorder SMG DC97-18981A $263.38

6

DC61-02642A Samsung Igniter Bracket Backorder SMG DC61-02642A $4.98

6-2

DC67-00607A Samsung Cap Cover Top Assembly DV Backorder SMG DC67-00607A $17.64

6-3

DC92-01626B Samsung Dryer Electronic Main Con In Stock SMG DC92-01626B $230.58

6-4

DC97-16954M Samsung Dryer Top Cover Assembly Backorder SMG DC97-16954M $263.56

6-41

6006-001174 Samsung Tapping Screw Th + Wt 2s Backorder SMG 6006-001174 $0.97

7

DC93-00191H Samsung Assembly Dryer Main Wire Backorder SMG DC93-00191H $174.65

18

DC97-14492A Samsung Burner Assembly Backorder SMG DC97-14492A $237.50

1210

Dryer Hinge SMG DC97-17079B Contact Us For Availability

1211

Cushion SMG DC63-01498A Contact Us For Availability

1244

Dryer Idler Pulley SMG DC97-07509B Contact Us For Availability

1292

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $0.97

1293

Support SMG DC61-03323A Contact Us For Availability

1295

Hinge Holder SMG DC61-03332A Contact Us For Availability

1441

DC61-02627A Samsung Dryer Moisture Sensor Pla In Stock SMG DC61-02627A $5.42

1442

Dryer Lint Screen Cover SMG DC63-01319A Contact Us For Availability

1444

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $11.77

1451

DC61-02610A Samsung Dryer Lint Screen Case Fi Backorder SMG DC61-02610A $15.85

1452

DC61-03048A Samsung Dryer Lint Screen Filter Backorder SMG DC61-03048A $78.06

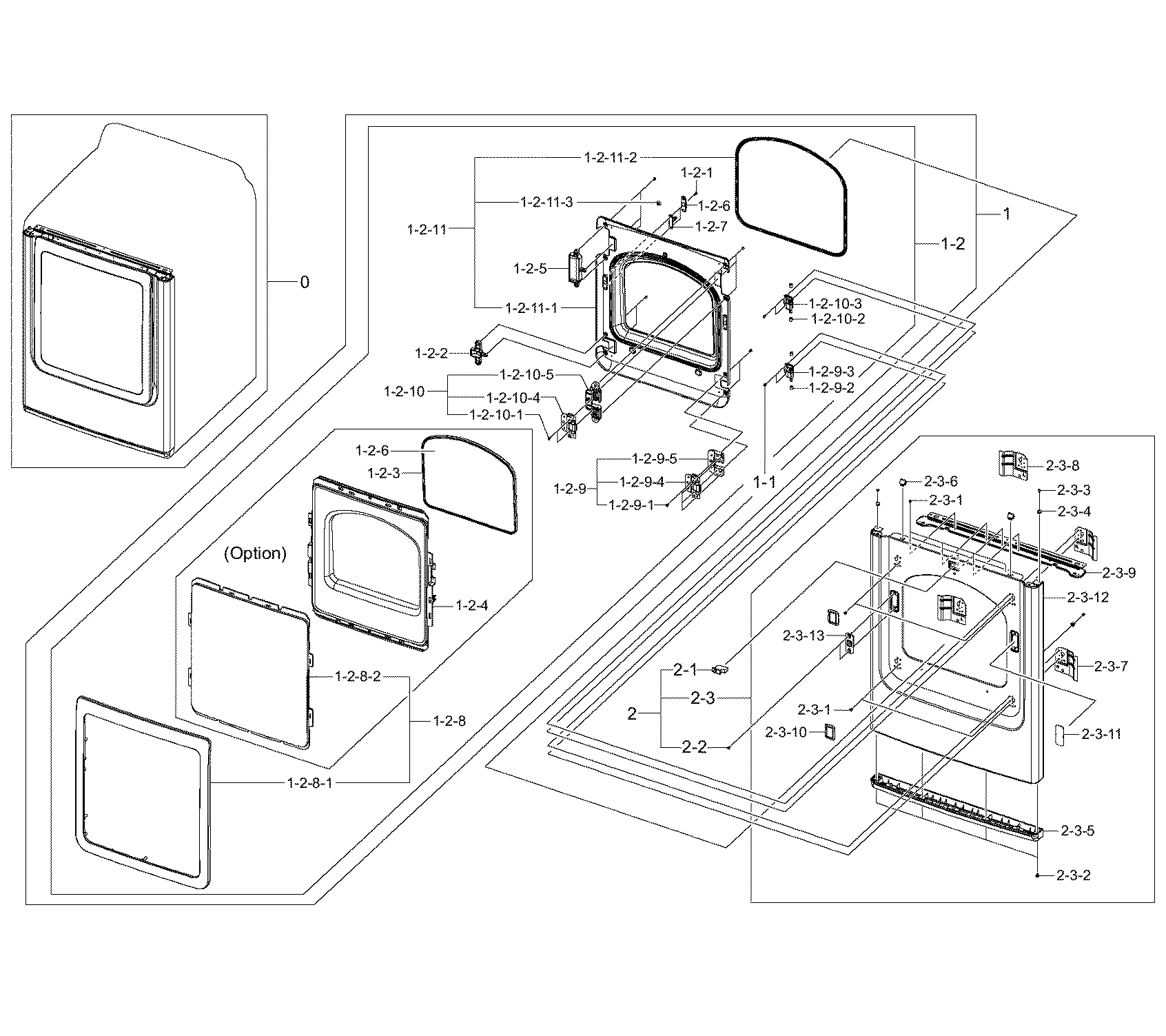

2102

Handle Cover SMG DC63-01458A Contact Us For Availability

2103

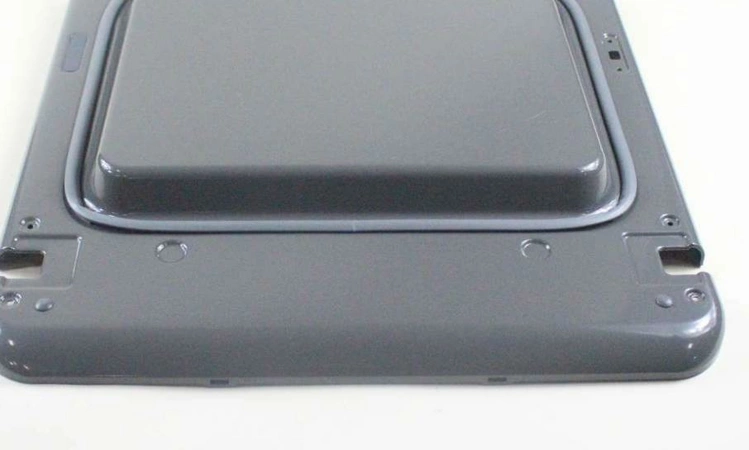

DC97-17080B Samsung Glass Holder Assembly Backorder SMG DC97-17080B $182.57

2104

Glass Holder SMG DC61-03331B Contact Us For Availability

2105

DC62-00344A Samsung Dryer Air Seal In Stock SMG DC62-00344A $35.86

2111

DC97-16952L Samsung Frame Front Assembly DV70 Backorder SMG DC97-16952L $285.45

2112

DC64-00828B Samsung Washer Dryer Door Switch In Stock SMG DC64-00828B $31.40

2113

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $79.07

2113

DC97-15847A Samsung Screw Assembly Backorder SMG DC97-15847A $0.97

2114

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $5.42

2115

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $44.37

2310

Dryer Door Catch SMG DC97-16970A Contact Us For Availability

2311

Holder Cover SMG DC63-00556A Contact Us For Availability

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.97

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.97

6002-000445 Samsung Tapping Screw Backorder SMG 6002-000445 $0.97

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $0.97

6009-001522 Samsung Washer Dryer Hex Screw M5 Backorder SMG 6009-001522 $3.17
