Samsung DV448AGP/XAA-02 Dryer Parts List

1

DC97-07526B Samsung Duct Outlet Assembly Backorder SMG DC97-07526B $69.29

View on Model

1

DC97-07895A Samsung Dryer Connector Duct Asse Backorder SMG DC97-07895A $40.65

View on Model

1-1

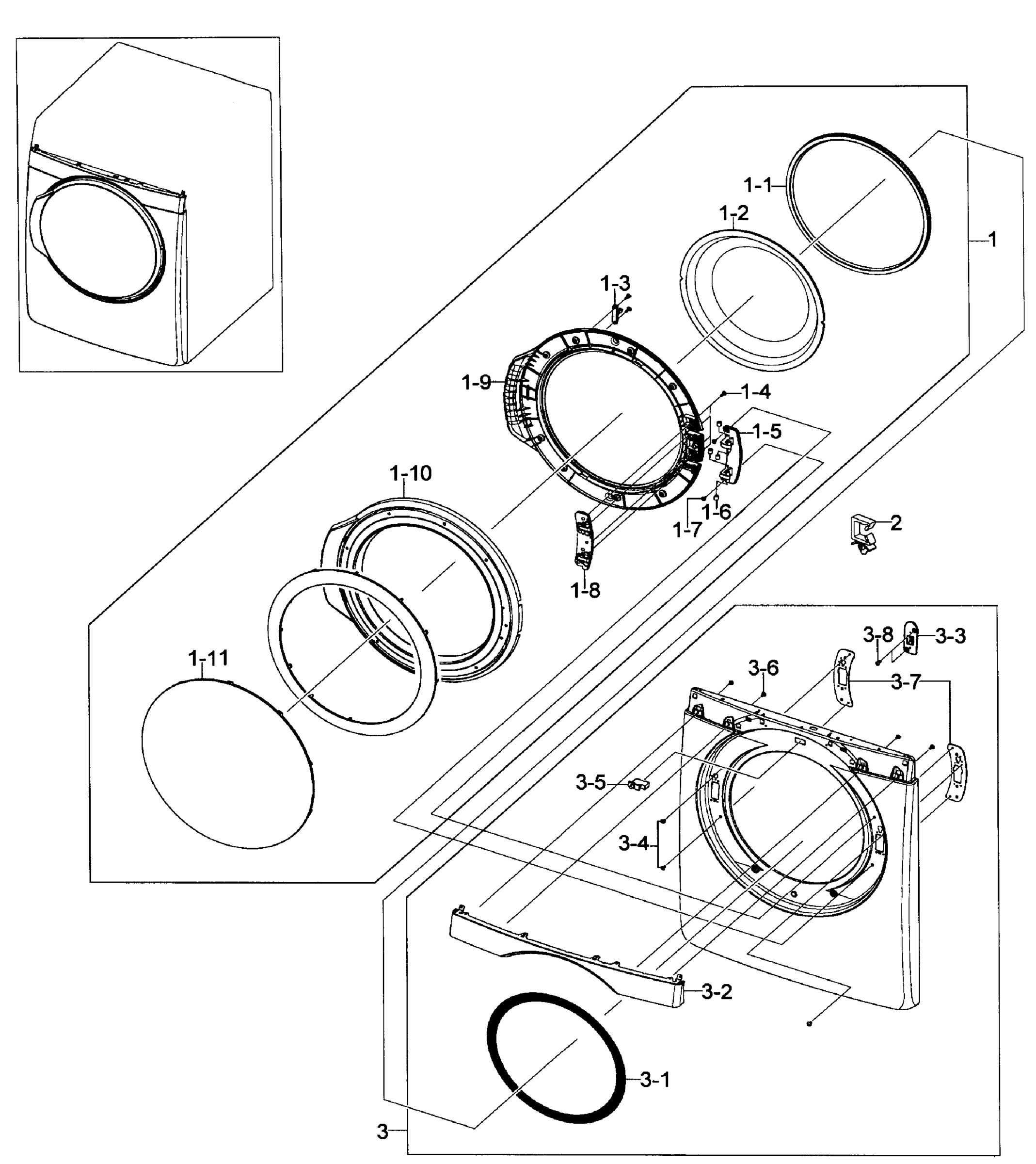

DC62-00262A Samsung Dryer Door Seal Assembly In Stock SMG DC62-00262A $49.85

View on Model

1-1

DC63-10001K Samsung Dryer Absorber Sponge Backorder SMG DC63-10001K $3.17

View on Model

1-2

6006-001174 Samsung Tapping Screw Th + Wt 2s Backorder SMG 6006-001174 $0.97

View on Model

1-3

DC62-00201A Samsung Dryer Gas Valve Assembly In Stock SMG DC62-00201A $252.35

View on Model

1-3

DC66-00395A Samsung Dryer Door Lever Strike L In Stock SMG DC66-00395A $6.33

View on Model

1-4

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $0.97

View on Model

1-6

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $0.97

View on Model

1-6

DC99-00507A Samsung Assembly Pipe Backorder SMG DC99-00507A $136.75

View on Model

1-7

6002-000241 Samsung Self Tapping Screw Backorder SMG 6002-000241 $0.97

View on Model

1-8

DC61-01576A Samsung Support Hinge Assembly Backorder SMG DC61-01576A $10.87

View on Model

2

Dryer electronic control board SMG DC92-00123A Contact Us For Availability

View on Model

2

Dryer electronic control board SMG DC92-00127A Contact Us For Availability

View on Model

2-1

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $2.72

View on Model

2-2

DC67-00180B Samsung Dryer Blower Wheel Assemb In Stock SMG DC67-00180B $90.19

View on Model

2-2

DC97-16782A Samsung Dryer Plastic Roller Whee In Stock SMG DC97-16782A $36.44

View on Model

2-3

Kenmore Dryer Blower Housing SMG DC93-00098C Contact Us For Availability

View on Model

2-4

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $2.72

View on Model

2-5

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $13.07

View on Model

2-5

Dryer Drum Light Lens SMG DC63-00531A Contact Us For Availability

View on Model

2-6

DC32-00007A Samsung Dryer Thermistor Sensor Backorder SMG DC32-00007A $17.64

View on Model

2-7

4713-001199 Samsung Dryer Drum Incandescent L Backorder SMG 4713-001199 $8.59

View on Model

2-8

DC47-00021A Samsung Socket Lamp Assembly Backorder SMG DC47-00021A $22.62

View on Model

2-8

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $3.69

View on Model

2-9

DC31-00055G Samsung Dryer Induction Drive Mot In Stock SMG DC31-00055G $253.44

View on Model

2-9

DC61-01231A Samsung Dryer Wings Plate Sensor Backorder SMG DC61-01231A $4.98

View on Model

2-10

DC61-01235A Samsung Sensor Guide Assembly Backorder SMG DC61-01235A $5.42

View on Model

2-11

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $44.37

View on Model

2-11

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $11.77

View on Model

2-12

6009-001342 Samsung Dryer Special Puller Scre Backorder SMG 6009-001342 $1.35

View on Model

2-12

DC63-00675A Samsung Dryer Filter Cover Backorder SMG DC63-00675A $24.95

View on Model

2-13

Dryer Lint Screen SMG DC61-01521A Contact Us For Availability

View on Model

2-14

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $17.20

View on Model

2-15

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $2.72

View on Model

2-16

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $79.07

View on Model

2-17

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $5.42

View on Model

3

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $36.38

View on Model

3

DC47-00022A Samsung Dryer Heater Igniter In Stock SMG DC47-00022A $155.36

View on Model

3

Dryer Drum SMG DC97-14849A Contact Us For Availability

View on Model

3-1

DC63-10001C Samsung EPDM Sponge Backorder SMG DC63-10001C $3.17

View on Model

3-3

DC97-07510B Samsung Dryer Door Lever Holder C In Stock SMG DC97-07510B $14.03

View on Model

3-4

6001-001773 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001773 $1.35

View on Model

3-5

DC64-00828A Samsung Dryer Door Switch Assembl Backorder SMG DC64-00828A $28.72

View on Model

3-6

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.97

View on Model

4

DC61-01522A Samsung Dryer Drying Rack Assembl Backorder SMG DC61-01522A $117.88

View on Model

4-1

DC61-02008B Samsung Dryer Guide Panel Backorder SMG DC61-02008B $20.82

View on Model

5

Dryer Burner Duct Assembly SMG DC97-10720A Contact Us For Availability

View on Model

5-1

DC97-07602C Samsung Assembly Duct Cone Backorder SMG DC97-07602C $118.57

View on Model

5-3

DC47-00017A Samsung Washer Dryer Thermostat A In Stock SMG DC47-00017A $83.89

View on Model

5-5

DC32-00008A Samsung Radiant Sensor Assembly Backorder SMG DC32-00008A $161.64

View on Model

6

DC97-14492A Samsung Burner Assembly Backorder SMG DC97-14492A $237.50

View on Model

7

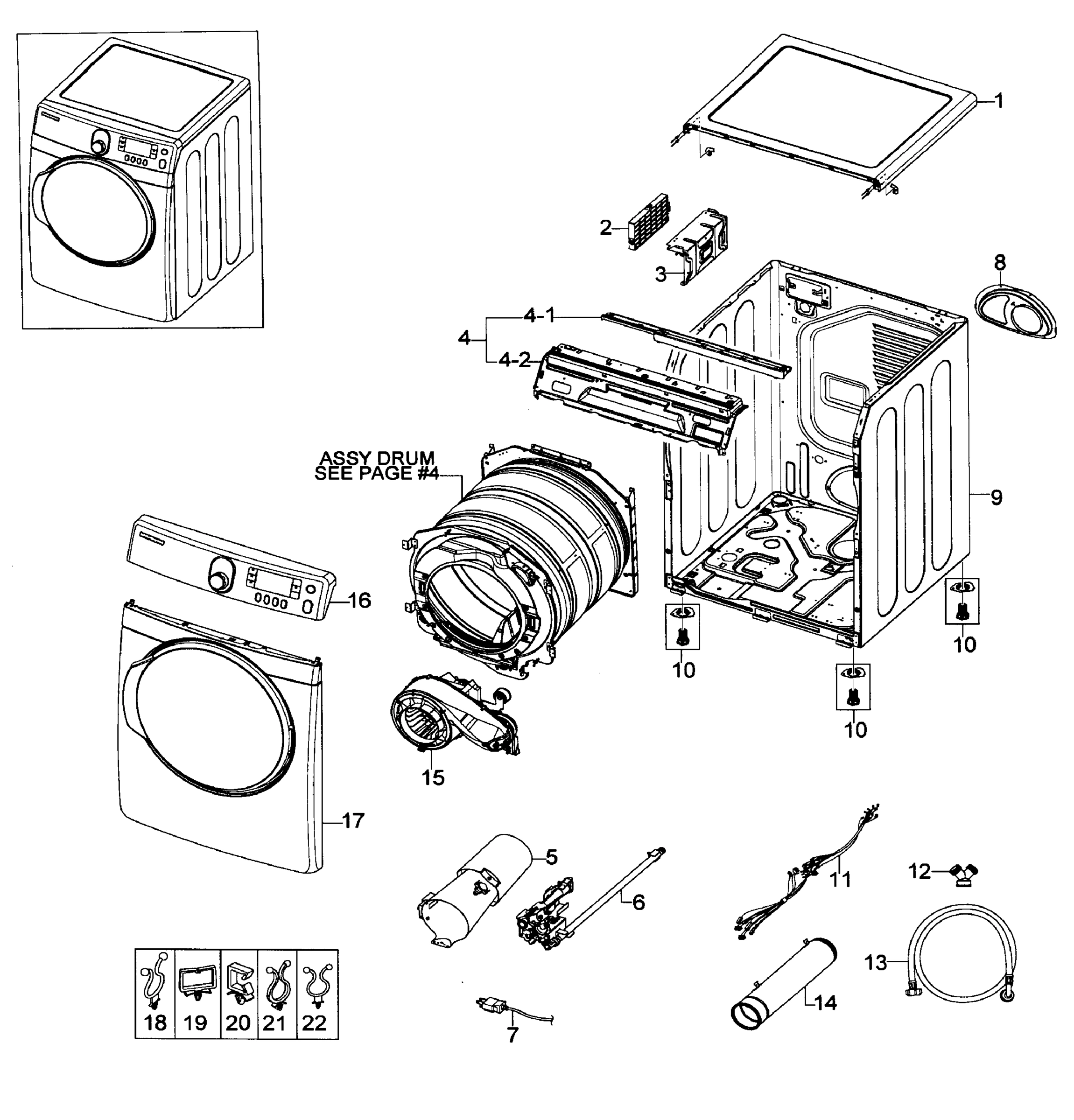

DC96-00038G Samsung Dryer Power Cord Assembly Backorder SMG DC96-00038G $89.54

View on Model

8

DC63-00534B Samsung Back Cover Assembly Backorder SMG DC63-00534B $44.83

View on Model

10

DC97-12150A Samsung Dryer Leg Assembly In Stock SMG DC97-12150A $17.20

View on Model

14

DC97-07519A Samsung Dryer Exhaust Duct Assemb Backorder SMG DC97-07519A $64.44

View on Model

15

DC93-00101F Samsung Motor Assembly Backorder SMG DC93-00101F $258.97

View on Model
