Samsung DV42H5200GP/A3-00 Dryer

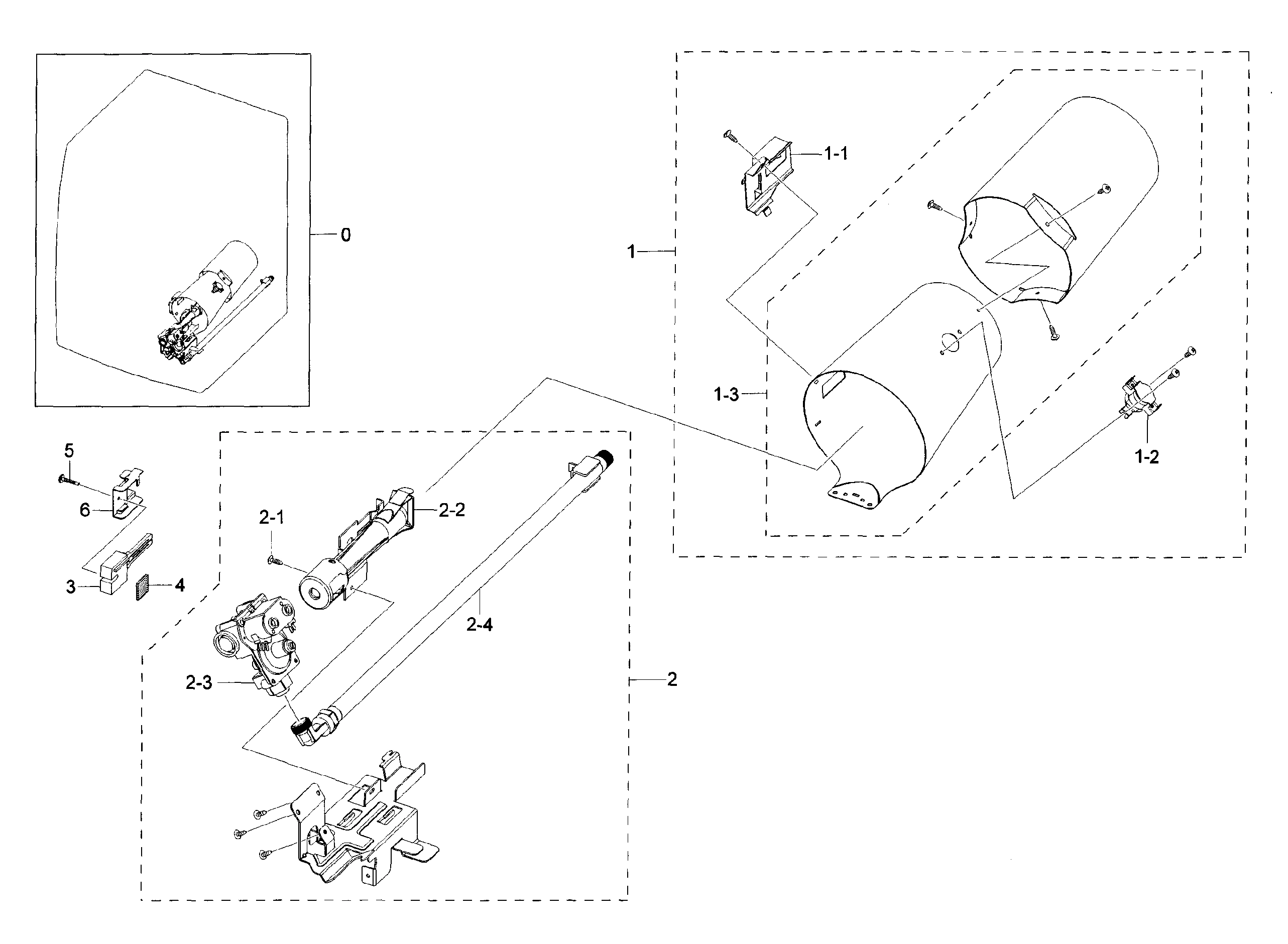

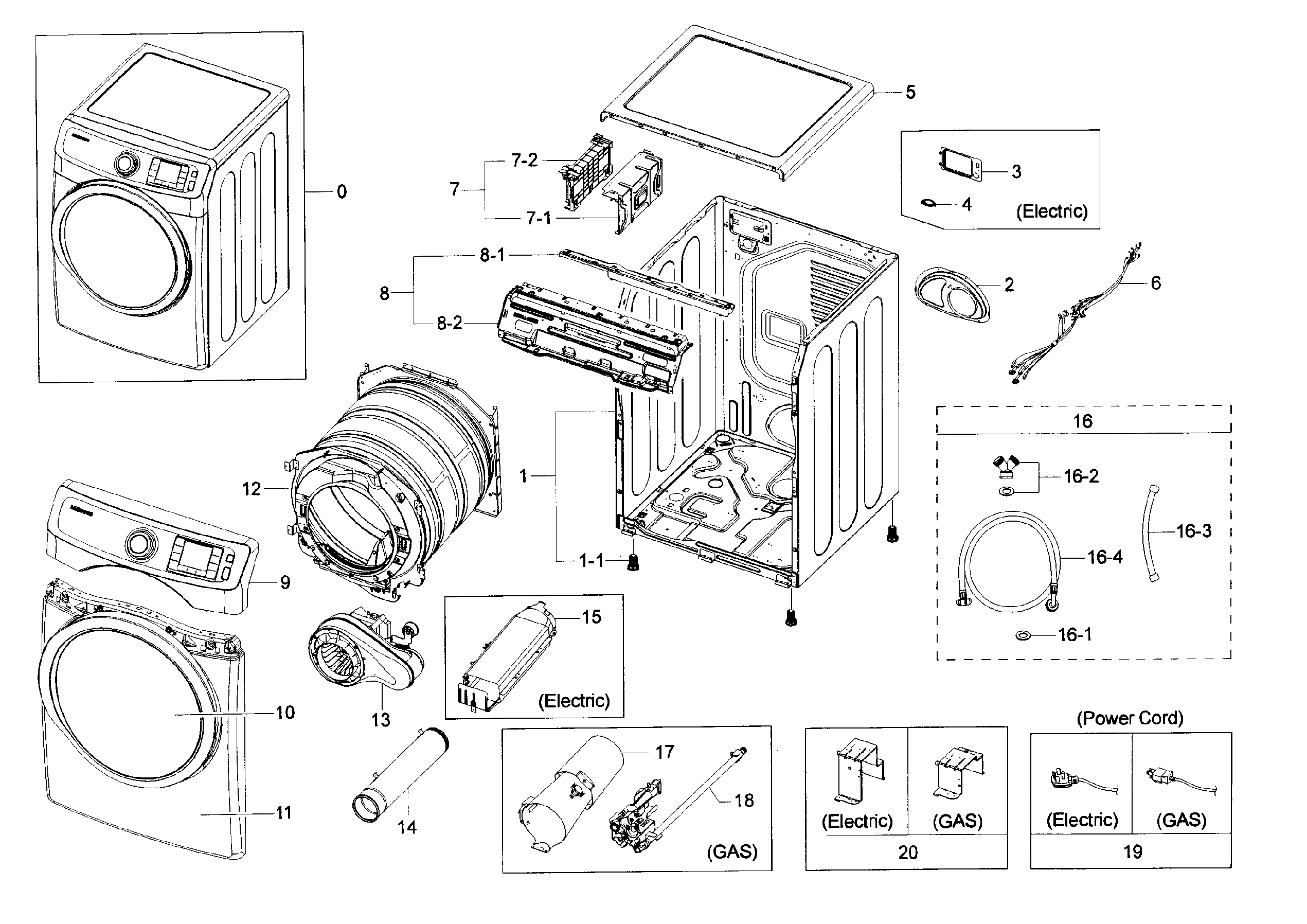

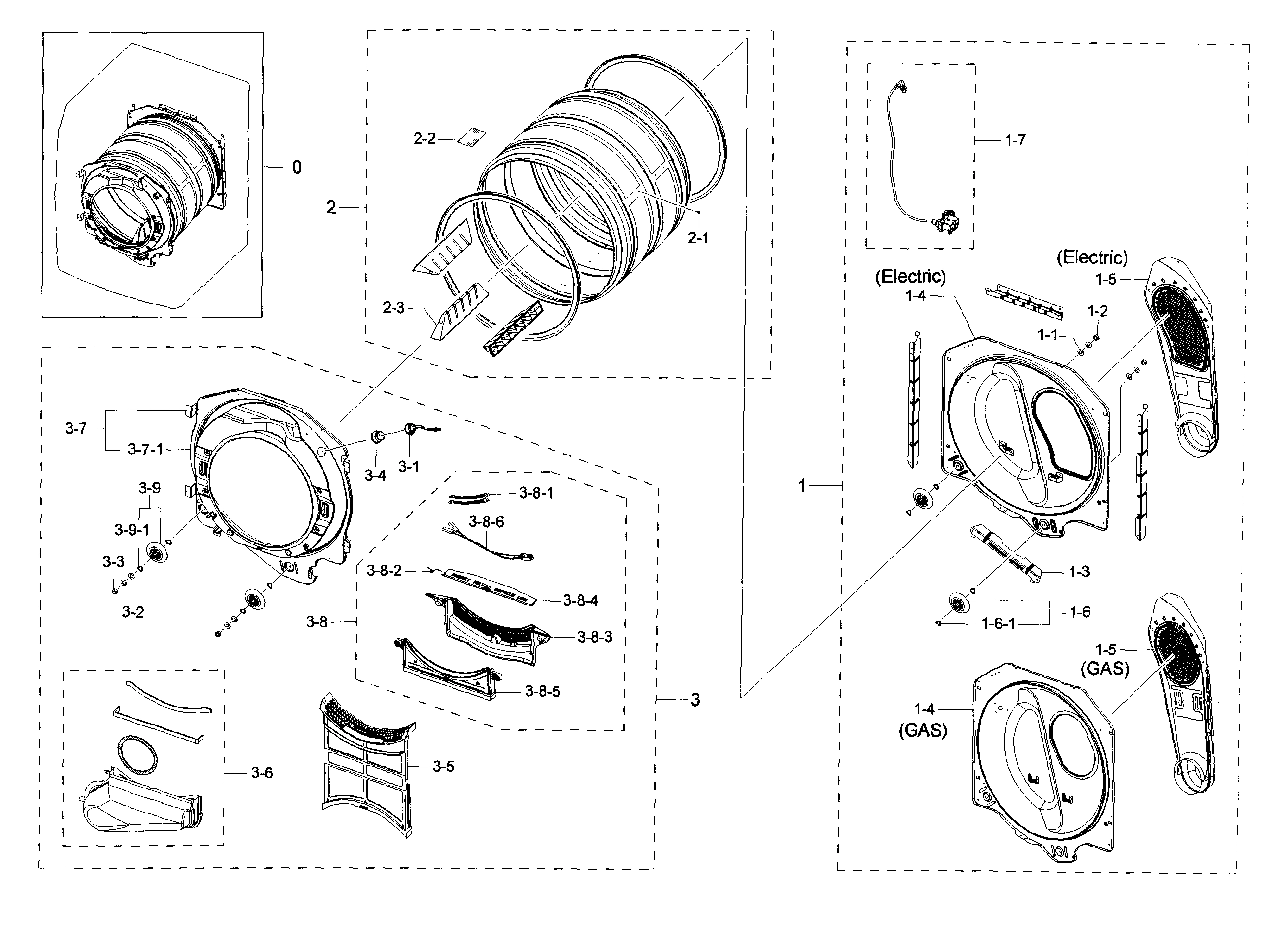

1

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $35.36

View on Model

1

DC92-01607G Samsung Dryer Main PCB Control Bo Backorder SMG DC92-01607G $237.21

View on Model

1

Dryer burner duct assembly SMG DC97-10720A Contact Us For Availability

View on Model

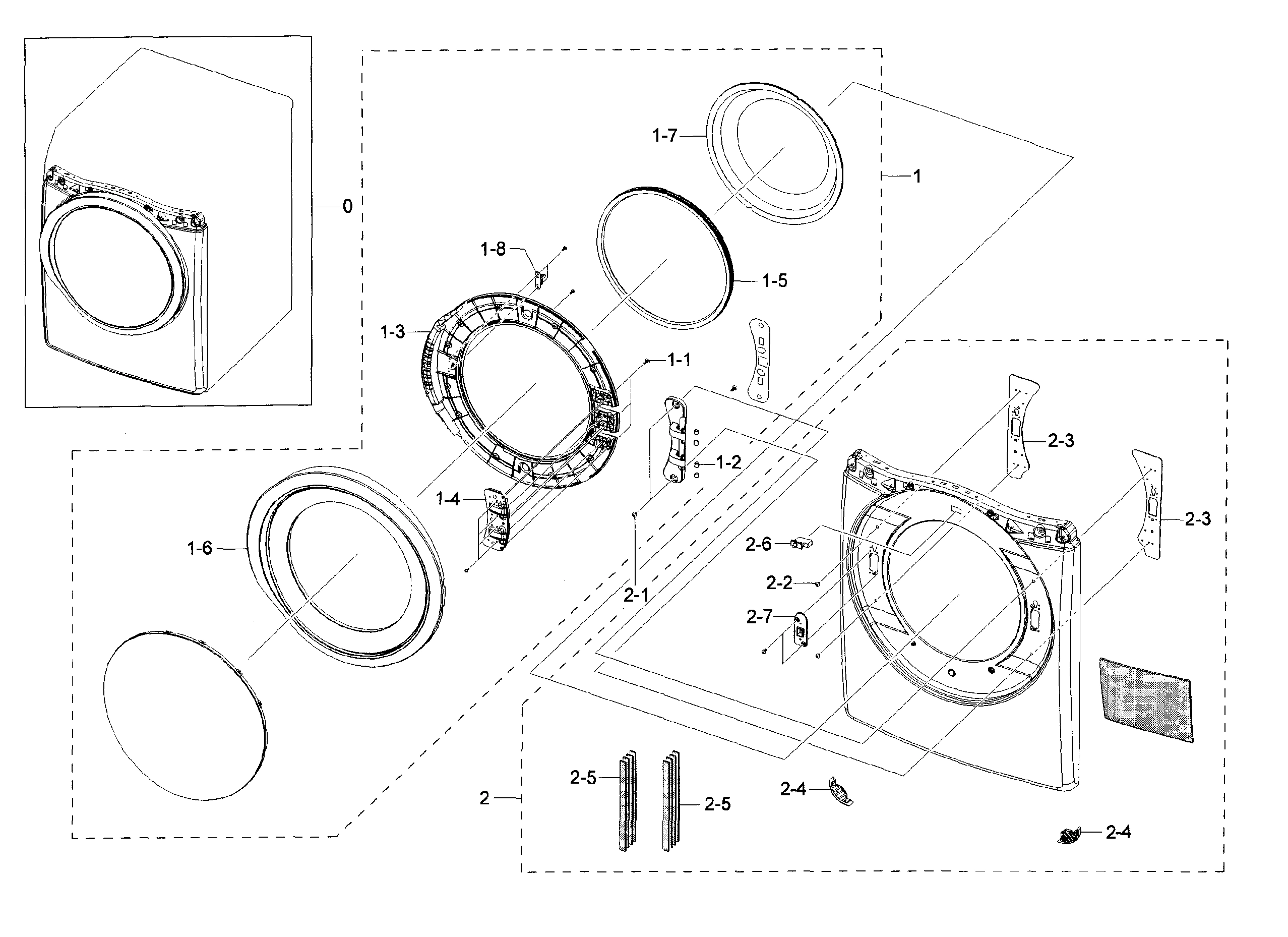

1-1

DC32-00008A Samsung Radiant Sensor Assembly Backorder SMG DC32-00008A $143.86

View on Model

1-1

DC61-03128A Samsung Dryer Adjustable Leveling In Stock SMG DC61-03128A $14.51

View on Model

1-2

DC47-00018A Samsung Thermostat In Stock SMG DC47-00018A $21.75

View on Model

1-2

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $32.08

View on Model

1-3

DC61-02826A Samsung Drum Back Bracket Assembl Backorder SMG DC61-02826A $14.93

View on Model

1-3

DC97-07602C Samsung Assembly Duct Cone Backorder SMG DC97-07602C $134.00

View on Model

1-3

Dryer door window frame SMG DC61-02596A Contact Us For Availability

View on Model

1-5

DC62-00262A Samsung Dryer Door Seal Assembly Backorder SMG DC62-00262A $51.59

View on Model

1-7

DC97-16919A Samsung Steam Kit Assembly Backorder SMG DC97-16919A $136.76

View on Model

1-7

Dryer door glass SMG DC64-02637A Contact Us For Availability

View on Model

1-8

DC66-00814A Samsung Door Lever Assembly Backorder SMG DC66-00814A $46.01

View on Model

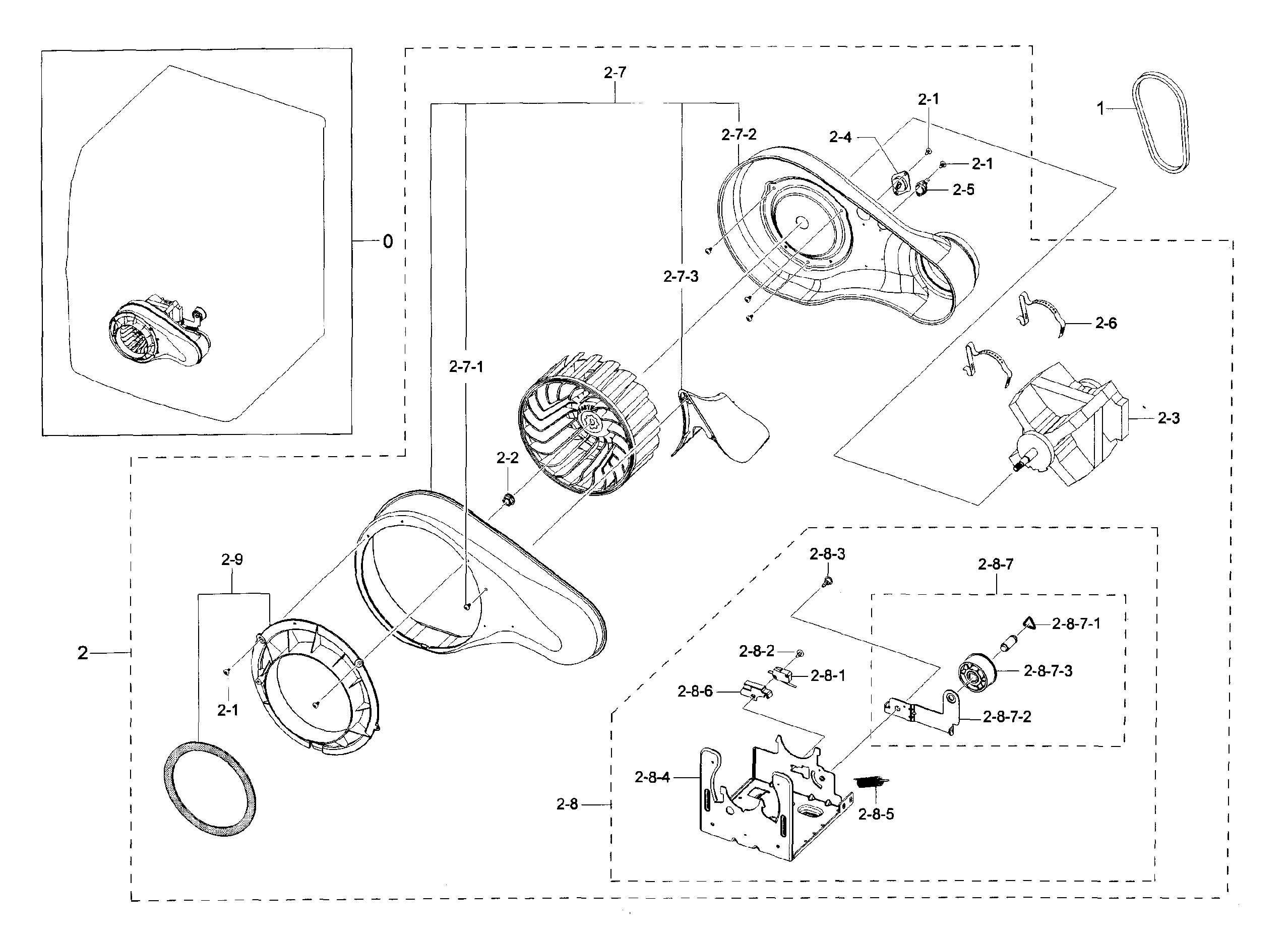

2

DC63-01499A Samsung Cover Back Dryer Hudson G Backorder SMG DC63-01499A $24.34

View on Model

2

DC93-00101F Samsung Motor Assembly Backorder SMG DC93-00101F $221.27

View on Model

2

DC97-15979L Samsung Front Frame Backorder SMG DC97-15979L $248.35

View on Model

2-2

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $2.07

View on Model

2-3

DC31-00055G Samsung Dryer Induction Drive Mot In Stock SMG DC31-00055G $281.60

View on Model

2-3

DC62-00201A Samsung Dryer Gas Valve Assembly In Stock SMG DC62-00201A $189.60

View on Model

2-4

DC32-00007A Samsung Dryer Thermistor Sensor In Stock SMG DC32-00007A $18.25

View on Model

2-4

DC99-00507A Samsung Assembly Pipe Backorder SMG DC99-00507A $125.10

View on Model

2-5

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $10.73

View on Model

2-5

DC63-10001C Samsung EPDM Sponge Backorder SMG DC63-10001C $3.31

View on Model

2-6

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $3.50

View on Model

2-6

DC64-00828B Samsung Washer Dryer Door Switch In Stock SMG DC64-00828B $32.45

View on Model

2-7

DC93-00098D Samsung Assembly Cover Duct Backorder SMG DC93-00098D $174.44

View on Model

2-7

DC97-18057A Samsung Assembly Holder Lever Backorder SMG DC97-18057A $68.22

View on Model

2-9

DC97-07895A Samsung Dryer Connector Duct Asse Backorder SMG DC97-07895A $43.70

View on Model

2-81

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $17.40

View on Model

2-84

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $97.45

View on Model

2-85

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $4.98

View on Model

2-86

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $2.07

View on Model

2-87

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $40.64

View on Model

3

DC47-00022A Samsung Dryer Heater Igniter In Stock SMG DC47-00022A $125.61

View on Model

3

DC97-15984B Samsung Assembly Drum Front Backorder SMG DC97-15984B $174.44

View on Model

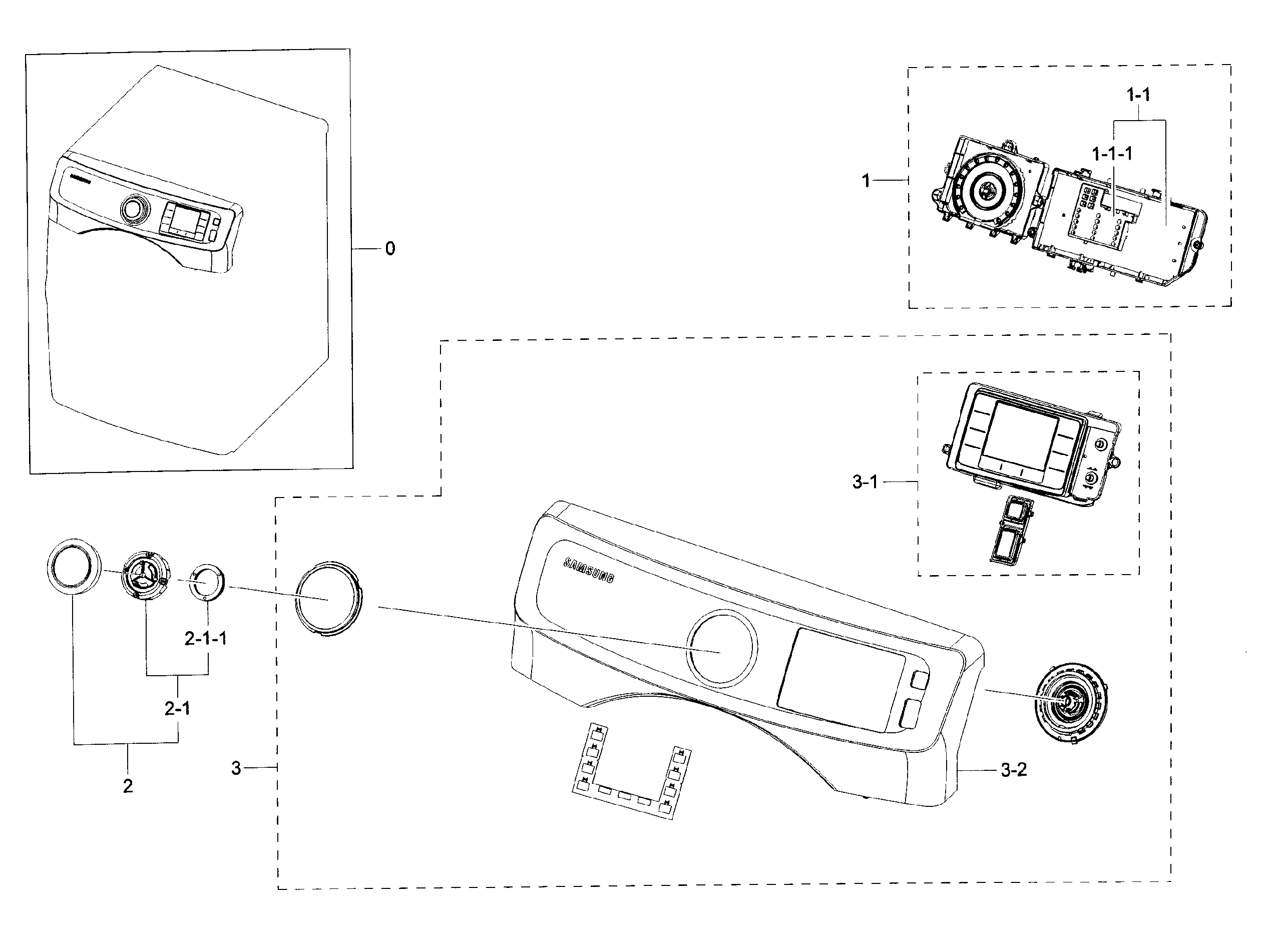

3

DC97-18106C Samsung Control Panel Assembly Backorder SMG DC97-18106C $266.89

View on Model

3-1

DC47-00027F Samsung Lamp Backorder SMG DC47-00027F $32.72

View on Model

3-4

DC61-02281A Samsung Fixer Lamp Backorder SMG DC61-02281A $9.96

View on Model

3-5

DC61-05489A Samsung Case Filter Assembly In Stock SMG DC61-05489A $132.75

View on Model

3-6

DC93-00187A Samsung Assembly Duct Outlet Backorder SMG DC93-00187A $87.39

View on Model

3-81

DC61-02627A Samsung Dryer Moisture Sensor Pla In Stock SMG DC61-02627A $6.22

View on Model

3-82

DC61-02740A Samsung Dryer Lint Screen Filter In Stock SMG DC61-02740A $0.92

View on Model

3-83

Dryer lint screen cover SMG DC63-01139A Contact Us For Availability

View on Model

3-84

DC63-01140A Samsung Dryer Lint Filter Screen In Stock SMG DC63-01140A $16.16

View on Model

3-85

DC63-01143A Samsung Cover Filter Assembly Backorder SMG DC63-01143A $87.01

View on Model

3-86

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $9.96

View on Model

6

DC61-02642A Samsung Igniter Bracket Backorder SMG DC61-02642A $4.56

View on Model

7

DC92-00669X Samsung Dryer Circuit Board Assem Backorder SMG DC92-00669X $186.37

View on Model

8-1

DC61-02008B Samsung Dryer Guide Panel Backorder SMG DC61-02008B $19.07

View on Model

8-2

DC61-02600A Samsung Frame Plate Assembly Up G Backorder SMG DC61-02600A $57.49

View on Model

10

DC97-15975E Samsung Dryer Door Assembly Backorder SMG DC97-15975E $333.63

View on Model

14

DC97-07519D Samsung Door Assembly Exhaust Duc Backorder SMG DC97-07519D $42.40

View on Model

16-1

DC62-40178A Samsung Seal Water Backorder SMG DC62-40178A $1.17

View on Model

16-3

DC97-15249A Samsung Hose Connector Assembly Backorder SMG DC97-15249A $79.97

View on Model

18

DC97-14492A Samsung Burner Assembly Backorder SMG DC97-14492A $202.93

View on Model

19

DC96-00038G Samsung Dryer Power Cord Assembly Backorder SMG DC96-00038G $110.45

View on Model

2873

Dryer idler pulley SMG DC97-07509B Contact Us For Availability

View on Model

NI

6001-001668 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001668 $1.67

View on Model

NI

6001-001773 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001773 $1.67

View on Model

NI

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $0.92

View on Model

NI

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.92

View on Model

NI

6002-000241 Samsung Self Tapping Screw Backorder SMG 6002-000241 $0.92

View on Model

NI

6002-000445 Samsung Tapping Screw Backorder SMG 6002-000445 $0.92

View on Model

NI

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $0.92

View on Model

NI

6006-001174 Samsung Tapping Screw Th + Wt 2s Backorder SMG 6006-001174 $0.92

View on Model

NI

6009-001342 Samsung Dryer Special Puller Scre In Stock SMG 6009-001342 $1.24

View on Model

NI

6009-001522 Samsung Washer Dryer Hex Screw M5 Backorder SMG 6009-001522 $2.91

View on Model

NI

DC60-00103A Samsung Fastener Plain Backorder SMG DC60-00103A $1.67

View on Model

NI

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $2.07

View on Model

NI

DC61-00133A Samsung Clamp Hose Backorder SMG DC61-00133A $1.67

View on Model

NI

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $1.67

View on Model

NI

DC97-16782A Samsung Dryer Plastic Roller Whee In Stock SMG DC97-16782A $33.38

View on Model
