Samsung DV36J4000GW/A3-00 Dryer Parts List

0

Duct Motor SMG DC90-15188A Contact Us For Availability

View on Model

1

DC93-00101N Samsung Dryer Blower Wheel Drive In Stock SMG DC93-00101N $292.08

View on Model

1

Dryer Lint Screen SMG DC61-01521A Contact Us For Availability

View on Model

1-1

6001-001668 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001668 $1.30

View on Model

1-1

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $2.62

View on Model

1-1

DC97-07602C Samsung Assembly Duct Cone Backorder SMG DC97-07602C $114.16

View on Model

1-2

DC32-00008A Samsung Radiant Sensor Assembly Backorder SMG DC32-00008A $155.62

View on Model

1-2

DC61-03128A Samsung Dryer Adjustable Leveling In Stock SMG DC61-03128A $9.15

View on Model

1-2

DC67-00180B Samsung Dryer Blower Wheel Assemb In Stock SMG DC67-00180B $90.19

View on Model

1-3

6002-000445 Samsung Tapping Screw Backorder SMG 6002-000445 $0.93

View on Model

1-3

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $12.59

View on Model

1-3

DC93-00098D Samsung Assembly Cover Duct Backorder SMG DC93-00098D $181.56

View on Model

1-4

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $0.93

View on Model

1-4

DC31-00055G Samsung Dryer Induction Drive Mot In Stock SMG DC31-00055G $253.44

View on Model

1-5

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $0.93

View on Model

1-5

Dryer Motor Bracket SMG DC96-00790C Contact Us For Availability

View on Model

1-6

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $3.55

View on Model

1-6

DC61-03202A Samsung Washer Dryer Door Hinge Backorder SMG DC61-03202A $37.63

View on Model

1-7

DC32-00007A Samsung Dryer Thermistor Sensor Backorder SMG DC32-00007A $17.00

View on Model

1-7

DC61-01576A Samsung Support Hinge Assembly Backorder SMG DC61-01576A $8.85

View on Model

1-8

DC47-00017A Samsung Washer Dryer Thermostat A In Stock SMG DC47-00017A $80.81

View on Model

1-9

DC97-07895A Samsung Dryer Connector Duct Asse Backorder SMG DC97-07895A $44.42

View on Model

1-11

DC63-01127A Samsung Cover Door Assembly (I) Backorder SMG DC63-01127A $49.62

View on Model

1-15

DC66-00395A Samsung Dryer Door Lever Strike L In Stock SMG DC66-00395A $6.10

View on Model

1-31

Duct Cover SMG DC63-01026A Contact Us For Availability

View on Model

1-32

DC61-03364A Samsung Guide Fan Backorder SMG DC61-03364A $15.27

View on Model

1-33

Dryer Blower Housing SMG DC61-02348B Contact Us For Availability

View on Model

1-51

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $16.57

View on Model

1-52

Dryer Screw SMG 6002-000488 Contact Us For Availability

View on Model

1-53

6009-001342 Samsung Dryer Special Puller Scre Backorder SMG 6009-001342 $1.30

View on Model

1-54

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $76.18

View on Model

1-55

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $5.23

View on Model

1-56

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $42.76

View on Model

1-57

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $2.62

View on Model

1-91

Duct-conne SMG DC67-00130A Contact Us For Availability

View on Model

1-92

Sponge SMG DC72-00032E Contact Us For Availability

View on Model

2

6001-001773 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001773 $1.30

View on Model

2

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $36.38

View on Model

2

DC47-00021A Samsung Socket Lamp Assembly Backorder SMG DC47-00021A $20.65

View on Model

2

DC63-01499A Samsung Cover Back Dryer Hudson G Backorder SMG DC63-01499A $24.74

View on Model

2

DC97-16931A Samsung Encoder Knob Assembly Backorder SMG DC97-16931A $40.98

View on Model

2-1

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $2.62

View on Model

2-2

DC60-00103A Samsung Fastener Plain Backorder SMG DC60-00103A $1.75

View on Model

2-5

DC62-00201A Samsung Dryer Gas Valve Assembly In Stock SMG DC62-00201A $242.85

View on Model

2-6

DC97-16782A Samsung Dryer Plastic Roller Whee In Stock SMG DC97-16782A $35.12

View on Model

2-6

DC99-00507A Samsung Assembly Pipe Backorder SMG DC99-00507A $127.21

View on Model

2-9

Dryer Drum Light Lens SMG DC63-00531A Contact Us For Availability

View on Model

2-10

DC63-00675A Samsung Dryer Filter Cover Backorder SMG DC63-00675A $23.23

View on Model

2-12

4713-001199 Samsung Dryer Drum Incandescent L Backorder SMG 4713-001199 $8.28

View on Model

2-61

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $1.75

View on Model

3

Dryer Drum Assembly SMG DC97-07520F Contact Us For Availability

View on Model

3-3

DC97-07618A Samsung Dryer Drum Gasket Seal As In Stock SMG DC97-07618A $88.64

View on Model

4

DC47-00022A Samsung Dryer Heater Igniter In Stock SMG DC47-00022A $149.58

View on Model

4

DC97-15001W Samsung Back Drum Assembly Backorder SMG DC97-15001W $257.89

View on Model

4-1

DC97-07510B Samsung Dryer Door Lever Holder C In Stock SMG DC97-07510B $13.52

View on Model

4-5

DC63-10001C Samsung EPDM Sponge Backorder SMG DC63-10001C $3.05

View on Model

4-6

DC64-00828B Samsung Washer Dryer Door Switch In Stock SMG DC64-00828B $30.26

View on Model

4-8

DC97-16919A Samsung Steam Kit Assembly Backorder SMG DC97-16919A $139.06

View on Model

4-8-1

DC62-30042A Samsung Dryer Steam Water Valve A Backorder SMG DC62-30042A $109.55

View on Model

7

DC61-02642A Samsung Igniter Bracket Backorder SMG DC61-02642A $4.80

View on Model

7

DC92-00669B Samsung Dryer Assembly Printed Ci Backorder SMG DC92-00669B $229.64

View on Model

13

Dryer burner duct assembly SMG DC97-10720A Contact Us For Availability

View on Model

14

DC97-14492A Samsung Burner Assembly Backorder SMG DC97-14492A $206.39

View on Model

15

DC96-00038G Samsung Dryer Power Cord Assembly Backorder SMG DC96-00038G $86.26

View on Model

16

DC97-07519D Samsung Door Assembly Exhaust Duc Backorder SMG DC97-07519D $43.10

View on Model

1562

Bracket SMG DC61-01230B Contact Us For Availability

View on Model

1563

Idler Shaft SMG DC66-00401A Contact Us For Availability

View on Model

1564

Dryer Idler Pulley SMG DC97-07509B Contact Us For Availability

View on Model

2521

DC61-02627A Samsung Dryer Moisture Sensor Pla In Stock SMG DC61-02627A $5.23

View on Model

5641

Dryer Idler Pulley SMG DC66-00402A Contact Us For Availability

View on Model

NI

DC61-00882A Samsung Holder Wire Backorder SMG DC61-00882A $1.69

View on Model

NI

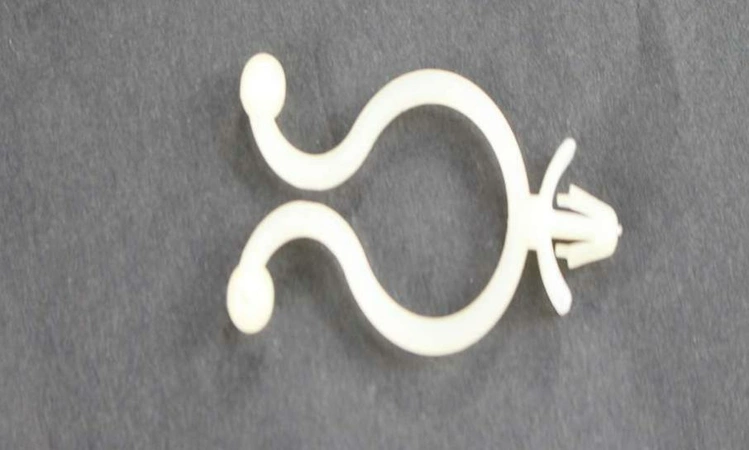

DC61-40081A Samsung Wire Holder Assembly Backorder SMG DC61-40081A $0.93

View on Model

NI

DC61-60074A Samsung Wire Holder Backorder SMG DC61-60074A $0.93

View on Model

NI

Cap plate SMG DC67-00202A Contact Us For Availability

View on Model

NI

Samsung owner's manual SMG DC68-03064D Contact Us For Availability

View on Model

Model Samsung DV36J4000GW/A3-00 Dryer – Common Parts & Diagrams

Common parts from model Samsung DV36J4000GW/A3-00 Dryer
