Samsung DV317AGG/XAA-00 Dryer Parts List

1

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $3.69

View on Model

1

Dryer burner duct assembly SMG DC97-10720A Contact Us For Availability

View on Model

1-1

DC32-00008A Samsung Radiant Sensor Assembly Backorder SMG DC32-00008A $161.64

View on Model

1-1

Dryer Lint Screen SMG DC61-01521A Contact Us For Availability

View on Model

1-2

DC97-07602B Samsung Duct Cone Backorder SMG DC97-07602B $93.07

View on Model

1-3

DC97-08889A Guide Sensor Assembly MDE9700A fo In Stock SMG DC97-08889A $17.54

View on Model

1-4

DC61-01231A Samsung Dryer Wings Plate Sensor Backorder SMG DC61-01231A $4.98

View on Model

1-5

DC47-00017A Samsung Washer Dryer Thermostat A In Stock SMG DC47-00017A $83.89

View on Model

1-5

DC61-01235A Samsung Sensor Guide Assembly Backorder SMG DC61-01235A $5.42

View on Model

1-7

DC63-00675A Samsung Dryer Filter Cover Backorder SMG DC63-00675A $24.95

View on Model

1-10

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $2.72

View on Model

1-11

DC97-16782A Samsung Dryer Plastic Roller Whee In Stock SMG DC97-16782A $36.44

View on Model

2

DC31-00055D Samsung Clothes Dryer Induction M In Stock SMG DC31-00055D $212.46

View on Model

2

DC64-00828A Samsung Dryer Door Switch Assembl Backorder SMG DC64-00828A $28.72

View on Model

2

DC97-07526B Samsung Duct Outlet Assembly Backorder SMG DC97-07526B $69.29

View on Model

3

DC97-07510B Samsung Dryer Door Lever Holder C In Stock SMG DC97-07510B $14.03

View on Model

3

DC97-14492A Samsung Burner Assembly Backorder SMG DC97-14492A $237.50

View on Model

3

Dryer Motor Bracket SMG DC96-00790C Contact Us For Availability

View on Model

3-1

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $79.07

View on Model

3-2

6002-000231 Samsung Tapping Screw Backorder SMG 6002-000231 $0.97

View on Model

3-2

DC62-00201A Samsung Dryer Gas Valve Assembly In Stock SMG DC62-00201A $252.35

View on Model

3-3

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $17.20

View on Model

3-3

DC99-00507A Samsung Assembly Pipe Backorder SMG DC99-00507A $136.75

View on Model

3-4

Dryer Screw SMG 6002-000488 Contact Us For Availability

View on Model

3-5

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $44.37

View on Model

3-6

6006-001174 Samsung Tapping Screw Th + Wt 2s Backorder SMG 6006-001174 $0.97

View on Model

3-6

6009-001342 Samsung Dryer Special Puller Scre Backorder SMG 6009-001342 $1.35

View on Model

3-7

Dryer Idler Pulley SMG DC97-07509B Contact Us For Availability

View on Model

3-8

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $1.81

View on Model

3-9

Bracket SMG DC61-01230B Contact Us For Availability

View on Model

3-10

DC61-01295A Samsung Spring Tension Backorder SMG DC61-01295A $0.97

View on Model

4

6001-001773 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001773 $1.35

View on Model

4

DC47-00022A Samsung Dryer Heater Igniter In Stock SMG DC47-00022A $155.36

View on Model

4

Duct Guide SMG DC61-01241A Contact Us For Availability

View on Model

4-1

Dryer Electronic Control Board SMG MFS-FTDT-00 Contact Us For Availability

View on Model

5-1

DC66-00395A Samsung Dryer Door Lever Strike L In Stock SMG DC66-00395A $6.33

View on Model

5-3

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $0.97

View on Model

5-5

DC61-01576A Samsung Support Hinge Assembly Backorder SMG DC61-01576A $10.87

View on Model

5-7

DC62-00262A Samsung Dryer Door Seal Assembly In Stock SMG DC62-00262A $49.85

View on Model

6

DC63-00536A Samsung Duct Fan Cover Assembly Backorder SMG DC63-00536A $40.70

View on Model

7

DC61-01240A Samsung Thermistor Bracket Backorder SMG DC61-01240A $7.24

View on Model

8

Refrigerator Tapping Screw SMG 6002-000470 Contact Us For Availability

View on Model

9

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $13.07

View on Model

10

DC32-00007A Samsung Dryer Thermistor Sensor Backorder SMG DC32-00007A $17.64

View on Model

11

DC61-01522A Samsung Dryer Drying Rack Assembl Backorder SMG DC61-01522A $117.88

View on Model

11

Wings Fan SMG DC67-00180A Contact Us For Availability

View on Model

12

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $2.72

View on Model

12

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $36.38

View on Model

12

DC61-03128A Samsung Dryer Adjustable Leveling In Stock SMG DC61-03128A $9.50

View on Model

15

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $11.77

View on Model

17

DC97-07519A Samsung Dryer Exhaust Duct Assemb Backorder SMG DC97-07519A $64.44

View on Model

18

DC63-00534B Samsung Back Cover Assembly Backorder SMG DC63-00534B $44.83

View on Model

19

DC96-00038G Samsung Dryer Power Cord Assembly Backorder SMG DC96-00038G $89.54

View on Model

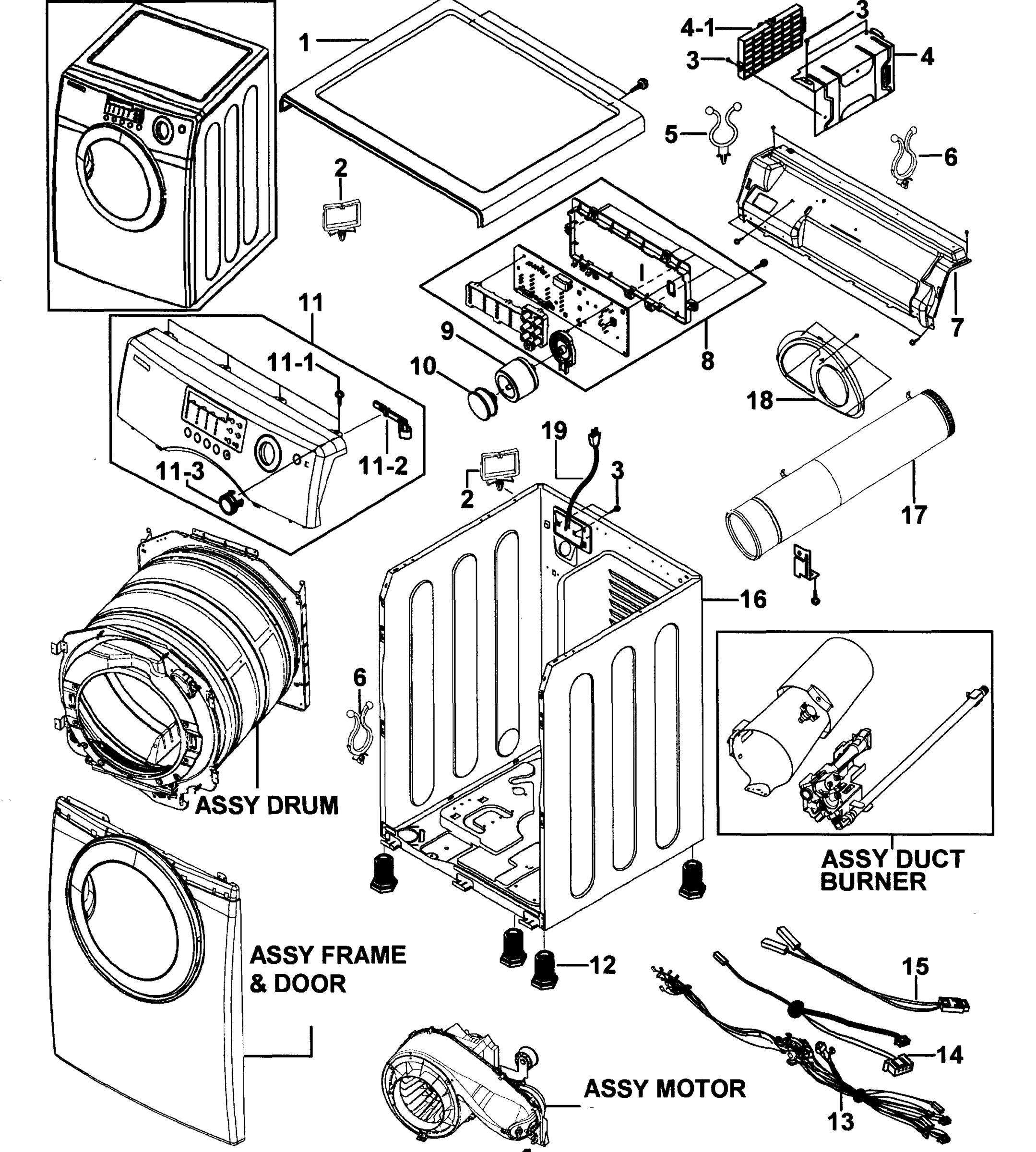

Model Samsung DV317AGG/XAA-00 Dryer – Common Parts & Diagrams
