Model Bosch B36CL81ENG/01 Refrigerator – Common Parts & Diagrams
Diagram 1
Diagram 2

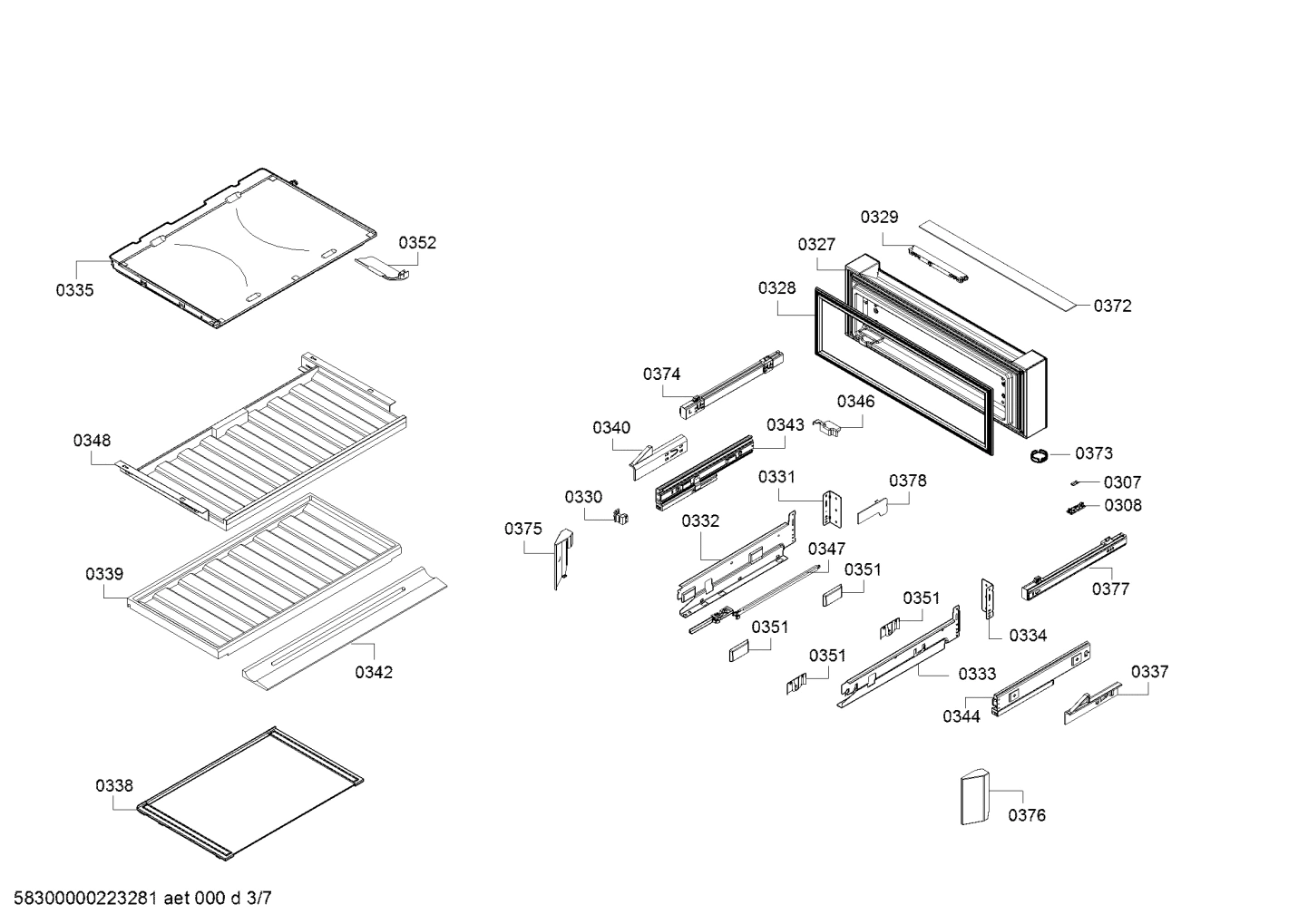

Diagram 3

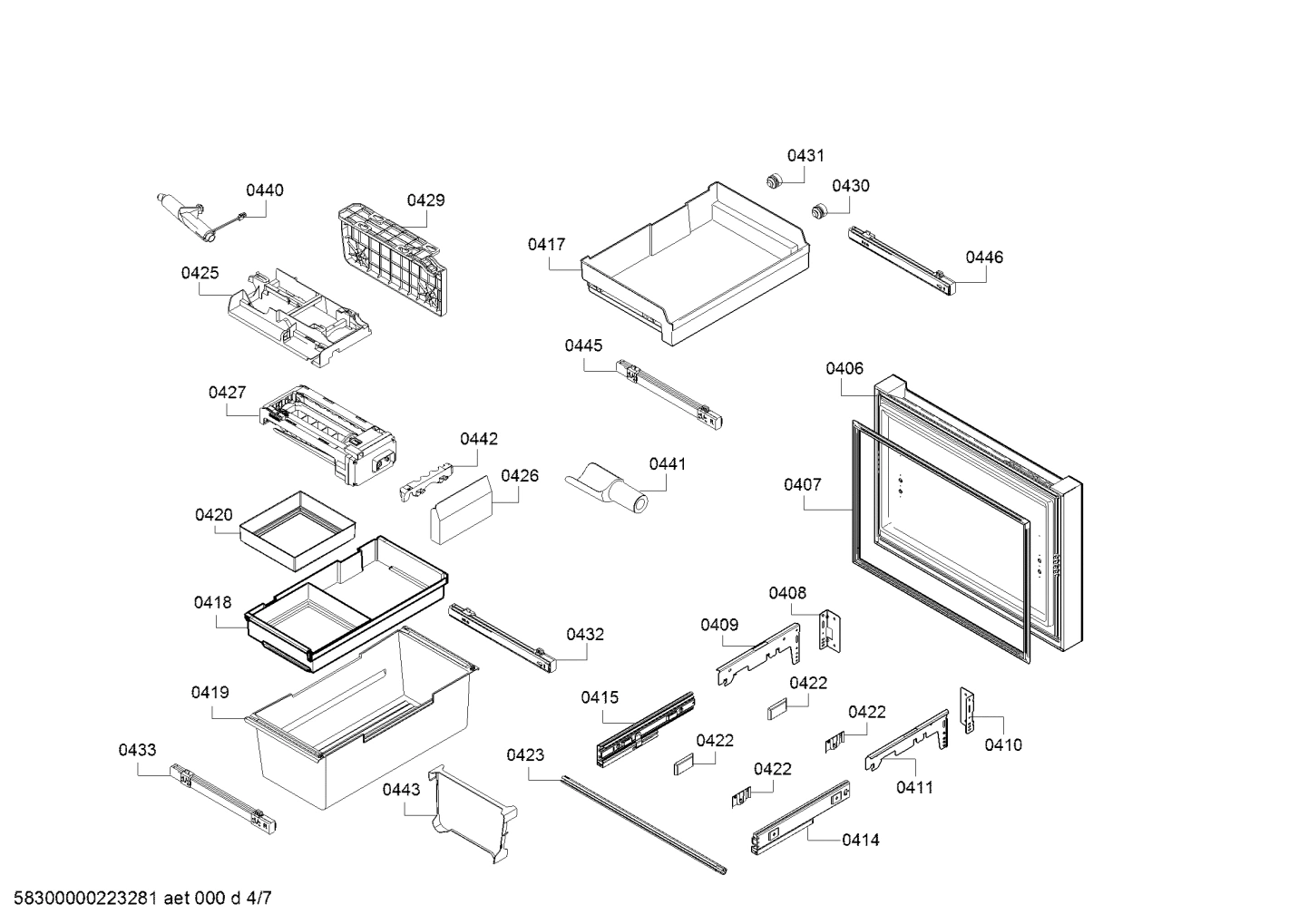

Diagram 4

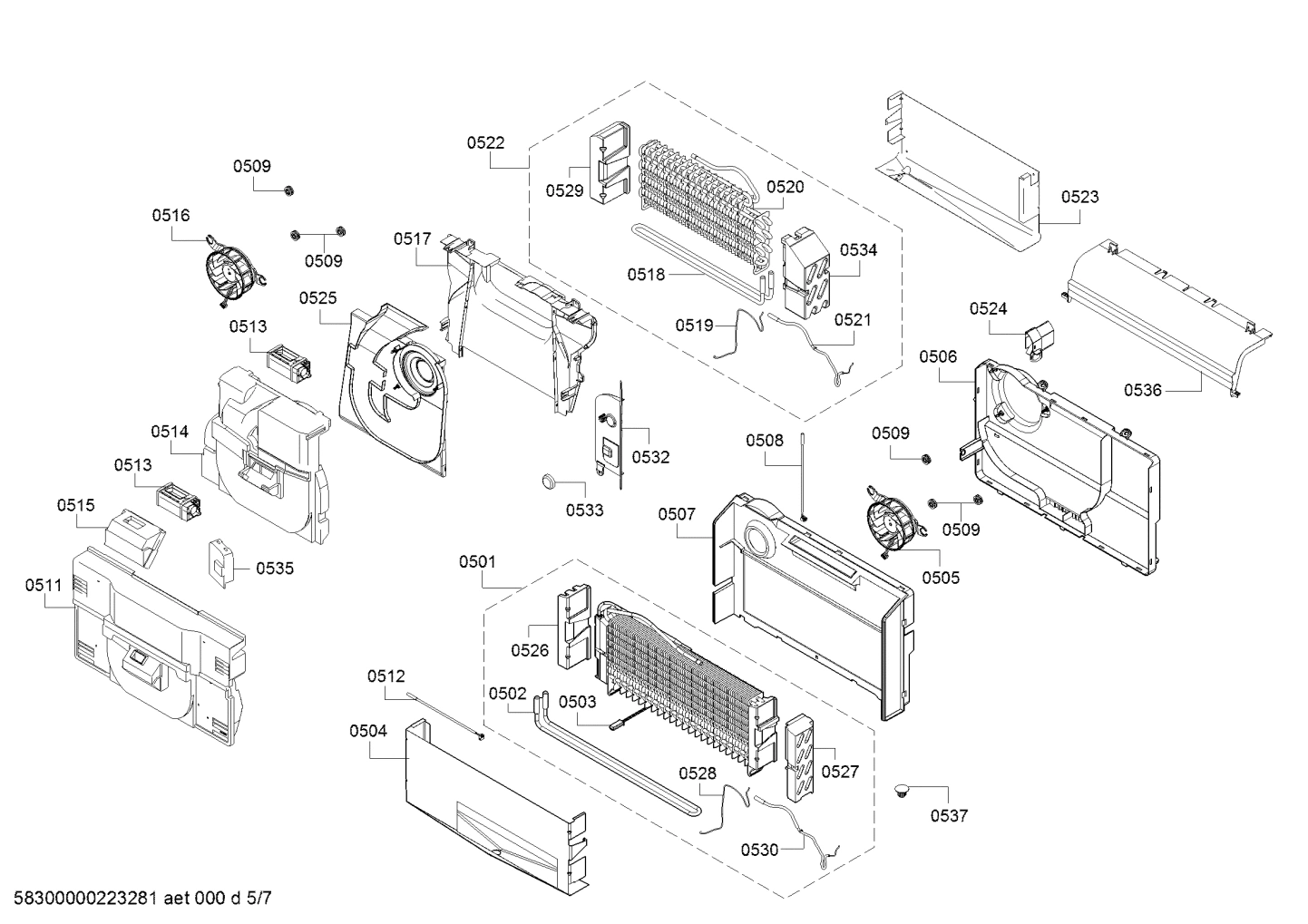

Diagram 5

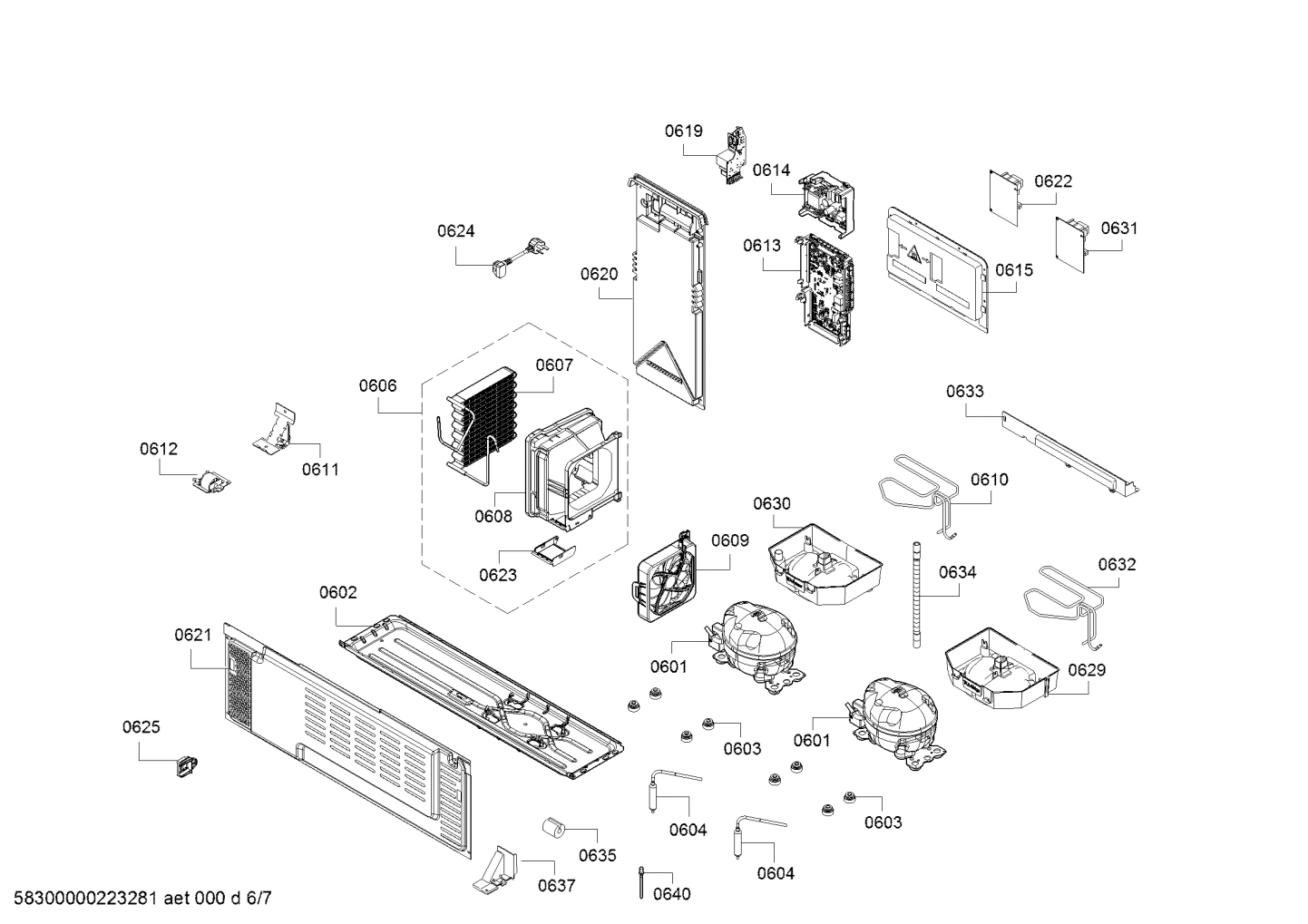

Diagram 6

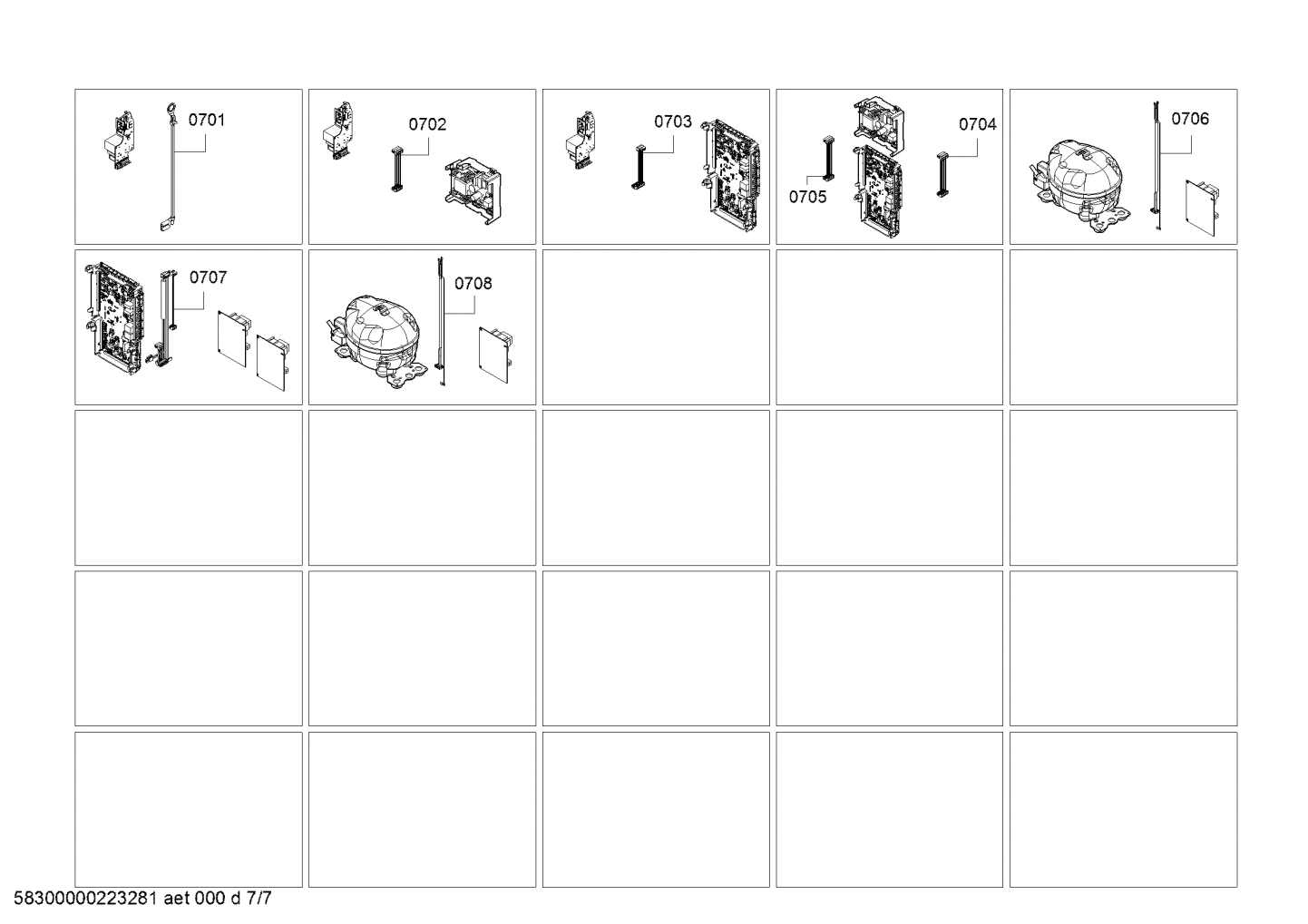

Diagram 7
Common parts from model Bosch B36CL81ENG/01 Refrigerator
0102
Door hinge BOS 10007046 Contact Us For Availability
0103
Door hinge BOS 10007047 Contact Us For Availability
0106
Hinge-cover BOS 12028330 Contact Us For Availability
0107
Hinge-cover BOS 12028331 Contact Us For Availability
0110
Hinge bushing BOS 10007054 Contact Us For Availability
0112
Light bar BOS 12022943 Contact Us For Availability
0113
Diode-led BOS 12022944 Contact Us For Availability
0115
Light bar BOS 12022945 Contact Us For Availability
0117
Stop BOS 00631040 Contact Us For Availability
0118
Stop BOS 00631041 Contact Us For Availability
0119
Rubber foot BOS 00612790 Contact Us For Availability
0120
Display module BOS 20000240 Contact Us For Availability
0121
Switch-element BOS 10011885 Contact Us For Availability
0128
Ventilation panel BOS 20002676 Contact Us For Availability
0132
Air channel exhaust BOS 20000238 Contact Us For Availability
0133
Switch-door BOS 10007082 Contact Us For Availability
0134
Connectivity module BOS 10011759 Contact Us For Availability
0136
Screw-adjust BOS 10007083 Contact Us For Availability
0137
Guide BOS 10007084 Contact Us For Availability
0140
Valve-magnet BOS 12028324 Contact Us For Availability
0141
UltraClarity Pro Water Filter BOS 11032531 Contact Us For Availability
0142
Cover BOS 11032677 Contact Us For Availability
0146
Valve BOS 10011772 Contact Us For Availability
0147
Mounting bracket BOS 12028358 Contact Us For Availability
0148
Water tube BOS 11030756 Contact Us For Availability
0149
Cover BOS 10011858 Contact Us For Availability
0150
fastening ring BOS 10011859 Contact Us For Availability
0151
Cover BOS 12028497 Contact Us For Availability
0153
Tap BOS 10011857 Contact Us For Availability
0154
Door Stopper BOS 10012733 Contact Us For Availability
0155
Cover BOS 10013156 Contact Us For Availability
0199
Tools BOS 00342180 Contact Us For Availability
0204
Seal-door BOS 11030520 Contact Us For Availability
0207
Diode-led BOS 10007092 Contact Us For Availability
0208
Light bar BOS 10007093 Contact Us For Availability
0209
Traverse BOS 11026036 Contact Us For Availability
0210
Cover BOS 00625335 Contact Us For Availability
0211
Cover BOS 10007094 Contact Us For Availability
0212
Tray BOS 11030671 Contact Us For Availability
0213
Tray BOS 11030672 Contact Us For Availability
0214
Tray BOS 11030673 Contact Us For Availability
0218
Glass panel BOS 11030662 Contact Us For Availability
0219
Fixture BOS 10009875 Contact Us For Availability
0221
Rail BOS 11030529 Contact Us For Availability
0222
Rail BOS 11030530 Contact Us For Availability
0225
Drawer BOS 11032681 Contact Us For Availability
0253
Fixture BOS 10011748 Contact Us For Availability
0254
Fixture BOS 10011749 Contact Us For Availability
0259
Screw BOS 10006811 Contact Us For Availability
0260
Screw BOS 10011752 Contact Us For Availability
0262
Suspension BOS 20000239 Contact Us For Availability
0263
FlexBar? Deep Bin BOS 12028332 Contact Us For Availability
0264
FlexBar? Shallow Bin BOS 11032688 Contact Us For Availability
0265
FlexBar? Bottle Holder BOS 11032689 Contact Us For Availability
0330
Permanent magnet BOS 10007097 Contact Us For Availability
0347
Wire BOS 11032690 Contact Us For Availability
0357
Fixture BOS 10011750 Contact Us For Availability
0358
Fixture BOS 10011751 Contact Us For Availability
0372
Glass panel BOS 12029558 Contact Us For Availability
0407
Seal-door BOS 11030522 Contact Us For Availability
0414
Guide BOS 11032683 Contact Us For Availability
0415
Guide BOS 11032684 Contact Us For Availability
0417
Drawer BOS 11032682 Contact Us For Availability
0418
Drawer BOS 11030666 Contact Us For Availability
0419
Drawer BOS 00778901 Contact Us For Availability
0420
Box BOS 11035297 Contact Us For Availability
0422
Clamping piece BOS 10007103 Contact Us For Availability
0425
Mounting bracket BOS 12028495 Contact Us For Availability
0426
Cover BOS 12028498 Contact Us For Availability
0427
Ice maker BOS 12028493 Contact Us For Availability
0429
Retaining plate BOS 12026636 Contact Us For Availability
0434
Handle-door BOS 20000236 Contact Us For Availability
0440
Collar BOS 12028327 Contact Us For Availability
0442
Mounting bracket BOS 11032859 Contact Us For Availability
0445
Guide BOS 11030551 Contact Us For Availability
0446
Guide BOS 11030552 Contact Us For Availability
0502
Heating element BOS 11032692 Contact Us For Availability
0505
Fan BOS 12023002 Contact Us For Availability
0506
Cover BOS 11030581 Contact Us For Availability
0511
Cover BOS 11030583 Contact Us For Availability
0512
Evaporator temperature sensor BOS 12024918 Contact Us For Availability
0513
Damper BOS 11030584 Contact Us For Availability
0516
Fan BOS 12026640 Contact Us For Availability
0518
Heating element BOS 11032691 Contact Us For Availability
0521
Evaporator temperature sensor BOS 11030589 Contact Us For Availability
0537
Sealing kit BOS 10007111 Contact Us For Availability
0601
Compressor BOS 12028553 Contact Us For Availability
0603
Rubber foot BOS 00153364 Contact Us For Availability
0604
Dryer BOS 00649378 Contact Us For Availability
0609
Fan BOS 12025683 Contact Us For Availability
0612
Pin BOS 00602866 Contact Us For Availability
0613
Control module not programmed BOS 12028321 Contact Us For Availability
0614
Power module BOS 12028500 Contact Us For Availability
0619
Power module BOS 12028339 Contact Us For Availability
0622
Inverter BOS 12028328 Contact Us For Availability
0626
Holder BOS 10007138 Contact Us For Availability
0631
Inverter BOS 10011856 Contact Us For Availability
0704
Wire BOS 12028342 Contact Us For Availability
0705
Wire BOS 12028343 Contact Us For Availability
0706
Wire BOS 10011755 Contact Us For Availability
0707
Wire BOS 12029033 Contact Us For Availability
0708
Wire BOS 10011756 Contact Us For Availability
× ![]()
