Model GE ZISS42DCBSS Refrigerator – Common Parts & Diagrams

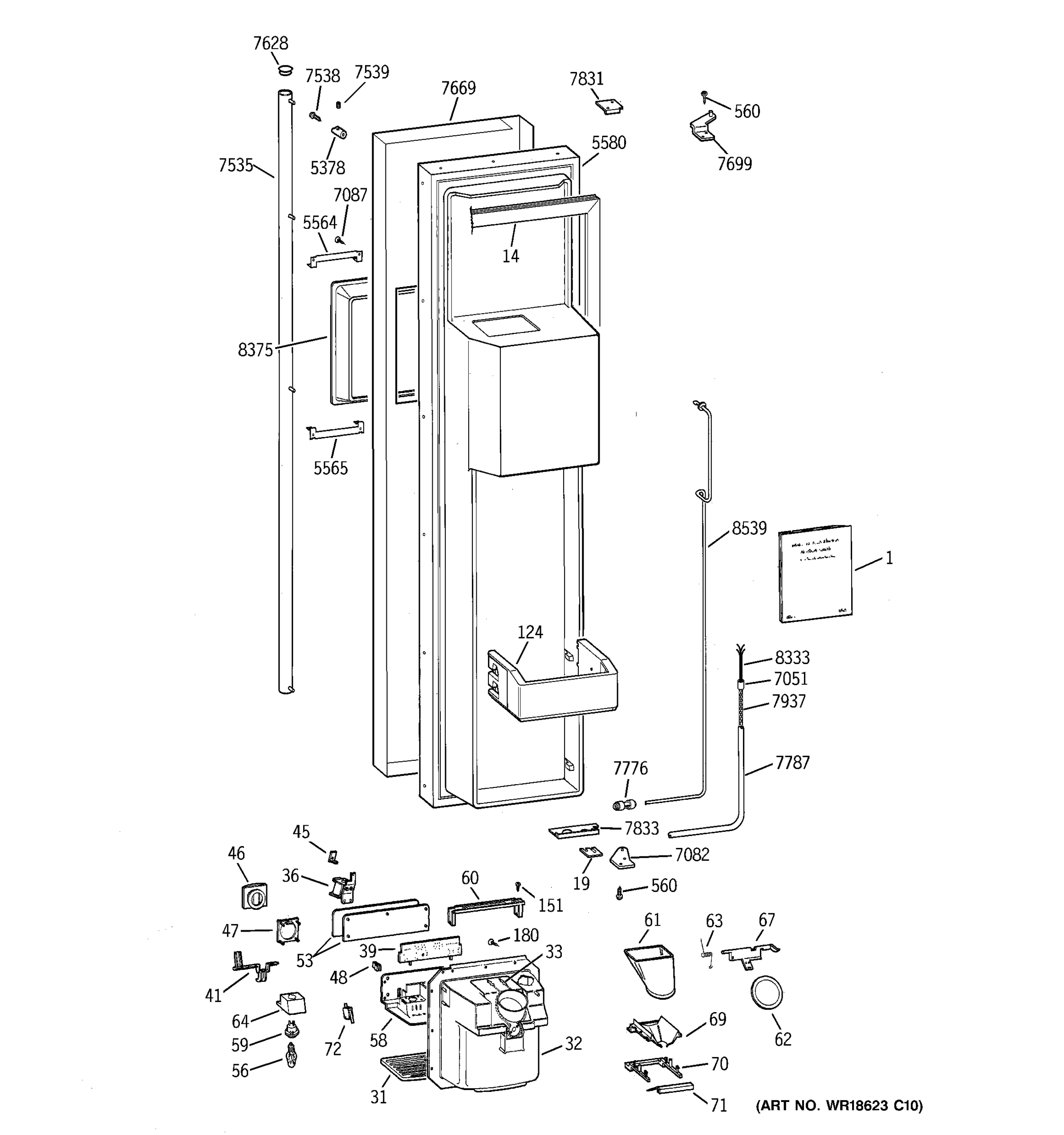

FREEZER DOOR

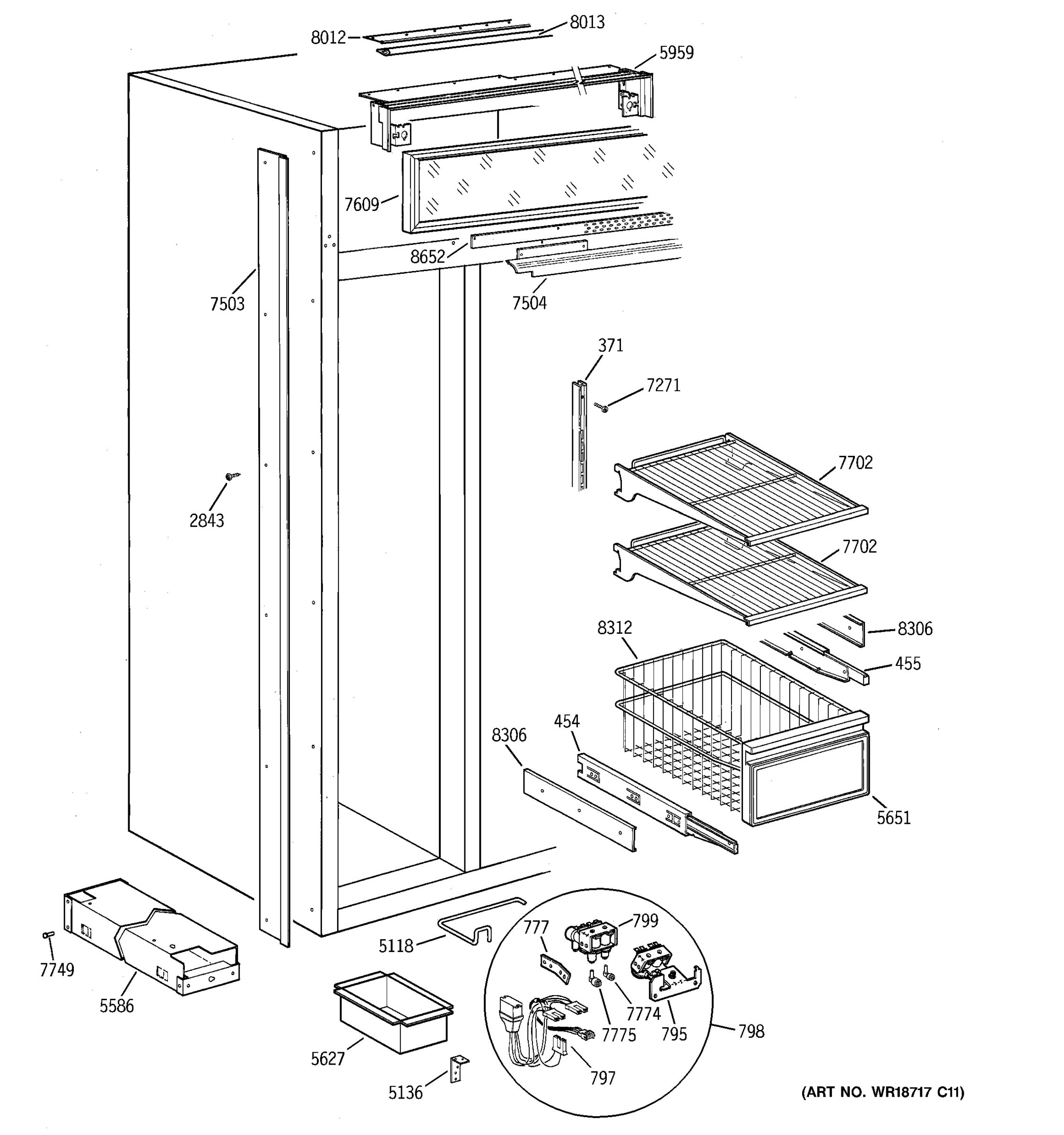

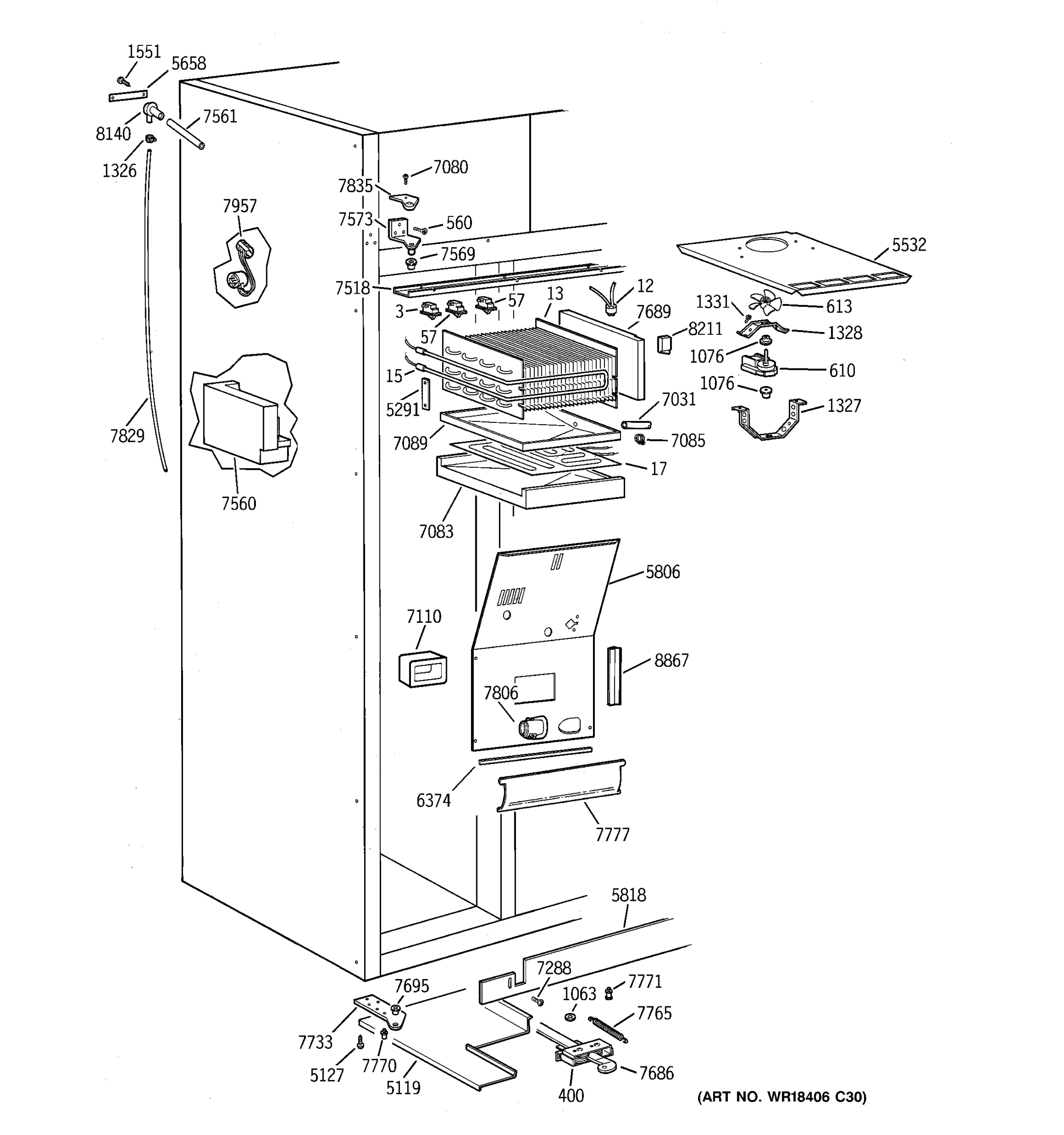

FREEZER SECTION
FREEZER SECTION

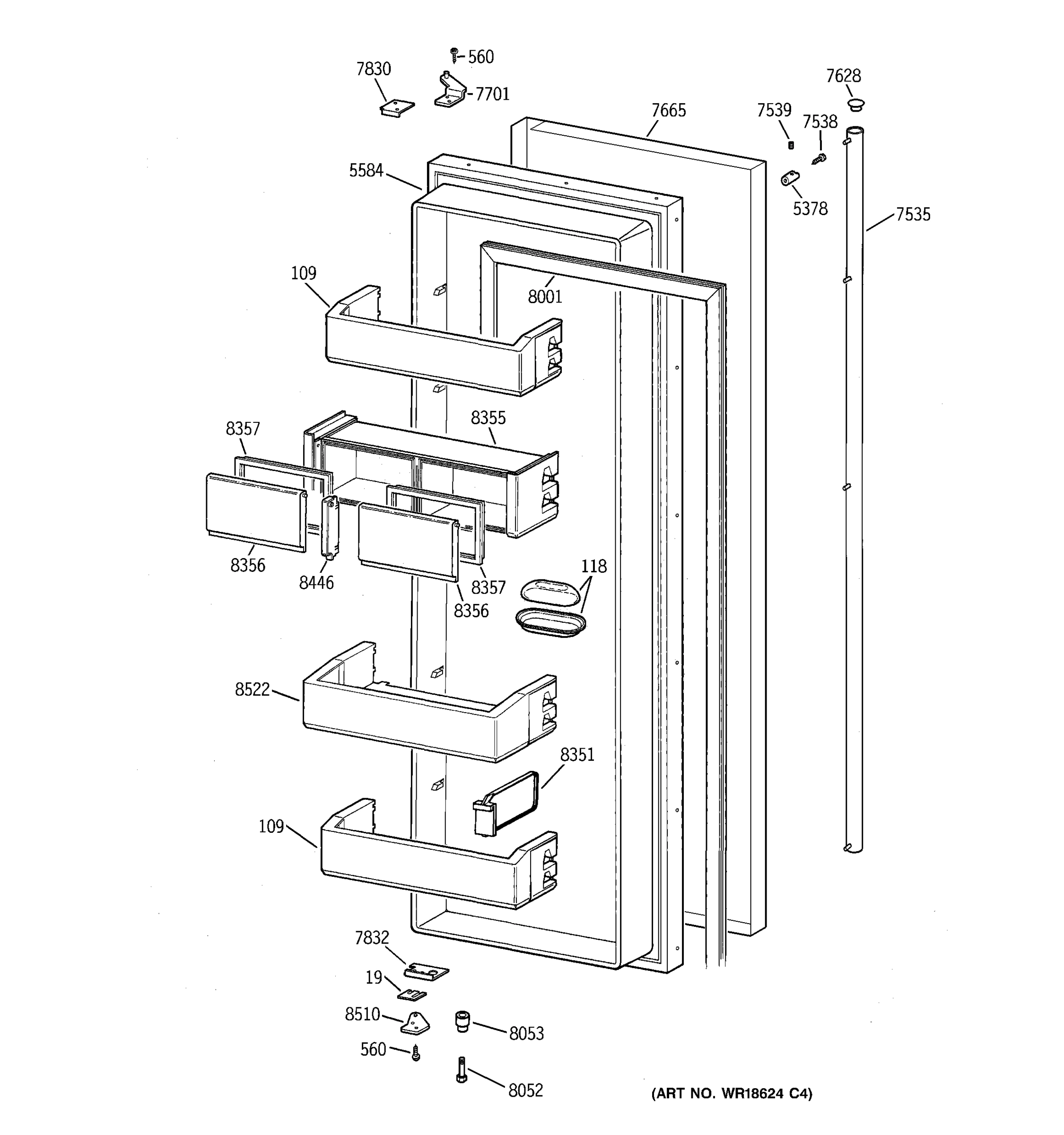

FRESH FOOD DOOR

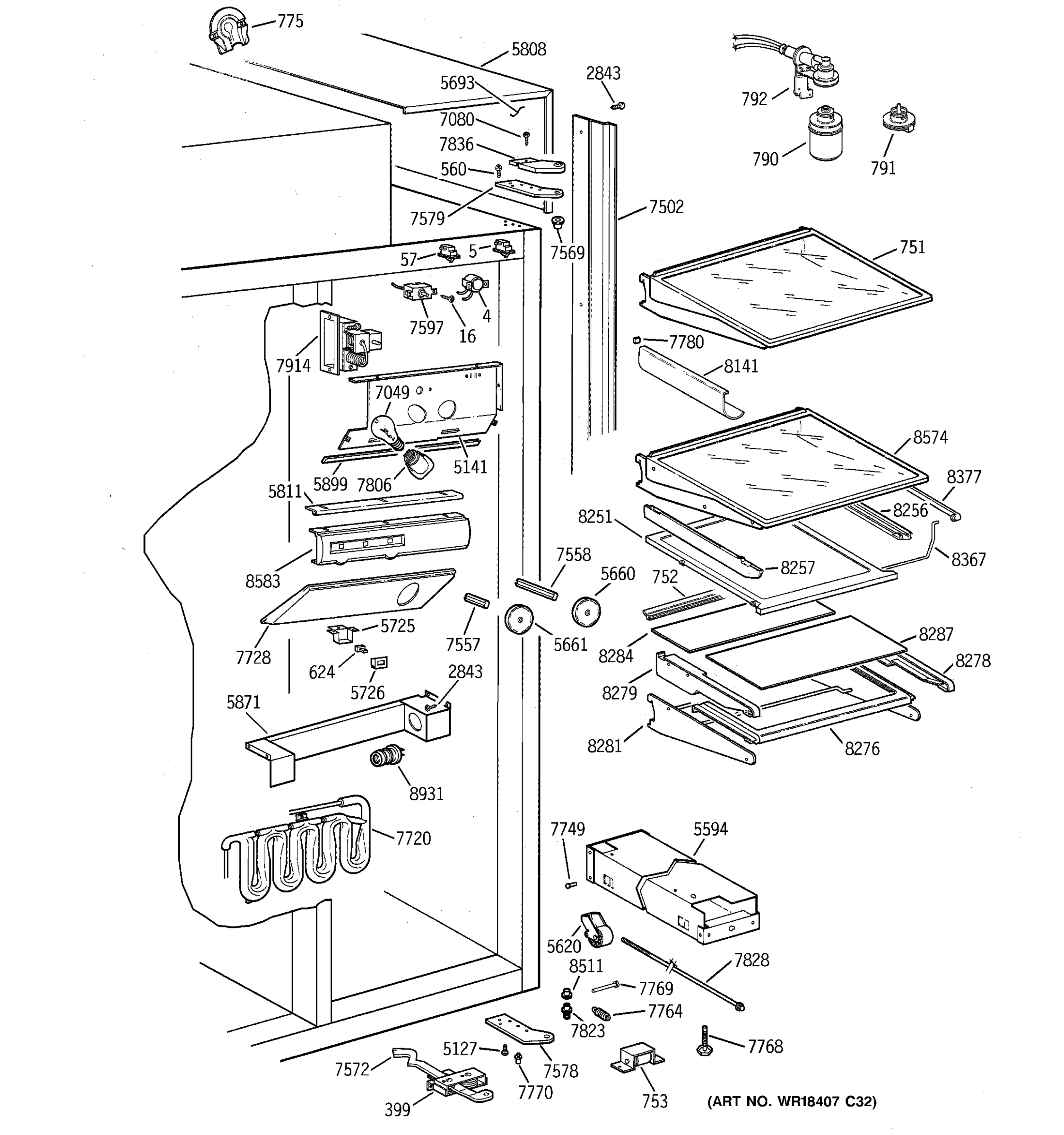

FRESH FOOD SECTION

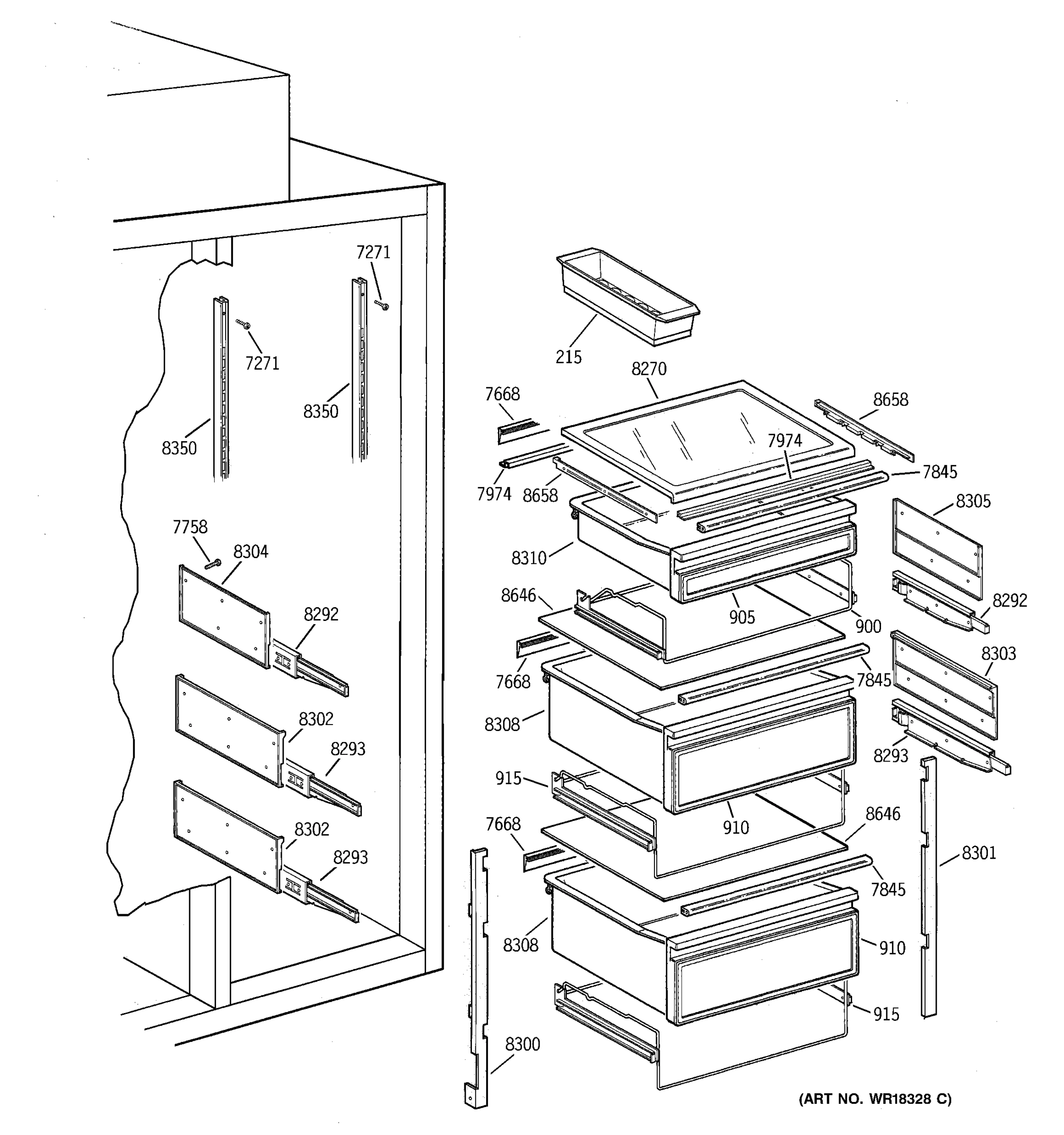

FRESH FOOD SECTION

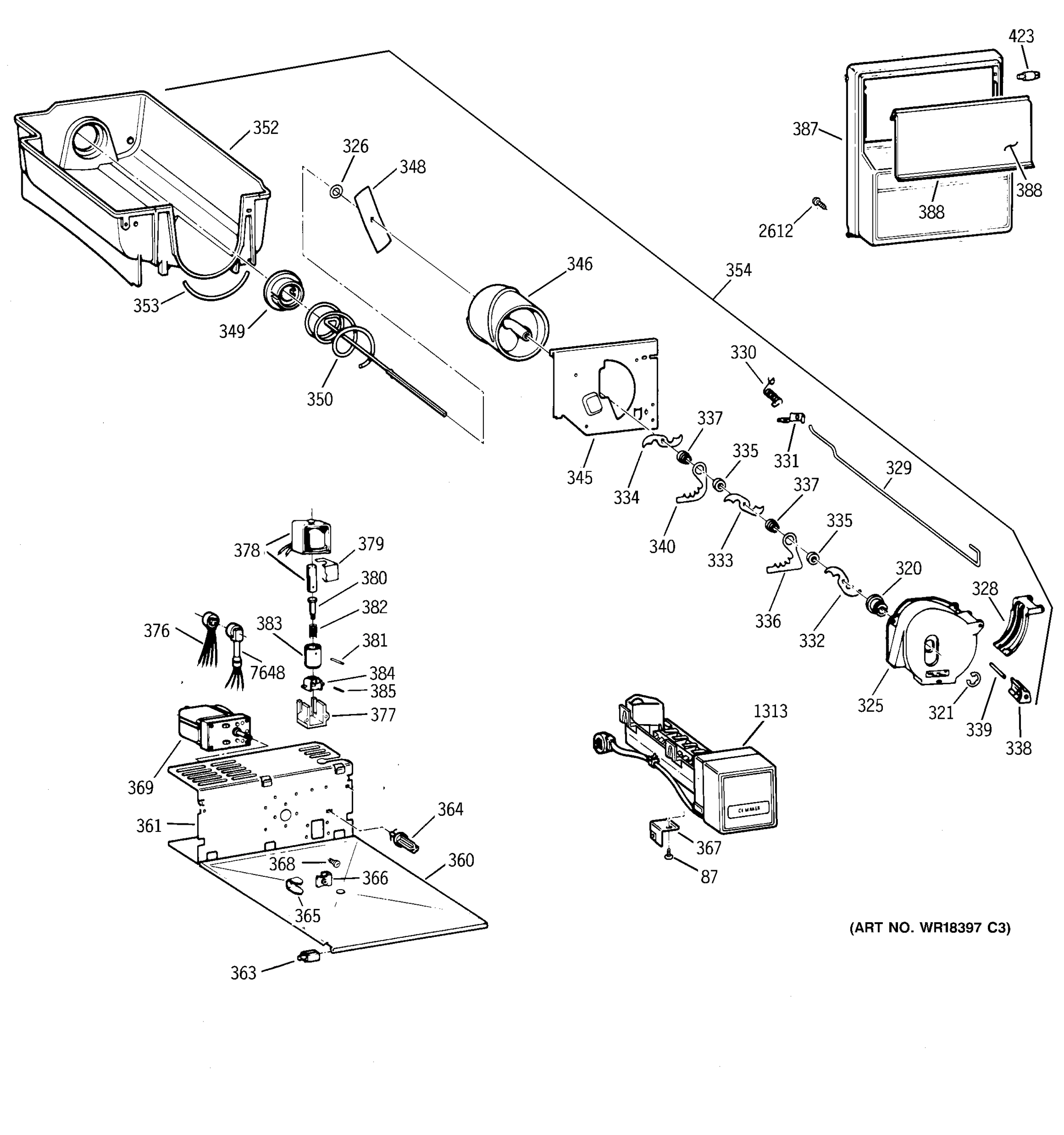

ICE BUCKET ASSEMBLY

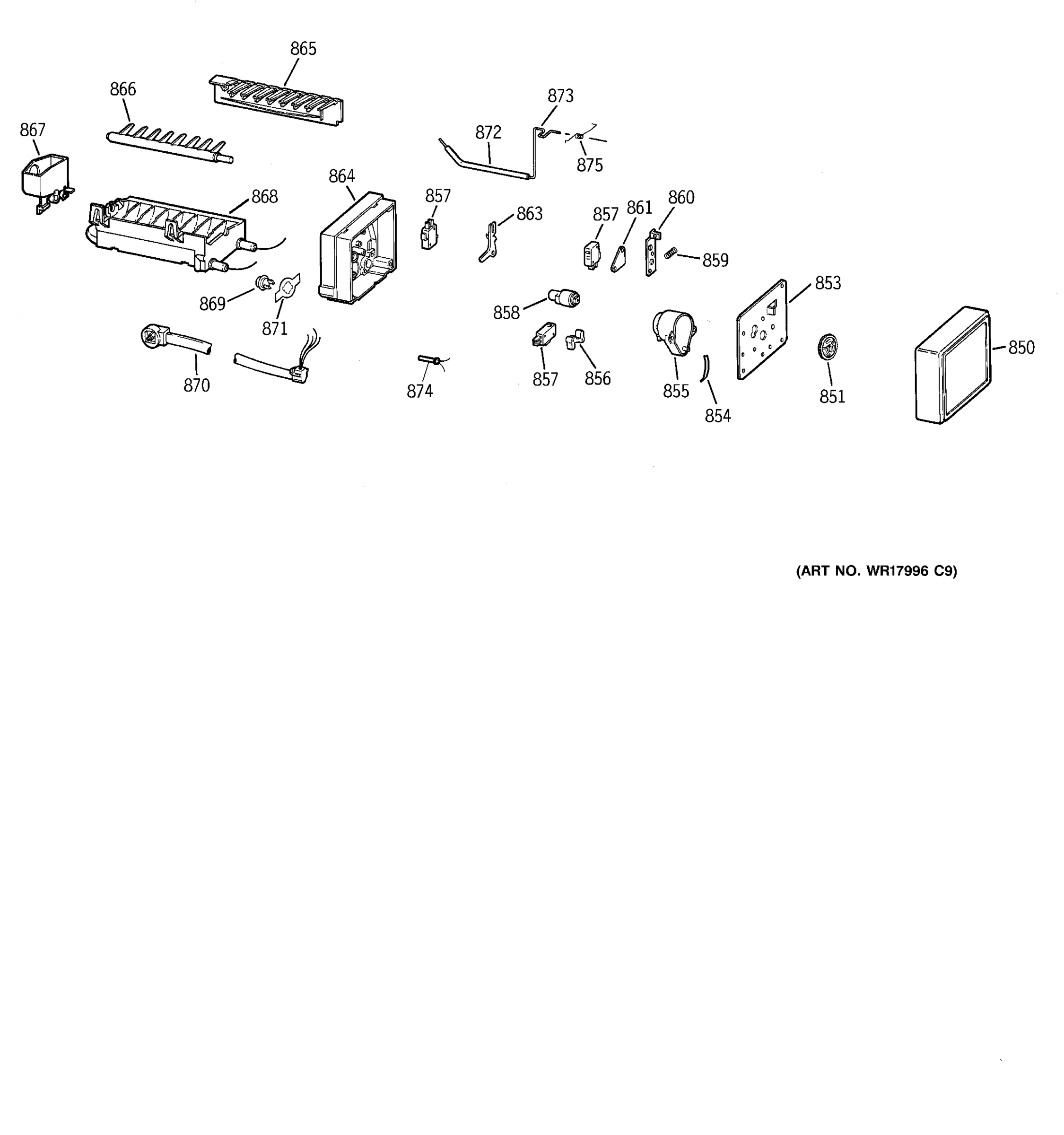

ICEMAKER WR30X0327

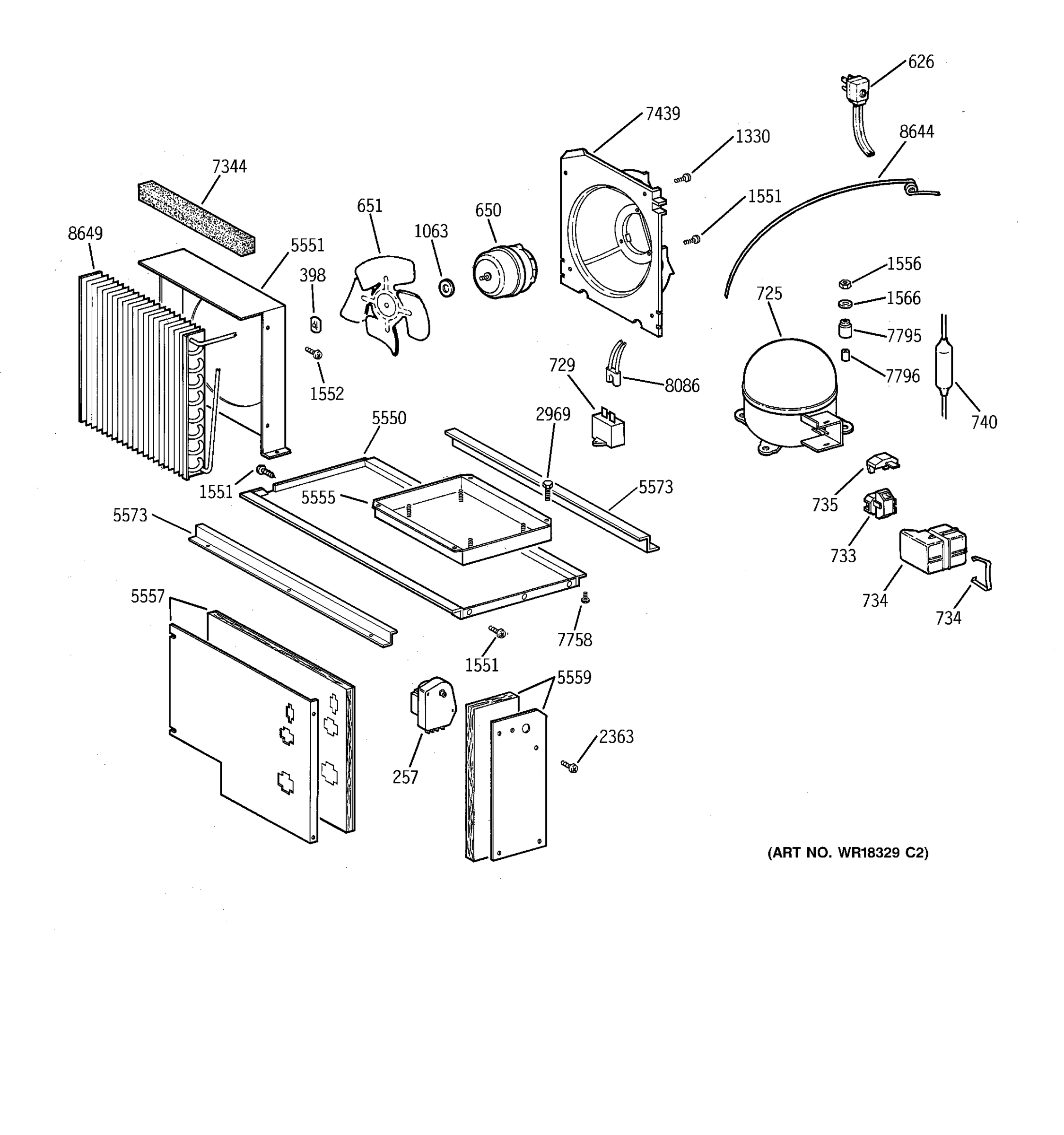

UNIT PARTS
Common parts from model GE ZISS42DCBSS Refrigerator
4
GEN WR50X0108 GEN WR50X0108 Contact Us For Availability
12
GEN WR50X0109 GEN WR50X0109 Contact Us For Availability
13
GEN WR85X0223 GEN WR85X0223 Contact Us For Availability
19
GEN WR02X8589 GEN WR02X8589 Contact Us For Availability
19
GEN WR02X8590 GEN WR02X8590 Contact Us For Availability
41
GEN WR17X3493 GEN WR17X3493 Contact Us For Availability
57
GEN WR23X0192 GEN WR23X0192 Contact Us For Availability
61
GEN WR17X4217 GEN WR17X4217 Contact Us For Availability
69
GEN WR17X3095 GEN WR17X3095 Contact Us For Availability
109
GEN WR71X2449 GEN WR71X2449 Contact Us For Availability
320
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
329
WIRE ACTUATOR DISP GEN WR17X2060 Contact Us For Availability
330
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
PLATE FRONT DISP GEN WR17X2062 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
GEN WR17X4309 GEN WR17X4309 Contact Us For Availability
360
GEN WR71X2431 GEN WR71X2431 Contact Us For Availability
361
GEN WR71X2710 GEN WR71X2710 Contact Us For Availability
363
GEN WR02X8952 GEN WR02X8952 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
367
BRACKET GEN WR02X8459 Contact Us For Availability
371
GEN WR17X3300 GEN WR17X3300 Contact Us For Availability
376
GEN WR23X0189 GEN WR23X0189 Contact Us For Availability
387
GEN WR17X2964 GEN WR17X2964 Contact Us For Availability
388
GEN WR17X2874 GEN WR17X2874 Contact Us For Availability
388
GEN WR38X1524 GEN WR38X1524 Contact Us For Availability
398
GEN WR01X1715 GEN WR01X1715 Contact Us For Availability
399
CLOSURE FF DOOR GEN WR02X9467 Contact Us For Availability
400
CLOSURE FZ DOOR GEN WR02X9468 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
454
GEN WR72X0284 GEN WR72X0284 Contact Us For Availability
455
GEN WR72X0285 GEN WR72X0285 Contact Us For Availability
610
GEN WR60X0182 GEN WR60X0182 Contact Us For Availability
624
SWITCH POWERSAVER GEN WR23X0396 Contact Us For Availability
651
FAN BLADE GEN WR60X0167 Contact Us For Availability
734
CLAMP-COVER RELAY GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0170 GEN WR08X0170 Contact Us For Availability
751
GEN WR32X1538 GEN WR32X1538 Contact Us For Availability
752
GEN WR32X1573 GEN WR32X1573 Contact Us For Availability
753
FRONT WHEEL ASM GEN WR02X8470 Contact Us For Availability
790
GEN MXRC GEN MXRC Contact Us For Availability
791
GEN WR02X10173 GEN WR02X10173 Contact Us For Availability
792
GEN WR17X10521 GEN WR17X10521 Contact Us For Availability
850
GEN WR29X0182 GEN WR29X0182 Contact Us For Availability
853
PLATE MOUNTING GEN WR29X5111 Contact Us For Availability
856
GEN WR29X5118 GEN WR29X5118 Contact Us For Availability
857
GEN WR29X5171 GEN WR29X5171 Contact Us For Availability
861
INSULATOR GEN WR29X5117 Contact Us For Availability
867
GEN WR29X0153 GEN WR29X0153 Contact Us For Availability
868
GEN WR29X0204 GEN WR29X0204 Contact Us For Availability
870
GEN WR29X0186 GEN WR29X0186 Contact Us For Availability
872
SLEEVE VINYL GEN WR29X5128 Contact Us For Availability
900
GEN WR72X0263 GEN WR72X0263 Contact Us For Availability
905
GEN WR71X2663 GEN WR71X2663 Contact Us For Availability
910
GEN WR71X2666 GEN WR71X2666 Contact Us For Availability
915
GEN WR72X0266 GEN WR72X0266 Contact Us For Availability
1063
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
1076
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
1327
BRACKET FAN REAR GEN WR02X8806 Contact Us For Availability
1328
BRACKET FAN FRONT GEN WR02X8805 Contact Us For Availability
1330
SCREW GEN WR01X1716 Contact Us For Availability
1331
GEN WZ06X0133 GEN WZ06X0133 Contact Us For Availability
1552
SCREW GEN WR29X5175 Contact Us For Availability
1556
WASHER COMP GEN WR01X1898 Contact Us For Availability
1566
GEN WR01X5649 GEN WR01X5649 Contact Us For Availability
2612
GEN WR01X1937 GEN WR01X1937 Contact Us For Availability
2969
BOLT GEN WR01X1899 Contact Us For Availability
5119
GEN WR17X10526 GEN WR17X10526 Contact Us For Availability
5136
GEN WR02X10425 GEN WR02X10425 Contact Us For Availability
5141
GEN WR02X10427 GEN WR02X10427 Contact Us For Availability
5532
GEN WR17X3036 GEN WR17X3036 Contact Us For Availability
5550
GEN WR17X3041 GEN WR17X3041 Contact Us For Availability
5555
GEN WR17X3043 GEN WR17X3043 Contact Us For Availability
5557
GEN WR17X3044 GEN WR17X3044 Contact Us For Availability
5584
GEN WR78X8836 GEN WR78X8836 Contact Us For Availability
5586
GEN WR13X0670 GEN WR13X0670 Contact Us For Availability
5594
GEN WR13X0671 GEN WR13X0671 Contact Us For Availability
5627
GEN WR02X8604 GEN WR02X8604 Contact Us For Availability
5651
GEN WR71X2668 GEN WR71X2668 Contact Us For Availability
5660
GEN WR02X8600 GEN WR02X8600 Contact Us For Availability
5661
GEN WR02X8601 GEN WR02X8601 Contact Us For Availability
5693
GEN WR17X3617 GEN WR17X3617 Contact Us For Availability
5725
GEN WR02X8918 GEN WR02X8918 Contact Us For Availability
5726
HOUSING FRONT PSS GEN WR02X8919 Contact Us For Availability
5806
GEN WR74X10002 GEN WR74X10002 Contact Us For Availability
5808
GEN WR17X3498 GEN WR17X3498 Contact Us For Availability
5811
GEN WR14X0449 GEN WR14X0449 Contact Us For Availability
5818
GEN WR74X0241 GEN WR74X0241 Contact Us For Availability
5871
GEN WR17X10011 GEN WR17X10011 Contact Us For Availability
5899
GEN WR38X2239 GEN WR38X2239 Contact Us For Availability
5959
GEN WR74X10028 GEN WR74X10028 Contact Us For Availability
6374
TRIM GEN WR38X1823 Contact Us For Availability
7031
GEN WR17X10686 GEN WR17X10686 Contact Us For Availability
7049
GEN PUR LOC GEN PUR LOC Contact Us For Availability
7080
GEN WR01X1933 GEN WR01X1933 Contact Us For Availability
7085
GEN WR01X10185 GEN WR01X10185 Contact Us For Availability
7089
GEN WR17X10687 GEN WR17X10687 Contact Us For Availability
7110
GEN WR02X8975 GEN WR02X8975 Contact Us For Availability
7271
SCREW GEN WR01X5635 Contact Us For Availability
7288
SCREW GEN WR01X1831 Contact Us For Availability
7344
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
7502
GEN WR17X10150 GEN WR17X10150 Contact Us For Availability
7503
GEN WR17X10151 GEN WR17X10151 Contact Us For Availability
7504
GEN WR17X10149 GEN WR17X10149 Contact Us For Availability
7518
GEN WR17X10143 GEN WR17X10143 Contact Us For Availability
7557
GEN WR02X8602 GEN WR02X8602 Contact Us For Availability
7558
GEN WR02X8603 GEN WR02X8603 Contact Us For Availability
7560
GEN WR17X3039 GEN WR17X3039 Contact Us For Availability
7569
GEN WR02X8587 GEN WR02X8587 Contact Us For Availability
7572
ACTUATOR ARM FF GEN WR02X8925 Contact Us For Availability
7573
GEN WR13X0640 GEN WR13X0640 Contact Us For Availability
7578
GEN WR13X0643 GEN WR13X0643 Contact Us For Availability
7579
GEN WR13X0642 GEN WR13X0642 Contact Us For Availability
7597
CONTROL FREEZER GEN WR09X0509 Contact Us For Availability
7609
GEN WR74X10029 GEN WR74X10029 Contact Us For Availability
7628
GEN WR02X10166 GEN WR02X10166 Contact Us For Availability
7648
GEN WR02X8964 GEN WR02X8964 Contact Us For Availability
7665
GEN WR17X10383 GEN WR17X10383 Contact Us For Availability
7668
GEN WR02X8963 GEN WR02X8963 Contact Us For Availability
7686
GEN WR02X8926 GEN WR02X8926 Contact Us For Availability
7689
BAFFLE FF GEN WR17X3040 Contact Us For Availability
7695
BUSHING BTM HINGE GEN WR02X8588 Contact Us For Availability
7701
GEN WR13X0633 GEN WR13X0633 Contact Us For Availability
7702
SHELF CANT FZ GEN WR71X2278 Contact Us For Availability
7720
GEN WR17X3226 GEN WR17X3226 Contact Us For Availability
7728
GEN WR02X10428 GEN WR02X10428 Contact Us For Availability
7733
GEN WR13X0641 GEN WR13X0641 Contact Us For Availability
7749
GEN WR01X1838 GEN WR01X1838 Contact Us For Availability
7758
SCREW GEN WR01X1840 Contact Us For Availability
7764
SPRING CLOSURE F.F. GEN WR02X8916 Contact Us For Availability
7765
SPRING CLOSURE FRZ GEN WR02X8804 Contact Us For Availability
7768
GEN WR02X7560 GEN WR02X7560 Contact Us For Availability
7769
GEN WR02X8800 GEN WR02X8800 Contact Us For Availability
7771
GEN WR01X1839 GEN WR01X1839 Contact Us For Availability
7774
GEN WR02X10445 GEN WR02X10445 Contact Us For Availability
7775
GEN WR02X10446 GEN WR02X10446 Contact Us For Availability
7777
GEN WR17X3499 GEN WR17X3499 Contact Us For Availability
7780
GEN WR02X8599 GEN WR02X8599 Contact Us For Availability
7795
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
7796
GEN WR01X5648 GEN WR01X5648 Contact Us For Availability
7806
GEN WR02X8928 GEN WR02X8928 Contact Us For Availability
7823
GEN WR01X10187 GEN WR01X10187 Contact Us For Availability
7830
GEN WR02X8585 GEN WR02X8585 Contact Us For Availability
7831
GEN WR02X8592 GEN WR02X8592 Contact Us For Availability
7832
GEN WR02X8586 GEN WR02X8586 Contact Us For Availability
7833
GEN WR02X8593 GEN WR02X8593 Contact Us For Availability
7836
GEN WR13X0639 GEN WR13X0639 Contact Us For Availability
7845
GEN WR02X8965 GEN WR02X8965 Contact Us For Availability
7937
GEN WR02X8809 GEN WR02X8809 Contact Us For Availability
7957
GEN WR51X0369 GEN WR51X0369 Contact Us For Availability
7974
GEN WR02X8970 GEN WR02X8970 Contact Us For Availability
8012
GEN WR49X0360 GEN WR49X0360 Contact Us For Availability
8013
GEN WR02X8972 GEN WR02X8972 Contact Us For Availability
8052
GEN WR01X10184 GEN WR01X10184 Contact Us For Availability
8053
GEN WR01X10183 GEN WR01X10183 Contact Us For Availability
8086
GEN WR23X0474 GEN WR23X0474 Contact Us For Availability
8141
GEN WR17X4141 GEN WR17X4141 Contact Us For Availability
8211
GEN WR02X9301 GEN WR02X9301 Contact Us For Availability
8251
GEN WR32X1540 GEN WR32X1540 Contact Us For Availability
8256
GEN WR72X0259 GEN WR72X0259 Contact Us For Availability
8257
GEN WR72X0258 GEN WR72X0258 Contact Us For Availability
8270
GEN WR32X1543 GEN WR32X1543 Contact Us For Availability
8276
GEN WR71X2657 GEN WR71X2657 Contact Us For Availability
8278
GEN WR72X0260 GEN WR72X0260 Contact Us For Availability
8279
GEN WR72X0261 GEN WR72X0261 Contact Us For Availability
8281
GEN WR71X2656 GEN WR71X2656 Contact Us For Availability
8284
GEN WR32X1542 GEN WR32X1542 Contact Us For Availability
8287
GEN WR32X1541 GEN WR32X1541 Contact Us For Availability
8300
GEN WR17X4142 GEN WR17X4142 Contact Us For Availability
8301
GEN WR17X4143 GEN WR17X4143 Contact Us For Availability
8302
GEN WR02X9408 GEN WR02X9408 Contact Us For Availability
8303
GEN WR02X9407 GEN WR02X9407 Contact Us For Availability
8304
GEN WR02X9406 GEN WR02X9406 Contact Us For Availability
8305
GEN WR02X9405 GEN WR02X9405 Contact Us For Availability
8308
GEN WR32X1565 GEN WR32X1565 Contact Us For Availability
8310
GEN WR32X1564 GEN WR32X1564 Contact Us For Availability
8312
GEN WR21X0205 GEN WR21X0205 Contact Us For Availability
8333
GEN WR23X0476 GEN WR23X0476 Contact Us For Availability
8351
GEN WR02X9400 GEN WR02X9400 Contact Us For Availability
8355
GEN WR17X4139 GEN WR17X4139 Contact Us For Availability
8356
GEN WR22X0510 GEN WR22X0510 Contact Us For Availability
8357
GEN WR14X0477 GEN WR14X0477 Contact Us For Availability
8367
GEN WR02X9403 GEN WR02X9403 Contact Us For Availability
8375
GEN WR38X10144 GEN WR38X10144 Contact Us For Availability
8377
GEN WR02X9413 GEN WR02X9413 Contact Us For Availability
8446
GEN WR02X9401 GEN WR02X9401 Contact Us For Availability
8510
HINGE DOOR BTM. RH/FF GEN WR13X10098 Contact Us For Availability
8511
BUSHING, FF HINGE GEN WR02X10483 Contact Us For Availability
8522
DEEP DOOR BIN ASM 42" FF GEN WR71X2655 Contact Us For Availability
8539
GEN WR02X9414 GEN WR02X9414 Contact Us For Availability
8574
GEN WR32X1539 GEN WR32X1539 Contact Us For Availability
8583
GEN WR02X9412 GEN WR02X9412 Contact Us For Availability
8646
GEN WR32X1544 GEN WR32X1544 Contact Us For Availability
8652
GEN WR02X9426 GEN WR02X9426 Contact Us For Availability
8658
GEN WR02X9404 GEN WR02X9404 Contact Us For Availability
8867
GEN WR14X10001 GEN WR14X10001 Contact Us For Availability
× ![]()
