Model GE ZIS48NWA Refrigerator – Common Parts & Diagrams

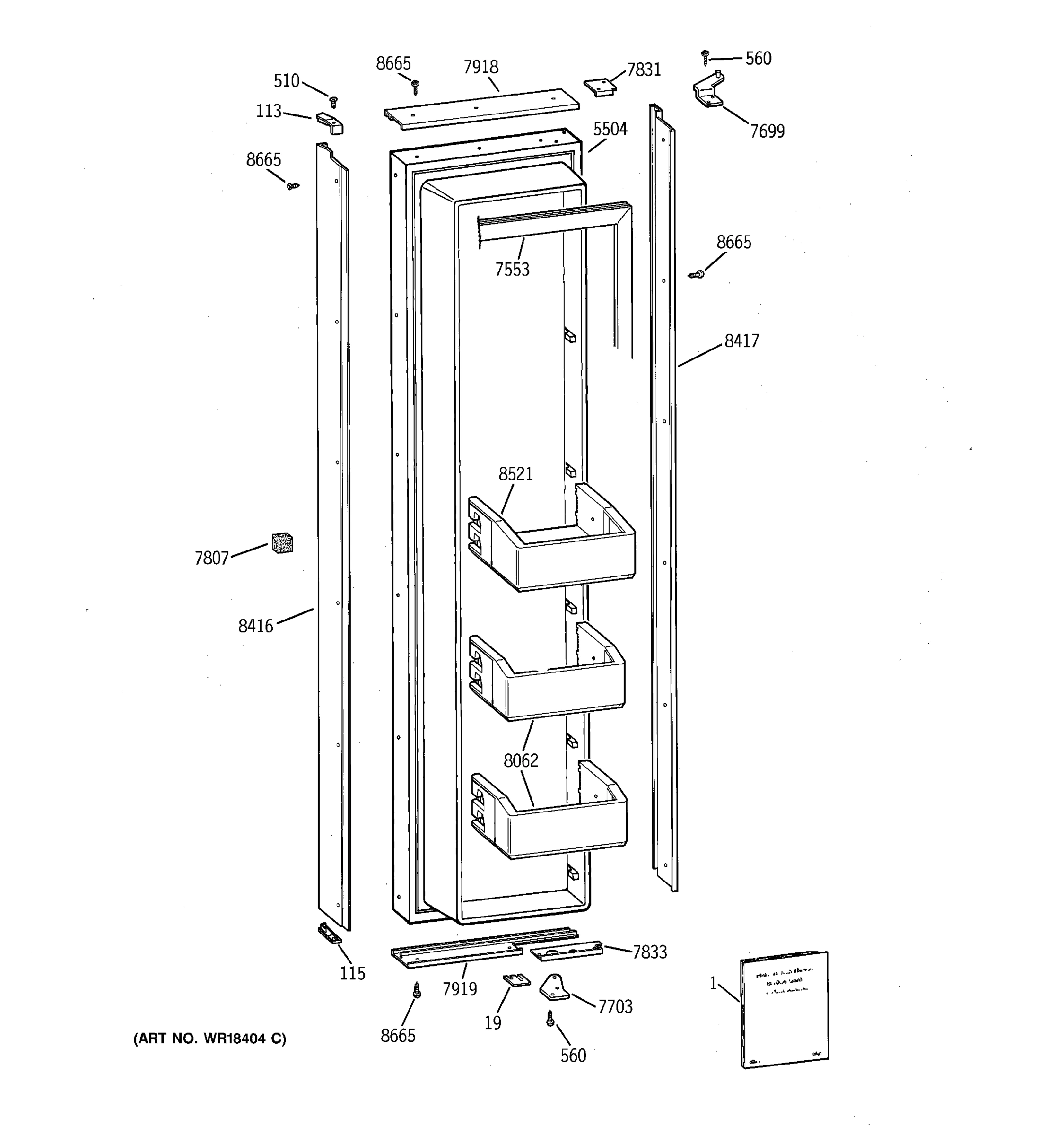

FREEZER DOOR

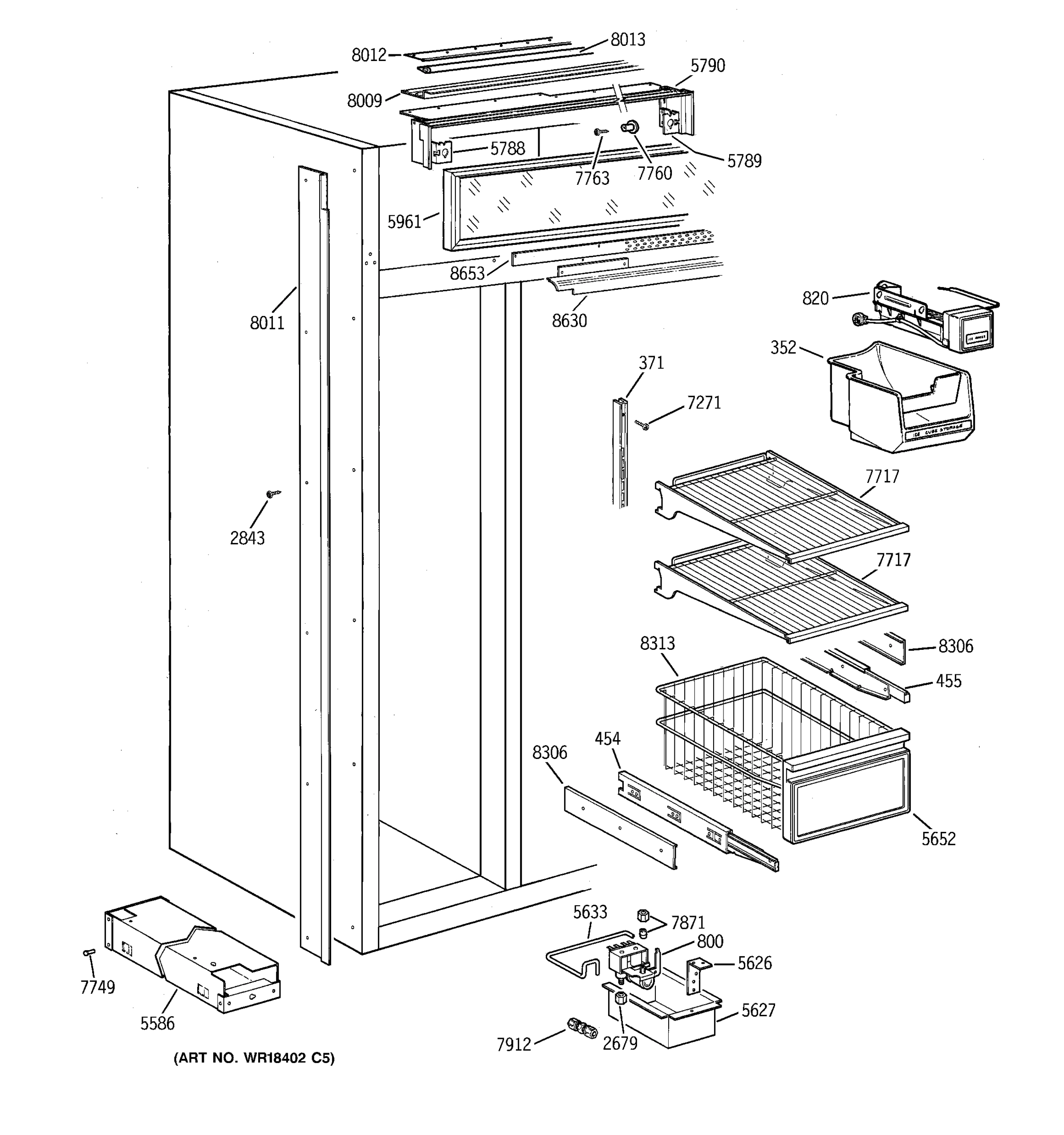

FREEZER SECTION

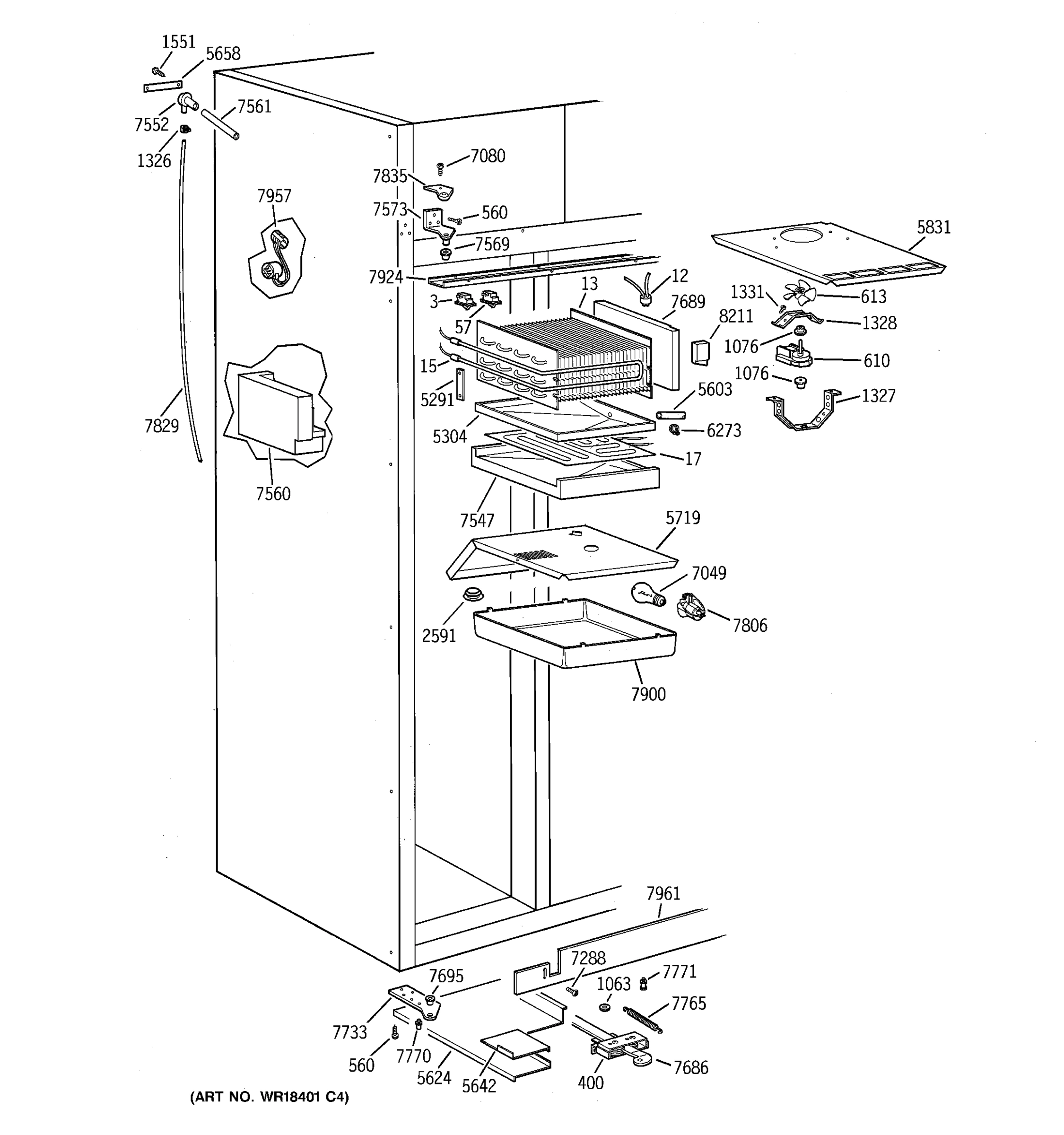

FREEZER SECTION

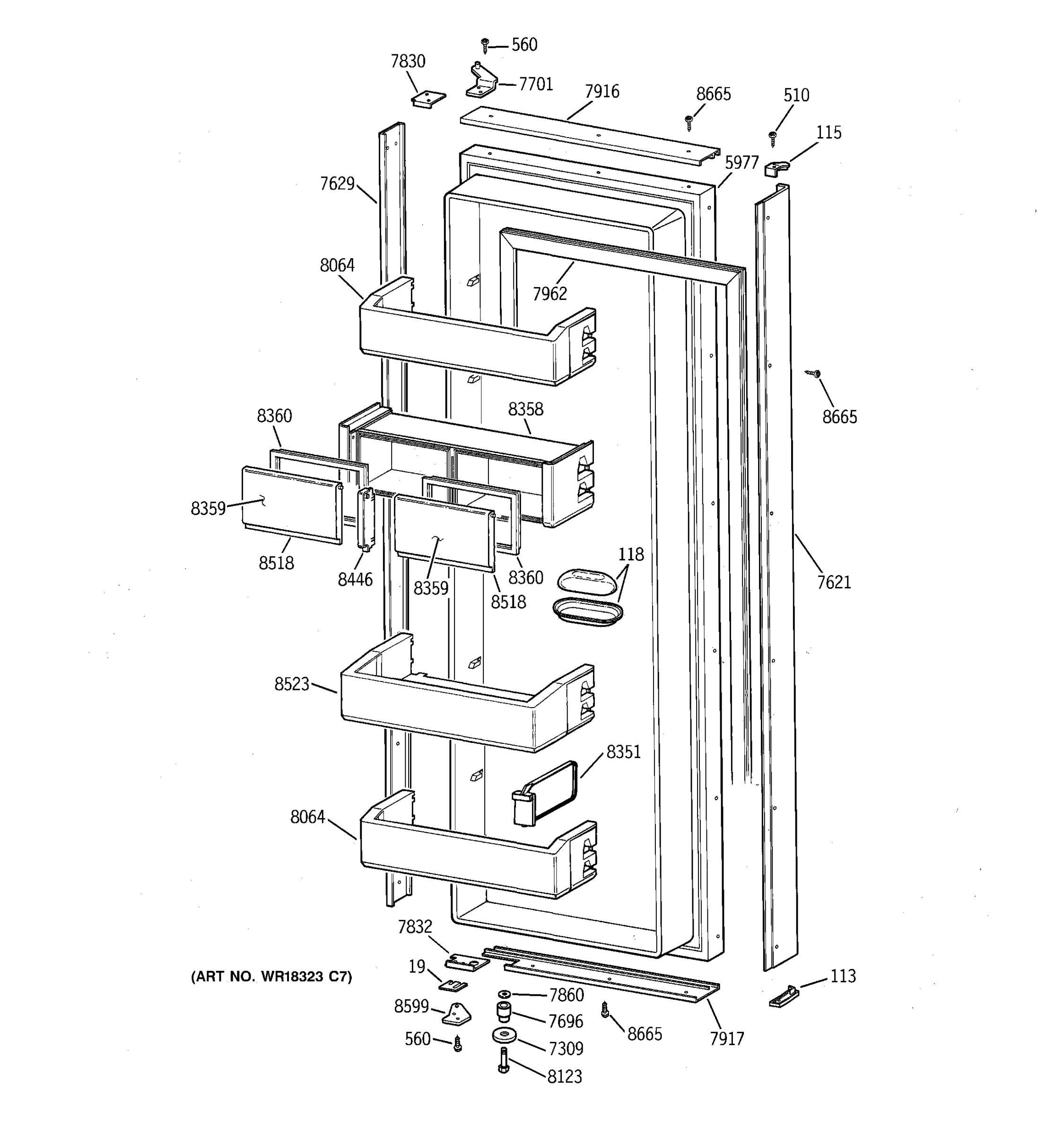

FRESH FOOD DOOR

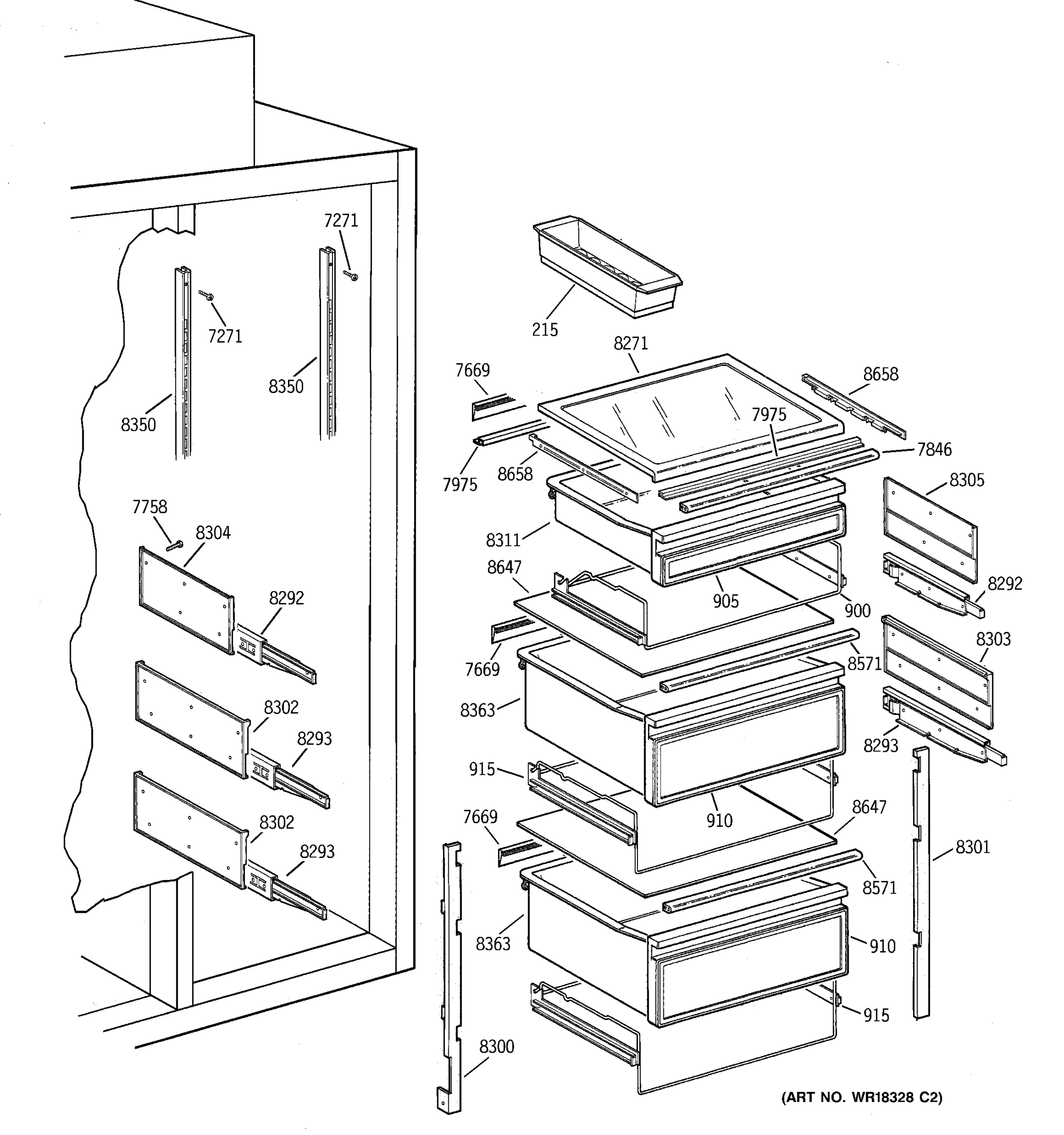

FRESH FOOD SECTION

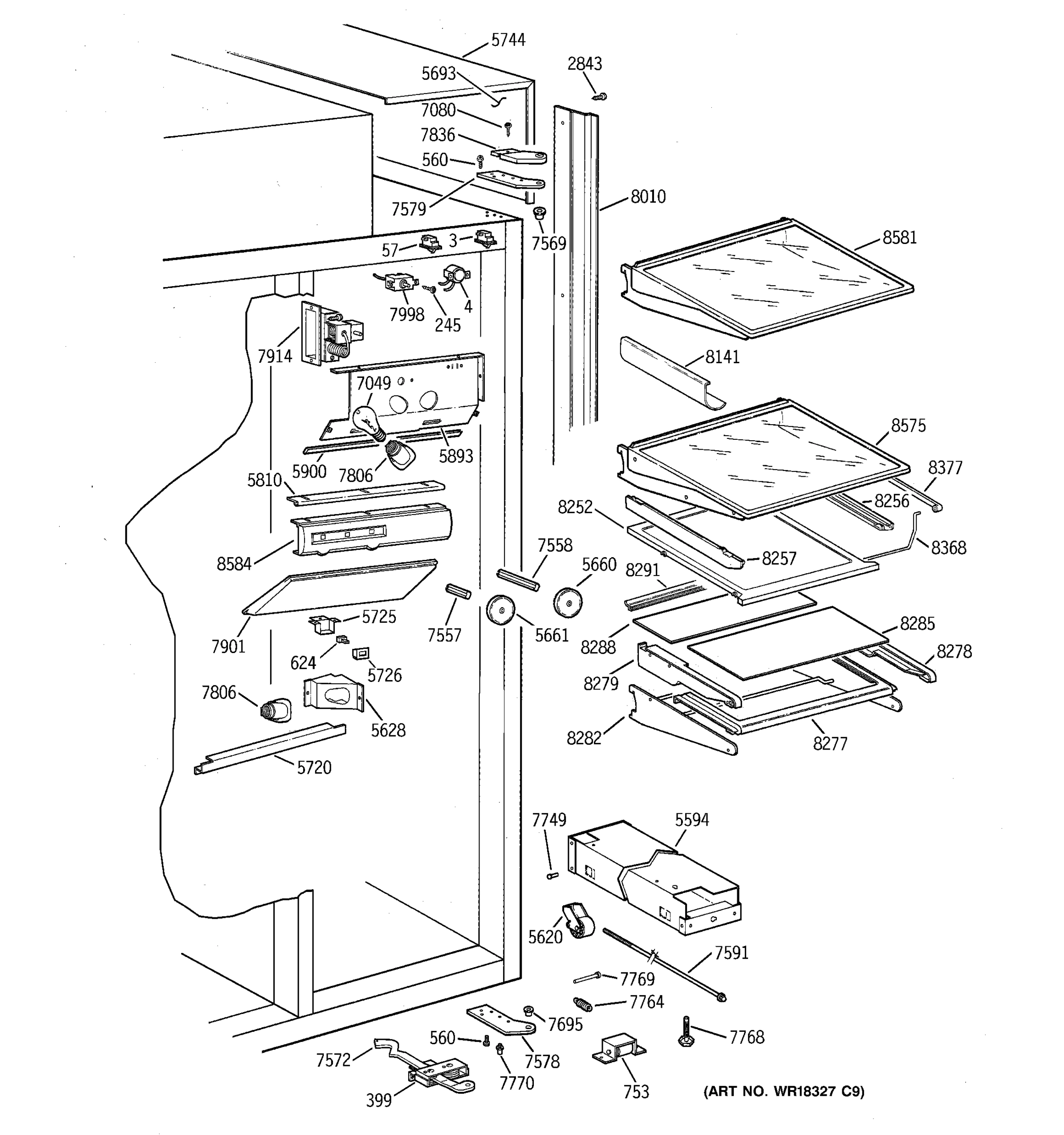

FRESH FOOD SECTION

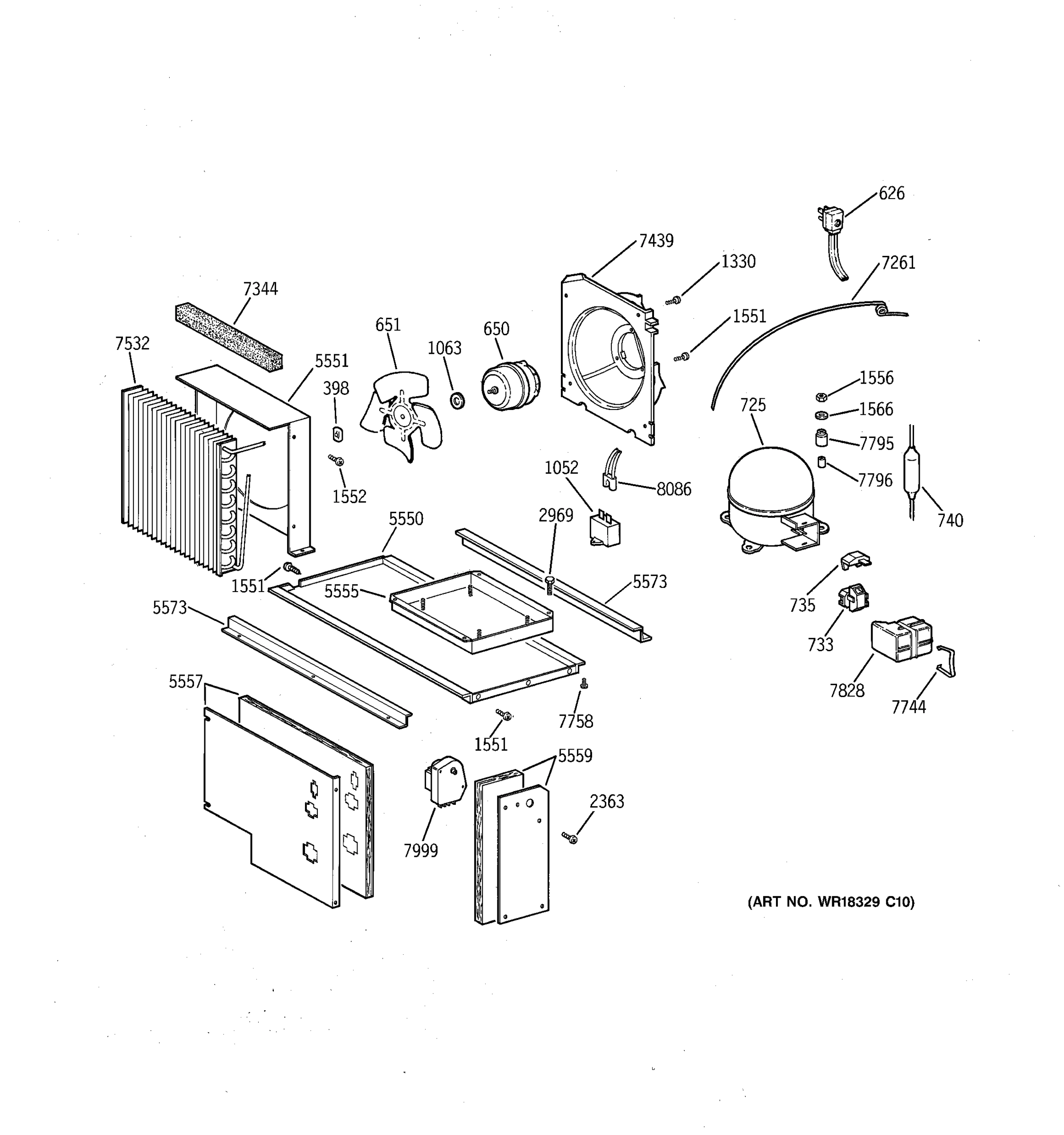

UNIT PARTS
Common parts from model GE ZIS48NWA Refrigerator
4
GEN WR50X0108 GEN WR50X0108 Contact Us For Availability
12
GEN WR50X0109 GEN WR50X0109 Contact Us For Availability
13
GEN WR85X0223 GEN WR85X0223 Contact Us For Availability
19
SHIM GEN WR02X8589 Contact Us For Availability
19
SHIM GEN WR02X8590 Contact Us For Availability
57
GEN WR23X0192 GEN WR23X0192 Contact Us For Availability
113
END CAP FRZ/TOP FF/BTM GEN WR12X0864 Contact Us For Availability
115
END CAP BTM/FRZ FF/TOP GEN WR12X0866 Contact Us For Availability
215
GEN WR32X1435 GEN WR32X1435 Contact Us For Availability
371
GEN WR17X3300 GEN WR17X3300 Contact Us For Availability
398
NUT COND MOTOR GEN WR01X1715 Contact Us For Availability
399
CLOSURE FF DOOR GEN WR02X9467 Contact Us For Availability
400
CLOSURE FZ DOOR GEN WR02X9468 Contact Us For Availability
454
GEN WR72X0284 GEN WR72X0284 Contact Us For Availability
455
GEN WR72X0285 GEN WR72X0285 Contact Us For Availability
510
#8X1/2 PAN HD PHIL SCREW GEN WR01X1939 Contact Us For Availability
610
GEN WR60X0182 GEN WR60X0182 Contact Us For Availability
624
SWITCH POWERSAVER GEN WR23X0396 Contact Us For Availability
651
FAN BLADE GEN WR60X0167 Contact Us For Availability
733
GEN WR07X0198 GEN WR07X0198 Contact Us For Availability
735
GEN WR08X0114 GEN WR08X0114 Contact Us For Availability
820
GEN WR30X0306 GEN WR30X0306 Contact Us For Availability
900
GEN WR72X0264 GEN WR72X0264 Contact Us For Availability
905
SNACK PAN FRONT ASM GEN WR71X2664 Contact Us For Availability
910
VEG PAN FRONT ASM GEN WR71X2667 Contact Us For Availability
915
GEN WR72X0267 GEN WR72X0267 Contact Us For Availability
1052
GEN WR62X0064 GEN WR62X0064 Contact Us For Availability
1063
GEN WR01X1833 GEN WR01X1833 Contact Us For Availability
1076
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
1327
BRACKET FAN REAR GEN WR02X8806 Contact Us For Availability
1328
BRACKET FAN FRONT GEN WR02X8805 Contact Us For Availability
1330
SCREW COND HSG GEN WR01X1825 Contact Us For Availability
1331
SCREW BRKT EVAP HSG GEN WZ06X0133 Contact Us For Availability
1552
SCREW SHROUD COND GEN WR29X5175 Contact Us For Availability
1556
GEN NUT COMP GEN NUT COMP Contact Us For Availability
1566
WASHER COMP MTG GEN WR01X5649 Contact Us For Availability
2591
GEN WR01X1932 GEN WR01X1932 Contact Us For Availability
2969
GEN WR01X1899 GEN WR01X1899 Contact Us For Availability
5550
GEN WR17X3041 GEN WR17X3041 Contact Us For Availability
5555
GEN WR17X3043 GEN WR17X3043 Contact Us For Availability
5557
GEN WR17X3044 GEN WR17X3044 Contact Us For Availability
5559
GEN WR17X3045 GEN WR17X3045 Contact Us For Availability
5586
GEN WR13X0670 GEN WR13X0670 Contact Us For Availability
5594
GEN WR13X0671 GEN WR13X0671 Contact Us For Availability
5603
GEN WR17X3030 GEN WR17X3030 Contact Us For Availability
5624
GEN WR17X3423 GEN WR17X3423 Contact Us For Availability
5626
GEN WR02X8605 GEN WR02X8605 Contact Us For Availability
5627
GEN WR02X8604 GEN WR02X8604 Contact Us For Availability
5628
GEN WR17X3027 GEN WR17X3027 Contact Us For Availability
5633
COPPER TUBE GEN WR02X8959 Contact Us For Availability
5642
GEN WR17X3424 GEN WR17X3424 Contact Us For Availability
5652
FRZ BASKET FRONT ASM GEN WR71X2669 Contact Us For Availability
5660
GEN WR02X8600 GEN WR02X8600 Contact Us For Availability
5661
GEN WR02X8601 GEN WR02X8601 Contact Us For Availability
5693
GEN WR17X3617 GEN WR17X3617 Contact Us For Availability
5719
GEN WR17X4171 GEN WR17X4171 Contact Us For Availability
5720
GEN WR02X8917 GEN WR02X8917 Contact Us For Availability
5725
GEN WR02X8918 GEN WR02X8918 Contact Us For Availability
5726
HOUSING FRONT PSS GEN WR02X8919 Contact Us For Availability
5744
GEN WR17X3428 GEN WR17X3428 Contact Us For Availability
5788
GEN WR01X1975 GEN WR01X1975 Contact Us For Availability
5789
FF O.DOOR 48" GEN WR01X1976 Contact Us For Availability
5790
GEN WR74X0246 GEN WR74X0246 Contact Us For Availability
5810
GEN WR14X0486 GEN WR14X0486 Contact Us For Availability
5831
EVAP. HOUSING BTM GEN WR17X4272 Contact Us For Availability
5893
GEN WR17X4273 GEN WR17X4273 Contact Us For Availability
5900
GEN WR38X2094 GEN WR38X2094 Contact Us For Availability
5961
GEN WR74X0261 GEN WR74X0261 Contact Us For Availability
5977
GEN WR78X8780 GEN WR78X8780 Contact Us For Availability
6273
GEN WR01X1843 GEN WR01X1843 Contact Us For Availability
7080
GEN WR01X1933 GEN WR01X1933 Contact Us For Availability
7261
GEN WR86X0089 GEN WR86X0089 Contact Us For Availability
7271
SCREW GEN WR01X5635 Contact Us For Availability
7288
SCREW TOE KICK MTG GEN WR01X1831 Contact Us For Availability
7547
GEN WR17X3037 GEN WR17X3037 Contact Us For Availability
7557
GEN WR02X8602 GEN WR02X8602 Contact Us For Availability
7558
GEN WR02X8603 GEN WR02X8603 Contact Us For Availability
7560
GEN WR17X3039 GEN WR17X3039 Contact Us For Availability
7569
GEN WR02X8587 GEN WR02X8587 Contact Us For Availability
7572
ACTUATOR ARM FF GEN WR02X8925 Contact Us For Availability
7573
GEN WR13X0640 GEN WR13X0640 Contact Us For Availability
7578
GEN WR13X0643 GEN WR13X0643 Contact Us For Availability
7579
GEN WR13X0642 GEN WR13X0642 Contact Us For Availability
7621
GEN WR12X0862 GEN WR12X0862 Contact Us For Availability
7629
GEN WR17X3016 GEN WR17X3016 Contact Us For Availability
7669
SEAL SNACK/VEG PAN REAR GEN WR14X0446 Contact Us For Availability
7686
GEN WR02X8926 GEN WR02X8926 Contact Us For Availability
7689
BAFFLE FF GEN WR17X3040 Contact Us For Availability
7695
BUSHING BTM HINGE GEN WR02X8588 Contact Us For Availability
7696
BUSHING ACTUATOR ARM GEN WR01X1836 Contact Us For Availability
7699
GEN WR13X0635 GEN WR13X0635 Contact Us For Availability
7701
GEN WR13X0633 GEN WR13X0633 Contact Us For Availability
7703
GEN WR13X0636 GEN WR13X0636 Contact Us For Availability
7717
SHELF FZ CANT. 48" GEN WR71X2428 Contact Us For Availability
7733
GEN WR13X0641 GEN WR13X0641 Contact Us For Availability
7744
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
7749
GEN WR01X1838 GEN WR01X1838 Contact Us For Availability
7758
GEN WR01X1840 GEN WR01X1840 Contact Us For Availability
7760
BARREL NUT GEN WR01X1900 Contact Us For Availability
7764
GEN WR02X8916 GEN WR02X8916 Contact Us For Availability
7765
GEN WR02X8804 GEN WR02X8804 Contact Us For Availability
7768
GEN WR02X7560 GEN WR02X7560 Contact Us For Availability
7769
GEN WR02X8800 GEN WR02X8800 Contact Us For Availability
7771
GEN WR01X1839 GEN WR01X1839 Contact Us For Availability
7795
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
7796
GEN WR01X5648 GEN WR01X5648 Contact Us For Availability
7806
GEN WR02X8928 GEN WR02X8928 Contact Us For Availability
7807
GEN WR02X8798 GEN WR02X8798 Contact Us For Availability
7828
COVER RELAY GEN WR02X7834 Contact Us For Availability
7830
SHIM HINGE GEN WR02X8585 Contact Us For Availability
7831
GEN WR02X8592 GEN WR02X8592 Contact Us For Availability
7832
SHIM HINGE GEN WR02X8586 Contact Us For Availability
7833
SHIM HINGE GEN WR02X8593 Contact Us For Availability
7836
GEN WR13X0639 GEN WR13X0639 Contact Us For Availability
7846
SEAL SNACK PAN FRONT GEN WR14X0448 Contact Us For Availability
7860
WASHER GEN WR01X1835 Contact Us For Availability
7871
NUT & FERRULE GEN WR57X0097 Contact Us For Availability
7900
GEN WR17X4173 GEN WR17X4173 Contact Us For Availability
7901
GEN WR17X3433 GEN WR17X3433 Contact Us For Availability
7916
TRIM DOOR FF TOP GEN WR17X4155 Contact Us For Availability
7917
TRIM DOOR FF BTM GEN WR17X4156 Contact Us For Availability
7918
TRIM DOOR FZ TOP GEN WR17X4162 Contact Us For Availability
7919
GEN WR17X3450 GEN WR17X3450 Contact Us For Availability
7924
DISP GRILL BASE GEN WR17X3898 Contact Us For Availability
7957
GEN WR51X0369 GEN WR51X0369 Contact Us For Availability
7961
GEN WR74X0238 GEN WR74X0238 Contact Us For Availability
7975
GEN WR17X3440 GEN WR17X3440 Contact Us For Availability
7998
GEN WR09X0523 GEN WR09X0523 Contact Us For Availability
8009
GEN WR17X3655 GEN WR17X3655 Contact Us For Availability
8010
GEN WR17X3442 GEN WR17X3442 Contact Us For Availability
8011
GEN WR17X3443 GEN WR17X3443 Contact Us For Availability
8012
GEN WR49X0360 GEN WR49X0360 Contact Us For Availability
8013
GEN WR02X8972 GEN WR02X8972 Contact Us For Availability
8062
GEN WR71X2723 GEN WR71X2723 Contact Us For Availability
8064
GEN WR71X8064 GEN WR71X8064 Contact Us For Availability
8086
GEN WR23X0474 GEN WR23X0474 Contact Us For Availability
8123
GEN WR01X2164 GEN WR01X2164 Contact Us For Availability
8141
GEN WR17X3023 GEN WR17X3023 Contact Us For Availability
8211
GEN WR02X9301 GEN WR02X9301 Contact Us For Availability
8252
GEN WR32X1548 GEN WR32X1548 Contact Us For Availability
8256
GEN WR72X0259 GEN WR72X0259 Contact Us For Availability
8257
GEN WR72X0258 GEN WR72X0258 Contact Us For Availability
8271
GEN WR32X1551 GEN WR32X1551 Contact Us For Availability
8277
GEN WR71X2659 GEN WR71X2659 Contact Us For Availability
8278
GEN WR72X0260 GEN WR72X0260 Contact Us For Availability
8279
GEN WR72X0261 GEN WR72X0261 Contact Us For Availability
8282
GEN WR71X2658 GEN WR71X2658 Contact Us For Availability
8285
GEN WR32X1550 GEN WR32X1550 Contact Us For Availability
8288
GEN WR32X1549 GEN WR32X1549 Contact Us For Availability
8291
GEN WR02X9415 GEN WR02X9415 Contact Us For Availability
8300
GEN WR17X4142 GEN WR17X4142 Contact Us For Availability
8301
GEN WR17X4143 GEN WR17X4143 Contact Us For Availability
8302
GEN WR02X9408 GEN WR02X9408 Contact Us For Availability
8303
GEN WR02X9407 GEN WR02X9407 Contact Us For Availability
8304
GEN WR02X9406 GEN WR02X9406 Contact Us For Availability
8305
GEN WR02X9405 GEN WR02X9405 Contact Us For Availability
8311
GEN WR32X1566 GEN WR32X1566 Contact Us For Availability
8313
GEN WR21X0206 GEN WR21X0206 Contact Us For Availability
8351
GEN WR02X9400 GEN WR02X9400 Contact Us For Availability
8358
GEN WR71X2682 GEN WR71X2682 Contact Us For Availability
8359
GEN WR22X0516 GEN WR22X0516 Contact Us For Availability
8360
GEN WR22X0517 GEN WR22X0517 Contact Us For Availability
8363
VEG PAN REAR 48" GEN WR32X1567 Contact Us For Availability
8368
GEN WR02X9428 GEN WR02X9428 Contact Us For Availability
8377
GEN WR02X9413 GEN WR02X9413 Contact Us For Availability
8416
GEN WR12X1051 GEN WR12X1051 Contact Us For Availability
8417
GEN WR17X3020 GEN WR17X3020 Contact Us For Availability
8446
GEN WR02X9401 GEN WR02X9401 Contact Us For Availability
8518
GEN WR38X2244 GEN WR38X2244 Contact Us For Availability
8521
BIN FZ GEN WR71X2678 Contact Us For Availability
8523
GEN WR71X2680 GEN WR71X2680 Contact Us For Availability
8571
GEN WR14X0485 GEN WR14X0485 Contact Us For Availability
8575
GEN WR32X1546 GEN WR32X1546 Contact Us For Availability
8581
GEN WR32X1547 GEN WR32X1547 Contact Us For Availability
8584
GEN WR17X4274 GEN WR17X4274 Contact Us For Availability
8599
GEN WR13X0766 GEN WR13X0766 Contact Us For Availability
8630
GEN WR02X9449 GEN WR02X9449 Contact Us For Availability
8647
GEN WR32X1552 GEN WR32X1552 Contact Us For Availability
8653
GEN WR02X9427 GEN WR02X9427 Contact Us For Availability
8658
GEN WR02X9404 GEN WR02X9404 Contact Us For Availability
× ![]()
