Model GE ZIS480NXC Refrigerator – Common Parts & Diagrams

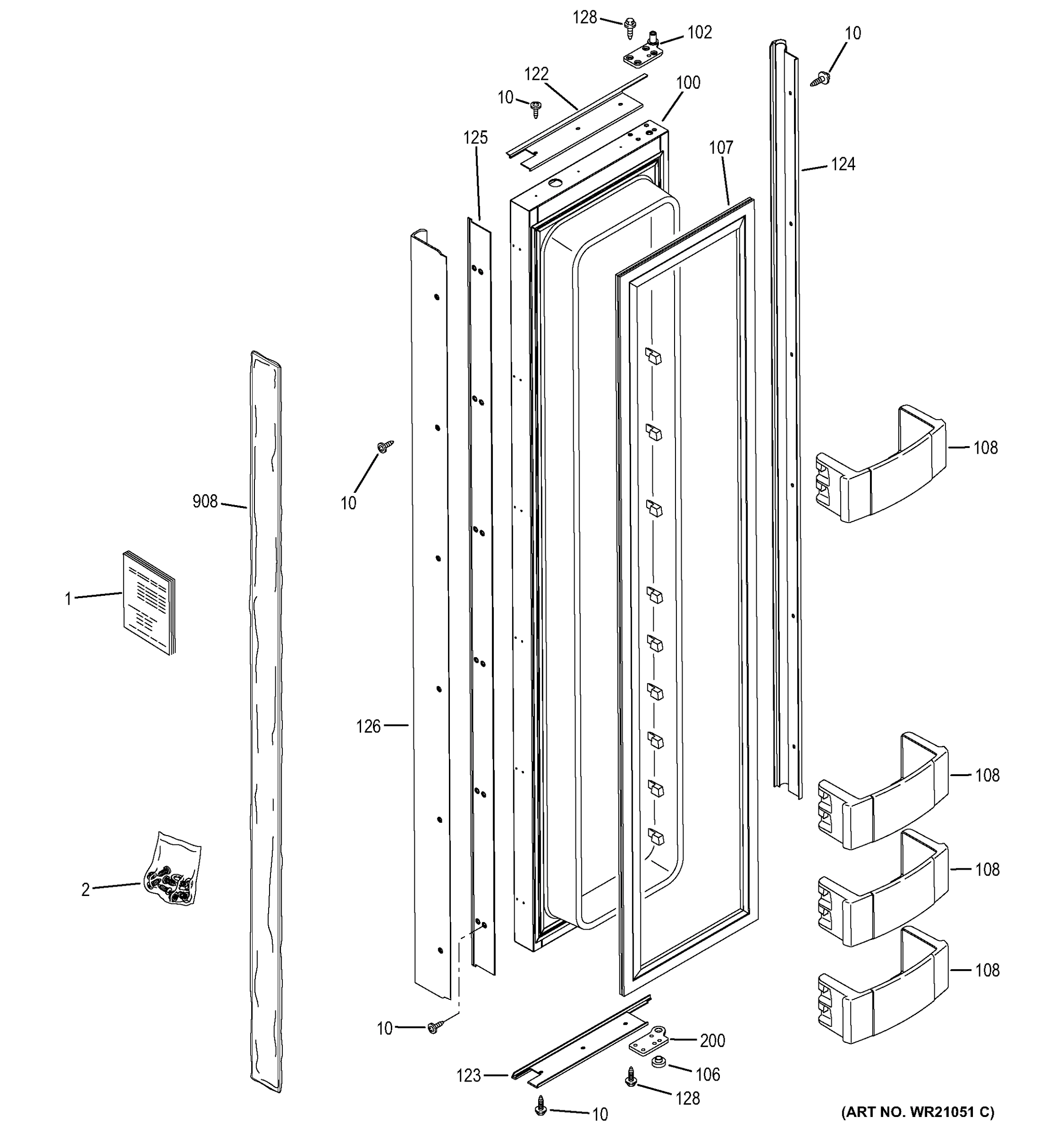

FREEZER DOOR

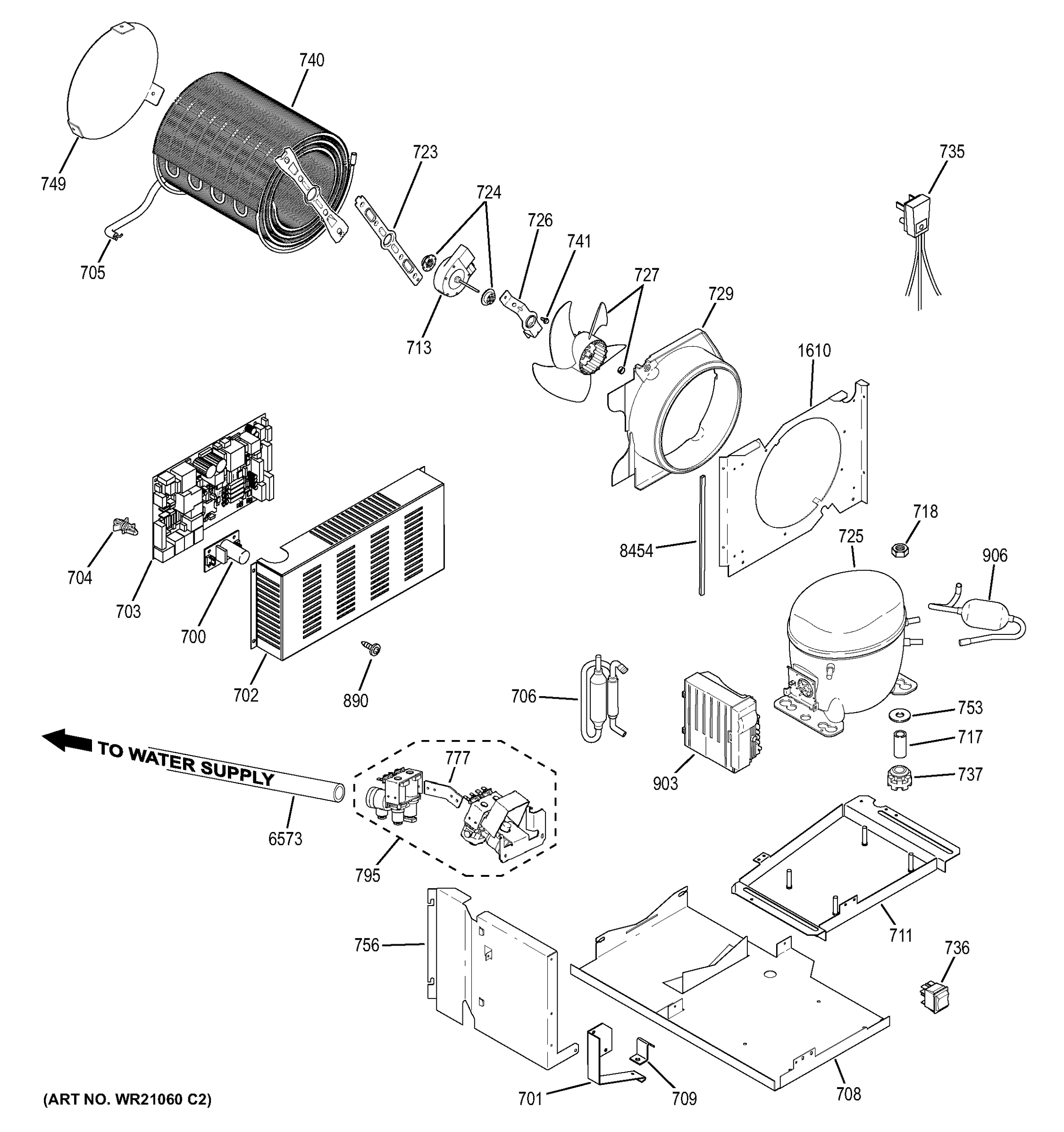

MACHINE COMPARTMENT
FRESH FOOD DOOR
FREEZER SECTION
FREEZER SHELVES
ICE MAKER & DISPENSER
FRESH FOOD SECTION
FRESH FOOD SHELVES
QUICK CHILL
CASE PARTS
Common parts from model GE ZIS480NXC Refrigerator
2
HARDWARE PACK GEN WR01X10304 Contact Us For Availability
4
FZ SLIDE ASM LH GEN WR72X10190 Contact Us For Availability
5
FZ SLIDE ASM RH GEN WR72X10189 Contact Us For Availability
10
SCREW 10-32 GXTT FLP 595 GEN WR01X10065 Contact Us For Availability
102
TOP SXS FZ DOOR HINGE AS GEN WR13X10238 Contact Us For Availability
106
FZ BOTTOM HINGE BUSHING GEN WR01X10297 Contact Us For Availability
121
BUTTER DISH AND COVER GEN WR19X10005 Contact Us For Availability
124
DOOR TRIM FZ SIDE GEN WR38X10270 Contact Us For Availability
125
HANDLE TRIM GEN WR38X10271 Contact Us For Availability
126
HANDLE GEN WR12X10526 Contact Us For Availability
200
HINGE DOOR BTM GEN WR13X10657 Contact Us For Availability
201
BUSHING HINGE BOTTOM GEN WR02X10953 Contact Us For Availability
202
LOWER FF ADJ HINGE PIN GEN WR13X10239 Contact Us For Availability
205
BUSHING HINGE TOP GEN WR02X10954 Contact Us For Availability
234
GRILLE SENSOR GEN WR02X10647 Contact Us For Availability
306
LIGHT COLUMN ASM 48FZ GEN WR17X12619 Contact Us For Availability
320
QC MULLION ASM 48 GEN WR32X10926 Contact Us For Availability
344
KIT AIR HANDLER QC GEN WR31X10082 Contact Us For Availability
348
HEATER THAW GEN WR51X10138 Contact Us For Availability
356
HOUSING CONTROL GEN WR74X10258 Contact Us For Availability
363
CEILING LIGHT SHIELD GEN WR02X12852 Contact Us For Availability
367
DAMPER FOAM ASM 48 GEN WR02X12861 Contact Us For Availability
369
DAMPER ASSY SUPPLY GEN WR60X10062 Contact Us For Availability
376
SNACK PAN WIRE SPT ASM48 GEN WR02X12855 Contact Us For Availability
377
SHELF SNACK PAN ASM 48 GEN WR71X10816 Contact Us For Availability
384
SEAL PAN FRONT GEN WR40X10038 Contact Us For Availability
501
FZ HINGE SXS LOWER CASE GEN WR13X10241 Contact Us For Availability
503
SPACER FF DOOR CLOSURE GEN WR02X11231 Contact Us For Availability
504
BOLT SHOULDER GEN WR02X11207 Contact Us For Availability
505
BHNG ARM NYLON FF DR CL GEN WR02X10951 Contact Us For Availability
507
HINGE SCREW DOOR BTM GEN WR01X10177 Contact Us For Availability
508
SHEAR PIN GEN WR02X11209 Contact Us For Availability
513
WHEEL MOBILITY GEN WR02X10480 Contact Us For Availability
514
SPRING WHEEL #LE022C4 GEN WR02X11233 Contact Us For Availability
521
HINGE ASSY GRILLE RIGHT GEN WR13X10204 Contact Us For Availability
525
HINGE FF UPPER GEN WR13X10656 Contact Us For Availability
526
FZ HINGE SXS CASE UPPER GEN WR13X10246 Contact Us For Availability
530
FILL TUBE FREEZE ND GEN WR49X10094 Contact Us For Availability
541
SXS TRANSFORMER 140VA GEN WR62X10069 Contact Us For Availability
542
TRANSFORMER FZ LIGHTS GEN WR62X10030 Contact Us For Availability
543
FUSE, 2 AMP GEN WR23X10269 Contact Us For Availability
545
FUSE GEN WR55X10766 Contact Us For Availability
600
FZ BASKET ASM GEN WR21X10055 Contact Us For Availability
606
SLIDE INNER GEN WR72X10369 Contact Us For Availability
615
PAN REAR SEAL 48 GEN WR02X12848 Contact Us For Availability
617
PAN SIDE SUPPORT RH GEN WR72X10329 Contact Us For Availability
621
PAN SIDE SUPPORT LH GEN WR72X10330 Contact Us For Availability
652
RING COMPRESSION GEN WR02X12149 Contact Us For Availability
703
BOARD ASM MAIN CONTROL GEN WR55X11202 Contact Us For Availability
705
CAP SUCTION TUBE ASM GEN WR86X10021 Contact Us For Availability
717
STEEL COLLAR GEN WR01X10305 Contact Us For Availability
724
GROMMET FAN MOTOR GEN WR02X10520 Contact Us For Availability
726
BRACKET COND FAN (MTG) GEN WR02X11863 Contact Us For Availability
735
POWER CORD GEN WR23X10300 Contact Us For Availability
740
PROD SERV CONDENSER GEN WR84X10022 Contact Us For Availability
752
DEFROST HEATER GEN WR51X10111 Contact Us For Availability
795
BRACKET AND VALVE ASM GEN WR57X10084 Contact Us For Availability
800
EVAPORATOR SXS GEN WR85X10116 Contact Us For Availability
803
FOAM BLOCK EVAP GEN WR02X12857 Contact Us For Availability
811
CUP FILL IM GEN WR29X20863 Contact Us For Availability
824
ICE BIN FRT GEN WR17X11198 Contact Us For Availability
825
DOOR ICE BIN GEN WR17X12547 Contact Us For Availability
826
ICE BIN DOOR TRACK GEN WR71X10420 Contact Us For Availability
834
HALOGEN BULB LIGHT COLUM GEN WR02X11183 Contact Us For Availability
835
TUBE DRAIN FLEXIBLE GEN WR17X11969 Contact Us For Availability
846
GRILLE SENSOR GEN WR02X12839 Contact Us For Availability
849
BUMPER GEN WR02X10540 Contact Us For Availability
861
BRACKET EVAP FAN BTM GEN WR02X11622 Contact Us For Availability
862
BRACKET ORIFICE FAN GEN WR02X10653 Contact Us For Availability
883
BUCKET ICE DISP GEN WR30X10033 Contact Us For Availability
906
ACCUMULATOR GEN WR86X10038 Contact Us For Availability
1506
LINK ACTUATOR FZ GEN WR02X11208 Contact Us For Availability
1516
LINK AUCATOR FF GEN WR02X11211 Contact Us For Availability
3507
SPRING CLOSURE GEN WR02X12948 Contact Us For Availability
4106
SLIDE OUTER GEN WR72X10365 Contact Us For Availability
4107
SLIDE OUTER GEN WR72X10366 Contact Us For Availability
× ![]()
