Model GE ZIP364IPVBII Refrigerator – Common Parts & Diagrams
REFRIGERATOR DOOR - LH
REFRIGERATOR DOOR - RH

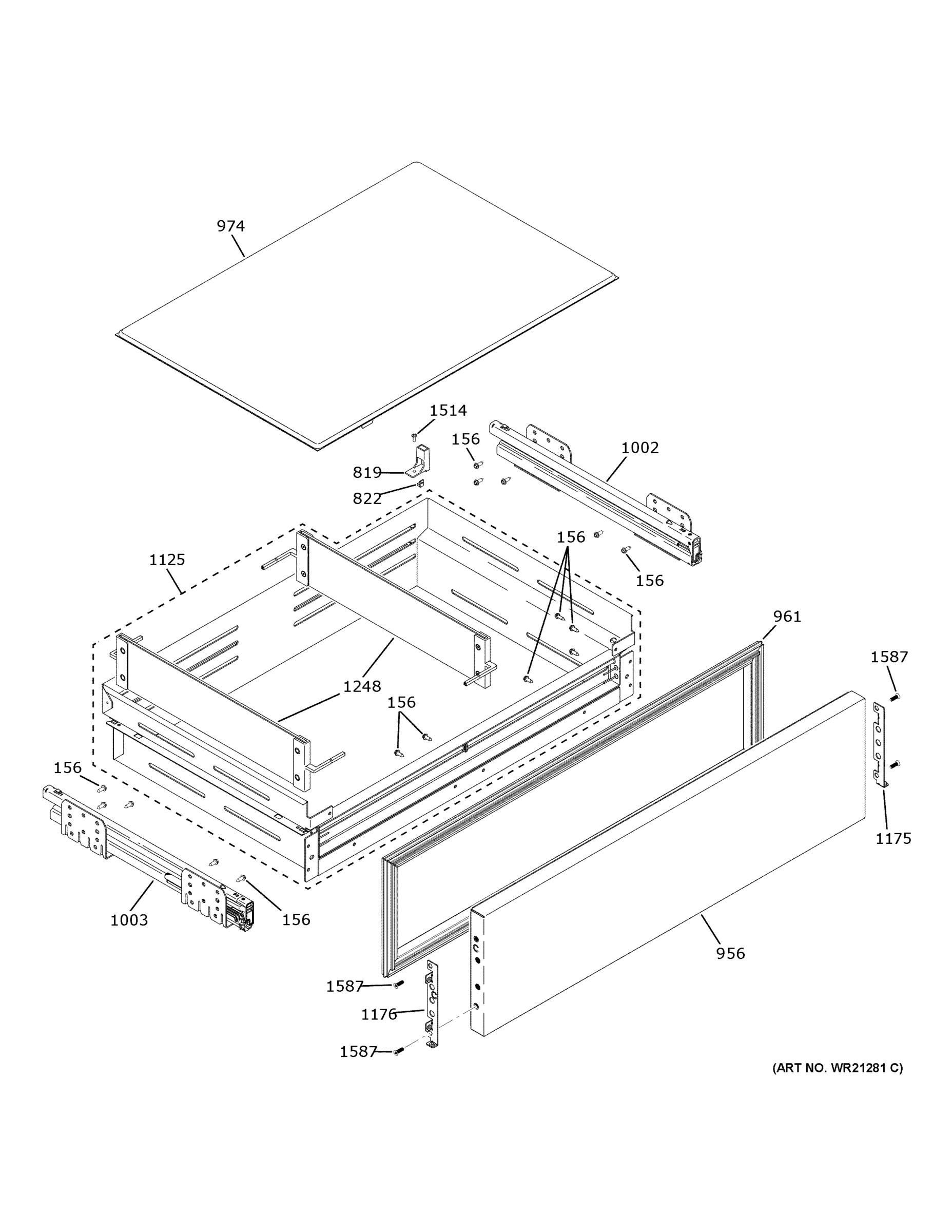

CONVERTIBLE DRAWER

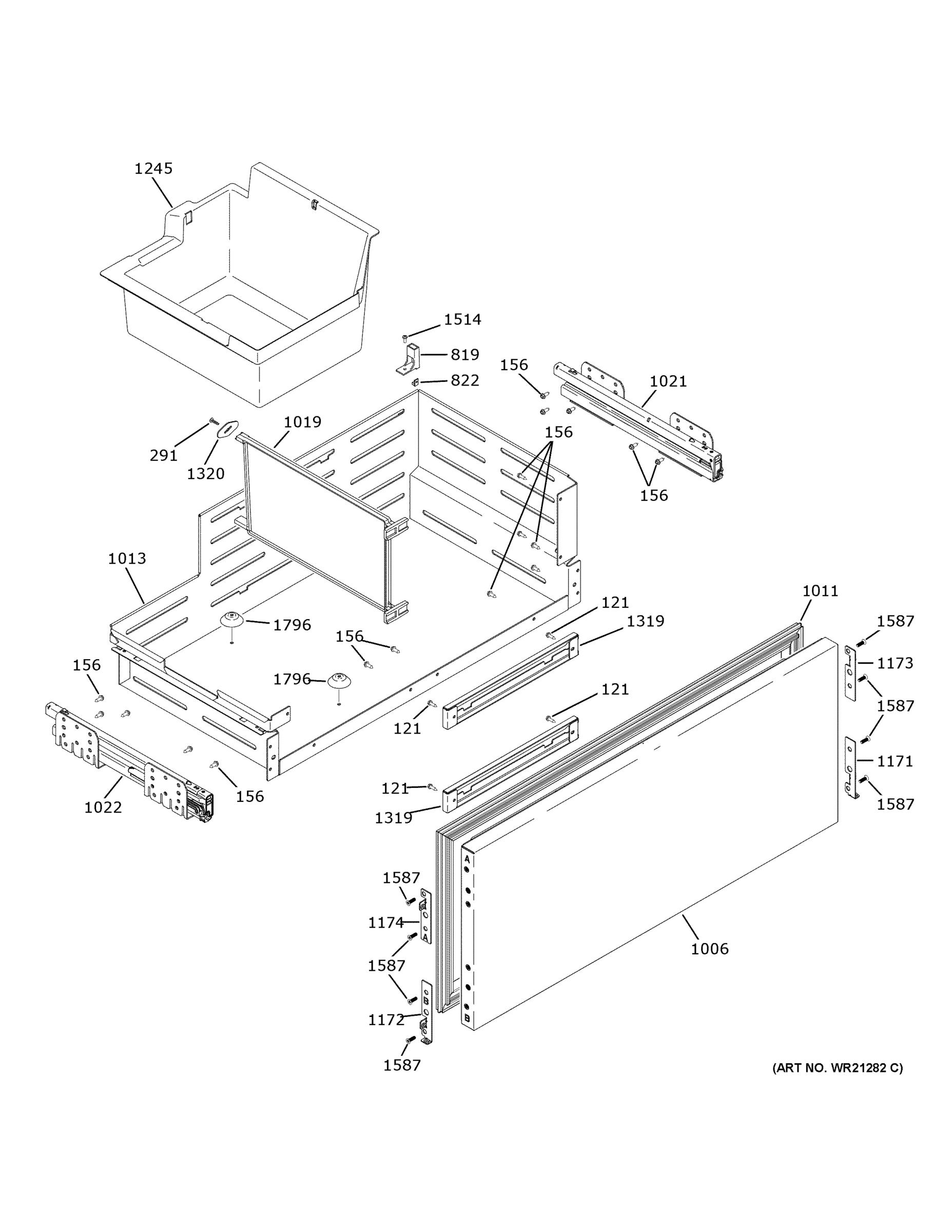

FREEZER DRAWER

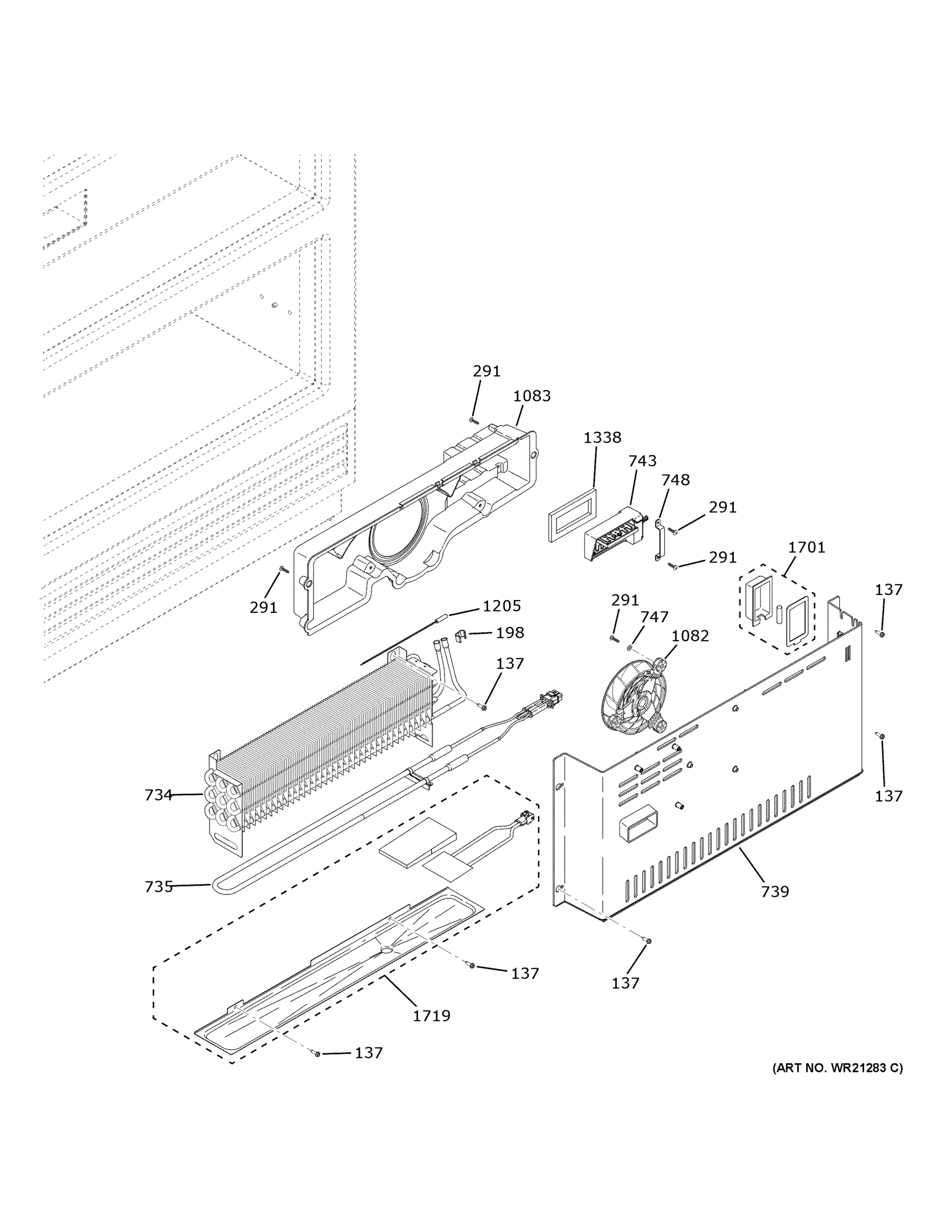

FREEZER SECTION

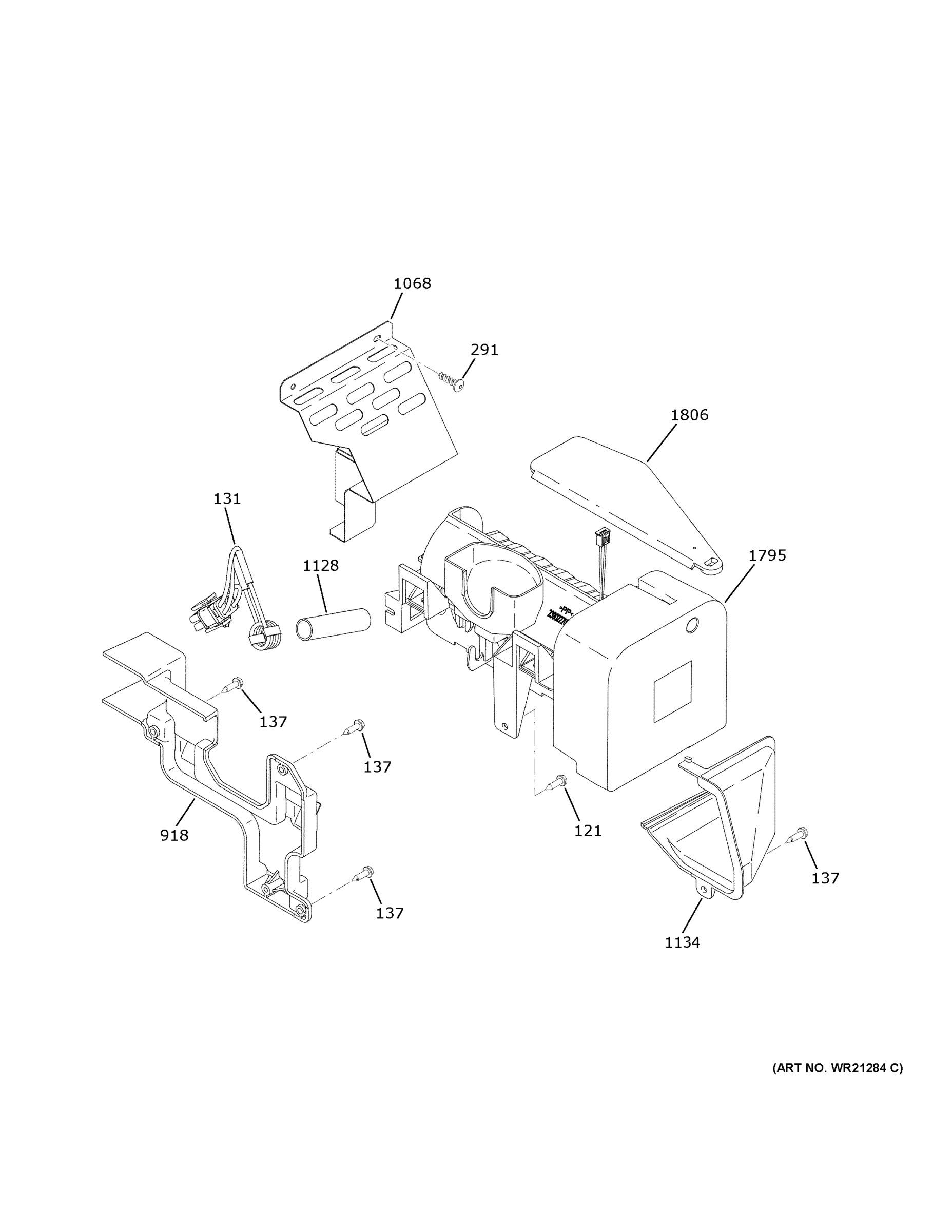

ICE MAKER & DISPENSER

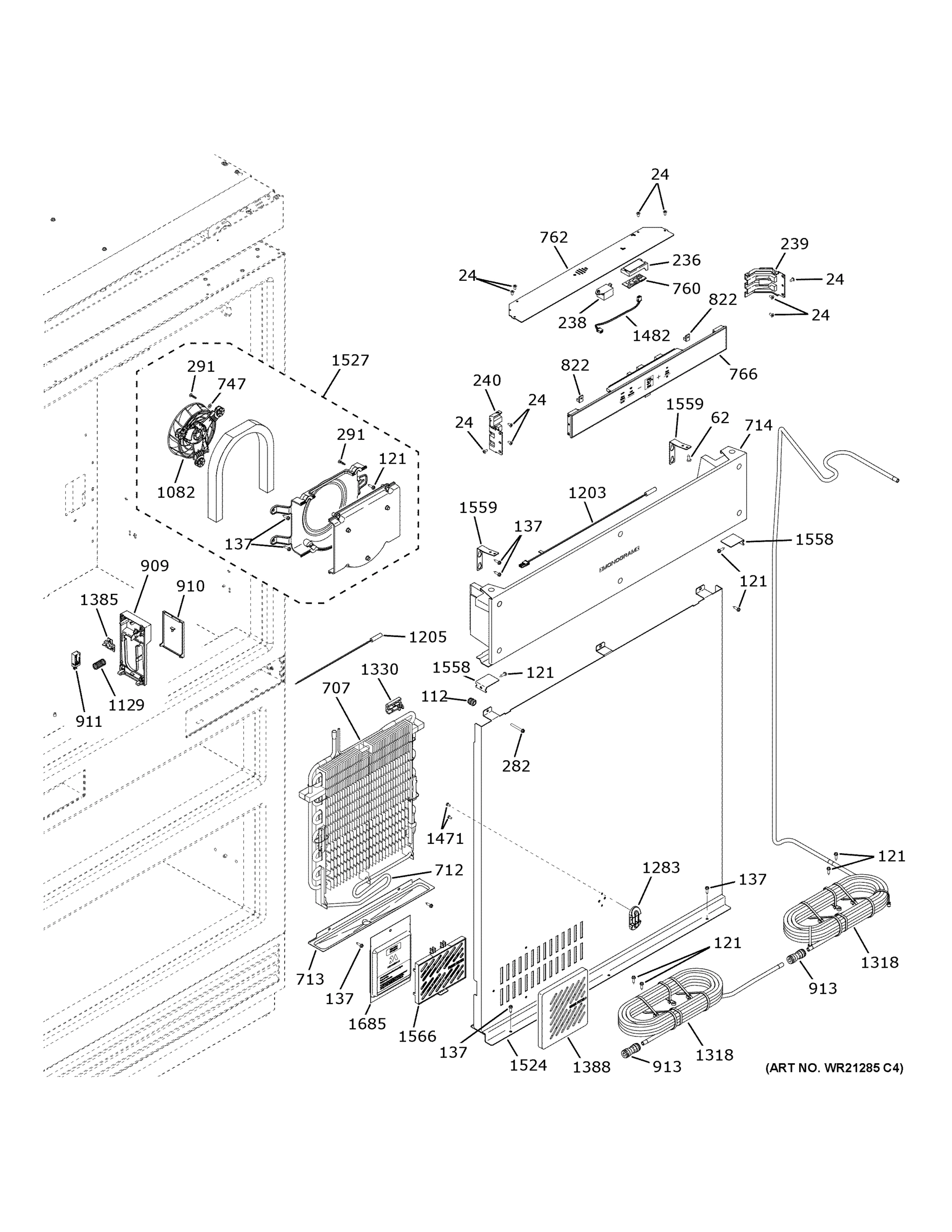

REFRIGERATOR SECTION

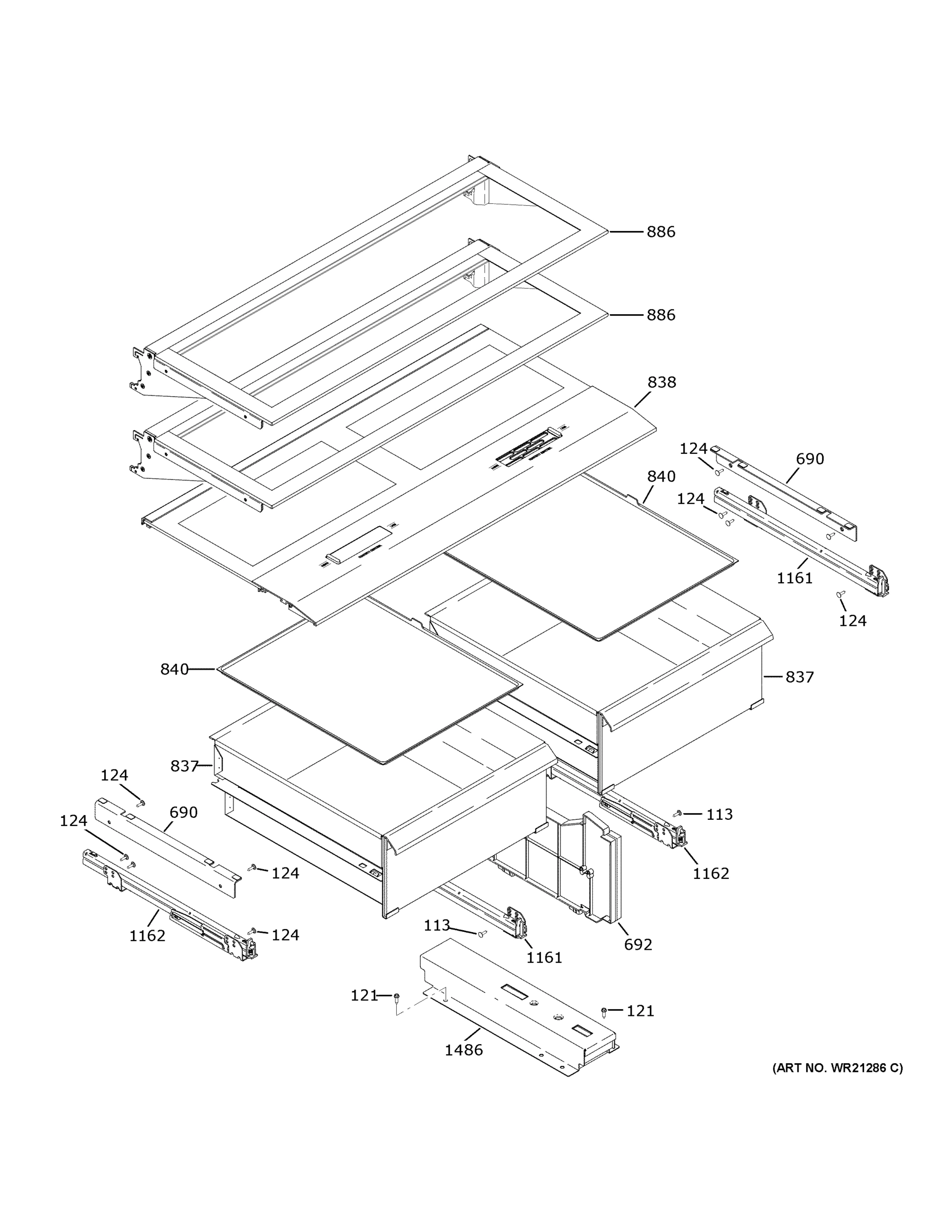

REFRIGERATOR SHELVES

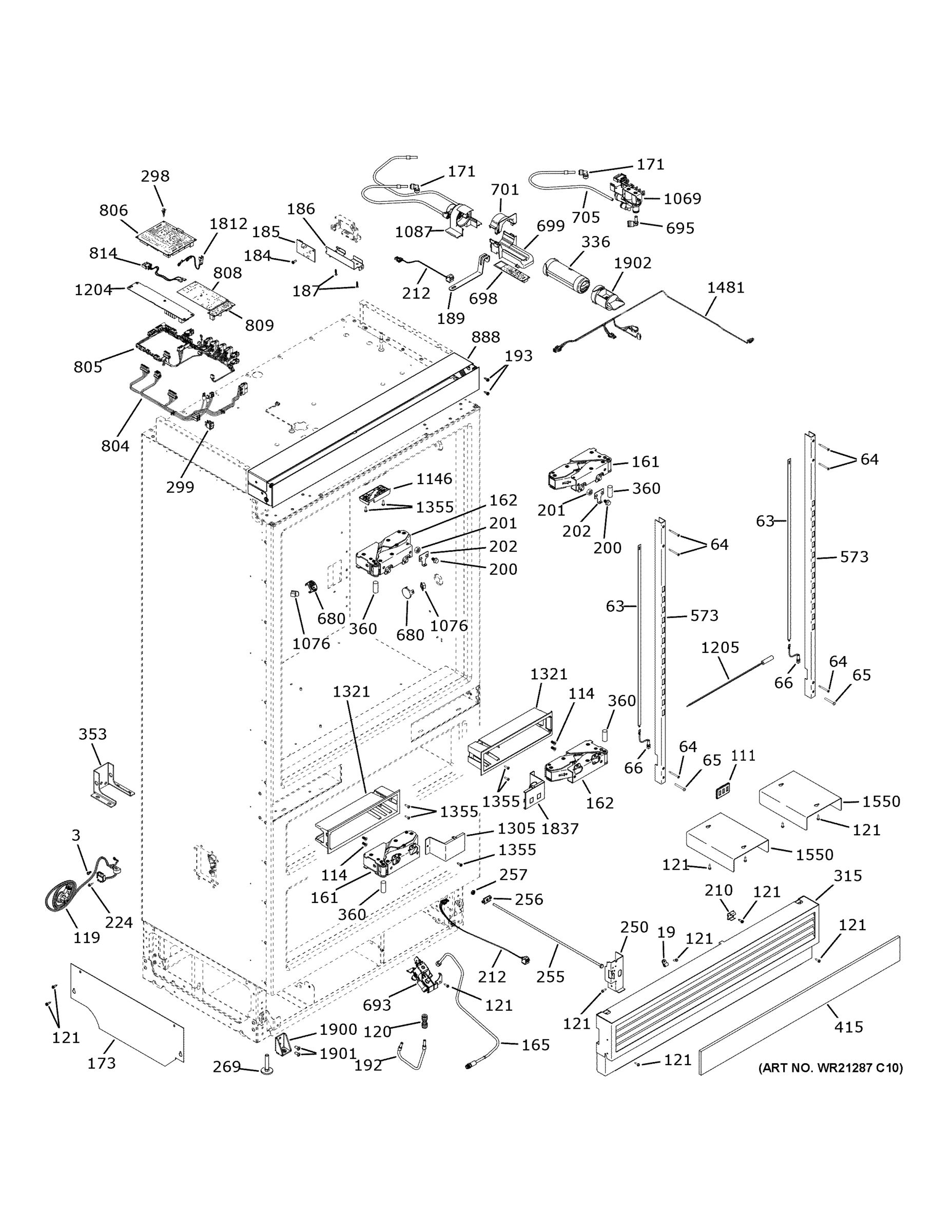

CASE PARTS

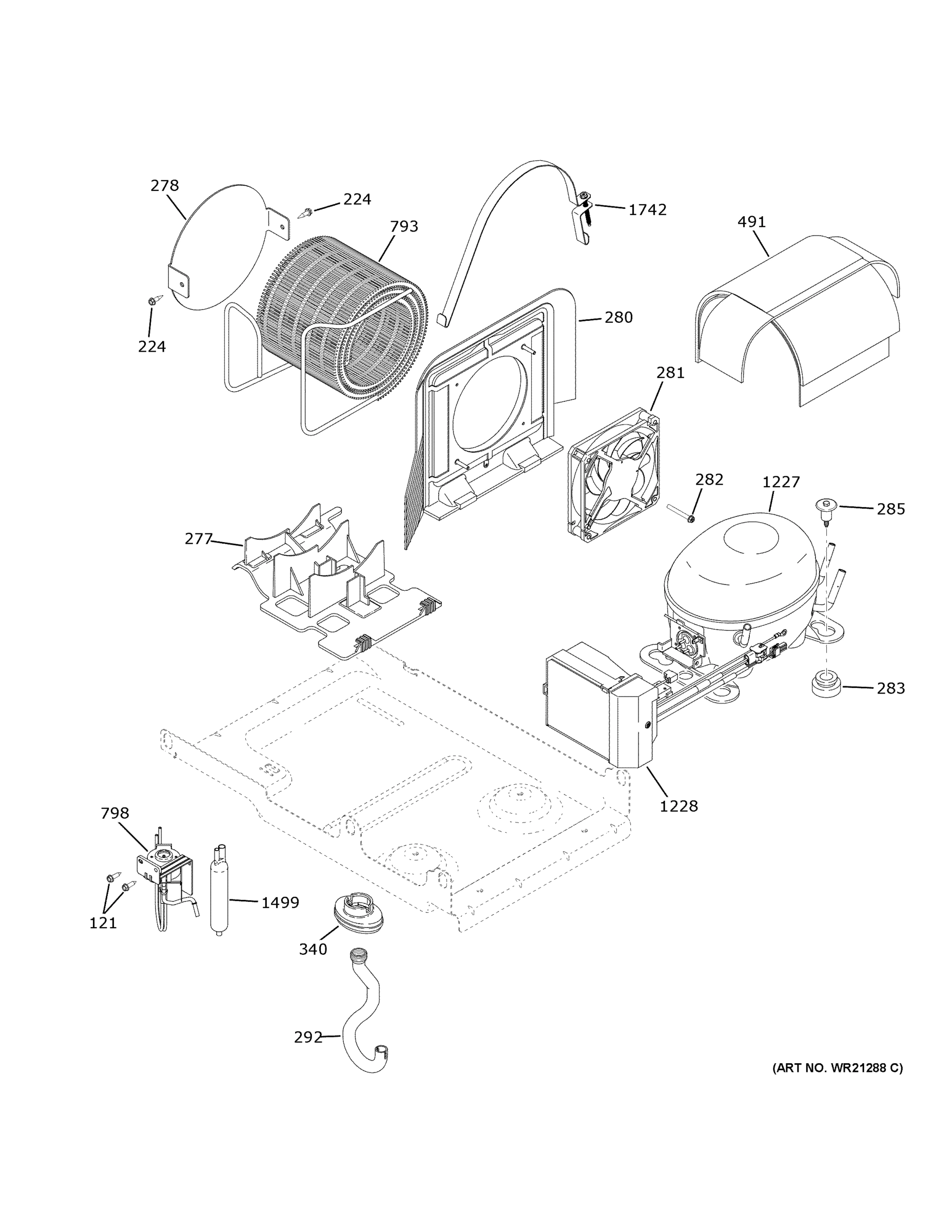

MACHINE COMPARTMENT

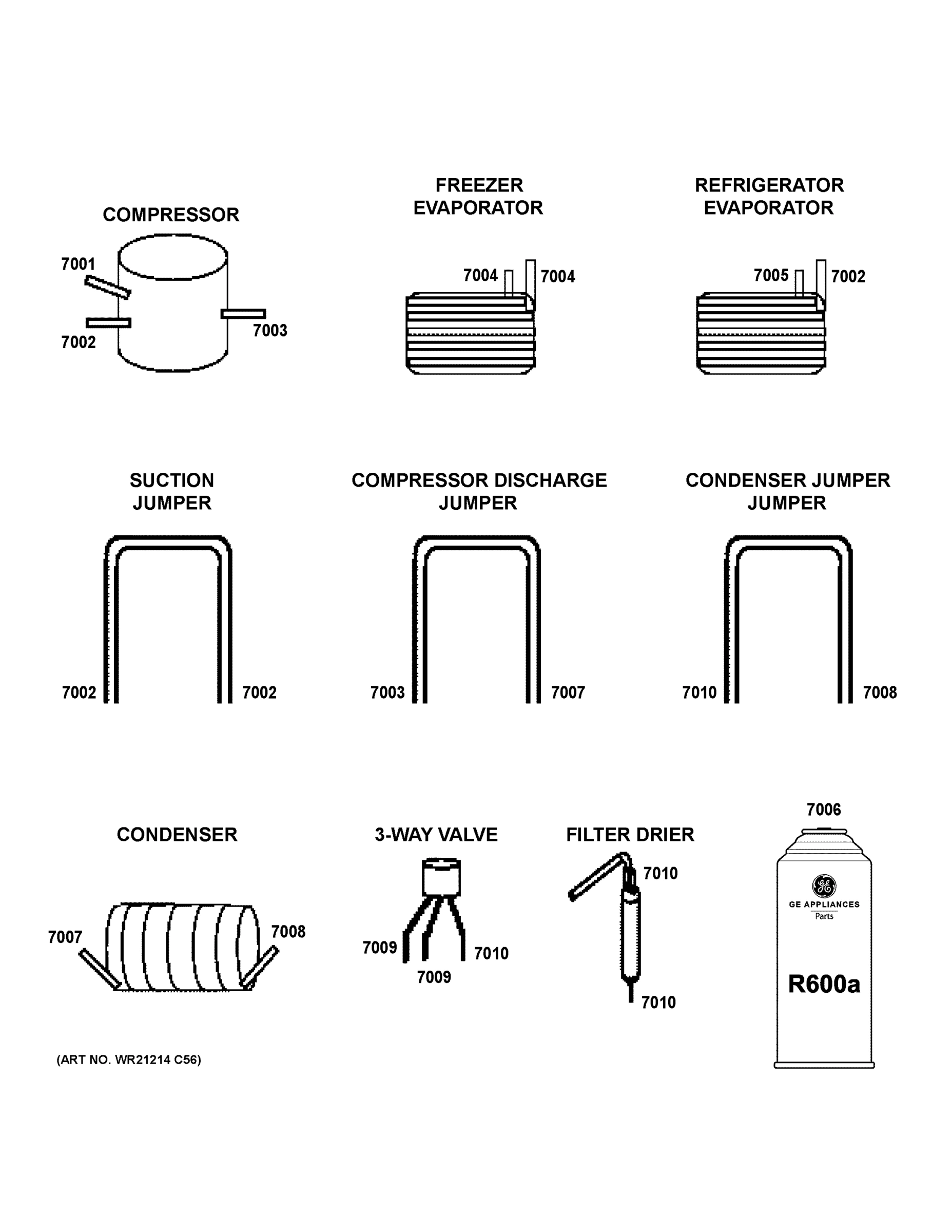

LOKRING CONNECTORS
Common parts from model GE ZIP364IPVBII Refrigerator
63
LIGHTING BUS BAR GEN WR55X28966 Contact Us For Availability
64
SCREW 10-24 TT FLT 1.60 S GEN WR02X29061 Contact Us For Availability
65
SCREW 10-24 TT TRT 1.50 S GEN WR01X44365 Contact Us For Availability
66
BUS BAR JUMPER HARNESS GEN WR55X33245 Contact Us For Availability
137
SCR 8-32 TTGX IHXW 5/8 S GEN WR01X45627 Contact Us For Availability
171
1/4" 90 DEGREE UNION GEN WR02X33286 Contact Us For Availability
173
LEFT SIDE ACCESS COVER GEN WR02X32849 Contact Us For Availability
186
HUMIDITY SENSOR BRACKET GEN WR02X32796 Contact Us For Availability
189
XWF FILTER REMOVAL TOOL GEN WR01X32861 Contact Us For Availability
192
FORMED WATER LINE GEN WR02X32776 Contact Us For Availability
198
EVAPORATOR THERMISTOR CLIP GEN WR02X32799 Contact Us For Availability
200
SCR 5/16-18 B IHXW 1/2 S GEN WR01X45645 Contact Us For Availability
201
NUT 5/16-18 THD GEN WR02X29060 Contact Us For Availability
202
BRACKET SLIDE GEN WR13X45605 Contact Us For Availability
210
FRONT ACCESS COVER CLIP GEN WR02X32779 Contact Us For Availability
212
RJ45 HARNESS GEN WR55X32815 Contact Us For Availability
239
USER INTERFACE RIGHT BRACKET GEN WR02X29046 Contact Us For Availability
240
USER INTERFACE LEFT BRACKET GEN WR02X29047 Contact Us For Availability
250
WATER VALVE BRACKET GEN WR02X32826 Contact Us For Availability
255
LEVELING SCREW GEN WR02X32747 Contact Us For Availability
257
NUT LOCK GEN WR01X45410 Contact Us For Availability
269
LEVELING LEG GEN WR02X39523 Contact Us For Availability
277
CONDENSER SUPPORT GEN WR02X32807 Contact Us For Availability
278
CONDENSER BAFFLE GEN WR02X32844 Contact Us For Availability
280
CONDENSER FAN HOUSING GEN WR02X32835 Contact Us For Availability
281
CONDENSER FAN GEN WR60X31633 Contact Us For Availability
282
SCREW 8-19 HI/LO PNP SS GEN WR01X31121 Contact Us For Availability
283
COMPRESSOR GROMMET GEN WR02X32859 Contact Us For Availability
285
COMPRESSOR MOUNTING BOLT GEN WR02X32757 Contact Us For Availability
291
HI-LO SCREW W/#6 HD GEN WR01X44007 Contact Us For Availability
292
DRAIN TUBE GEN WR02X39553 Contact Us For Availability
315
LOWERACCESSCOVER 36" GEN WR13X39526 Contact Us For Availability
340
DEFROST DRAIN VACUUM BREAK VALVE GEN WR01X39552 Contact Us For Availability
353
ANTI TIP BRACKET GEN WR02X32775 Contact Us For Availability
573
CANTILEVER SHELF TRACK GEN WR72X44008 Contact Us For Availability
680
LED LENS GEN WR02X43907 Contact Us For Availability
690
SIDE SUPPORT RAIL HUMIDITY CONTROL COVER GEN WR72X44009 Contact Us For Availability
692
CENTER SUPPORT HUMIDITY CONTROL COVER GEN WR72X44010 Contact Us For Availability
699
LEAK DETECT HOUSING GEN WR02X43908 Contact Us For Availability
701
LEAK DETECT COVER GEN WR02X43909 Contact Us For Availability
705
WATER LINE GEN WR02X44366 Contact Us For Availability
707
EVAPORATOR WITH BRACKETS GEN WR87X43910 Contact Us For Availability
713
REFRIGERATOR DRAIN PAN FF GEN WR17X43911 Contact Us For Availability
714
TOP AIRFLOW COVER - MONOGRAM GEN WR14X44307 Contact Us For Availability
734
EVAPORATOR GEN WR87X44011 Contact Us For Availability
743
DAMPER VENT MOTOR ASSEMBLY GEN WR60X44308 Contact Us For Availability
747
FLAT WASHER GEN WR01X44367 Contact Us For Availability
748
MOUNTING STRAP DAMPER FZ EVAP GEN WR02X44012 Contact Us For Availability
760
WIFI BOARD GEN WR55X47027 Contact Us For Availability
762
USER INTERFACE TOP COVER 36" GEN WR02X44013 Contact Us For Availability
766
GLASS TOUCH TEMPERATURE CONTROL BOARD GEN WR55X44326 Contact Us For Availability
793
CONDENSER GEN WR87X41606 Contact Us For Availability
804
MAIN AC HARNESS GEN WR55X43914 Contact Us For Availability
805
MAIN DC HARNESS GEN WR55X43915 Contact Us For Availability
809
LED DRIVE BOARD PCBA GEN WR55X43916 Contact Us For Availability
814
PERSONALITY HARNESS GEN WR55X43921 Contact Us For Availability
819
MAGNET ASSEMBLY REFRIGERATOR DOOR GEN WR02X44368 Contact Us For Availability
837
HUMIDITY CONTROL VEG PAN 36" GEN WR71X44015 Contact Us For Availability
840
VEG PAN MAT 36" GEN WR02X44046 Contact Us For Availability
886
LED GLASS SHELF 36" GEN WR71X43150 Contact Us For Availability
888
UPPER ACCESS COVER 36" GEN WR02X44051 Contact Us For Availability
909
INTERNAL DISPENSE COVER WITH PADDLE GEN WR74X44052 Contact Us For Availability
910
INTERNAL DISPENSE PADDLE COVER GEN WR13X44053 Contact Us For Availability
911
INTERNAL DISPENSE MICROSWITCH GEN WR09X44054 Contact Us For Availability
918
ICEMAKER MOUNTING BRACKET GEN WR02X43917 Contact Us For Availability
956
CONVERTIBLE DRAWER FRONT GEN WR78X44332 Contact Us For Availability
961
GASKET CONVERTIBLE DRAWER GEN WR14X44058 Contact Us For Availability
974
CONVERTIBLE DRAWER MAT GEN WR02X44059 Contact Us For Availability
1002
SLIDE CONVERTIBLE DRAWER - RIGHT GEN WR72X43924 Contact Us For Availability
1003
SLIDE CONVERTIBLE DRAWER - LEFT GEN WR72X43926 Contact Us For Availability
1006
FREEZER DRAWER FRONT GEN WR78X44333 Contact Us For Availability
1011
DOOR GASKET FREEZER GEN WR14X44060 Contact Us For Availability
1013
FREEZER DRAWER GEN WR71X44061 Contact Us For Availability
1019
FREEZER DRAWER DIVIDER GEN WR71X44062 Contact Us For Availability
1021
SLIDE FREEZER DRAWER - RIGHT GEN WR72X43927 Contact Us For Availability
1022
SLIDE FREEZER DRAWER - LEFT GEN WR72X43928 Contact Us For Availability
1068
DEFLECTOR ICE GEN WR01X45345 Contact Us For Availability
1076
PCB ASM POINT LED LIGHT GEN WR01X45905 Contact Us For Availability
1082
FAN MOTOR-BLADE ASSEMBLY GEN WR60X43929 Contact Us For Availability
1083
FAN HOUSING GEN WR02X43930 Contact Us For Availability
1087
XWF FILTER MANIFOLD ASSEMBLY GEN WR02X43931 Contact Us For Availability
1125
CONVERTIBLE DRAWER METAL BASKET W/ DIVID GEN WR71X44335 Contact Us For Availability
1128
FILL TUBE GEN WR02X44065 Contact Us For Availability
1134
ICEMAKER CONNECTOR COVER GEN WR02X43933 Contact Us For Availability
1146
STRIKER PLATE GEN WR02X44066 Contact Us For Availability
1161
HUMIDITY CONTROL PAN SLIDE - RIGHT GEN WR72X43934 Contact Us For Availability
1162
HUMIDITY CONTROL PAN SLIDE - LEFT GEN WR72X43935 Contact Us For Availability
1171
RH DOOR PANEL BRACKET SINGLE DOOR GEN WR02X44374 Contact Us For Availability
1172
LH DOOR PANEL BRACKET SINGLE DOOR GEN WR02X44375 Contact Us For Availability
1173
RH DOOR PANEL BRACKET SINGLE & FRENCH DO GEN WR02X44376 Contact Us For Availability
1174
LH DOOR PANEL BRACKET SINGLE & FRENCH DO GEN WR02X44377 Contact Us For Availability
1175
RH DOOR PANEL BRACKET CAF DOOR GEN WR02X44378 Contact Us For Availability
1176
LH DOOR PANEL BRACKET CAF DOOR GEN WR02X44379 Contact Us For Availability
1178
LH DOOR PANEL BRACKET FRENCH DOOR GEN WR02X44381 Contact Us For Availability
1203
THERMISTOR GEN WR55X43936 Contact Us For Availability
1227
COMPRESSOR SERVICE KIT - JIAXIPERA GEN WR87X44005 Contact Us For Availability
1245
ICE BUCKET GEN WR30X44070 Contact Us For Availability
1248
DRAWER DIVIDER GEN WR02X44383 Contact Us For Availability
1283
CENTER SUPPORT LOCATOR GEN WR02X43944 Contact Us For Availability
1305
POCKET HINGE COVER GEN WR02X44073 Contact Us For Availability
1318
WATER TUBE COILED - RIGHT GEN WR02X44546 Contact Us For Availability
1320
DIVIDER DRAWER REAR RETAINER GEN WR02X44075 Contact Us For Availability
1321
POCKET HINGE HOUSING GEN WR02X44076 Contact Us For Availability
1330
THERMISTOR CLIP GEN WR02X44077 Contact Us For Availability
1333
LOWER HINGE BRACKET GEN WR02X44079 Contact Us For Availability
1338
DAMPER GASKET GEN WR02X44548 Contact Us For Availability
1385
DISPENSER TUBE CLIP GEN WR02X43948 Contact Us For Availability
1388
ODOR COVER FILTER GEN WR02X43949 Contact Us For Availability
1471
SCR 6-19 TT PNT15 1/4 S GEN WB01X40547 Contact Us For Availability
1481
HUMIDITY SENSOR JUMPER GEN WR55X44086 Contact Us For Availability
1482
HMI JUMPER GEN WR55X44087 Contact Us For Availability
1486
CENTER SUPPORT HUMIDITY CONTROL GEN WR72X44386 Contact Us For Availability
1514
TAPPING SCREW GEN WR01X44088 Contact Us For Availability
1524
REFRIGERATOR EVAPORATOR COVER WITH AIR F GEN WR13X44339 Contact Us For Availability
1527
FAN HOUSING GEN WR60X44387 Contact Us For Availability
1550
U BRACKET GEN WR02X44390 Contact Us For Availability
1558
AIR HANDLER SIDE MOUNTING BRACKET GEN WR02X44342 Contact Us For Availability
1559
AIR HANDLER MOUNTING BRACKET GEN WR02X44089 Contact Us For Availability
1566
FRESH FILTER CARTRIDGE ASSEMBLY GEN WR02X44345 Contact Us For Availability
1584
DOOR BUMPER GEN WR02X44346 Contact Us For Availability
1587
SCREW M5X.8 FLT25 0.63 SZN GEN WR01X44347 Contact Us For Availability
1685
ODOR FILTER ASSEMBLY PACK GEN WR02X44306 Contact Us For Availability
1701
THERMISTOR SERVICE KIT GEN WR01X45485 Contact Us For Availability
1719
SRV PAN DRAIN FZ GEN WR01X45525 Contact Us For Availability
1742
CONDENSER STRAP GEN WR02X42426 Contact Us For Availability
1795
ICEMAKER GEN WR30X44966 Contact Us For Availability
1796
SPACER ICE BUCKET GEN WR01X45346 Contact Us For Availability
1806
FEELER ARM IM GEN WR01X45628 Contact Us For Availability
1812
JUMPER DOOR HEATER GEN WR55X45165 Contact Us For Availability
1835
STRIKER HOUSING WITH PINS GEN WR02X44057 Contact Us For Availability
1837
STRIKER PLATE ASSEMBLY GEN WR02X44385 Contact Us For Availability
1900
LEVELER BRACKET GEN WR02X32831 Contact Us For Availability
1901
BRACKET LEVELER SCREW GEN WR55X47425 Contact Us For Availability
× ![]()
