Model GE ZGP304LR2SS Gas Range Or Dual Fuel – Common Parts & Diagrams

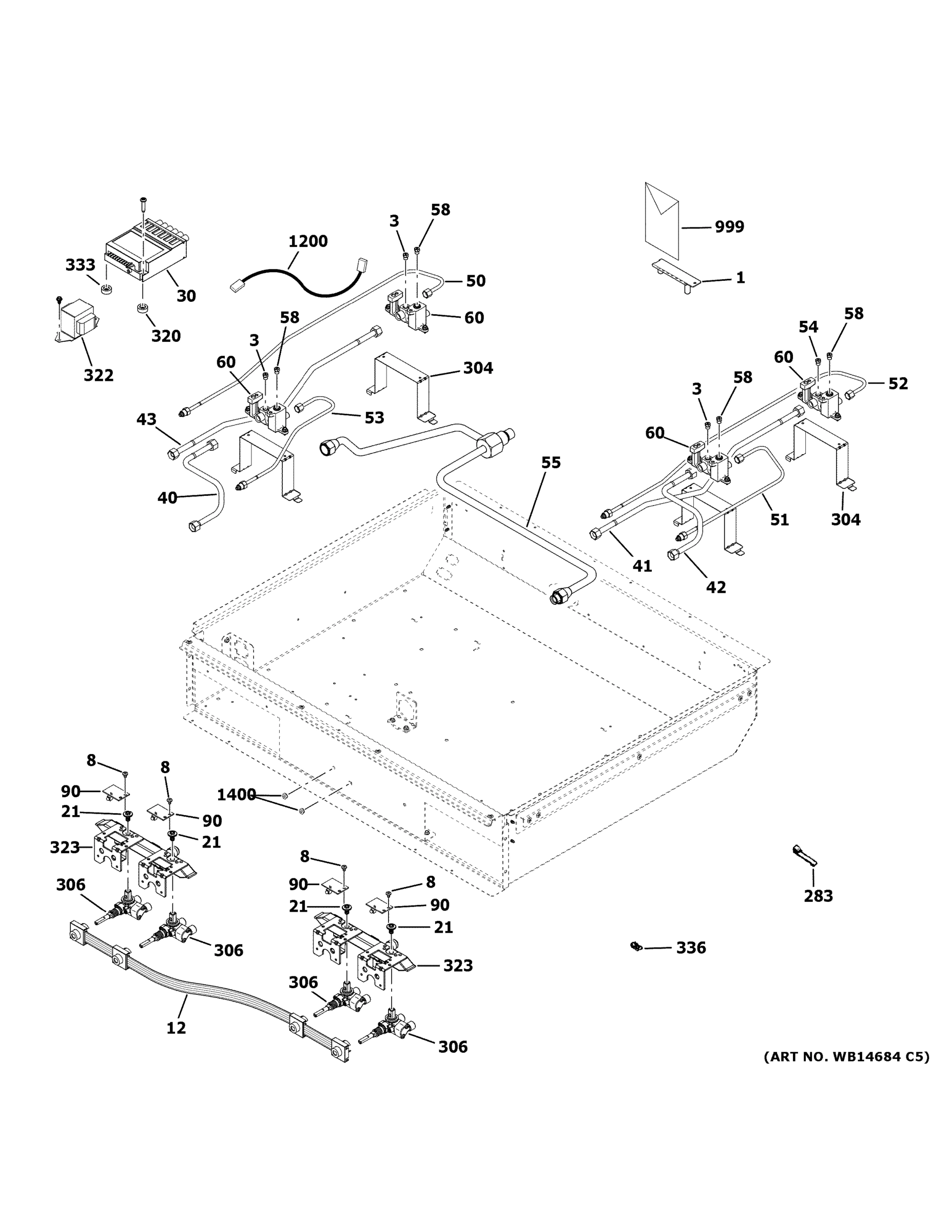

GAS & BURNER PARTS

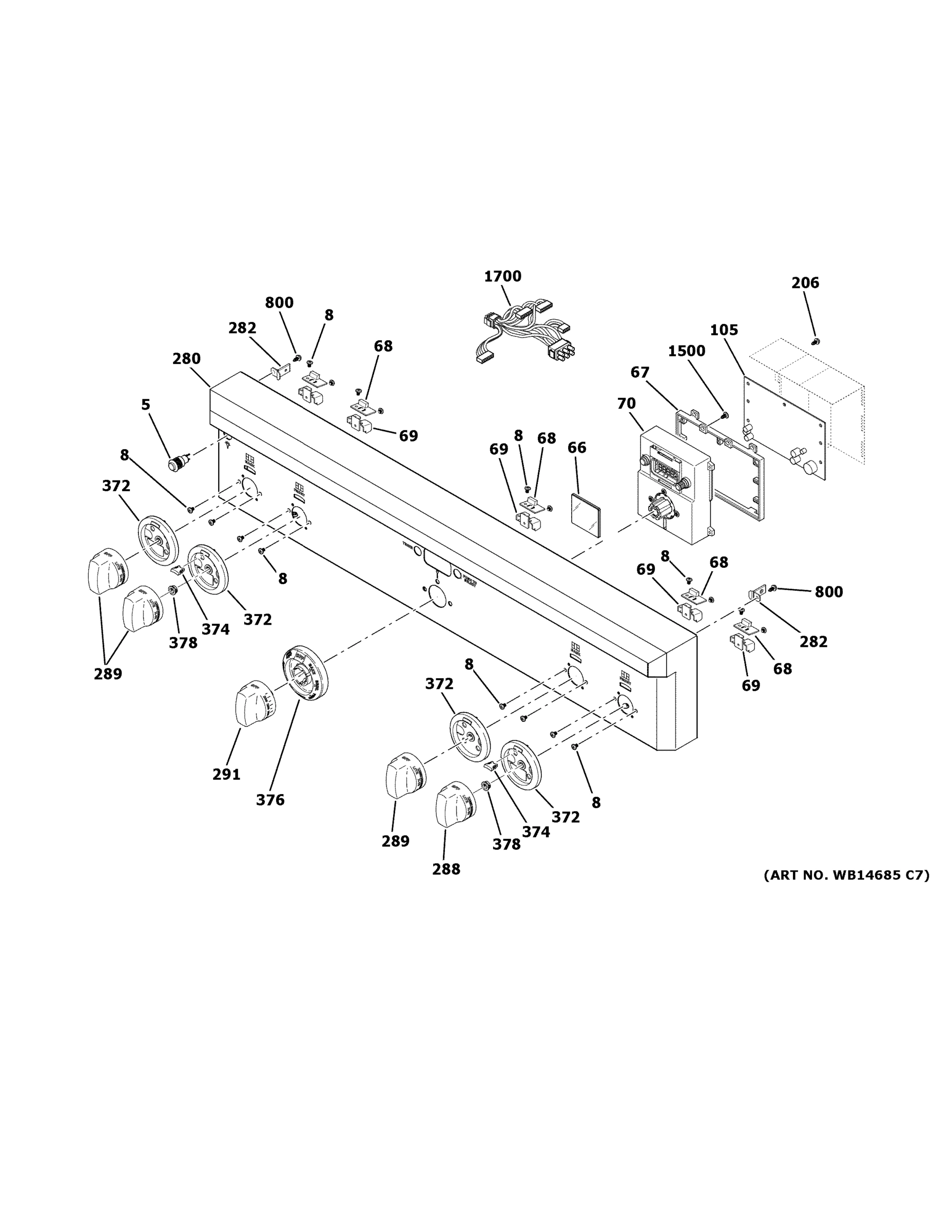

CONTROL PANEL
COOKTOP
BODY PARTS
OVEN CAVITY PARTS
DOOR ASSEMBLY
DOOR LOCK
CONVECTION FAN
Common parts from model GE ZGP304LR2SS Gas Range Or Dual Fuel
3
ORIFICE SPUD LP MAIN GEN WB28T10158 Contact Us For Availability
5
SWITCH-LED ASM GEN WB24X26719 Contact Us For Availability
8
SCREW 8-32 GEN WB01K10002 Contact Us For Availability
10
SCREW 8-32 MCH PNT15 GEN WB01T10104 Contact Us For Availability
12
HARNESS BURNER BOX GEN WB24K10083 Contact Us For Availability
20
SCREW SIMMER MAIN HD GEN WB01T10092 Contact Us For Availability
21
SCR 8 HD 1/4 - 20 GEN WB01K10067 Contact Us For Availability
23
MOTOR PSC CONV GEN WB26T10037 Contact Us For Availability
41
TUBE AND NUT ASM GEN WB28K10493 Contact Us For Availability
43
TUBE AND NUT ASM GEN WB28K10495 Contact Us For Availability
52
TUBE AND NUT ASM GEN WB28K10498 Contact Us For Availability
54
ORIFICE SPUD LP MAIN GEN WB28T10117 Contact Us For Availability
58
ORIFICE SPUD LP MAIN GEN WB28T10118 Contact Us For Availability
60
INJET BURNER 18K GEN WB28T10114 Contact Us For Availability
68
LED BOARD GEN WB25K10014 Contact Us For Availability
70
ENCODER ASM GEN WB24K10081 Contact Us For Availability
80
LED POWER SUPPLY GEN WB25K10013 Contact Us For Availability
90
LED ASM GEN WB25K10012 Contact Us For Availability
101
CAP END EXTENSION GEN WB02K10219 Contact Us For Availability
105
MAIN DISPLAY BOARD GEN WB27K10365 Contact Us For Availability
114
FT INSUL DOOR BTM GEN WB35K10140 Contact Us For Availability
115
GUARD INSULATION GEN WB55K10063 Contact Us For Availability
118
PAD DOOR GEN WB04K10028 Contact Us For Availability
119
HEAT DEFLECTOR GEN WB02K10243 Contact Us For Availability
124
RR INSUL DOOR SIDE GEN WB35K10132 Contact Us For Availability
125
BAR HANDLE GEN WB15K10092 Contact Us For Availability
126
RR INSUL DOOR TOP GEN WB35K10141 Contact Us For Availability
127
RR INSUL DOOR BTM GEN WB35K10187 Contact Us For Availability
128
CAP END GEN WR02X12344 Contact Us For Availability
132
MONOGRAM BADGE GEN WB02K10295 Contact Us For Availability
133
HINGE DOOR RT(30) GEN WB10K10019 Contact Us For Availability
133
HINGE DOOR LT(30) GEN WB10K10020 Contact Us For Availability
134
GLASS DOOR GEN WB57K10140 Contact Us For Availability
135
CLIP WINDOW GEN WB02K10222 Contact Us For Availability
145
IGNITER GLOWBAR GEN WB13K10030 Contact Us For Availability
153
HEAD BURNER ASM 12K GEN WB16T10042 Contact Us For Availability
158
RACK BROILER PAN GEN WB49K10017 Contact Us For Availability
160
RACK CONVECTION ROAST GEN WB48K10020 Contact Us For Availability
166
LAMP HALOGEN ASM GEN WB08K10016 Contact Us For Availability
170
COVER FAN 27" GEN WB02K10199 Contact Us For Availability
195
RELAY BOARD ASM GEN WB19K10063 Contact Us For Availability
201
PAN BROILER GEN WB49K10018 Contact Us For Availability
206
SCREW GEN WB01K10091 Contact Us For Availability
209
SWITCH HIGH LIMIT GEN WB24T10155 Contact Us For Availability
215
GASKET DOOR GEN WB02K10241 Contact Us For Availability
225
TRIM VENT ASM GEN WB07K10451 Contact Us For Availability
230
BRACKET ANTI TIP GEN WB02K10237 Contact Us For Availability
231
BRACE ANTI TIP GEN WB02K10224 Contact Us For Availability
242
SENSOR ASM GEN WB21T10019 Contact Us For Availability
244
BLOWER TANGENTIAL 45MM GEN WB26K10012 Contact Us For Availability
259
CRYSTAL LAMP GEN WB25T10063 Contact Us For Availability
272
SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability
277
RECEIVER HINGE GEN WB10T10083 Contact Us For Availability
291
KNOB ASM OVEN TMST GEN WB03K10259 Contact Us For Availability
322
TRANSFORMER GEN WB27K10298 Contact Us For Availability
333
SPACER-HANDLE GEN WB01K10020 Contact Us For Availability
333
REGULATOR GEN WB21K10135 Contact Us For Availability
344
SAFETY VALVE ASM GEN WB21K10153 Contact Us For Availability
350
BRACKET LATCH GEN WB02K10273 Contact Us For Availability
351
LATCH OVN GEN WB02K10206 Contact Us For Availability
355
SCREW 832 1/8 GEN WB01K10029 Contact Us For Availability
359
CAP BURNER GEN WB29T10131 Contact Us For Availability
374
LENS BEZEL GEN WB02K10216 Contact Us For Availability
376
BEZEL OVEN ASM GEN WB03K10307 Contact Us For Availability
403
HUB BLADE ASM GEN WB02T10289 Contact Us For Availability
404
NUT GEN WB02T10017 Contact Us For Availability
406
BRACKET CONVX MTR MTG GEN WB02T10293 Contact Us For Availability
407
INSULATION GEN WB35K10128 Contact Us For Availability
410
PLATE CONVECTION GEN WB02T10310 Contact Us For Availability
450
ELECTRODE TOP GEN WB13T10065 Contact Us For Availability
460
BASE BURNER GEN WB16T10044 Contact Us For Availability
461
BASE BURNER 18K-SIMMER GEN WB16T10047 Contact Us For Availability
470
SPRING IGNITER GEN WB09T10011 Contact Us For Availability
480
WASHER IGNITER GEN WB02T10323 Contact Us For Availability
578
CAPACITOR MOTOR GEN WB27T10662 Contact Us For Availability
730
PROBE THERMISTOR GEN WB20K10030 Contact Us For Availability
731
PROBE RECEPTACLE GEN WB20K10032 Contact Us For Availability
784
LINE CORD GEN WB18K10070 Contact Us For Availability
800
SCR 8-18 AB IHW 3/8 SN GEN WB01K10042 Contact Us For Availability
802
VALVE LOCKOUT MOTORIZED GEN WB21K10154 Contact Us For Availability
806
OVEN BOTTOM GEN WB35K10196 Contact Us For Availability
999
CLEANER-SS GEN WB02T10111 Contact Us For Availability
1100
SCR 10-16 AB PNT20 1/2 S GEN WR01X10590 Contact Us For Availability
1300
SCR 1/4-20 TT HXWS 3/4 S GEN WB01K10088 Contact Us For Availability
1400
REED SWITCH PCB GEN WB27K10367 Contact Us For Availability
1500
SCR 8-18 AB TRP 3/8 SS GEN WB01K10086 Contact Us For Availability
1600
ROD EXTENSION GEN WB02K10392 Contact Us For Availability
1700
HARNESS SERIAL DUAL GEN WB24K10063 Contact Us For Availability
× ![]()
