Model GE ZDP484NGP4SS – Common Parts & Diagrams
BODY PARTS
CONTROL PANEL

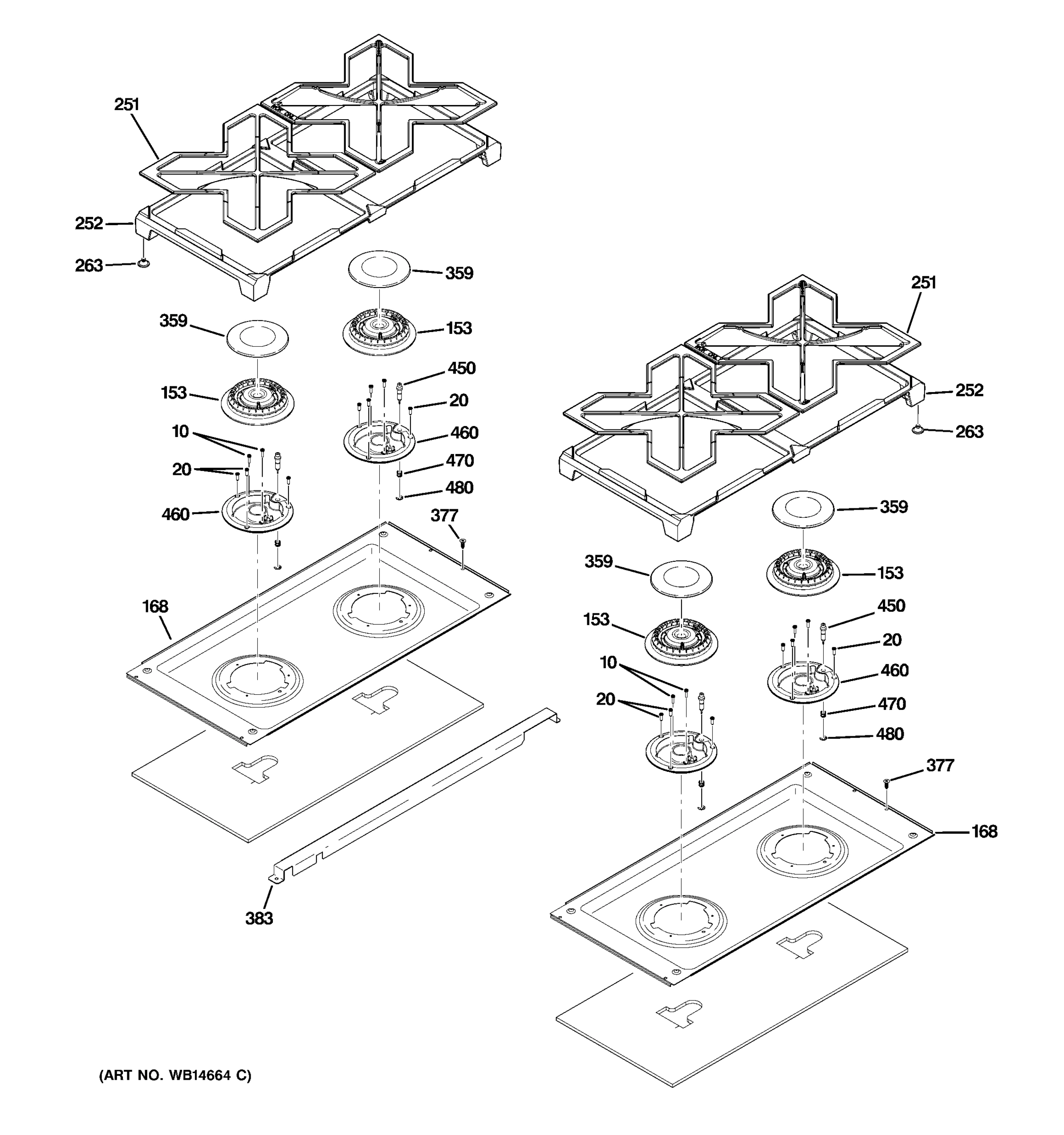

COOKTOP

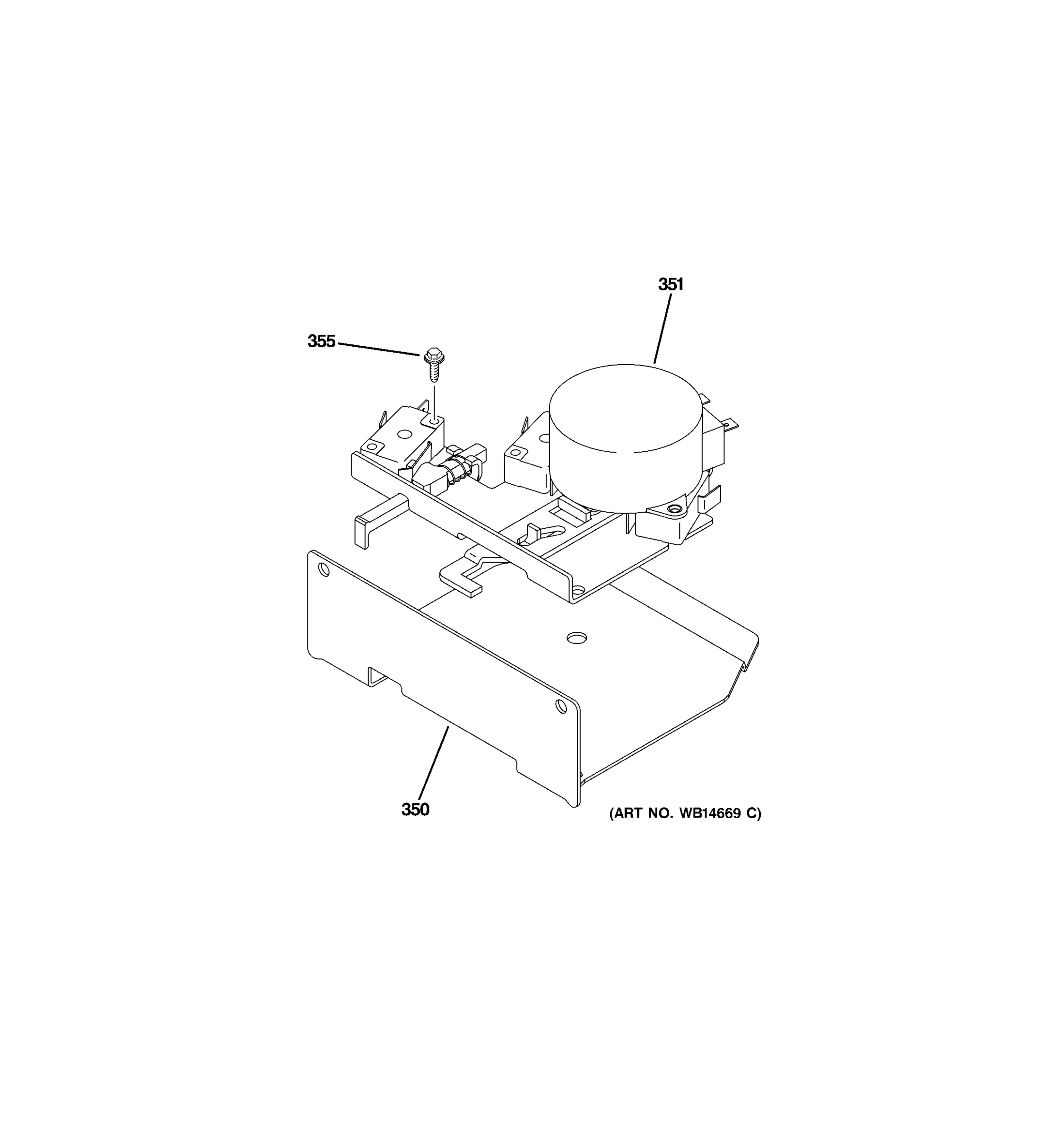

DOOR LOCK

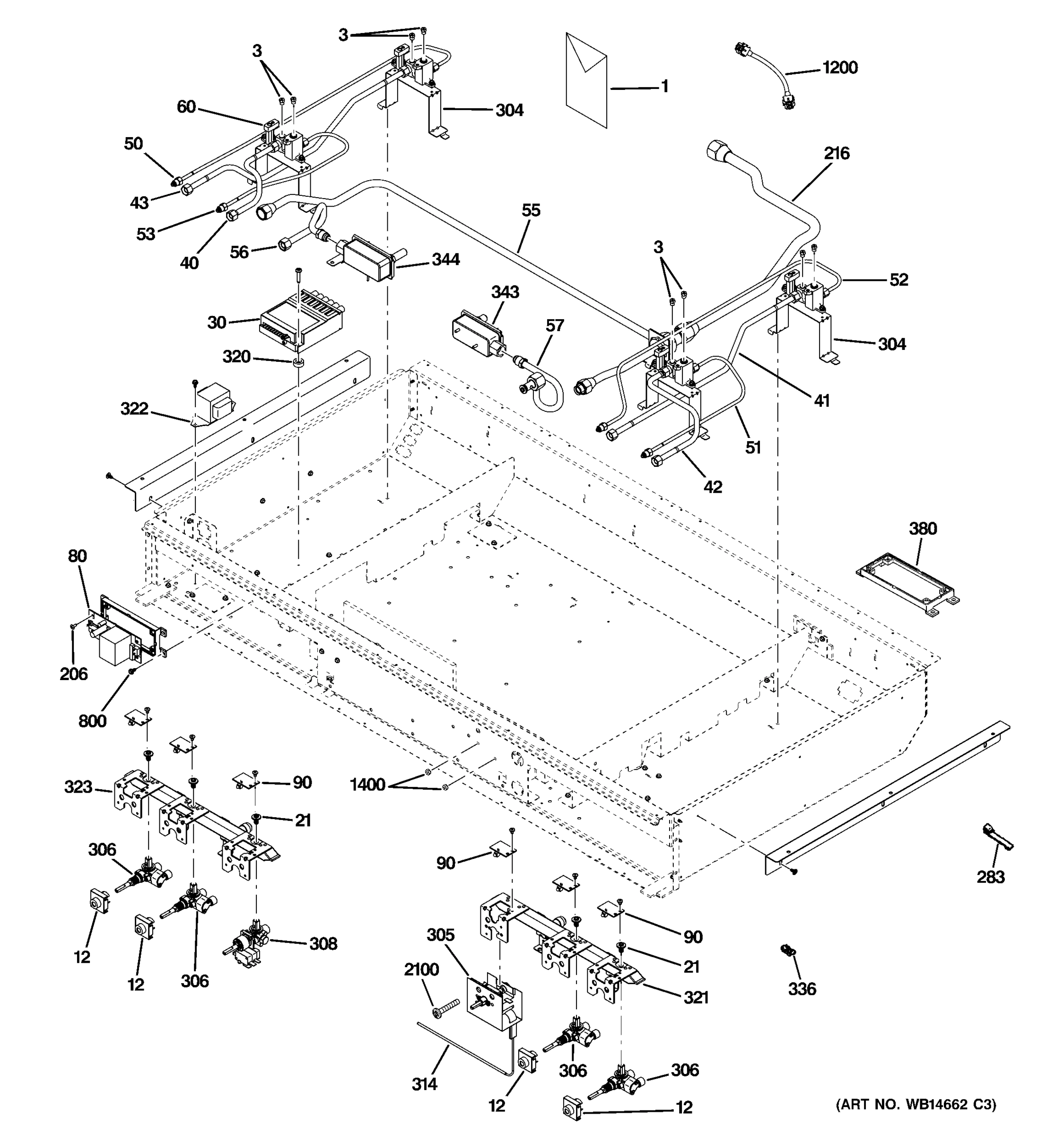

GAS & BURNER PARTS

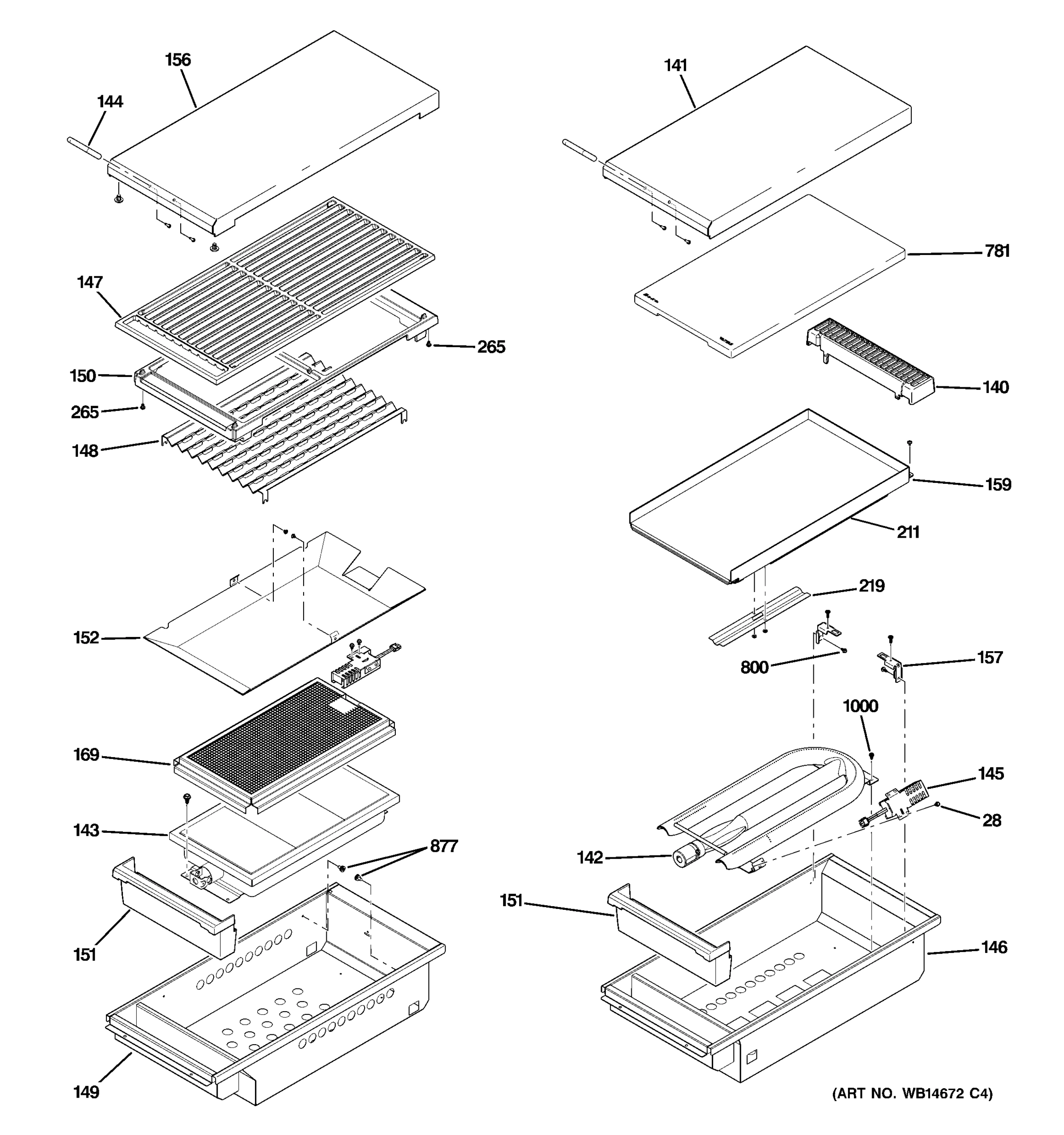

GRILL & GRIDDLE ASSEMBLY

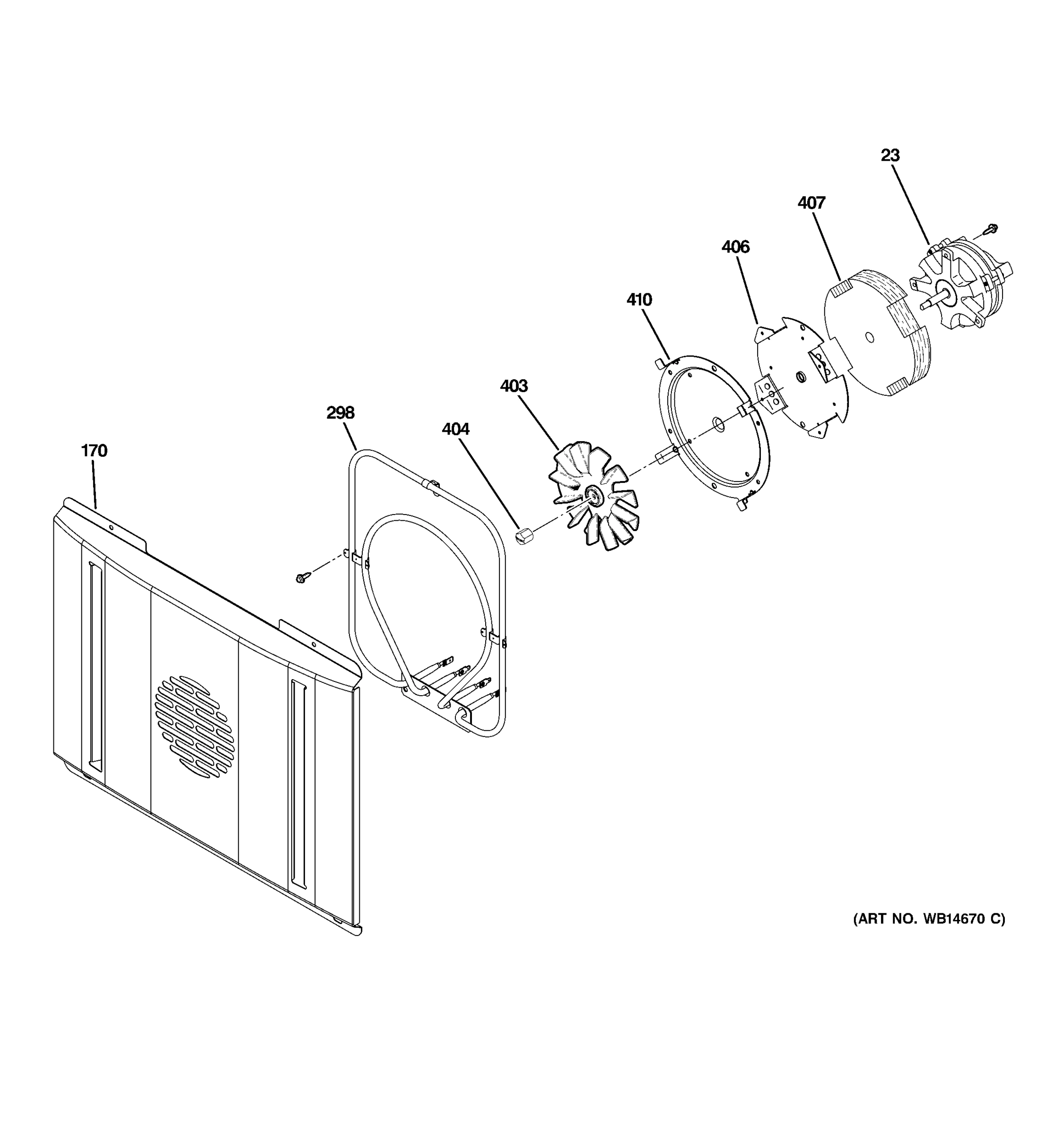

LARGE CONVECTION FAN

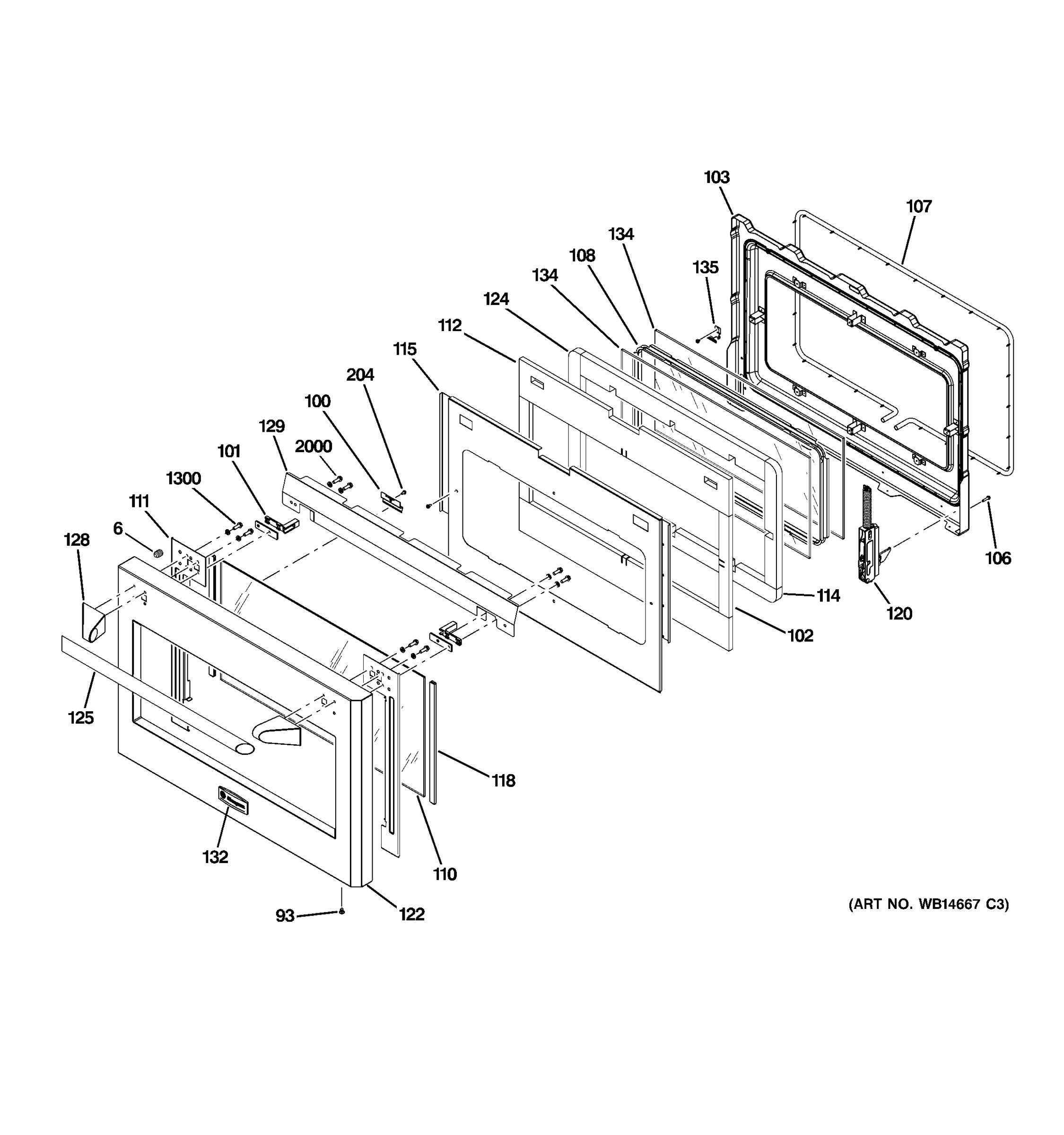

LARGE DOOR ASSEMBLY

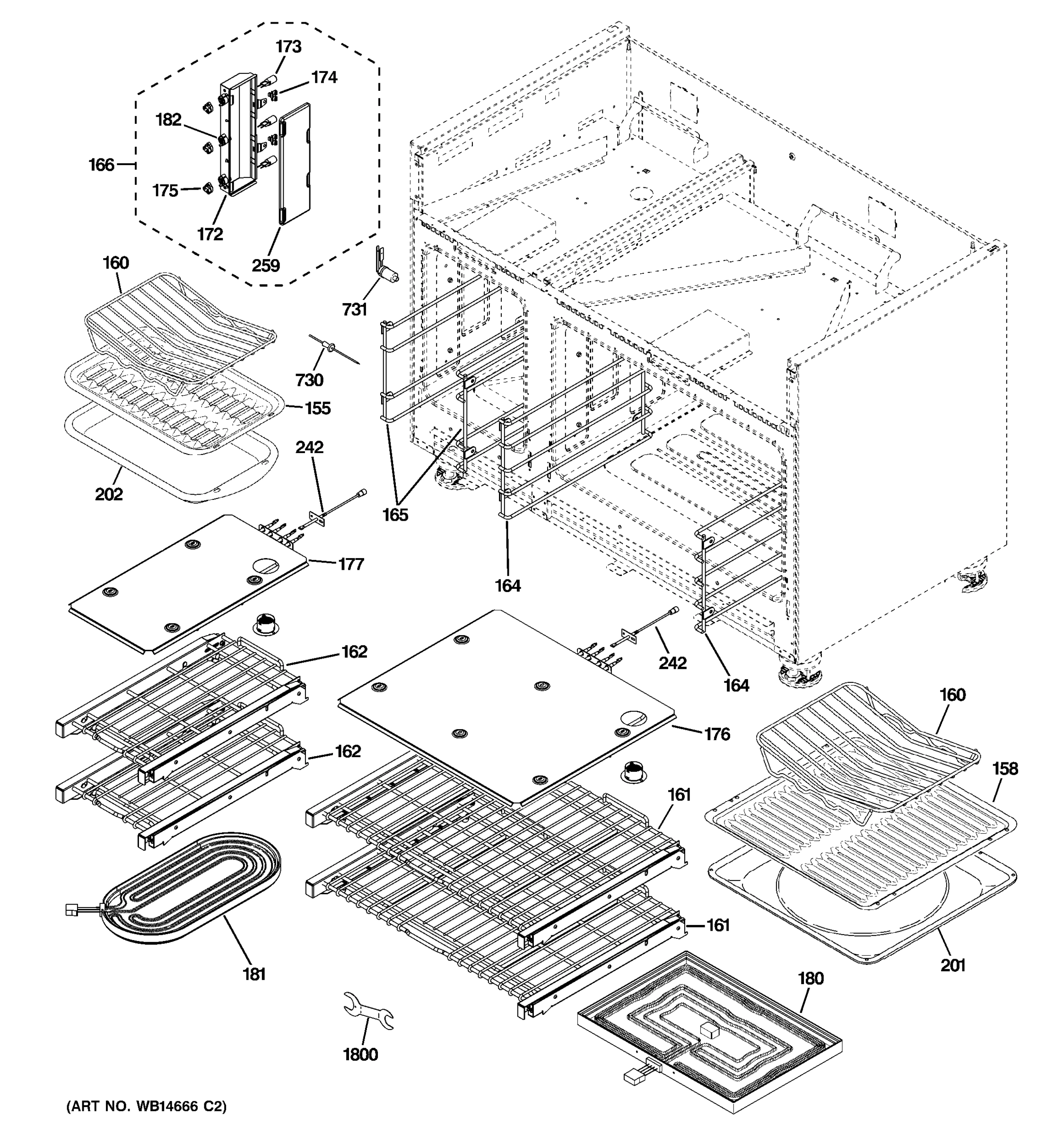

OVEN CAVITY PARTS

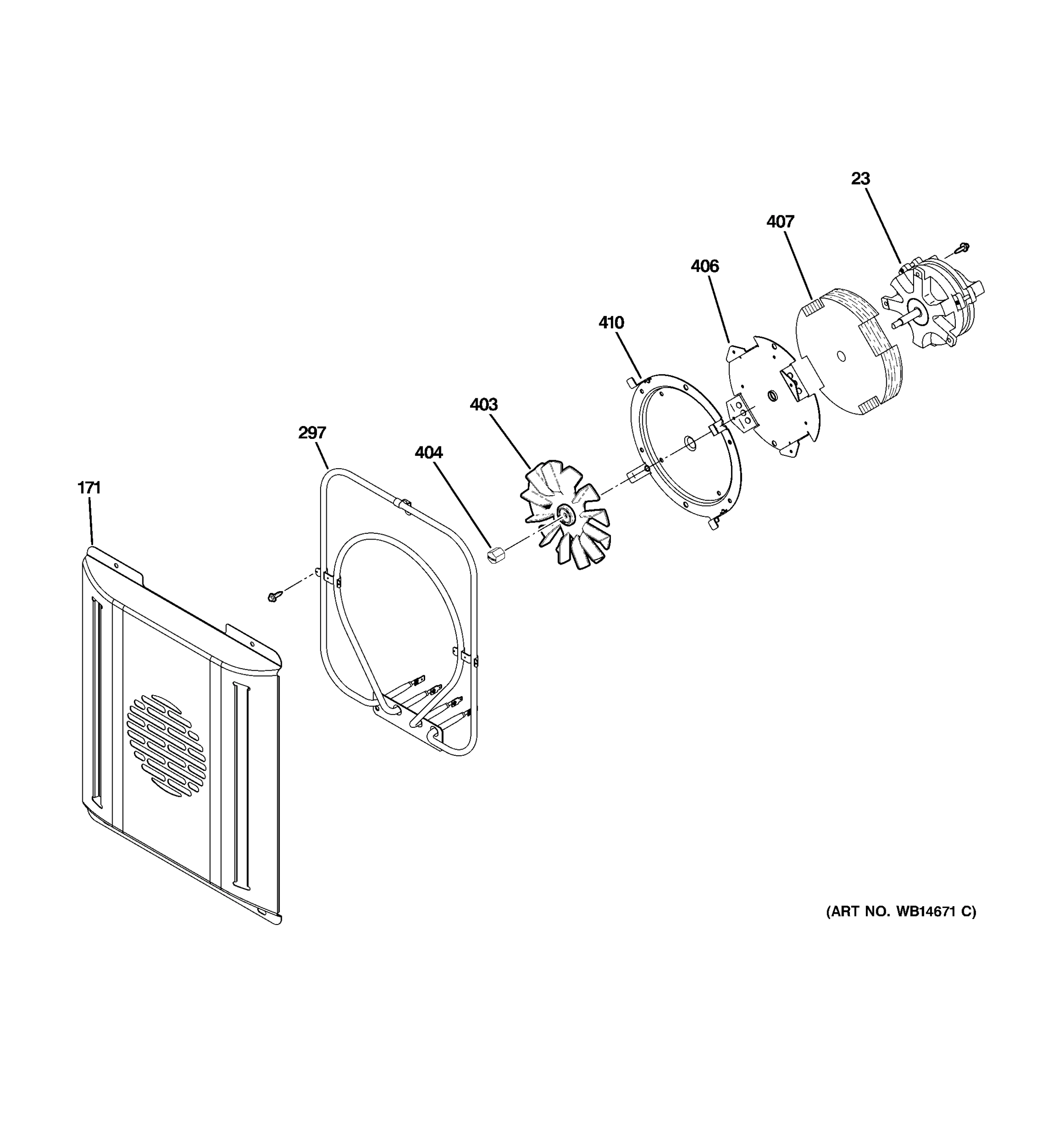

SMALL CONVECTION FAN

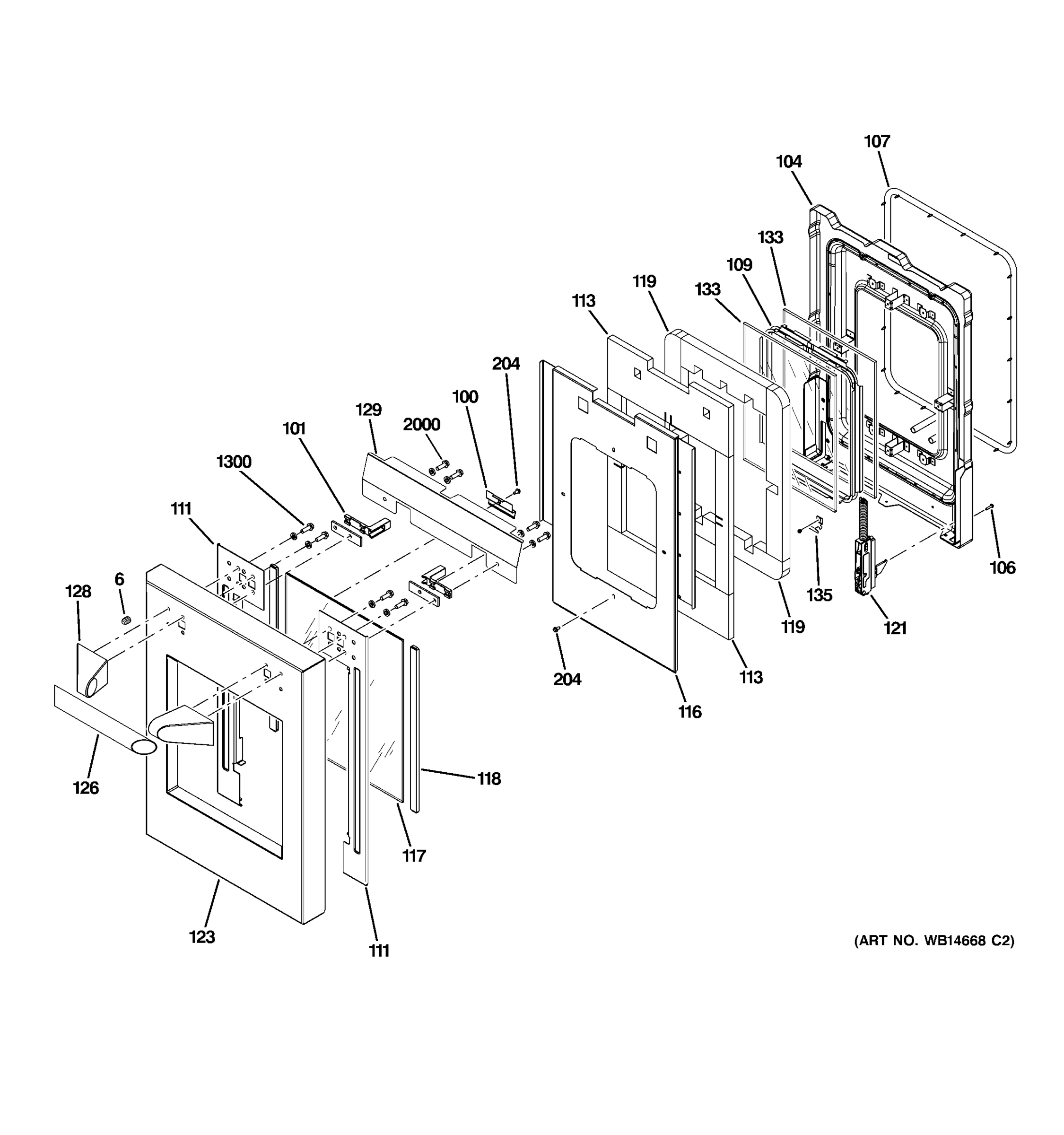

SMALL DOOR ASSEMBLY
Common parts from model GE ZDP484NGP4SS
1
GEN WB02T10303 GEN WB02T10303 Contact Us For Availability
1
GEN WB28K10538 GEN WB28K10538 Contact Us For Availability
3
GEN WB28T10159 GEN WB28T10159 Contact Us For Availability
3
ORIFICE SPUD(NG MAIN) GEN WB28T10155 Contact Us For Availability
3
GEN WB28K10530 GEN WB28K10530 Contact Us For Availability
3
GEN WB28K10529 GEN WB28K10529 Contact Us For Availability
10
GEN WB01T10104 GEN WB01T10104 Contact Us For Availability
20
GEN WB01T10092 GEN WB01T10092 Contact Us For Availability
21
GEN WB01K10067 GEN WB01K10067 Contact Us For Availability
23
GEN WB26T10037 GEN WB26T10037 Contact Us For Availability
41
GEN WB28K10493 GEN WB28K10493 Contact Us For Availability
43
GEN WB28K10495 GEN WB28K10495 Contact Us For Availability
52
GEN WB28K10498 GEN WB28K10498 Contact Us For Availability
68
GEN WB25K10014 GEN WB25K10014 Contact Us For Availability
70
GEN WB24K10048 GEN WB24K10048 Contact Us For Availability
80
GEN WB25K10013 GEN WB25K10013 Contact Us For Availability
90
GEN WB25K10012 GEN WB25K10012 Contact Us For Availability
100
GEN WB02K10218 GEN WB02K10218 Contact Us For Availability
101
GEN WB02K10219 GEN WB02K10219 Contact Us For Availability
103
GEN WB55K10061 GEN WB55K10061 Contact Us For Availability
104
GEN WB55K10060 GEN WB55K10060 Contact Us For Availability
105
GEN WB27K10316 GEN WB27K10316 Contact Us For Availability
106
GEN WB01K10089 GEN WB01K10089 Contact Us For Availability
107
GEN WB02K10221 GEN WB02K10221 Contact Us For Availability
107
GEN WB02K10220 GEN WB02K10220 Contact Us For Availability
109
GEN WB34K10110 GEN WB34K10110 Contact Us For Availability
111
GEN WB07K10379 GEN WB07K10379 Contact Us For Availability
111
GEN WB07K10380 GEN WB07K10380 Contact Us For Availability
113
GEN WB35K10177 GEN WB35K10177 Contact Us For Availability
113
GEN WB35K10180 GEN WB35K10180 Contact Us For Availability
116
GEN WB55K10058 GEN WB55K10058 Contact Us For Availability
117
GEN WB57K10136 GEN WB57K10136 Contact Us For Availability
118
GEN WB04K10028 GEN WB04K10028 Contact Us For Availability
119
RR INSUL DOOR TOP 12" GEN WB35K10137 Contact Us For Availability
119
GEN WB35K10182 GEN WB35K10182 Contact Us For Availability
119
GEN WB35K10185 GEN WB35K10185 Contact Us For Availability
120
GEN WB10K10016 GEN WB10K10016 Contact Us For Availability
120
GEN WB10K10015 GEN WB10K10015 Contact Us For Availability
121
GEN WB10K10013 GEN WB10K10013 Contact Us For Availability
121
GEN WB10K10014 GEN WB10K10014 Contact Us For Availability
123
GEN WB56K10065 GEN WB56K10065 Contact Us For Availability
126
GEN WB15K10089 GEN WB15K10089 Contact Us For Availability
128
GEN WR02X12344 GEN WR02X12344 Contact Us For Availability
129
HEAT DEFLECTOR 27" GEN WB02K10260 Contact Us For Availability
129
GEN WB02K10261 GEN WB02K10261 Contact Us For Availability
133
GEN WB57K10137 GEN WB57K10137 Contact Us For Availability
134
GEN WB57K10138 GEN WB57K10138 Contact Us For Availability
135
GEN WB02K10222 GEN WB02K10222 Contact Us For Availability
143
GEN WB28K10505 GEN WB28K10505 Contact Us For Availability
144
GEN WB15K10088 GEN WB15K10088 Contact Us For Availability
145
GEN WB13K10030 GEN WB13K10030 Contact Us For Availability
155
GEN WB49K10020 GEN WB49K10020 Contact Us For Availability
158
GEN WB49K10017 GEN WB49K10017 Contact Us For Availability
159
GEN WB32K10042 GEN WB32K10042 Contact Us For Availability
160
GEN WB48K10020 GEN WB48K10020 Contact Us For Availability
164
GEN WB02K10196 GEN WB02K10196 Contact Us For Availability
165
GEN WB02K10197 GEN WB02K10197 Contact Us For Availability
166
GEN WB08K10011 GEN WB08K10011 Contact Us For Availability
168
GEN WB49K10016 GEN WB49K10016 Contact Us For Availability
169
GEN WB31K10226 GEN WB31K10226 Contact Us For Availability
171
GEN WB02K10200 GEN WB02K10200 Contact Us For Availability
172
GEN WB02T10298 GEN WB02T10298 Contact Us For Availability
173
GEN WB25T10064 GEN WB25T10064 Contact Us For Availability
174
GEN WB02T10297 GEN WB02T10297 Contact Us For Availability
175
GEN WB02T10300 GEN WB02T10300 Contact Us For Availability
176
GEN WB44K10023 GEN WB44K10023 Contact Us For Availability
177
GEN WB44K10024 GEN WB44K10024 Contact Us For Availability
180
GEN WB44K10026 GEN WB44K10026 Contact Us For Availability
181
GEN WB44K10025 GEN WB44K10025 Contact Us For Availability
182
GEN WB02T10299 GEN WB02T10299 Contact Us For Availability
195
GEN WB19K10061 GEN WB19K10061 Contact Us For Availability
196
RELAY BOARD ASM LF GEN WB19K10060 Contact Us For Availability
201
GEN WB49K10018 GEN WB49K10018 Contact Us For Availability
202
GEN WB48K10021 GEN WB48K10021 Contact Us For Availability
206
GEN WB01K10091 GEN WB01K10091 Contact Us For Availability
208
GEN WB21K10130 GEN WB21K10130 Contact Us For Availability
209
GEN WB21K10127 GEN WB21K10127 Contact Us For Availability
213
GEN WB02K10195 GEN WB02K10195 Contact Us For Availability
230
GEN WB02K10237 GEN WB02K10237 Contact Us For Availability
231
GEN WB02K10224 GEN WB02K10224 Contact Us For Availability
234
GEN WB26K10010 GEN WB26K10010 Contact Us For Availability
244
GEN WB26K10009 GEN WB26K10009 Contact Us For Availability
259
GEN WB25T10063 GEN WB25T10063 Contact Us For Availability
264
GEN WB35K10028 GEN WB35K10028 Contact Us For Availability
272
GEN WB02T10034 GEN WB02T10034 Contact Us For Availability
277
GEN WB10T10083 GEN WB10T10083 Contact Us For Availability
289
KNOB ASM GRILL GEN WB03K10257 Contact Us For Availability
290
KNOB ASM GRIDDLE GEN WB03K10258 Contact Us For Availability
291
KNOB ASM OVEN TMST GEN WB03K10259 Contact Us For Availability
297
GEN WB49K10019 GEN WB49K10019 Contact Us For Availability
298
GEN WB44T10058 GEN WB44T10058 Contact Us For Availability
305
GEN WB24K10047 GEN WB24K10047 Contact Us For Availability
308
GEN WB21K10126 GEN WB21K10126 Contact Us For Availability
314
GEN WB21K10124 GEN WB21K10124 Contact Us For Availability
322
GEN WB27K10298 GEN WB27K10298 Contact Us For Availability
333
GEN WB21K10129 GEN WB21K10129 Contact Us For Availability
337
GEN WB19K10038 GEN WB19K10038 Contact Us For Availability
343
GEN WB19K10032 GEN WB19K10032 Contact Us For Availability
344
GEN WB19K10033 GEN WB19K10033 Contact Us For Availability
350
GEN WB02K10273 GEN WB02K10273 Contact Us For Availability
351
GEN WB02K10206 GEN WB02K10206 Contact Us For Availability
376
GEN WB03K10255 GEN WB03K10255 Contact Us For Availability
404
GEN WB02T10017 GEN WB02T10017 Contact Us For Availability
406
GEN WB02T10293 GEN WB02T10293 Contact Us For Availability
407
GEN WB35K10128 GEN WB35K10128 Contact Us For Availability
410
GEN WB02T10310 GEN WB02T10310 Contact Us For Availability
460
GEN WB16T10047 GEN WB16T10047 Contact Us For Availability
470
GEN WB09T10011 GEN WB09T10011 Contact Us For Availability
480
GEN WB02T10323 GEN WB02T10323 Contact Us For Availability
578
GEN WB27T10662 GEN WB27T10662 Contact Us For Availability
730
GEN WB20K10030 GEN WB20K10030 Contact Us For Availability
731
GEN WB20K10032 GEN WB20K10032 Contact Us For Availability
800
GEN WB01K10042 GEN WB01K10042 Contact Us For Availability
1000
GEN WB01K10086 GEN WB01K10086 Contact Us For Availability
1100
GEN WR01X10590 GEN WR01X10590 Contact Us For Availability
1300
GEN WB01K10088 GEN WB01K10088 Contact Us For Availability
1700
GEN WB24K10064 GEN WB24K10064 Contact Us For Availability
2000
GEN WB01K10100 GEN WB01K10100 Contact Us For Availability
× ![]()
