Model GE ZDP364NDP8SS Gas Range Or Dual Fuel – Common Parts & Diagrams

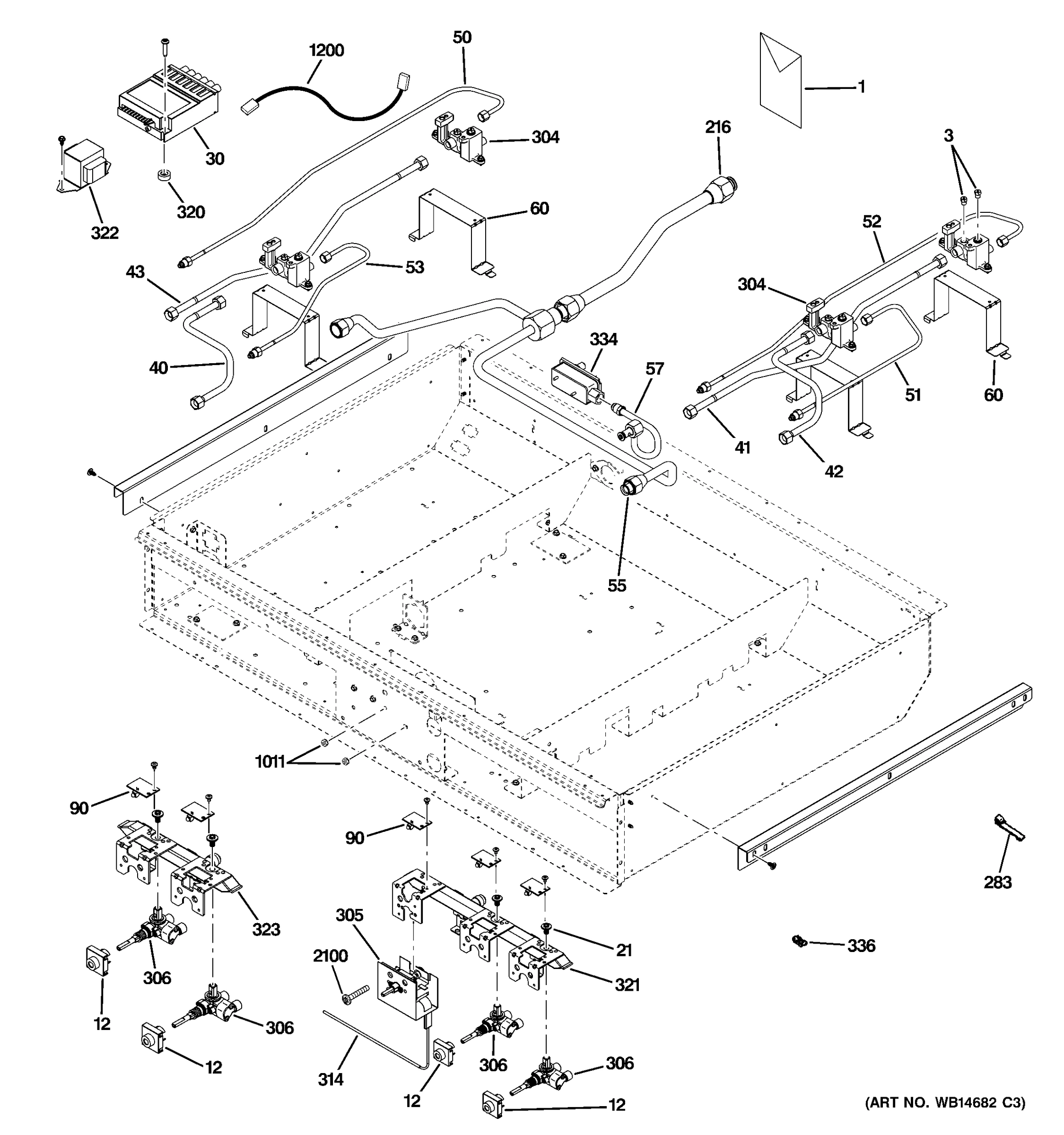

GAS & BURNER PARTS

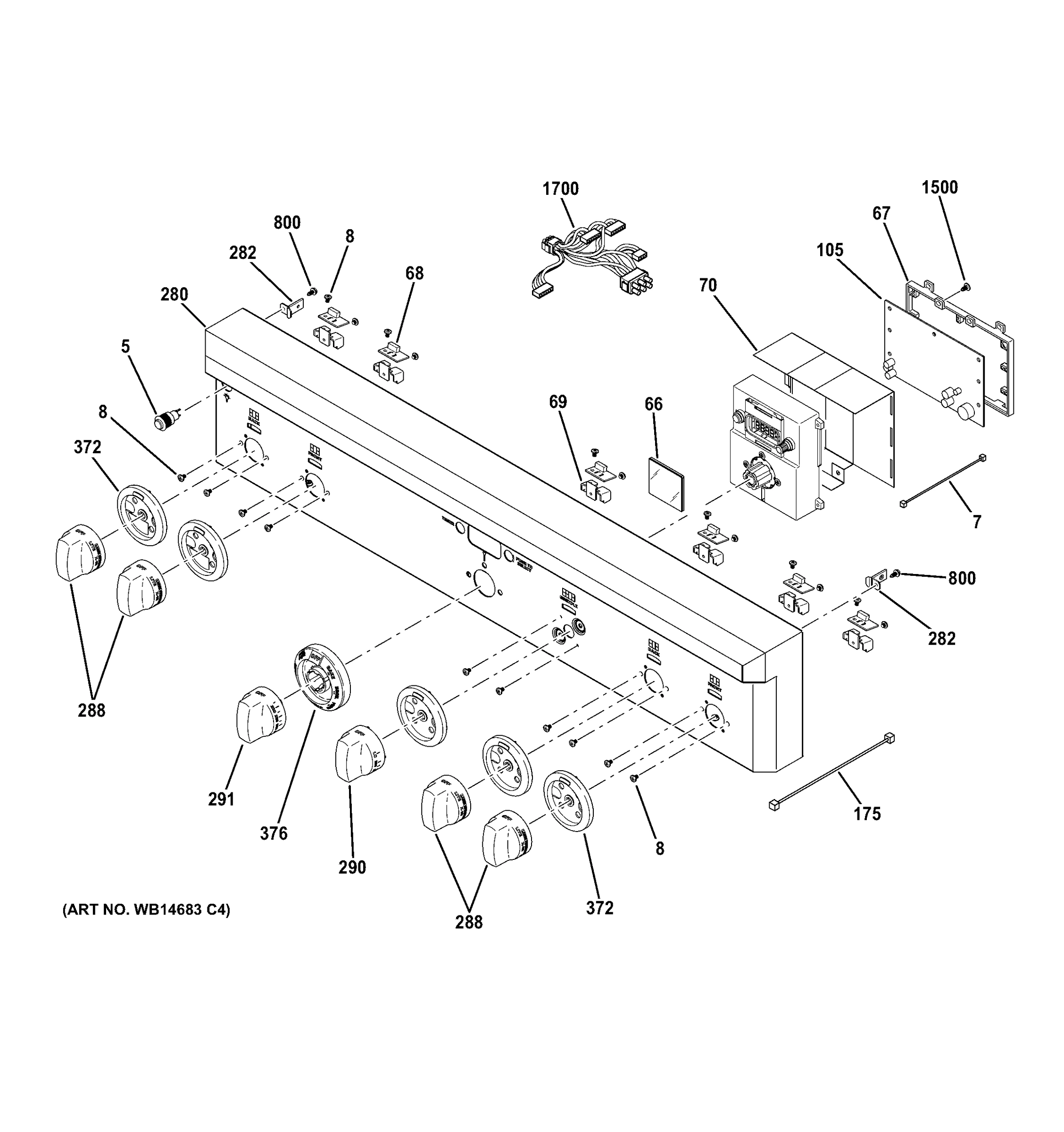

CONTROL PANEL
COOKTOP
BODY PARTS
OVEN CAVITY PARTS
DOOR
DOOR LOCK
CONVECTION FAN
GRIDDLE ASSEMBLY
Common parts from model GE ZDP364NDP8SS Gas Range Or Dual Fuel
1
LUBRICANT CLEANER GEN WB02T10303 Contact Us For Availability
1
CARRIER ORIFICE ASM GEN WB28K10538 Contact Us For Availability
1
CLEANER-SS GEN WB02T10111 Contact Us For Availability
1
TAPE MASTIC 4" X 2" GEN WB02K10359 Contact Us For Availability
3
ORIFICE SPUD LP MAIN GEN WB28T10118 Contact Us For Availability
3
ORIFICE SPUD LP MAIN GEN WB28T10117 Contact Us For Availability
3
ORIFICE SPUD (NG SIMMER) GEN WB28T10159 Contact Us For Availability
3
ORIFICE SPUD (NG MAIN) GEN WB28T10155 Contact Us For Availability
3
SPUD ORIFICE GRILL GEN WB28K10530 Contact Us For Availability
3
SPUD ORIFICE GRIDDLE GEN WB28K10529 Contact Us For Availability
5
SWITCH-LED ASM GEN WB24X26719 Contact Us For Availability
8
SCREW 8-32 GEN WB01K10002 Contact Us For Availability
10
SCREW 8-32 MCH PNT15 GEN WB01T10104 Contact Us For Availability
20
SCREW SIMMER MAIN HD GEN WB01T10092 Contact Us For Availability
21
SCR 8 HD 1/4 - 20 GEN WB01K10067 Contact Us For Availability
23
MOTOR PSC CONV GEN WB26T10037 Contact Us For Availability
41
TUBE AND NUT ASM GEN WB28K10493 Contact Us For Availability
43
TUBE AND NUT ASM GEN WB28K10495 Contact Us For Availability
52
TUBE AND NUT ASM GEN WB28K10498 Contact Us For Availability
60
INJET BURNER 18K GEN WB28T10114 Contact Us For Availability
68
LED BOARD GEN WB25K10014 Contact Us For Availability
70
ENCODER ASM GEN WB24K10048 Contact Us For Availability
80
LED POWER SUPPLY GEN WB25K10013 Contact Us For Availability
90
LED ASM GEN WB25K10012 Contact Us For Availability
101
CAP END EXTENSION GEN WB02K10219 Contact Us For Availability
103
LINER OVEN DOOR ASM GEN WB55K10062 Contact Us For Availability
105
CONTROL DISPLAY MODULE GEN WB27K10458 Contact Us For Availability
133
HINGE DOOR LT(36) GEN WB10K10018 Contact Us For Availability
133
HINGE DOOR RT(36) GEN WB10K10017 Contact Us For Availability
134
GLASS DOOR GEN WB57K10138 Contact Us For Availability
141
COVER GEN WB07K10431 Contact Us For Availability
144
HANDLE COVER GEN WB15K10088 Contact Us For Availability
145
IGNITER GLOWBAR GEN WB13K10030 Contact Us For Availability
158
RACK BROILER PAN GEN WB49K10017 Contact Us For Availability
159
PLATE GRIDDLE WELD ASM GEN WB32K10042 Contact Us For Availability
160
RACK CONVECTION ROAST GEN WB48K10020 Contact Us For Availability
161
RACK OVEN SLIDE ASM GEN WB48K10035 Contact Us For Availability
164
GUIDE OVEN RACK LH GEN WB02K10395 Contact Us For Availability
166
LAMP HALOGEN ASM GEN WB08K10011 Contact Us For Availability
168
PAN UNIT GEN WB49K10016 Contact Us For Availability
173
LAMP HALOGEN 20W GEN WB25T10064 Contact Us For Availability
176
SHIELD BROIL ASM GEN WB44K10024 Contact Us For Availability
180
ELEMENT BAKE GEN WB44T10056 Contact Us For Availability
195
RELAY BOARD ASM RT GEN WB19K10061 Contact Us For Availability
208
SWITCH SAIL ASM GEN WB21K10130 Contact Us For Availability
209
SWITCH HIGH LIMIT GEN WB21K10127 Contact Us For Availability
213
GASKET FRAME FRONT GEN WB02K10195 Contact Us For Availability
215
GASKET DOOR 27" GEN WB02K10221 Contact Us For Availability
222
TOE KICK BOTTOM GEN WB07K10444 Contact Us For Availability
230
BRACKET ANTI TIP GEN WB02K10237 Contact Us For Availability
231
BRACE ANTI TIP GEN WB02K10224 Contact Us For Availability
244
BLOWER TANGENTIAL 45MM GEN WB26K10010 Contact Us For Availability
259
CRYSTAL LAMP GEN WB25T10063 Contact Us For Availability
264
SUPPORT CATALYST GEN WB35K10028 Contact Us For Availability
272
SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability
277
RECEIVER HINGE GEN WB10T10083 Contact Us For Availability
288
KNOB ASM GEN WB03K10359 Contact Us For Availability
290
KNOB ASM GRIDDLE GEN WB03K10258 Contact Us For Availability
291
KNOB ASM OVEN TMST GEN WB03K10259 Contact Us For Availability
292
PANEL ACCESS BACK GEN WB07K10317 Contact Us For Availability
298
ELEMENT CONVECT GEN WB44T10058 Contact Us For Availability
305
SWITCH THERMOSTAT GEN WB24K10047 Contact Us For Availability
306
VALVE DUAL GEN WB21K10162 Contact Us For Availability
314
THERMOSTAT GEN WB21K10124 Contact Us For Availability
322
TRANSFORMER GEN WB27K10298 Contact Us For Availability
333
REGULATOR GEN WB21K10129 Contact Us For Availability
334
VALVE SAFETY GEN WB19K10032 Contact Us For Availability
337
VALVE SHUT OFF GEN WB19K10038 Contact Us For Availability
350
BRACKET LATCH GEN WB02K10273 Contact Us For Availability
351
LATCH OVN GEN WB02K10206 Contact Us For Availability
376
BEZEL OVEN ASM GEN WB03K10255 Contact Us For Availability
403
HUB BLADE ASM GEN WB02T10289 Contact Us For Availability
404
NUT GEN WB02T10017 Contact Us For Availability
406
BRACKET CONVX MTR MTG GEN WB02T10293 Contact Us For Availability
407
INSULATION GEN WB35K10128 Contact Us For Availability
450
ELECTRODE TOP GEN WB13T10065 Contact Us For Availability
460
BASE BURNER 18K-SIMMER GEN WB16T10047 Contact Us For Availability
470
SPRING IGNITER GEN WB09T10011 Contact Us For Availability
480
WASHER IGNITER GEN WB02T10323 Contact Us For Availability
578
CAPACITOR MOTOR GEN WB27T10662 Contact Us For Availability
730
PROBE THERMISTOR GEN WB20K10030 Contact Us For Availability
731
PROBE RECEPTACLE GEN WB20K10032 Contact Us For Availability
800
SCR 8-18 AB IHW 3/8 SN GEN WB01K10042 Contact Us For Availability
1000
SCR 8-18 AB TRP 3/8 SS GEN WB01K10086 Contact Us For Availability
1100
SCR 10-16 AB PNT20 1/2 S GEN WR01X10590 Contact Us For Availability
1200
HARNESS HV GEN WB18K10050 Contact Us For Availability
1600
ROD EXTENSION GEN WB02K10392 Contact Us For Availability
1700
HARNESS SERIAL DUAL GEN WB24K10063 Contact Us For Availability
× ![]()
