Model Whirlpool YWMH53521HV2 MICROWAVE HOOD, 2.1 CUBIC FOOT – Common Parts & Diagrams
05 - AIR FLOW PARTS
06 - TURNTABLE PARTS

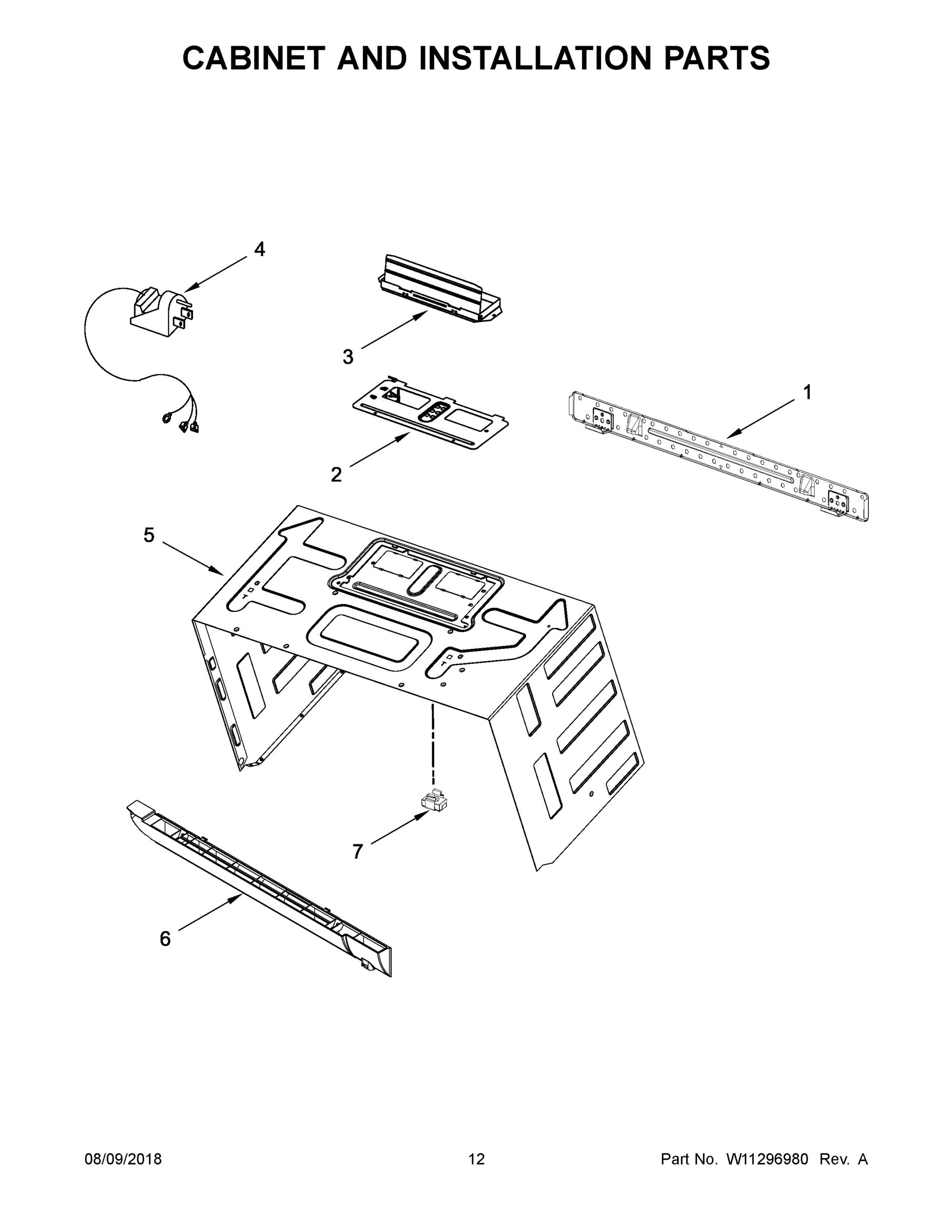

07 - CABINET AND INSTALLATION PARTS

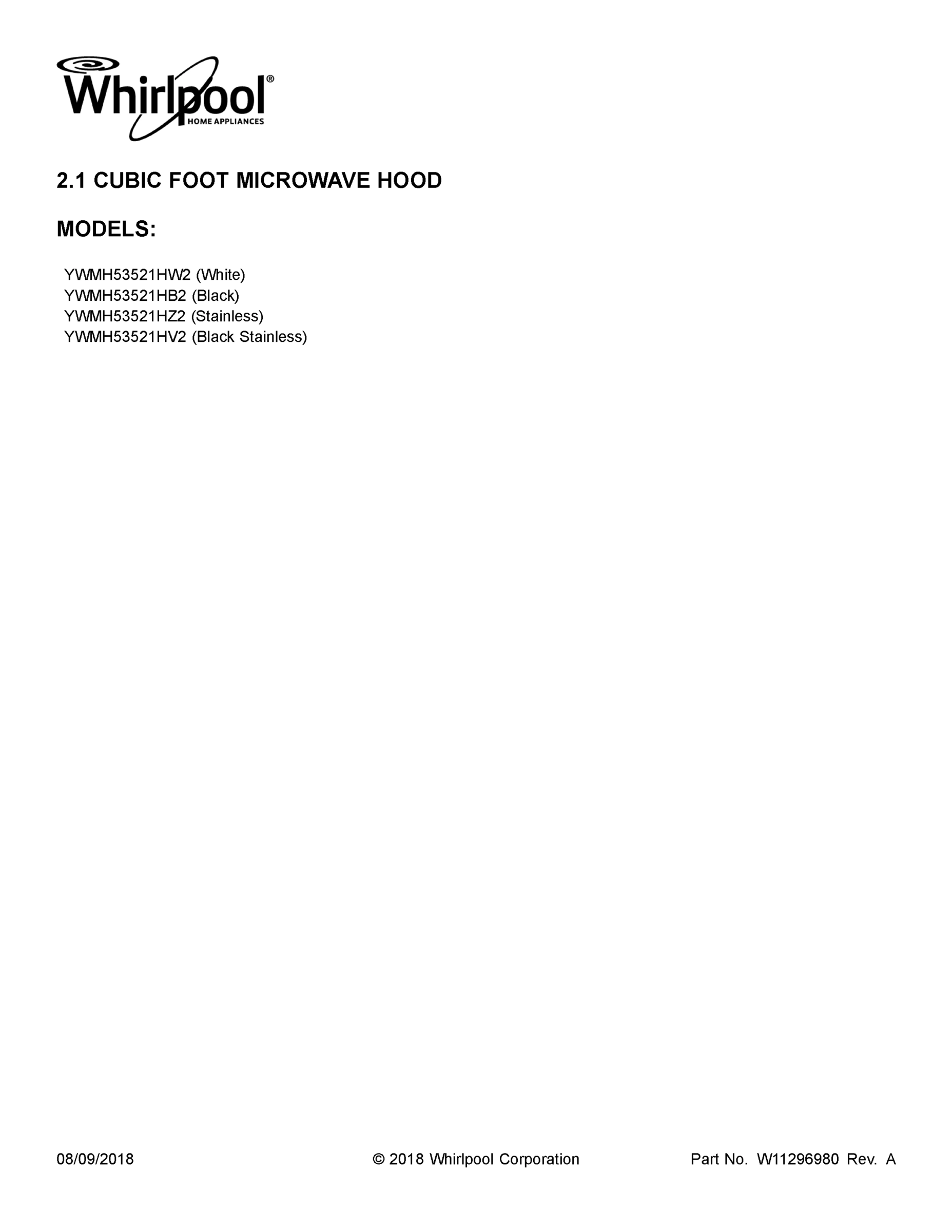

01 - COVER SHEET

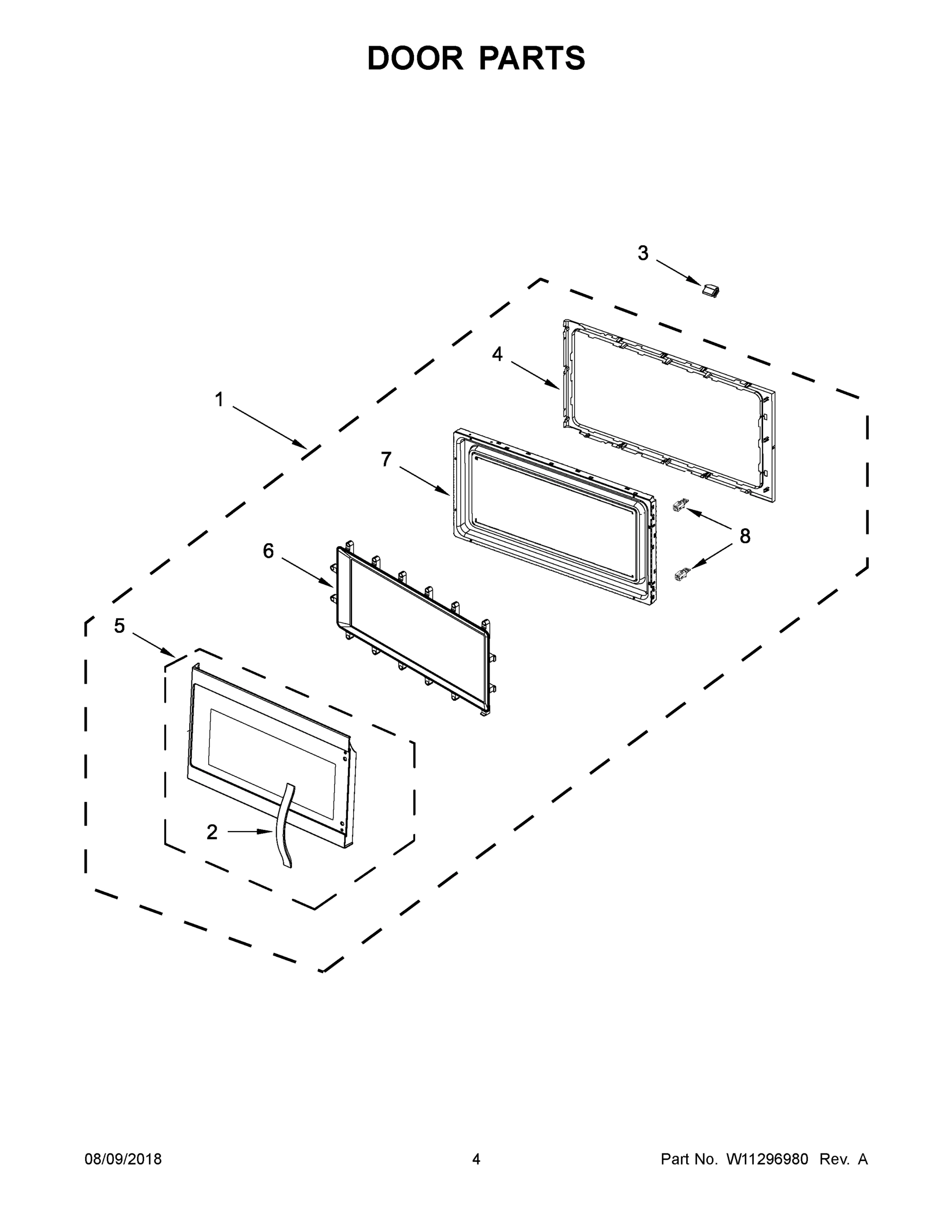

03 - DOOR PARTS

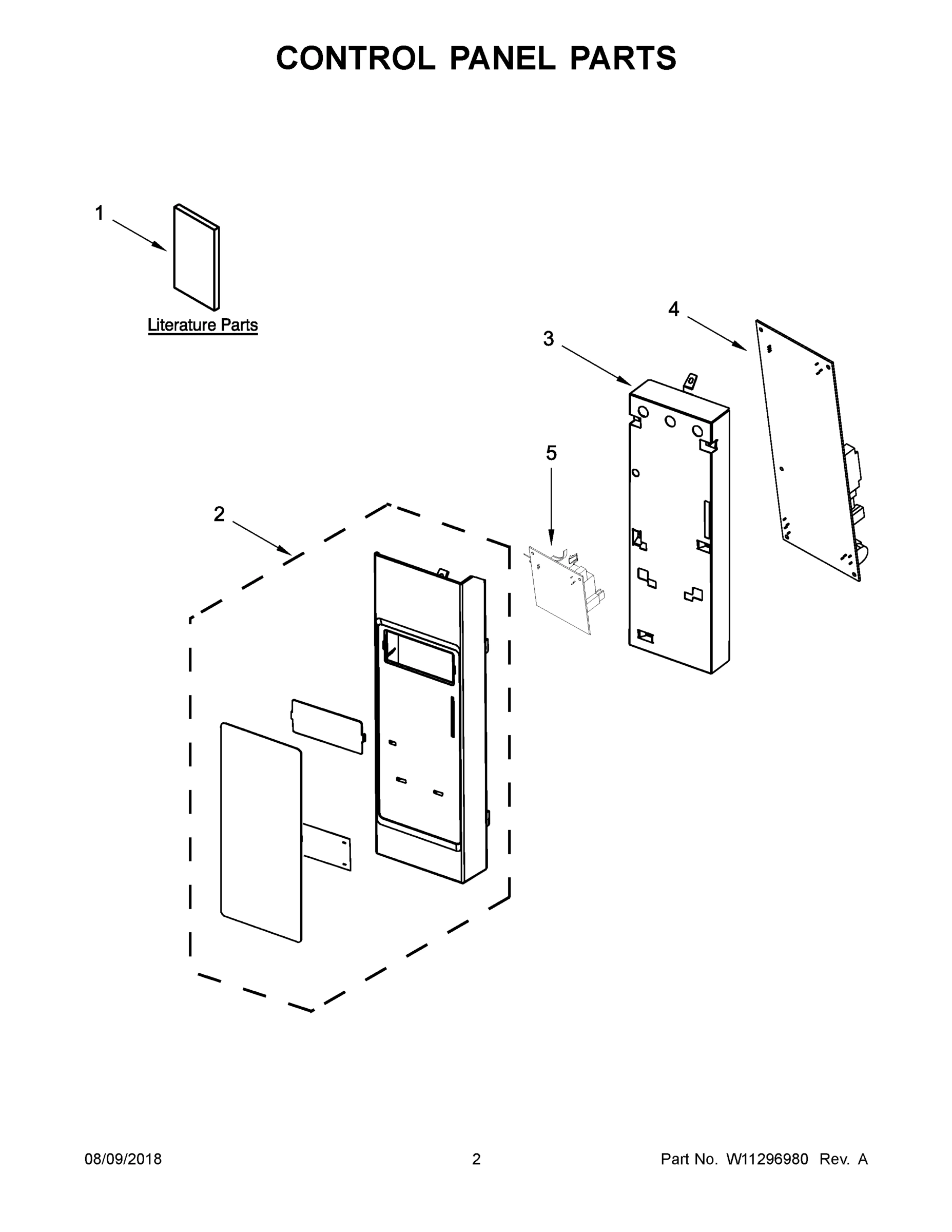

02 - CONTROL PANEL PARTS

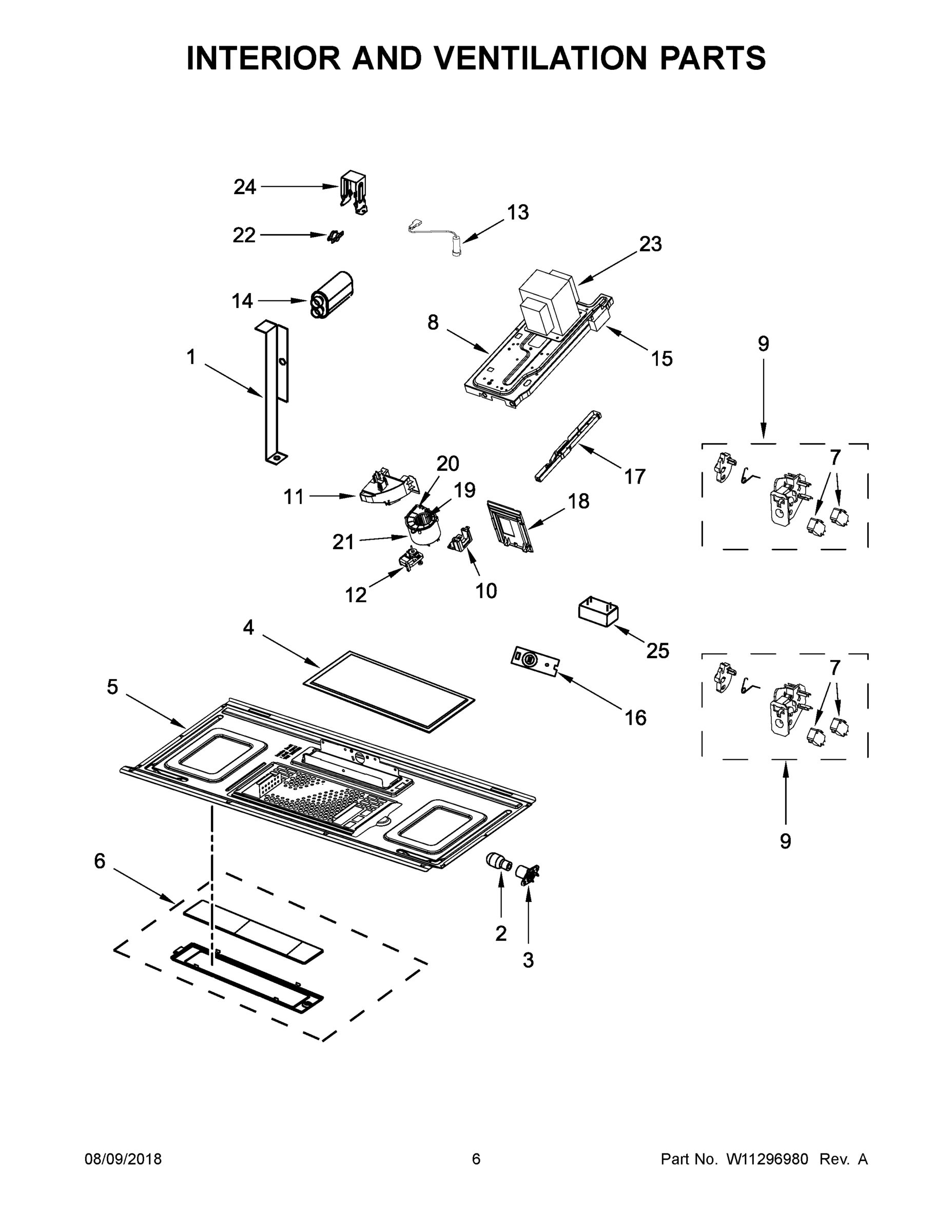

04 - INTERIOR AND VENTILATION PARTS
Common parts from model Whirlpool YWMH53521HV2 MICROWAVE HOOD, 2.1 CUBIC FOOT
1
PLATE, MOUNTING WPL W11025649 Contact Us For Availability
1
COVER, WAVEGUIDE WPL W10533497 Contact Us For Availability
1
DOOR, COMPLETE (WHITE) WPL W11117584 Contact Us For Availability
1
BRACKET, TOP CAVITY WPL W10540715 Contact Us For Availability
1
DEFLECTOR, AIR WPL W10631697 Contact Us For Availability
1A
DOOR, COMPLETE (BLACK) WPL W11117585 Contact Us For Availability
1B
DOOR, COMPLETE (STAINLESS) WPL W11117588 Contact Us For Availability
1C
DOOR, COMPLETE (BLACK STAINLESS) WPL W11117587 Contact Us For Availability
2
COVER, FAN MOTOR WPL W10625423 Contact Us For Availability
2
COVER, LAMP WPL 8206382 Contact Us For Availability
2
ASSEMBLY, CONTROL PANEL (WHITE) WPL W11117593 Contact Us For Availability
2
HANDLE (WHITE) WPL W11104884 Contact Us For Availability
2A
ASSEMBLY, CONTROL PANEL (BLACK) WPL W11117594 Contact Us For Availability
2B
ASSEMBLY, CONTROL PANEL (STAINLESS) WPL W11040881 Contact Us For Availability
2B
HANDLE (STAINLESS) WPL W11102990 Contact Us For Availability
2C
ASSEMBLY, CONTROL PANEL (BLACK STAINLESS) WPL W11040882 Contact Us For Availability
2C
HANDLE (BLACK STAINLESS) WPL W11102989 Contact Us For Availability
3
HOLDER, LAMP WPL W10210871 Contact Us For Availability
3
BACKER, CONTROL PANEL WPL W10639186 Contact Us For Availability
3
STOPPER, DOOR (FOR WHITE MODELS) WPL W10643975 Contact Us For Availability
3A
STOPPER, DOOR (BLACK, STAINLESS) WPL W10643974 Contact Us For Availability
4
CORD, POWER WPL W10708076 Contact Us For Availability
4
HOUSING, DAMPER WPL W10556824 Contact Us For Availability
4
FRAME, INNER (FOR WHITE MODELS) WPL W10647773 Contact Us For Availability
4A
FRAME, INNER (BLACK, STAINLESS) WPL W10647772 Contact Us For Availability
5
MOTOR, TURNTABLE WPL W10642989 Contact Us For Availability
5
PLATE, BOTTOM WPL W10571127 Contact Us For Availability
5B
ASSEMBLY, DOOR FRAME (STAINLESS) WPL W11117583 Contact Us For Availability
5C
ASSEMBLY, DOOR FRAME (BLACK STAINLESS) WPL W11117575 Contact Us For Availability
6
SEAL, WATERPROOF WPL 8184109 Contact Us For Availability
6
ASSEMBLY, LAMP GLASS AND HOLDER WPL W10240330 Contact Us For Availability
6
GRILLE, VENT (WHITE) WPL W10701696 Contact Us For Availability
6A
GRILLE, VENT (BLACK) WPL W10701697 Contact Us For Availability
6A
PLATE, STEAM PROTECTION (BLACK, STAINLESS) WPL W10514243 Contact Us For Availability
7
ASSEMBLY, MOUNTING NUT WPL W11122643 Contact Us For Availability
8
HOOK, DOOR WPL W10740455 Contact Us For Availability
8
HOOK, MICROWAVE (LEFT FRONT & RIGHT FRONT) WPL W10740485 Contact Us For Availability
8
CHASSIS WPL W10631826 Contact Us For Availability
8
SHIELD, FINGER (INCLUDES SEAL) WPL W10629803 Contact Us For Availability
9
HOOK, MICROWAVE (LEFT REAR) WPL W10749119 Contact Us For Availability
10
HOOK, MICROWAVE (RIGHT REAR) WPL W10749120 Contact Us For Availability
10
HOLDER, NTC WPL W10533480 Contact Us For Availability
11
AIR GUIDE, MAGNETRON WPL W10631700 Contact Us For Availability
12
BASEPLATE, AIR GUIDE WPL W10533096 Contact Us For Availability
14
CAPACITOR, HIGH VOLTAGE WPL W10345331 Contact Us For Availability
16
THERMISTOR, PCBA WPL W10536989 Contact Us For Availability
16
THERMOSTAT, MAGNETRON WPL W10864741 Contact Us For Availability
17
BRACKET, CAVITY WPL W10540718 Contact Us For Availability
18
DEFLECTOR, AIR WPL W10533481 Contact Us For Availability
19
WHEEL, COOLING FAN WPL W10533503 Contact Us For Availability
19
BRACKET, NOISE FILTER WPL W10313274 Contact Us For Availability
20
COVER, COOLING FAN WPL W10533502 Contact Us For Availability
21
HOUSING, COOLING FAN WPL W10533501 Contact Us For Availability
22
THERMOSTAT, CAVITY 125/-35 CELCIUS WPL W10864742 Contact Us For Availability
25
RESISTOR, CEMENT WPL W11035768 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARDWARE, INSTALLATION WPL W10821385 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH WPL W10190018 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR WPL W10539840 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH WPL W10190020 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND T WPL W10834336 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, MAIN WPL W11182984 Contact Us For Availability
× ![]()
