Model Whirlpool YRBS275PDB7 27`` BUILT-IN ELECTRIC SINGLE OVEN SELF-CLEAN – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

1

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $32.70

1

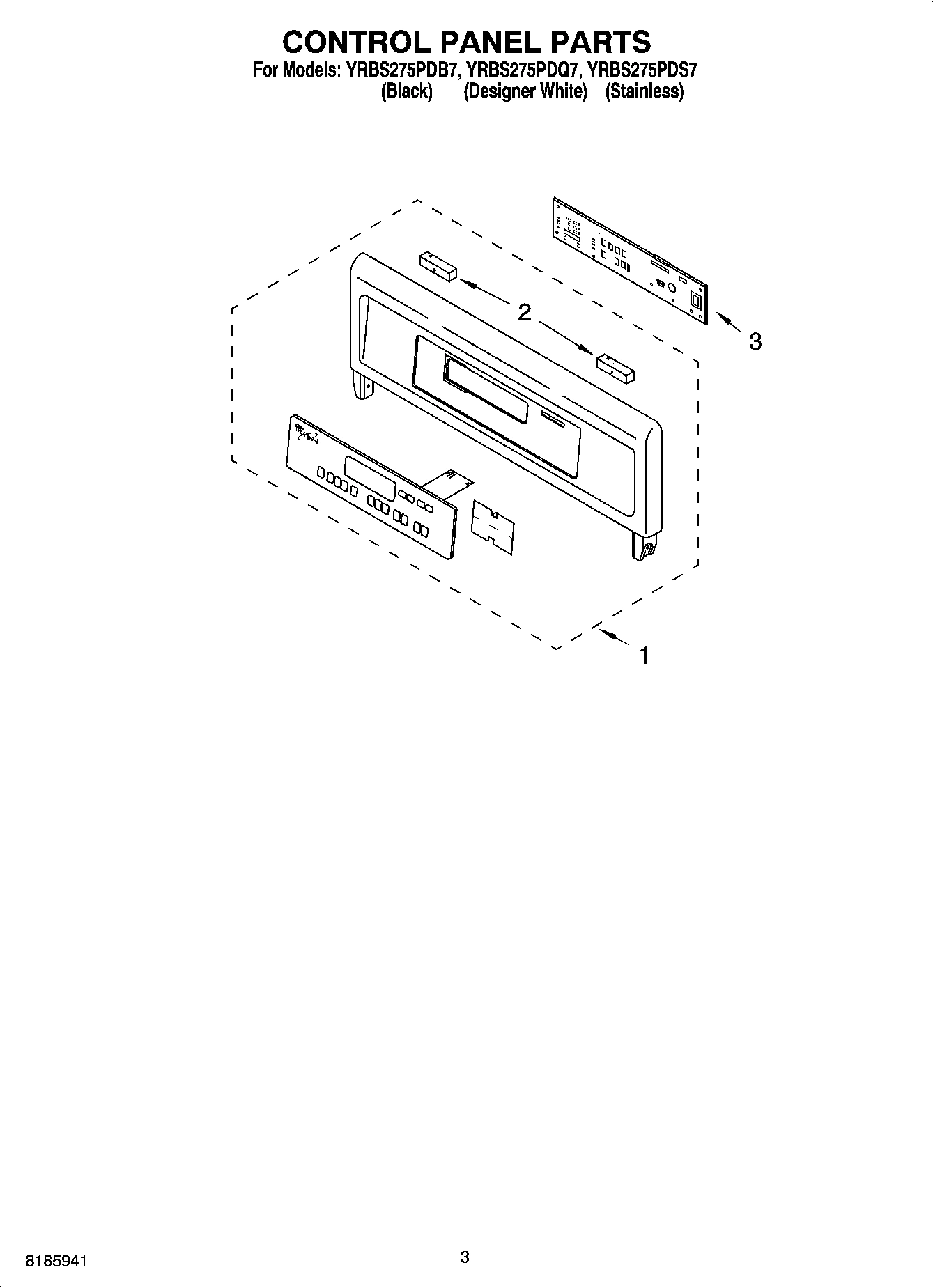

Control Panel Assy. W/Membrane Switch (White WPL 8300453 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (Black WPL 8300454 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Tech Sheet (Oven)) WPL LIT4451885 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT8300652 Contact Us For Availability

1

Literature Parts (Use & Care Guide (English)) WPL LIT8300772 Contact Us For Availability

1

Literature Parts (Use & Care Guide (French)) WPL LIT8300773 Contact Us For Availability

1

Door Liner WPL 4455617 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

9760569 Whirlpool Door Hinge Backorder WPL 9760569 $39.24

2

9760570 Whirlpool Door Hinge Backorder WPL 9760570 $39.00

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

2

WP9760571 Whirlpool Door Hinge In Stock WPL WP9760571 $42.93

2

WP9760572 Whirlpool Door Hinge Backorder WPL WP9760572 $42.00

2

Trim, Side (RH Black) WPL 4450844 Contact Us For Availability

2

Trim, Side (RH White) WPL 4450845 Contact Us For Availability

2

Trim, Side (LH Black) WPL 4450847 Contact Us For Availability

2

Trim, Side (LH White) WPL 4450848 Contact Us For Availability

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $70.88

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

Blower WPL 4455334 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

Insulation, Door WPL 4451721 Contact Us For Availability

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

5

Retainer, Glass WPL 8300777 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

7

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $91.57

7

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $45.71

7

Top, Chassis WPL 4455864 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

10

Lens, Light WPL 4452165 Contact Us For Availability

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $35.32

11

Screw WPL 3400080 Contact Us For Availability

12

Door Glass Assy (Black Model) WPL 4452062 Contact Us For Availability

12

Door Glass, Assy (White Model) WPL 4452063 Contact Us For Availability

12

Door Glass, Assy (Black Stainless) WPL 4452478 Contact Us For Availability

13

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

13

Door Handle (Black Model) WPL 4448405 Contact Us For Availability

13

Door Handle (White Model) WPL 4448406 Contact Us For Availability

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4455611 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $67.84

15

Panel, Door (S.Steel Only) WPL 4452381 Contact Us For Availability

16

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $27.18

19

Support, Insulation WPL 4451477 Contact Us For Availability

19

Shield, Heat WPL 4450361 Contact Us For Availability

20

Retainer, Glass WPL 4451668 Contact Us For Availability

814371 Whirlpool Oven Rail Mount Backorder WPL 814371 $38.69

814372 Whirlpool Oven Rail Mount Backorder WPL 814372 $40.88

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

Seal, Door WPL 8300819 Contact Us For Availability

22

Latch Assy WPL 4451896 Contact Us For Availability

23

Solenoid WPL 4452224 Contact Us For Availability

23

Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability

23

Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability

24

Microswitch N.C. WPL 4452312 Contact Us For Availability

24

Glass, Inner WPL 4455256 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

26

Back, Chassis WPL 4452233 Contact Us For Availability

27

Liner, Oven (Not serviceable) WPL ARI139016A Contact Us For Availability

28

Switch, Micro WPL 4451426 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

Spring, Latch WPL 4451537 Contact Us For Availability

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

43

Base, Chassis WPL 4455529 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

51

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

51

Trim, Bottom (Black Model) WPL 4448475 Contact Us For Availability

51

Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

Insulation, Wrap WPL 4449315 Contact Us For Availability

Support, Bracket WPL 4449845 Contact Us For Availability

Insulation, Back WPL 4450364 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED INSULATION WPL ARI139017A Contact Us For Availability
