Model Whirlpool YMH7155XMS0 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

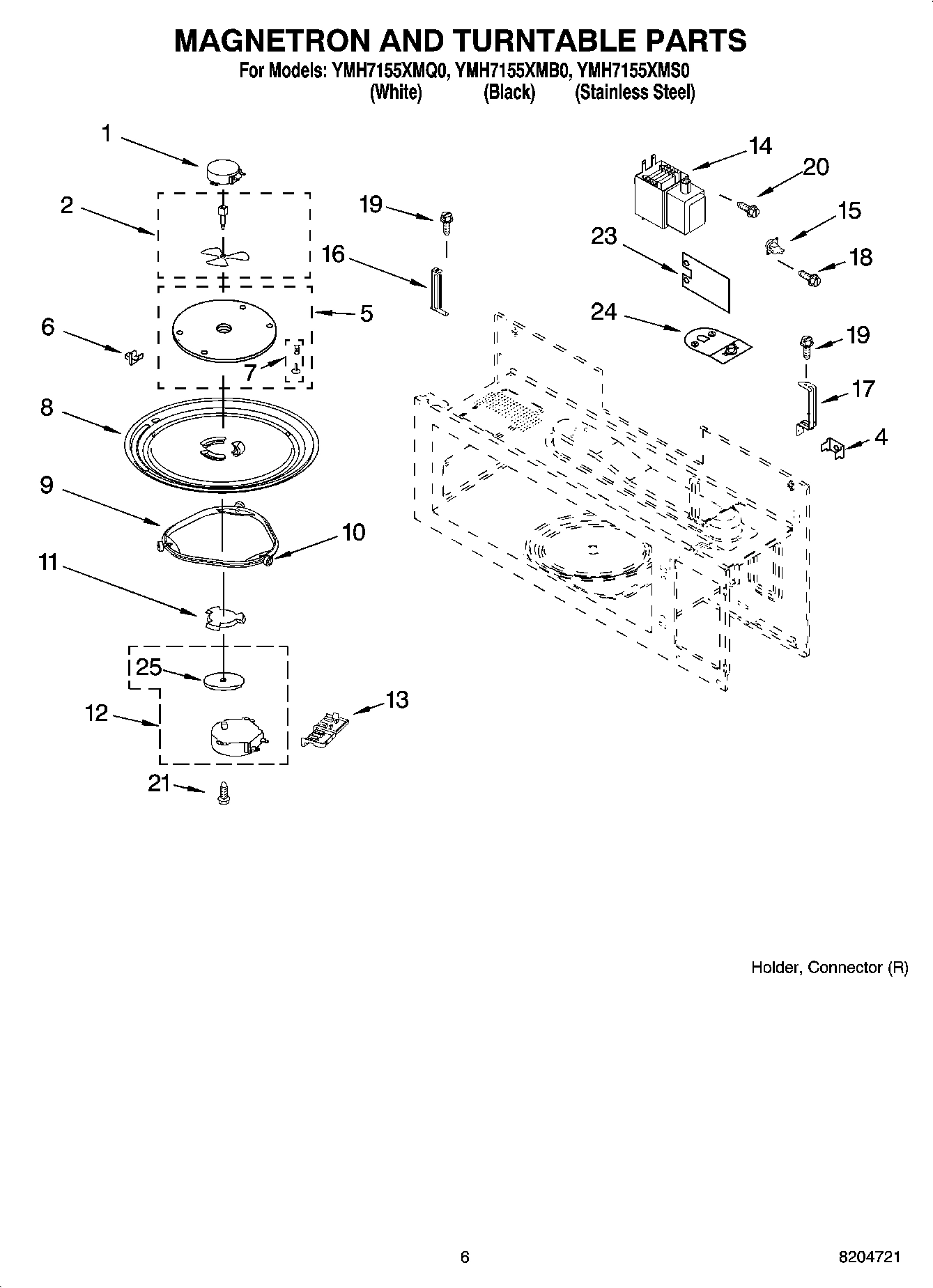

05 - MAGNETRON AND TURNTABLE PARTS

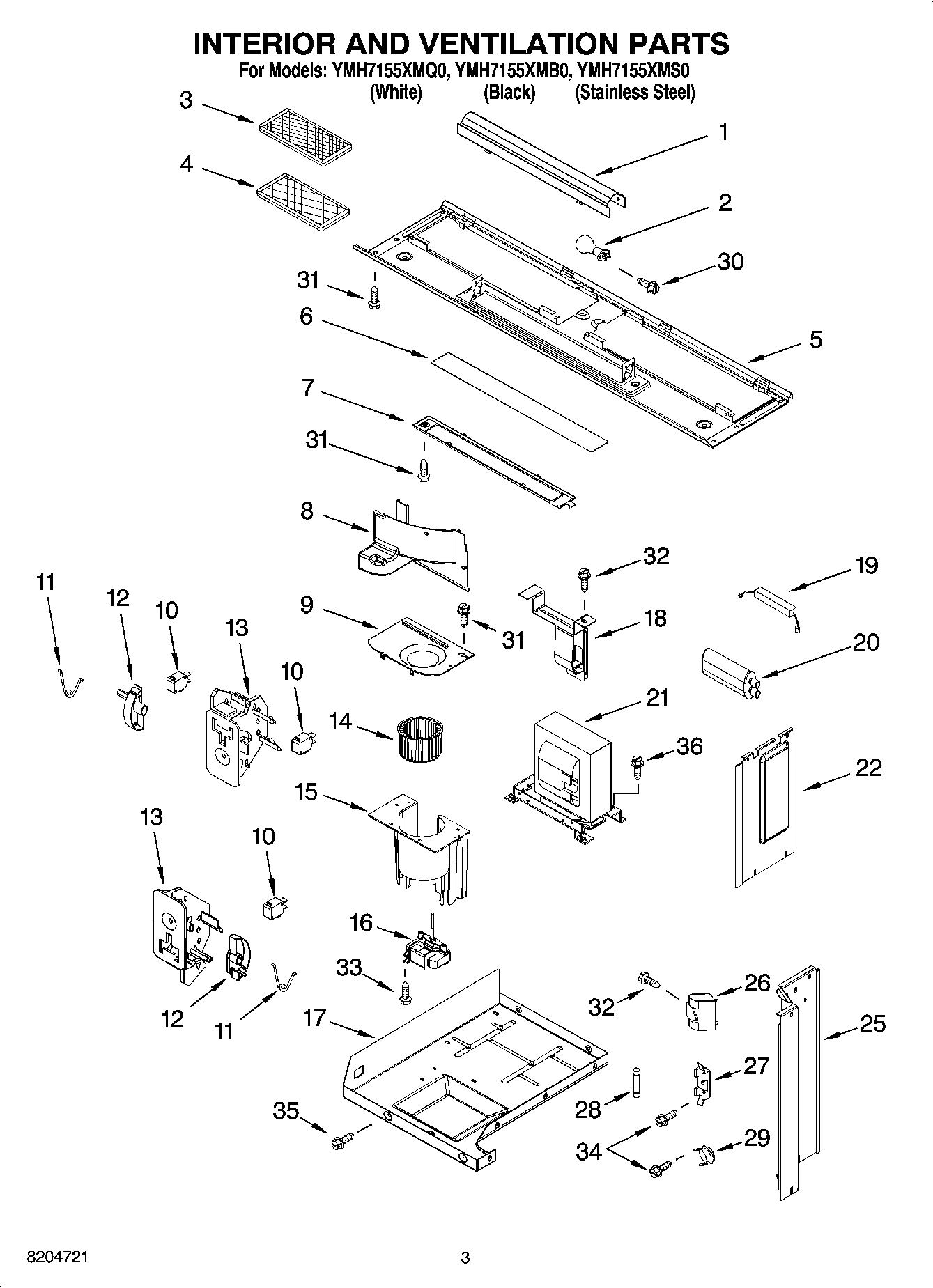

03 - INTERIOR AND VENTILATION PARTS

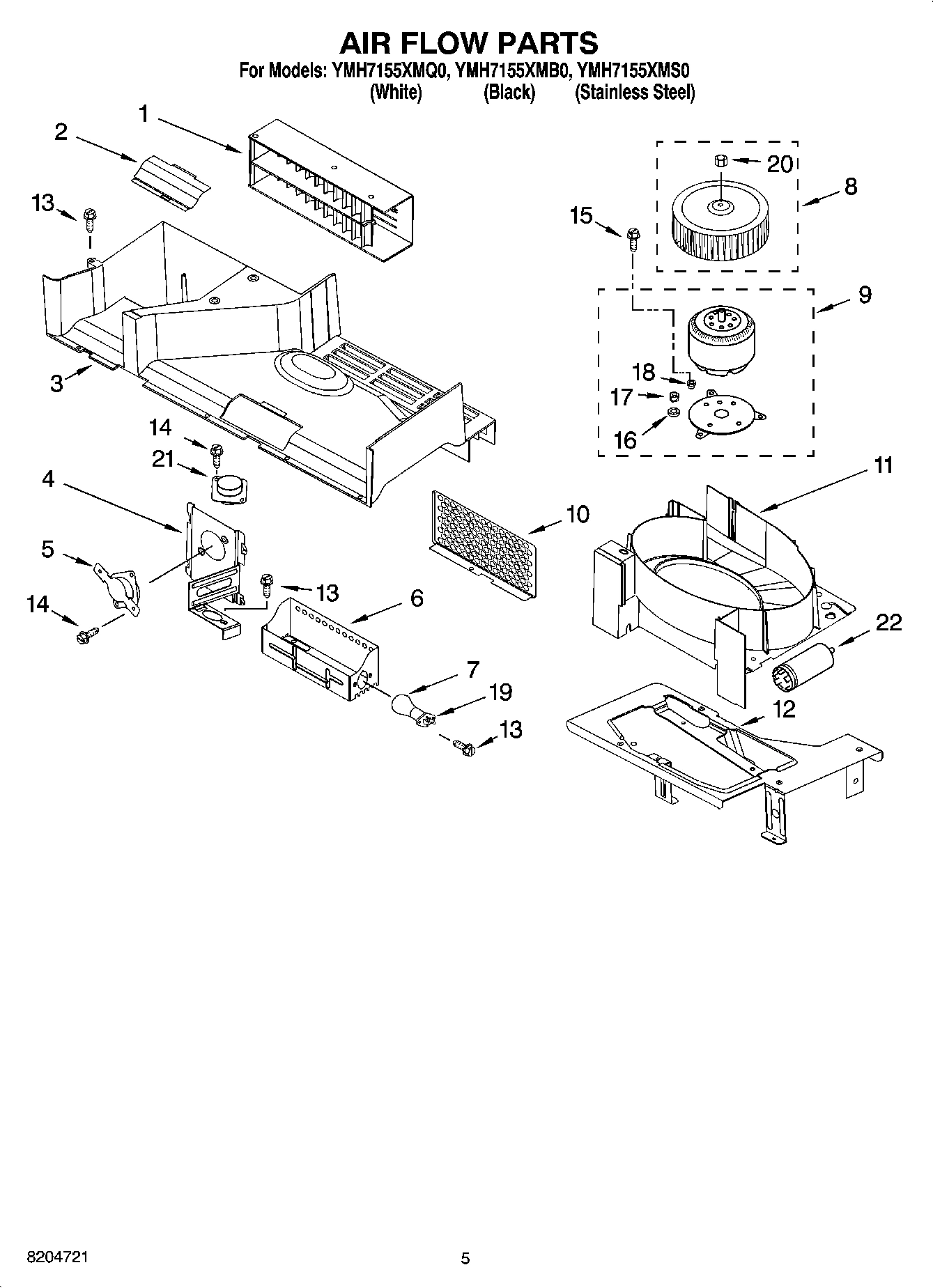

04 - AIR FLOW PARTS

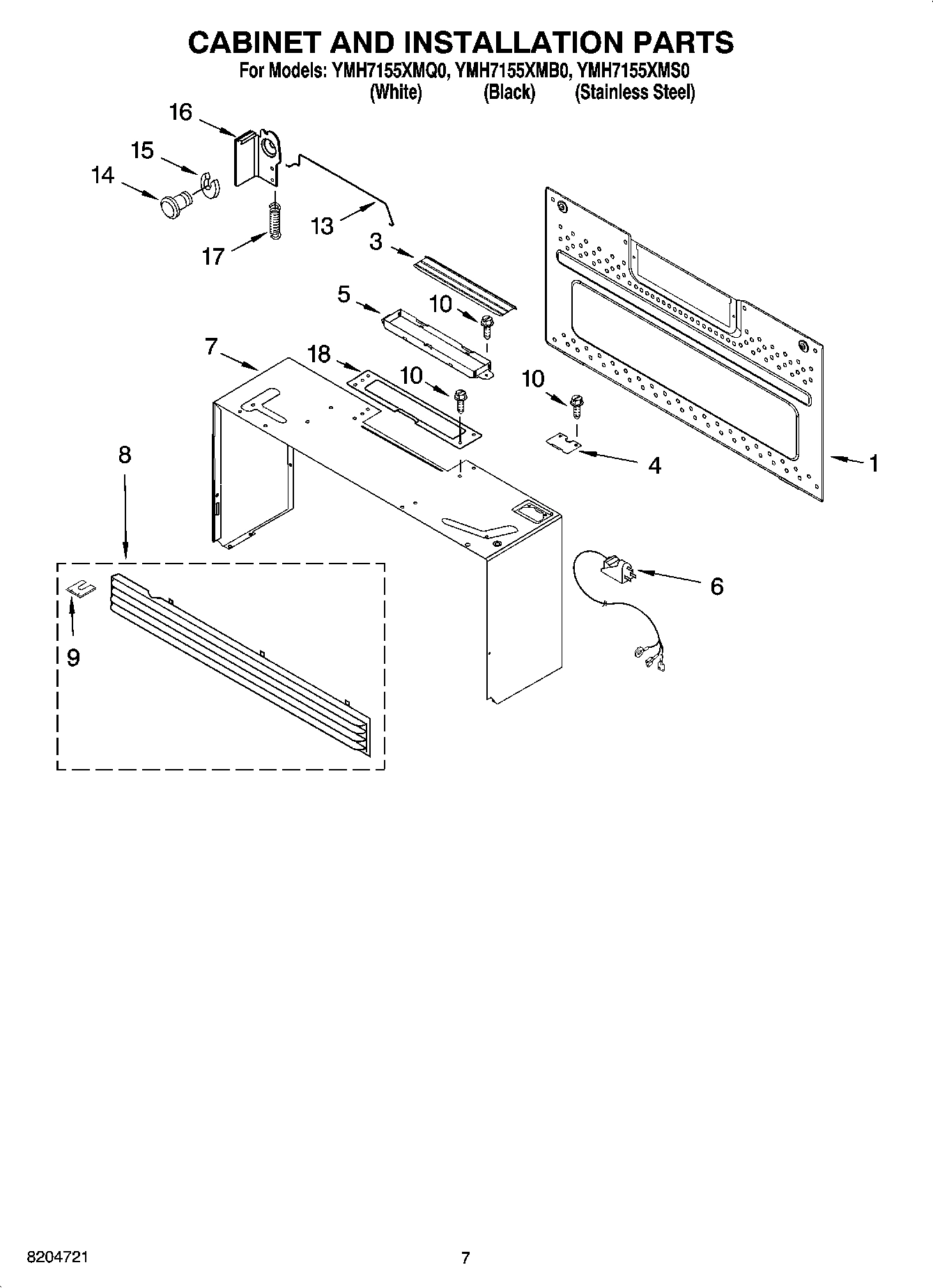

06 - CABINET AND INSTALLATION PARTS

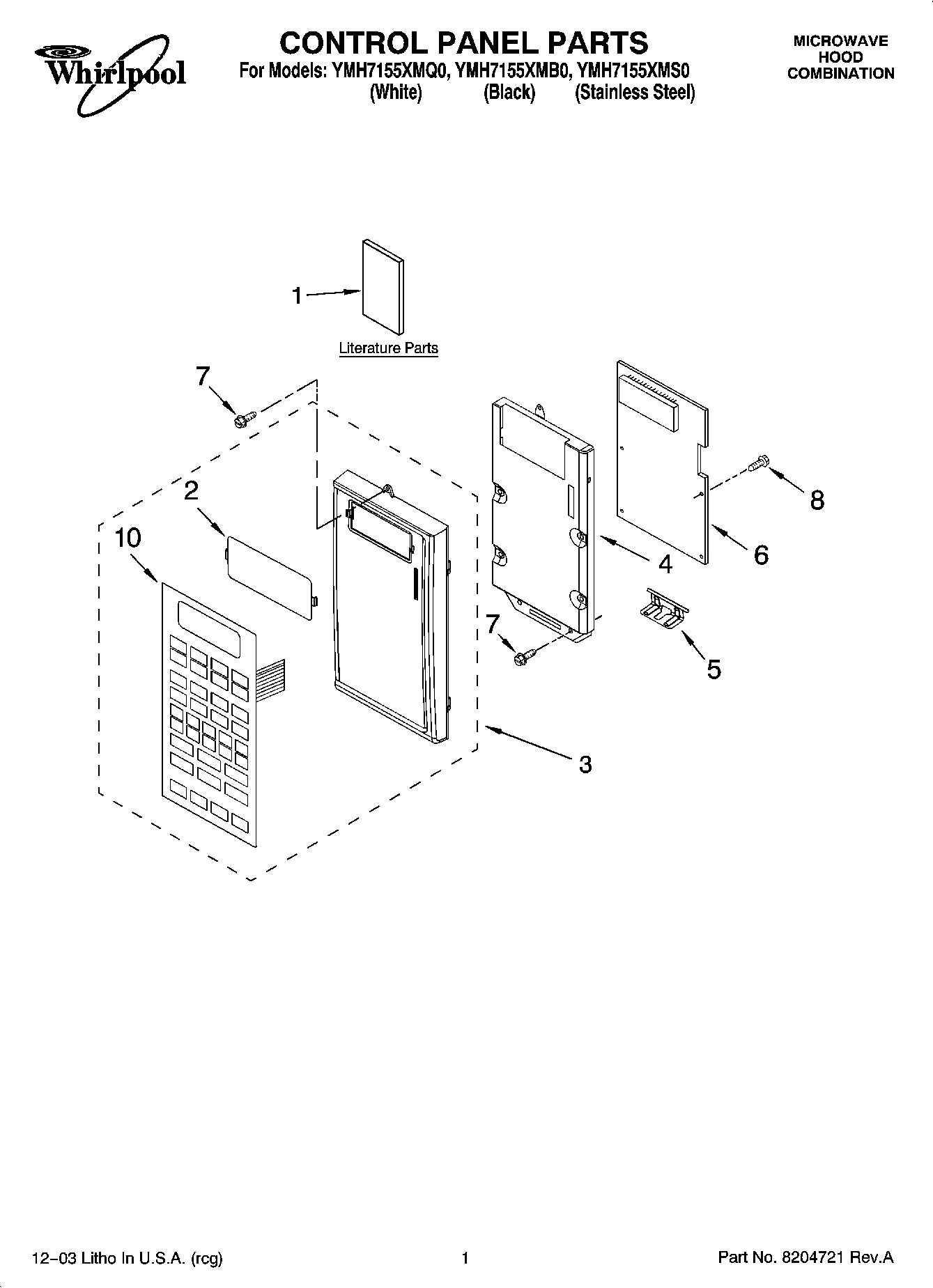

01 - CONTROL PANEL PARTS

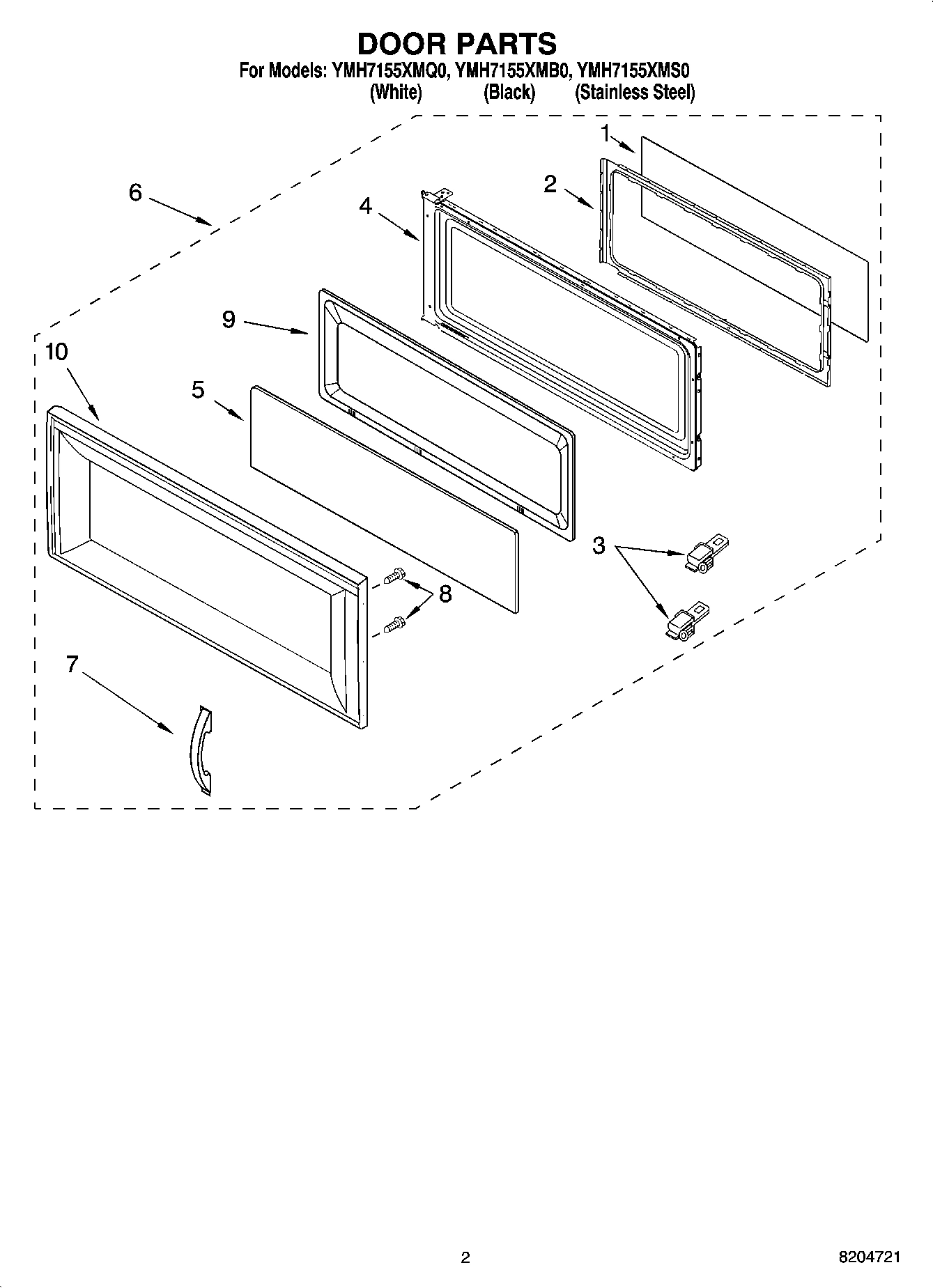

02 - DOOR PARTS
Common parts from model Whirlpool YMH7155XMS0 MICROWAVE HOOD COMBINATION
1
Deflector, Air WPL 8184638 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT8183732 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8185483 Contact Us For Availability
1
Literature Parts (English) WPL LIT8185484 Contact Us For Availability
1
Literature Parts (Tech Sheet Cook Guide Label WPL LIT8185485 Contact Us For Availability
1
Literature Parts (French) WPL LIT8204746 Contact Us For Availability
1
Film, Back WPL 4393870 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Reflector, Air WPL 8169557 Contact Us For Availability
2
Lens (Not Serviced On Stainless) WPL 8183708 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Duct, Air WPL 8185083 Contact Us For Availability
3
Panel, Control (White) WPL 8205065 Contact Us For Availability
3
Panel, Control (Black) WPL 8205066 Contact Us For Availability
3
Panel, Control (Stainless Steel) WPL 8205067 Contact Us For Availability
4
Body, Door (White) WPL 8169653 Contact Us For Availability
4
Bracket, Thermostat WPL 8204653 Contact Us For Availability
4
Lid, Power Cord WPL 8184313 Contact Us For Availability
4
Bracket, Control WPL 8183821 Contact Us For Availability
4
Body, Door (Black) WPL 8169460 Contact Us For Availability
5
Thermostat WPL 8183697 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
5
Glass, Outer (White Model) WPL 8204767 Contact Us For Availability
5
Glass, Outer (Black Model) WPL 8204768 Contact Us For Availability
5
Glass, Outer (Stainless Model) WPL 8205071 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Housing, Lamp WPL 8184745 Contact Us For Availability
6
Microcomputer WPL 8204859 Contact Us For Availability
6
Complete Door (Stainless Steel) WPL 8204830 Contact Us For Availability
6
Complete Door (White) WPL 8204875 Contact Us For Availability
6
Complete Door (Black) WPL 8204876 Contact Us For Availability
7
Case, Outer (White) WPL 8169660 Contact Us For Availability
7
Case, Outer (Black) WPL 8169661 Contact Us For Availability
7
Screw WPL 4393828 Contact Us For Availability
8
Turntable WPL 4393799 Contact Us For Availability
8
Wheel, Fan WPL 8204694 Contact Us For Availability
8
Grille, Vent (Stainless Steel) WPL 8164608 Contact Us For Availability
8
Screw WPL 4393346 Contact Us For Availability
9
Motor, Fan WPL 8204751 Contact Us For Availability
9
Panel Door (Only Stainless Model) WPL 8185349 Contact Us For Availability
10
Wheel, Plastic WPL 4393861 Contact Us For Availability
10
Shield WPL 8204754 Contact Us For Availability
10
Switch, Membrane (White) WPL 8204770 Contact Us For Availability
10
Switch, Membrane (Black Stainless Steel (Not WPL 8204771 Contact Us For Availability
10
Frame, Outer (Stainless Steel) WPL 8204829 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
11
Housing, Fan WPL 8184624 Contact Us For Availability
12
Plate, Cam (2) WPL 8183824 Contact Us For Availability
12
Bracket, Fan (Not Serviced) WPL ARI138976A Contact Us For Availability
13
Rod WPL 8169318 Contact Us For Availability
14
Screw WPL 8169478 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
15
Thermostat WPL 8183698 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
16
Plate, Damper WPL 4393874 Contact Us For Availability
16
Catch WPL 8185033 Contact Us For Availability
17
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
18
Cushion, Mtr WPL 8169635 Contact Us For Availability
18
Filler Kit (Black) WPL 8171337 Contact Us For Availability
18
Filler Kit (White) WPL 8171336 Contact Us For Availability
18
Hardware, Installation WPL 8169659 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
18
Wall Template WPL 8169765 Contact Us For Availability
18
Filler Kit (Biscut) WPL 8171338 Contact Us For Availability
18
Filler Kit (Almond) WPL 8171570 Contact Us For Availability
18
Upper Template WPL 8185494 Contact Us For Availability
18
Rack WPL 8204725 Contact Us For Availability
18
Miscellaneous WPL ARI138977A Contact Us For Availability
18
ACCESSORY PARTS WPL ARI138978A Contact Us For Availability
19
Holder, Lamp WPL 8169539 Contact Us For Availability
19
Screw WPL 8169474 Contact Us For Availability
20
Nut WPL 8184404 Contact Us For Availability
21
Transformer, H.V. WPL 8204844 Contact Us For Availability
21
Humidity, Sensor WPL 4393808 Contact Us For Availability
22
Plate, Side (R) WPL 8204657 Contact Us For Availability
22
Filter WPL 8169561 Contact Us For Availability
25
Plate, Side (L) WPL 8204658 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183703 Contact Us For Availability
33
Screw WPL 4393833 Contact Us For Availability
36
Screw WPL 4393839 Contact Us For Availability
× ![]()
