Model Whirlpool YMH7140XFQ2 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

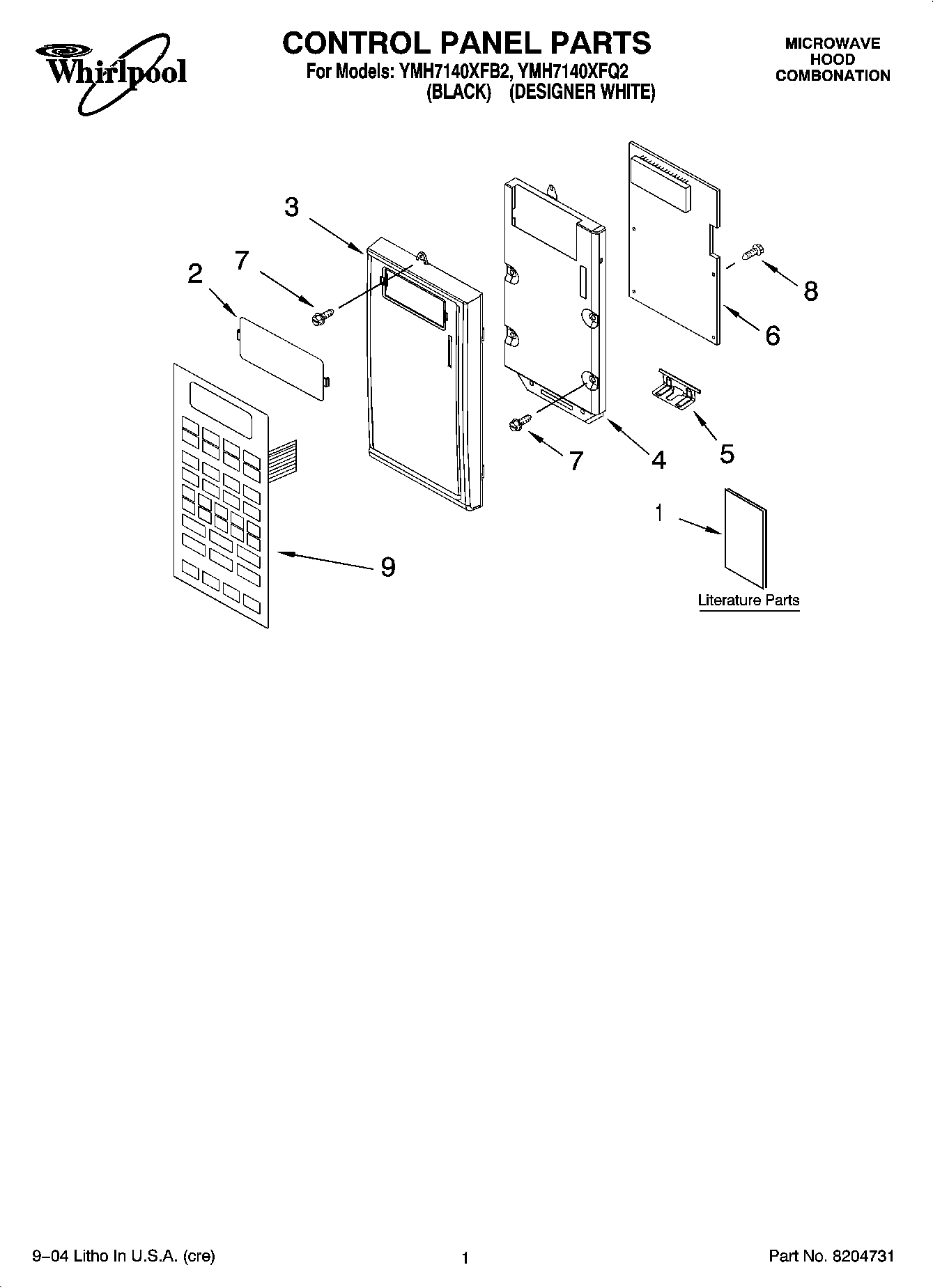

01 - CONTROL PANEL PARTS

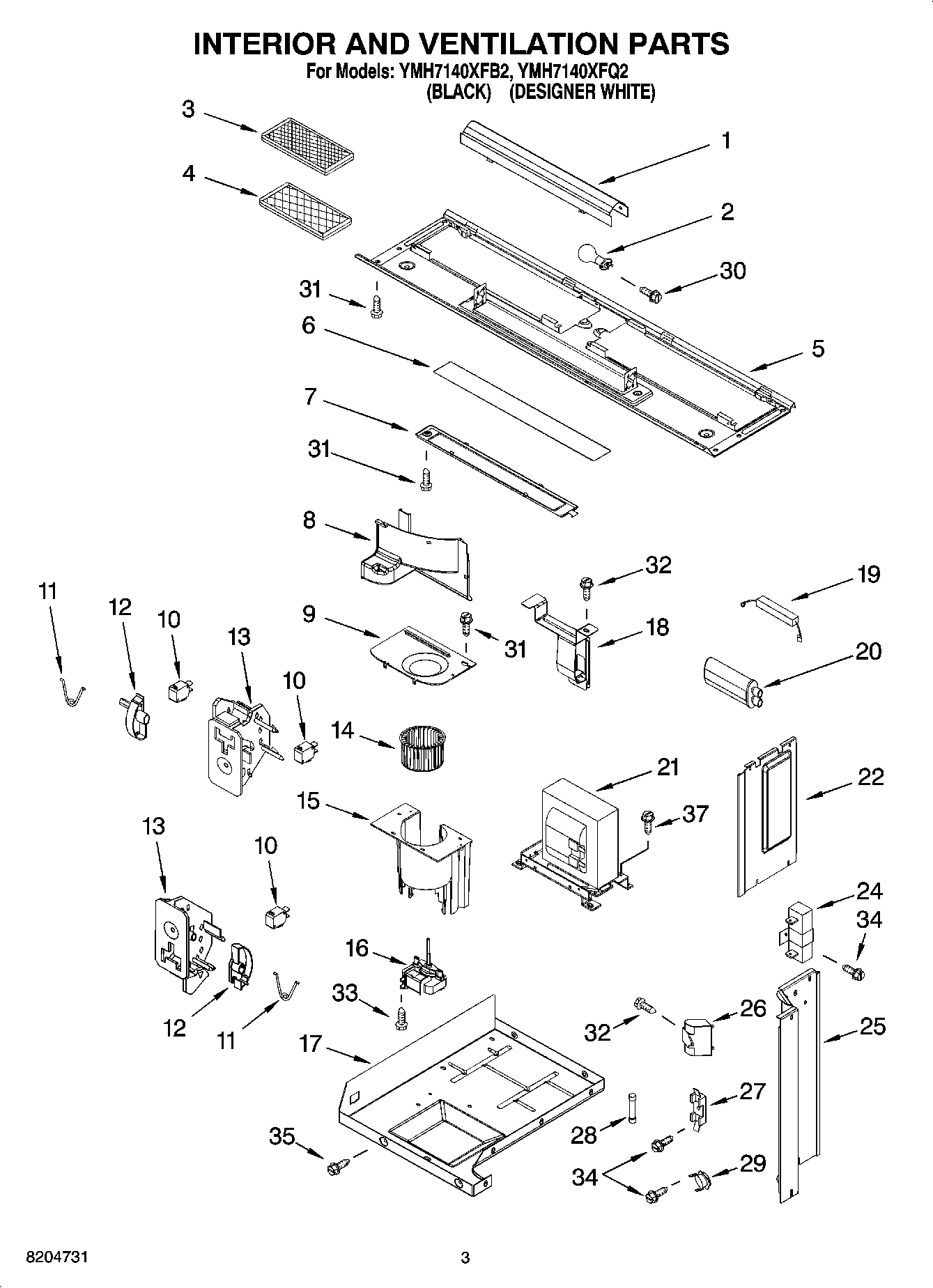

03 - INTERIOR AND VENTILATION PARTS

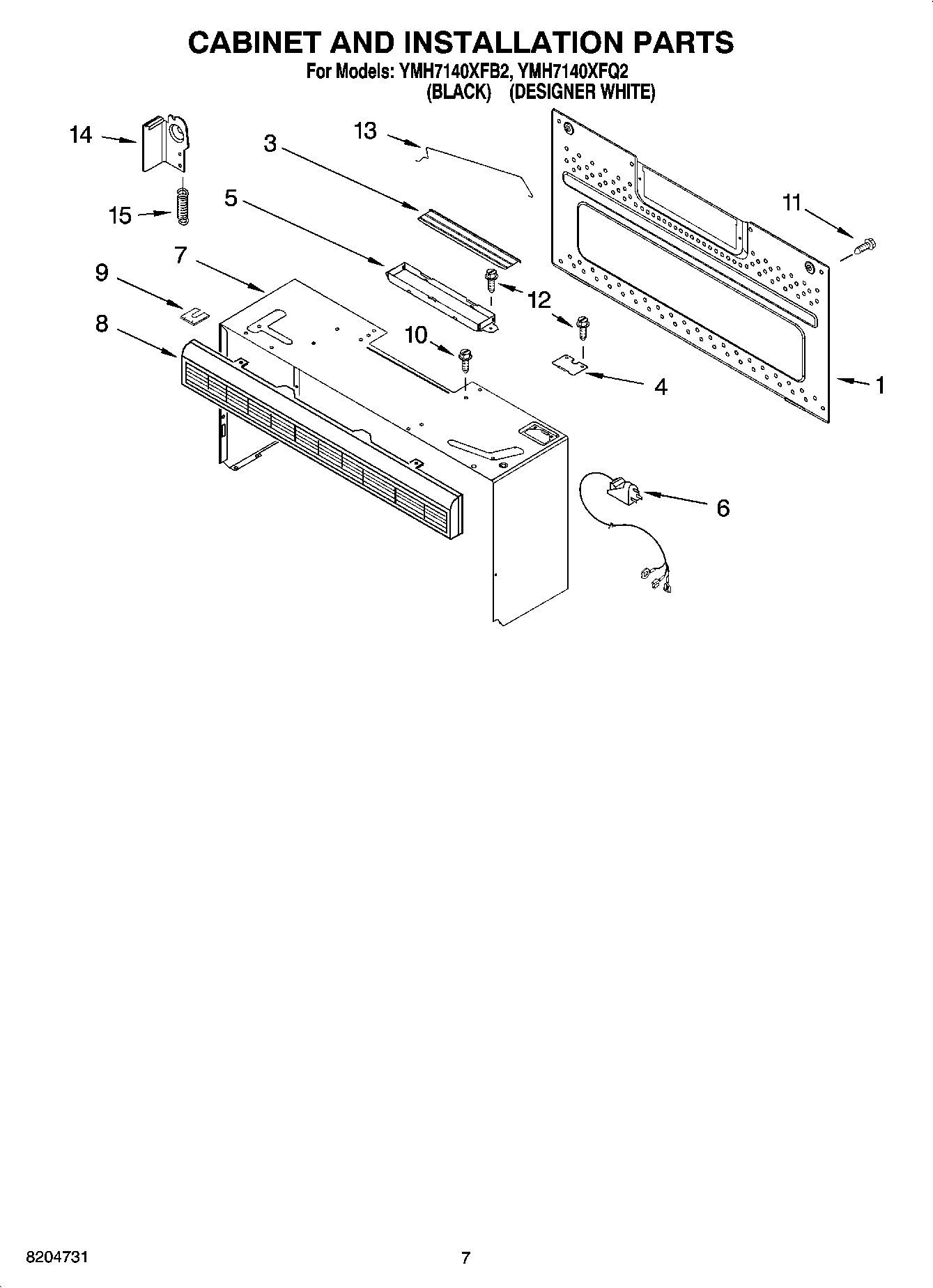

06 - CABINET AND INSTALLATION PARTS

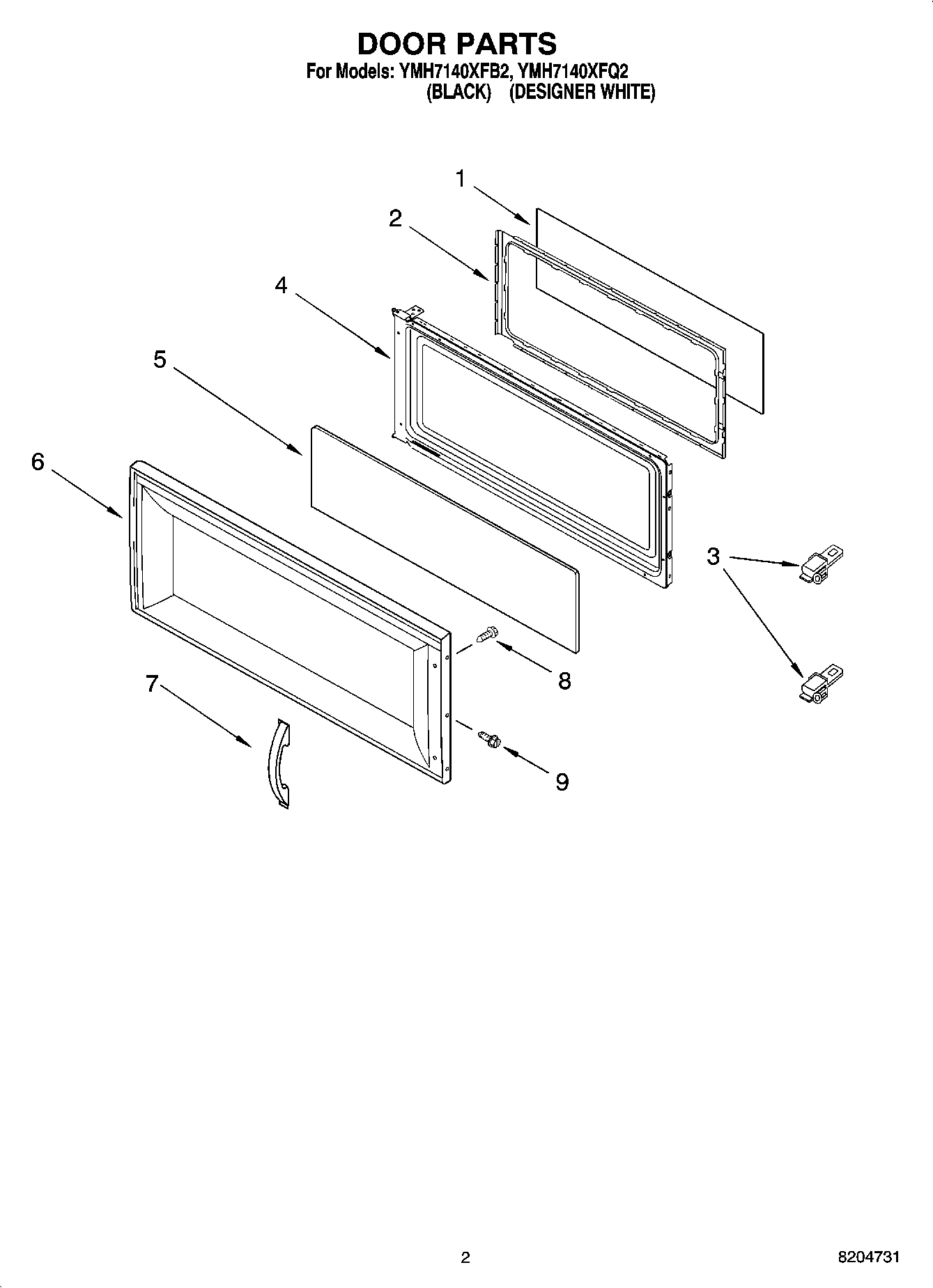

02 - DOOR PARTS

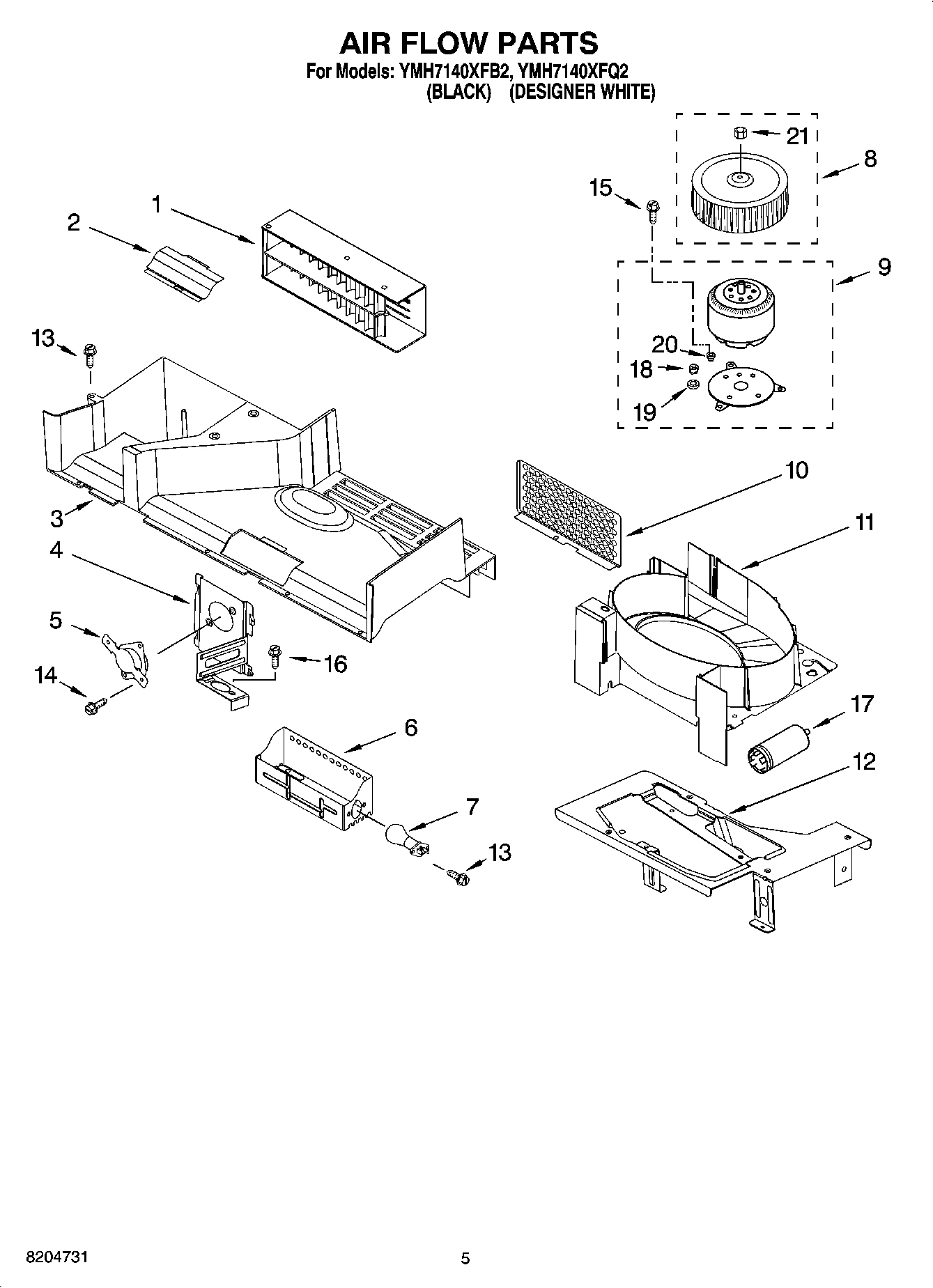

04 - AIR FLOW PARTS

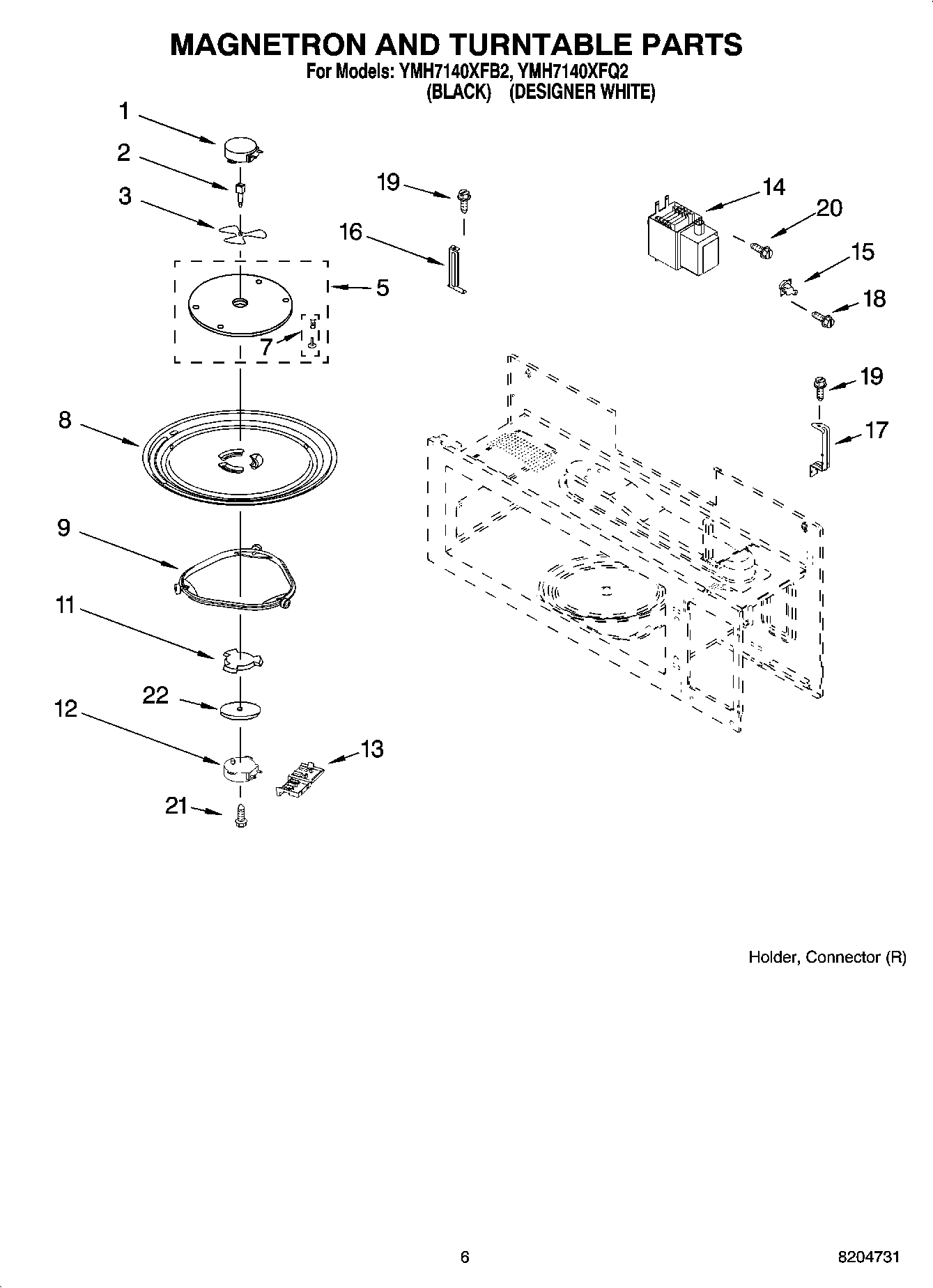

05 - MAGNETRON AND TURNTABLE PARTS
Common parts from model Whirlpool YMH7140XFQ2 MICROWAVE HOOD COMBINATION
Filler Kit (Black) WPL 4158311 Contact Us For Availability
Filler Kit (White) WPL 4158439 Contact Us For Availability
Installation, Hardware WPL 4393757 Contact Us For Availability
Rack WPL 4393826 Contact Us For Availability
Miscellaneous WPL ARI138952A Contact Us For Availability
ACCESSORY PARTS WPL ARI138953A Contact Us For Availability
1
Film, Back WPL 4393870 Contact Us For Availability
1
Deflector, Air WPL 8184638 Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Reflector, Air WPL 8169557 Contact Us For Availability
2
Shaft, Stirrer WPL 4393794 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Duct, Air WPL 8185053 Contact Us For Availability
3
Stirrer WPL 4393748 Contact Us For Availability
4
Body, Door (White) WPL 8169653 Contact Us For Availability
4
Lid, Power Cord WPL 8184313 Contact Us For Availability
4
Body, Door (Black) WPL 8169460 Contact Us For Availability
4
Bracket, Thermostat WPL 8169558 Contact Us For Availability
5
Glass, Outer (Black) WPL 4393725 Contact Us For Availability
5
Thermostat WPL 8183697 Contact Us For Availability
5
Glass, Outer (White) WPL 8183704 Contact Us For Availability
5
Cover, Inlet WPL 8184476 Contact Us For Availability
6
Housing, Lamp WPL 8184745 Contact Us For Availability
7
Case, Outer (White) WPL 8169660 Contact Us For Availability
7
Case, Outer (Black) WPL 8169661 Contact Us For Availability
7
Nail, Plastic WPL 4393291 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Screw WPL 4393833 Contact Us For Availability
8
Wheel, Fan WPL 4393871 Contact Us For Availability
9
Cover, Fan WPL 8183823 Contact Us For Availability
9
Motor, Fan WPL 8204751 Contact Us For Availability
10
Shield WPL 8184130 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
11
Screw WPL 4393839 Contact Us For Availability
11
Housing, Fan WPL 8185085 Contact Us For Availability
12
Plate, Cam (2) WPL 8183824 Contact Us For Availability
12
Bracket, Fan WPL 4393869 Contact Us For Availability
13
Screw WPL 8169474 Contact Us For Availability
13
Rod WPL 8169318 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Wheel, Fan WPL 8183825 Contact Us For Availability
14
Screw WPL 8169478 Contact Us For Availability
14
Catch WPL 8185033 Contact Us For Availability
15
Housing, Fan WPL 8184310 Contact Us For Availability
15
Spring WPL 8169374 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
15
Thermostat WPL 8163698 Contact Us For Availability
16
Motor, Fan WPL 8185211 Contact Us For Availability
16
Holder, Connector (L) WPL 8169540 Contact Us For Availability
17
Chassis WPL 8185212 Contact Us For Availability
17
Filter WPL 4393323 Contact Us For Availability
17
Holder, Connector (R) WPL 8169705 Contact Us For Availability
18
SPACER WPL 8184129 Contact Us For Availability
18
Holder, Capacitor WPL 8184311 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
19
Screw WPL 4393828 Contact Us For Availability
19
Plate, Damper WPL 4393874 Contact Us For Availability
20
Cushion, Motor WPL 8169635 Contact Us For Availability
21
Transformer, H.V. WPL 8185252 Contact Us For Availability
21
Nut WPL 8184404 Contact Us For Availability
22
Plate, Side (R) WPL 4393705 Contact Us For Availability
24
Resistor, Ceramic WPL 4393707 Contact Us For Availability
25
Plate, Side (L) WPL 8169470 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183703 Contact Us For Availability
35
Screw WPL 8169475 Contact Us For Availability
× ![]()
