Model Maytag YMET8720DH01 ELECTRIC RANGE – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

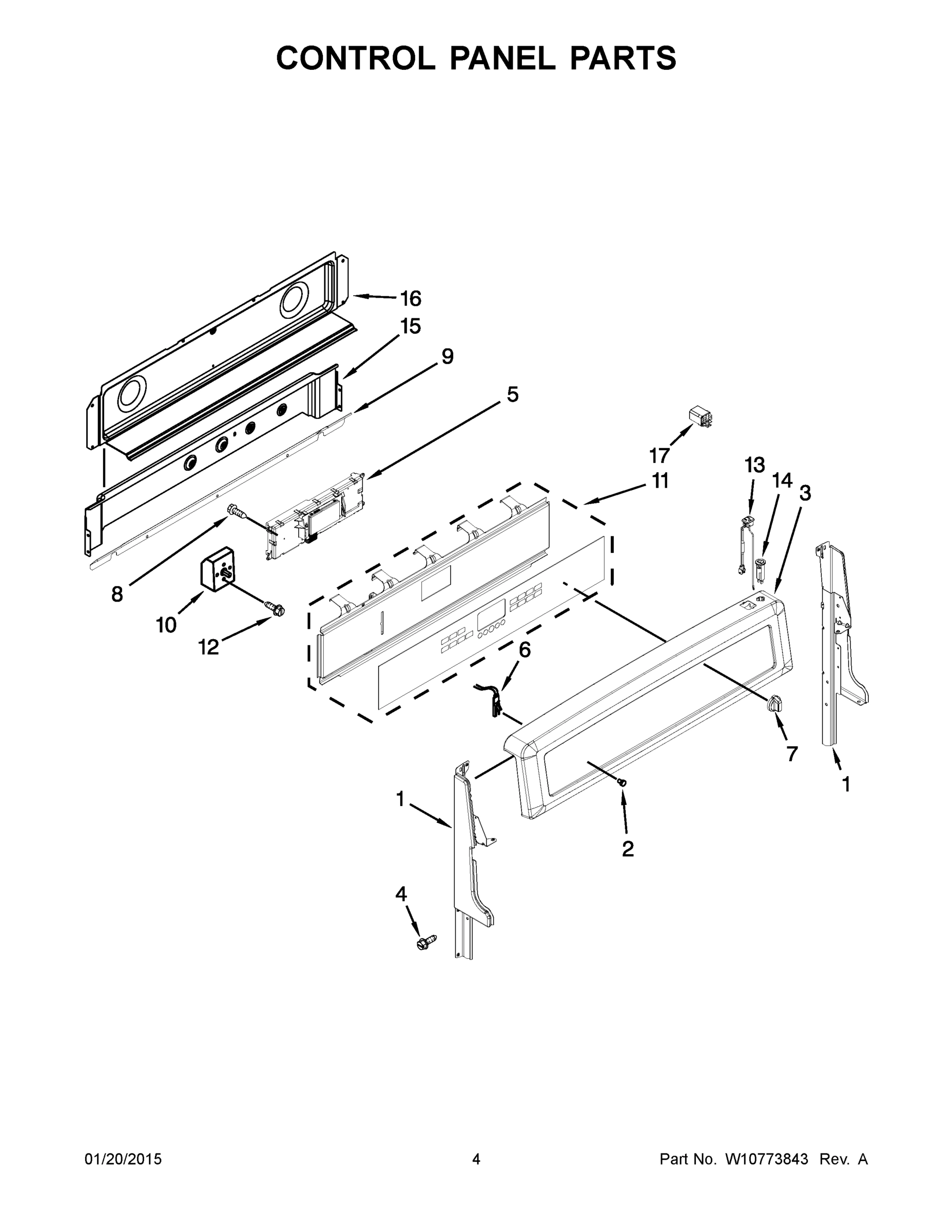

03 - CONTROL PANEL PARTS

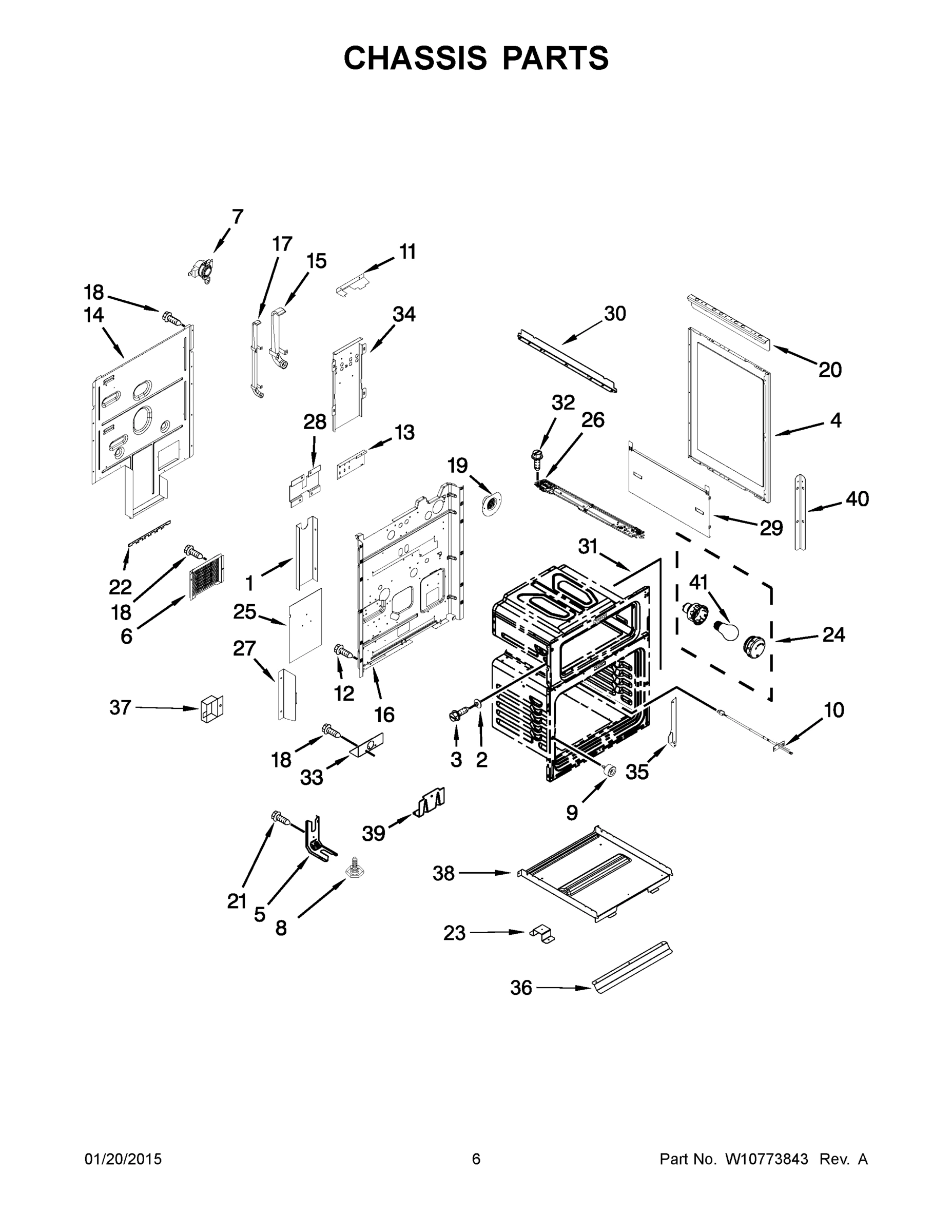

04 - CHASSIS PARTS

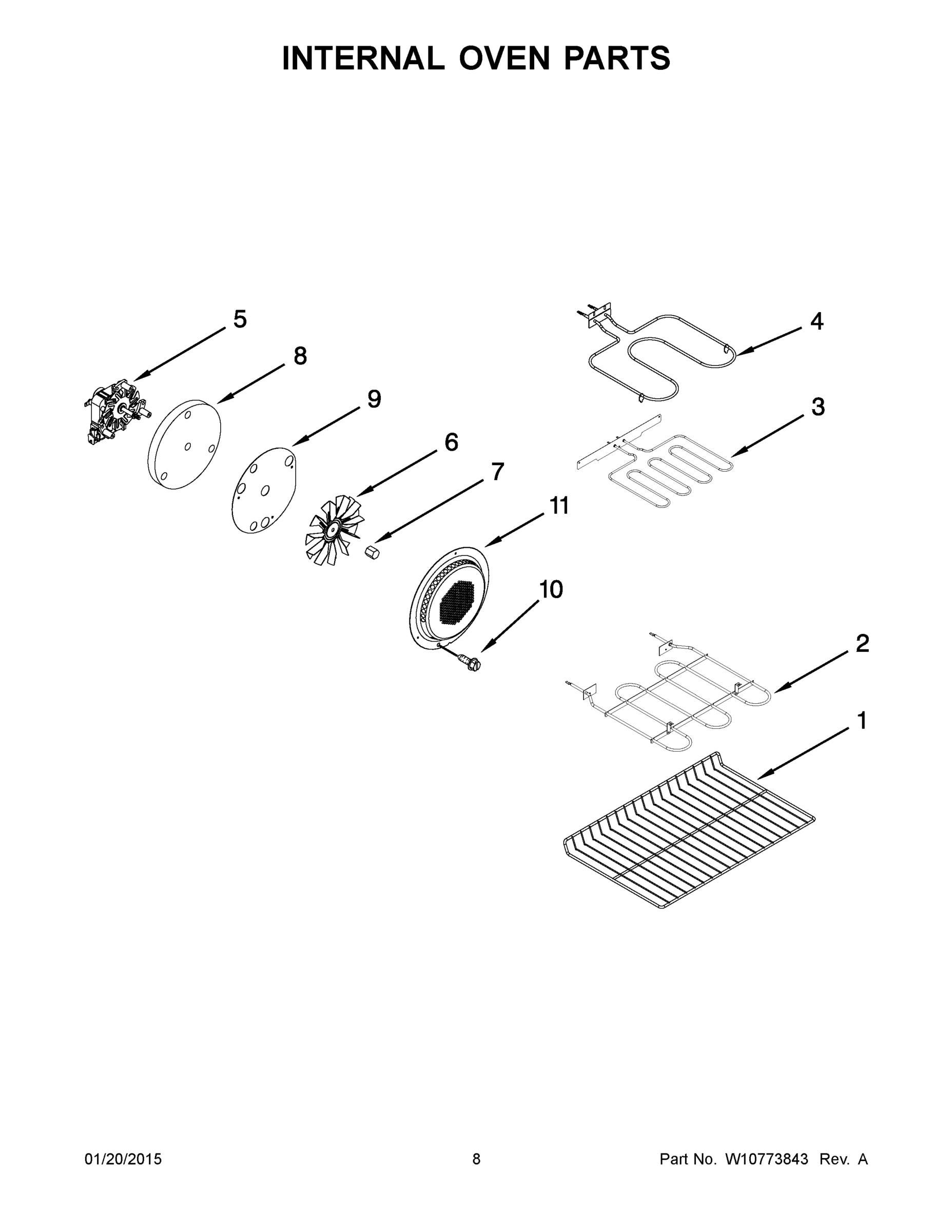

05 - INTERNAL OVEN PARTS

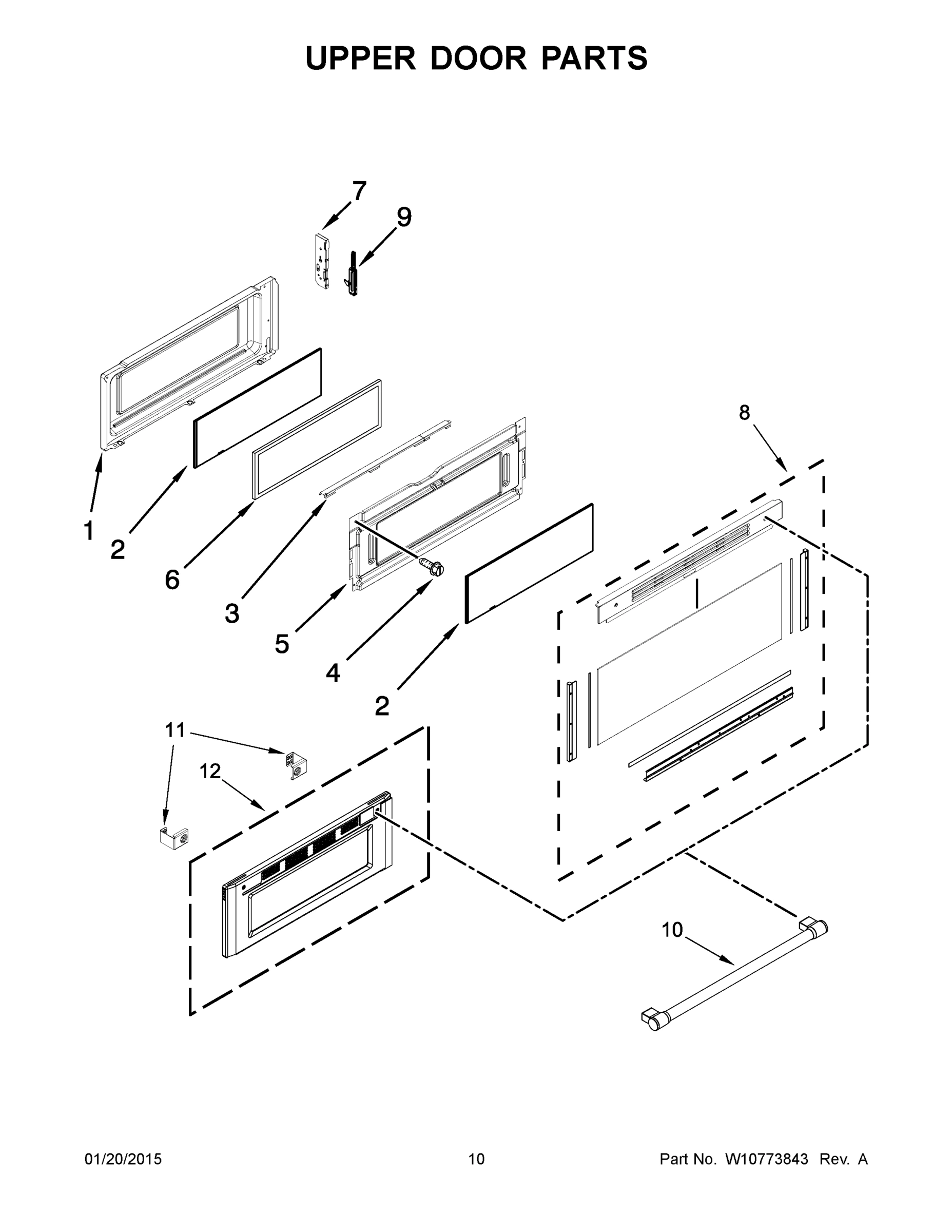

06 - UPPER DOOR PARTS

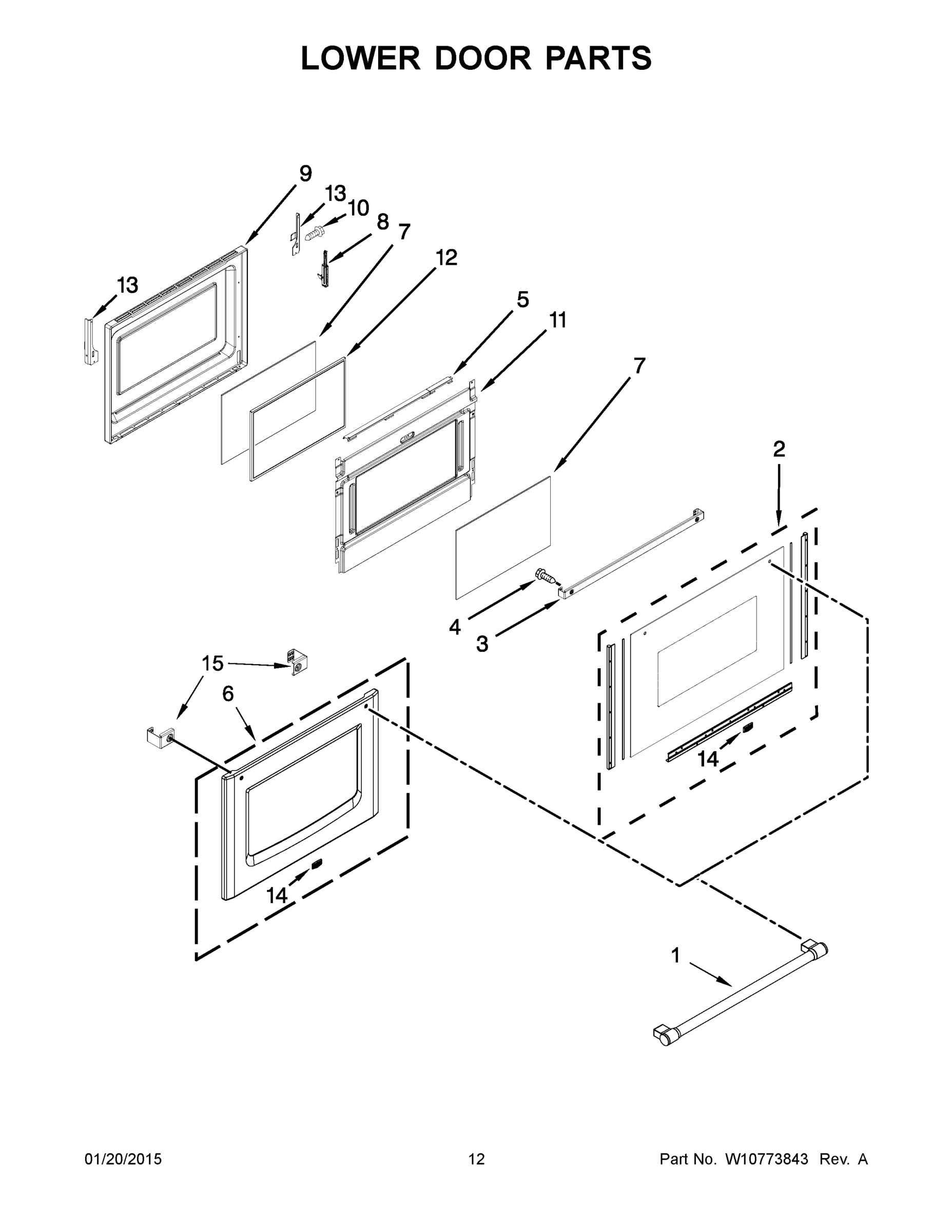

07 - LOWER DOOR PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMET8720DH01 ELECTRIC RANGE
1
MAY W10430958 MAY W10430958 Contact Us For Availability
1
SUPPORT, BACKGUARD (BLACK (LEFT)) MAY W10319109 Contact Us For Availability
1
MAY W10332459 MAY W10332459 Contact Us For Availability
1
MAY W10179152 MAY W10179152 Contact Us For Availability
1
MAY W10485720 MAY W10485720 Contact Us For Availability
1
MAY W10653408 MAY W10653408 Contact Us For Availability
1A
MAY W10748894 MAY W10748894 Contact Us For Availability
1A
SUPPORT, BACKGUARD (BLACK (RIGHT)) MAY W10319111 Contact Us For Availability
1A
MAY W10665842 MAY W10665842 Contact Us For Availability
1B
MAY W10647745 MAY W10647745 Contact Us For Availability
1B
SUPPORT, BACKGUARD (WHITE (LEFT)) MAY W10319110 Contact Us For Availability
1B
ASSEMBLY, DOOR HANDLE (STAINLESS MODELS) MAY W10665843 Contact Us For Availability
1C
MAY 9762761 MAY 9762761 Contact Us For Availability
1C
SUPPORT, BACKGUARD (WHITE (RIGHT)) MAY W10319112 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
MAY W10535150 MAY W10535150 Contact Us For Availability
2
MAY 3196068 MAY 3196068 Contact Us For Availability
2
MAY W10237689 MAY W10237689 Contact Us For Availability
2
MAY W10249979 MAY W10249979 Contact Us For Availability
2
GLASS, INNER MAY W10272707 Contact Us For Availability
2
ASSEMBLY, DOOR (BLACK) MAY W10638792 Contact Us For Availability
2A
ASSEMBLY, DOOR (WHITE) MAY W10638793 Contact Us For Availability
3
ELEMENT, WARM ZONE (120V) (CENTER REAR) MAY 9762851 Contact Us For Availability
3
CONSOLE (BLACK) MAY W10225556 Contact Us For Availability
3
MAY W10267456 MAY W10267456 Contact Us For Availability
3
MAY W10249981 MAY W10249981 Contact Us For Availability
3
MAY W10272708 MAY W10272708 Contact Us For Availability
3
BRACKET, HANDLE MAY W10294695 Contact Us For Availability
3A
CONSOLE (WHITE) MAY W10214551 Contact Us For Availability
3B
CONSOLE (STAINLESS) MAY W10225557 Contact Us For Availability
4
ELEMENT (3200W) (RIGHT FRONT) MAY W10251108 Contact Us For Availability
4
SCREW (BLACK) MAY 7101P633-60 Contact Us For Availability
4
MAY W10668723 MAY W10668723 Contact Us For Availability
4
MAY W10249977 MAY W10249977 Contact Us For Availability
4
MAY W10292297 MAY W10292297 Contact Us For Availability
4
SCREW MAY W10317886 Contact Us For Availability
4A
MAY W10668724 MAY W10668724 Contact Us For Availability
5
MAY W10664053 MAY W10664053 Contact Us For Availability
5
MAY W10692915 MAY W10692915 Contact Us For Availability
5
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
5
MAY W10667767 MAY W10667767 Contact Us For Availability
5
MAY W10485723 MAY W10485723 Contact Us For Availability
5
FRAME, GLASS MAY W10272594 Contact Us For Availability
5A
MAY W10664052 MAY W10664052 Contact Us For Availability
6
MAY W10225448 MAY W10225448 Contact Us For Availability
6
MAY 7407P136-60 MAY 7407P136-60 Contact Us For Availability
6
MAY W10312612 MAY W10312612 Contact Us For Availability
6
MAY W10116351 MAY W10116351 Contact Us For Availability
6
MAY W10321271 MAY W10321271 Contact Us For Availability
6
MAY W10638790 MAY W10638790 Contact Us For Availability
7
MAY W10260946 MAY W10260946 Contact Us For Availability
7
MAY W10650402 MAY W10650402 Contact Us For Availability
7
SWITCH, HIGH LIMIT MAY 7403P899-60 Contact Us For Availability
7
NUT, ACORN MAY W10116349 Contact Us For Availability
7
MAY W10289077 MAY W10289077 Contact Us For Availability
7
GLASS, INNER MAY 9757706 Contact Us For Availability
8
ELEMENT (1200W) (RIGHT REAR) MAY 8273994 Contact Us For Availability
8
FOOT, LEVELER MAY 7101P507-60 Contact Us For Availability
8
MAY W10274268 MAY W10274268 Contact Us For Availability
8
ASSEMBLY, DOOR (BLACK) MAY W10707396 Contact Us For Availability
8
HINGE, DOOR (LEFT) MAY W10335434 Contact Us For Availability
8A
ASSEMBLY, DOOR (WHITE) MAY W10707395 Contact Us For Availability
8A
HINGE, DOOR (RIGHT) MAY W10335433 Contact Us For Availability
9
MAY W10270604 MAY W10270604 Contact Us For Availability
9
SHIELD, WIRE COVER MAY W10299338 Contact Us For Availability
9
BUMPER & SCREW MAY W10105790 Contact Us For Availability
9
PLATE, INSULATION MAY W10339476 Contact Us For Availability
9
HINGE, DOOR (LEFT) MAY W10485731 Contact Us For Availability
9
MAY W10272698 MAY W10272698 Contact Us For Availability
9A
HINGE, DOOR (RIGHT) MAY W10485730 Contact Us For Availability
10
SWITCH, INFINITE (LEFT FRONT & RIGHT FRONT) MAY 7450P011-60 Contact Us For Availability
10
SENSOR, OVEN MAY 7430P044-60 Contact Us For Availability
10
MAY 4449154 MAY 4449154 Contact Us For Availability
10
MAY 4449040 MAY 4449040 Contact Us For Availability
10A
MAY W10295048 MAY W10295048 Contact Us For Availability
10B
SWITCH, INFINITE (RIGHT REAR) MAY 7403P373-60 Contact Us For Availability
11
MAY W10664064 MAY W10664064 Contact Us For Availability
11
MAY W10268559 MAY W10268559 Contact Us For Availability
11
MAY 4448988 MAY 4448988 Contact Us For Availability
11
MAY W10340464 MAY W10340464 Contact Us For Availability
11A
MAY W10664063 MAY W10664063 Contact Us For Availability
11B
MAY W10664065 MAY W10664065 Contact Us For Availability
12
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
12
MAY W10677255 MAY W10677255 Contact Us For Availability
12
MAY W10321285 MAY W10321285 Contact Us For Availability
13
MAY W10488078 MAY W10488078 Contact Us For Availability
13
MAY W10332449 MAY W10332449 Contact Us For Availability
13
RECEIVER (LEFT) MAY W10272329 Contact Us For Availability
13A
MAY W10488077 MAY W10488077 Contact Us For Availability
13A
RECEIVER (RIGHT) MAY W10272328 Contact Us For Availability
14
BREAKER, CIRCUIT (BLACK) MAY 9757602 Contact Us For Availability
14
MAY W10261386 MAY W10261386 Contact Us For Availability
14
MAY W10612925 MAY W10612925 Contact Us For Availability
14A
BREAKER, CIRCUIT (WHITE) MAY 9757601 Contact Us For Availability
15
MAY W10278697 MAY W10278697 Contact Us For Availability
15
MAY W10337391 MAY W10337391 Contact Us For Availability
15
MAY W10645182 MAY W10645182 Contact Us For Availability
16
COVER, BACKGUARD MAY W10296773 Contact Us For Availability
16
MAY W10668730 MAY W10668730 Contact Us For Availability
17
MAY W10326400 MAY W10326400 Contact Us For Availability
17
MAY W10323793 MAY W10323793 Contact Us For Availability
18
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
19
ADAPTER, VENT TUBE MAY W10322408 Contact Us For Availability
20
BRACKET, U CHANNEL MAY W10319087 Contact Us For Availability
21
MAY 7101P485-60 MAY 7101P485-60 Contact Us For Availability
22
SHIELD, POWER CORD MAY 8036P012-60 Contact Us For Availability
23
CLIP, RETAINING MAY W10260545 Contact Us For Availability
24
MAY W10454648 MAY W10454648 Contact Us For Availability
25
SHIELD, CORD (RIGHT) MAY W10311987 Contact Us For Availability
26
MAY W10471348 MAY W10471348 Contact Us For Availability
27
COVER, WIRE LOWER MAY W10268560 Contact Us For Availability
28
INSULATOR, HEAT SHIELD MAY 7003P104-60 Contact Us For Availability
29
MAY W10538516 MAY W10538516 Contact Us For Availability
30
MAY W10357697 MAY W10357697 Contact Us For Availability
31
MAY W10337392 MAY W10337392 Contact Us For Availability
31A
MAY W10269069 MAY W10269069 Contact Us For Availability
32
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
33
BRACKET, POWER SUPPLY MAY W10190166 Contact Us For Availability
34
MAY W10261388 MAY W10261388 Contact Us For Availability
35
MAY W10410463 MAY W10410463 Contact Us For Availability
35A
MAY W10410461 MAY W10410461 Contact Us For Availability
36
BRACKET, RETAINING MAY W10253470 Contact Us For Availability
37
MAY 8285593 MAY 8285593 Contact Us For Availability
38
MAY W10548601 MAY W10548601 Contact Us For Availability
39
MAY W10260703 MAY W10260703 Contact Us For Availability
40
MAY W10651056 MAY W10651056 Contact Us For Availability
41
MAY 311255 MAY 311255 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
BLOCK, BARE WIRE ADAPTER MAY 7401P157-60 Contact Us For Availability
NI
CLIP, WIRE LOCK MAY 8019P013-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10219255 MAY W10219255 Contact Us For Availability
NI
MAY W10225701 MAY W10225701 Contact Us For Availability
NI
CORD, POWER MAY W10233363 Contact Us For Availability
NI
HARNESS, INFINITE SWITCH (RIGHT) MAY W10406501 Contact Us For Availability
NI
HARNESS, EOL (MRC) MAY W10409840 Contact Us For Availability
NI
MAY W10537938 MAY W10537938 Contact Us For Availability
NI
HARNESS, MAIN MAY W10695105 Contact Us For Availability
NI
INSULATION, MIDDLE MAY W10204079 Contact Us For Availability
NI
INSULATION, MAIN FRONT STRIP MAY W10204085 Contact Us For Availability
NI
MAY W10271637 MAY W10271637 Contact Us For Availability
NI
MAY W10272326 MAY W10272326 Contact Us For Availability
NI
INSULATION, WRAPPER MAY W10308393 Contact Us For Availability
NI
INSULATION, BACK MAY W10322111 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, SPRAY (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) MAY 350956 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN AND GRID MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
× ![]()
