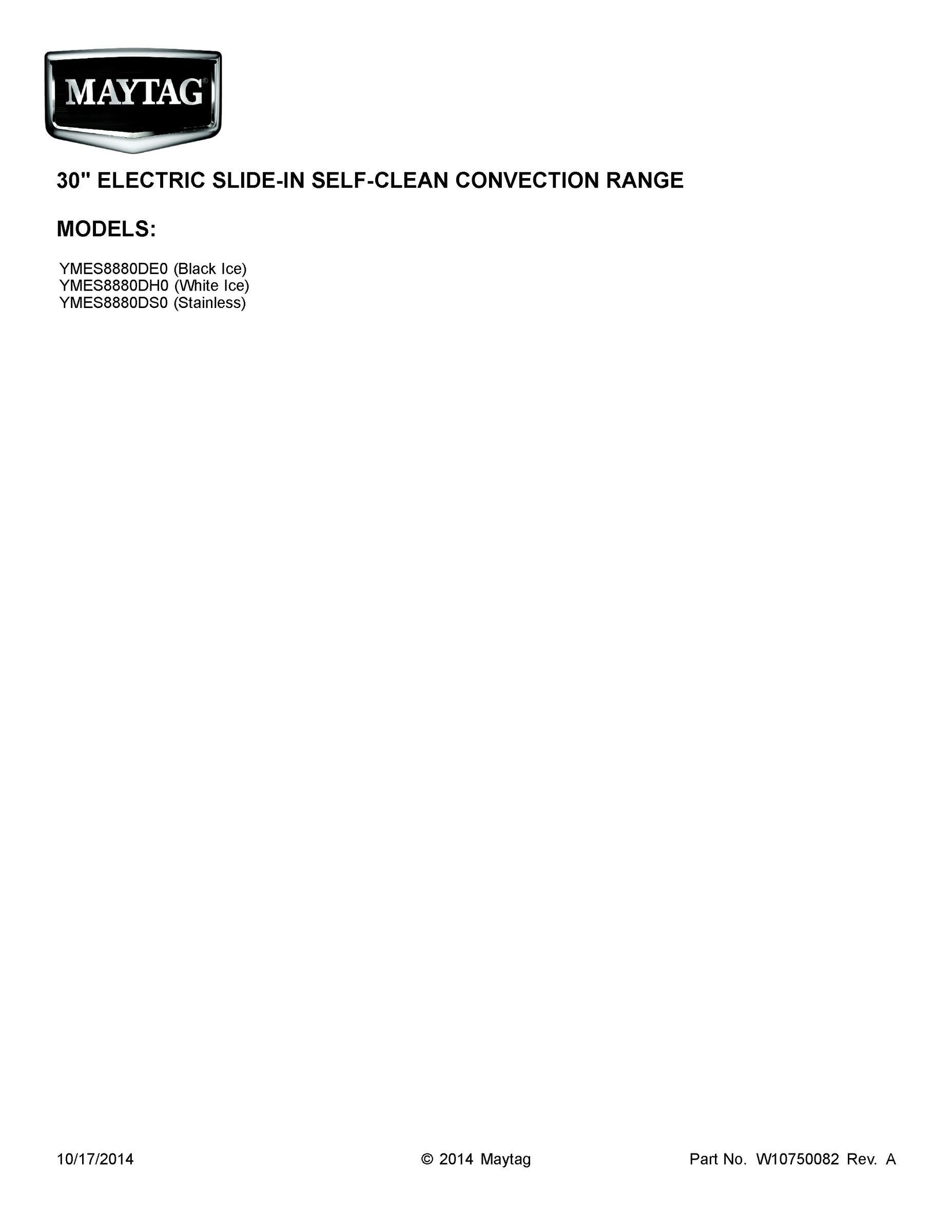

Model Whirlpool YMES8880DH0 ELECTRIC RANGE – Common Parts &amp; Diagrams

1

TRIM, VENT (BLACK) WPL W10339814 Contact Us For Availability

1A

TRIM, VENT (WHITE) WPL W10330075 Contact Us For Availability

2

W10813962 Whirlpool Utility Drawer In Stock WPL W10813962 $69.17

2

W11169708 Whirlpool Screw Backorder WPL W11169708 $9.96

2

WPW10225448 Whirlpool Spring Assembly In Stock WPL WPW10225448 $5.40

2

WPW10665831 Whirlpool Door Handle Backorder WPL WPW10665831 $140.80

3

W10911300 Whirlpool Nameplate Backorder WPL W10911300 $51.30

3

W11730303 Whirlpool Side Panel In Stock WPL W11730303 $64.43

3

WPW10318026 Whirlpool Mounting Bracket Backorder WPL WPW10318026 $13.55

3A

WPW10575396 Whirlpool Side Panel Backorder WPL WPW10575396 $87.63

4

WPW10297318 Whirlpool Door Liner Backorder WPL WPW10297318 $147.43

5

W11562931 Whirlpool Door Gasket In Stock WPL W11562931 $30.52

5

WPW10275049 Whirlpool Surface Element 2500/12 In Stock WPL WPW10275049 $167.68

5

WPW10441804 Whirlpool Drawer Slide Backorder WPL WPW10441804 $43.85

5A

WPW10441805 Whirlpool Slide Drawer Backorder WPL WPW10441805 $43.85

6

W11171119 Whirlpool Radiant Surface Element In Stock WPL W11171119 $95.26

6

W11238400 Whirlpool Broil Element In Stock WPL W11238400 $66.31

6

WPW10300487 Whirlpool Door Glass Backorder WPL WPW10300487 $170.18

7

WPW10251108 Whirlpool Range Cooktop 3200W Rad In Stock WPL WPW10251108 $136.38

7

WPW10440013 Whirlpool Door Hinge In Stock WPL WPW10440013 $32.79

8

WPW10270604 Whirlpool Surface Element Backorder WPL WPW10270604 $99.15

8

ASSEMBLY, DOOR SKIN (BLACK) WPL W10655834 Contact Us For Availability

8A

ASSEMBLY, DOOR SKIN (WHITE) WPL W10655831 Contact Us For Availability

8B

WPW10655838 Whirlpool Door Panel Backorder WPL WPW10655838 $235.06

9

W11122085 Whirlpool Vent Tube Backorder WPL W11122085 $45.66

9

BRACKET, GLASS WPL W10294852 Contact Us For Availability

10

W10289168 Whirlpool Burner Box Backorder WPL W10289168 $90.77

10

GLASS, OUTER WPL W10615599 Contact Us For Availability

W10536275 Whirlpool Pan Backorder WPL W10536275 $74.96

W10634260 Whirlpool Utility Drawer Backorder WPL W10634260 $123.80

W11116956 Whirlpool Support Bracket In Stock WPL W11116956 $77.00

WPW10341186 Whirlpool Range Front Levelling L In Stock WPL WPW10341186 $11.21

12

W10162253 Whirlpool Mounting Bracket Backorder WPL W10162253 $31.35

12A

W10162252 Whirlpool Bracket Mounting Backorder WPL W10162252 $33.27

13

W10289170 Whirlpool Support Bracket Backorder WPL W10289170 $10.58

13

W10294853 Whirlpool Mounting Bracket Backorder WPL W10294853 $89.58

13

W10541959 Whirlpool Heat Shield Assembly Backorder WPL W10541959 $111.58

13A

W10289169 Whirlpool Bracket Support Backorder WPL W10289169 $10.58

14

W10137382 Whirlpool Clip Backorder WPL W10137382 $31.33

14

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.96

14

WP8533988 Whirlpool Screw Fastener Backorder WPL WP8533988 $2.60

15

W10547960 Whirlpool Endcap Panel Backorder WPL W10547960 $8.36

15A

W10547961 Whirlpool Endcap Panel Backorder WPL W10547961 $8.36

15B

W10598048 Whirlpool Support Bracket Backorder WPL W10598048 $9.46

16

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.84

17

W10857622 Whirlpool Infinite Switch In Stock WPL W10857622 $155.23

17

WP3196548 Whirlpool Thermal Fuse In Stock WPL WP3196548 $17.82

17A

WPW10295048 Whirlpool Range Infinite Switch ( In Stock WPL WPW10295048 $77.27

17B

W10917724 Whirlpool Infinite Switch In Stock WPL W10917724 $61.66

17C

W10911303 Whirlpool Infinite Switch In Stock WPL W10911303 $58.17

18

3196172 Whirlpool Oven Screw Backorder WPL 3196172 $9.96

18

WP8523265 Whirlpool Indicator Light In Stock WPL WP8523265 $35.57

19

W10035900 Whirlpool Support Bracket Backorder WPL W10035900 $10.37

19

W10672074 Whirlpool Knob Backorder WPL W10672074 $70.03

20

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $33.14

21

WPW10245259 Whirlpool Terminal Block In Stock WPL WPW10245259 $13.97

24

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $39.14

24

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $3.12

25

W10558372 Whirlpool Bracket Mounting Backorder WPL W10558372 $8.84

26

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.60

27

W10833885 Whirlpool Temperature Sensor In Stock WPL W10833885 $70.18

28

W11744482 Whirlpool Gasket Assembly Backorder WPL W11744482 $8.76

29

WPW10326122 Whirlpool Black Cover Backorder WPL WPW10326122 $54.13

29

WPW10603098-includeCORE Whirlpool WPW10603098 Backorder WPL WPW10603098-includeCORE $214.03

31

W11218703 Whirlpool Mounting Bracket Backorder WPL W11218703 $93.77

31

W11370463 Whirlpool Door Rod Assembly Backorder WPL W11370463 $27.87

31A

WPL W10570528 WPL W10570528 Contact Us For Availability

32

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $30.91

32

W11240519 Whirlpool Vent Trim Backorder WPL W11240519 $102.10

32A

W10636527 Whirlpool Vent Trim Backorder WPL W10636527 $100.90

33

W10789865 Whirlpool Range Bottom Backorder WPL W10789865 $117.77

35

WPW10281322 Whirlpool Connector Backorder WPL WPW10281322 $3.80

37

W11441001 Whirlpool Convection Fan In Stock WPL W11441001 $69.46

39

W10273002 Whirlpool Support Bracket Backorder WPL W10273002 $28.60

40

W11379357 Whirlpool Overflow Pan In Stock WPL W11379357 $49.59

42

W10162254 Whirlpool Air Duct Backorder WPL W10162254 $56.87

43

W11107275 Whirlpool Range Control Panel Cooli In Stock WPL W11107275 $66.40

44

W10655485 Whirlpool Shield Backorder WPL W10655485 $14.76

45

W10162241 Whirlpool Channel Backorder WPL W10162241 $13.38

46

W10162248 Whirlpool Wire Cover Backorder WPL W10162248 $60.63

47

W11379354 Whirlpool Rear Cover Backorder WPL W11379354 $47.20

48

WPW10531060 Whirlpool Range Rack Backorder WPL WPW10531060 $69.73

49

W11256463 Whirlpool Range Rack Backorder WPL W11256463 $68.85

50

W10655441 Whirlpool Insulation Wire Backorder WPL W10655441 $60.63

285006 Whirlpool Spray In Stock WPL 285006 $46.08

350930 Whirlpool White Spray Paint In Stock WPL 350930 $22.23

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $10.93

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $45.60

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $32.66

4396927 Whirlpool Range Rack Backorder WPL 4396927 $102.46

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.95

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.93

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $10.93

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $75.20

W10391473 Whirlpool Replacement Scrubbing Pad Backorder WPL W10391473 $4.10

W10432545 Whirlpool Range Grille Grate Backorder WPL W10432545 $46.66

W10580265 Whirlpool Wire Harness Backorder WPL W10580265 $33.33

W10655448 Whirlpool Range Backsplash Backorder WPL W10655448 $289.21

W10655449 Whirlpool Range Backsplash Backorder WPL W10655449 $320.25

W10655450 Whirlpool Range Backsplash Backorder WPL W10655450 $254.90

W10675026 Whirlpool Range Cooktop Trim Backorder WPL W10675026 $96.95

W10675027 Whirlpool Range White Cooktop Trim Backorder WPL W10675027 $92.33

W10675028 Whirlpool Range Stainless Cooktop T In Stock WPL W10675028 $83.83

W11025616 Whirlpool Wire Harness In Stock WPL W11025616 $31.73

W11226772 Whirlpool Wire Harness Backorder WPL W11226772 $129.85

W11688363 Whirlpool Insulation Backorder WPL W11688363 $52.36

W11688567 Whirlpool Insulation Assembly Backorder WPL W11688567 $52.36

W11688730 Whirlpool Insulation Backorder WPL W11688730 $32.28

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $4.75

ACCESSORY PARTS, CLEANER, COOKTOP WPL W10355051 Contact Us For Availability

ACCESSORY PARTS, KIT, COOKTOP CARE WPL 31605 Contact Us For Availability

ACCESSORY PARTS, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability

ACCESSORY PARTS, WIPES, STAINLESS STEEL CLEAN WPL W10355049 Contact Us For Availability

ACCESSORY PARTS, PROTECTANT, COOKTOP WPL 31463A Contact Us For Availability

ACCESSORY PARTS, KIT, OVEN CLEANING WPL W10423113RP Contact Us For Availability

ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE WPL W10355010 Contact Us For Availability

ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN WPL 31617A Contact Us For Availability

ACCESSORY PARTS, CLEANER, GRANITE WPL W10275756 Contact Us For Availability

ACCESSORY PARTS, KIT, CANNING UNIT WPL 242905 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability
