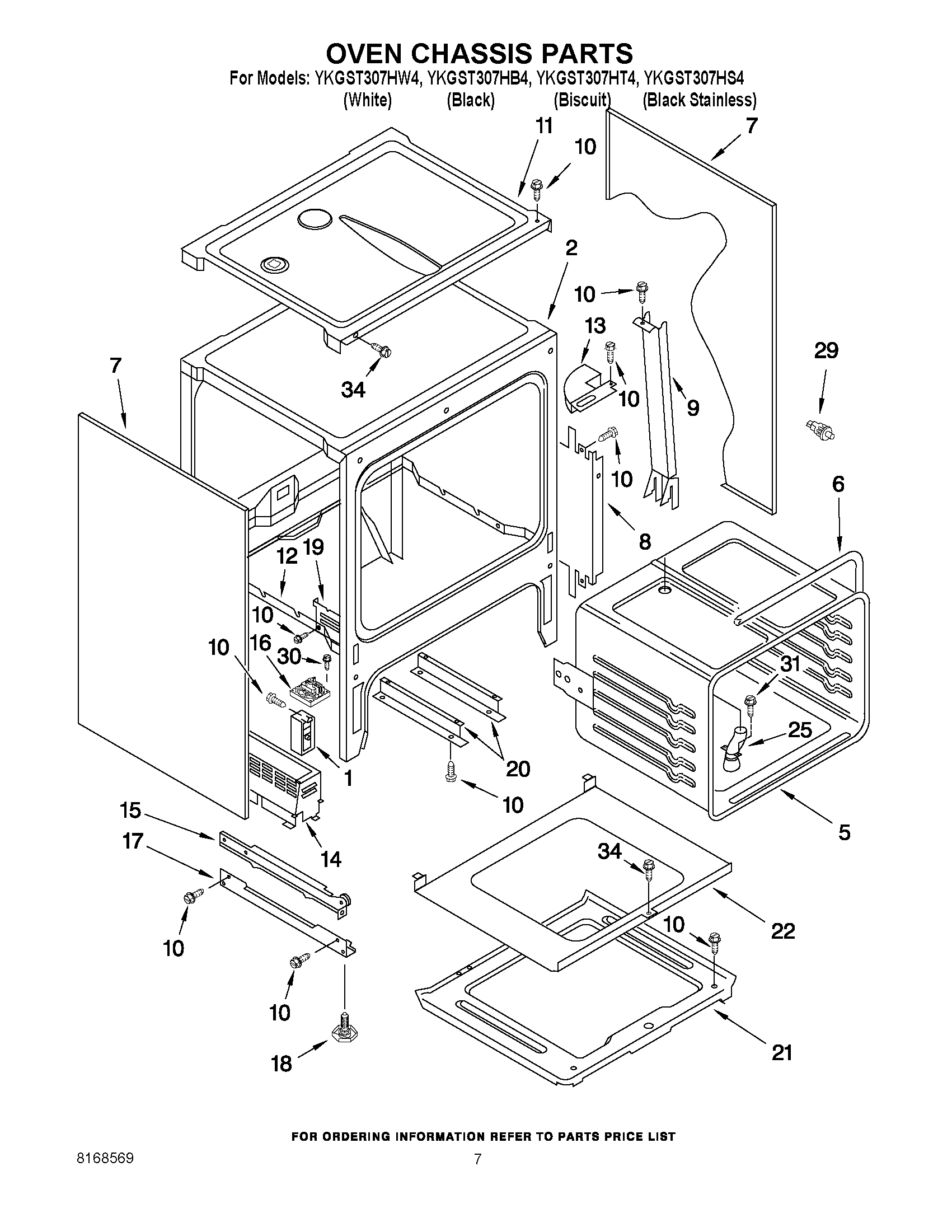

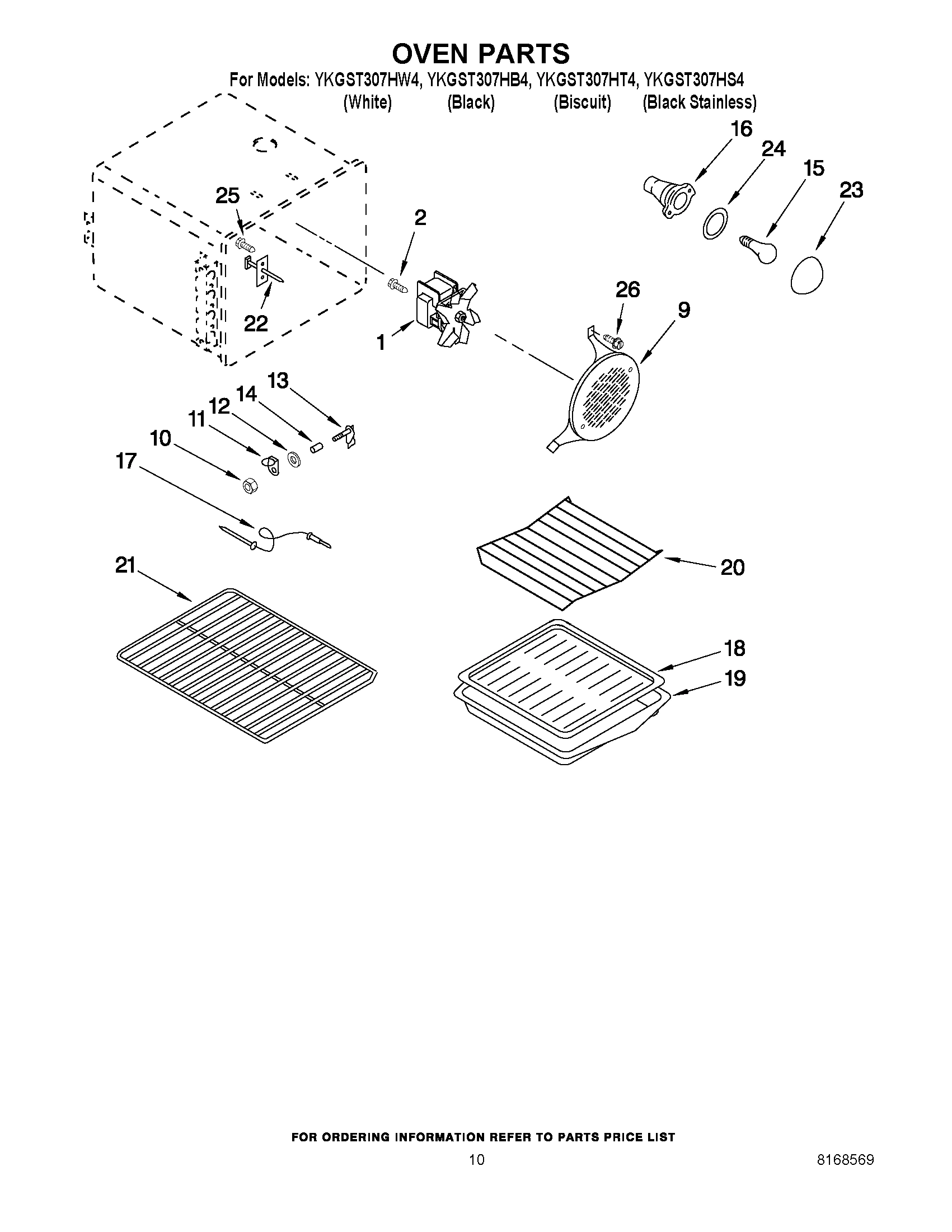

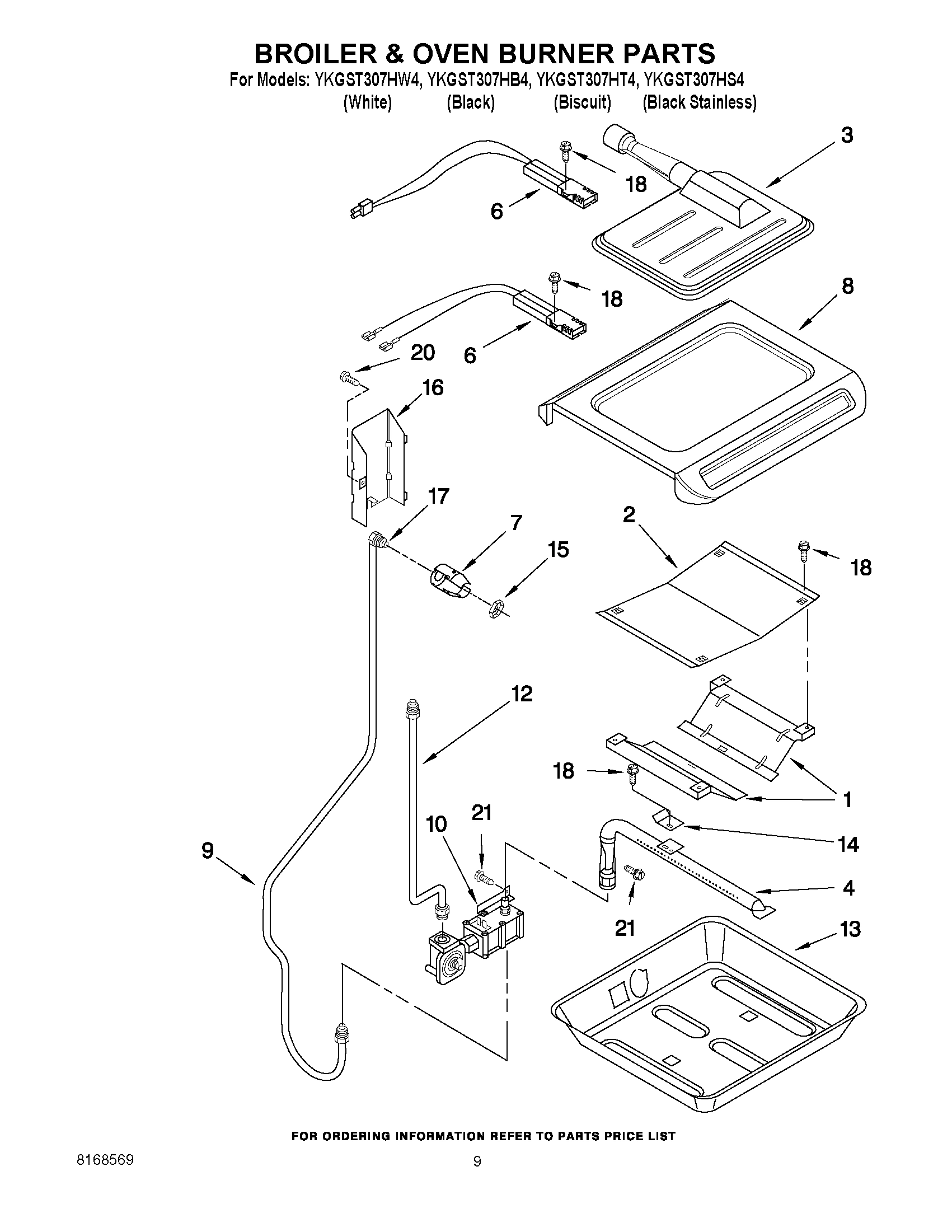

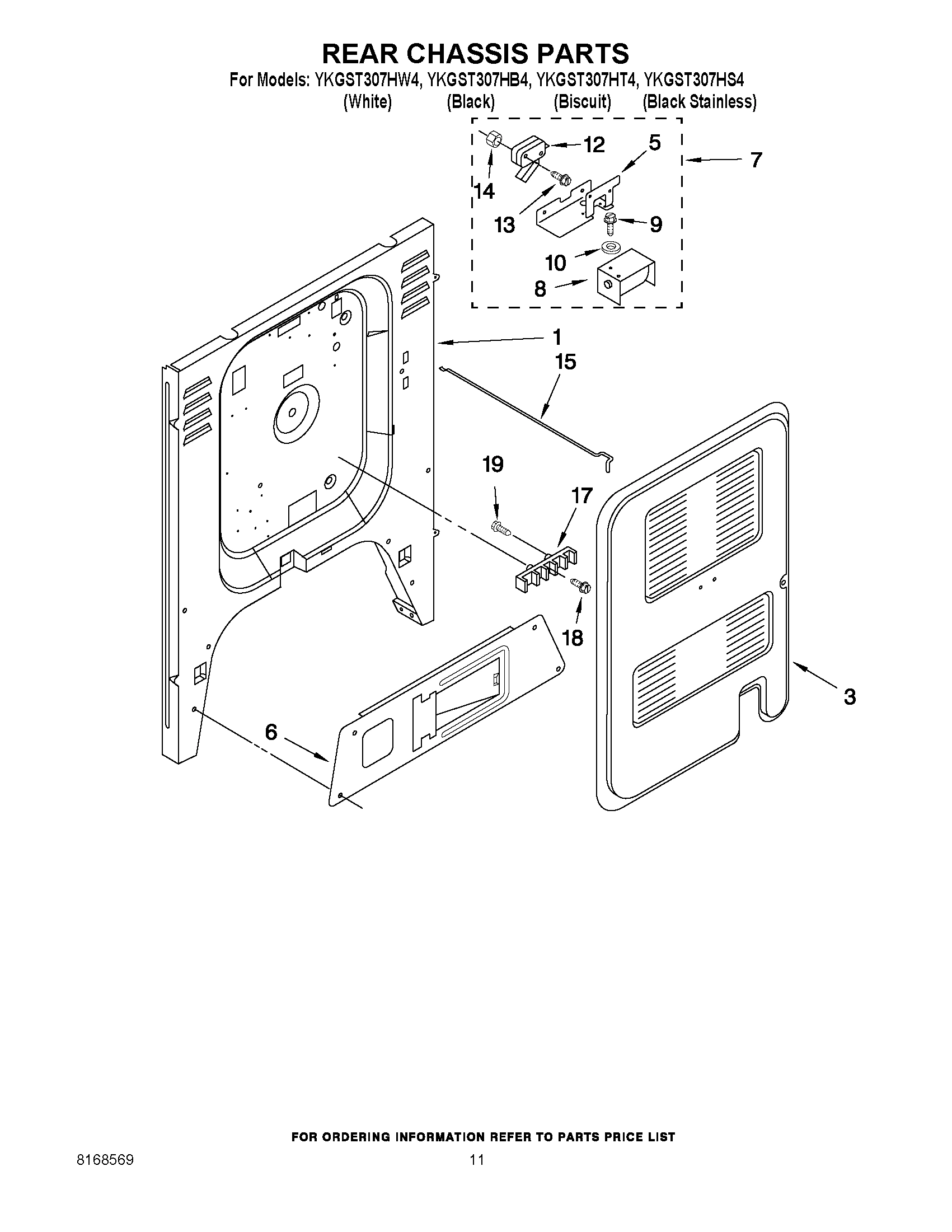

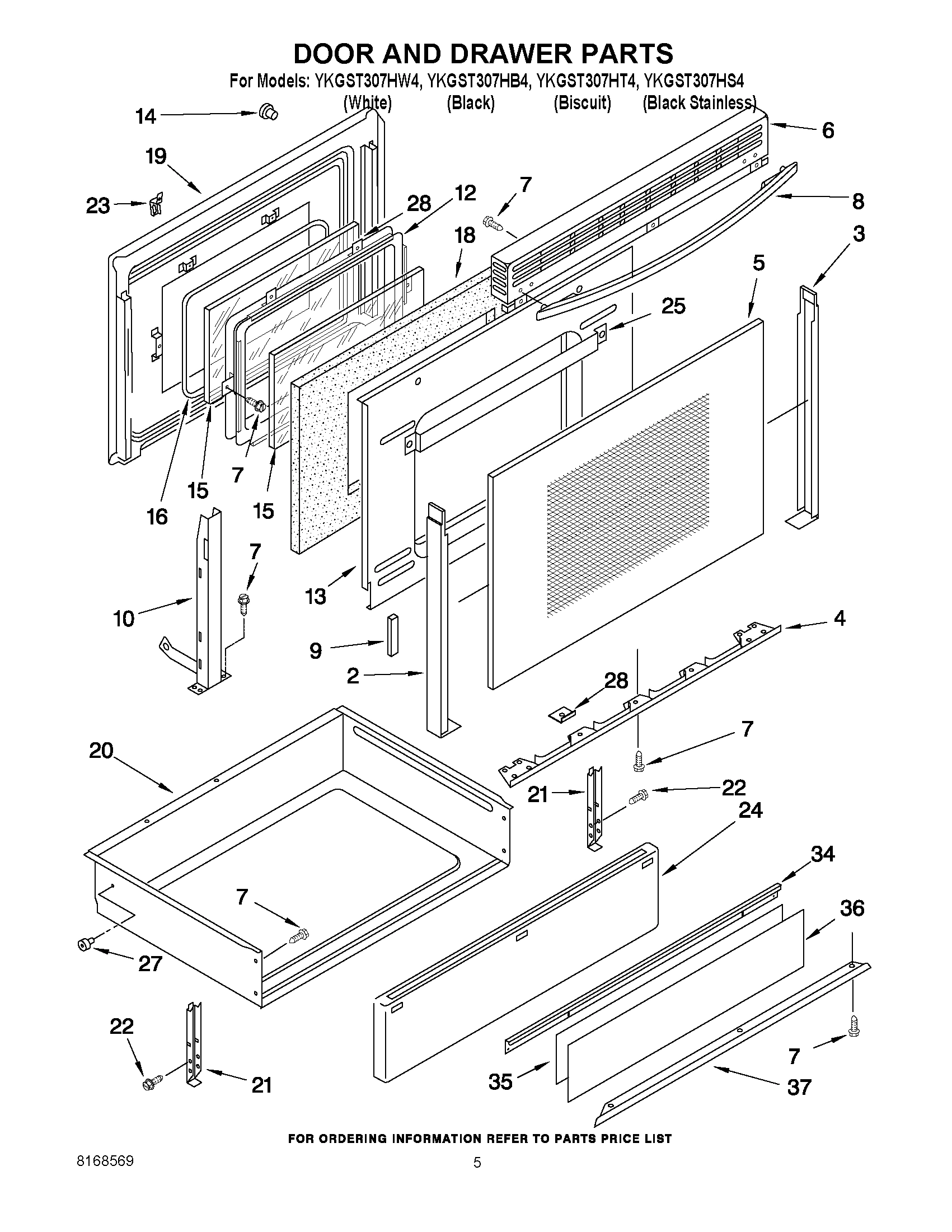

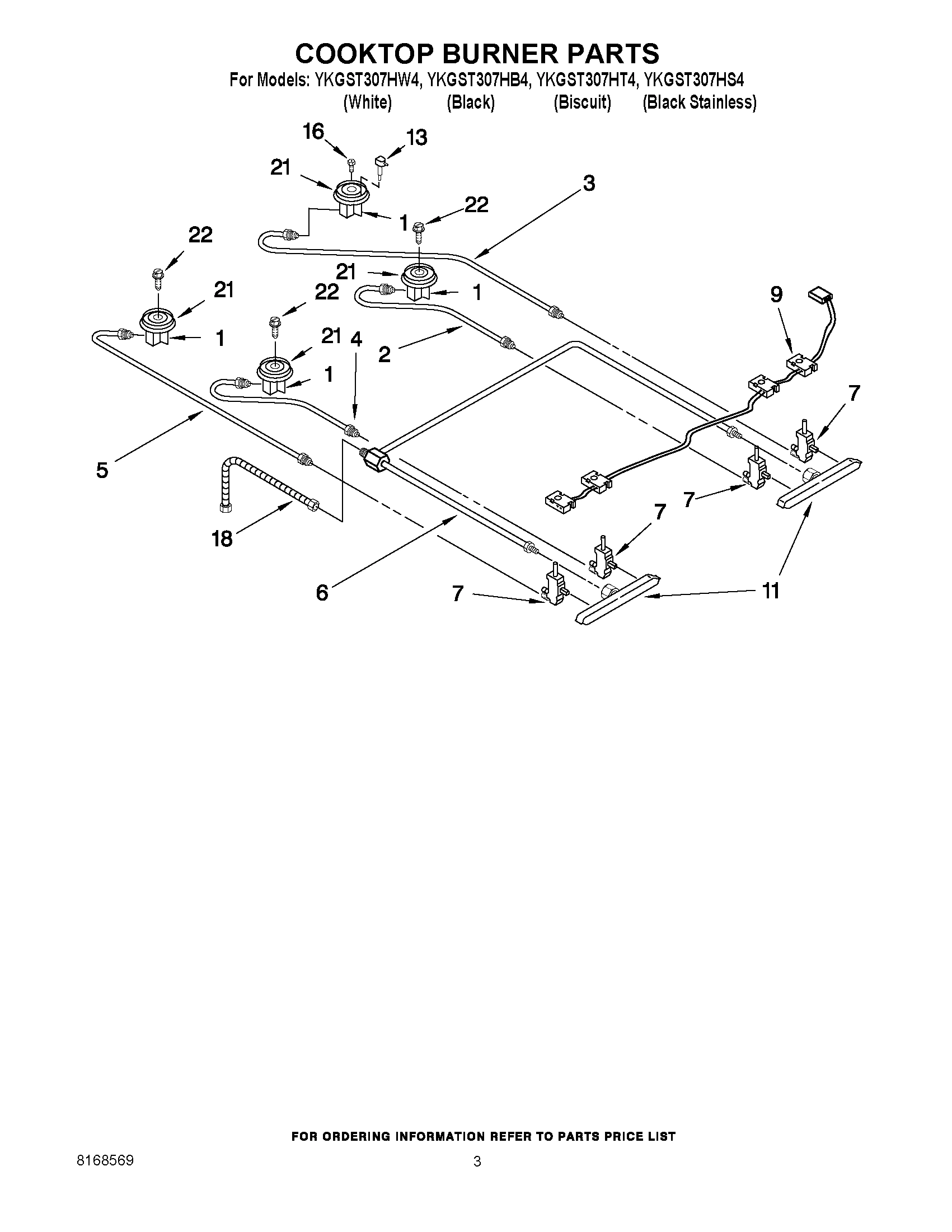

Model Whirlpool YKGST307HB4 30`` Slide-In Range DESIGNER STYLE Convection Oven – Common Parts &amp; Diagrams

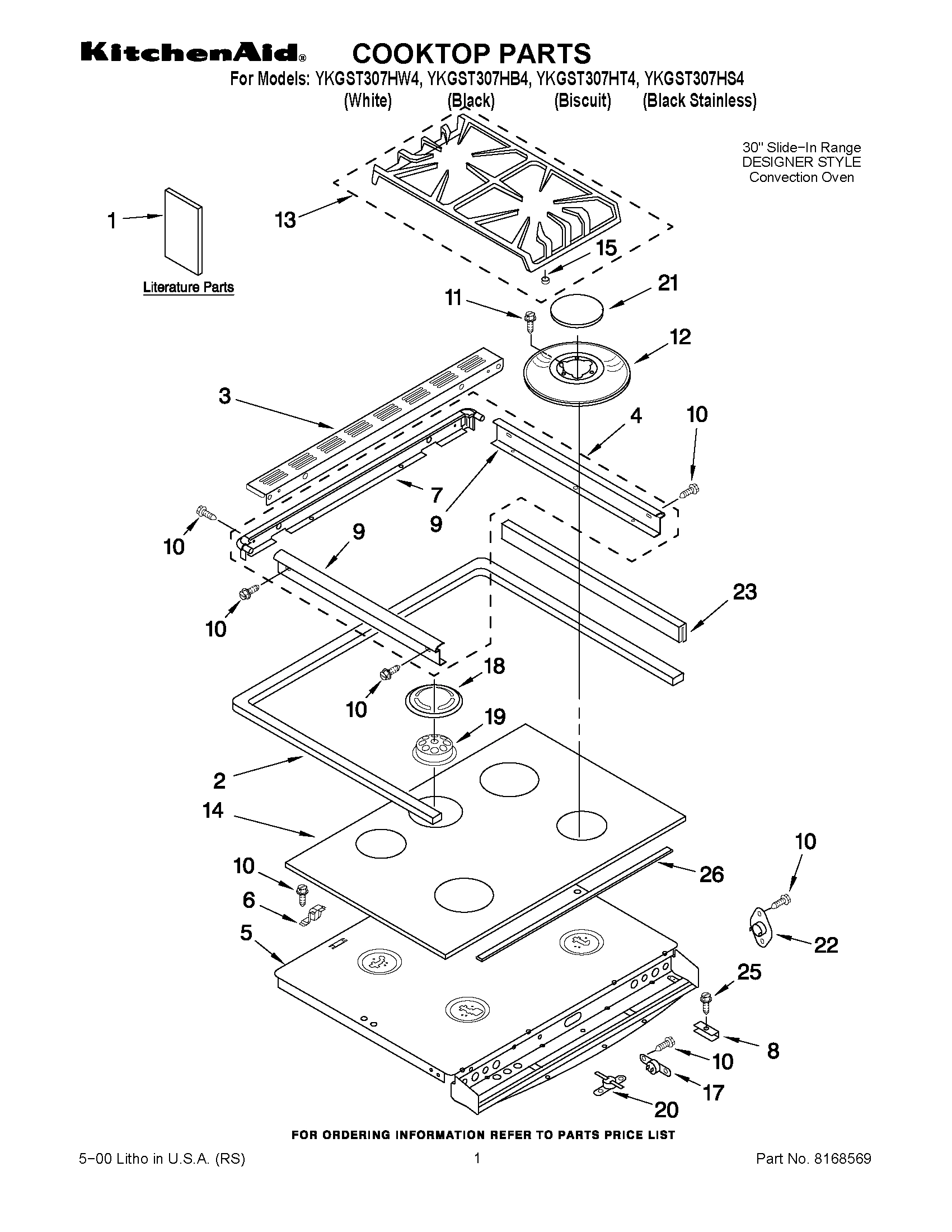

1

Assembly, Fan WPL 9781543 Contact Us For Availability

1

Back panel, Chassis WPL 9751051 Contact Us For Availability

1

Shield, Oven (2) WPL 9752737 Contact Us For Availability

1

Smart & Easy Guide (English) WPL LIT9752686 Contact Us For Availability

1

Smart & Easy Guide (French) WPL LIT9752687 Contact Us For Availability

1

Template, Anti-Tip WPL LIT9752775 Contact Us For Availability

1

Installation Instructions (English) WPL LIT9753562 Contact Us For Availability

1

Installation Instructions (French) WPL LIT9753562F Contact Us For Availability

1

Use & Care Guide (English) WPL LIT9753620 Contact Us For Availability

1

Use & Care Guide (French) WPL LIT9753620F Contact Us For Availability

1

TECH SHEET WPL LIT9753621 Contact Us For Availability

1

WIRING DIAGRAM WPL LIT9753622 Contact Us For Availability

1

LP CONV INSTR. WPL LIT9753848 Contact Us For Availability

1

Cookbook WPL LIT9780959 Contact Us For Availability

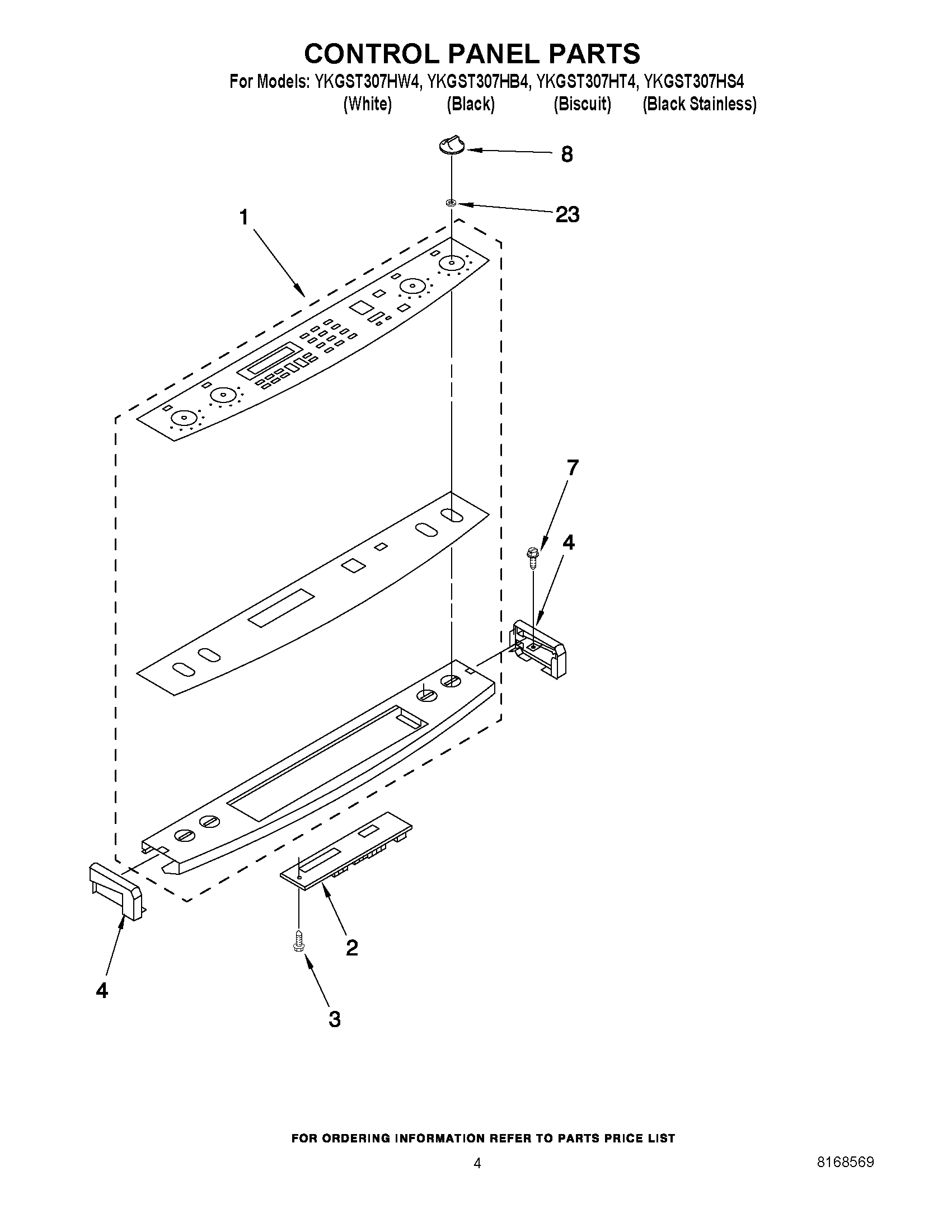

1

Console, Glass (Black) WPL 9781973CB Contact Us For Availability

1

Console, Glass (Biscuit) WPL 9781973CC Contact Us For Availability

1

Console, Glass (White) WPL 9781973CW Contact Us For Availability

2

Gasket, Cooktop WPL 9754103 Contact Us For Availability

2

Flame Shield, Bake WPL 9752738 Contact Us For Availability

2

Timer, Electronic WPL 9781980 Contact Us For Availability

2

Chassis, Front WPL 9750514GM Contact Us For Availability

2

Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability

3

Panel, Rear Cover WPL 9751353 Contact Us For Availability

3

Burner, Broiler WPL 9752922 Contact Us For Availability

3

Vent, Rear (Black) WPL 9752090PB Contact Us For Availability

3

Vent, Rear (Biscuit) WPL 9752090PC Contact Us For Availability

3

Vent, Rear (White) WPL 9752090PW Contact Us For Availability

3

Screw, 8-18 x 1/4`` WPL 9780271 Contact Us For Availability

4

Burner, Bake WPL 9751367 Contact Us For Availability

4

Frame, Cooktop (Black) WPL 9781832PB Contact Us For Availability

4

Frame, Cooktop (Biscuit) WPL 9781832PC Contact Us For Availability

4

Frame, Cooktop (White) WPL 9781832PW Contact Us For Availability

4

(End Cap Left Hand) (Black) WPL 9751039FB Contact Us For Availability

4

End Cap (Left Hand) (Biscuit) WPL 9751039FC Contact Us For Availability

4

(End Cap Left Hand) (White) WPL 9751039FW Contact Us For Availability

4

End Cap Right Hand (Black) WPL 9751040FB Contact Us For Availability

4

End Cap (Right Hand) (Biscuit) WPL 9751040FC Contact Us For Availability

4

End Cap (Right Hand) (White) WPL 9751040FW Contact Us For Availability

5

Glass, Door (Black) WPL 9781627PB Contact Us For Availability

5

Bracket, Lock WPL 9751418 Contact Us For Availability

5

Support, Burner WPL 9754197 Contact Us For Availability

5

Oven Liner WPL 9753335GM Contact Us For Availability

6

WP9782065 Whirlpool Oven Igniter In Stock WPL WP9782065 $106.03

6

Bracket, Regulator Valve WPL 9751500 Contact Us For Availability

6

Bracket, Pivot WPL 9751629 Contact Us For Availability

6

Washer, Pivot WPL 9752003 Contact Us For Availability

6

Gasket, Oven WPL 3191649 Contact Us For Availability

7

Valve, Burner (6K - Red Stem) WPL 9753045 Contact Us For Availability

7

Valve, Burner (14K - Plain Stem) WPL 9753614 Contact Us For Availability

7

Oven Lock Assembly WPL 9751439 Contact Us For Availability

7

Bracket, Broil Shooter WPL 9752858 Contact Us For Availability

7

Trim, Rear (Includes End Caps) (Black) WPL 9781831PB Contact Us For Availability

7

Trim, Rear (Includes End Caps) (Biscuit) WPL 9781831PC Contact Us For Availability

7

Trim, Rear (Includes End Caps) (White) WPL 9781831PW Contact Us For Availability

7

Oven, Side L or R (Black) WPL 9781907PB Contact Us For Availability

7

Oven, Side L or R (Biscuit) WPL 9781907PC Contact Us For Availability

7

Oven, Side L or R (White) WPL 9781907PW Contact Us For Availability

8

W10405147 Whirlpool Knob Backorder WPL W10405147 $58.55

8

Knobs, Control (4) (White) WPL 9751199FW Contact Us For Availability

8

Solenoid WPL 9751590 Contact Us For Availability

8

Pan, Oven Bottom WPL 9752736GM Contact Us For Availability

8

Support Clips (4) WPL 9750821 Contact Us For Availability

8

Knobs, Control (4) (Biscuit) WPL 9751199FC Contact Us For Availability

8

Shield, Insulation WPL 9780664 Contact Us For Availability

9

Spark Switch & Harness Assembly WPL 9752994 Contact Us For Availability

9

Screw, 10-32 x .31 WPL 422222 Contact Us For Availability

9

Tubing, Broil WPL 9751173 Contact Us For Availability

9

Trim, Side (Black) WPL 9781828PB Contact Us For Availability

9

Trim, Side (Biscuit) WPL 9781828PC Contact Us For Availability

9

Trim, Side (White) WPL 9781828PW Contact Us For Availability

9

Fan Duct, Side WPL 9751789 Contact Us For Availability

9

Baffle, Convection WPL 9751904GM Contact Us For Availability

WP9755424 Whirlpool Gas Valve Backorder WPL WP9755424 $172.62

WP9782033 Whirlpool Door Hinge Backorder WPL WP9782033 $118.92

Washer WPL 424238 Contact Us For Availability

Lock-Nut, Cvr.Jack WPL 4167277 Contact Us For Availability

11

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.52

11

Burner Box WPL 9752637 Contact Us For Availability

11

Jack Cover WPL 4167266 Contact Us For Availability

Switch, Interloc WPL 9751763 Contact Us For Availability

Tubing, Valve To Regulator WPL 9781015 Contact Us For Availability

(Bezel, Burner (Black)) (14K LF) WPL 9753600GB Contact Us For Availability

Bezel, Burner (Mouse Gray) (14K LF) WPL 9753600GS Contact Us For Availability

(Bezel, Burner (Black)) (6K RF-LR) WPL 9753601GB Contact Us For Availability

Bezel, Burner (Mouse Gray) (6K RF-LR) WPL 9753601GS Contact Us For Availability

Bezel, Burner (Black) (12K RR) WPL 9753602GB Contact Us For Availability

Bezel, Burner (Mouse Gray) (12K RR) WPL 9753602GS Contact Us For Availability

Retainer, Insulation WPL 9752735 Contact Us For Availability

Gasket WPL 305289 Contact Us For Availability

WP9754215 Whirlpool Surface Igniter In Stock WPL WP9754215 $26.47

Grate, Burner (Mouse Gray) WPL 9753616GS Contact Us For Availability

Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability

Pan Support, Bake WPL 9752734 Contact Us For Availability

Grate, Burner (Black) WPL 9753616GB Contact Us For Availability

Duct, Top WPL 9751653 Contact Us For Availability

Receptacle, Probe WPL 4173575 Contact Us For Availability

Nut (2) WPL 9750888 Contact Us For Availability

Bracket, Bake WPL 9751600 Contact Us For Availability

Cooktop, Glass (Black) WPL 9753606CB Contact Us For Availability

Cooktop, Glass (Opaque White) WPL 9753606CO Contact Us For Availability

Cooktop, Glass (Honeycomb) WPL 9753606CT Contact Us For Availability

Support, Fan WPL 9751060 Contact Us For Availability

Spacer - Tubing WPL 3179672 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

814323 Whirlpool Range Burner Grate Foot Pads In Stock WPL 814323 $5.14

WP9781593 Whirlpool Door Glass In Stock WPL WP9781593 $66.03

Drawer Rail, Right WPL 9750224 Contact Us For Availability

Rod, Lock WPL 9750523 Contact Us For Availability

Nut No.18 5/8 WPL 9751203 Contact Us For Availability

Drawer Rail, Left WPL 9750223 Contact Us For Availability

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

WP9753928 Whirlpool Orifice Assembly Backorder WPL WP9753928 $32.56

WP9753929 Whirlpool Orifice Backorder WPL WP9753929 $29.55

WP9753930 Whirlpool Orifice Backorder WPL WP9753930 $34.72

Coverbox (Broiler Tubing) WPL 9752920 Contact Us For Availability

Motor, Fan WPL 9751020 Contact Us For Availability

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

WPL 341196 WPL 341196 Contact Us For Availability

Probe, Meat WPL 3150144 Contact Us For Availability

Orifice No.54 WPL 9752716 Contact Us For Availability

Bottom Rail (2) WPL 9750147 Contact Us For Availability

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

Screw, 10-24x3/8 WPL 9751643 Contact Us For Availability

WPL 9751271GB WPL 9751271GB Contact Us For Availability

WPL 9751271GC WPL 9751271GC Contact Us For Availability

WPL 9751271GW WPL 9751271GW Contact Us For Availability

340184 Whirlpool Screw Backorder WPL 340184 $9.59

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

Liner, Door WPL 9781600GM Contact Us For Availability

WPL 9751366 WPL 9751366 Contact Us For Availability

Hinge, Door L or R WPL 9750149 Contact Us For Availability

20

WP9759944 Whirlpool Thermostat Backorder WPL WP9759944 $68.85

20

Support Rail, Pan WPL 9781904 Contact Us For Availability

20

Rack, Roasting WPL 9750827 Contact Us For Availability

WP3191898 Whirlpool Surface Burner Cap Black Backorder WPL WP3191898 $42.16

WP3191904 Whirlpool Burner Cap In Stock WPL WP3191904 $95.75

WP3191905 Whirlpool Burner Cap Backorder WPL WP3191905 $44.01

WPL 3191899 WPL 3191899 Contact Us For Availability

Screw, 1/4-20x1/2 WPL 776593 Contact Us For Availability

WPL 9753939GB WPL 9753939GB Contact Us For Availability

WPL 9753939GS WPL 9753939GS Contact Us For Availability

Shield, Drawer WPL 9782051 Contact Us For Availability

Rack, Standard (3) WPL 9750823 Contact Us For Availability

Sensor WPL 8053344 Contact Us For Availability

WPL 9752006 WPL 9752006 Contact Us For Availability

Screw, 10-16 x 1/2 WPL 9780852 Contact Us For Availability

Plate, Reflectance WPL 9782050 Contact Us For Availability

WP3188425 Whirlpool Seal Switch In Stock WPL WP3188425 $28.80

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $39.18

Retainer, clip WPL 9750676 Contact Us For Availability

WPL 9752034 WPL 9752034 Contact Us For Availability

WP3184533 Whirlpool Range Light Lens Gasket In Stock WPL WP3184533 $3.70

Front, Drawer (Black) WPL 9750168PB Contact Us For Availability

Front, Drawer (Biscuit) WPL 9750168PC Contact Us For Availability

Front, Drawer (White) WPL 9750168PW Contact Us For Availability

Front, Drawer (For STN.Steel MDL) WPL 9750569PB Contact Us For Availability

Heat Channel WPL 9750693 Contact Us For Availability

WPL 9751871 WPL 9751871 Contact Us For Availability

Vent Tube WPL 9751592 Contact Us For Availability

SCREW, 8-32 X 3/8 WPL 9751644 Contact Us For Availability

26

WP4159387 Whirlpool Compactor Screw Backorder WPL WP4159387 $2.51

26

WPL 9754136 WPL 9754136 Contact Us For Availability

27

814229 Whirlpool Primary Roller In Stock WPL 814229 $27.60

27

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

28

Spacer, Door (8) WPL 9781502 Contact Us For Availability

29

Door Switch WPL 9781581 Contact Us For Availability

30

Screw, 8-18 x 1 WPL 9751808 Contact Us For Availability

31

Screw, 8-18 x 3/8 WPL 9780275 Contact Us For Availability

34

Trim, Drawer-Top For Stn.Steel Mdl. WPL 9750614PB Contact Us For Availability

34

Screw, 10-16 x 1 WPL 98884 Contact Us For Availability

35

Spacer (Stn.Mdl.) WPL 9753329 Contact Us For Availability

36

Panel, Drawer For Stn.Steel Mdl. WPL 9754062 Contact Us For Availability

37

Trim, Drawer-Btm For Stn. Steel Mdl. WPL 9750613PB Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

3400964 Whirlpool Oven Clip Backorder WPL 3400964 $32.57

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $3.50

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP9755428 Whirlpool Orifice Spud In Stock WPL WP9755428 $14.68

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

ACCESSORIES, FOIL, ALUMINUM OVEN (18`` X 25 WPL 241430 Contact Us For Availability

WPL 9751745 WPL 9751745 Contact Us For Availability

WPL 9752717 WPL 9752717 Contact Us For Availability

SPLICING WIRES--25FT. LENGTH (WIRE, BLACK 14 WPL 242820 Contact Us For Availability

SPLICING WIRES--25FT. LENGTH (WIRE, BLUE 14 G WPL 242821 Contact Us For Availability

SPLICING WIRES--25FT. LENGTH (WIRE, BROWN 14 WPL 242822 Contact Us For Availability

SPLICING WIRES--25FT. LENGTH (WIRE, GREEN 14 WPL 242823 Contact Us For Availability

SPLICING WIRES--25FT. LENGTH (WIRE, ORANGE 14 WPL 242824 Contact Us For Availability

SPLICING WIRES--25FT. LENGTH (WIRE, RED 14 GA WPL 242825 Contact Us For Availability

SPLICING WIRES--25FT. LENGTH (WIRE, WHITE 14 WPL 242826 Contact Us For Availability

SPLICING WIRES--25FT. LENGTH (WIRE, YELLOW 14 WPL 242827 Contact Us For Availability

SPLICING WIRES--25FT. LENGTH (WIRE, BLACK 12 WPL 242828 Contact Us For Availability

SPLICING WIRES--25FT. LENGTH (WIRE, RED 12 GA WPL 242829 Contact Us For Availability

SPLICING WIRES--25FT. LENGTH (WIRE, BROWN 14 WPL 242830 Contact Us For Availability

SPLICING WIRES--25FT. LENGTH (WIRE, YELLOW 14 WPL 242832 Contact Us For Availability

LUBRICANT, GREASE WPL 261582 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 oz.) (Coffee) WPL 261886 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 oz.) (Ne WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 4392900 WPL 4392900 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 9750376 WPL 9750376 Contact Us For Availability

WPL 9751708 WPL 9751708 Contact Us For Availability

WPL 9751868 WPL 9751868 Contact Us For Availability

WPL 9752769 WPL 9752769 Contact Us For Availability

WPL 9753374 WPL 9753374 Contact Us For Availability

WPL 9753808 WPL 9753808 Contact Us For Availability

WPL 9754004 WPL 9754004 Contact Us For Availability

WPL 9754005 WPL 9754005 Contact Us For Availability

WPL 9754011 WPL 9754011 Contact Us For Availability

WPL 9754301 WPL 9754301 Contact Us For Availability

WPL 9781055 WPL 9781055 Contact Us For Availability

WPL 9781639 WPL 9781639 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability
