Model Whirlpool YKESC307HB6 30`` Slide-In Range DESIGNER STYLE Convection Oven – Common Parts & Diagrams
06 - REAR CHASSIS PARTS
07 - HIDDEN BAKE PARTS, MISCELLANEOUS PARTS

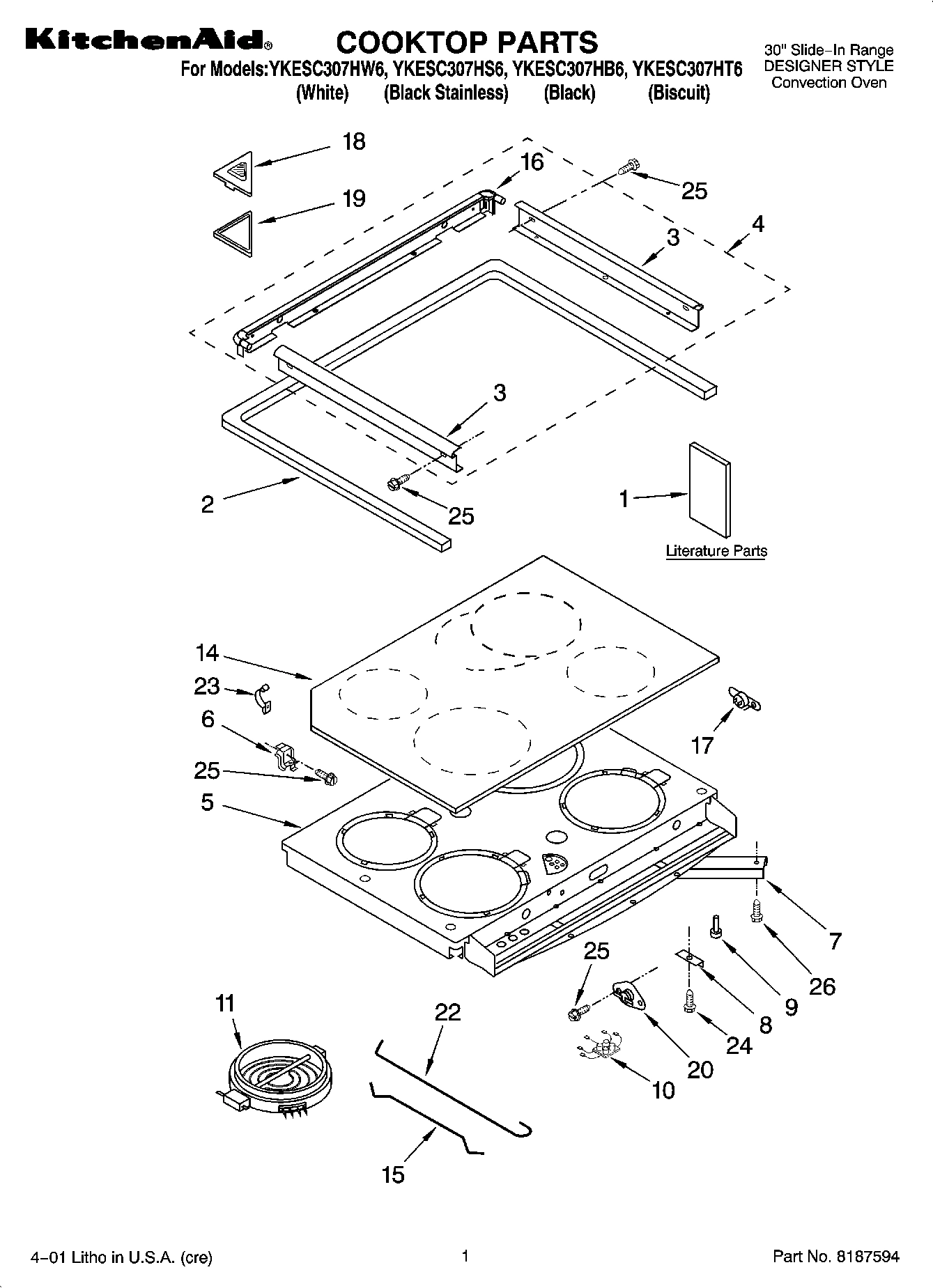

01 - COOKTOP PARTS

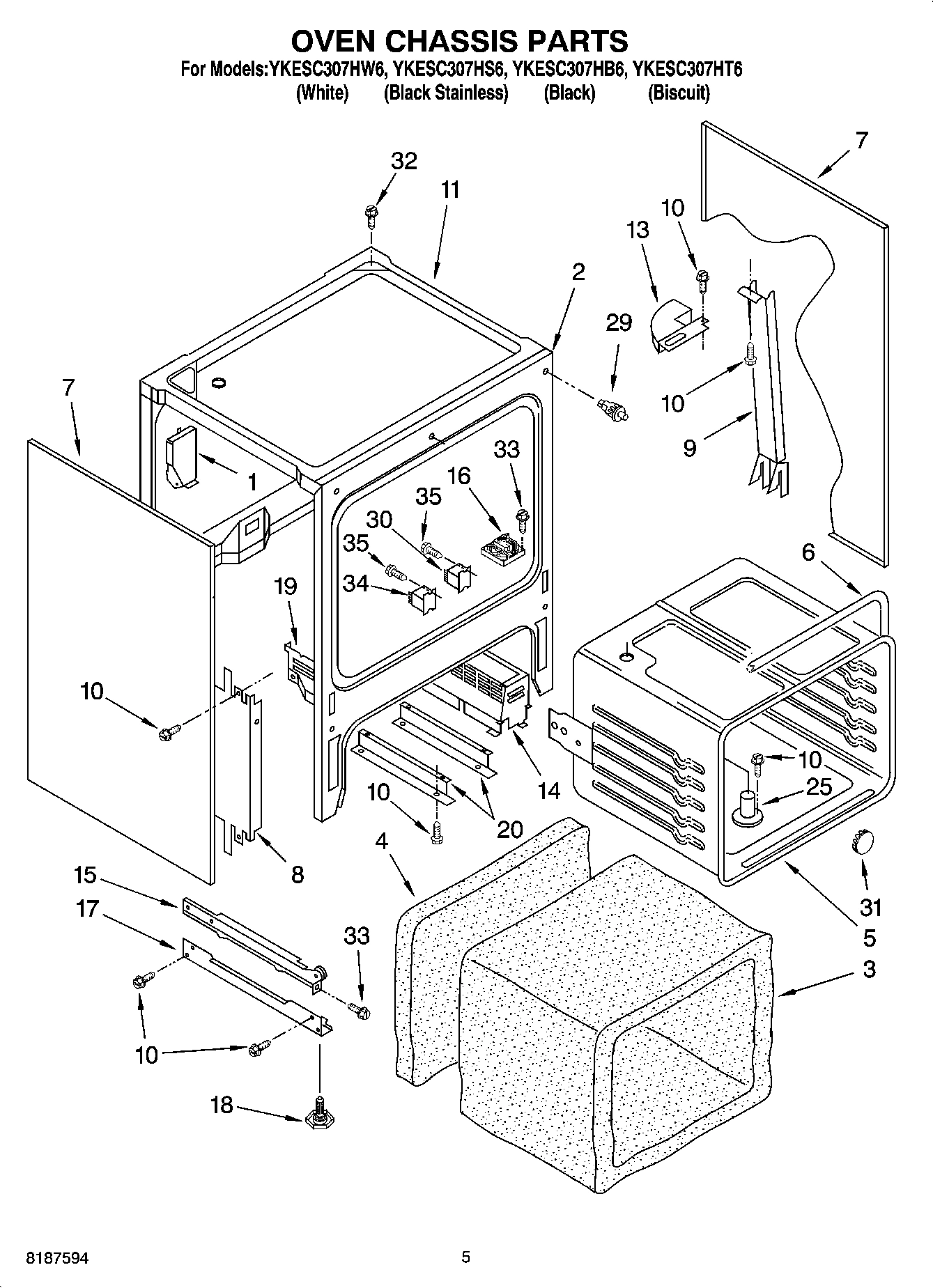

03 - OVEN CHASSIS PARTS

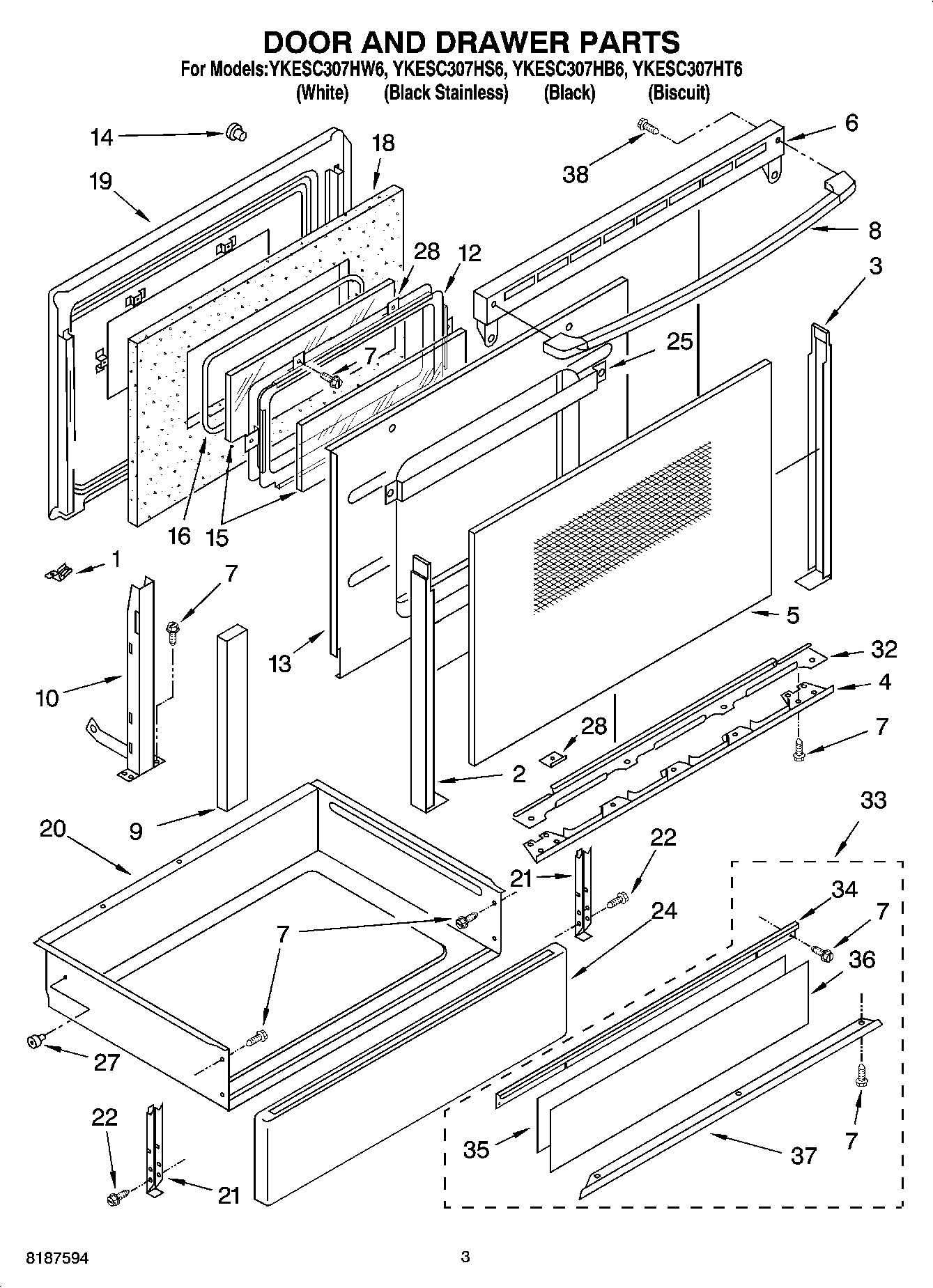

02 - DOOR AND DRAWER PARTS

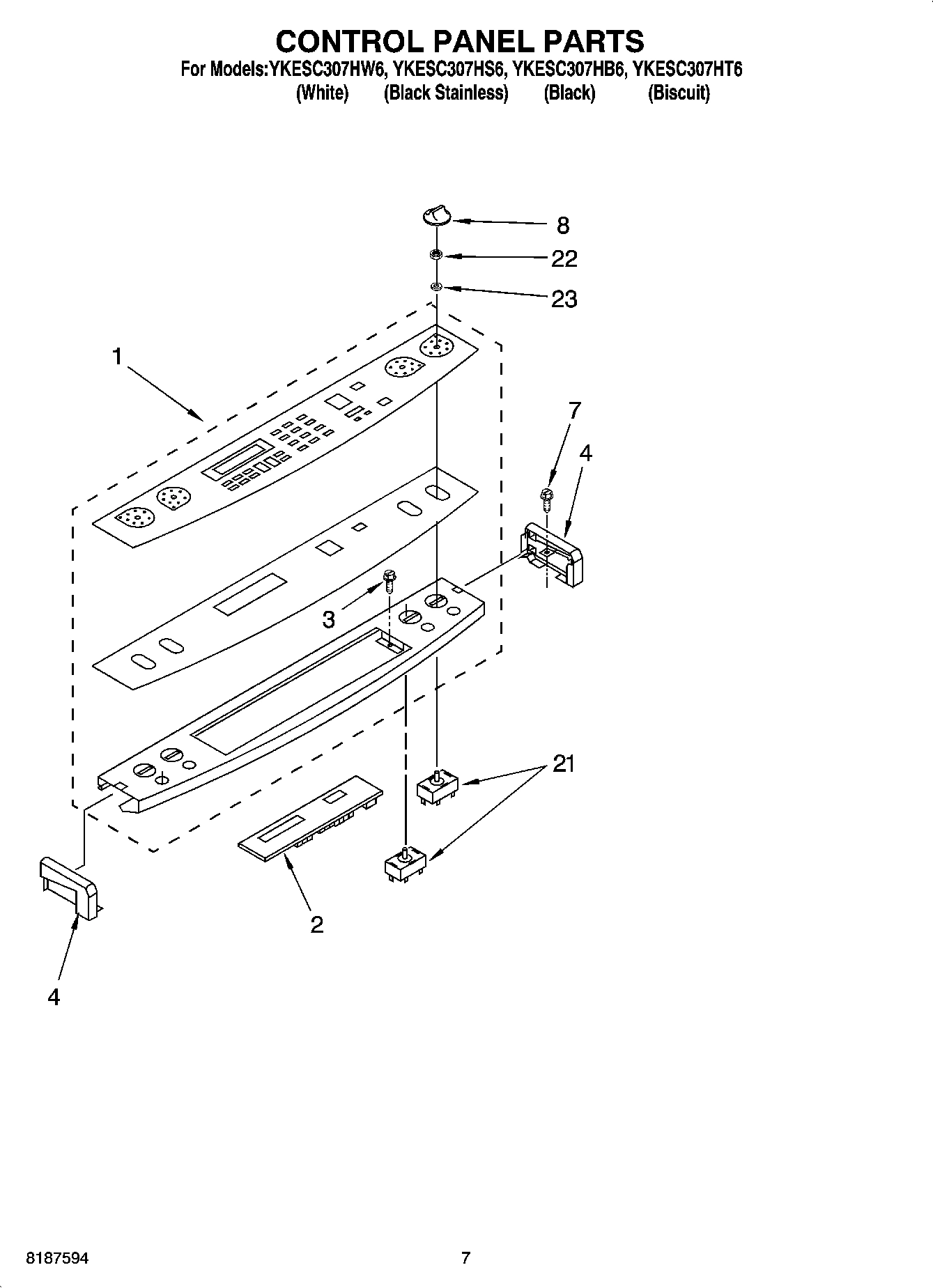

04 - CONTROL PANEL PARTS

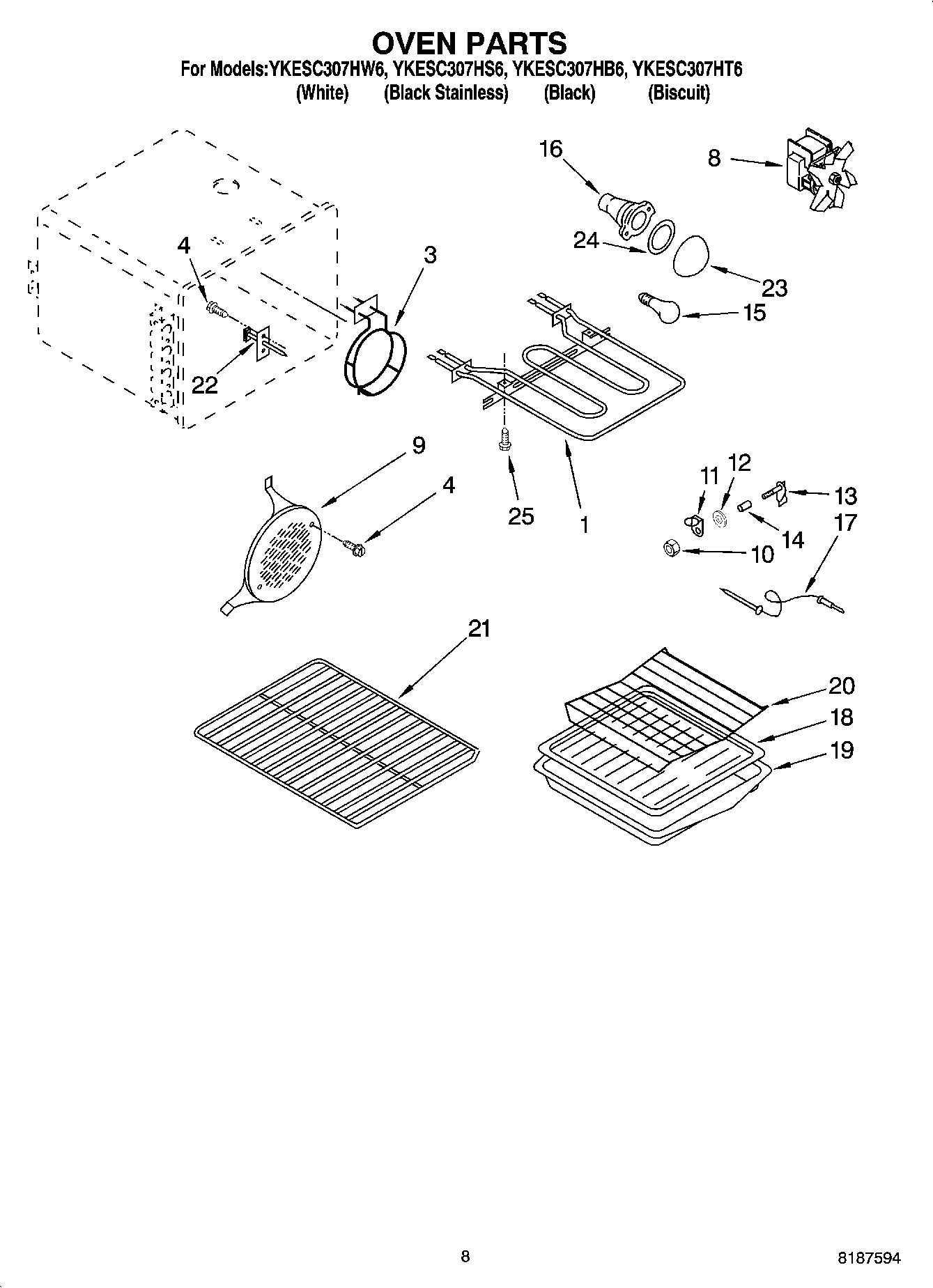

05 - OVEN PARTS
Common parts from model Whirlpool YKESC307HB6 30`` Slide-In Range DESIGNER STYLE Convection Oven
WPL 9781656 WPL 9781656 Contact Us For Availability
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
WPL 9751745 WPL 9751745 Contact Us For Availability
WPL 9781769 WPL 9781769 Contact Us For Availability
WPL 9750376 WPL 9750376 Contact Us For Availability
WPL 9750984 WPL 9750984 Contact Us For Availability
WPL 9751868 WPL 9751868 Contact Us For Availability
WPL 9753374 WPL 9753374 Contact Us For Availability
WPL 9753683 WPL 9753683 Contact Us For Availability
WPL 9782080 WPL 9782080 Contact Us For Availability
WPL 9782141 WPL 9782141 Contact Us For Availability
WPL 9782142 WPL 9782142 Contact Us For Availability
WPL 9782183 WPL 9782183 Contact Us For Availability
WPL 9782187 WPL 9782187 Contact Us For Availability
WPL ARI138233A WPL ARI138233A Contact Us For Availability
WPL ARI138234A WPL ARI138234A Contact Us For Availability
WPL ARI138235A WPL ARI138235A Contact Us For Availability
WPL ARI138236A WPL ARI138236A Contact Us For Availability
WPL ARI138237A WPL ARI138237A Contact Us For Availability
WPL ARI138238A WPL ARI138238A Contact Us For Availability
WPL ARI138239A WPL ARI138239A Contact Us For Availability
1
Element, Bake WPL 9752294 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9752179 Contact Us For Availability
1
Smart & Easy Guide (English) WPL LIT9752686 Contact Us For Availability
1
Smart & Easy Guide (French) WPL LIT9752687 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752775 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT9753027 Contact Us For Availability
1
Use & Care Guide (English) WPL LIT9753846 Contact Us For Availability
1
Use & Care Guide (French) WPL LIT9753846F Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9782170 Contact Us For Availability
1
Vent Box, Oven WPL 9751350 Contact Us For Availability
1
Support, Door WPL 9750676 Contact Us For Availability
1
Console, Glass (Black) WPL 9781969CB Contact Us For Availability
1
Console, Glass (Biscuit) WPL 9781969CC Contact Us For Availability
1
Console, Glass (White) WPL 9781969CW Contact Us For Availability
2
Gasket, Cooktop (Front & Sides) WPL 9754103 Contact Us For Availability
2
Pan, Hidden Bake WPL 9782048 Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Trim, Door-Left (Black) WPL 9782003PB Contact Us For Availability
2
Trim, Door-Left (Biscuit) WPL 9782003PC Contact Us For Availability
2
Trim, Door-Left (White) WPL 9782003PW Contact Us For Availability
2
Timer, Electronic WPL 9781980 Contact Us For Availability
3
Cover, Pan WPL 9782049 Contact Us For Availability
3
Trim, Side (Black) WPL 9781828PB Contact Us For Availability
3
Trim, Side (Biscuit) WPL 9781828PC Contact Us For Availability
3
Trim, Side (White) WPL 9781828PW Contact Us For Availability
3
Insulation, Wrap WPL 9754003 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9782004PB Contact Us For Availability
3
Trim, Door-Right (Biscuit) WPL 9782004PC Contact Us For Availability
3
Trim, Door-Right (White) WPL 9782004PW Contact Us For Availability
3
Screw, 8-18 x 1/4`` WPL 9780271 Contact Us For Availability
4
Insulation WPL 9754005 Contact Us For Availability
4
Frame, Cooktop (Black) WPL 9781832PB Contact Us For Availability
4
Frame, Cooktop (Biscuit) WPL 9781832PC Contact Us For Availability
4
Frame, Cooktop (White) WPL 9781832PW Contact Us For Availability
4
Insulation, Rear WPL 9754011 Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (Biscuit) WPL 9781209PC Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
4
(End Cap Left Hand) (Black) WPL 9751039FB Contact Us For Availability
4
End Cap (Left Hand) (Biscuit) WPL 9751039FC Contact Us For Availability
4
(End Cap Left Hand) (White) WPL 9751039FW Contact Us For Availability
4
End Cap Right Hand (Black) WPL 9751040FB Contact Us For Availability
4
End Cap (Right Hand) (Biscuit) WPL 9751040FC Contact Us For Availability
4
End Cap (Right Hand) (White) WPL 9751040FW Contact Us For Availability
5
Glass, Door (Black) WPL 9781627PB Contact Us For Availability
5
Retainer, Insulation WPL 9752735 Contact Us For Availability
5
Support, Element WPL 9752892 Contact Us For Availability
5
Oven Liner WPL 9753744GM Contact Us For Availability
5
Glass, Door (Biscuit) WPL 9781627PC Contact Us For Availability
5
Glass, Door (White) WPL 9781627PW Contact Us For Availability
6
Plate, Reflector WPL 9782050 Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Washer (2) WPL 9752003 Contact Us For Availability
6
Gasket, Oven WPL 9755179 Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Gasket, Door Vent WPL 9781659 Contact Us For Availability
7
Shield WPL 9782051 Contact Us For Availability
7
Brace, Support WPL 9781553 Contact Us For Availability
7
Oven, Side L or R (Black) WPL 9781907PB Contact Us For Availability
7
Oven, Side L or R (Biscuit) WPL 9781907PC Contact Us For Availability
7
Oven, Side L or R (White) WPL 9781907PW Contact Us For Availability
8
Assembly, Fan WPL 9781543 Contact Us For Availability
8
Support Clips (4) WPL 9753691 Contact Us For Availability
8
Screw (3) 10 x 1/2 WPL 9780272 Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
8
Handle, Door (Black) WPL 9780523PB Contact Us For Availability
8
Handle, Door (Biscuit) WPL 9780523PC Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
9
Fan Duct, Side WPL 9751789 Contact Us For Availability
9
Gasket, Door Glass (4) WPL 9781449 Contact Us For Availability
9
Screw (2) WPL 9781509 Contact Us For Availability
9
Baffle, Convection WPL 9751904GM Contact Us For Availability
10
Hot Light WPL 9781936 Contact Us For Availability
10
Lock-Nut, Cvr.Jack WPL 4167277 Contact Us For Availability
11
Burner Box WPL 9752637 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
12
Gasket WPL 305289 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
13
Receptacle, Probe WPL 4173575 Contact Us For Availability
14
Cooktop, Ceran (Black) WPL 9753711CB Contact Us For Availability
14
Cooktop, Ceran (Biscuit) WPL 9753711CC Contact Us For Availability
14
Cooktop, Ceran (White) WPL 9753711CW Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
Spacer - Tubing WPL 3179672 Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Rod, Small Ceran Element WPL 9781460 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
16
Trim, Back (Incl. End Caps) (Black) WPL 9781831PB Contact Us For Availability
16
Trim, Back (Incl. End Caps) (Biscuit) WPL 9781831PC Contact Us For Availability
16
Trim, Back (Incl. End Caps) (White) WPL 9781831PW Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Probe WPL 3150144 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Vent, Cover WPL 9751800 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Gasket, Vent WPL 9751841 Contact Us For Availability
19
Hinge, Door L or R WPL 9782005 Contact Us For Availability
20
Support Rail, Pan WPL 9781904 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
20
Rack, Roasting WPL 9750827 Contact Us For Availability
21
Switch, Infinite (1800W, RF) WPL 9751363 Contact Us For Availability
21
Switch, Infinite (2200W, RR) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1500W, LR) WPL 9751364 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Rack, Standard (3) WPL 9750823 Contact Us For Availability
22
Sensor WPL 9782081 Contact Us For Availability
22
Nut, Mounting (Single Element) WPL 422617 Contact Us For Availability
22
Rod, Large Ceran Element WPL 9781459 Contact Us For Availability
22
Nut, Mounting (Dual Element) WPL 9751711 Contact Us For Availability
23
Seal, Switch (4) WPL 9781455 Contact Us For Availability
24
Screw, 10-16 x 1 WPL 9751871 Contact Us For Availability
24
Front, Drawer (Black) WPL 9782108PB Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9782108PC Contact Us For Availability
24
Front, Drawer (White) WPL 9782108PW Contact Us For Availability
24
Front, Drawer (Stainless) WPL 9782109PB Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
25
Heat Channel WPL 9750693 Contact Us For Availability
28
Spacer, Door (8) WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9781581 Contact Us For Availability
30
Relay WPL 9751948 Contact Us For Availability
31
Button, Plug WPL 9780578 Contact Us For Availability
32
Screw, 8-18 x 3/8 WPL 9780275 Contact Us For Availability
32
Deflector, Steam WPL 9781771 Contact Us For Availability
33
Screw, 8-18 x 1/2 WPL 9751808 Contact Us For Availability
33
(Stainless Steel Model Only) WPL ARI138232A Contact Us For Availability
34
Relay, Cooktop WPL 9752149 Contact Us For Availability
34
Trim, Drawer-Top WPL 9750614PB Contact Us For Availability
35
Screw WPL 9780270 Contact Us For Availability
35
Spacer WPL 9753329 Contact Us For Availability
36
Panel, Drawer (Stainless) WPL 9754062 Contact Us For Availability
37
Trim, Drawer-Bot WPL 9750613PB Contact Us For Availability
× ![]()
