Model Whirlpool YKERS205TW0 30`` FREE STANDING ELECTRIC RANGE – Common Parts & Diagrams

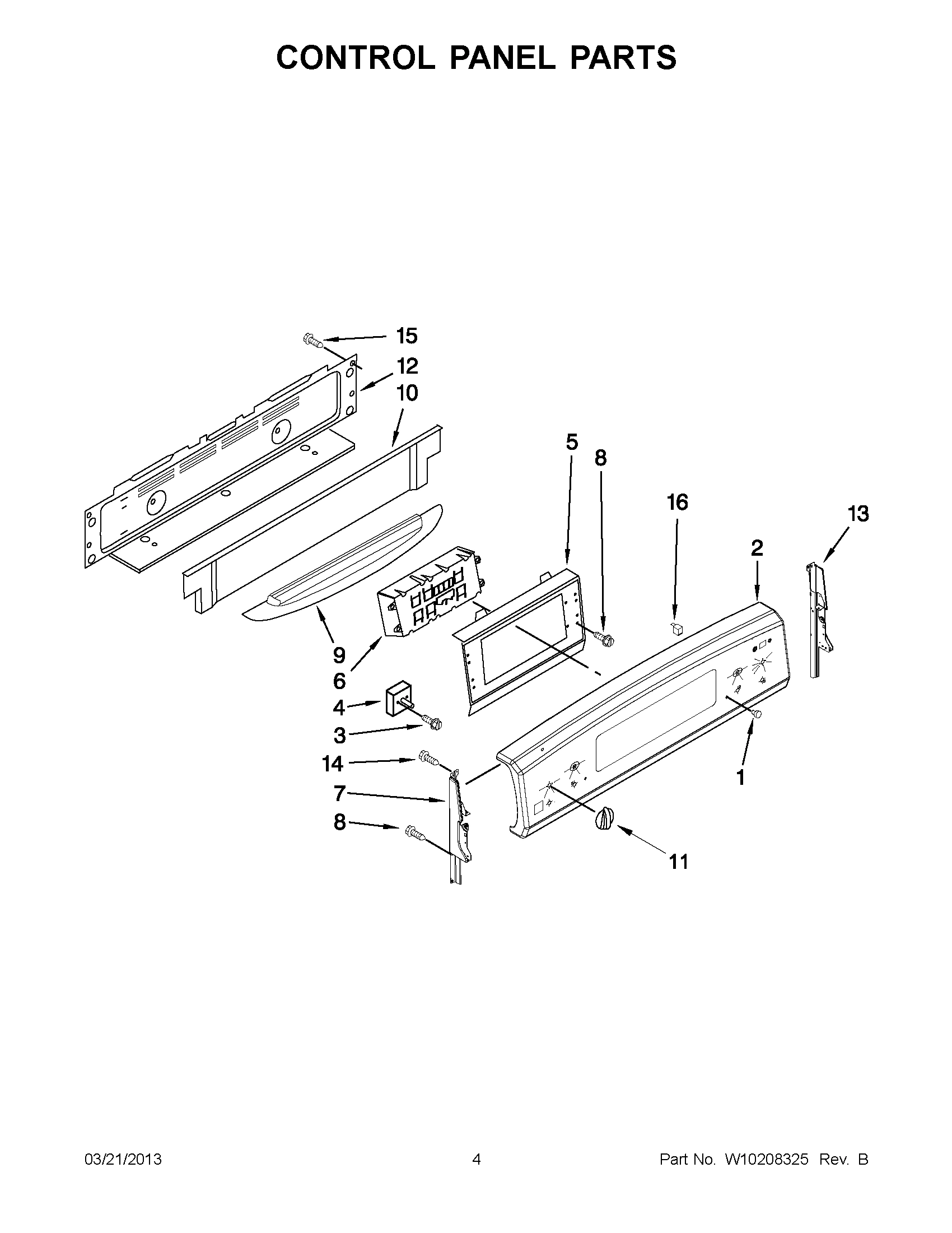

02 - CONTROL PANEL PARTS

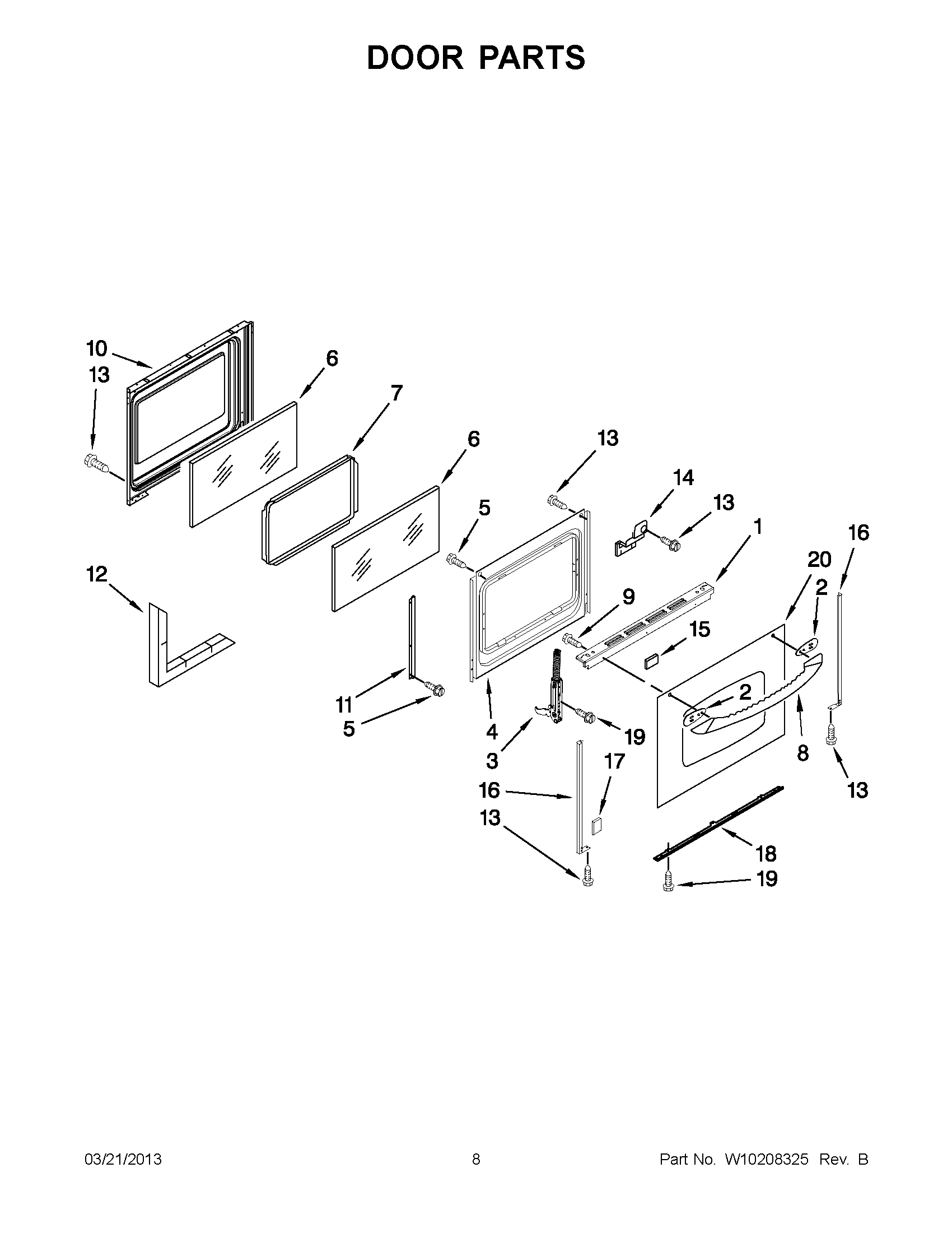

04 - DOOR PARTS

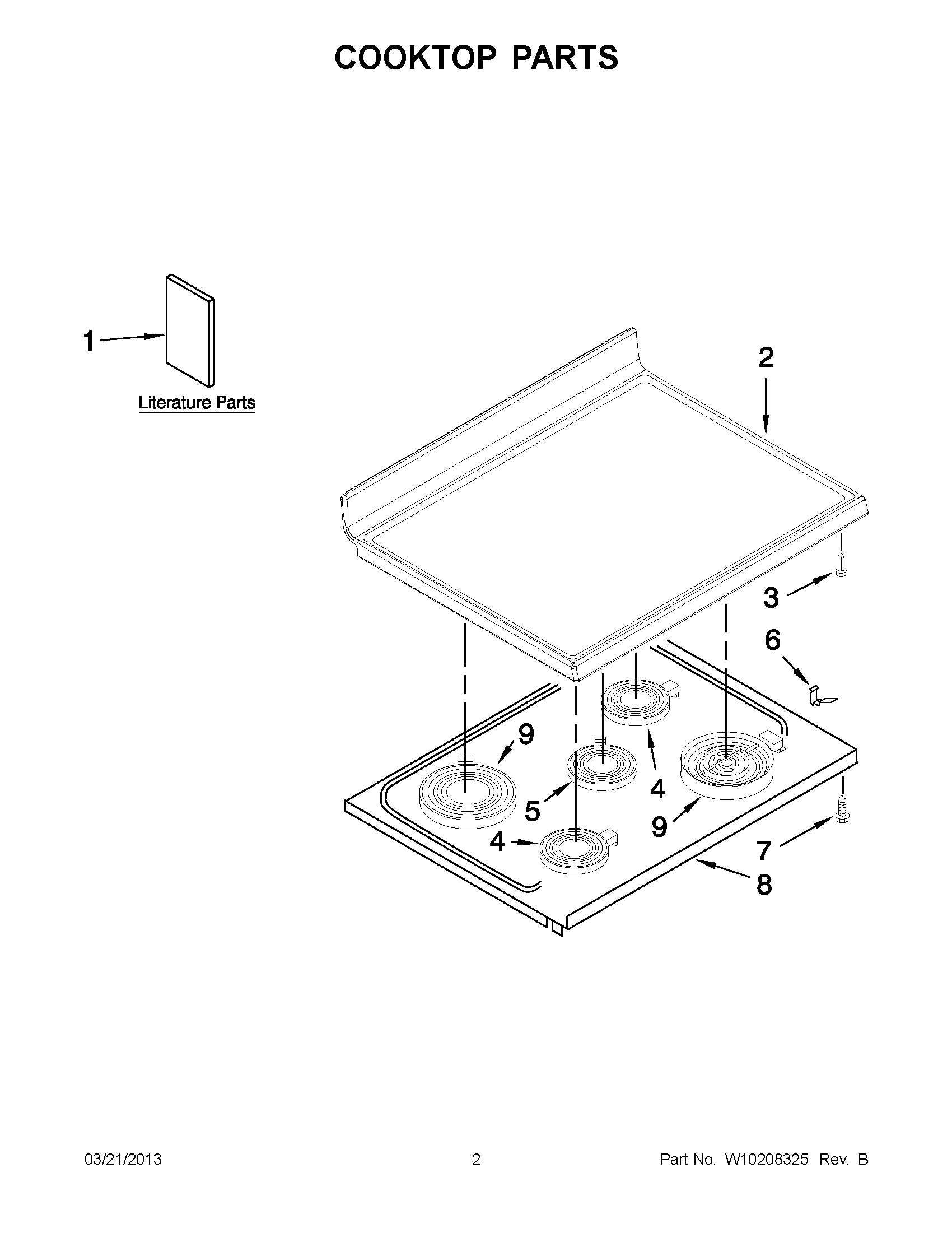

01 - COOKTOP PARTS

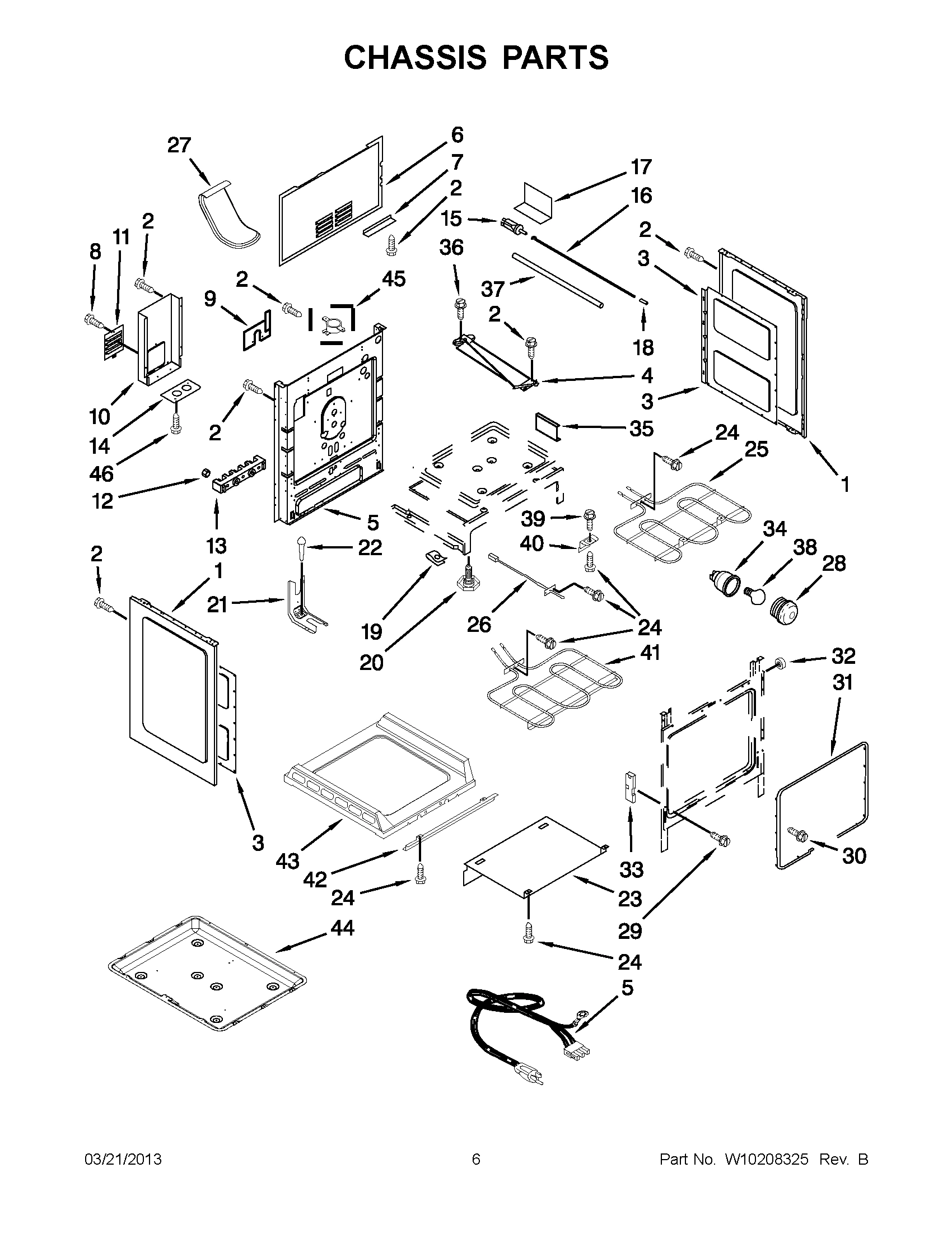

03 - CHASSIS PARTS

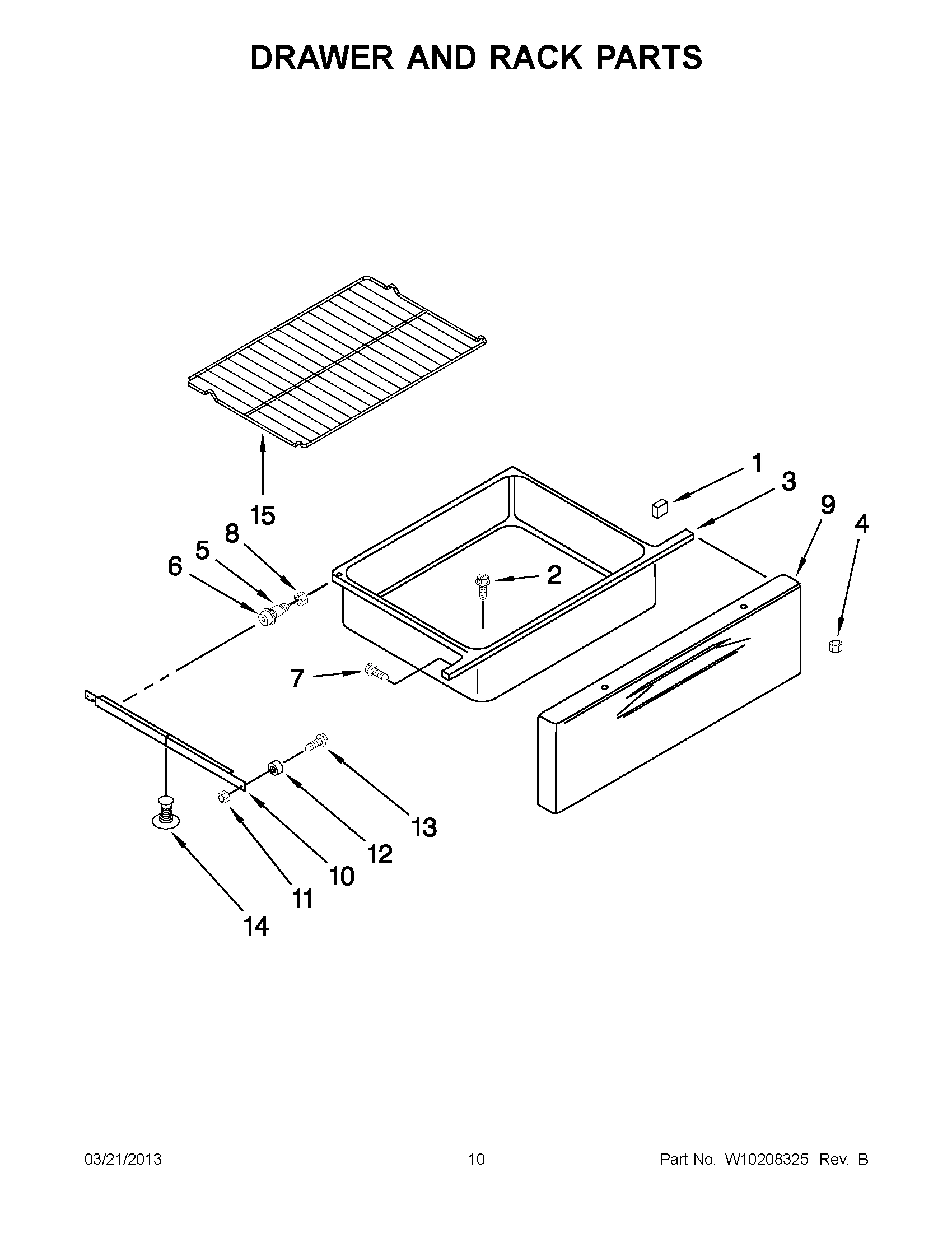

05 - DRAWER AND RACK PARTS
06 - OPTIONAL PARTS
Common parts from model Whirlpool YKERS205TW0 30`` FREE STANDING ELECTRIC RANGE
1
Trim, Door Top (Black) WPL 3608F13970 Contact Us For Availability
1
Trim, Door Top (White) WPL 3608F13971 Contact Us For Availability
1
Wiring Diagram (English) WPL W10167998 Contact Us For Availability
1
Wiring Diagram (French) WPL W10167999 Contact Us For Availability
1
Use & Care Guide WPL W10168033 Contact Us For Availability
1
Installation Instructions WPL W10185365 Contact Us For Availability
1
Panel, Side (White) WPL 74008709 Contact Us For Availability
1
Panel, Side (Black) WPL 74008710 Contact Us For Availability
1
Tape, Double Sided WPL 8270P09860 Contact Us For Availability
2
Spacer, Handle (Black) WPL W10169552 Contact Us For Availability
2
Spacer, Handle (White) WPL W10169553 Contact Us For Availability
2
Cooktop (Black) WPL W10182064 Contact Us For Availability
2
Cooktop (White) WPL W10182065 Contact Us For Availability
3
Retainer, Side WPL 74008701 Contact Us For Availability
4
BAFFLE, DOOR INSULATION RETAINER WPL 3601F38051 Contact Us For Availability
4
Latch, Door Lock WPL 8002P10460 Contact Us For Availability
4
Nut, Lock WPL 7103P13960 Contact Us For Availability
5
ELEMENT, WARM (CENTER REAR) WPL 74011676 Contact Us For Availability
5
Cord, Power WPL 7402P12560 Contact Us For Availability
6
Cover, Main Wire WPL 74009651 Contact Us For Availability
6
SHAFT, STORAGE DRAWER WPL 74005231 Contact Us For Availability
7
Frame, Glass Inner WPL 74003644 Contact Us For Availability
7
Screw WPL 74009538 Contact Us For Availability
7
Bottom Wire Cover WPL 74008762 Contact Us For Availability
8
Handle, Door (White) WPL W10153013 Contact Us For Availability
8
Handle, Door (Black) WPL W10153015 Contact Us For Availability
8
HANDLE, DOOR (STAINLESS) WPL W10153016 Contact Us For Availability
8
Bottom, Burner Box WPL 4011F49751 Contact Us For Availability
8
Screw WPL 7101P33860 Contact Us For Availability
8
Nut, Lock WPL 7103P08260 Contact Us For Availability
9
Panel, Drawer (White) WPL W10163040 Contact Us For Availability
9
INSULATOR, POWER CORD WPL 74008759 Contact Us For Availability
9
Panel, Drawer (Black) WPL W10163038 Contact Us For Availability
10
Lining, Door WPL 74008926 Contact Us For Availability
10
COVER, LOWER WIRE WPL 4005P70351 Contact Us For Availability
10
Rail, Drawer WPL 3406P03451 Contact Us For Availability
11
COVER, ACCESS PLATE WPL 4005P70451 Contact Us For Availability
12
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
12
Nut WPL 7103P02760 Contact Us For Availability
13
Block, Terminal WPL 7401P03960 Contact Us For Availability
14
Bracket, Handle (Right) WPL 3801P85745 Contact Us For Availability
14
Bracket, Handle (Left) WPL 3801P85845 Contact Us For Availability
14
Plate, Conduit WPL 3605F14651 Contact Us For Availability
14
Stop, Drawer WPL 74008688 Contact Us For Availability
15
TAPE WPL 74004224 Contact Us For Availability
16
Trim, Door Side (Black) WPL 74010560 Contact Us For Availability
16
Trim, Door Side (White) WPL 74010561 Contact Us For Availability
16
Rod, Door Switch WPL 74008706 Contact Us For Availability
17
Tape, Double Sided (White) WPL 74009014 Contact Us For Availability
17
Insulator, Shield WPL 74008704 Contact Us For Availability
18
TRIM, DOOR BOTTOM (BLACK) WPL 3608F09270 Contact Us For Availability
18
Trim, Door Bottom (White) WPL 3608F09271 Contact Us For Availability
20
GLASS, DOOR (BLACK) WPL W10182773 Contact Us For Availability
20
GLASS, DOOR (WHITE) WPL W10182776 Contact Us For Availability
22
SCREW, ANTI-TIP WPL 7101P48560 Contact Us For Availability
23
Shield, Heat WPL 74008689 Contact Us For Availability
25
Element, Broil WPL 7406P49360 Contact Us For Availability
27
Vent, Oven WPL 74008691 Contact Us For Availability
28
Lens, Bulb WPL 74011299 Contact Us For Availability
29
Screw WPL 7101P28260 Contact Us For Availability
35
Bracket, Oven WPL 74011187 Contact Us For Availability
37
Rod, Door Sleeve WPL 74008705 Contact Us For Availability
38
BULB, LIGHT WPL 7407P10360 Contact Us For Availability
40
BRACKET, OVEN SUPPORT WPL 3801P82245 Contact Us For Availability
42
Support, Oven Bottom WPL 3807P68045 Contact Us For Availability
44
Pan, Bake Brnr WPL 3401F08445 Contact Us For Availability
46
Screw WPL 7101P33660 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL WPL 241430 Contact Us For Availability
NI
Retainer, Insulation WPL 3804F31651 Contact Us For Availability
NI
Insulation, Back WPL 7002P49260 Contact Us For Availability
NI
Insulation, Wrap WPL 74008700 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) WPL 4392900 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, WIRE (COOKTOP WPL 5171P79160 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, WIRE (COOKTOP WPL 5171P79260 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUND WPL 7101P02760 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, WIRE (MAIN) WPL W10160683 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, WIRE (BURNER B WPL W10167991 Contact Us For Availability
× ![]()
