Model Whirlpool YKERS205TS4 30`` FREE STANDING ELECTRIC RANGE – Common Parts &amp; Diagrams

1

TIPS, SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability

1

TIPS, SAFE COOKING (FRENCH) WPL W10065852 Contact Us For Availability

1

Use & Care Guide WPL W10168033 Contact Us For Availability

1

Installation Instructions WPL W10185365 Contact Us For Availability

1

WIRING DIAGRAM (ENGLISH) WPL W10281613 Contact Us For Availability

1

WIRING DIAGRAM (FRENCH) WPL W10281614 Contact Us For Availability

1

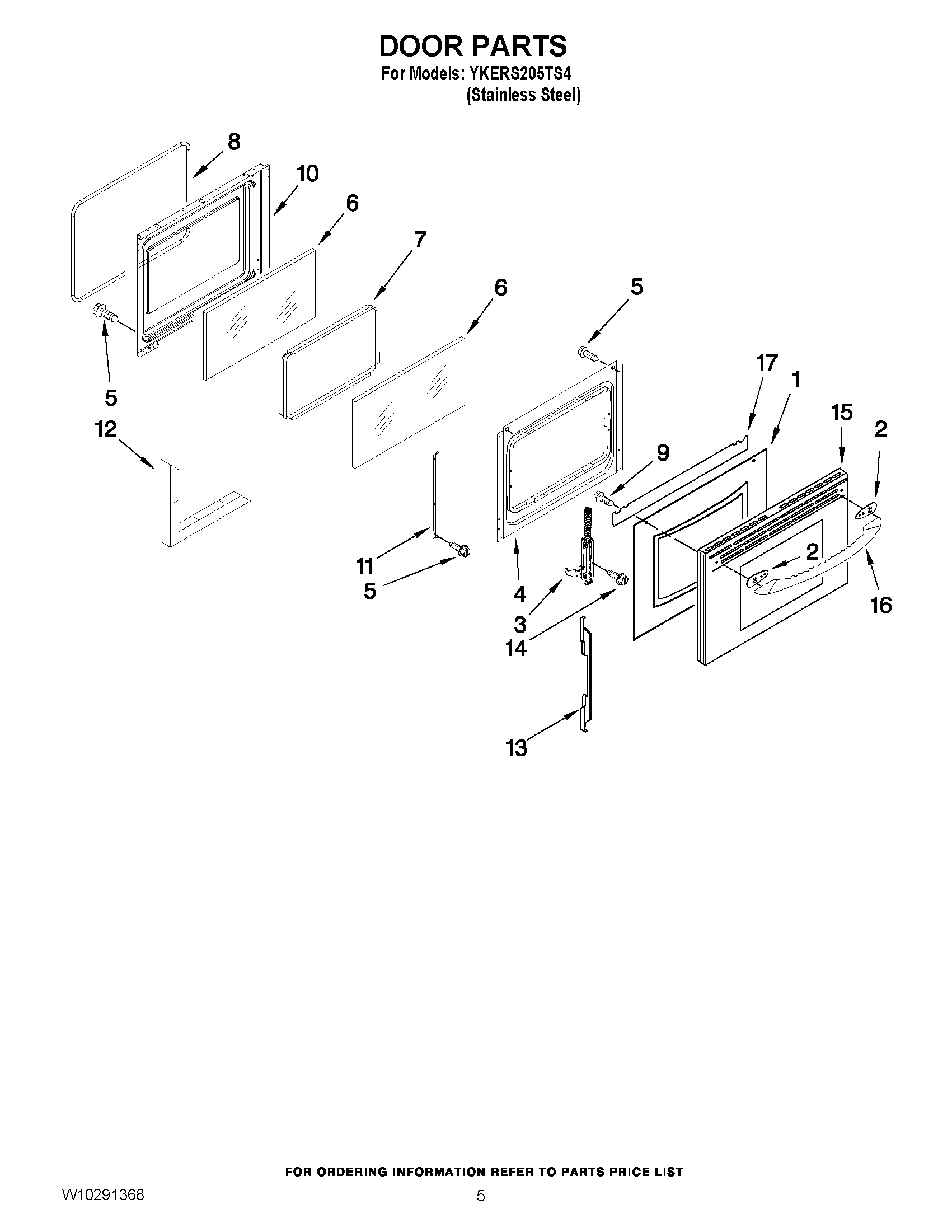

GLASS, DOOR WPL W10160909 Contact Us For Availability

2

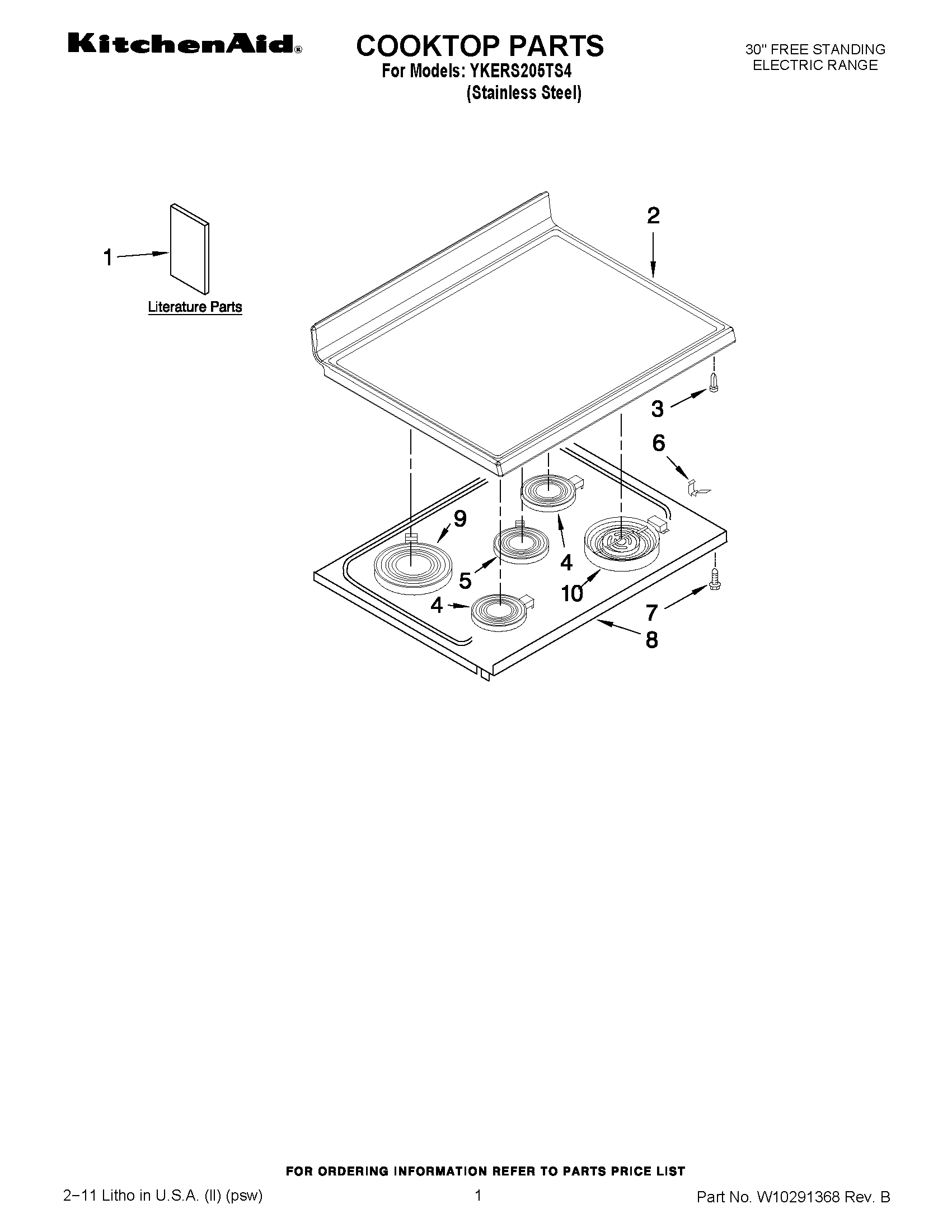

COOKTOP (BLACK) WPL W10281222 Contact Us For Availability

2

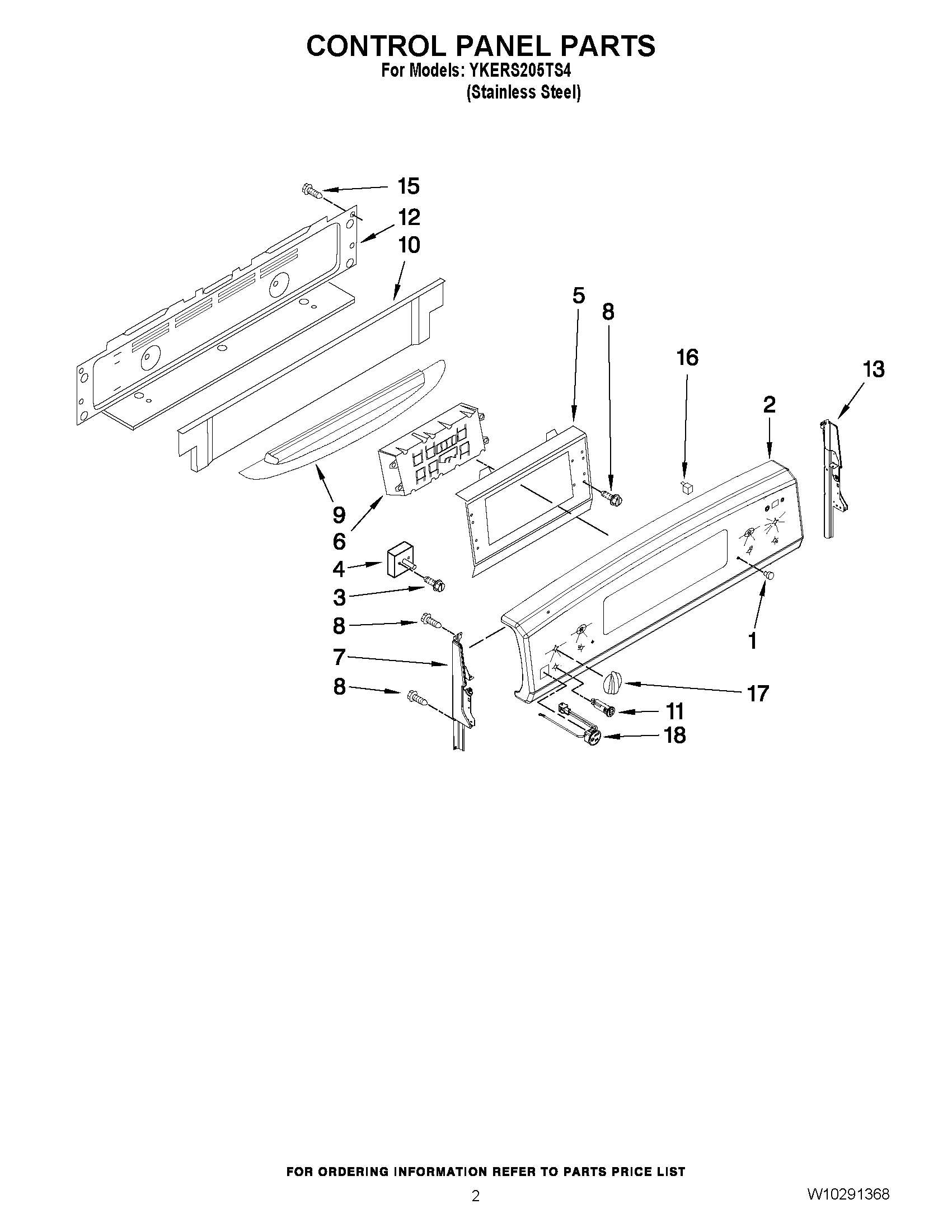

PANEL, BACKGUARD & SWITCH ASSY (BLACK) WPL W10218267 Contact Us For Availability

2

SPACER, HANDLE WPL 3823F01745 Contact Us For Availability

3

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.51

3

SPACER, SNAP-IN WPL 8010P14960 Contact Us For Availability

3

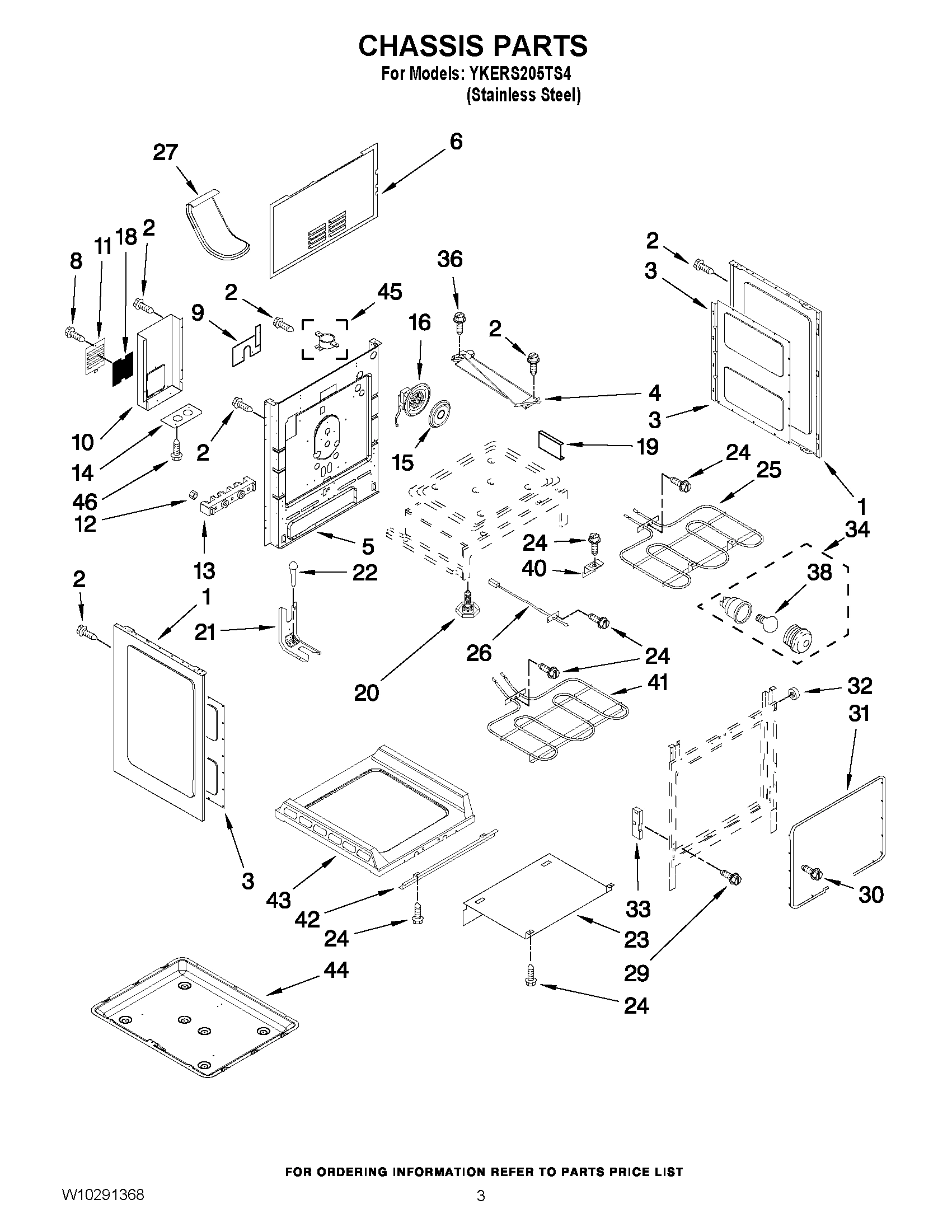

HINGE, DOOR WPL 7106P12460 Contact Us For Availability

4

W11171119 Whirlpool Radiant Surface Element In Stock WPL W11171119 $89.69

4

SWITCH, INFINTE (LF/RR) WPL 7403P37360 Contact Us For Availability

4

SWITCH, INFINTE (DUAL RF/LR) WPL 7450P01160 Contact Us For Availability

4

Baffel, Retainer WPL 3601F38051 Contact Us For Availability

5

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

5

WP9762851 Whirlpool Surface Element Backorder WPL WP9762851 $119.49

5

Bracket, Control WPL 3801F94551 Contact Us For Availability

6

Spring, Element WPL 7803P08760 Contact Us For Availability

6

Control WPL 8507P33160 Contact Us For Availability

6

GLASS, INNER WPL 7902P43660 Contact Us For Availability

7

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

7

End Cap, Left (Black) WPL 3807F70370 Contact Us For Availability

8

BOTTOM, BURNER BOX WPL W10170717 Contact Us For Availability

8

GASKET, DOOR WPL W10290904 Contact Us For Availability

9

W11164114 Whirlpool Screw Backorder WPL W11164114 $2.91

9

WPW10275049 Whirlpool Surface Element 2500/12 In Stock WPL WPW10275049 $152.21

9

Shield, Heat Visor (Black) WPL 3604F38209 Contact Us For Availability

10

ELEMENT, RF WPL 7406P44160 Contact Us For Availability

10

Shield, Vent WPL 3604F38119 Contact Us For Availability

10

Lining, Door WPL 2402W29719 Contact Us For Availability

11

Panel, Access WPL 4005P70451 Contact Us For Availability

11

BREAKER, CIRCUIT WPL 7429P00760 Contact Us For Availability

11

Bracket, Glass WPL 3801F88651 Contact Us For Availability

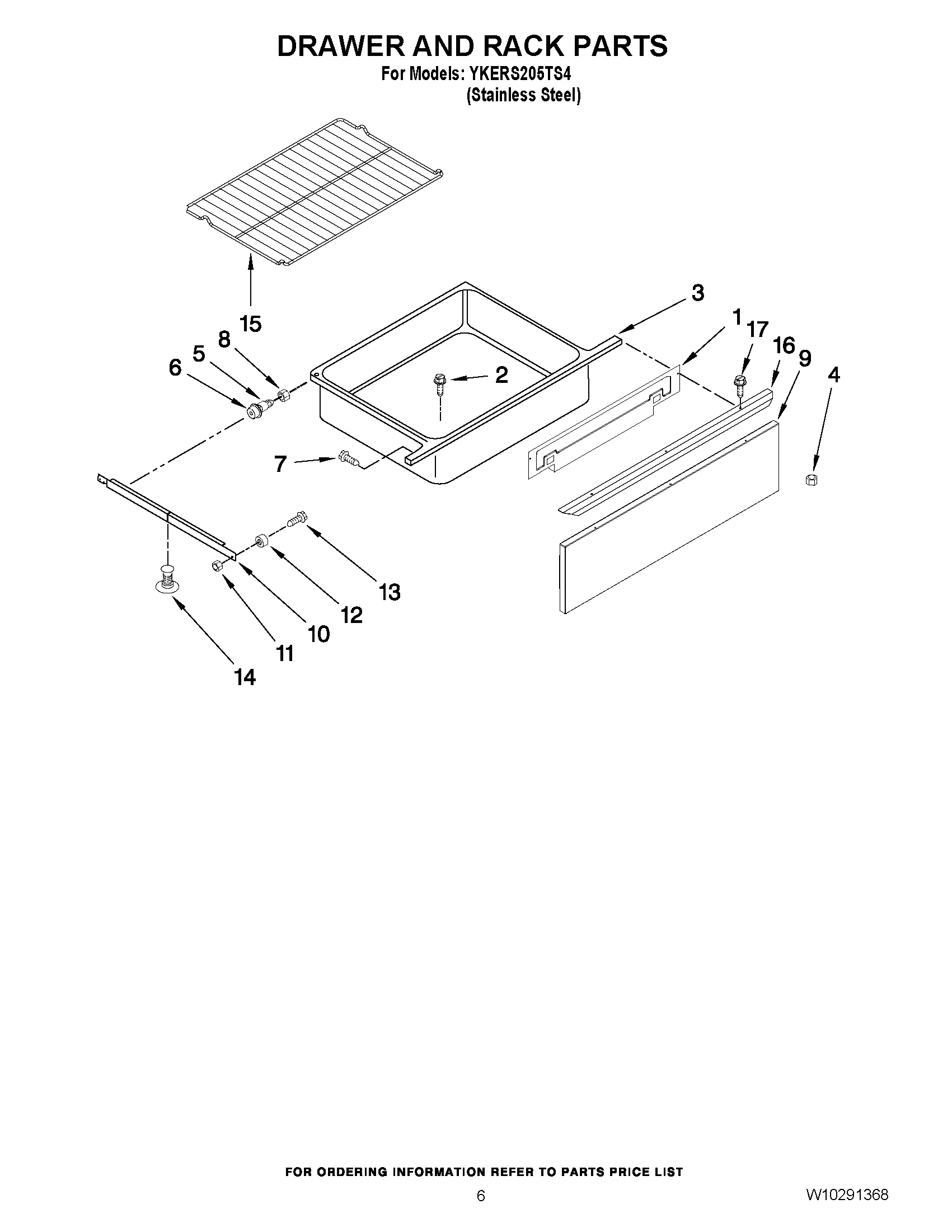

ROLLER, DRAWER WPL W10272883 Contact Us For Availability

Nut, Term. Block WPL 7103P02760 Contact Us For Availability

Cover, Rear Wire WPL 4005F80451 Contact Us For Availability

Insulation, Door WPL 7002P24660 Contact Us For Availability

13

BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability

13

End Cap, Right (Black) WPL 3807F70270 Contact Us For Availability

13

BRACKET, GLASS WPL 3801P91851 Contact Us For Availability

14

Plate, Conduit WPL 3605P14651 Contact Us For Availability

14

Screw 10-24x5/16 WPL 7101P28260 Contact Us For Availability

15

PLATE, CONVECTION WPL 3605F30519 Contact Us For Availability

15

PANEL, OUTER WPL 7760P21860 Contact Us For Availability

16

FAN, CONVECTION WPL 7427P10960 Contact Us For Availability

16

Switch, Rocker WPL 7403P79860 Contact Us For Availability

16

HANDLE, DOOR WPL W10153016 Contact Us For Availability

17

WPW10160371 Whirlpool Cooktop Stainless Steel In Stock WPL WPW10160371 $25.64

17

INSULATION, FOIL WPL 7002P48260 Contact Us For Availability

18

SCREEN, ACCESS WPL W10260573 Contact Us For Availability

18

RECEPTACLE WPL 7408P05660 Contact Us For Availability

19

BRACKET, OVEN WPL 3801P79851 Contact Us For Availability

20

Leg, Leveling WPL 7101P50760 Contact Us For Availability

21

BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability

22

SCREW, ANTI-TIP WPL 7101P48560 Contact Us For Availability

23

Shield, Heat WPL 3604F37151 Contact Us For Availability

25

Element, Broil WPL 7406P49360 Contact Us For Availability

26

WPW10181986 Whirlpool Oven Sensor In Stock WPL WPW10181986 $50.55

27

Vent, Oven WPL 8026P08160 Contact Us For Availability

30

SCREW, SHOULDER WPL 7101P61860 Contact Us For Availability

31

W11562931 Whirlpool Door Gasket In Stock WPL W11562931 $35.63

32

Spacer, Side Pnl. WPL 8010P14860 Contact Us For Availability

33

Receiver, Hinge WPL 7106P12560 Contact Us For Availability

36

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

38

BULB-OVEN WPL 7407P10360 Contact Us For Availability

40

Support, Ov BTM WPL 3801P82245 Contact Us For Availability

41

Element, Bake WPL 7406P45160 Contact Us For Availability

42

Support, Oven WPL 3807P68045 Contact Us For Availability

43

WPW10211368 Whirlpool Oven Bottom Backorder WPL WPW10211368 $169.56

44

Pan, Bake Brnr WPL 3401F08445 Contact Us For Availability

45

Switch, Terminal WPL 7403P85760 Contact Us For Availability

46

Screw WPL 7101P33660 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

W10182346 Whirlpool Insulation Assembly Backorder WPL W10182346 $61.94

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

W11226497 Whirlpool Power Cord Backorder WPL W11226497 $38.39

WP3196154 Whirlpool Screw Assembly Backorder WPL WP3196154 $2.51

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

RETAINER, INSUL. WPL 3804F31651 Contact Us For Availability

STRAP, INSULATION WPL 4820F01459 Contact Us For Availability

INSULATION, BOTTOM WPL 7002P36160 Contact Us For Availability

Insulation, Wrap WPL 7002P36260 Contact Us For Availability

INSULATION, BACK WPL W10243056 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

Clip, Wire WPL 8019P01360 Contact Us For Availability

HARNESS, WIRE (MAIN) WPL W10278572 Contact Us For Availability

HARNESS, WIRE (COOKTOP RIGHT) WPL W10278573 Contact Us For Availability

HARNESS, WIRE (COOKTOP LEFT) WPL W10278574 Contact Us For Availability

HARNESS, WIRE (BURNER BOX) WPL W10278575 Contact Us For Availability
