Model Whirlpool YKERC500HW4 30`` ELECTRONIC RANGE FREESTANDING DESIGNER STYLE – Common Parts & Diagrams

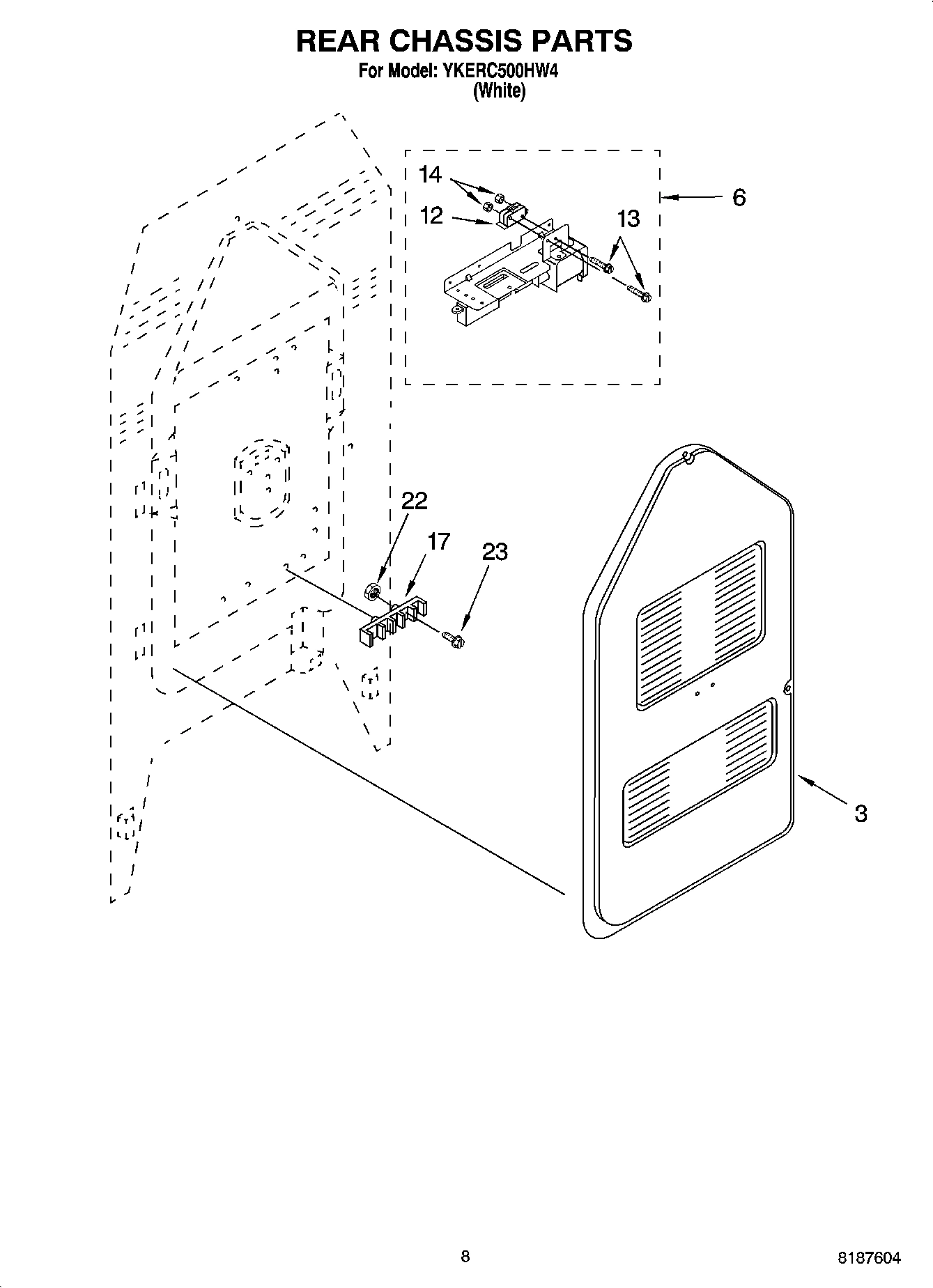

06 - REAR CHASSIS PARTS, MISCELLANEOUS PARTS

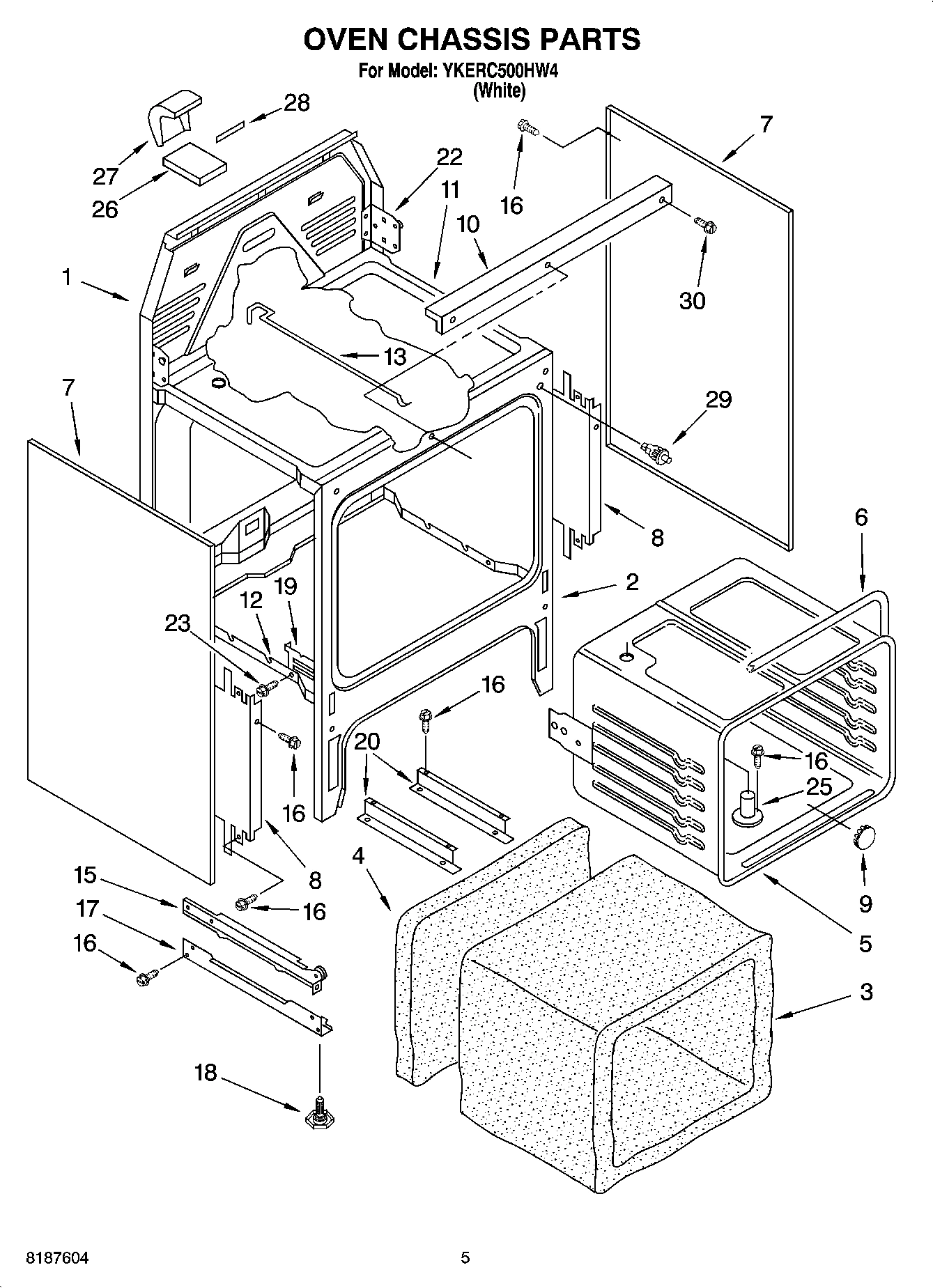

04 - OVEN CHASSIS PARTS

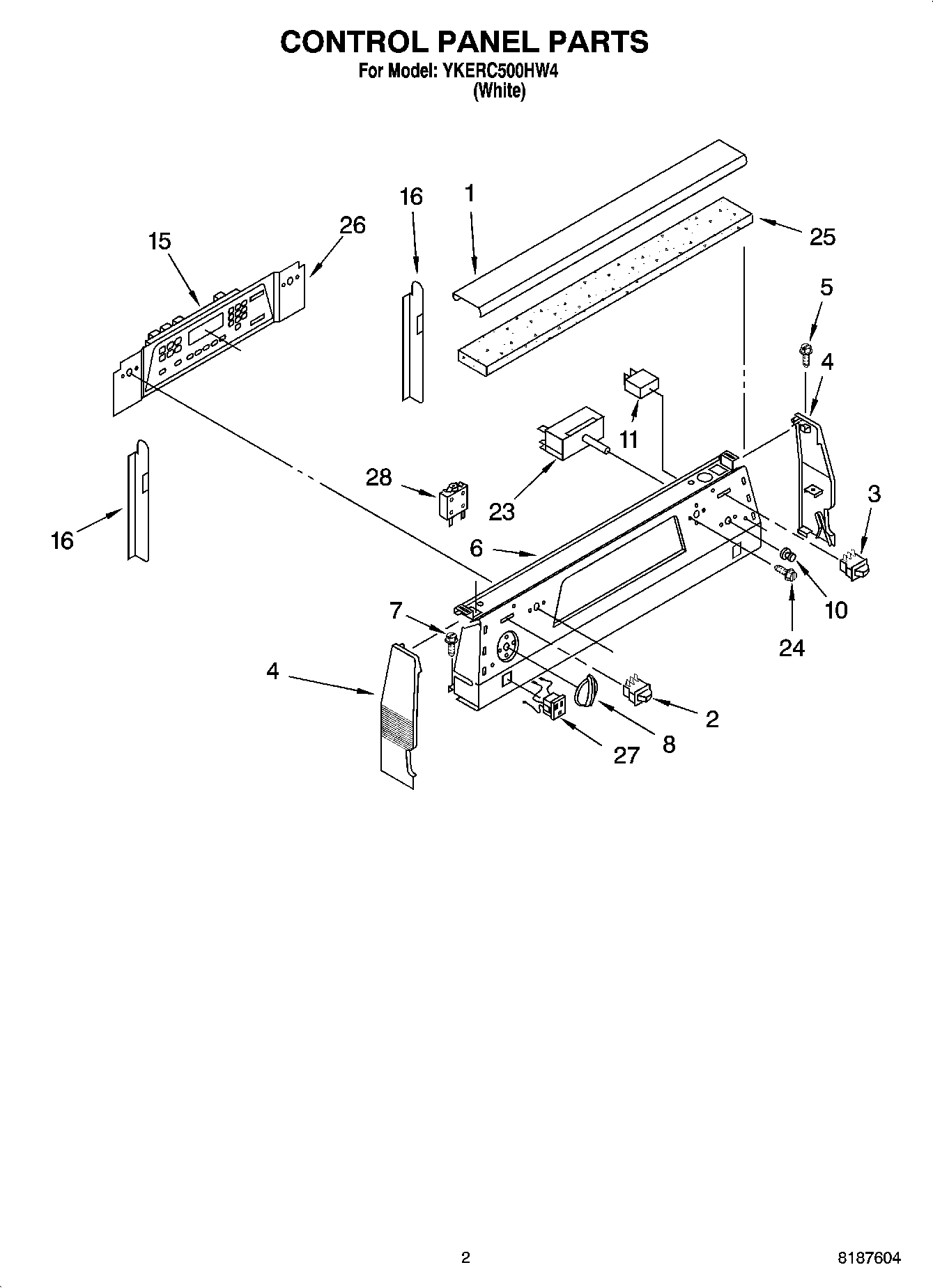

02 - CONTROL PANEL PARTS

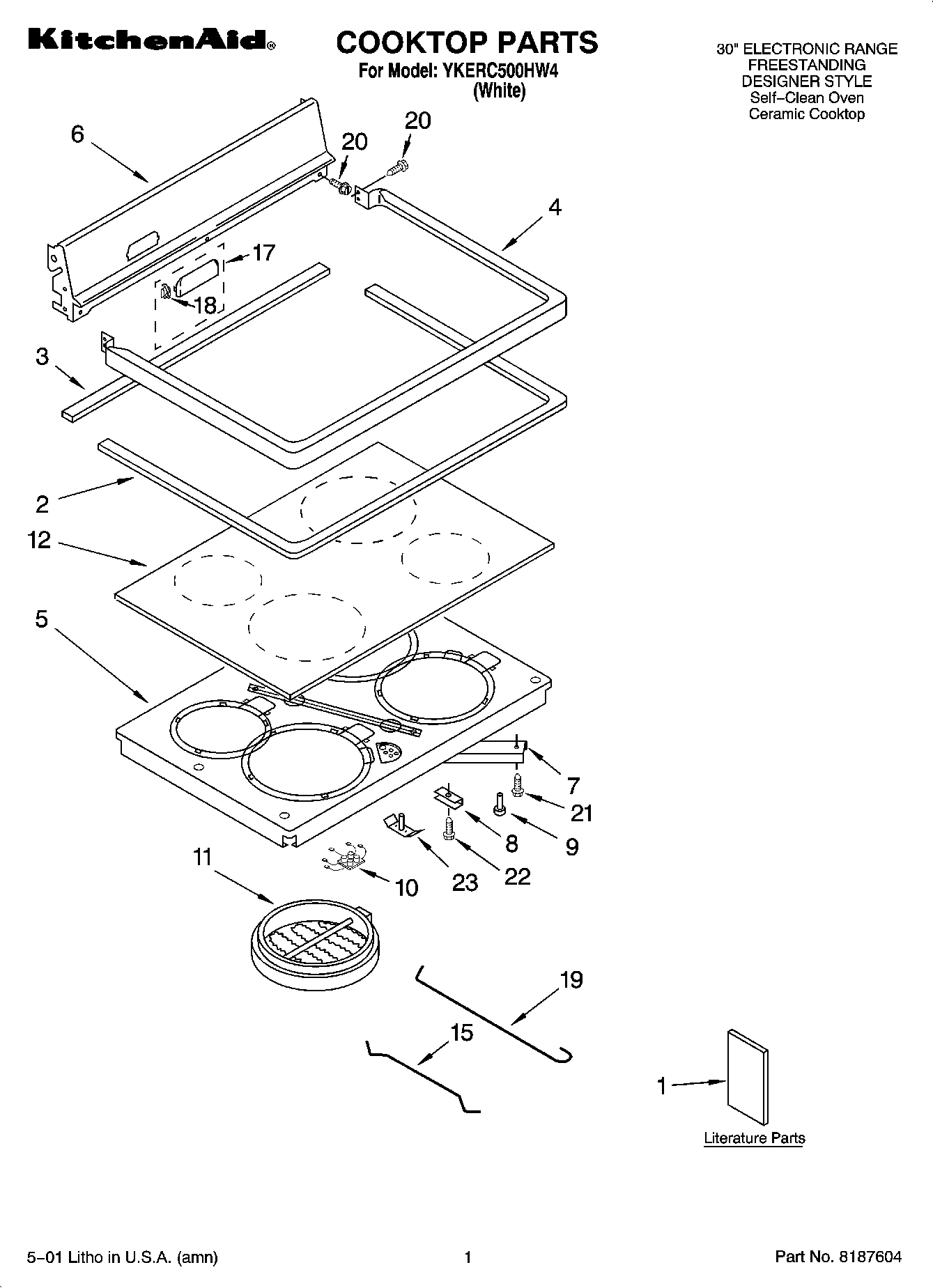

01 - COOKTOP PARTS

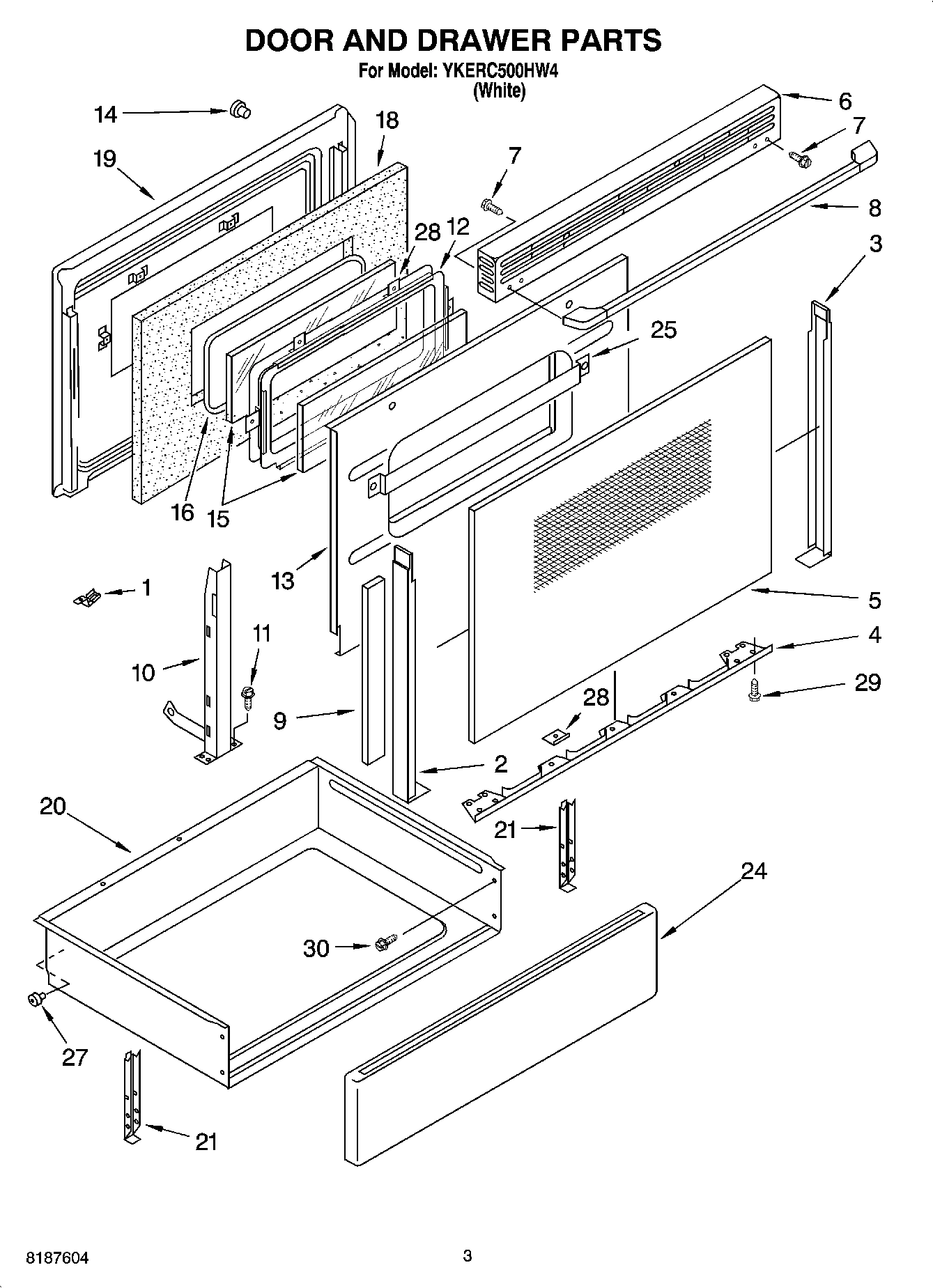

03 - DOOR AND DRAWER PARTS

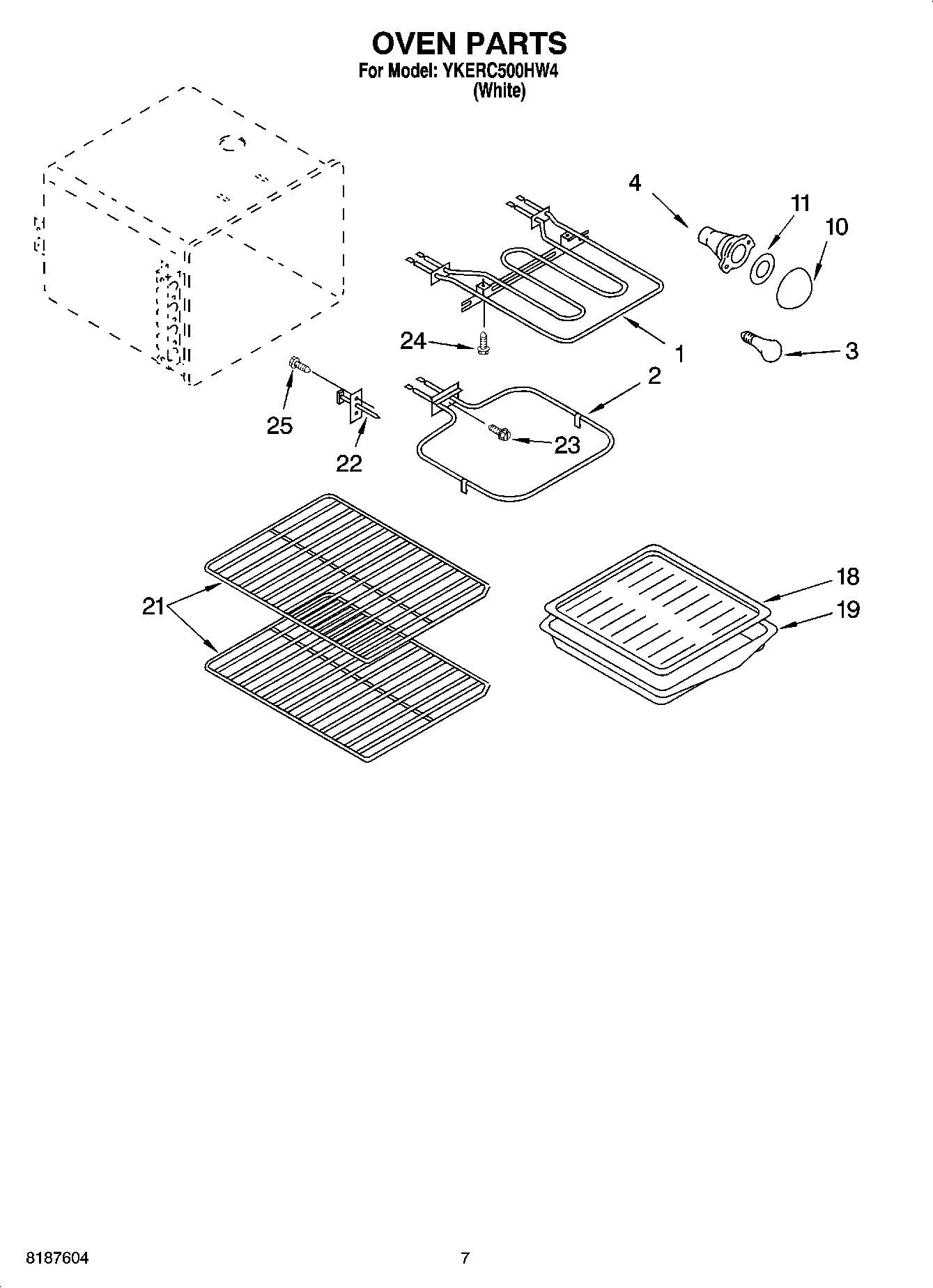

05 - OVEN PARTS
Common parts from model Whirlpool YKERC500HW4 30`` ELECTRONIC RANGE FREESTANDING DESIGNER STYLE
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
WPL 9751745 WPL 9751745 Contact Us For Availability
WPL ARI137667A WPL ARI137667A Contact Us For Availability
WPL ARI137668A WPL ARI137668A Contact Us For Availability
WPL ARI137669A WPL ARI137669A Contact Us For Availability
WPL ARI137670A WPL ARI137670A Contact Us For Availability
1
Element, Broil WPL 9750211 Contact Us For Availability
1
Main Chassis, Back WPL 9750146 Contact Us For Availability
1
Lamp Cover WPL 9753156PW Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752776 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9752777 Contact Us For Availability
1
Use & Care Guide (English) WPL LIT9753844 Contact Us For Availability
1
Use & Care Guide (French) WPL LIT9753844F Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9782239 Contact Us For Availability
1
Retainer, Glass WPL 9750676 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Switch, Warm Zone WPL 9753692FW Contact Us For Availability
2
Trim, Door-Left WPL 9782003PW Contact Us For Availability
3
Rear Panel WPL 9750150 Contact Us For Availability
3
Insulation, Wrap WPL 9754000 Contact Us For Availability
3
Switch, Oven Light WPL 9753261FW Contact Us For Availability
3
Rear Gasket WPL 9781614 Contact Us For Availability
3
Trim, Door-Right WPL 9782004PW Contact Us For Availability
4
Insulation, Rear WPL 9754011 Contact Us For Availability
4
End Cap (Left Hand) WPL 9750366FW Contact Us For Availability
4
End Cap (Right Hand) WPL 9750367FW Contact Us For Availability
4
Frame, Cooktop WPL 9750456PW Contact Us For Availability
4
Trim, Door Bottom WPL 9781209PW Contact Us For Availability
5
Oven Liner WPL 9781293GM Contact Us For Availability
5
Support, Element WPL 9753674 Contact Us For Availability
5
Glass, Door WPL 9781627PW Contact Us For Availability
6
Oven Lock Assembly WPL 9782257 Contact Us For Availability
6
Gasket, Oven WPL 9755179 Contact Us For Availability
6
Panel, Control WPL 9753728PW Contact Us For Availability
6
Back Splash WPL 9752337GW Contact Us For Availability
6
Vent, Door WPL 9753498GW Contact Us For Availability
7
Oven, Side L or R WPL 9781907PW Contact Us For Availability
7
Screw, 8-18 x 3/8 WPL 9780852 Contact Us For Availability
7
Brace, Support WPL 9753675 Contact Us For Availability
7
Gasket, Vent WPL 9781659 Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
8
Support Clip (4) WPL 9753691 Contact Us For Availability
8
Handle, Door WPL 9780523PW Contact Us For Availability
9
Button, Plug WPL 9780578 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
10
Wire Guard WPL 9780585 Contact Us For Availability
10
Hot Light WPL 9781935 Contact Us For Availability
11
Burner Box WPL 9750478 Contact Us For Availability
11
Light Module (2) WPL 9753422 Contact Us For Availability
12
Switch, Interlock WPL 9782117 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
12
Cooktop, Ceran WPL 9753710CW Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
13
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
13
Rod, Lock WPL 9750523 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
14
Nut WPL 9750888 Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Oven Control Assembly WPL 9782086CW Contact Us For Availability
15
Rod, Small Ceran Element WPL 9781460 Contact Us For Availability
16
Brace, Control Pnl WPL 9780655 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
17
Cover Vent WPL 9753040CW Contact Us For Availability
18
Clip, Vent Cover WPL 3149190 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Hinge, Receiver (2) WPL 9782005 Contact Us For Availability
19
Rod, Large Ceran Element WPL 9781459 Contact Us For Availability
20
Screw, 10AB x 1/2 WPL 3149333 Contact Us For Availability
20
Support Rail, Pan WPL 9781904 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
21
Rack, Standard WPL 9750498 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Sensor WPL 9782081 Contact Us For Availability
22
Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability
22
Screw, 10PHB x 3/4 WPL 423248 Contact Us For Availability
23
Screw, 10-16 x 1 WPL 98884 Contact Us For Availability
23
Spring, Warm Zone WPL 9753677 Contact Us For Availability
23
Screw, 8-32 x 3/8 WPL 9781509 Contact Us For Availability
24
Front, Drawer WPL 9782108PW Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
25
Insulation, Control WPL 9754008 Contact Us For Availability
25
Channel, Heat WPL 9750693 Contact Us For Availability
26
Cover, Vent WPL 9750393 Contact Us For Availability
26
Bracket, Timer WPL 9753690 Contact Us For Availability
27
Back, Vent WPL 9750394 Contact Us For Availability
27
Support, Outlet WPL 9751046 Contact Us For Availability
27
Outlet, Untimed WPL 9751480FW Contact Us For Availability
28
Vent Gasket WPL 9750767 Contact Us For Availability
28
Breaker, 15 Amp WPL 3191072 Contact Us For Availability
28
Insulation, Control Panel WPL 9750995 Contact Us For Availability
28
Spacer, Door (8) WPL 9781502 Contact Us For Availability
29
Switch, Door WPL 9781580 Contact Us For Availability
30
Screw WPL 9780272 Contact Us For Availability
30
Screw, 8-32 x 3/8 WPL 9780269 Contact Us For Availability
× ![]()
