Model Whirlpool YKDRS807SS02 30`` Slide-In Dual Fuel CONVECTION – Common Parts & Diagrams
08 - TRIPLE CROWN BURNER

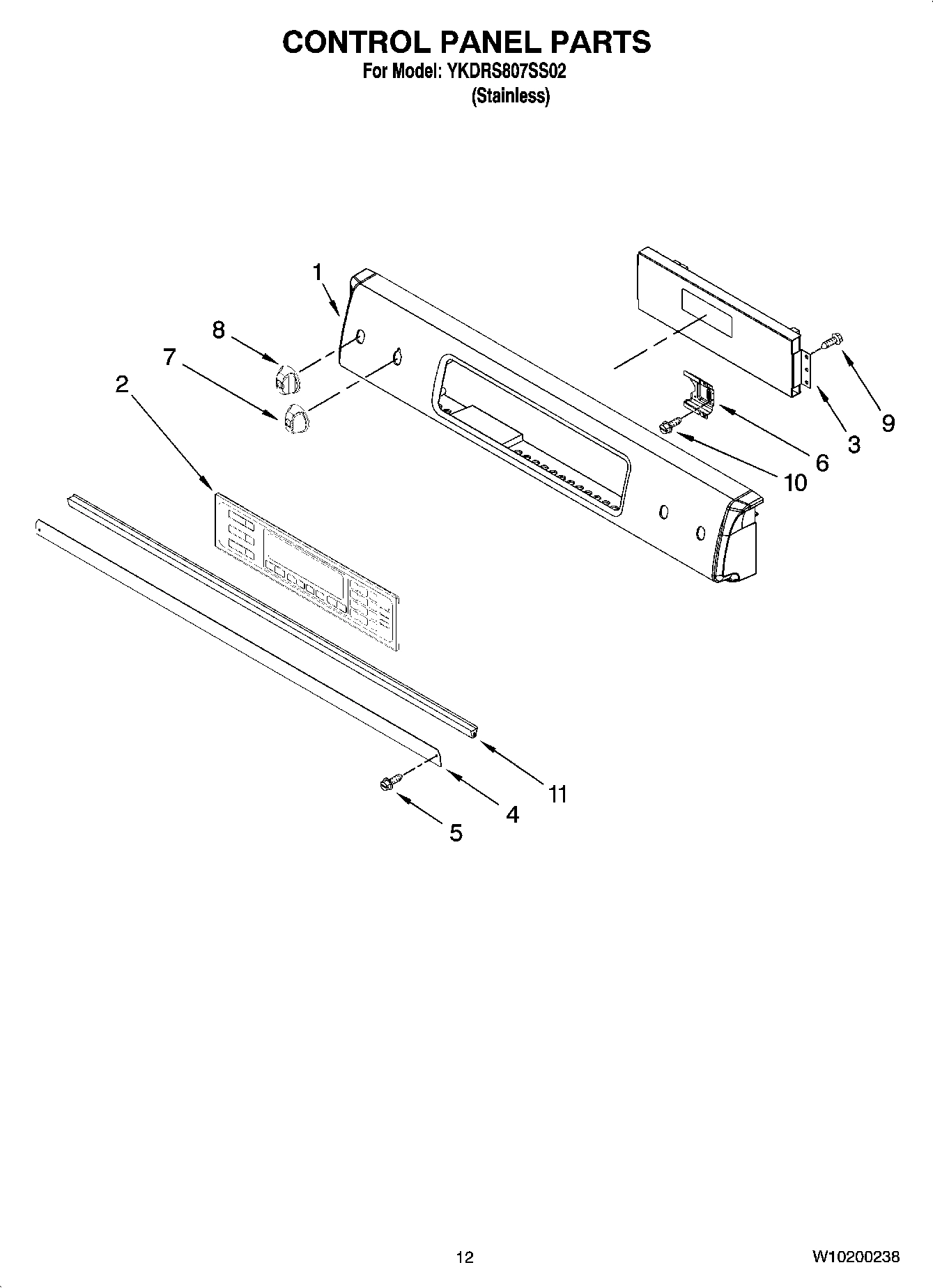

09 - CONTROL PANEL PARTS, OPTIONAL PARTS (NOT INCLUDED)
03 - DOOR PARTS
01 - COOKTOP PARTS
05 - TOP VENTING PARTS
02 - OVEN PARTS
04 - DRAWER PARTS
06 - INTERNAL OVEN PARTS
07 - COOKTOP BURNER PARTS
Common parts from model Whirlpool YKDRS807SS02 30`` Slide-In Dual Fuel CONVECTION
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
Orifice Kit WPL 9757426 Contact Us For Availability
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
HARNESS, COMMUNICATION WPL 9762921 Contact Us For Availability
HARNESS, TCB WPL 9756921 Contact Us For Availability
WPL W10157935 WPL W10157935 Contact Us For Availability
Insulation, Wrap WPL 9756817 Contact Us For Availability
Harness, Ground Strap WPL 9763481 Contact Us For Availability
WPL W10110729 WPL W10110729 Contact Us For Availability
Insulation, Back WPL 9756470 Contact Us For Availability
Following Parts Not Illustrated WPL ARI137021A Contact Us For Availability
Insulation WPL ARI137022A Contact Us For Availability
1
Vent, Exhaust WPL 4451759 Contact Us For Availability
1
Trim, Side (Left) WPL W10140547 Contact Us For Availability
1
Trim, Side (Right) WPL W10140548 Contact Us For Availability
1
Support, Drawer Rail (Left) WPL 9757686 Contact Us For Availability
1
Support, Drawer Rail (Right) WPL 9757687 Contact Us For Availability
2
Plate, Closure WPL 8285250 Contact Us For Availability
2
ELBOW, VENT TOP WPL 4455178 Contact Us For Availability
2
Support, Front & Rear WPL 9763501BL Contact Us For Availability
2
TUBING, BURNER(RF) WPL 9761069 Contact Us For Availability
3
Control, Interface WPL W10181439 Contact Us For Availability
3
Brace, Drawer (Right) WPL 4453720 Contact Us For Availability
3
Brace, Drawer (Left) WPL 4453721 Contact Us For Availability
3
TUBING, BURNER(RR) WPL 9761070 Contact Us For Availability
4
Bumper, Door (2) WPL W10105790 Contact Us For Availability
4
Tray, Bake Hidden WPL 4455037 Contact Us For Availability
4
Cooktop WPL W10175863 Contact Us For Availability
4
TUBING, BURNER(LR) WPL 9761068 Contact Us For Availability
5
ELBOW, VENT BOTTOM WPL 4455177 Contact Us For Availability
5
Side, Base (Right) WPL 9759953 Contact Us For Availability
5
Side, Base (Left) WPL 9759954 Contact Us For Availability
7
Top Chassis WPL 8303099 Contact Us For Availability
8
Bracket, Spark Module WPL W10108030 Contact Us For Availability
8
Tube, Manifold WPL 9761752 Contact Us For Availability
9
VALVE, TCB WPL 9760519 Contact Us For Availability
9
Bracket, Burner WPL 9763445 Contact Us For Availability
9
Manifold (TCB) WPL 9761641 Contact Us For Availability
9
MANIFOLD, COOKTOP WPL 9761642 Contact Us For Availability
10
Lens, Light (2) WPL W10067870 Contact Us For Availability
10
TUBE, T.C.B. GAS (INNER) WPL 9761071 Contact Us For Availability
10
TUBE, T.C.B. GAS (OUTER) WPL 9761072 Contact Us For Availability
10
Screw WPL 4449040 Contact Us For Availability
10
Shield, Heat WPL 8301084 Contact Us For Availability
10
Drawer WPL W10144430 Contact Us For Availability
12
Orifice (Internal) WPL 9762443 Contact Us For Availability
12
Orifice (External) WPL 9762442 Contact Us For Availability
12
Grate, Burner (RH) WPL 9761625CB Contact Us For Availability
12
Panel, Drawer WPL W10144431 Contact Us For Availability
13
Seal, Window WPL 8522415 Contact Us For Availability
13
Grate, Burner (LH) WPL 9761624CB Contact Us For Availability
13
Tubing DF to Regulator WPL W10108840 Contact Us For Availability
13
Front, Drawer WPL W10140545 Contact Us For Availability
14
Assembly, Door Kit WPL W10155557 Contact Us For Availability
14
Handle, Drawer WPL 9761573SS Contact Us For Availability
15
Orifice (LR, RF) WPL 9762937 Contact Us For Availability
15
Orifice (RR) WPL 9762938 Contact Us For Availability
15
Backsplash WPL W10156267 Contact Us For Availability
17
Bumper, Door (3) WPL 4448520 Contact Us For Availability
17
Bracket, Mounting WPL 4452152 Contact Us For Availability
17
Element, Warming WPL 9760775 Contact Us For Availability
17
Gasket, Backsplash WPL 9763483BL Contact Us For Availability
17
Cover, Bake Tray WPL 4450039 Contact Us For Availability
18
Badge WPL 8304603SS Contact Us For Availability
19
Cap, Burner (12.5K (RR)) WPL 9761563CB Contact Us For Availability
19
Support, Insulation WPL 4451478 Contact Us For Availability
19
Support, Element WPL 9758676 Contact Us For Availability
20
BODY, SIDE BLACK WPL 9760723PB Contact Us For Availability
20
Bracket, Regulator WPL W10171411 Contact Us For Availability
21
Regulator WPL W10108850 Contact Us For Availability
21
BRACKET,SIDE PANEL WPL 9757461 Contact Us For Availability
22
Glass, Backsplash WPL 9761749BL Contact Us For Availability
22
Cover, Terminal WPL W10153100 Contact Us For Availability
23
Cover, Cooktop Rear WPL 9761755 Contact Us For Availability
23
Enclosure, Warming Drawer WPL 9761796 Contact Us For Availability
24
Brace, Side Panel WPL 9757811 Contact Us For Availability
24
Cover, Access WPL W10153099 Contact Us For Availability
26
Gasket WPL W10109920 Contact Us For Availability
26
Back, Chassis WPL 9759761 Contact Us For Availability
27
Clip, Retainer WPL 9762768 Contact Us For Availability
27
Liner, Oven (Not serviceable) WPL ARI137020A Contact Us For Availability
28
Panel, Backsplash WPL W10153092 Contact Us For Availability
28
Clip, Side Panel WPL 9759890 Contact Us For Availability
29
Trim, Cooktop (Left) WPL W10140549 Contact Us For Availability
29
Trim, Cooktop (Right) WPL W10140550 Contact Us For Availability
30
Box, Terminal WPL 9759987 Contact Us For Availability
33
Base, Chassis WPL 9759713 Contact Us For Availability
35
Cover, Back WPL 9758583 Contact Us For Availability
36
Vent, Bottom Upper WPL W10160347 Contact Us For Availability
37
Vent, Bottom Lower WPL W10140546 Contact Us For Availability
39
Insulation, Side Trim WPL 9759722 Contact Us For Availability
40
Washer, Insulation Side Body WPL 9760481 Contact Us For Availability
43
Screw WPL 3400080 Contact Us For Availability
45
Cover, Box Terminal WPL 9759876 Contact Us For Availability
48
Bracket, Appliance Manager WPL 9756454 Contact Us For Availability
49
Slide, GOC WPL W10083460 Contact Us For Availability
50
APPLIANCE, MANAGER WPL W10181438 Contact Us For Availability
54
STANDOFF, REAR WPL 9759945 Contact Us For Availability
× ![]()
