Model Maytag YIED7200TW10 ELECTRIC DRYER – Common Parts & Diagrams

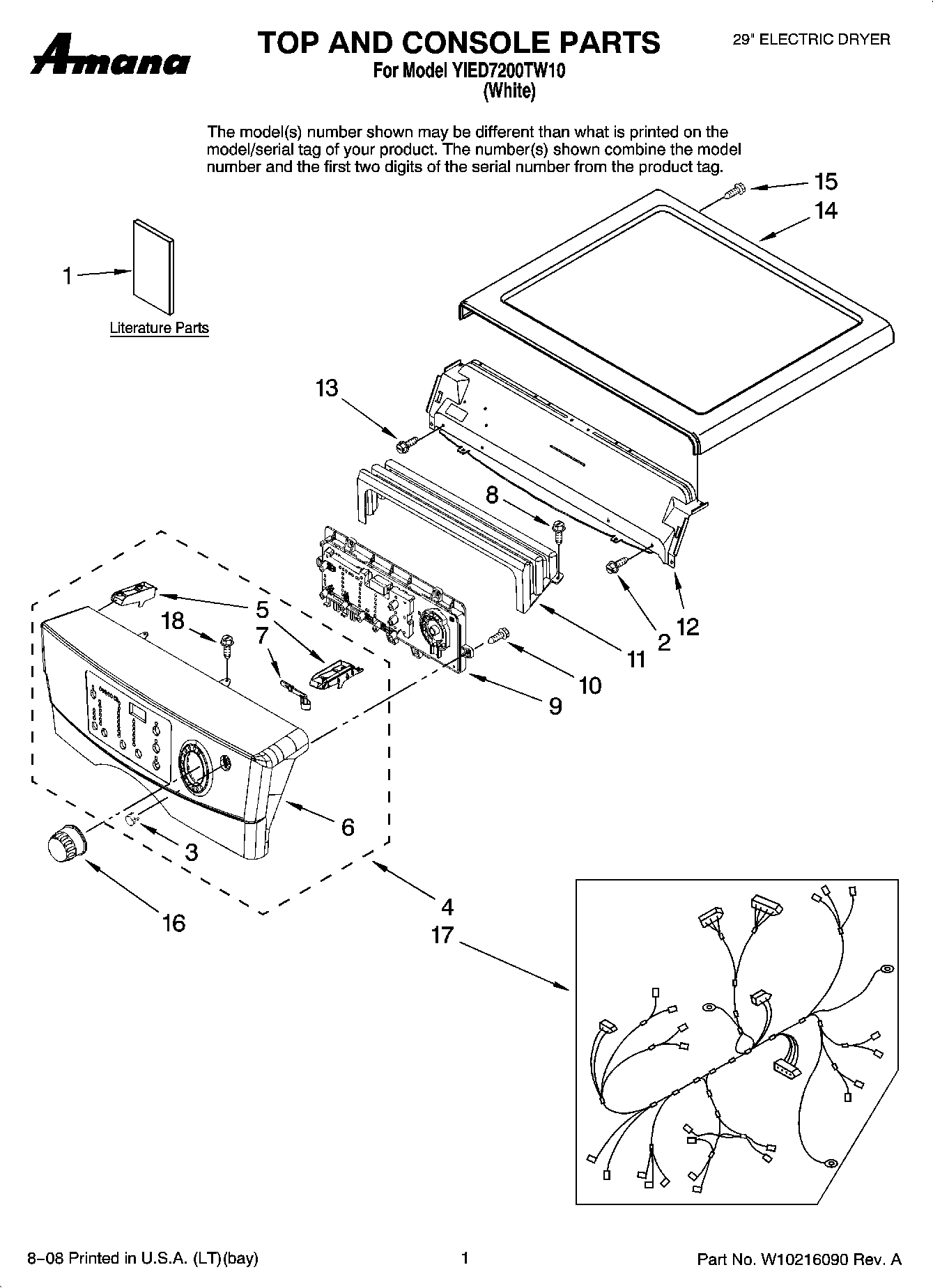

01 - TOP AND CONSOLE PARTS

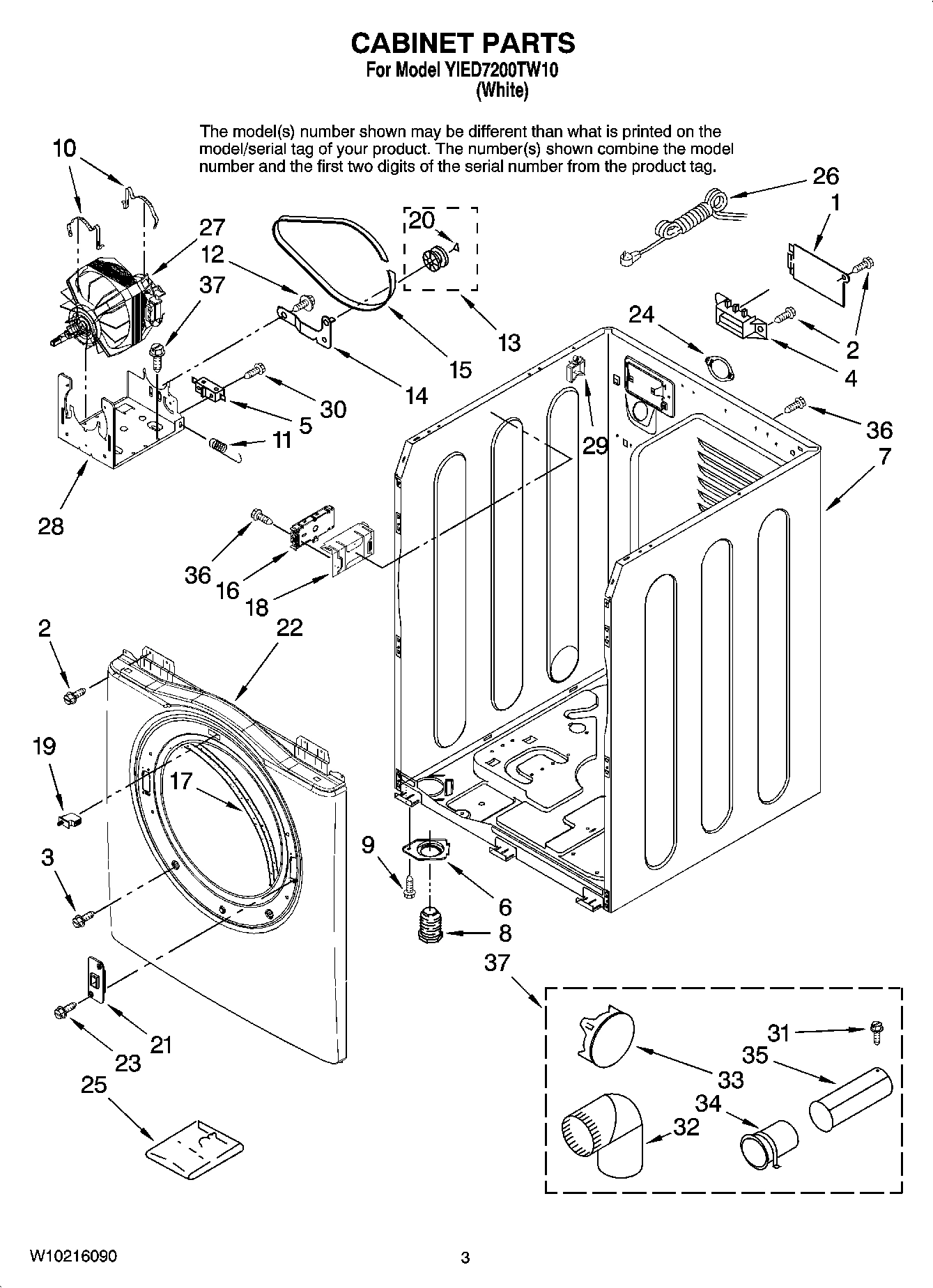

02 - CABINET PARTS

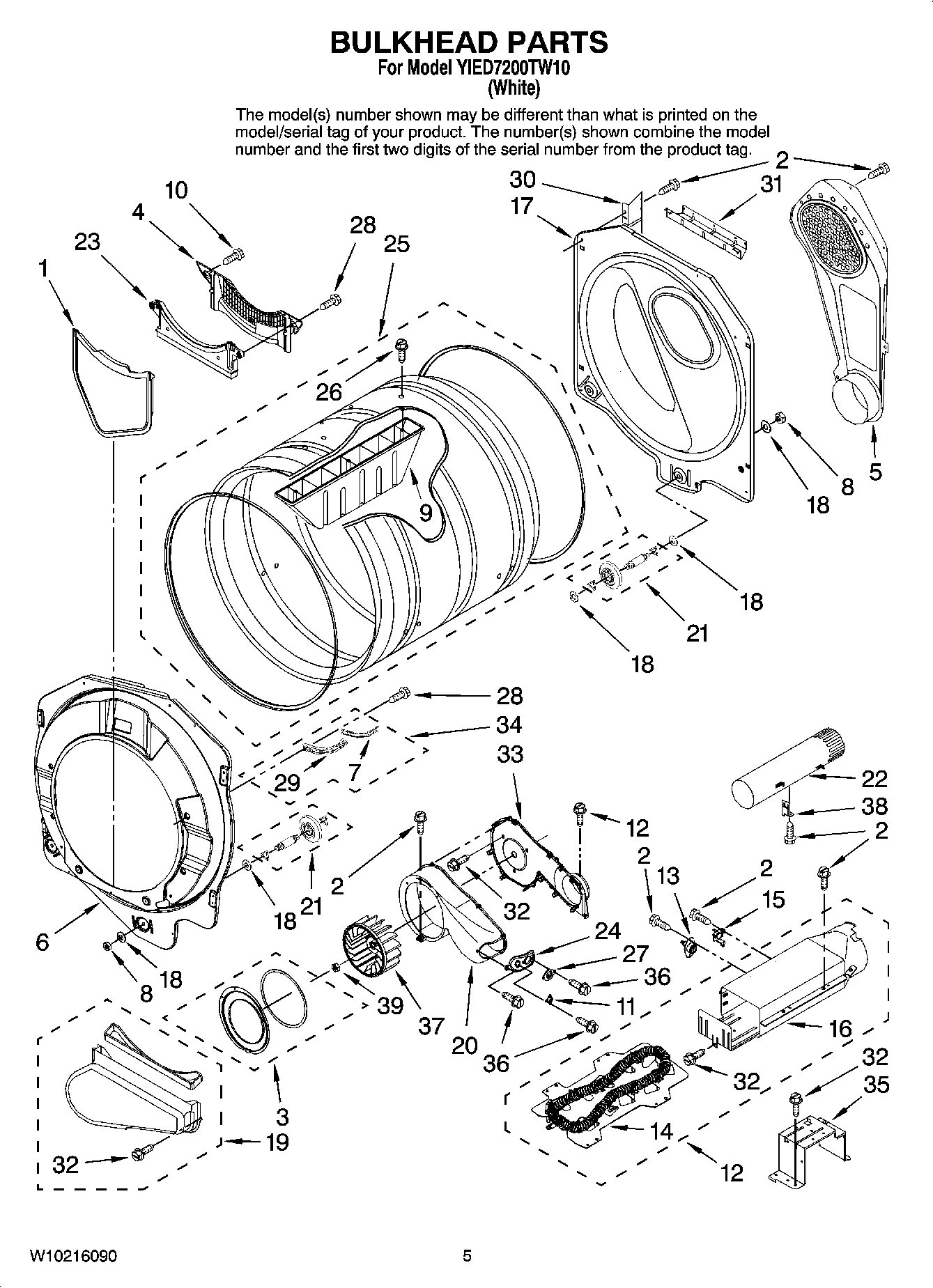

03 - BULKHEAD PARTS

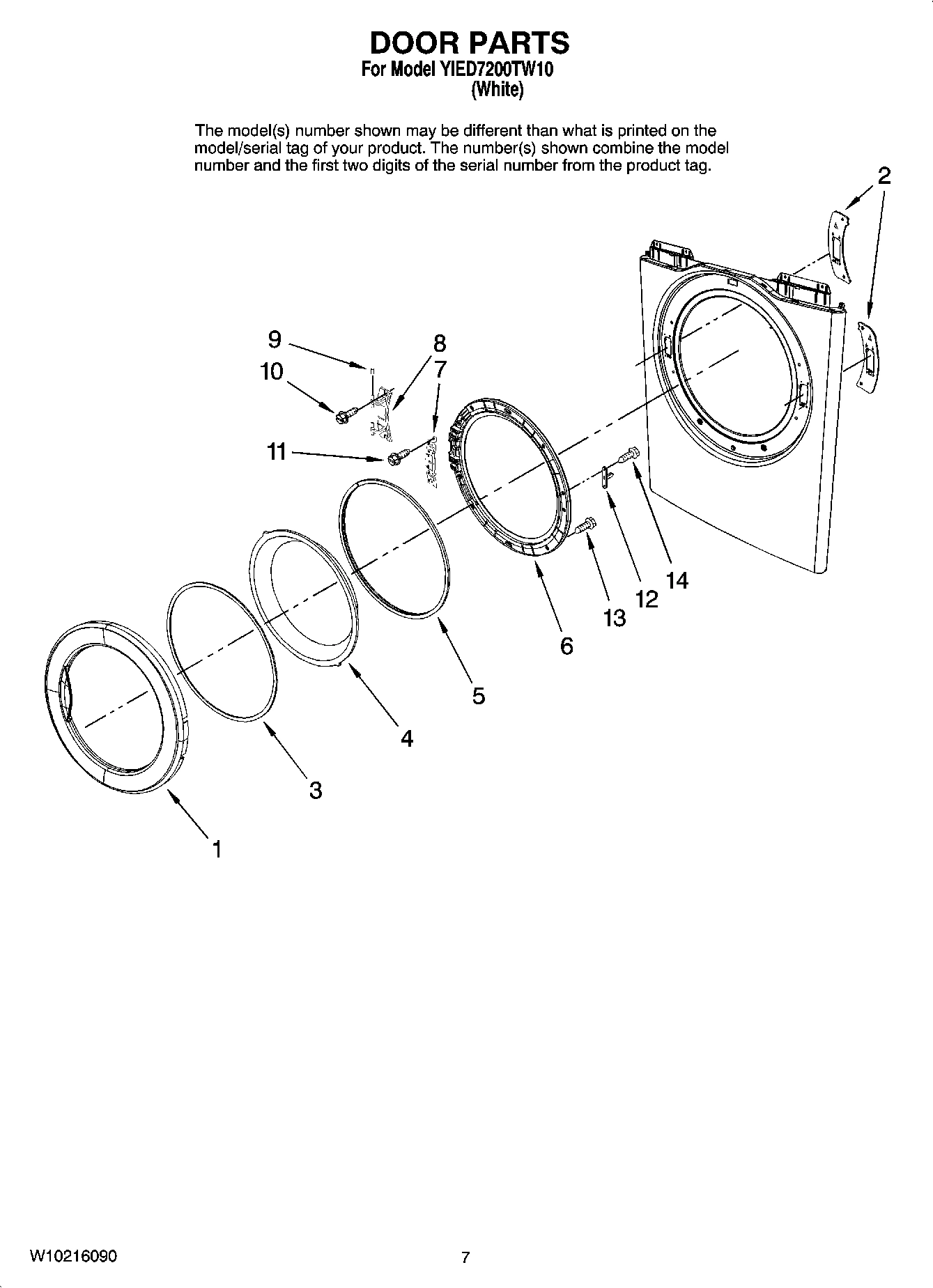

04 - DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YIED7200TW10 ELECTRIC DRYER
1
MAY W10177426 MAY W10177426 Contact Us For Availability
2
MAY 6006-00174 MAY 6006-00174 Contact Us For Availability
2
BRACKET-HINGE MAY 35001129 Contact Us For Availability
3
MAY 6006-001006 MAY 6006-001006 Contact Us For Availability
3
Cover-Plate Assembly MAY 35001246 Contact Us For Availability
3
Door-Safety MAY 35001235 Contact Us For Availability
4
MAY 35001243 MAY 35001243 Contact Us For Availability
4
Window MAY 35001182 Contact Us For Availability
5
MAY 35001082 MAY 35001082 Contact Us For Availability
5
Air Duct Assembly MAY 35001135 Contact Us For Availability
5
MAY 35001250 MAY 35001250 Contact Us For Availability
6
Bulkhead, Front MAY 35001244 Contact Us For Availability
6
MAY 35001156 MAY 35001156 Contact Us For Availability
6
MAY W10177441 MAY W10177441 Contact Us For Availability
7
MAY 35001241 MAY 35001241 Contact Us For Availability
7
Cabinet MAY 35001169 Contact Us For Availability
7
MAY 35001120 MAY 35001120 Contact Us For Availability
8
Foot, Dryer MAY 35001158 Contact Us For Availability
8
MAY 35001132 MAY 35001132 Contact Us For Availability
8
MAY W10177442 MAY W10177442 Contact Us For Availability
9
MAY 35001269 MAY 35001269 Contact Us For Availability
9
Baffle-Drum MAY 35001131 Contact Us For Availability
9
MAY 35001127 MAY 35001127 Contact Us For Availability
10
MAY 35001081 MAY 35001081 Contact Us For Availability
10
MAY 34001214 MAY 34001214 Contact Us For Availability
10
Screw-Machine MAY 6001-001773 Contact Us For Availability
11
MAY 35001278 MAY 35001278 Contact Us For Availability
11
MAY 6002-000213 MAY 6002-000213 Contact Us For Availability
12
Catch-Door MAY 35001111 Contact Us For Availability
12
Retainer, Idler MAY 6009-001342 Contact Us For Availability
12
MAY W10222771 MAY W10222771 Contact Us For Availability
13
MAY 6002-000525 MAY 6002-000525 Contact Us For Availability
14
Bracket, Idler MAY 35001276 Contact Us For Availability
14
MAY 6002-000475 MAY 6002-000475 Contact Us For Availability
16
MAY 35001153 MAY 35001153 Contact Us For Availability
16
Box, Heater MAY 35001109 Contact Us For Availability
17
MAY W10177398 MAY W10177398 Contact Us For Availability
17
MAY W10177410 MAY W10177410 Contact Us For Availability
18
MAY 35001168 MAY 35001168 Contact Us For Availability
19
MAY 35001125 MAY 35001125 Contact Us For Availability
19
MAY 35001140 MAY 35001140 Contact Us For Availability
20
MAY 35001084 MAY 35001084 Contact Us For Availability
20
Housing-Blower Front MAY 35001089 Contact Us For Availability
21
MAY 35001112 MAY 35001112 Contact Us For Availability
21
MAY W10177428 MAY W10177428 Contact Us For Availability
22
MAY W10177396 MAY W10177396 Contact Us For Availability
22
Exhaust Pipe MAY 34001159 Contact Us For Availability
23
MAY 6002-00213 MAY 6002-00213 Contact Us For Availability
23
MAY 35001144 MAY 35001144 Contact Us For Availability
24
Strain-Relief Power Cord MAY 35001167 Contact Us For Availability
24
BRACKET-THERMISTOR MAY 35001105 Contact Us For Availability
25
Kit Stack Assembly MAY 35001254 Contact Us For Availability
25
Assembly, Drum MAY W10177409 Contact Us For Availability
26
MAY W10222769 MAY W10222769 Contact Us For Availability
26
MAY 6002-000215 MAY 6002-000215 Contact Us For Availability
28
MAY 35001106 MAY 35001106 Contact Us For Availability
28
MAY 6002-001320 MAY 6002-001320 Contact Us For Availability
29
MAY 35001242 MAY 35001242 Contact Us For Availability
29
Clip, Harness MAY 35001171 Contact Us For Availability
30
SCREW-TAPPING MAY 35001107 Contact Us For Availability
30
Channel Bracket, Rear Bulkhead (2) MAY 35001146 Contact Us For Availability
31
MAY 35001145 MAY 35001145 Contact Us For Availability
32
4`` - 90 Elbow MAY Y059131 Contact Us For Availability
32
MAY 6002-000231 MAY 6002-000231 Contact Us For Availability
33
Plug-Multivent MAY 35001216 Contact Us For Availability
33
MAY 35001088 MAY 35001088 Contact Us For Availability
34
Duct, Exhaust (A) MAY 35001205 Contact Us For Availability
34
Guide-Sensor Assembly MAY 35001245 Contact Us For Availability
35
Duct, Exhaust (B) MAY 35001204 Contact Us For Availability
35
Bracket, Heater-Box MAY 35001104 Contact Us For Availability
36
MAY 6002-00470 MAY 6002-00470 Contact Us For Availability
37
MAY 35001220 MAY 35001220 Contact Us For Availability
38
MAY 35001155 MAY 35001155 Contact Us For Availability
39
MAY 35001079 MAY 35001079 Contact Us For Availability
NI
MAY 35001164 MAY 35001164 Contact Us For Availability
NI
Kit, Dryer Repair MAY 12002641 Contact Us For Availability
NI
Hold Down Kit MAY 12002643 Contact Us For Availability
NI
MAY 35001151 MAY 35001151 Contact Us For Availability
NI
ASSY-M-WIRE HARNESS (HEATER) MAY 35001152 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
× ![]()
