Model Whirlpool YGY397LXUB04 30`` SLIDE-IN ELECTRIC RANGE – Common Parts & Diagrams
03 - CHASSIS PARTS
04 - DOOR PARTS

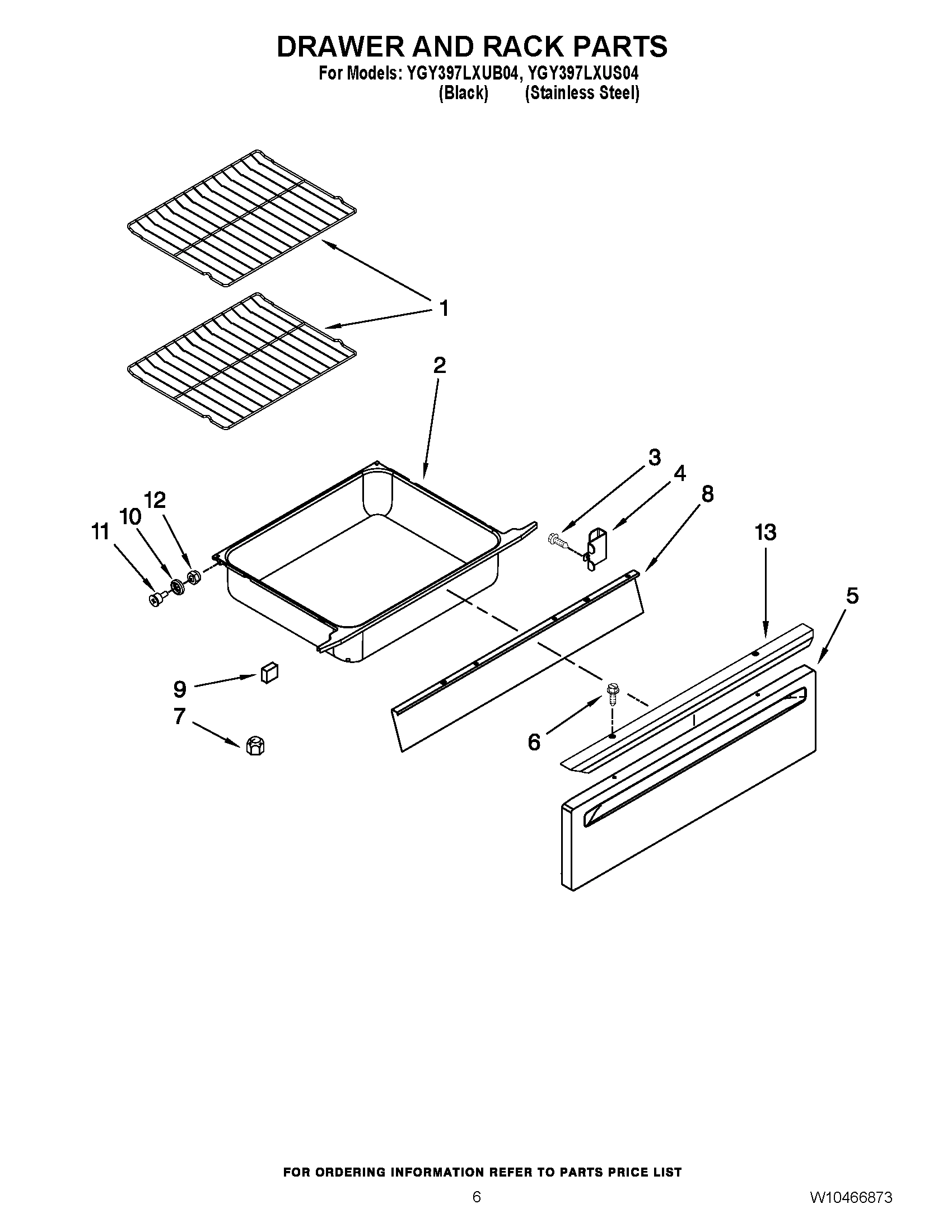

05 - DRAWER AND RACK PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)

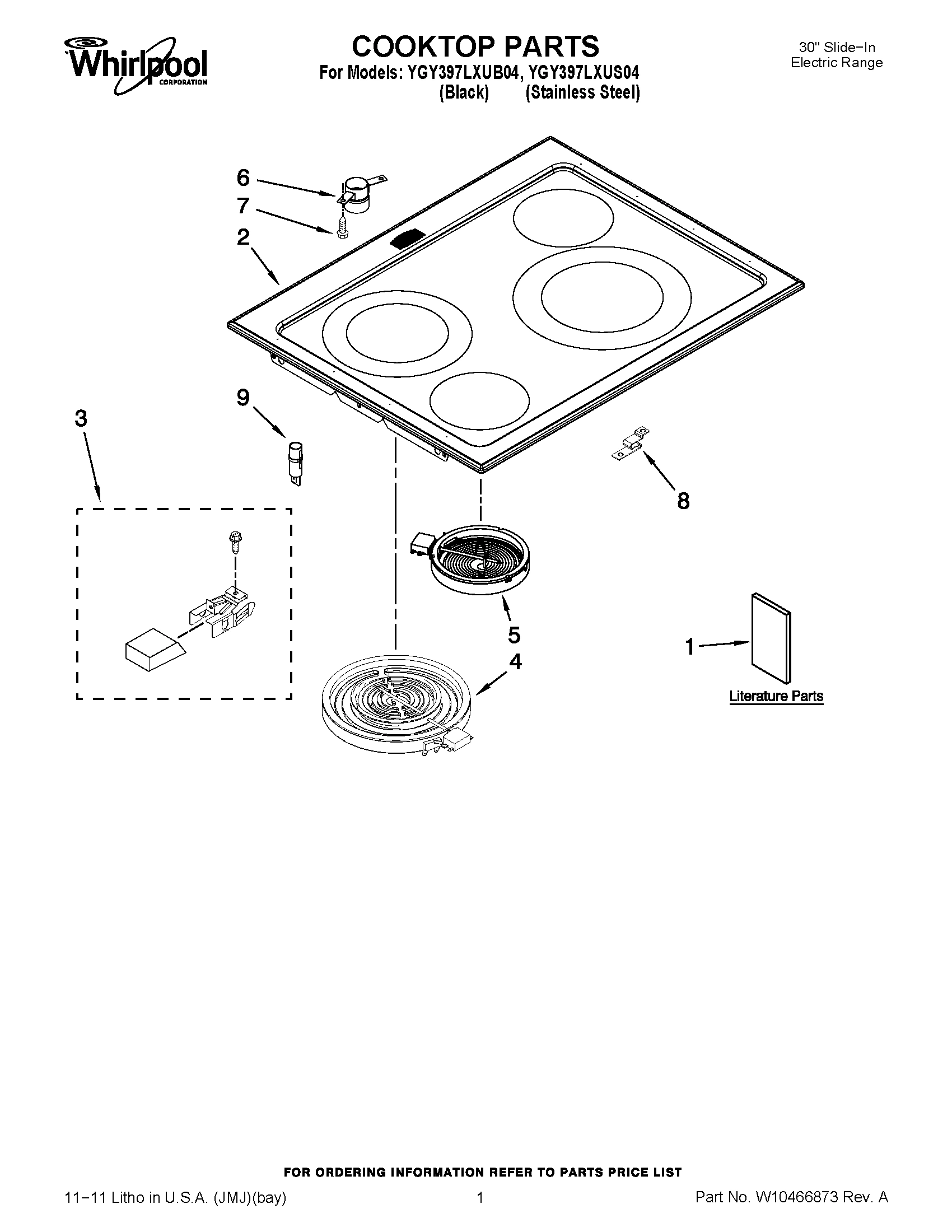

01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS
Common parts from model Whirlpool YGY397LXUB04 30`` SLIDE-IN ELECTRIC RANGE
1
Trim, Door Top WPL 3608F14170 Contact Us For Availability
1
RACK, OVEN WPL 7801P17360 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL 8101P75060 Contact Us For Availability
1
USE & CARE GUIDE WPL 8113P68060 Contact Us For Availability
1
LENS WPL 7730P03160 Contact Us For Availability
2
COOKTOP WPL W10170210 Contact Us For Availability
2
Drawer, Storage WPL 3405F03380 Contact Us For Availability
2
Panel, Control (Black) WPL 7720P53560 Contact Us For Availability
2
Panel, Control (S.Steel) WPL W10182766 Contact Us For Availability
3
Baffel, Retainer WPL 3601F37351 Contact Us For Availability
3
Screw, Panel WPL 7101P07260 Contact Us For Availability
3
KIT, HARDWARE WPL 8255P41260 Contact Us For Availability
3
Screw WPL 7101P07760 Contact Us For Availability
4
Bracket, Drawer WPL 3801F88751 Contact Us For Availability
4
SWITCH, INFINTE 6`` (LF,RR) WPL 7403P37360 Contact Us For Availability
5
PANEL, DRAWER (S.STEEL) WPL W10253205 Contact Us For Availability
5
GLASS, INNER WPL 7902P43660 Contact Us For Availability
5
Panel, Drawer (Black) WPL 2416F05970 Contact Us For Availability
5
CONTROL WPL 8507P39060 Contact Us For Availability
6
Panel,Control(LWR) WPL W10185606 Contact Us For Availability
6
Screw, Panel WPL 7101P63460 Contact Us For Availability
6
Tube, Vent Upper WPL W10233479 Contact Us For Availability
7
NUT, SNAP WPL 7103P14160 Contact Us For Availability
7
SCREW WPL 7101P42660 Contact Us For Availability
7
Nut, Lock WPL 7103P13960 Contact Us For Availability
7
KNOB (LF,RR) WPL 7737P41460 Contact Us For Availability
8
Lining, Door WPL 2402W31219 Contact Us For Availability
8
Lining, Drawer WPL 2404F03051 Contact Us For Availability
8
SUPPORT,ELEMENT WPL 8004P09360 Contact Us For Availability
9
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
9
Bracket, Glass WPL 3801F88651 Contact Us For Availability
9
LIGHT, INDICATOR WPL 7407P19360 Contact Us For Availability
9
KNOB (RF,LR) WPL 7737P41760 Contact Us For Availability
10
Insulation, Door WPL 7002P24660 Contact Us For Availability
10
SUPPORT, CONTROL PANEL WPL 3807F76951 Contact Us For Availability
11
Shaft, Roller WPL 7118P03260 Contact Us For Availability
12
Bracket, Handle (Right) WPL 3801F83145 Contact Us For Availability
12
Bracket, Handle (Left) WPL 3801F83245 Contact Us For Availability
12
Nut WPL 7103P08260 Contact Us For Availability
12
Light, Indicator WPL 7407P13660 Contact Us For Availability
13
OVERLAY (S.STEEL MDL ONLY) WPL W10279070 Contact Us For Availability
13
HANDLE, DRAWER STAINLESS MODEL WPL W10180296 Contact Us For Availability
13
Spacer, Rubber WPL 8010P15260 Contact Us For Availability
14
Trim, Door Side (Black, Right) WPL 3608F11670 Contact Us For Availability
14
Trim, Door Side (Black, Left) WPL 3608F11770 Contact Us For Availability
14
SCREW WPL 7101P67660 Contact Us For Availability
15
SCREW WPL 7101P20860 Contact Us For Availability
16
Trim, Door Bottom (Black) WPL 3807F70870 Contact Us For Availability
17
SCREW, TRIM WPL 7101P63360 Contact Us For Availability
19
PANEL, OUTER DOOR WPL 7902P81560 Contact Us For Availability
21
GLASS, DOOR (S.STEEL MDL ONLY) WPL 7902P76860 Contact Us For Availability
22
GLASS. OUTER DOOR (S.STEEL MDL ONLY) WPL 7902P46860 Contact Us For Availability
23
NAMEPLATE, LOGO WPL W10175320 Contact Us For Availability
30
HINGE WPL 7106P14160 Contact Us For Availability
31
SCREW, HINGE WPL 7101P33660 Contact Us For Availability
32
Switch, Hi-Limit WPL 7450P03460 Contact Us For Availability
33
BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability
34
Extention, Shield WPL 3826F06451 Contact Us For Availability
35
Support, Element WPL 3807F49445 Contact Us For Availability
36
Leg, Leveling WPL 7101P66060 Contact Us For Availability
37
Pedestal, Bottom WPL 4020W03580 Contact Us For Availability
39
Support WPL 3807F64051 Contact Us For Availability
40
RUNNER, DRAWER WPL W10182835 Contact Us For Availability
41
ROLLER, DRAWER WPL W10272883 Contact Us For Availability
43
Nut, Lock WPL 7103P19060 Contact Us For Availability
44
Retainer, Bottom WPL 3804F23151 Contact Us For Availability
45
COVER, TERMINAL WPL 4005F61251 Contact Us For Availability
46
COVER, DOOR LATCH WPL 4005F75051 Contact Us For Availability
47
GUARD, EDGE WPL W10183566 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
Insulation, Back WPL 7002P44560 Contact Us For Availability
NI
Insulation, Wrap WPL 7002P47160 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
NI
U3, HARNESS (RT) WPL 5171P55060 Contact Us For Availability
NI
COIL,HARNESS (LT) WPL 5171P55760 Contact Us For Availability
NI
Clip, Wire WPL 8019P01360 Contact Us For Availability
NI
HARNESS,SENSOR WPL W10394790 Contact Us For Availability
× ![]()
