Model Whirlpool YGH8155XMB2 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

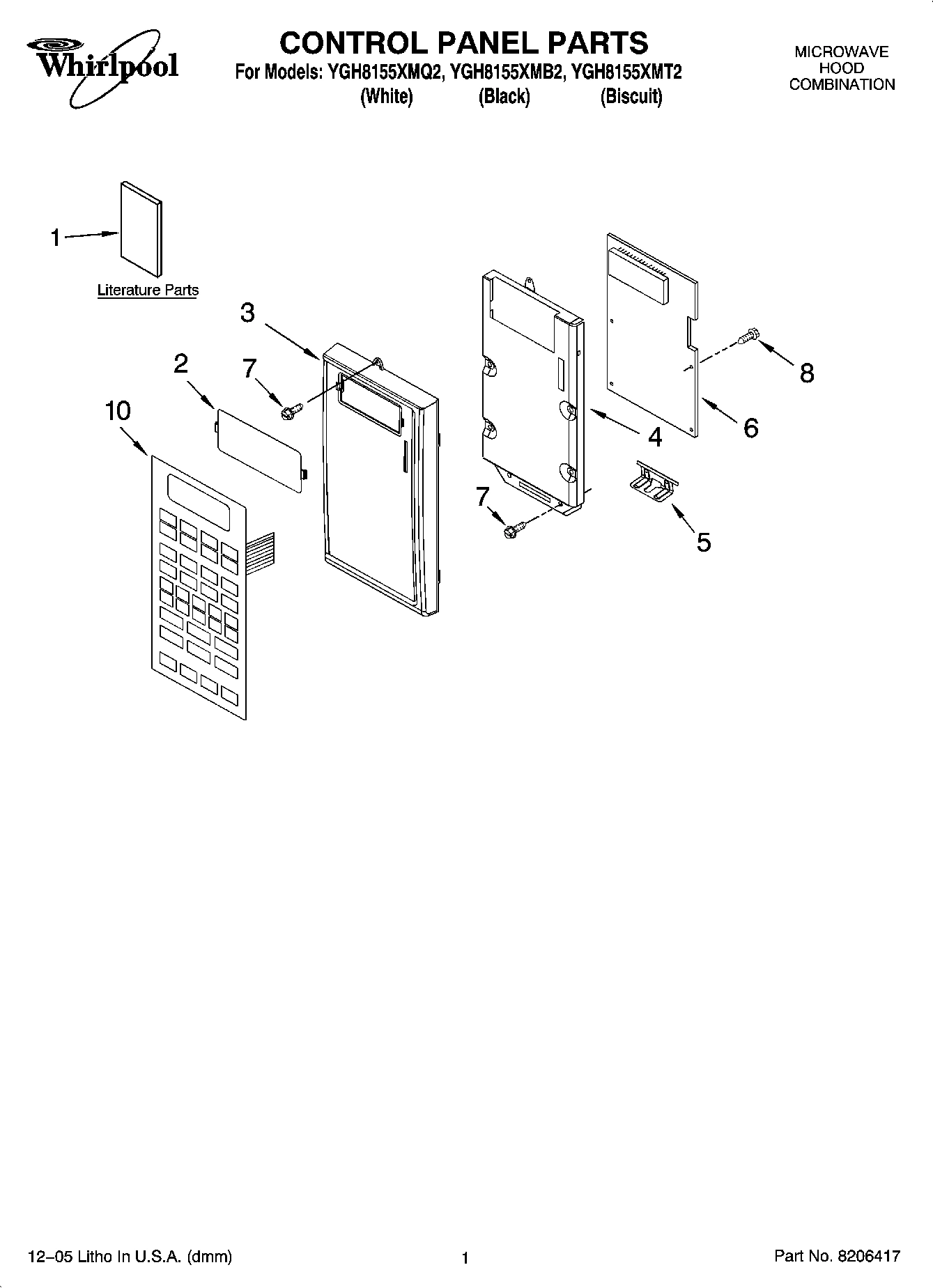

01 - CONTROL PANEL PARTS

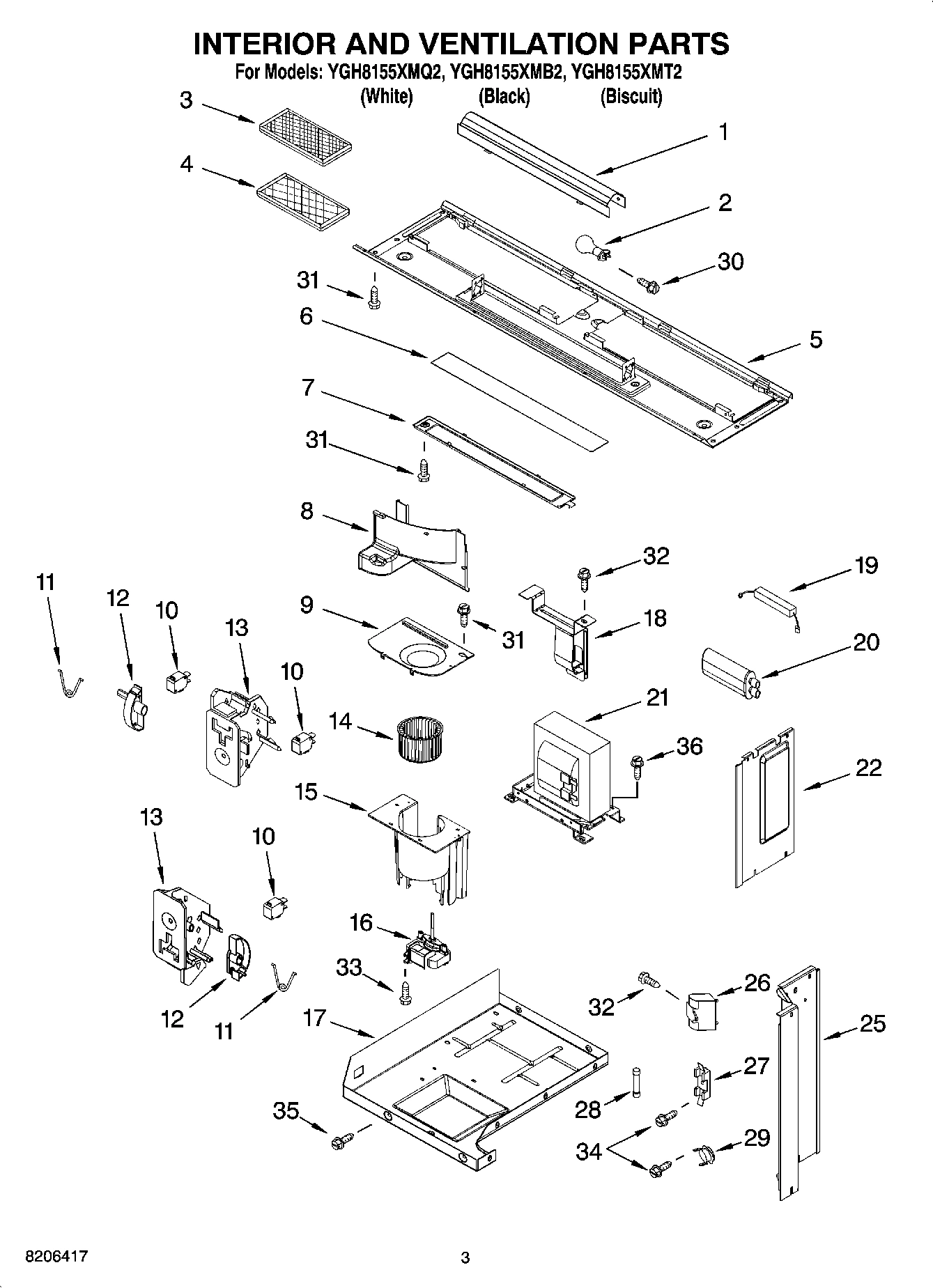

03 - INTERIOR AND VENTILATION PARTS

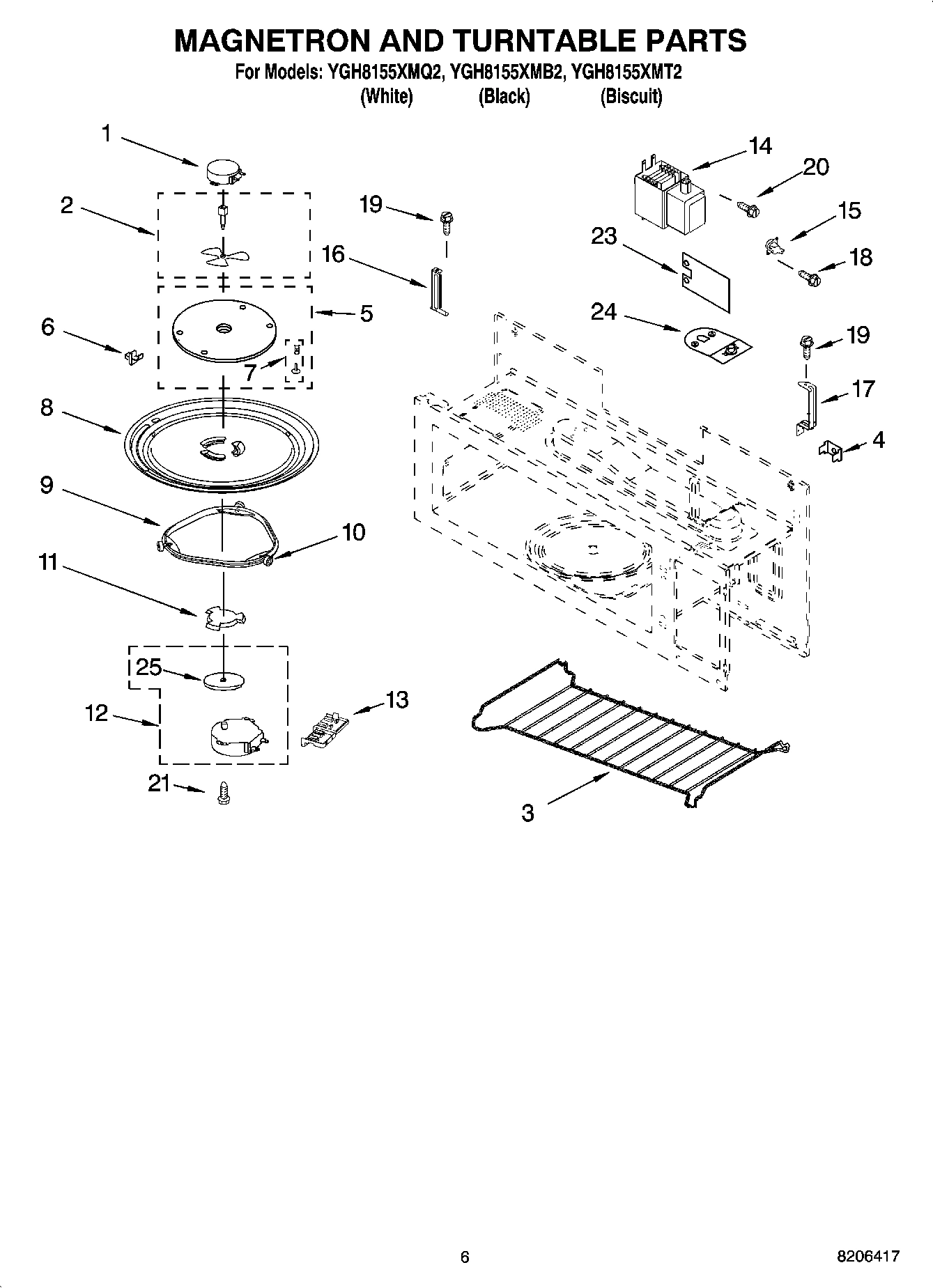

05 - MAGNETRON AND TURNTABLE PARTS

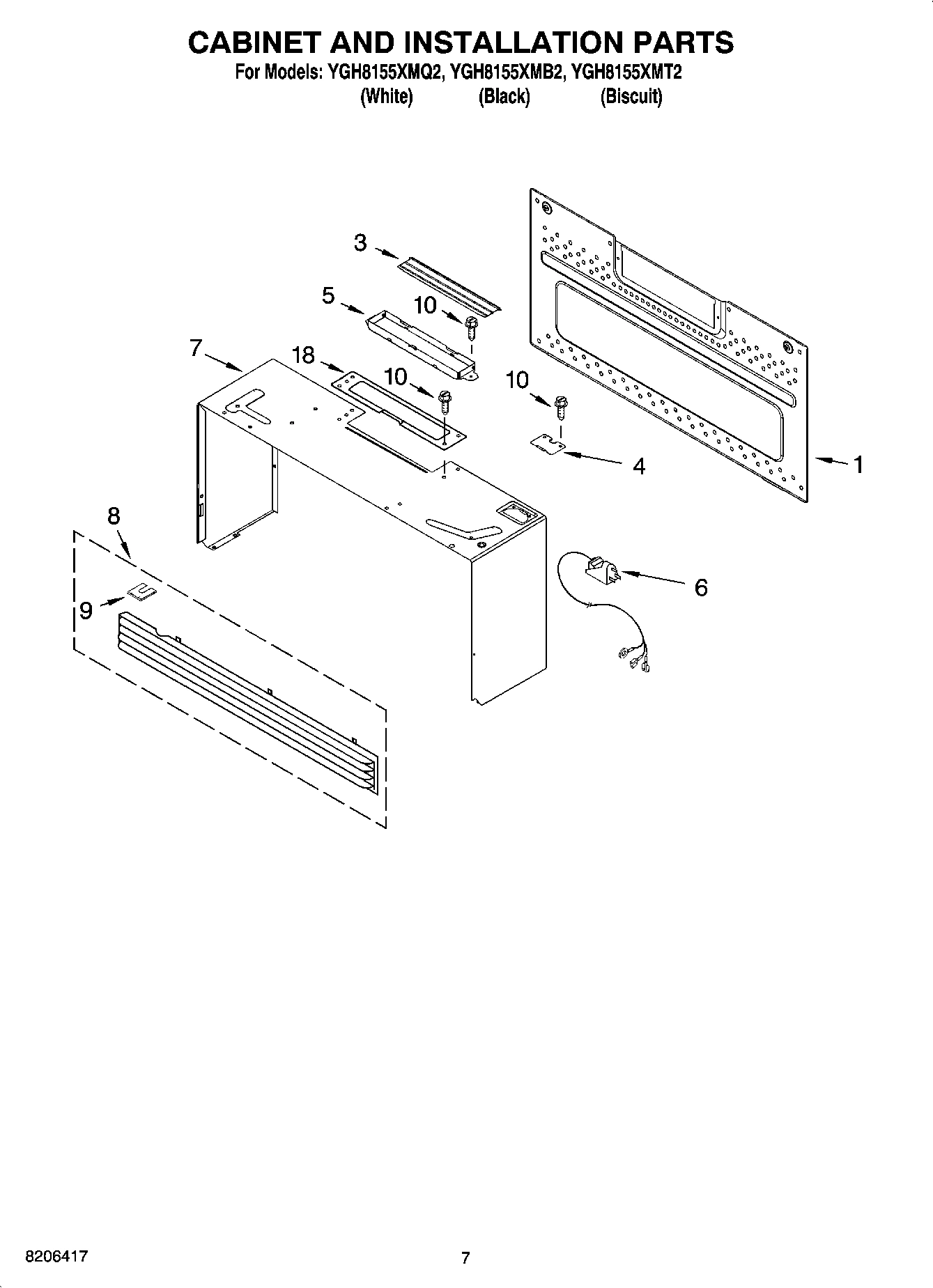

06 - CABINET AND INSTALLATION PARTS

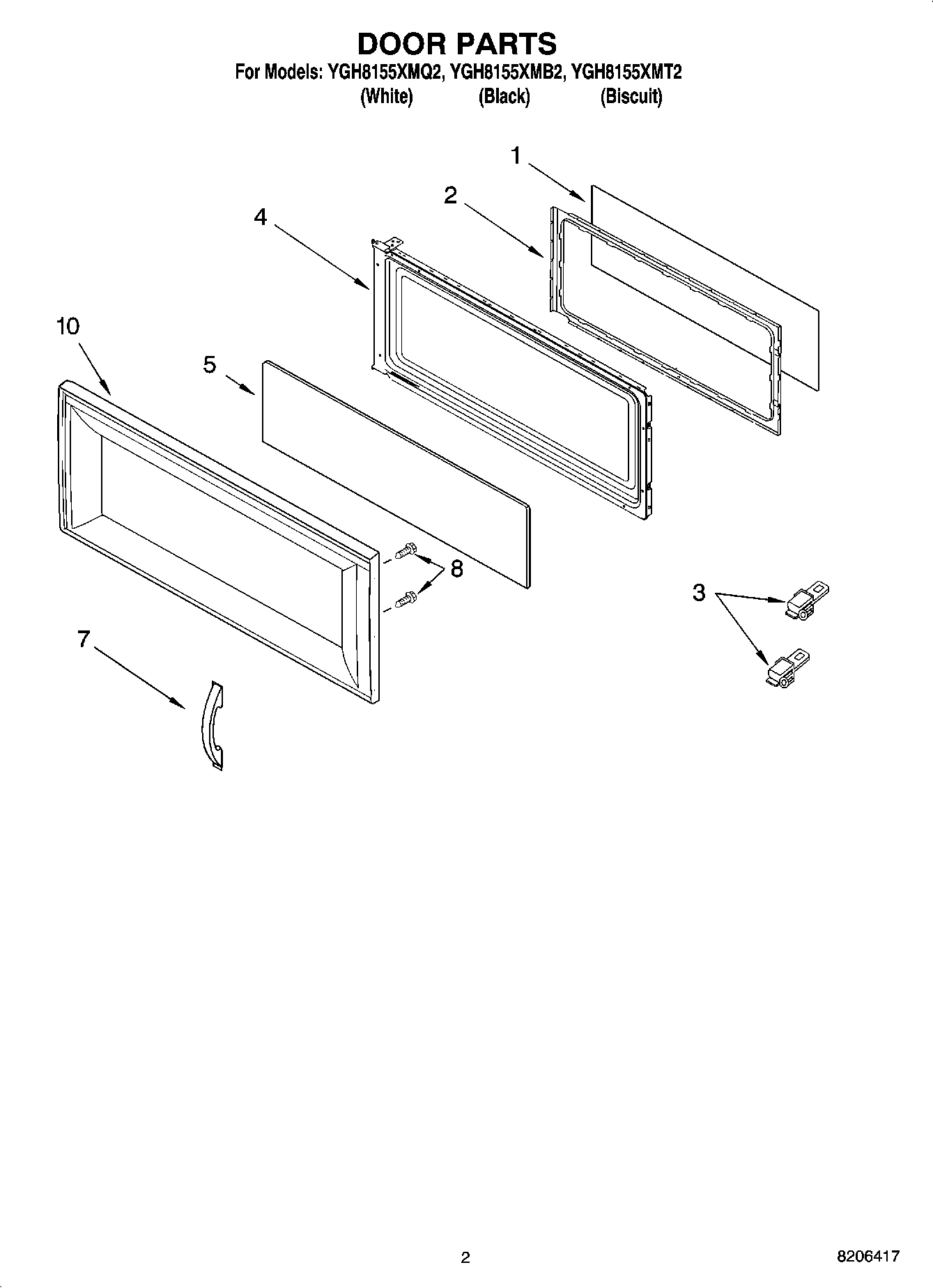

02 - DOOR PARTS

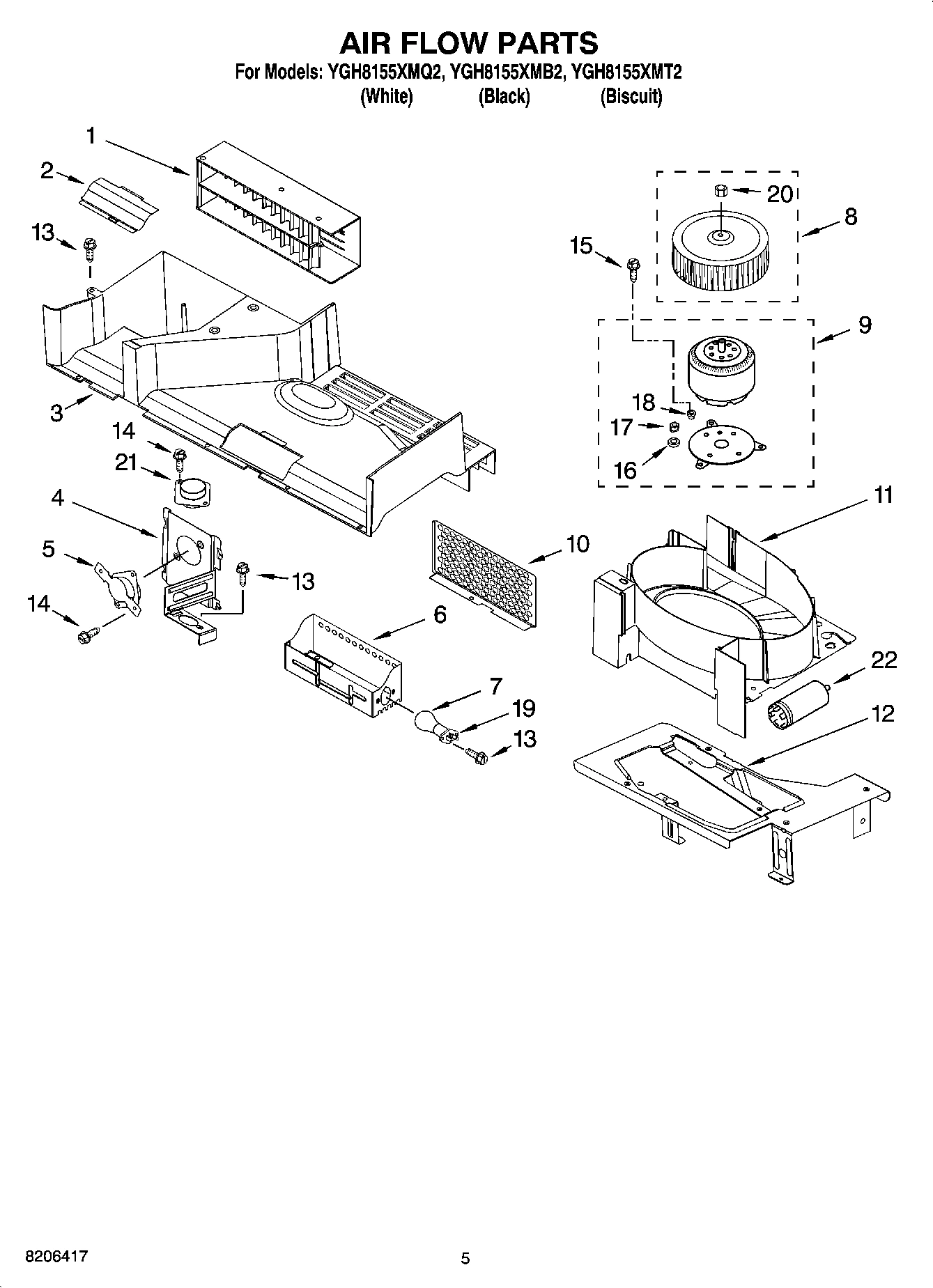

04 - AIR FLOW PARTS
Common parts from model Whirlpool YGH8155XMB2 MICROWAVE HOOD COMBINATION
Filler Kit (Black) WPL 8171337 Contact Us For Availability
Filler Kit (White) WPL 8171336 Contact Us For Availability
Hardware, Installation WPL 8205947 Contact Us For Availability
Filler Kit (Biscut) WPL 8171338 Contact Us For Availability
Filler Kit (Almond) WPL 8171570 Contact Us For Availability
Upper Template WPL 8183734 Contact Us For Availability
Miscellaneous WPL ARI136496A Contact Us For Availability
ACCESSORY PARTS WPL ARI136497A Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
1
Film, Back WPL 4393870 Contact Us For Availability
1
Deflector, Air WPL 8184638 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8184633 Contact Us For Availability
2
Reflector, Air WPL 8169557 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Rack, Meal WPL 8204725 Contact Us For Availability
3
Duct, Air WPL 8185083 Contact Us For Availability
4
Body, Door (White) WPL 8169653 Contact Us For Availability
4
Bracket, Support WPL 8183832 Contact Us For Availability
4
Lid, Power Cord WPL 8184313 Contact Us For Availability
4
Body, Door (Black) WPL 8169460 Contact Us For Availability
4
Body, Door (Biscuit) WPL 8169546 Contact Us For Availability
4
Bracket, Thermostat WPL 8204653 Contact Us For Availability
5
Thermostat WPL 8183697 Contact Us For Availability
5
Cover, Inlet WPL 8184476 Contact Us For Availability
5
Glass, Outer (White Model) WPL 8204780 Contact Us For Availability
5
Glass, Outer (Black Model) WPL 8204781 Contact Us For Availability
5
Glass, Outer (Biscuit Model) WPL 8204782 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Cord, Power WPL 8189432 Contact Us For Availability
6
Housing, Lamp WPL 8184745 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8169642 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
7
Case, Outer (White) WPL 8169660 Contact Us For Availability
7
Case, Outer (Black) WPL 8169661 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8169664 Contact Us For Availability
8
Turntable WPL 4393799 Contact Us For Availability
8
Wheel, Fan WPL 8204694 Contact Us For Availability
9
Motor, Fan WPL 8204751 Contact Us For Availability
10
Screw WPL 4393833 Contact Us For Availability
10
Wheel, Plastic WPL 4393861 Contact Us For Availability
10
Frame, Outer (Biscuit) WPL 8183817 Contact Us For Availability
10
Shield WPL 8204754 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
11
Housing, Fan WPL 8185085 Contact Us For Availability
12
Plate, Cam (2) WPL 8183824 Contact Us For Availability
12
Bracket, Fan (Not Serviced) WPL ARI136495A Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Screw WPL 8169478 Contact Us For Availability
15
Thermostat WPL 8183698 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
16
Holder, Connector (L) WPL 8169540 Contact Us For Availability
16
Plate, Damper WPL 4393874 Contact Us For Availability
17
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
17
Holder, Connector (R) WPL 8169705 Contact Us For Availability
18
Cushion, Mtr WPL 8169635 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
19
Holder, Lamp WPL 8169539 Contact Us For Availability
19
Screw WPL 8169474 Contact Us For Availability
20
Nut WPL 8184404 Contact Us For Availability
21
Transformer, H.V. WPL 8185252 Contact Us For Availability
21
Sensor, Humidity WPL 4393808 Contact Us For Availability
22
Plate, Side (R) WPL 8204657 Contact Us For Availability
22
Filter WPL 8169561 Contact Us For Availability
23
Shield WPL 8184485 Contact Us For Availability
24
Thermostat And Bracket WPL 8184585 Contact Us For Availability
25
Plate, Side (L) WPL 8204658 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183703 Contact Us For Availability
36
Screw WPL 4393839 Contact Us For Availability
× ![]()
