Model Whirlpool YGBS277PDQ7 27`` BUILT-IN ELECTRIC SINGLE CONVECTION OVEN (GOL – Common Parts & Diagrams
02 - CONTROL PANEL PARTS
03 - OVEN DOOR PARTS

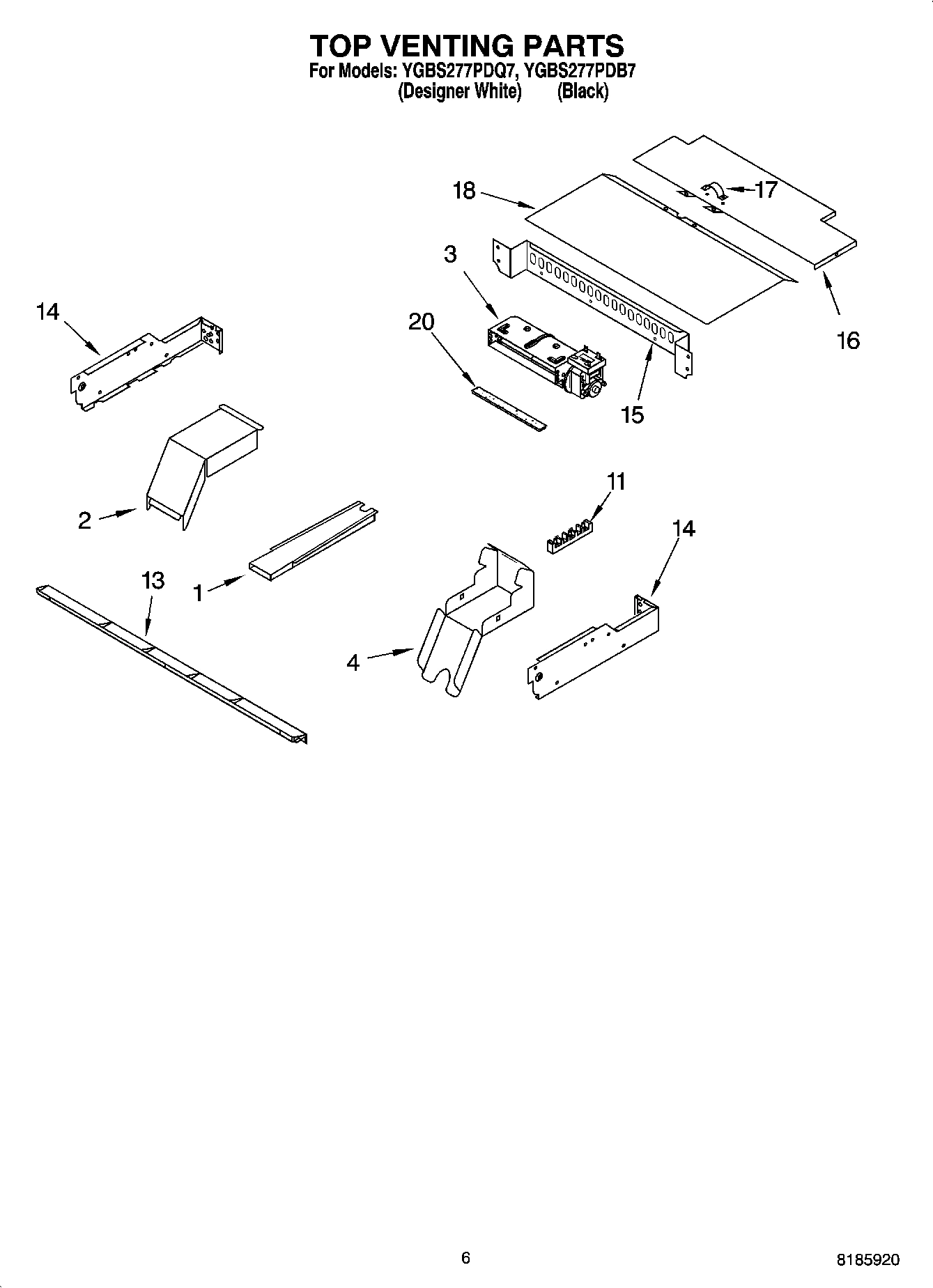

05 - TOP VENTING PARTS, OPTIONAL PARTS

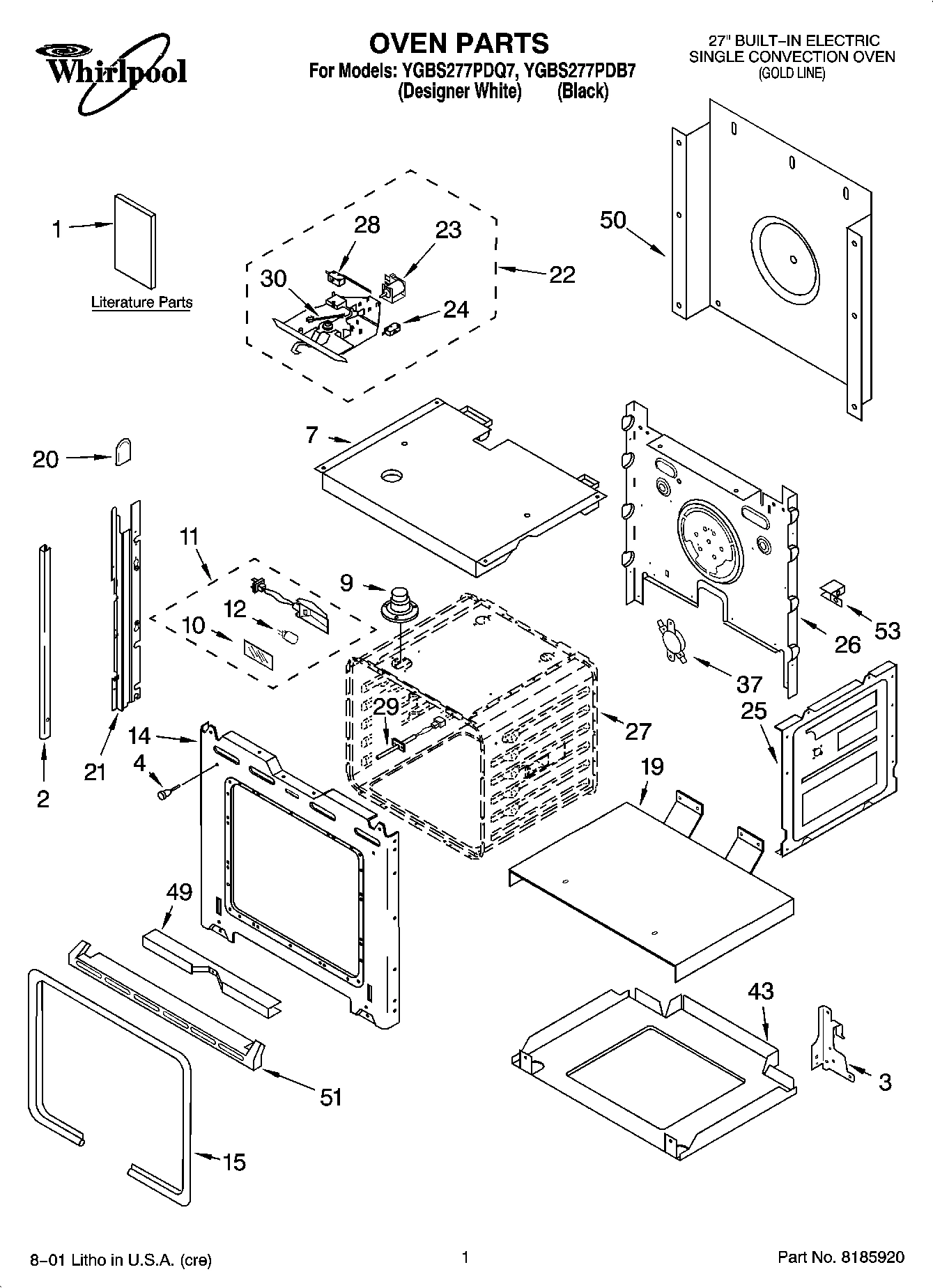

01 - OVEN PARTS

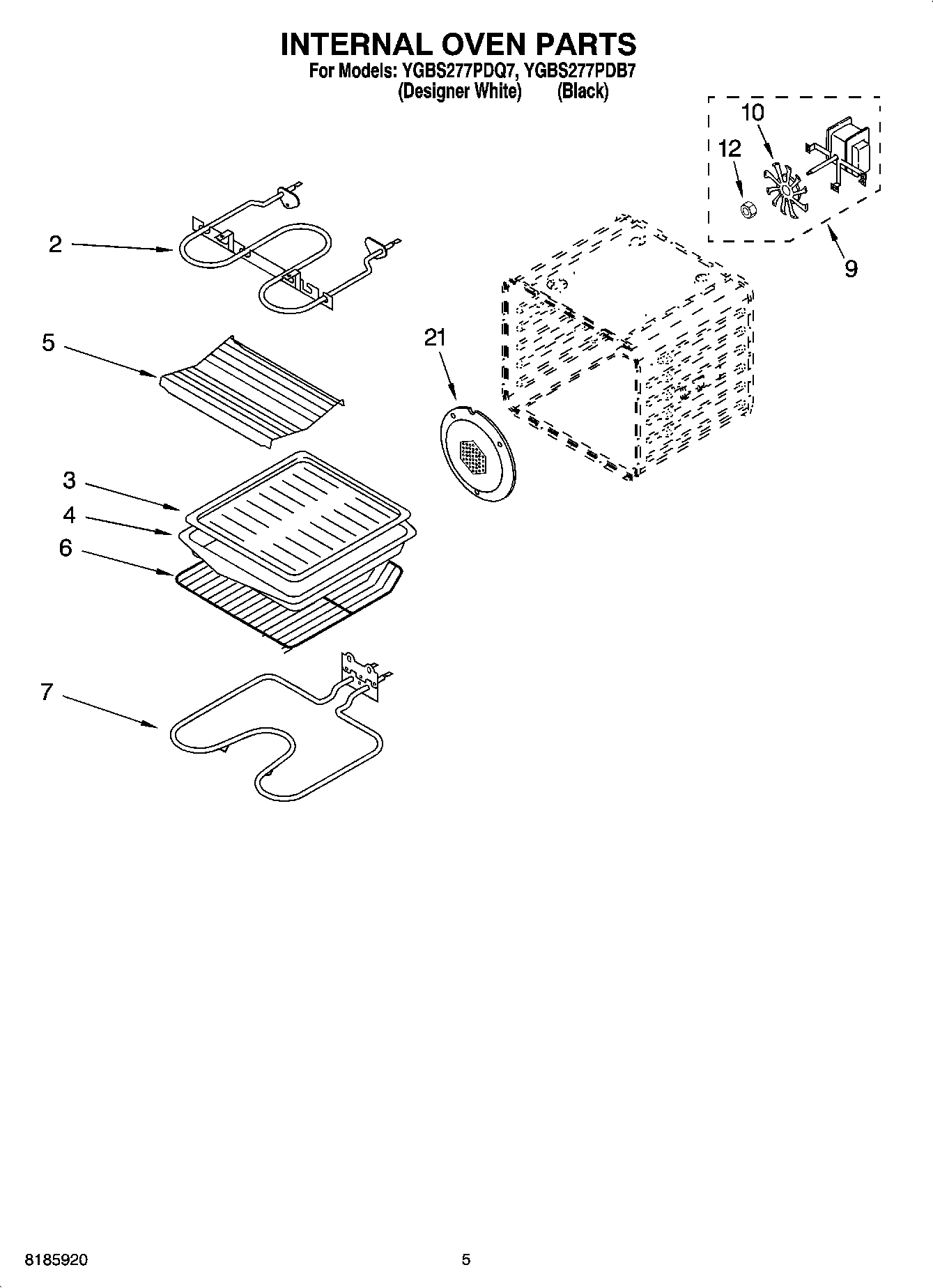

04 - INTERNAL OVEN PARTS
Common parts from model Whirlpool YGBS277PDQ7 27`` BUILT-IN ELECTRIC SINGLE CONVECTION OVEN (GOL
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
Pin Hinge Kit WPL 814381 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire (14 Ga. 200 c Red) WPL 242831 Contact Us For Availability
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
Screw, Ground WPL 4450800 Contact Us For Availability
Support, Wiring WPL 4451761 Contact Us For Availability
Spacer, Harness WPL 4452222 Contact Us For Availability
Harness, (Main) WPL 4455736 Contact Us For Availability
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
ADHESIVE WPL ARI136347A Contact Us For Availability
SPLICING WIRES--25FT. LEN WPL ARI136348A Contact Us For Availability
WPL ARI136349A WPL ARI136349A Contact Us For Availability
WPL ARI136350A WPL ARI136350A Contact Us For Availability
WPL ARI136351A WPL ARI136351A Contact Us For Availability
1
Vent, Exhaust WPL 4451759 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT4451885 Contact Us For Availability
1
Literature Parts (Use & Care Guide (French)) WPL LIT8300602 Contact Us For Availability
1
Literature Parts (Use & Care Guide (English)) WPL LIT8300609 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT8300652 Contact Us For Availability
2
ELBOW, VENT TOP WPL 4455178 Contact Us For Availability
2
Trim, Side (RH Black) WPL 4450844 Contact Us For Availability
2
Trim, Side (RH White) WPL 4450845 Contact Us For Availability
2
Trim, Side (LH Black) WPL 4450847 Contact Us For Availability
2
Trim, Side (LH White) WPL 4450848 Contact Us For Availability
3
Blower WPL 4455334 Contact Us For Availability
4
Bumper, Door WPL 4448520 Contact Us For Availability
4
Insulation, Door WPL 4451721 Contact Us For Availability
4
ELBOW, VENT BOTTOM WPL 4455177 Contact Us For Availability
5
Bracket, Handle WPL 4450813 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
7
Top, Chassis WPL 4455864 Contact Us For Availability
9
Motor Convection WPL 4451583 Contact Us For Availability
10
Lens, Light WPL 4452165 Contact Us For Availability
11
Screw WPL 3400080 Contact Us For Availability
12
Nut WPL 4452227 Contact Us For Availability
13
Vent, (Control Panel) WPL 4448548 Contact Us For Availability
14
Retainer, Glass WPL 4451668 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4455611 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
19
Support, Insulation WPL 4451477 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
22
Latch Assy WPL 4451896 Contact Us For Availability
23
Solenoid WPL 4452224 Contact Us For Availability
24
Microswitch N.C. WPL 4452312 Contact Us For Availability
26
Back, Chassis WPL 4452233 Contact Us For Availability
27
Liner, Oven (Not serviceable) WPL ARI136345A Contact Us For Availability
28
Switch, Micro WPL 4451426 Contact Us For Availability
30
Sptring, Latch WPL 4451537 Contact Us For Availability
43
Base, Chassis WPL 4455529 Contact Us For Availability
51
Trim, Bottom (Black) WPL 4448475 Contact Us For Availability
51
Trim, Bottom (White) WPL 4448476 Contact Us For Availability
53
Insulation, Wrap WPL 4449315 Contact Us For Availability
53
Support, Bracket WPL 4449845 Contact Us For Availability
53
Insulation, Back WPL 4450364 Contact Us For Availability
53
FOLLOWING PARTS NOT ILLUSTRATED INSULATION WPL ARI136346A Contact Us For Availability
× ![]()
