Model Whirlpool YGBD307PDQ7 30`` BUILT-IN ELECTRIC DOUBLE OVEN CONVECTION-UPPE – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Conduit, Double WPL 4450953 Contact Us For Availability

Harness, Wire (Main) WPL 4455746 Contact Us For Availability

ADHESIVE LOCTITE (1/3 WPL 591014 Contact Us For Availability

WPL ARI136292A WPL ARI136292A Contact Us For Availability

WPL ARI136293A WPL ARI136293A Contact Us For Availability

WPL ARI136294A WPL ARI136294A Contact Us For Availability

WPL ARI136295A WPL ARI136295A Contact Us For Availability

1

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $32.70

1

WP9759413 Whirlpool Door Liner Backorder WPL WP9759413 $138.47

1

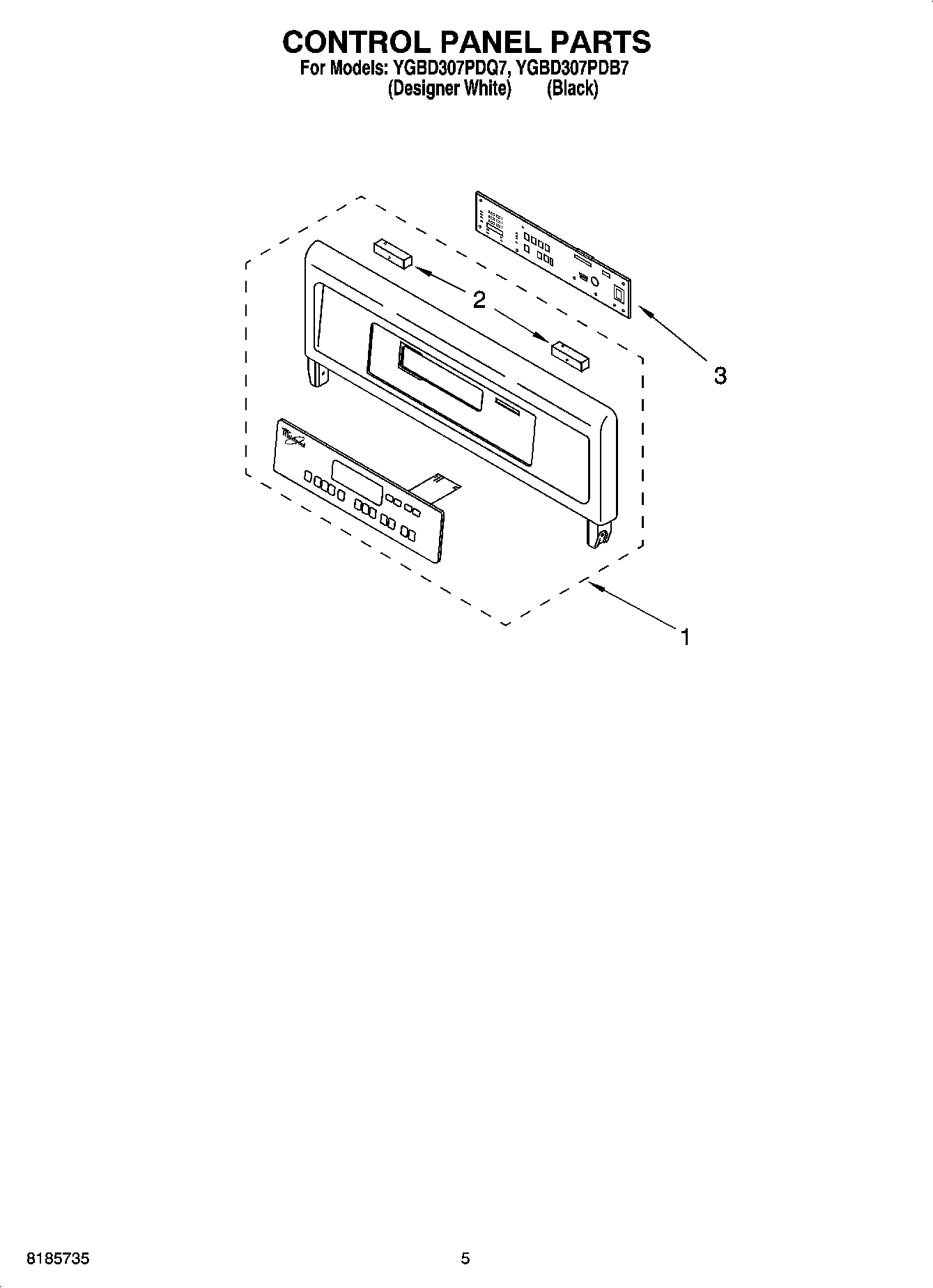

Control Panel Assy (White) WPL 8300440 Contact Us For Availability

1

Control Panel Assy (Black W/Membrane, Switch) WPL 8300441 Contact Us For Availability

1

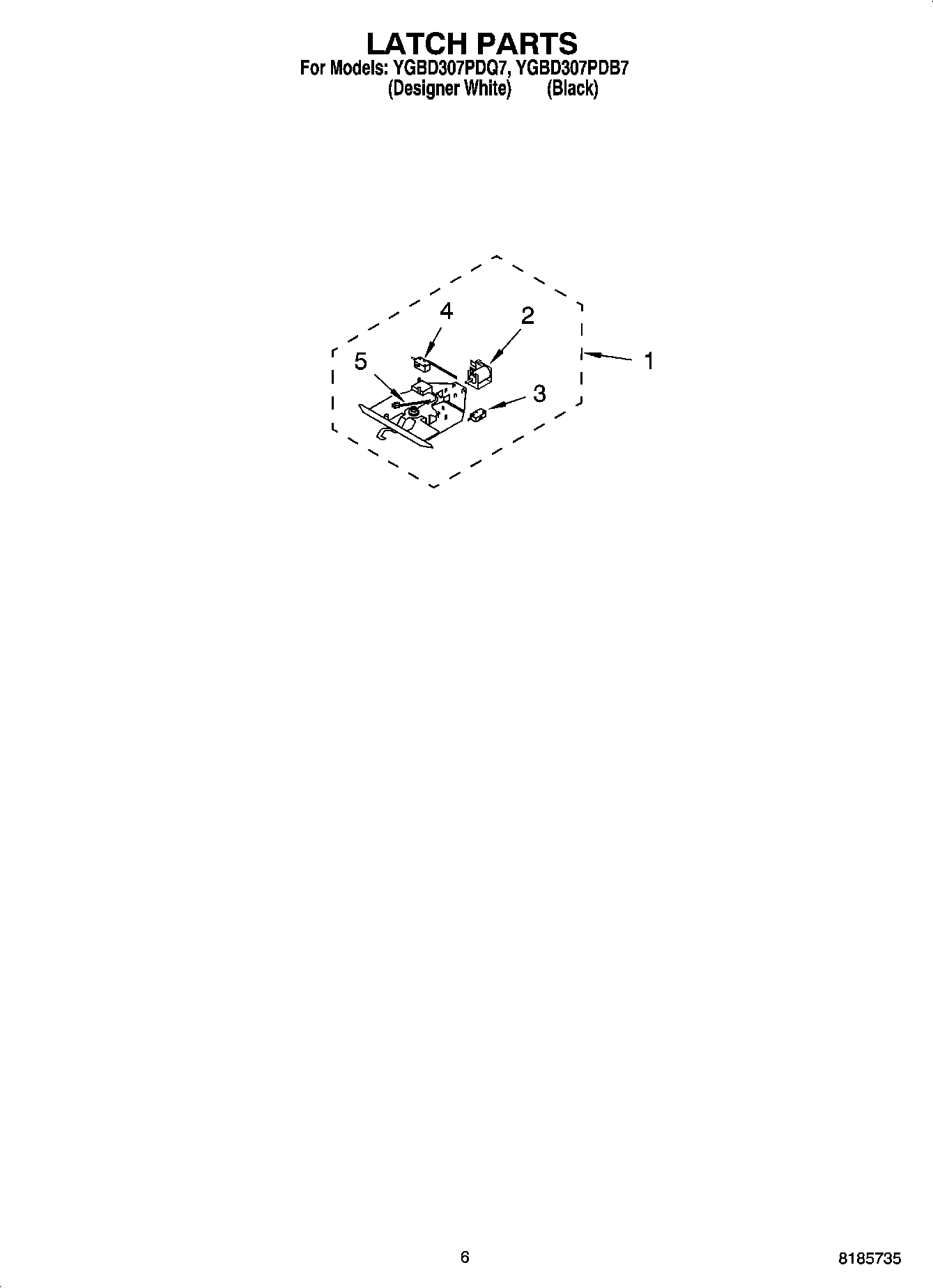

Latch Assy WPL 4451896 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Tech Sheet (Oven)) WPL LIT4451888 Contact Us For Availability

1

Literature Parts (Use & Care Guide (Oven) (Fr WPL LIT8300602 Contact Us For Availability

1

Literature Parts (Use & Care Guide (Oven) (En WPL LIT8300609 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT8300651 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

2

WP9760571 Whirlpool Door Hinge In Stock WPL WP9760571 $42.93

2

WP9760572 Whirlpool Door Hinge Backorder WPL WP9760572 $42.00

2

Trim, Side (RH Black) WPL 4450850 Contact Us For Availability

2

Trim, Side (RH White) WPL 4450851 Contact Us For Availability

2

Trim, Side (LH Black) WPL 4450853 Contact Us For Availability

2

Trim, Side (LH White) WPL 4450854 Contact Us For Availability

2

Gasket, Control Panel WPL 4451034 Contact Us For Availability

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

WP4455352 Whirlpool Mounting Bracket Backorder WPL WP4455352 $13.45

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $150.94

3

Blower (Upper, 60MM) WPL 4455334 Contact Us For Availability

3

Microswitch N.C. WPL 4452312 Contact Us For Availability

3

Insulator, Membrane Switch WPL 3192690 Contact Us For Availability

3

Microcomputer WPL 8302966 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

5

WP4455509 Whirlpool Support Bracket Backorder WPL WP4455509 $27.76

6

Plate, Mounting WPL 4451789 Contact Us For Availability

6

Divider, Vent WPL 4452201 Contact Us For Availability

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $80.64

7

Transformer, Control WPL 8300642 Contact Us For Availability

7

Top, Chassis WPL 4455865 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

9

Motor Convection WPL 4451583 Contact Us For Availability

9

Retainer, Glass WPL 4451668 Contact Us For Availability

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

10

Lens, Light WPL 4452165 Contact Us For Availability

11

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $35.32

11

Screw WPL 3400080 Contact Us For Availability

12

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $27.18

12

WP9759641 Whirlpool Outer Door Glass Backorder WPL WP9759641 $143.45

12

Door Glass Assy (White) WPL 4452066 Contact Us For Availability

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

Door Handle (Black) WPL 4448854 Contact Us For Availability

Vent, Control Panel WPL 4448549 Contact Us For Availability

Door Handle (White) WPL 4448855 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $33.93

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $28.79

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4455612 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $25.44

15

Back, Control WPL 4452244 Contact Us For Availability

16

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

16

WP4450551 Whirlpool Top Cabinet Backorder WPL WP4450551 $52.43

18

4455191 Whirlpool Oven Mounting Plate Backorder WPL 4455191 $8.69

18

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $65.32

18

WP4452367 Whirlpool Top Cover Backorder WPL WP4452367 $45.99

19

WP4451985 Whirlpool Noise Filter Board Backorder WPL WP4451985 $56.15

19

Support, Insulation WPL 4451478 Contact Us For Availability

19

Shield, Heat WPL 4450362 Contact Us For Availability

20

Retainer, Glass WPL 8300778 Contact Us For Availability

21

Seal, Door WPL 8300820 Contact Us For Availability

23

Retainer, Clip (Black) WPL 4450863 Contact Us For Availability

23

Retainer, Clip (White) WPL 4450864 Contact Us For Availability

24

Glass, Inner WPL 4455257 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

26

Back, Chassis WPL 4452234 Contact Us For Availability

27

Liner, Oven (Not serviceable) WPL ARI136288A Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $45.37

43

Base, Chassis WPL 4455530 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

51

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

51

Trim, Bottom (Black) WPL 4448477 Contact Us For Availability

51

Trim, Bottom (White) WPL 4448478 Contact Us For Availability

W11684730 Whirlpool Insulation Backorder WPL W11684730 $45.31

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

Support, Bracket WPL 4449845 Contact Us For Availability

Insulation, Back WPL 4450365 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED INSULATION WPL ARI136289A Contact Us For Availability
