Model Whirlpool YG209KW GAS DRYER – Common Parts & Diagrams

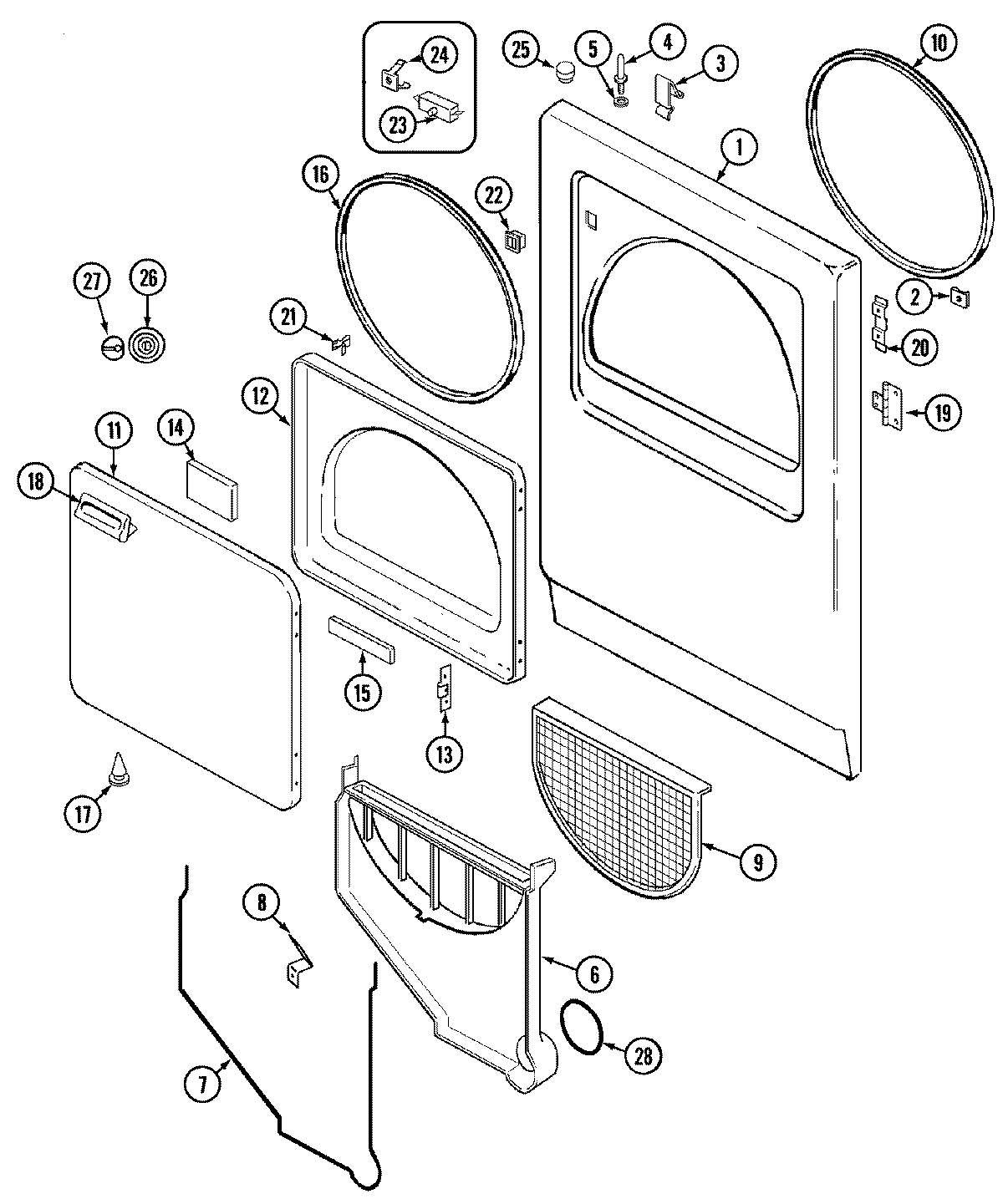

01 - DOOR
Common parts from model Whirlpool YG209KW GAS DRYER
1
PANEL, FRONT (WHT)GAS WPL 530727 Contact Us For Availability
2
CLIP, U-TYPE WPL 257817 Contact Us For Availability
2
SCREW, FRONT PANEL TO CABINET WPL 257820 Contact Us For Availability
3
CLIP, CABINET TOP WPL 257220 Contact Us For Availability
4
PIN, LOCATOR WPL 530643 Contact Us For Availability
5
NUT, LOCATOR PIN WPL 250224 Contact Us For Availability
5
SLEEVE, LOCATOR PIN WPL 530200 Contact Us For Availability
6
COLLECTOR DUCT WPL 531299 Contact Us For Availability
7
SEAL WPL 530204 Contact Us For Availability
8
CLIP WPL 530123 Contact Us For Availability
9
FILTER, LINT WPL 530918 Contact Us For Availability
10
SEAL ASSY (GRAY) WPL 530282 Contact Us For Availability
11
PANEL, OUTER DOOR (WHT) WPL 530154 Contact Us For Availability
12
PANEL, INNER DOOR (WHT) WPL 530912 Contact Us For Availability
13
CLIP, HINGE WPL 530119 Contact Us For Availability
14
DOOR PAD WPL 531490 Contact Us For Availability
15
DOOR PAD WPL 531491 Contact Us For Availability
16
SCREW, OUTER TO INNER DOOR WPL 257770 Contact Us For Availability
16
DOOR SEAL WPL 530648 Contact Us For Availability
17
PLUG BUTTON, DOOR WPL 253534 Contact Us For Availability
18
SCREW 8-18X1/2 TRUSS H WPL 257810 Contact Us For Availability
18
HANDLE, DOOR (WHT) WPL 530927 Contact Us For Availability
18
HANDLE, DOOR (CHR) WPL 530928 Contact Us For Availability
19
SCREW, No.6-20 1/2 FLTHD TORX WPL 257809 Contact Us For Availability
19
HINGE, DRYER DOOR WPL 531492 Contact Us For Availability
20
TWIN NUT WPL 530121 Contact Us For Availability
21
STRIKE, DOOR WPL 730033 Contact Us For Availability
21
TRANSMISSION REPAIR KIT WPL LA1033 Contact Us For Availability
22
SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability
22
CATCH, DOOR WPL 530187 Contact Us For Availability
23
SWITCH, DOOR WPL 530148 Contact Us For Availability
23
SWITCH KIT (INCL. 23 & 24) WPL LA1005 Contact Us For Availability
24
CLIP, SWITCH WPL 635990 Contact Us For Availability
25
BUMPER, CABINET WPL 332653 Contact Us For Availability
26
PLUG, GAS ACCESS (WHT) WPL 530155 Contact Us For Availability
27
BUTTON, GAS ACCESS (WHT) WPL 530156 Contact Us For Availability
28
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
× ![]()
