Model Maytag YAMV1160VAW7 MICROWAVE HOOD, 1.6 CUBIC FOOT – Common Parts & Diagrams
01 - COVER SHEET
02 - CONTROL PANEL PARTS

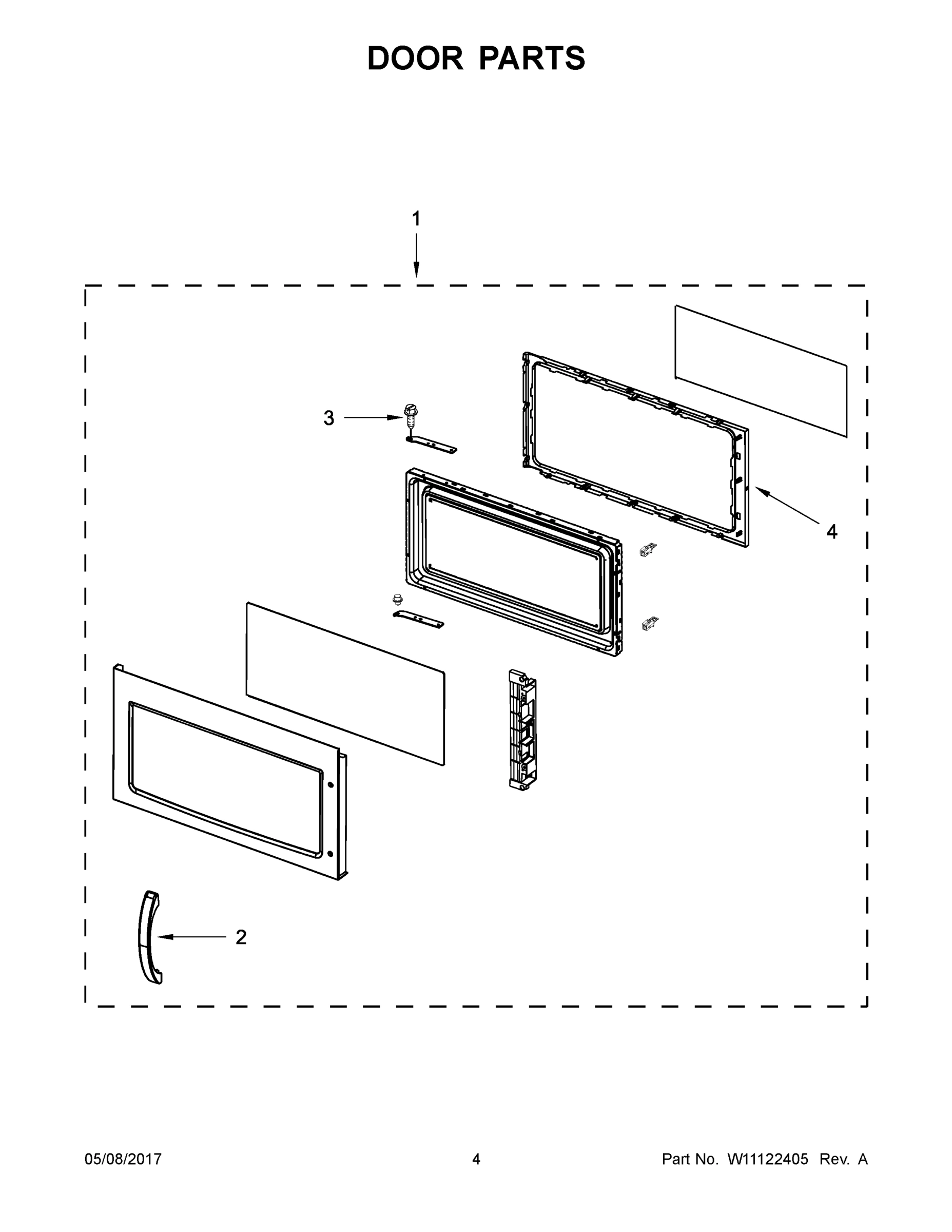

03 - DOOR PARTS

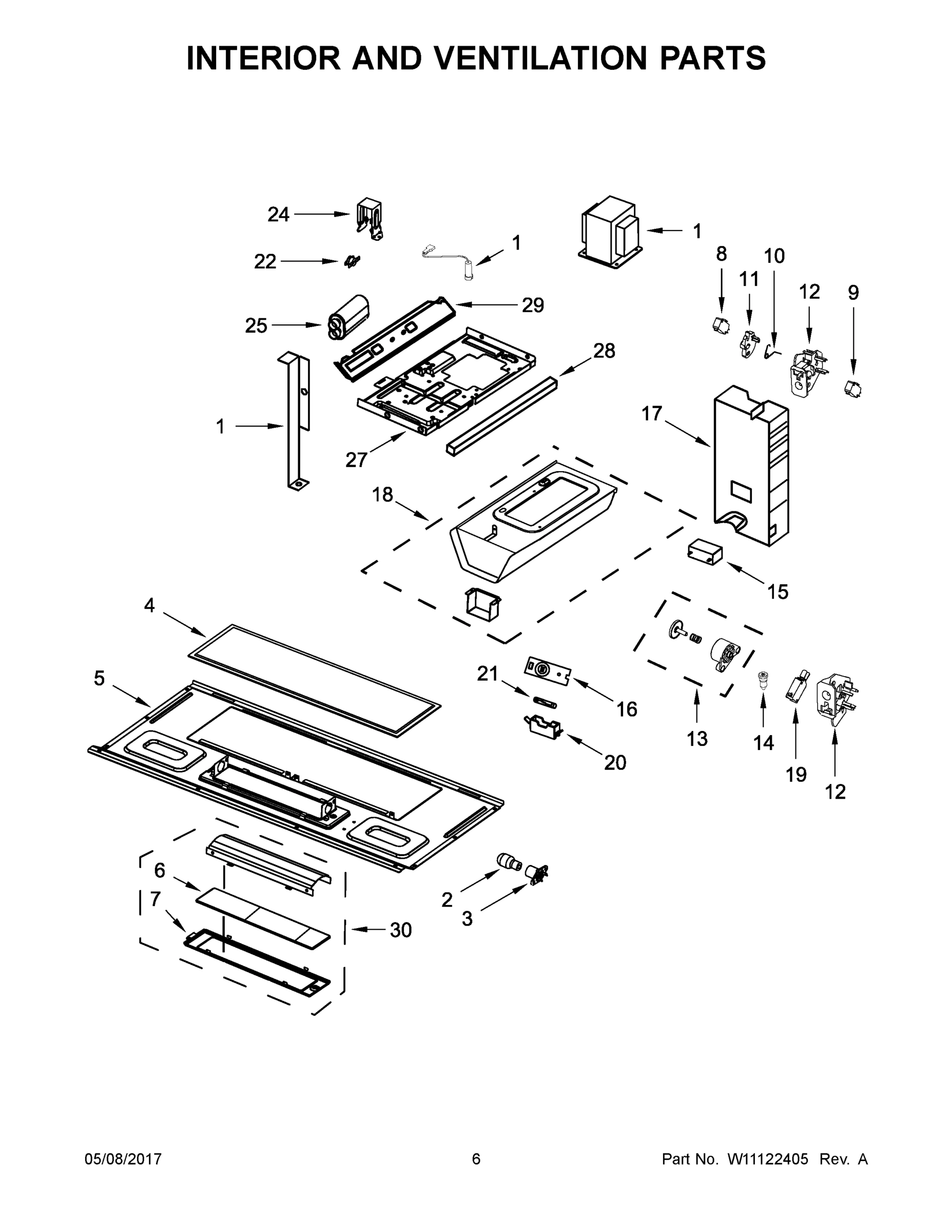

04 - INTERIOR AND VENTILATION PARTS

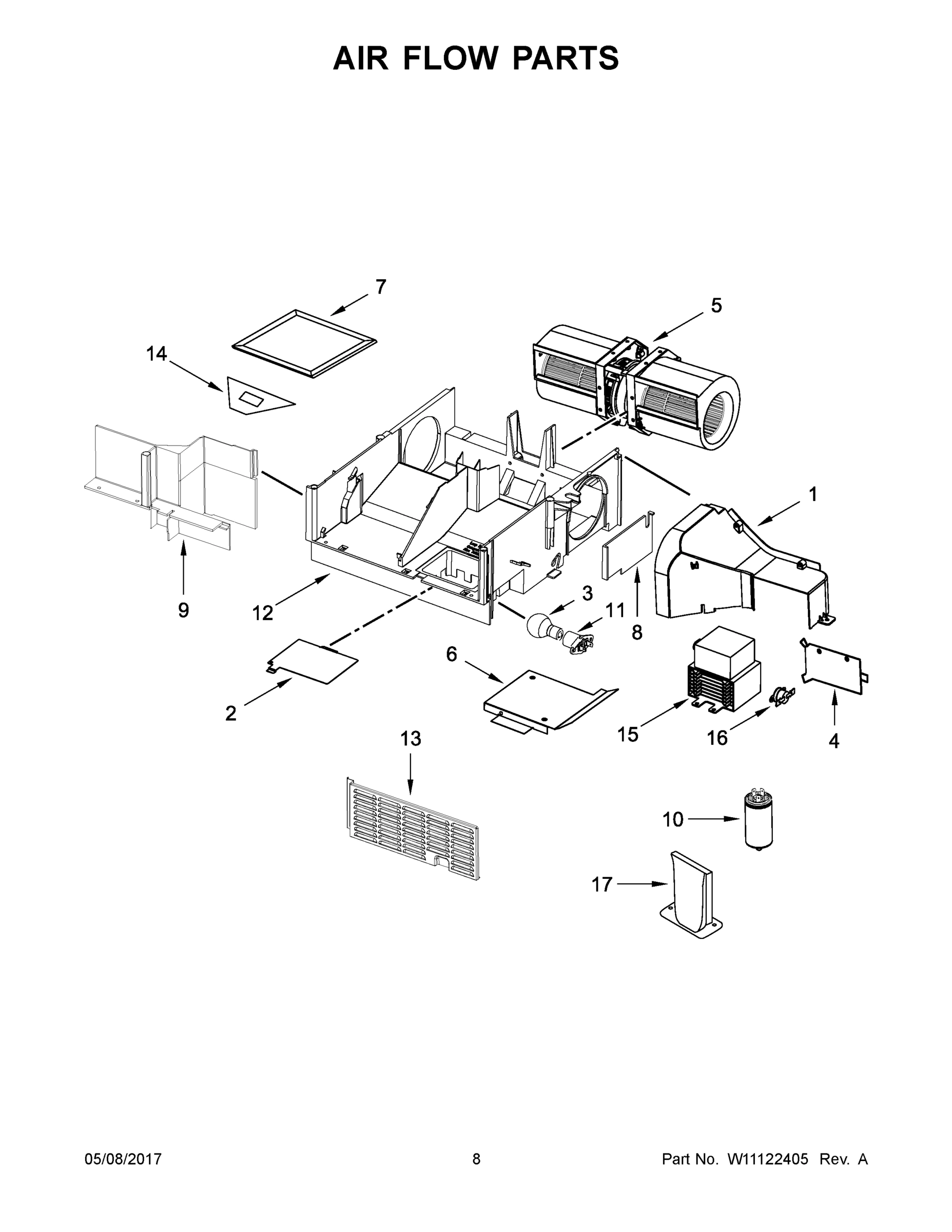

05 - AIR FLOW PARTS

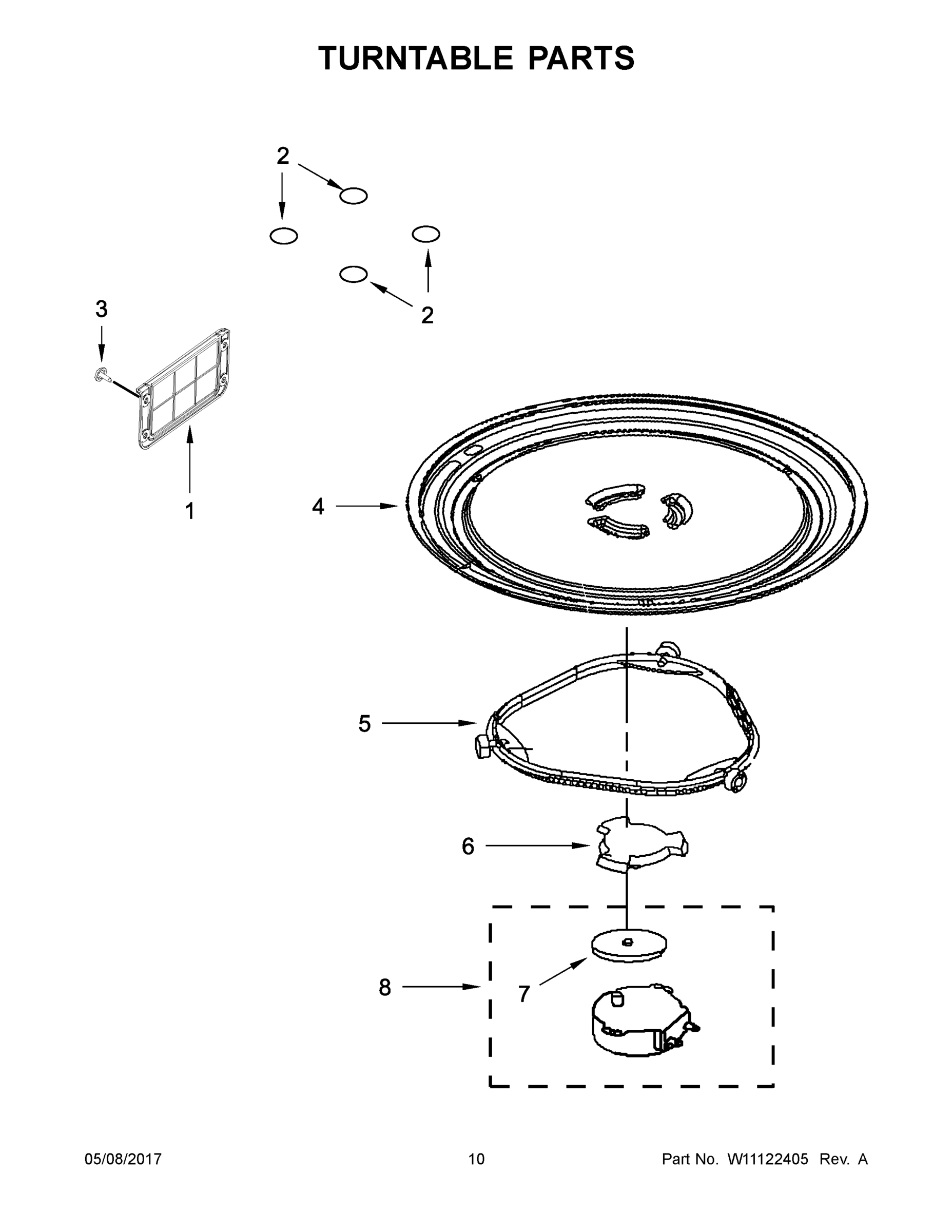

06 - TURNTABLE PARTS

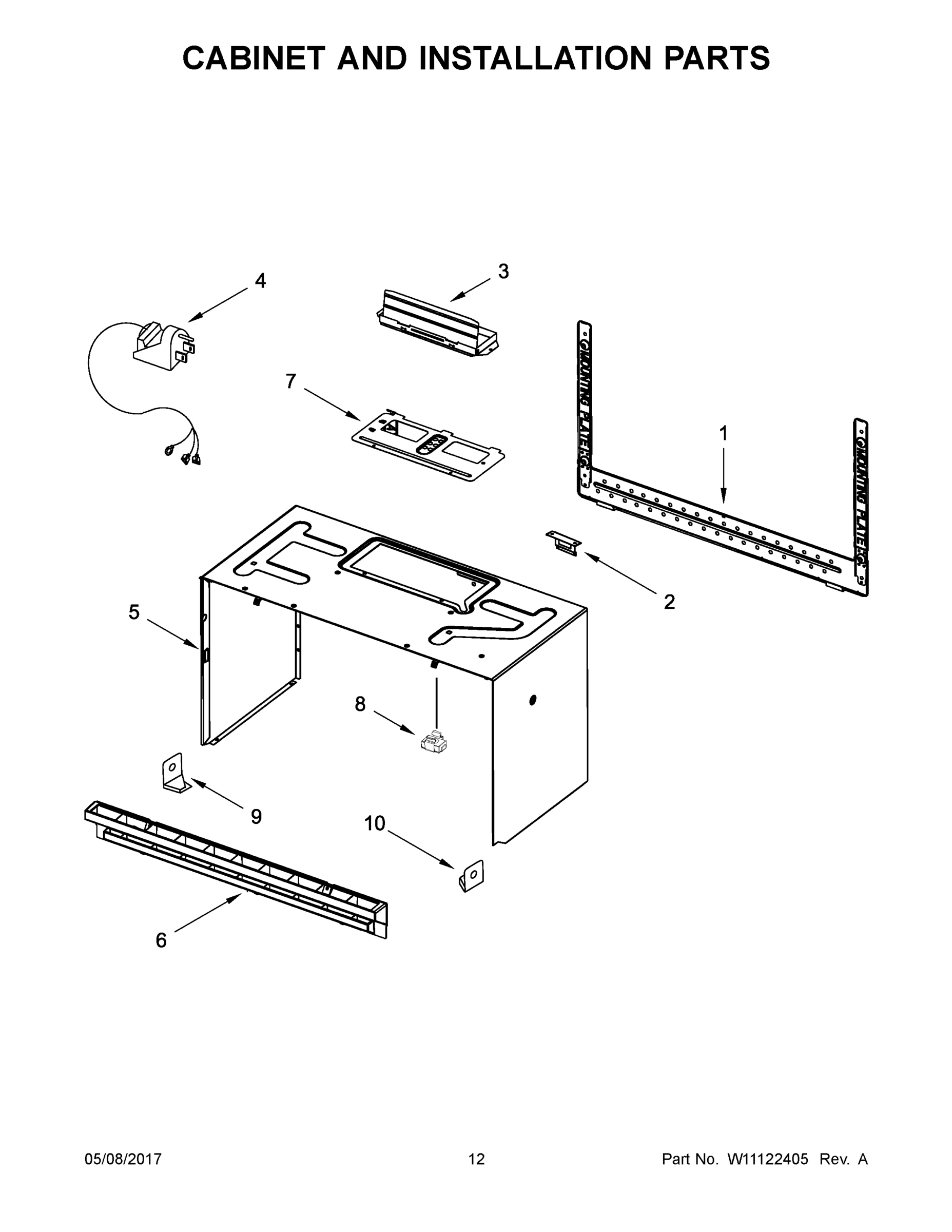

07 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag YAMV1160VAW7 MICROWAVE HOOD, 1.6 CUBIC FOOT
1
INSTALLATION INSTRUCTIONS MAY W10344701 Contact Us For Availability
1
COMPLETE DOOR (WHITE) MAY W10212407 Contact Us For Availability
1
BRACKET, TOP CAVITY MAY W10313275 Contact Us For Availability
1
DEFLECTOR, AIR MAY 8206340 Contact Us For Availability
1
COVER, WAVEGUIDE MAY W10313272 Contact Us For Availability
1
PLATE, MOUNTING MAY W10440498 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W10235334 Contact Us For Availability
1A
COMPLETE DOOR (BLACK) MAY W10212406 Contact Us For Availability
1B
COOK GUIDE LABEL (ENGLISH) MAY W10292071 Contact Us For Availability
1B
COMPLETE DOOR (STAINLESS) MAY W10212408 Contact Us For Availability
1C
COOK GUIDE LABEL (FRENCH) MAY W10292056 Contact Us For Availability
1D
TECH SHEET MAY W10405617 Contact Us For Availability
2
CONTROL PANEL ASSEMBLY (INCLUDES LENS AND MEM MAY W10216340 Contact Us For Availability
2
HANDLE (WHITE) MAY W10212410 Contact Us For Availability
2
LAMP 40 WATT MAY 8206232 Contact Us For Availability
2
COVER, LAMP MAY 8206382 Contact Us For Availability
2
PLUGS, CAVITY MAY W10108800 Contact Us For Availability
2
SUPPORT, WIRE CLIP MAY 8206385 Contact Us For Availability
2A
CONTROL PANEL ASSEMBLY (INCLUDES LENS AND MEM MAY W10216338 Contact Us For Availability
2A
HANDLE (BLACK) MAY W10212411 Contact Us For Availability
2B
CONTROL PANEL ASSEMBLY (INCLUDES LENS AND MEM MAY W10216342 Contact Us For Availability
2B
HANDLE (STAINLESS) MAY W10212412 Contact Us For Availability
3
BRACKET, CONTROL MAY W10364246 Contact Us For Availability
3
SCREW MAY W10138802 Contact Us For Availability
3
HOLDER, LAMP MAY W10210871 Contact Us For Availability
3
LAMP, CAVITY 30 WATT MAY 4393681 Contact Us For Availability
3
RIVETS MAY W10138801 Contact Us For Availability
3
DAMPER MAY W10748710 Contact Us For Availability
4
MAY W10676697 MAY W10676697 Contact Us For Availability
4
COVER, CHOKE MAY W10640812 Contact Us For Availability
4
FILTER, GREASE MAY W10208631 Contact Us For Availability
4
BRACKET, NOISE FILTER MAY W10313274 Contact Us For Availability
4
TURNTABLE MAY 4393799 Contact Us For Availability
4
CORD, POWER MAY W10708076 Contact Us For Availability
5
PLATE, BOTTOM MAY W10245196 Contact Us For Availability
5
MOTOR, HOOD FAN MAY W10836180 Contact Us For Availability
5
RING, TURNTABLE (WITH ROLLERS) MAY W10654906 Contact Us For Availability
5
CASE, OUTER (WHITE) MAY W10838183 Contact Us For Availability
5A
CASE, OUTER (BLACK) MAY W10837530 Contact Us For Availability
6
GLASS, LAMP MAY W10210875 Contact Us For Availability
6
GUIDE, AIR MAY W10138797 Contact Us For Availability
6
DRIVER, TURNTABLE COUPLER MAY W10435116 Contact Us For Availability
6
GRILLE, VENT (WHITE) MAY W10212400 Contact Us For Availability
6A
GRILLE, VENT (BLACK) MAY W10318625 Contact Us For Availability
6B
GRILLE, VENT (STAINLESS) MAY W10212405 Contact Us For Availability
7
HOLDER, GLASS MAY W10210873 Contact Us For Availability
7
FILTER, CHARCOAL MAY 8206230 Contact Us For Availability
7
PLATE, WATERPROOF MAY W10770968 Contact Us For Availability
7
COVER, HOOD FAN MOTOR MAY W10210832 Contact Us For Availability
8
MICROSWITCH V15T16-CZ200/NC/NO MAY W10269457 Contact Us For Availability
8
COVER, RIGHT DUCT MAY W10700156 Contact Us For Availability
8
MOTOR, TURNTABLE MAY W10642989 Contact Us For Availability
8
ASSEMBLY, MOUNTING NUT MAY W10596040 Contact Us For Availability
9
MICROSWITCH V15T16-CC200/NC MAY W10269458 Contact Us For Availability
9
PLATE, AIR GUIDE SEALING MAY W10771885 Contact Us For Availability
9
HOLDER, VENT LEFT SIDE (STAINLESS) MAY W10703284 Contact Us For Availability
10
SPRING, INTERLOCK MAY W10156812 Contact Us For Availability
10
FILTER, NOISE MAY W10422269 Contact Us For Availability
10
HOLDER, VENT RIGHT SIDE (STAINLESS) MAY W10703282 Contact Us For Availability
11
PLATE, CAM MAY W10156811 Contact Us For Availability
11
HOLDER, LAMP CAVITY MAY W10210878 Contact Us For Availability
12
SUPPORT, INTERLOCK (TOP) MAY 8206419 Contact Us For Availability
12
PLATE, AIR GUIDE BASE MAY W10771886 Contact Us For Availability
12A
SUPPORT, INTERLOCK (BOTTOM) MAY W10156813 Contact Us For Availability
13
ASSEMBLY, PISTON MAY W10197758 Contact Us For Availability
13
SHIELD, FINGER MAY W10342991 Contact Us For Availability
14
SCREW MAY 8206180 Contact Us For Availability
14
SOCKET, MOTOR WIRE MAY W10810142 Contact Us For Availability
15
CAPACITOR, HOOD MOTOR MAY W10210855 Contact Us For Availability
15
MAGNETRON MAY W10693025 Contact Us For Availability
16
THERMISTOR MAY W10163422 Contact Us For Availability
16
THERMOSTAT, MAGNETRON MAY W10598693 Contact Us For Availability
17
AIR GUIDE, LOWER MAY W10771884 Contact Us For Availability
17
SEAL, WATERPROOF MAY W10269467 Contact Us For Availability
18
CHASSIS ASSEMBLY MAY W10163423 Contact Us For Availability
19
MICROSWITCH V15T16-CP200/NO MAY W10269460 Contact Us For Availability
20
HOLDER, FUSE MAY W10117908 Contact Us For Availability
21
FUSE MAY W10138793 Contact Us For Availability
22
THERMOSTAT, CAVITY MAY W10269232 Contact Us For Availability
23
TRANSFORMER, HIGH VOLTAGE MAY W10754523 Contact Us For Availability
24
BRACKET, CAPACITOR MAY W10532063 Contact Us For Availability
25
CAPACITOR, HIGH VOLTAGE MAY 8206562 Contact Us For Availability
26
DIODE, HIGH VOLTAGE MAY W10492276 Contact Us For Availability
27
CHASSIS MAY W10269456 Contact Us For Availability
28
CUSHION, NTC MAY W10313276 Contact Us For Availability
29
SUPPORT, NTC MAY W10315759 Contact Us For Availability
30
ASSEMBLY, LAMP GLASS AND HOLDER MAY W10240330 Contact Us For Availability
NI
MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW MAY 8169704 Contact Us For Availability
NI
MISCELLANEOUS PARTS, INSTALLATION, HARDWARE MAY 8206614 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER MAY W10190020 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, NTC SENSOR FLAT MAY W10470168 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR MAY W10539840 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND T MAY W10539841 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HI MAY W10539842 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, MAIN MAY W10874098 Contact Us For Availability
× ![]()
