Model GE WWT2470GAV – Common Parts & Diagrams
2-SPEED
AGITATOR, TUB, & PUMP ASSEMBLY

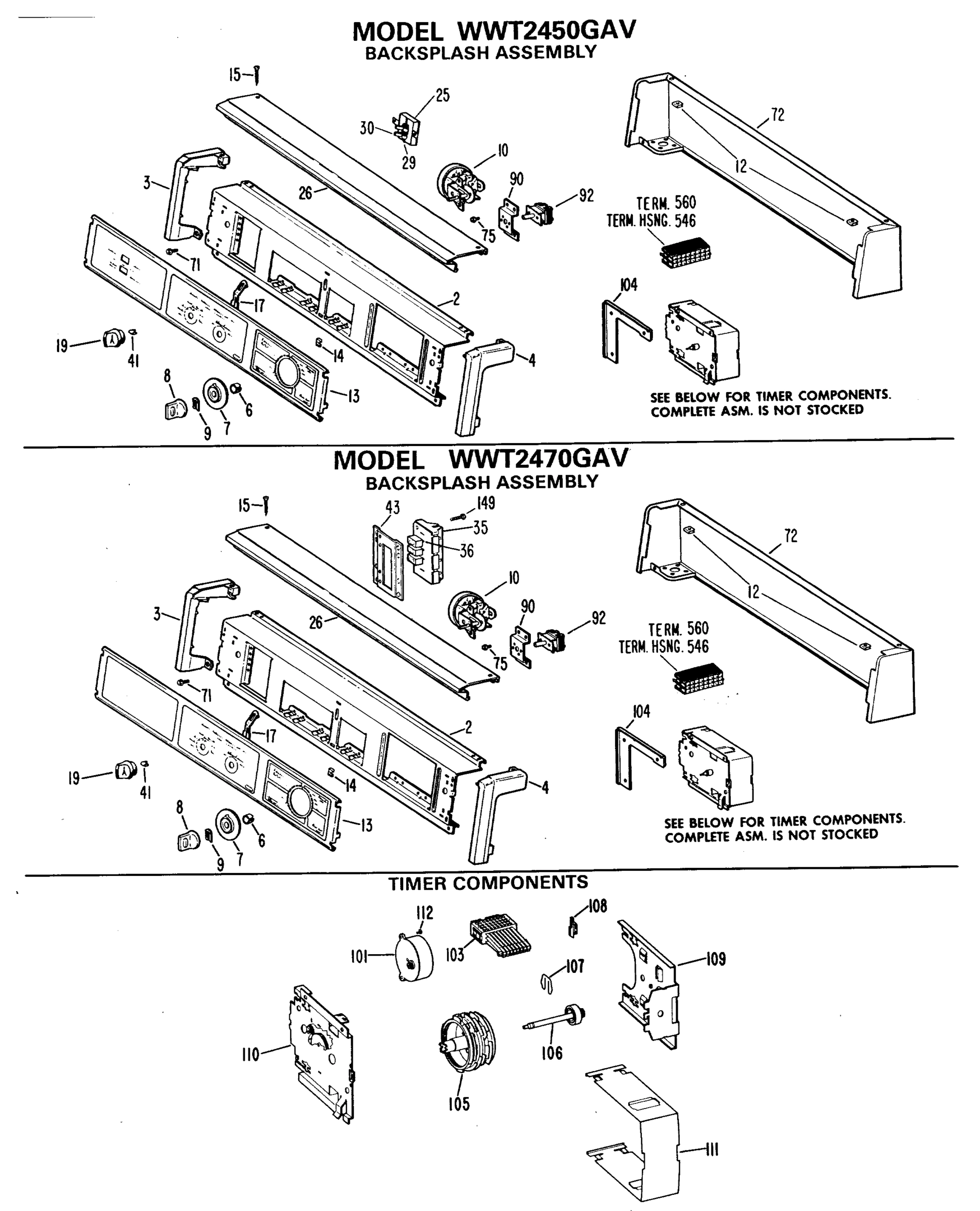

BACKSPLASH ASSEMBLY

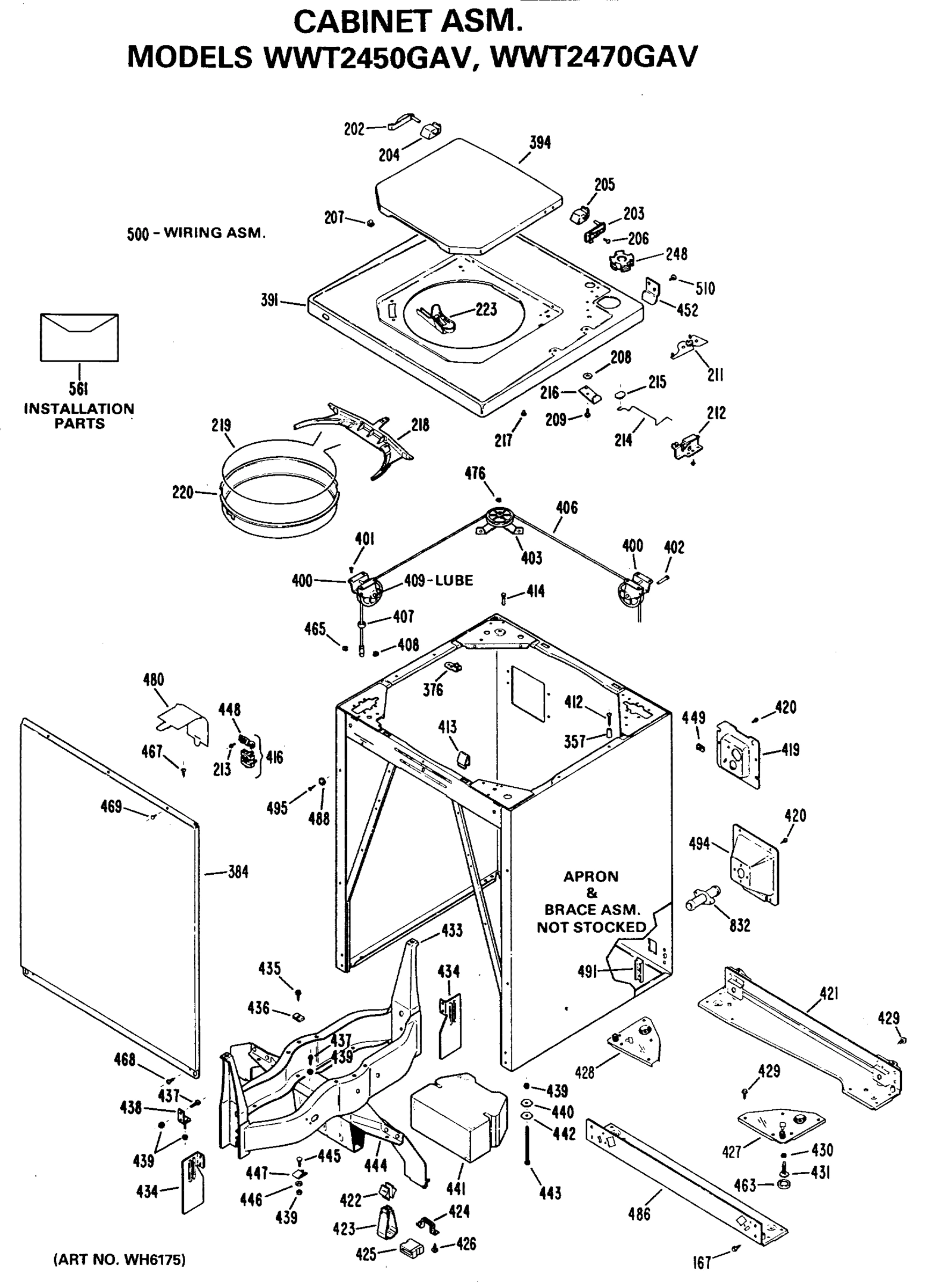

CABINET ASM.

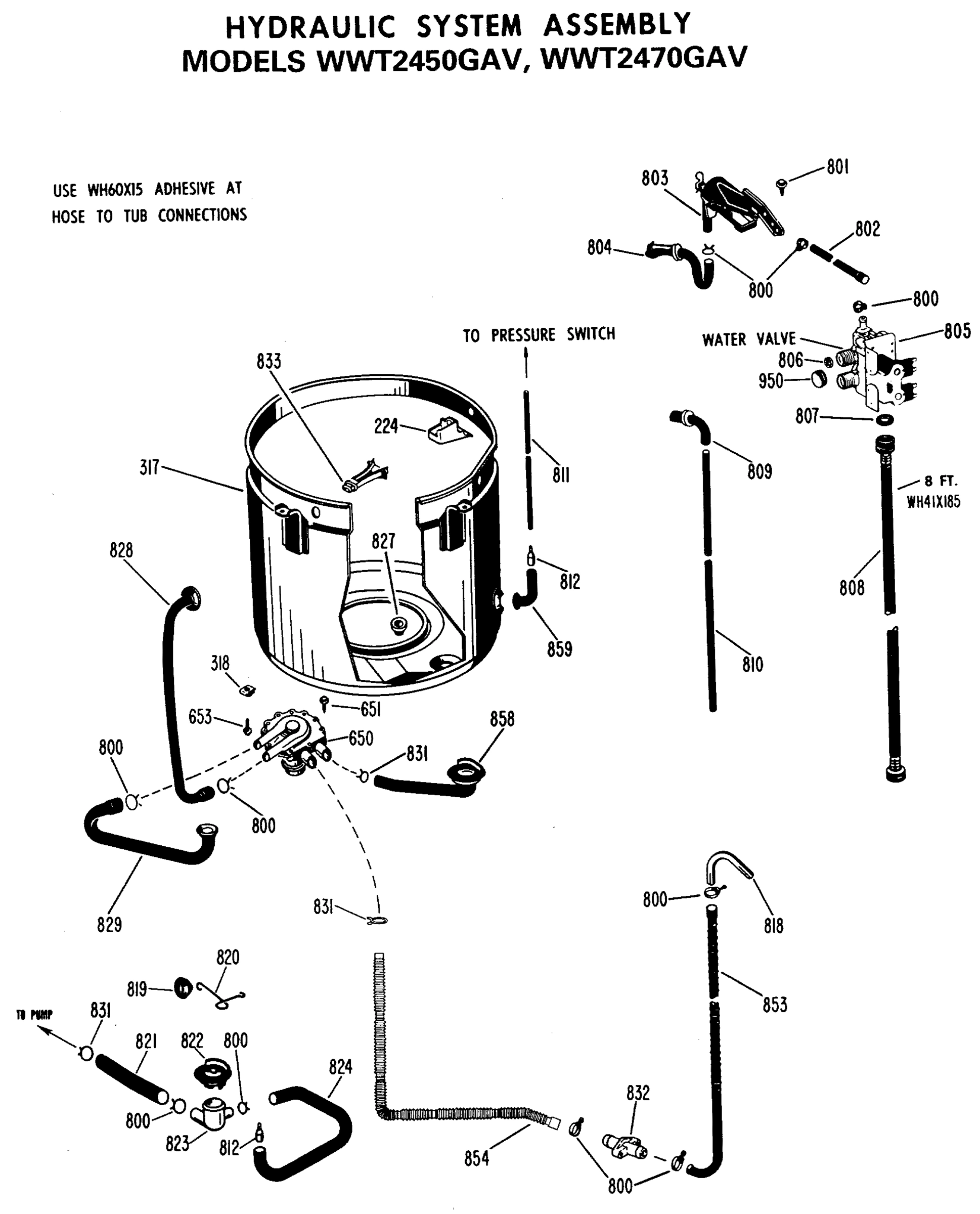

HYDRAULIC SYSTEM ASSEMBLY

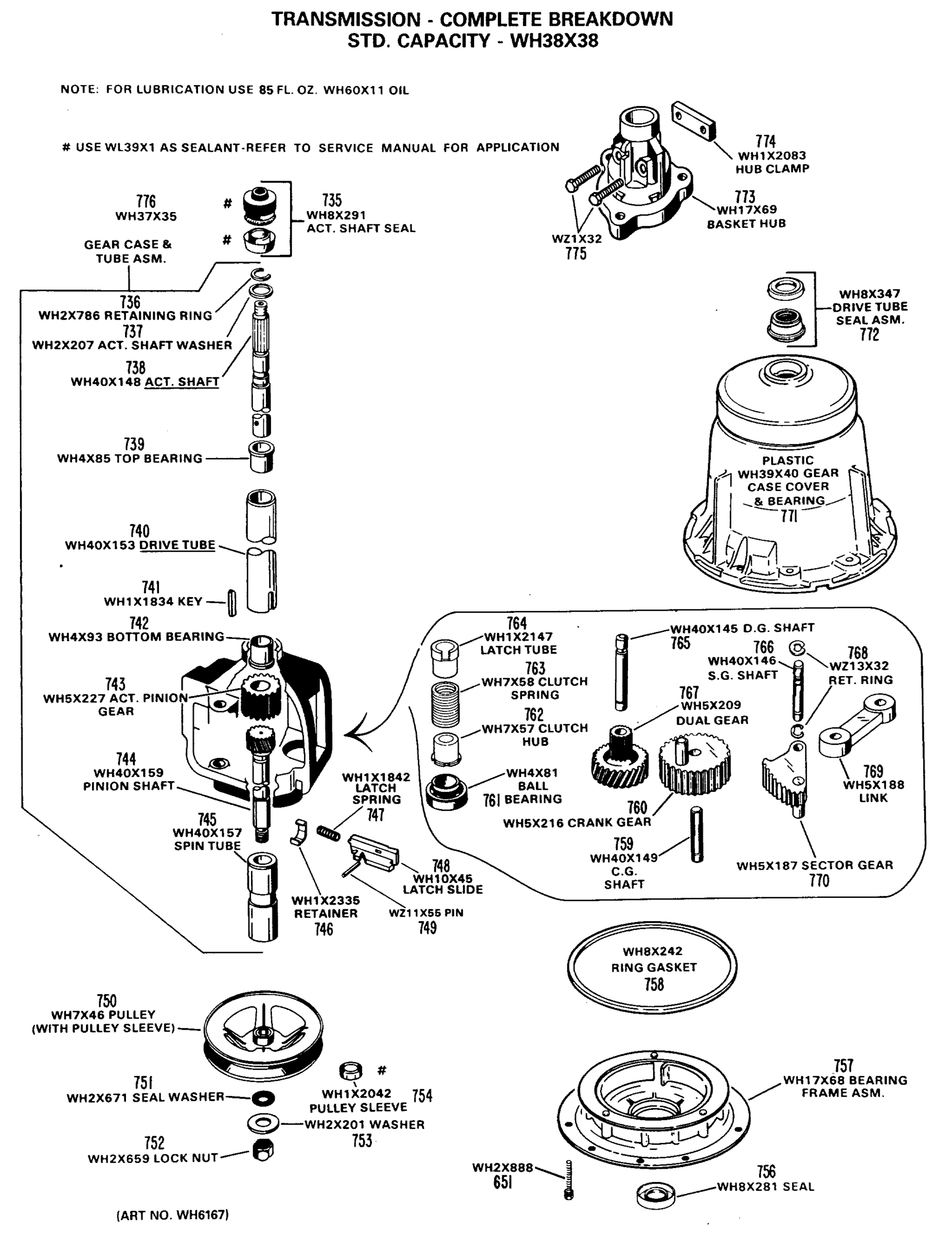

TRANSMISSION-COMPLETE BREAKDOWN
Common parts from model GE WWT2470GAV
2
GEN WH42X2154 GEN WH42X2154 Contact Us For Availability
3
GEN WE19X0793 GEN WE19X0793 Contact Us For Availability
4
GEN WE19X0792 GEN WE19X0792 Contact Us For Availability
6
RING COMPRESSION K GEN WH02X0650 Contact Us For Availability
7
GEN WH11X0091 GEN WH11X0091 Contact Us For Availability
8
GEN WH01X2119 GEN WH01X2119 Contact Us For Availability
10
SWITCH WATER LEVEL VAR GEN WH12X0734 Contact Us For Availability
12
NUT SHEET METAL GEN WB01X0358 Contact Us For Availability
13
GEN WH42X2156 GEN WH42X2156 Contact Us For Availability
14
CLIP GROUND GEN WE01X0762 Contact Us For Availability
15
GEN WZ04X0319 GEN WZ04X0319 Contact Us For Availability
17
GEN WH01X2008 GEN WH01X2008 Contact Us For Availability
19
KNOB ASM SWITCH GEN WE01X1069 Contact Us For Availability
26
GEN WH42X2157 GEN WH42X2157 Contact Us For Availability
35
GEN WH12X0720 GEN WH12X0720 Contact Us For Availability
36
GEN WE01X0981 GEN WE01X0981 Contact Us For Availability
41
CLIP KNOB GEN WE01X0980 Contact Us For Availability
43
GEN WH16X0343 GEN WH16X0343 Contact Us For Availability
71
SCR 8-18 AB OPR 3/4 S GEN WH02X0947 Contact Us For Availability
72
GEN WH46X0276 GEN WH46X0276 Contact Us For Availability
72
GEN WH46X0278 GEN WH46X0278 Contact Us For Availability
90
GEN WH16X0434 GEN WH16X0434 Contact Us For Availability
92
GEN WH12X0725 GEN WH12X0725 Contact Us For Availability
100
GEN WH12X0930 GEN WH12X0930 Contact Us For Availability
101
GEN WH12X0643 GEN WH12X0643 Contact Us For Availability
103
GEN WH12X0631 GEN WH12X0631 Contact Us For Availability
104
GEN WH16X0433 GEN WH16X0433 Contact Us For Availability
105
GEN WH11X0115 GEN WH11X0115 Contact Us For Availability
106
GEN WH01X2280 GEN WH01X2280 Contact Us For Availability
107
GEN WH01X2281 GEN WH01X2281 Contact Us For Availability
108
GEN WH01X2282 GEN WH01X2282 Contact Us For Availability
109
GEN WH12X0700 GEN WH12X0700 Contact Us For Availability
110
GEN WH12X0699 GEN WH12X0699 Contact Us For Availability
111
GEN WH12X0701 GEN WH12X0701 Contact Us For Availability
112
GEN WH02X0948 GEN WH02X0948 Contact Us For Availability
149
SCR 8-18 B HXW 3/4 S GEN WZ04X0280 Contact Us For Availability
167
SCR 1/4-14 AB HXW 3/4 S GEN WE02X0186 Contact Us For Availability
202
GEN WH01X2085 GEN WH01X2085 Contact Us For Availability
203
GEN WH01X2222 GEN WH01X2222 Contact Us For Availability
204
PAD-HINGE L.H. GEN WH01X2087 Contact Us For Availability
205
PAD-HINGE R.H. GEN WH01X2086 Contact Us For Availability
206
SCR 8-18 B RT 1/2 SS GEN WH02X0819 Contact Us For Availability
207
GEN WH01X1654 GEN WH01X1654 Contact Us For Availability
208
GEN WH01X2088 GEN WH01X2088 Contact Us For Availability
209
SCR 1/4-14 BT HXW 3/4 SS GEN WH02X0820 Contact Us For Availability
211
GEN WE01X0553 GEN WE01X0553 Contact Us For Availability
212
GEN WH12X0494 GEN WH12X0494 Contact Us For Availability
214
GEN WH01X2584 GEN WH01X2584 Contact Us For Availability
215
GEN WH01X2089 GEN WH01X2089 Contact Us For Availability
216
GEN WH16X0486 GEN WH16X0486 Contact Us For Availability
217
BUMPER LID GEN WH01X1480 Contact Us For Availability
218
GEN WH16X0413 GEN WH16X0413 Contact Us For Availability
219
WIRE GEN WH16X0370 Contact Us For Availability
220
GEN WH08X0294 GEN WH08X0294 Contact Us For Availability
223
GEN WH01X2054 GEN WH01X2054 Contact Us For Availability
223
GEN WH01X2232 GEN WH01X2232 Contact Us For Availability
224
FUNNEL TUB GEN WH01X2045 Contact Us For Availability
300
GEN WH43X0087 GEN WH43X0087 Contact Us For Availability
303
GEN WH01X1944 GEN WH01X1944 Contact Us For Availability
304
ACC BASKET & BAG ASM WH GEN WH45X0098 Contact Us For Availability
305
GEN WH01X2269 GEN WH01X2269 Contact Us For Availability
306
GEN WH08X0292 GEN WH08X0292 Contact Us For Availability
307
GEN WH08X0246 GEN WH08X0246 Contact Us For Availability
308
GEN WH01X1580 GEN WH01X1580 Contact Us For Availability
310
GEN WH02X0936 GEN WH02X0936 Contact Us For Availability
311
GEN WH01X1292 GEN WH01X1292 Contact Us For Availability
312
SCR 5/16-18 HX 7/8 S GEN WH02X0681 Contact Us For Availability
313
GEN WH08X0305 GEN WH08X0305 Contact Us For Availability
315
GEN WH42X1062 GEN WH42X1062 Contact Us For Availability
316
BASKET ASM STD CAPACITY GEN WH45X0103 Contact Us For Availability
317
GEN WH45X0128 GEN WH45X0128 Contact Us For Availability
318
NUT SHEET METAL GEN WL02X0071 Contact Us For Availability
319
SUPPORT AGITATOR GEN WH01X1986 Contact Us For Availability
320
GEN WH38X0038 GEN WH38X0038 Contact Us For Availability
333
GEN WH43X0089 GEN WH43X0089 Contact Us For Availability
357
GEN WH01X2187 GEN WH01X2187 Contact Us For Availability
384
GEN WH46X0277 GEN WH46X0277 Contact Us For Availability
384
GEN WH46X0279 GEN WH46X0279 Contact Us For Availability
391
GEN WH44X1126 GEN WH44X1126 Contact Us For Availability
391
GEN WH44X1127 GEN WH44X1127 Contact Us For Availability
394
GEN WH44X0525 GEN WH44X0525 Contact Us For Availability
394
LID AD GEN WH44X0976 Contact Us For Availability
400
GEN WH07X0040 GEN WH07X0040 Contact Us For Availability
401
GEN WH02X0940 GEN WH02X0940 Contact Us For Availability
402
GEN WH01X1633 GEN WH01X1633 Contact Us For Availability
403
GEN WH07X0041 GEN WH07X0041 Contact Us For Availability
406
GEN WH16X0487 GEN WH16X0487 Contact Us For Availability
407
GEN WH01X2081 GEN WH01X2081 Contact Us For Availability
407
GEN WH01X2082 GEN WH01X2082 Contact Us For Availability
408
RETAINER SEAT GEN WH01X2060 Contact Us For Availability
409
GEN WL39X0003 GEN WL39X0003 Contact Us For Availability
412
SCR 10-12 A RD 1 1/8 S GEN BUY LOCAL Contact Us For Availability
413
GEN WH01X1923 GEN WH01X1923 Contact Us For Availability
414
SCR 12-14 B HX 3/4 S GEN WH02X0715 Contact Us For Availability
416
GEN WH12X0235 GEN WH12X0235 Contact Us For Availability
419
GEN WH16X0488 GEN WH16X0488 Contact Us For Availability
420
SCR 10-16 B HXW 3/8 S GEN WH02X0893 Contact Us For Availability
421
GEN WH46X0272 GEN WH46X0272 Contact Us For Availability
422
PAD FRICTION GEN WH01X2296 Contact Us For Availability
423
GEN WH01X1951 GEN WH01X1951 Contact Us For Availability
424
GEN WH01X1862 GEN WH01X1862 Contact Us For Availability
425
GEN WH01X1953 GEN WH01X1953 Contact Us For Availability
426
SCR 14-10 A HX 3/4 S GEN WH02X0882 Contact Us For Availability
427
GEN WH46X0273 GEN WH46X0273 Contact Us For Availability
428
GEN WH46X0274 GEN WH46X0274 Contact Us For Availability
429
SCR 1/4-14 B HX 3/8 S GEN WH02X0795 Contact Us For Availability
430
GEN WZ07X0040 GEN WZ07X0040 Contact Us For Availability
431
GEN WH01X0209 GEN WH01X0209 Contact Us For Availability
433
GEN WH17X0088 GEN WH17X0088 Contact Us For Availability
434
DAMPING FIN STD. CAP. GEN WH16X0364 Contact Us For Availability
435
GEN WH02X1056 GEN WH02X1056 Contact Us For Availability
436
GEN WH02X0739 GEN WH02X0739 Contact Us For Availability
437
GEN WZ02X0514 GEN WZ02X0514 Contact Us For Availability
438
GEN WH16X0405 GEN WH16X0405 Contact Us For Availability
439
NUT GEN WH02X0707 Contact Us For Availability
440
GEN WH02X0810 GEN WH02X0810 Contact Us For Availability
441
GEN WH01X2057 GEN WH01X2057 Contact Us For Availability
442
GEN WH02X0811 GEN WH02X0811 Contact Us For Availability
443
SCR 1/4-20 HX 5 S GEN WH02X0812 Contact Us For Availability
444
GEN WH16X0361 GEN WH16X0361 Contact Us For Availability
445
SCR 1/4-20 M RD 11/16 S GEN WH02X0798 Contact Us For Availability
446
WASHER FLAT GEN WE02X0279 Contact Us For Availability
447
GEN WH02X0801 GEN WH02X0801 Contact Us For Availability
448
GEN WH01X1998 GEN WH01X1998 Contact Us For Availability
449
GEN WH02X0896 GEN WH02X0896 Contact Us For Availability
452
GEN WH16X0482 GEN WH16X0482 Contact Us For Availability
465
RING E GEN WZ13X0024 Contact Us For Availability
468
GEN WH02X1112 GEN WH02X1112 Contact Us For Availability
476
RING E GEN WZ13X0031 Contact Us For Availability
486
GEN WH42X0275 GEN WH42X0275 Contact Us For Availability
488
SPACER FRONT GEN WH01X2564 Contact Us For Availability
489
GEN WH01X2572 GEN WH01X2572 Contact Us For Availability
491
GEN WH02X1109 GEN WH02X1109 Contact Us For Availability
495
SCREW GEN WR01X1569 Contact Us For Availability
546
GEN WH12X0604 GEN WH12X0604 Contact Us For Availability
555
GEN WB17X5053 GEN WB17X5053 Contact Us For Availability
556
GEN WH12X0497 GEN WH12X0497 Contact Us For Availability
557
GEN WH19X0225 GEN WH19X0225 Contact Us For Availability
559
GEN WH12X0538 GEN WH12X0538 Contact Us For Availability
560
TERMINAL GEN WH12X0603 Contact Us For Availability
561
GEN WH49X0136 GEN WH49X0136 Contact Us For Availability
562
GEN WB17X5054 GEN WB17X5054 Contact Us For Availability
600
GEN WH01X1621 GEN WH01X1621 Contact Us For Availability
601
GEN WH01X1722 GEN WH01X1722 Contact Us For Availability
602
GEN WH02X0941 GEN WH02X0941 Contact Us For Availability
604
GEN WH07X0045 GEN WH07X0045 Contact Us For Availability
605
GEN WH02X0190 GEN WH02X0190 Contact Us For Availability
606
PIN ROLL GEN WZ11X0050 Contact Us For Availability
607
GEN WH04X0012 GEN WH04X0012 Contact Us For Availability
608
DRUM ASM OUTER GEN WH05X0175 Contact Us For Availability
609
GEN WH07X0103 GEN WH07X0103 Contact Us For Availability
610
GEN WH01X1337 GEN WH01X1337 Contact Us For Availability
612
GEN WH05X0207 GEN WH05X0207 Contact Us For Availability
613
GEN WH01X1309 GEN WH01X1309 Contact Us For Availability
614
GEN WH02X0539 GEN WH02X0539 Contact Us For Availability
615
GEN WH07X0101 GEN WH07X0101 Contact Us For Availability
616
GEN WH02X0662 GEN WH02X0662 Contact Us For Availability
617
PLATE ASM CLUTCH BASE GEN WH40X0150 Contact Us For Availability
619
GEN WH02X0543 GEN WH02X0543 Contact Us For Availability
620
GEN WH01X1169 GEN WH01X1169 Contact Us For Availability
621
NUT & WASHER GEN WZ08X0006 Contact Us For Availability
623
GEN WH02X0580 GEN WH02X0580 Contact Us For Availability
624
GEN WH05X0193 GEN WH05X0193 Contact Us For Availability
625
GEN WH07X0076 GEN WH07X0076 Contact Us For Availability
626
GEN WH01X1258 GEN WH01X1258 Contact Us For Availability
627
GEN WH17X0053 GEN WH17X0053 Contact Us For Availability
628
GEN WZ13X0006 GEN WZ13X0006 Contact Us For Availability
629
GEN WH17X0086 GEN WH17X0086 Contact Us For Availability
630
MOTOR ASM GEN WH20X0064 Contact Us For Availability
631
GEN WH01X2055 GEN WH01X2055 Contact Us For Availability
632
GEN WH01X1797 GEN WH01X1797 Contact Us For Availability
633
GEN WH12X0406 GEN WH12X0406 Contact Us For Availability
634
GEN WH16X0360 GEN WH16X0360 Contact Us For Availability
635
GEN WH12X0533 GEN WH12X0533 Contact Us For Availability
636
GEN WH02X0765 GEN WH02X0765 Contact Us For Availability
637
GEN WH02X0634 GEN WH02X0634 Contact Us For Availability
650
GEN WH23X0042 GEN WH23X0042 Contact Us For Availability
651
GEN WH02X0888 GEN WH02X0888 Contact Us For Availability
652
GEN WH08X0286 GEN WH08X0286 Contact Us For Availability
653
SCR 10-16 AB HXW 1 3/8 S GEN WH02X0938 Contact Us For Availability
735
SEAL ACTIVATOR SHAFT ASM GEN WH08X0291 Contact Us For Availability
736
GEN WH02X0786 GEN WH02X0786 Contact Us For Availability
737
GEN WH02X0207 GEN WH02X0207 Contact Us For Availability
738
GEN WH40X0148 GEN WH40X0148 Contact Us For Availability
739
BEARING ASM AGIT SHAFT GEN WH04X0085 Contact Us For Availability
740
DRIVE TUBE GEN WH40X0153 Contact Us For Availability
741
GEN WH01X1834 GEN WH01X1834 Contact Us For Availability
742
GEN WH04X0093 GEN WH04X0093 Contact Us For Availability
743
GEN WH05X0227 GEN WH05X0227 Contact Us For Availability
744
SHAFT PINION GEN WH40X0159 Contact Us For Availability
745
GEN WH40X0157 GEN WH40X0157 Contact Us For Availability
746
GEN WH01X2335 GEN WH01X2335 Contact Us For Availability
747
GEN WH01X1842 GEN WH01X1842 Contact Us For Availability
748
GEN WH10X0045 GEN WH10X0045 Contact Us For Availability
749
GEN WZ11X0055 GEN WZ11X0055 Contact Us For Availability
750
GEN WH07X0046 GEN WH07X0046 Contact Us For Availability
751
GEN WH02X0671 GEN WH02X0671 Contact Us For Availability
752
GEN WH02X0659 GEN WH02X0659 Contact Us For Availability
753
GEN WH02X0201 GEN WH02X0201 Contact Us For Availability
756
GEN WH08X0281 GEN WH08X0281 Contact Us For Availability
757
BEARING FRAME ASM GEN WH17X0068 Contact Us For Availability
758
GEN WH08X0242 GEN WH08X0242 Contact Us For Availability
759
GEN WH40X0149 GEN WH40X0149 Contact Us For Availability
760
GEN WH05X0216 GEN WH05X0216 Contact Us For Availability
761
GEN WH04X0081 GEN WH04X0081 Contact Us For Availability
762
GEN WH07X0057 GEN WH07X0057 Contact Us For Availability
763
GEN WH07X0058 GEN WH07X0058 Contact Us For Availability
764
GEN WH01X2147 GEN WH01X2147 Contact Us For Availability
765
GEN WH40X0145 GEN WH40X0145 Contact Us For Availability
766
GEN WH40X0146 GEN WH40X0146 Contact Us For Availability
767
GEN WH05X0209 GEN WH05X0209 Contact Us For Availability
768
GEN WZ13X0032 GEN WZ13X0032 Contact Us For Availability
769
GEN WH05X0188 GEN WH05X0188 Contact Us For Availability
770
GEN WH05X0187 GEN WH05X0187 Contact Us For Availability
771
GEN WH39X0040 GEN WH39X0040 Contact Us For Availability
772
GEN WH08X0347 GEN WH08X0347 Contact Us For Availability
773
GEN WH17X0069 GEN WH17X0069 Contact Us For Availability
774
CLAMP HUB GEN WH01X2083 Contact Us For Availability
775
GEN WZ01X0032 GEN WZ01X0032 Contact Us For Availability
776
GEAR CASE & TUBES ASM GEN WH37X0035 Contact Us For Availability
801
SCR 8-18 B HXW 15/32 S GEN WD02X5063 Contact Us For Availability
802
GEN WH41X0314 GEN WH41X0314 Contact Us For Availability
803
GEN WH41X0313 GEN WH41X0313 Contact Us For Availability
804
GEN WH41X0170 GEN WH41X0170 Contact Us For Availability
806
GEN WH01X1400 GEN WH01X1400 Contact Us For Availability
809
GEN WH08X0253 GEN WH08X0253 Contact Us For Availability
810
GEN WH01X1807 GEN WH01X1807 Contact Us For Availability
811
GEN WH41X0128 GEN WH41X0128 Contact Us For Availability
812
GEN WH01X1584 GEN WH01X1584 Contact Us For Availability
818
NOZZLE-DRAIN GEN WH41X0035 Contact Us For Availability
819
GEN WH01X1813 GEN WH01X1813 Contact Us For Availability
820
GEN WH01X1812 GEN WH01X1812 Contact Us For Availability
821
GEN WH41X0116 GEN WH41X0116 Contact Us For Availability
822
GEN WH41X0118 GEN WH41X0118 Contact Us For Availability
823
GEN WH41X0139 GEN WH41X0139 Contact Us For Availability
824
GEN WH41X0121 GEN WH41X0121 Contact Us For Availability
827
GEN WH01X1966 GEN WH01X1966 Contact Us For Availability
828
GEN WH41X0144 GEN WH41X0144 Contact Us For Availability
829
HOSE RECIRC INLET GEN WH41X0140 Contact Us For Availability
832
GEN WH41X0317 GEN WH41X0317 Contact Us For Availability
833
GEN WH41X0143 GEN WH41X0143 Contact Us For Availability
853
GEN WH41X0318 GEN WH41X0318 Contact Us For Availability
854
GEN WH41X0319 GEN WH41X0319 Contact Us For Availability
950
GEN WH01X1732 GEN WH01X1732 Contact Us For Availability
32767
BEARING SPACER GEN WH04X0091 Contact Us For Availability
32767
GEN WH02X0935 GEN WH02X0935 Contact Us For Availability
32767
GEN 31-2413 GEN 31-2413 Contact Us For Availability
32767
GEN 49-9605 GEN 49-9605 Contact Us For Availability
32767
GEN WH46X0188 GEN WH46X0188 Contact Us For Availability
32767
WASHER FLAT GEN WZ10X0018 Contact Us For Availability
32767
GEN WH01X2042 GEN WH01X2042 Contact Us For Availability
× ![]()
