Model GE WWA5800VCL Washer – Common Parts & Diagrams

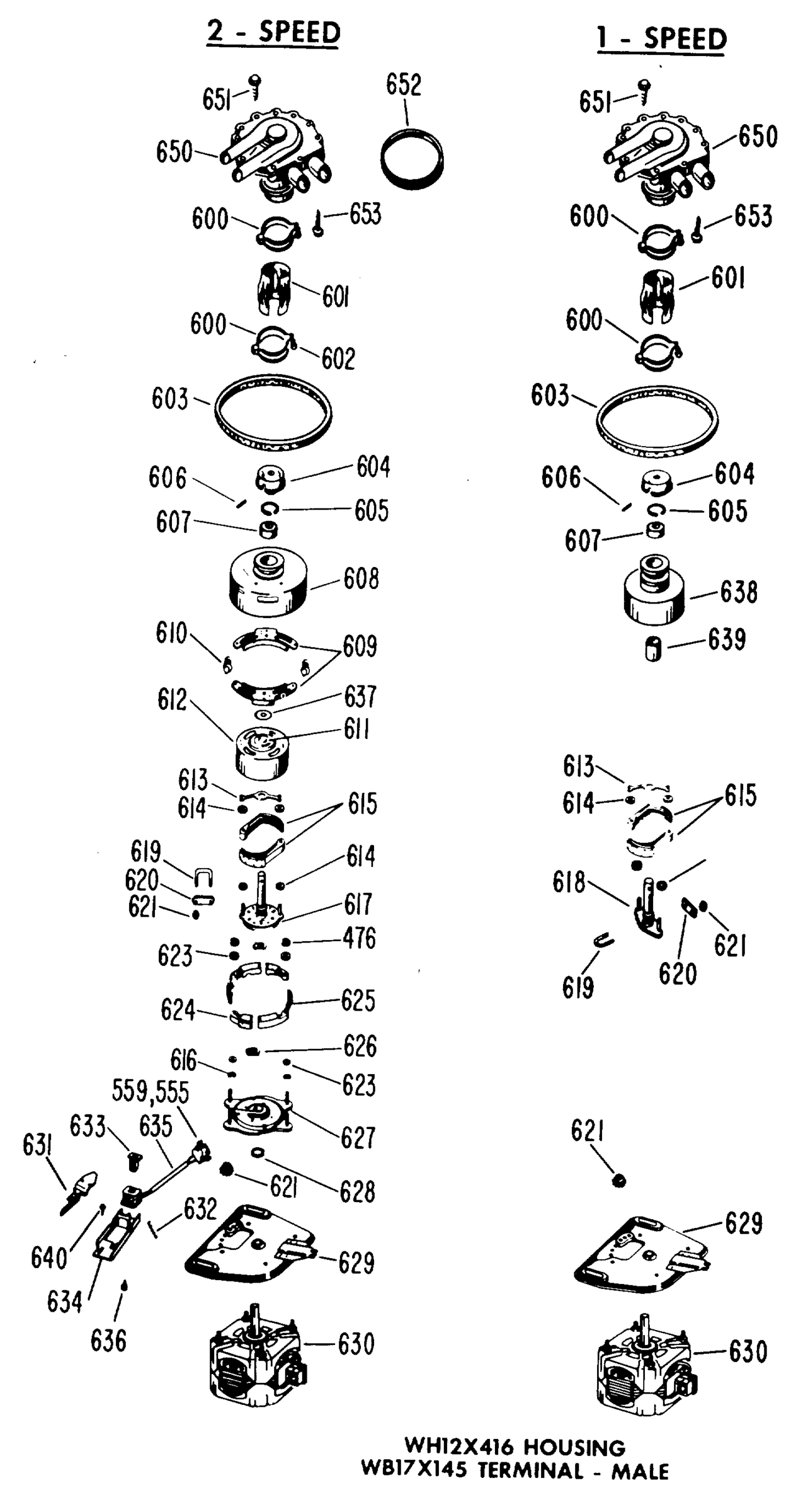

1-SPEED

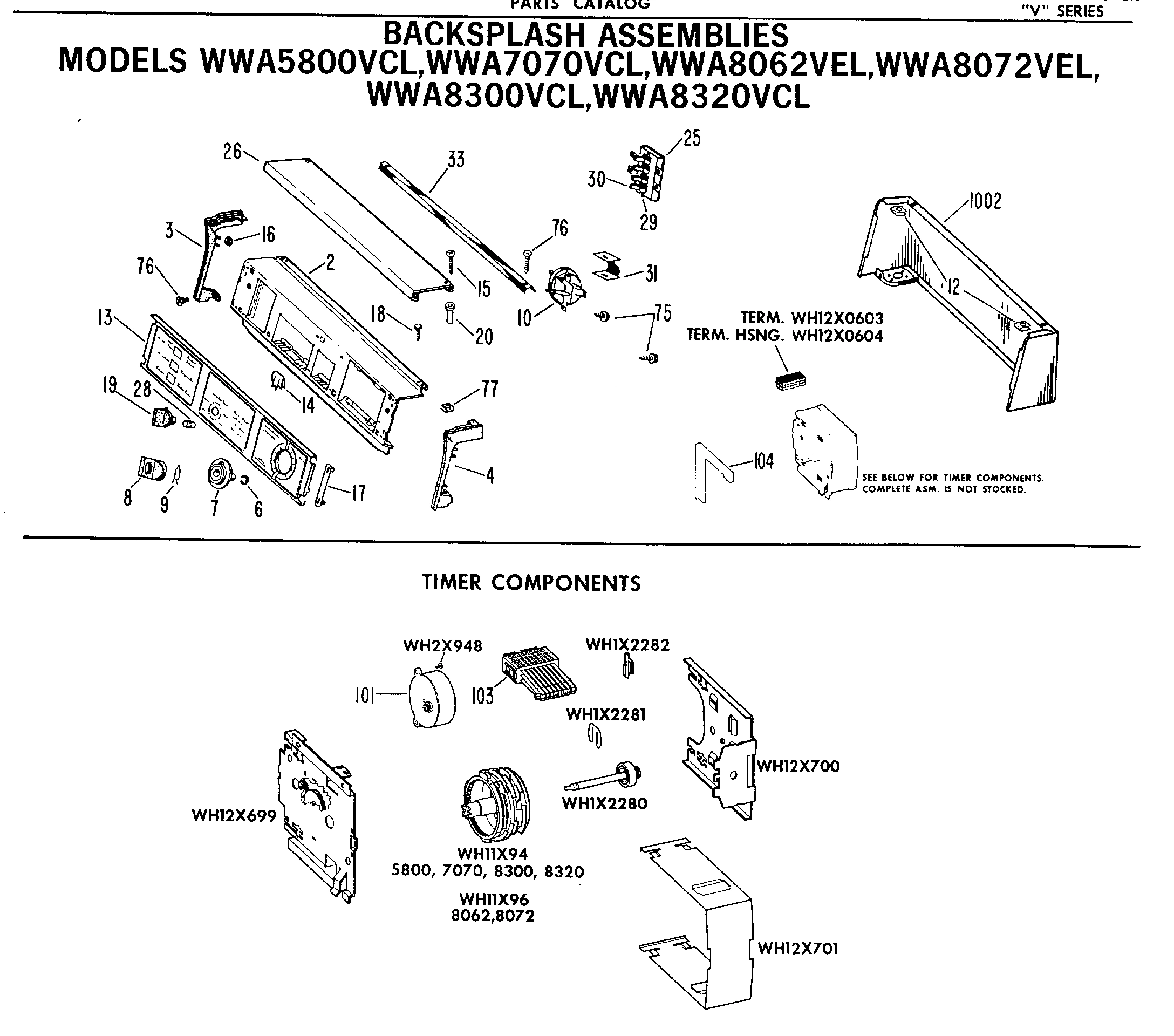

BACKSPLASH ASSEMBLIES
CABINET AND SUSPENSION ASM.
TUB, BASKET AND AGITATOR
Common parts from model GE WWA5800VCL Washer
2
GEN WE19X0719 GEN WE19X0719 Contact Us For Availability
3
GEN WH42X0771 GEN WH42X0771 Contact Us For Availability
4
GEN WH42X0772 GEN WH42X0772 Contact Us For Availability
6
RING COMP GEN WH02X0650 Contact Us For Availability
7
GEN WH11X0091 GEN WH11X0091 Contact Us For Availability
8
CONTROL KNOB ASM GEN WH01X2119 Contact Us For Availability
10
GEN WH12X0667 GEN WH12X0667 Contact Us For Availability
13
GEN WH42X1119 GEN WH42X1119 Contact Us For Availability
14
GEN WE01X0762 GEN WE01X0762 Contact Us For Availability
17
GEN WH01X2008 GEN WH01X2008 Contact Us For Availability
19
KNOB SWITCH GEN WH01X1977 Contact Us For Availability
25
GEN WH12X0598 GEN WH12X0598 Contact Us For Availability
28
GEN WH01X1974 GEN WH01X1974 Contact Us For Availability
29
GEN WH01X1394 GEN WH01X1394 Contact Us For Availability
30
GEN WH01X0835 GEN WH01X0835 Contact Us For Availability
31
GEN WH16X0317 GEN WH16X0317 Contact Us For Availability
33
GEN WE19X0310 GEN WE19X0310 Contact Us For Availability
46
GEN WZ04X0238 GEN WZ04X0238 Contact Us For Availability
70
SCREW-TYPE A GEN WH02X0937 Contact Us For Availability
76
GEN WZ05X0120 GEN WZ05X0120 Contact Us For Availability
101
GEN WH12X0644 GEN WH12X0644 Contact Us For Availability
103
GEN WH12X0631 GEN WH12X0631 Contact Us For Availability
104
GEN WH16X0433 GEN WH16X0433 Contact Us For Availability
150
GEN WZ20X0007 GEN WZ20X0007 Contact Us For Availability
167
SCREW-TYPE AB GEN WE02X0186 Contact Us For Availability
179
GEN WZ04X0288 GEN WZ04X0288 Contact Us For Availability
202
HINGE-PIVOT GEN WH01X2085 Contact Us For Availability
203
HINGE-PIVOT GEN WH01X2222 Contact Us For Availability
204
PAD-HINGE GEN WH01X2087 Contact Us For Availability
205
PAD-HINGE GEN WH01X2086 Contact Us For Availability
206
SCREW-TYPE B GEN WH02X0819 Contact Us For Availability
207
BUMPER-LID GEN WH01X1654 Contact Us For Availability
208
GEN WH01X2088 GEN WH01X2088 Contact Us For Availability
209
SCREW-TYPE BT GEN WH02X0820 Contact Us For Availability
211
GASKET-INSULATING GEN WE01X0553 Contact Us For Availability
212
GEN WH12X0494 GEN WH12X0494 Contact Us For Availability
213
SCREW-TYPE AB GEN WZ04X0435 Contact Us For Availability
214
ACTUATOR-SWITCH GEN WH01X2090 Contact Us For Availability
215
KNOB-ACTUATOR GEN WH01X2089 Contact Us For Availability
216
BRACKET-ACTUATOR GEN WH16X0376 Contact Us For Availability
217
BUMPER-LID GEN WH01X1480 Contact Us For Availability
218
RETAINER-COVER SHIELD GEN WH16X0413 Contact Us For Availability
219
WIRE GEN WH16X0370 Contact Us For Availability
220
SHIELD-COVER GEN WH08X0294 Contact Us For Availability
223
SPOUT-BLEACH WH GEN WH01X2054 Contact Us For Availability
223
SPOUT-BLEACH AD GEN WH01X2232 Contact Us For Availability
223
SPOUT-BLEACH FA GEN WH01X2233 Contact Us For Availability
223
SPOUT-BLEACH HA GEN WH01X2234 Contact Us For Availability
224
FUNNEL-TUB GEN WH01X2045 Contact Us For Availability
300
GEN WH43X0087 GEN WH43X0087 Contact Us For Availability
304
ACC BASKET & BAG ASM WH GEN WH45X0098 Contact Us For Availability
305
FILTER-RECIRC WH GEN WH01X2269 Contact Us For Availability
306
COUPLING ASM-AGITATOR GEN WH01X1944 Contact Us For Availability
306
BOOT-HUB GEN WH08X0292 Contact Us For Availability
307
BOOT-MECH GEN WH08X0246 Contact Us For Availability
308
GEN WH01X1580 GEN WH01X1580 Contact Us For Availability
309
SCREW GEN WH02X0935 Contact Us For Availability
310
GEN WH02X0936 GEN WH02X0936 Contact Us For Availability
311
GEN WH01X1292 GEN WH01X1292 Contact Us For Availability
312
SCREW-MACH GEN WH02X0681 Contact Us For Availability
313
GASKET-TUB GEN WH08X0305 Contact Us For Availability
315
RETAINER-CLOTHES GEN WH42X1062 Contact Us For Availability
316
BASKET ASM STD CAPACITY GEN WH45X0103 Contact Us For Availability
317
TUB ASM GEN WH45X0069 Contact Us For Availability
318
NUT-SHEET METAL GEN WL02X0071 Contact Us For Availability
319
SUPPORT-AGITATOR GEN WH01X1986 Contact Us For Availability
320
TRANSMISSION STD CAP GEN WH38X0038 Contact Us For Availability
333
CAP-AGITATOR GEN WH43X0089 Contact Us For Availability
357
STOP-COVER GEN WH01X2187 Contact Us For Availability
400
GEN WH07X0040 GEN WH07X0040 Contact Us For Availability
401
SCREW-TAPTITE GEN WH02X0940 Contact Us For Availability
402
PIN-STOP GEN WH01X1633 Contact Us For Availability
403
STRAP & SHAFT ASM-PULLEY GEN WH07X0041 Contact Us For Availability
406
CABLE ASM GEN WH16X0374 Contact Us For Availability
407
CUP WASHER BALCK GEN WH01X2081 Contact Us For Availability
407
GEN WH01X2082 GEN WH01X2082 Contact Us For Availability
408
GEN WH01X2060 GEN WH01X2060 Contact Us For Availability
409
GEN WL39X0003 GEN WL39X0003 Contact Us For Availability
412
GEN 10-12X1/8 GEN 10-12X1/8 Contact Us For Availability
413
CLIP-COVER GEN WH01X1923 Contact Us For Availability
414
SCREW GEN WH02X0715 Contact Us For Availability
416
RELAY ASM 1/3 HP GEN WH12X0235 Contact Us For Availability
417
SCREW-TYPE A GEN WH02X0694 Contact Us For Availability
418
GEN WH44X0925 GEN WH44X0925 Contact Us For Availability
419
BRACKET-VALVE GEN WH16X0373 Contact Us For Availability
420
GEN WH42X0893 GEN WH42X0893 Contact Us For Availability
421
WELD ASM-REAR BASE GEN WH46X0188 Contact Us For Availability
422
GEN WH01X1952 GEN WH01X1952 Contact Us For Availability
423
GEN WH01X1951 GEN WH01X1951 Contact Us For Availability
424
CLAMP-YOKE GEN WH01X1862 Contact Us For Availability
425
CUSHION-YOKE GEN WH01X1953 Contact Us For Availability
426
SCREW-TYPE A GEN WH02X0882 Contact Us For Availability
427
BRACKET ASM-BASE GEN WH46X0181 Contact Us For Availability
428
BRACKET ASM-BASE GEN WH46X0182 Contact Us For Availability
429
SCREW-TYPE B GEN WH02X0795 Contact Us For Availability
430
GEN WZ07X0040 GEN WZ07X0040 Contact Us For Availability
431
SCREW-MACH LEVEL GEN WH01X0209 Contact Us For Availability
433
GEN WH17X0067 GEN WH17X0067 Contact Us For Availability
434
DAMPING FIN-14# GEN WH16X0364 Contact Us For Availability
435
GEN WH02X0653 GEN WH02X0653 Contact Us For Availability
436
NUT-SHEET METAL GEN WH02X0739 Contact Us For Availability
437
SCREW-MACH GEN WZ02X0514 Contact Us For Availability
438
HANGER ASM-MOTOR GEN WH16X0405 Contact Us For Availability
439
NUT GEN WH02X0707 Contact Us For Availability
440
GEN WH02X0810 GEN WH02X0810 Contact Us For Availability
441
GEN WH01X2056 GEN WH01X2056 Contact Us For Availability
442
WASHER-PLAT GEN WH02X0811 Contact Us For Availability
443
SCREW-CAP GEN WH02X0812 Contact Us For Availability
444
DAMPING FIN & SUPT-14# GEN WH16X0361 Contact Us For Availability
445
BOLT-CARRIAGE GEN WH02X0798 Contact Us For Availability
446
WASHER-FLAT GEN WE02X0279 Contact Us For Availability
447
RETAINER-BOLT GEN WH02X0801 Contact Us For Availability
448
GEN WH01X1998 GEN WH01X1998 Contact Us For Availability
449
GEN WH02X0896 GEN WH02X0896 Contact Us For Availability
455
STRAP-COVER GEN WH01X1946 Contact Us For Availability
465
RING-"E" GEN WZ13X0024 Contact Us For Availability
476
RING-E GEN WZ13X0031 Contact Us For Availability
548
GEN WE17X0151 GEN WE17X0151 Contact Us For Availability
550
SCR 8-18 AB HWX 3/8 S GEN WE02X0281 Contact Us For Availability
551
GEN WH12X0417 GEN WH12X0417 Contact Us For Availability
554
GEN WB17X5054 GEN WB17X5054 Contact Us For Availability
555
GEN WB17X5053 GEN WB17X5053 Contact Us For Availability
556
GEN WH12X0497 GEN WH12X0497 Contact Us For Availability
557
GEN WH19X0225 GEN WH19X0225 Contact Us For Availability
559
HOUSING-TERMINAL GEN WH12X0538 Contact Us For Availability
560
GEN WH12X0603 GEN WH12X0603 Contact Us For Availability
561
ENVELOPE ASM-INSTALL GEN WH49X0136 Contact Us For Availability
600
GEN WH01X1621 GEN WH01X1621 Contact Us For Availability
601
COUPLING-FLEXIBLE GEN WH01X1722 Contact Us For Availability
602
SCREW TYPE A GEN WH02X0941 Contact Us For Availability
604
PLATE-LOWER DRIVE GEN WH07X0045 Contact Us For Availability
605
RING-RETAINER K GEN WH02X0190 Contact Us For Availability
606
PIN-ROLL GEN WZ11X0050 Contact Us For Availability
607
BEARING-BALL GEN WH04X0012 Contact Us For Availability
613
SPRING-CLUTCH LEAF GEN WH01X1309 Contact Us For Availability
614
WASHER-FLAT GEN WH02X0539 Contact Us For Availability
615
GEN WH07X0064 GEN WH07X0064 Contact Us For Availability
618
GEN WH40X0151 GEN WH40X0151 Contact Us For Availability
619
BOLT-U GEN WH02X0543 Contact Us For Availability
620
PLATE-CLAMP GEN WH01X1169 Contact Us For Availability
621
NUT & WASHER GEN WZ08X0006 Contact Us For Availability
629
GEN WH17X0074 GEN WH17X0074 Contact Us For Availability
630
GEN WH20X0061 GEN WH20X0061 Contact Us For Availability
638
DRUM-CLUTCH MACH GEN WH05X0174 Contact Us For Availability
639
GEN WH02X0581 GEN WH02X0581 Contact Us For Availability
650
GEN WH23X0042 GEN WH23X0042 Contact Us For Availability
651
SCREW-TYPE BT GEN WH02X0888 Contact Us For Availability
652
GASKET-PUMP GEN WH08X0286 Contact Us For Availability
653
SCREW-TYPE AB GEN WH02X0938 Contact Us For Availability
801
SCREW-TYPE B GEN WD02X5063 Contact Us For Availability
802
HOSE-VALVE GEN WH41X0099 Contact Us For Availability
803
GEN WH41X0132 GEN WH41X0132 Contact Us For Availability
804
HOSE-INLET GEN WH41X0170 Contact Us For Availability
806
GEN WH01X2077 GEN WH01X2077 Contact Us For Availability
809
NOZZLE-OVERFLOW GEN WH08X0253 Contact Us For Availability
811
HOSE-SWITCH GEN WH41X0128 Contact Us For Availability
812
REDUCER-HOSE GEN WH01X1584 Contact Us For Availability
813
PLUG-TUB GEN WH01X1980 Contact Us For Availability
814
ADAPTER-HOSE GEN WH41X0158 Contact Us For Availability
815
HOSE-DRAIN GEN WH41X0184 Contact Us For Availability
816
SUPPORT-DRAIN HOSE GEN WH16X0372 Contact Us For Availability
817
ADAPTER-HOSE GEN WH41X0157 Contact Us For Availability
818
NOZZLE K GEN WH41X0035 Contact Us For Availability
819
PLUG-TUB GEN WH01X1813 Contact Us For Availability
820
HANGER-CHAMBER HOSE GEN WH01X1812 Contact Us For Availability
821
HOSE-DRAIN INLET GEN WH41X0116 Contact Us For Availability
822
GROMMET-PUMP ELBOW GEN WH41X0118 Contact Us For Availability
823
ELBOW-PUMP GEN WH41X0139 Contact Us For Availability
824
HOSE-CHAMBER GEN WH41X0121 Contact Us For Availability
827
COUPLING-TUB HOSE GEN WH01X1966 Contact Us For Availability
828
HOSE-RECIRC GEN WH41X0144 Contact Us For Availability
829
HOSE-RECIRC INLET GEN WH41X0140 Contact Us For Availability
833
NOZZLE-RECIRC GEN WH41X0143 Contact Us For Availability
950
GEN WH01X1732 GEN WH01X1732 Contact Us For Availability
1001
GEN WH44X0901 GEN WH44X0901 Contact Us For Availability
1001
GEN WH44X0984 GEN WH44X0984 Contact Us For Availability
1001
GEN WH44X0985 GEN WH44X0985 Contact Us For Availability
1001
GEN WH44X0986 GEN WH44X0986 Contact Us For Availability
1001
COVER ASM FA GEN WH44X0987 Contact Us For Availability
1002
GEN WH46X0211 GEN WH46X0211 Contact Us For Availability
1002
GEN WH46X0212 GEN WH46X0212 Contact Us For Availability
1002
GEN WH46X0213 GEN WH46X0213 Contact Us For Availability
1002
GEN WH46X0214 GEN WH46X0214 Contact Us For Availability
1002
GEN WH46X0215 GEN WH46X0215 Contact Us For Availability
1003
GEN WH46X0172 GEN WH46X0172 Contact Us For Availability
1003
GEN WH46X0195 GEN WH46X0195 Contact Us For Availability
1003
GEN WH46X0196 GEN WH46X0196 Contact Us For Availability
1003
GEN WH46X0197 GEN WH46X0197 Contact Us For Availability
1003
APRON & ASM HA GEN WH46X0198 Contact Us For Availability
1004
GEN WH44X0525 GEN WH44X0525 Contact Us For Availability
1004
GEN WH44 GEN WH44 Contact Us For Availability
9999
GEN 49-9091 GEN 49-9091 Contact Us For Availability
9999
GEN 49-9363 GEN 49-9363 Contact Us For Availability
9999
GEN 49-9377 GEN 49-9377 Contact Us For Availability
× ![]()
